Chapter 13 Blood Vessels and Circulation 1 Copyright

Chapter 13 Blood Vessels and Circulation 1

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú Ú Blood Vessels A. The blood vessels (arteries, arterioles, capillaries, venules, and veins) form a closed tube that carries blood away from the heart, to the cells, and back again. Ú 2

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú B. Arteries and Arterioles Ú 1. Arteries are strong, elastic vessels adapted for carrying highpressure blood. Ú 2. Arteries become smaller as they divide and give rise to arterioles. Ú 3

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú 3. The wall of an artery consists of an endothelium(tunica interna) 4

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 5

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Capillaries 1. Capillaries are the smallest vessels, consisting only of a layer of endothelium through which substances are exchanged with tissue cells. 2. Capillary permeability varies from one tissue to the next, generally with more permeability in the liver, intestines, and certain glands, and less in muscle and considerably less in the brain (bloodbrain barrier). 6

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 3. The pattern of capillary density also varies from one body part to the next. a. Areas with a great deal of metabolic activity (leg muscles, for example) have higher densities of capillaries. 7

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 4. Precapillary sphincters can regulate the amount of blood entering a capillary bed and are controlled by oxygen concentration in the area. 5. If blood is needed elsewhere in the body, the capillary beds in less important areas are shut down. 8

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Exchanges in the Capillaries 1. Blood entering capillaries contains high concentrations of oxygen and nutrients that diffuse out of the capillary wall and into the tissues. 2. Plasma proteins remain in the blood due to their large size. 9

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú 2. passage molecules out Ú 3. Hydrostatic pressure drives the of the capillary at this point. At the venule end, osmosis, due 10

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú 4. Lymphatic vessels collect excess tissue fluid and return it to circulation. 11

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Venules and Veins 1. Venules leading from capillaries merge to form veins that return blood to the heart. 2. Veins have the same three layers as arteries have and have a flap-like valve inside to prevent backflow of blood. 12

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 3. Veins are thinner and less muscular than arteries; they do not carry high-pressure blood. 4. Veins also function as blood reservoirs. 13

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú Ú Blood Pressure A. Blood pressure is the force of blood 14

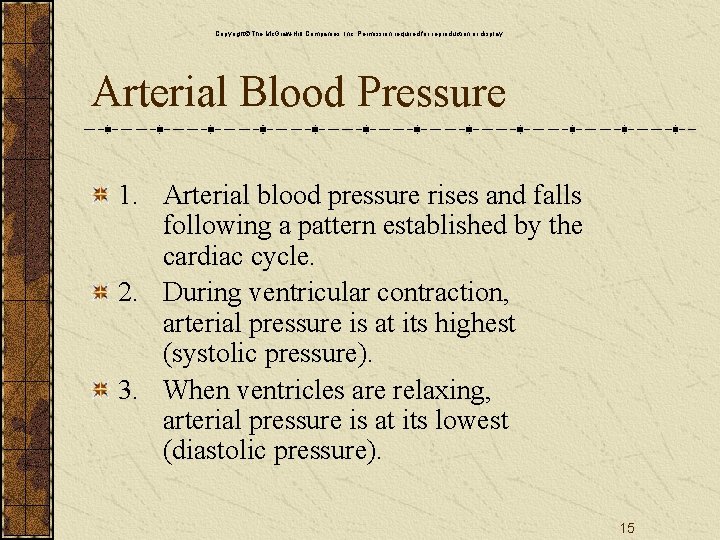

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Arterial Blood Pressure 1. Arterial blood pressure rises and falls following a pattern established by the cardiac cycle. 2. During ventricular contraction, arterial pressure is at its highest (systolic pressure). 3. When ventricles are relaxing, arterial pressure is at its lowest (diastolic pressure). 15

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 4. The surge of blood that occurs with ventricular contraction can be felt at certain points in the body as a pulse. 16

Factors that Influence Arterial Blood Pressure Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 1. Arterial pressure depends on heart action, blood volume, resistance to flow, and blood viscosity. 2. Heart Action: Heart action is dependent upon stroke volume and heart rate (together called cardiac output); if cardiac output increases, so does blood pressure. 17

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 3. Blood Volume: Blood pressure is normally directly proportional to the volume of blood within the cardiovascular system. Blood volume varies with age, body size, and gender. 18

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 4. Peripheral Resistance a. Friction between blood and the walls of blood vessels is a force called peripheral resistance. b. As peripheral resistance increases, such as during sympathetic constriction of blood vessels, blood pressure increases. 19

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 5. Blood Viscosity: The greater the viscosity (ease of flow) of blood, the greater its resistance to flowing, and the greater the blood pressure. 20

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Control of Blood Pressure 1. Blood pressure is determined by cardiac output and peripheral resistance. 2. The body maintains normal blood pressure by adjusting cardiac output and peripheral resistance. 21

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 3. Cardiac output depends on stroke volume and heart rate, and a number of factors can affect these actions. 4. . The volume of blood that enters the right atrium is normally equal to the volume leaving the left ventricle. 22

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 5. If arterial pressure increases, the cardiac center of the medulla oblongata sends parasympathetic impulses to slow heart rate. 6. If arterial pressure drops, the medulla oblongata sends sympathetic impulses to increase heart rate to adjust blood pressure. 23

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 7. Other factors, such as emotional upset, exercise, and a rise in temperature can result in increased cardiac output and increased blood pressure. 24

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 7. The vasomotor center of the medulla oblongata can adjust the sympathetic impulses to smooth muscles in arteriole walls, adjusting blood pressure. 8. Certain chemicals, such as carbon dioxide, oxygen, and hydrogen ions, can also affect peripheral resistance. 25

Hormones and Cardiovascular Regulation The endocrine system provides short-term regulation of cardiac output and peripheral resistance with epinephrine and norepinephrine from the adrenal medullae. Hormones involved in long-term regulation of blood pressure and volume are antidiuretic hormone (ADH) and angiotensin. II, erythropoietin(EPO) and atrial naturetic peptide(ANP) 26

ADH and angiotensin. II promote peripheral vasoconstriction. ADH and aldosterone promote water and electrolyte retention and stimulate thirst. EPO stimulates red blood cell production ANP encourages sodium loss, fluid loss , reduces blood pressure, inhibits thirst, and lowers peripheral resistance. 27

Exercise and the Cardiovascular System During exercise, blood flow to skeletal muscles increases at the expense of circulation to nonessential organs, and cardiac output rises. Cardiovascualr performance improves with training. Athletes have larger stroke volumes, slower resting heart rates, and greater cardiac reserves than do nonathlethes. 28

Cardiovascular Response to Hemorrhaging Blood loss causes an increase in cardiac output, mobilization of venous reserves, peripheral vasoconstriction and the liberation of hormones that promote fluid retention and the manufacture of red blood cells. 29

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Venous Blood Flow 1. Blood flow through the venous system is only partially the result of heart action and instead also depends on skeletal muscle contraction, breathing movements, and vasoconstriction of veins. 30

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 2. Contractions of skeletal muscle squeeze blood back up veins one valve and a time. 3. Differences in thoracic and abdominal pressures draw blood back up the veins. 31

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. 32

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Paths of Circulation 1. . The body's blood vessels can be divided into a pulmonary circuit, including vessels carrying blood to the lungs and back, and a systemic circuit made up of vessels carrying blood from the heart to the rest of the body and back. 33

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú B. Pulmonary Circuit Ú 1. The pulmonary circuit is made up from blood of convey that vessels the right ventricle to the pulmonary arteries to the lungs, alveolar capillaries, and pulmonary veins leading from the lungs to the left atrium. Ú 34

Copyright The Mc. Graw-Hill Companies, Inc. Permission required for reproduction or display. Ú C. Systemic Circuit 1. The systemic circuit includes the Ú and aorta body tissues system of veins the right atrium. returning blood to 35

Fetal Circulation The placenta receives blood from the two umbilical arteries. Blood returns to the fetus through the umbilical vein, which delivers blood to the ductus venosus in the liver. 36

Prior to delivery the blood bypasses the pulmonary circuit by flowing 1. From the right atrium into the left atrium through the foramen ovale. 2. From the pulmonary trunk into the aoritc arch via the ductus arteriosus. 37

Aging and the Cardiovascular System Age-related changes in the blood can include Decreased hematocrit Constriction or blockage of peripheral veins by a thrombus Pooling of blood in the vein of the legs because the valves are not working effectively. 38

Age-related changes in the heart include A reduction in the maximum cardiac output Changes in the activities of the nodal and conducting cells A reduction in the elasticity of the fibrous skeleton Progressive atherosclerosis that can restrict coronary circulation The replacement of damaged heart tissue with scar tissue 39

Age-related changes in blood vessels, often related to arteriosclerosis include A reduced tolerance of inelastic walls to arteries to sudden pressure increases which can lead to an aneurysm The deposition of calcium salts on weakened vascular walls increasing the risk of a stroke or infarct. The formation of thrombi at atherosclerotic plaques. 40
