Chapter 12 The Normal Probability Model Copyright 2011

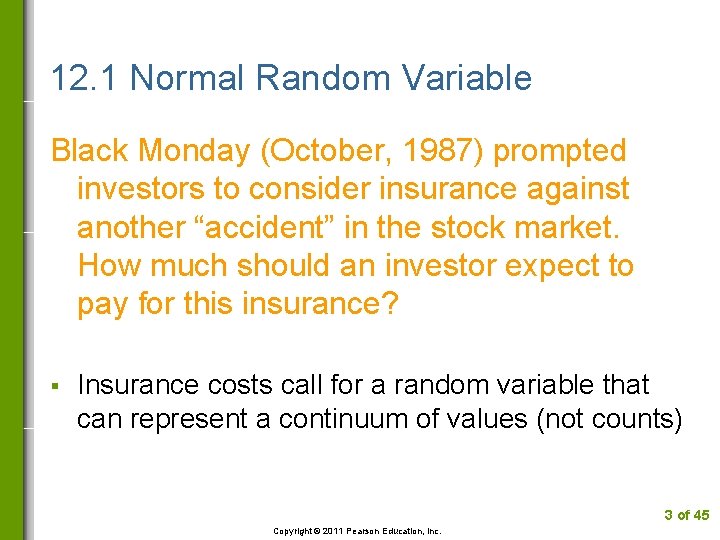

12. 1 Normal Random Variable Black Monday (October, 1987) prompted investors to consider insurance against another “accident” in the stock market. How much should an investor expect to pay for this insurance? § Insurance costs call for a random variable that can represent a continuum of values (not counts) 3 of 45 Copyright © 2011 Pearson Education, Inc.

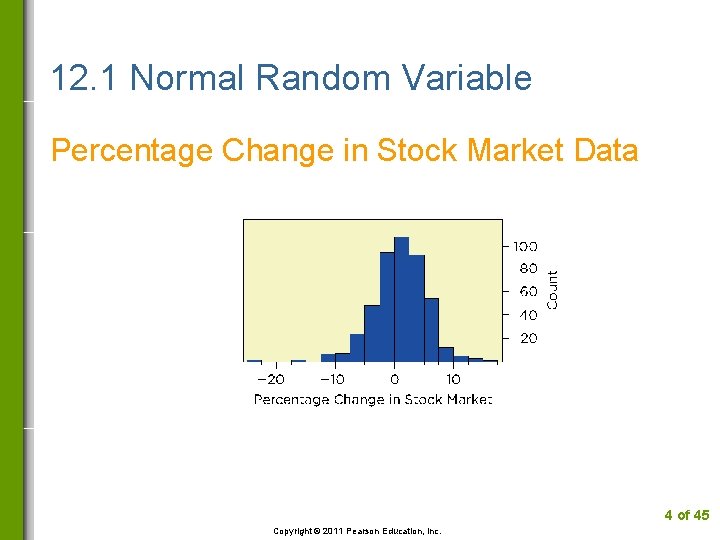

12. 1 Normal Random Variable Percentage Change in Stock Market Data 4 of 45

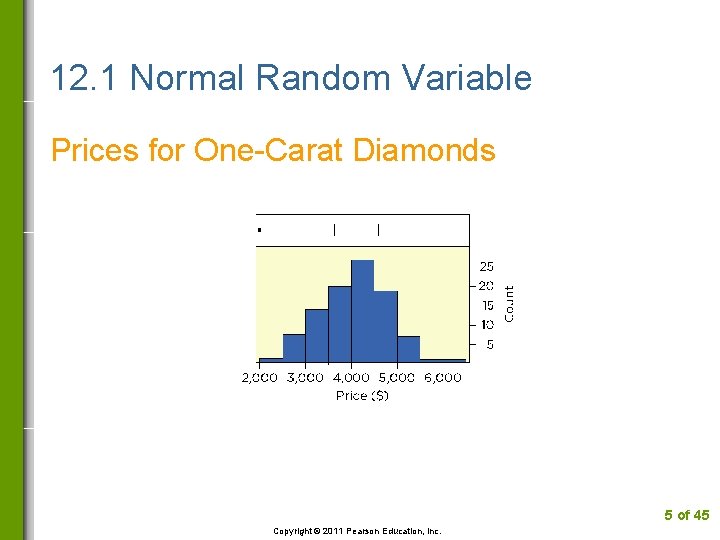

12. 1 Normal Random Variable Prices for One-Carat Diamonds 5 of 45 Copyright ©

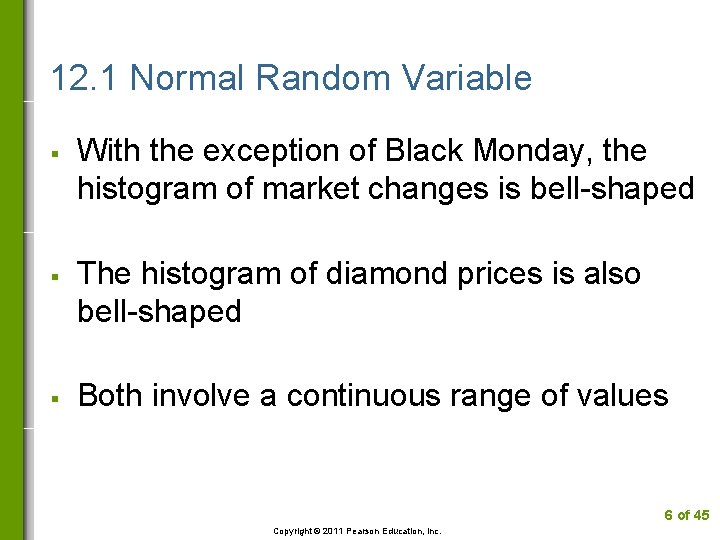

12. 1 Normal Random Variable § § § With the exception of Black Monday, the histogram of market changes is bell-shaped The histogram of diamond prices is also bell-shaped Both involve a continuous range of values 6 of 45 Copyright © 2011 Pearson Education, Inc.

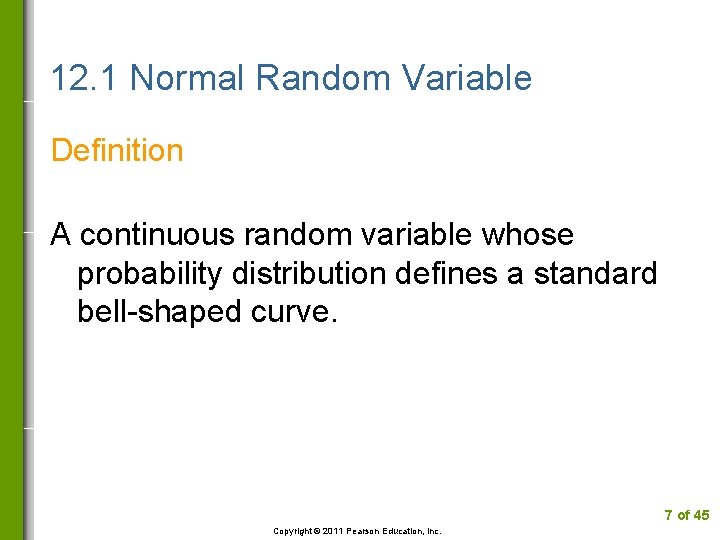

12. 1 Normal Random Variable Definition A continuous random variable whose probability distribution defines

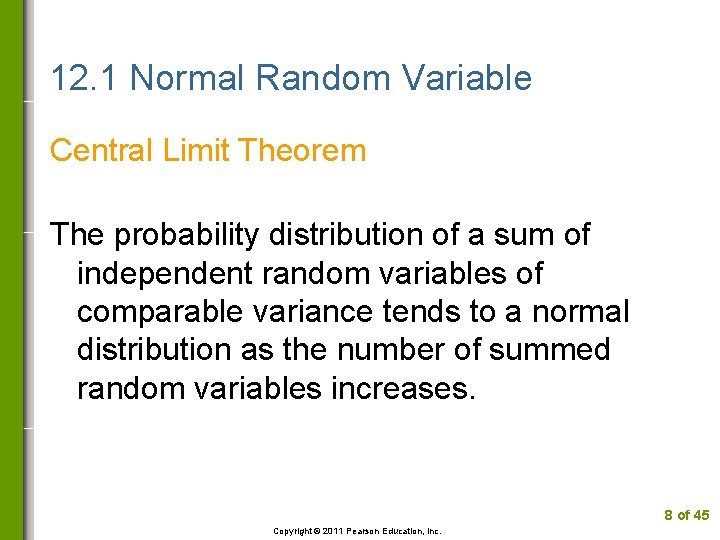

12. 1 Normal Random Variable Central Limit Theorem The probability distribution of a sum of independent random variables of comparable variance tends to a normal distribution as the number of summed random variables increases. 8 of 45 Copyright © 2011 Pearson Education, Inc.

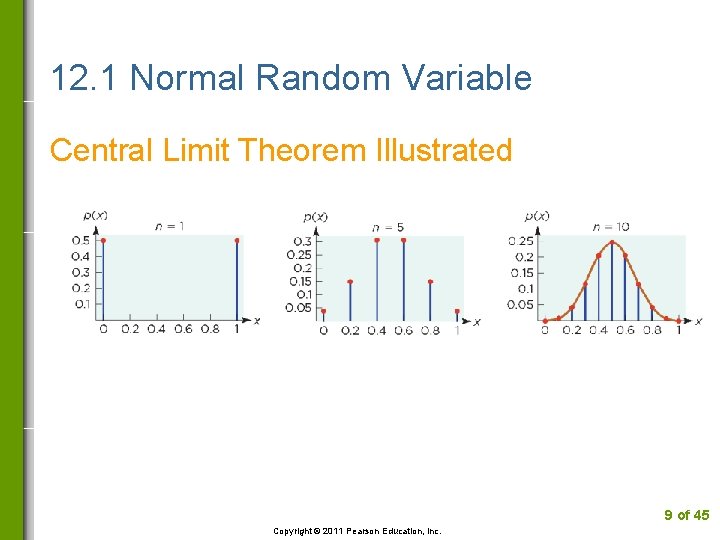

12. 1 Normal Random Variable Central Limit Theorem Illustrated 9 of 45 Copyright ©

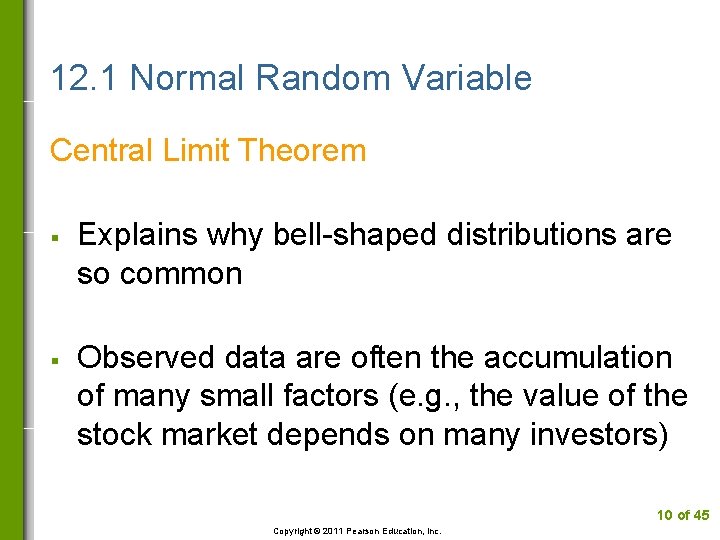

12. 1 Normal Random Variable Central Limit Theorem § § Explains why bell-shaped distributions are so common Observed data are often the accumulation of many small factors (e. g. , the value of the stock market depends on many investors) 10 of 45 Copyright © 2011 Pearson Education, Inc.

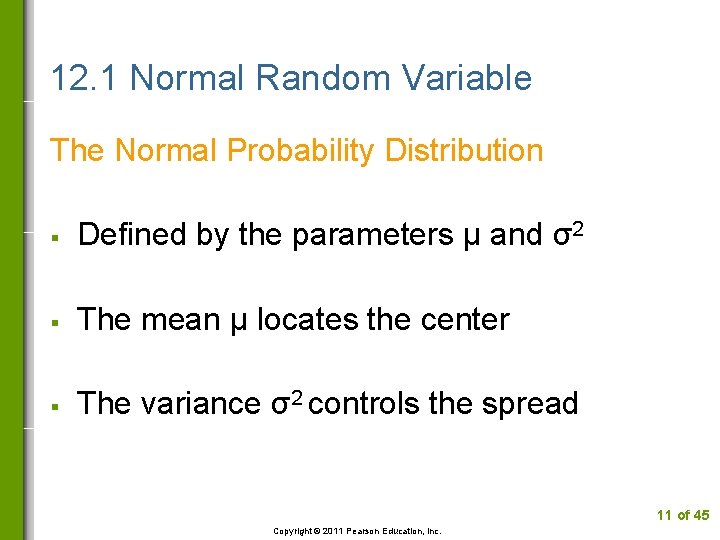

12. 1 Normal Random Variable The Normal Probability Distribution § Defined by the parameters µ and σ2 § The mean µ locates the center § The variance σ2 controls the spread 11 of 45 Copyright © 2011 Pearson Education, Inc.

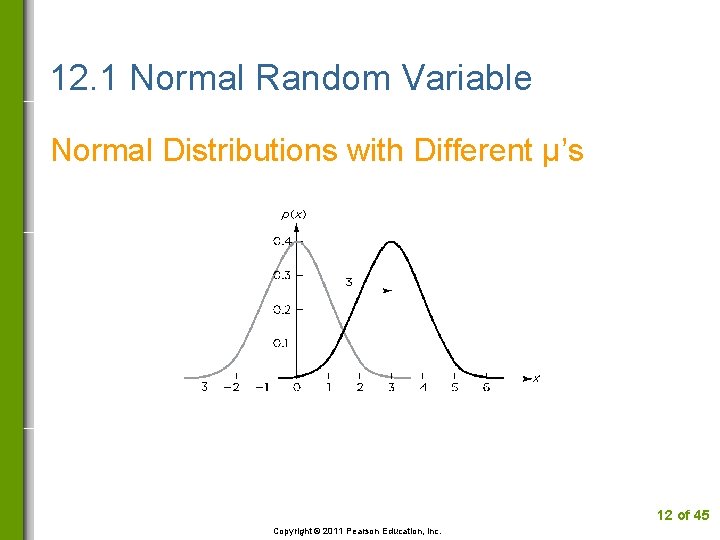

12. 1 Normal Random Variable Normal Distributions with Different µ’s 12 of 45 Copyright

12. 1 Normal Random Variable Normal Distributions with Different σ’s 13 of 45 Copyright

12. 1 Normal Random Variable Standard Normal Distribution (µ = 0; σ2 = 1)

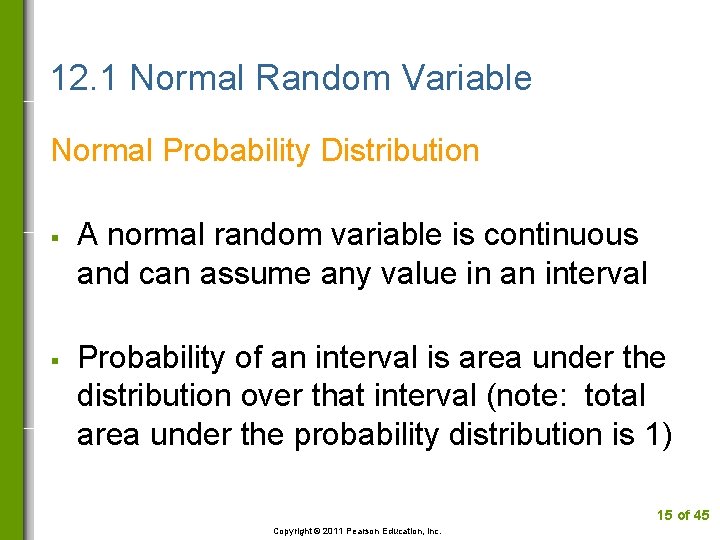

12. 1 Normal Random Variable Normal Probability Distribution § § A normal random variable is continuous and can assume any value in an interval Probability of an interval is area under the distribution over that interval (note: total area under the probability distribution is 1) 15 of 45 Copyright © 2011 Pearson Education, Inc.

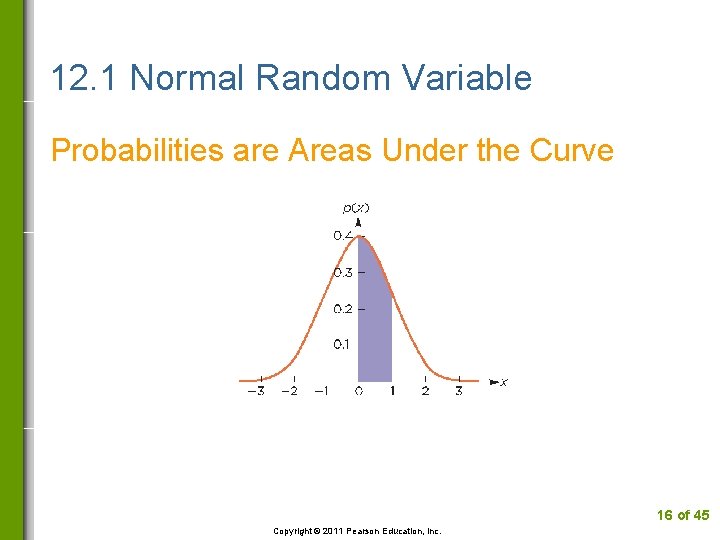

12. 1 Normal Random Variable Probabilities are Areas Under the Curve 16 of 45

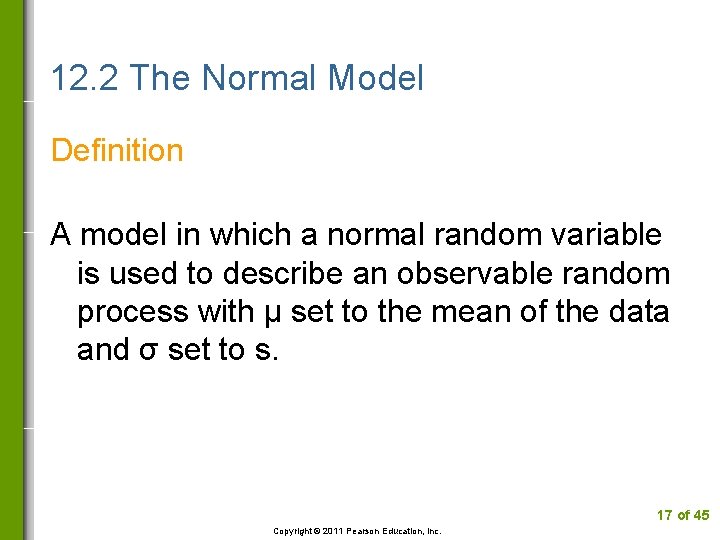

12. 2 The Normal Model Definition A model in which a normal random variable is used to describe an observable random process with µ set to the mean of the data and σ set to s. 17 of 45 Copyright © 2011 Pearson Education, Inc.

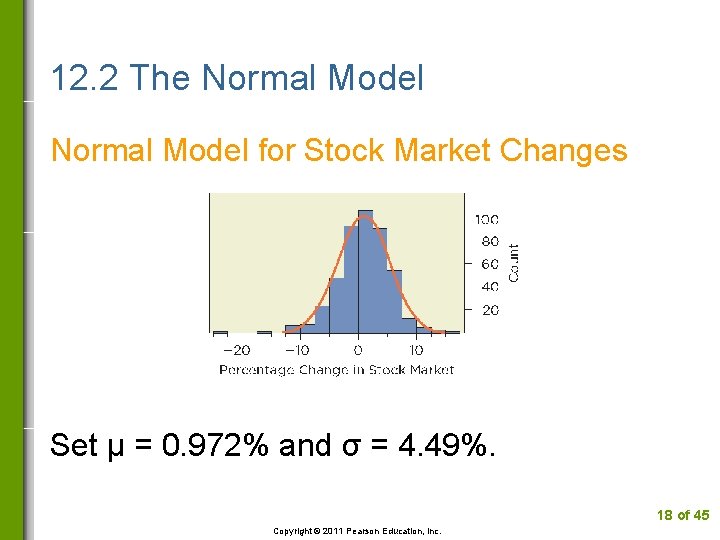

12. 2 The Normal Model for Stock Market Changes Set µ = 0. 972%

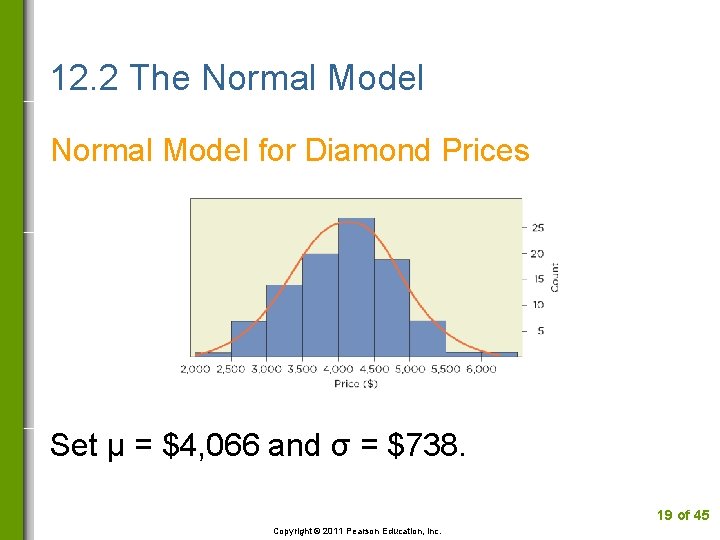

12. 2 The Normal Model for Diamond Prices Set µ = $4, 066 and

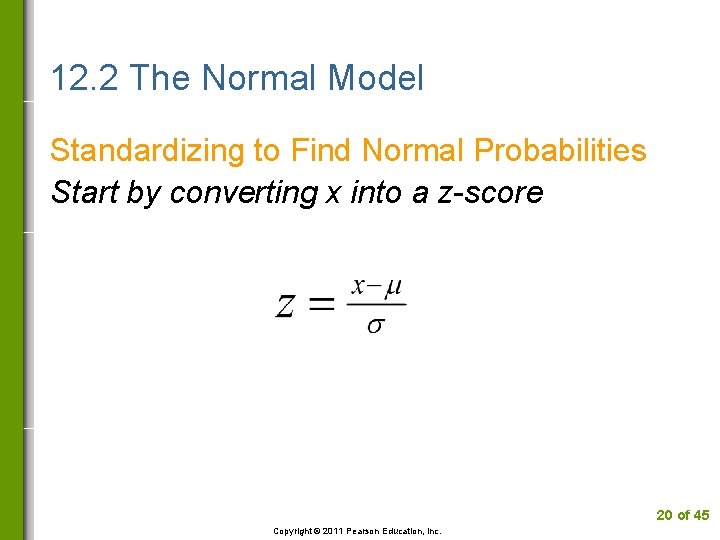

12. 2 The Normal Model Standardizing to Find Normal Probabilities Start by converting x

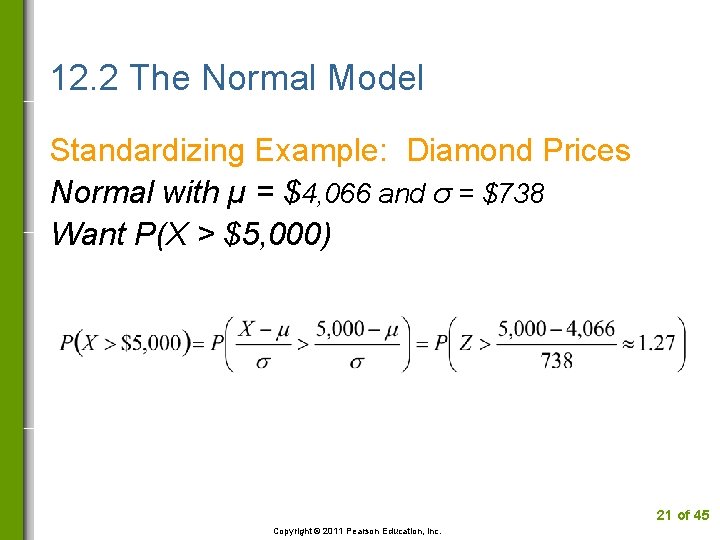

12. 2 The Normal Model Standardizing Example: Diamond Prices Normal with µ = $4,

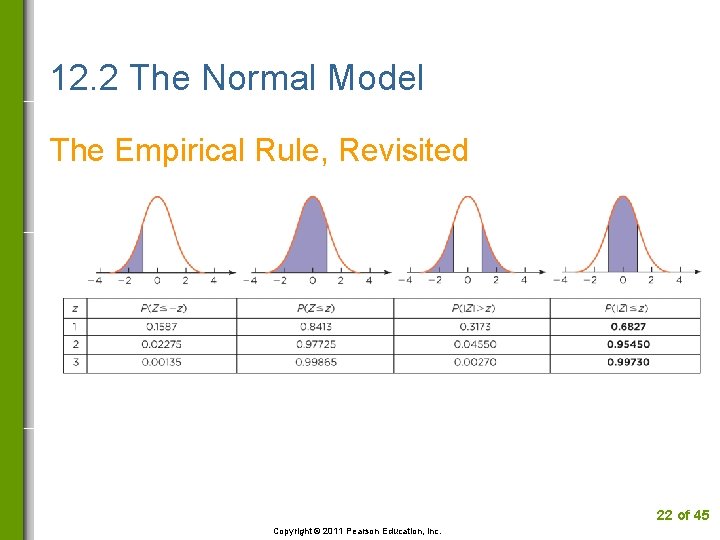

12. 2 The Normal Model The Empirical Rule, Revisited 22 of 45 Copyright ©

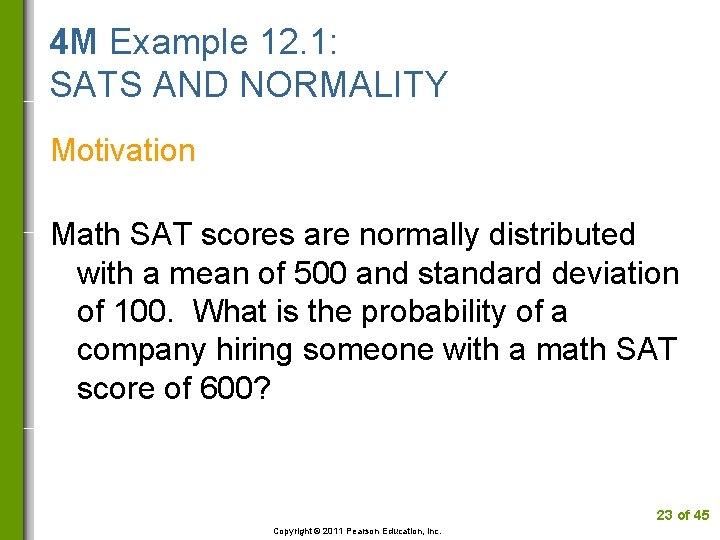

4 M Example 12. 1: SATS AND NORMALITY Motivation Math SAT scores are normally distributed with a mean of 500 and standard deviation of 100. What is the probability of a company hiring someone with a math SAT score of 600? 23 of 45 Copyright © 2011 Pearson Education, Inc.

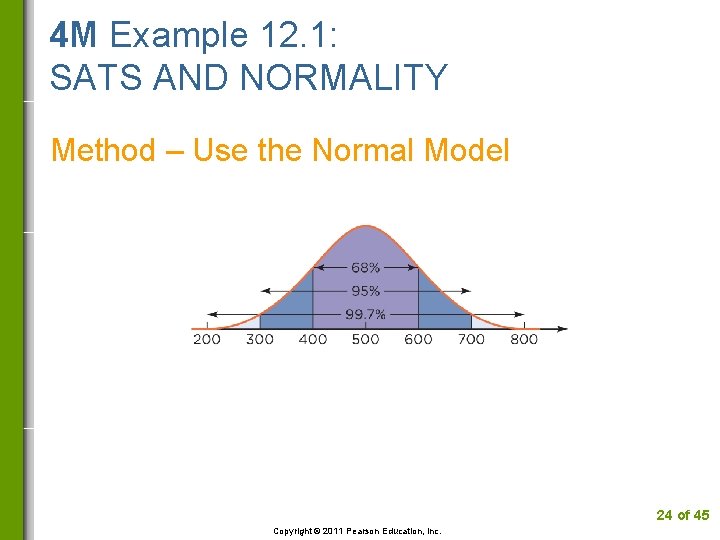

4 M Example 12. 1: SATS AND NORMALITY Method – Use the Normal Model

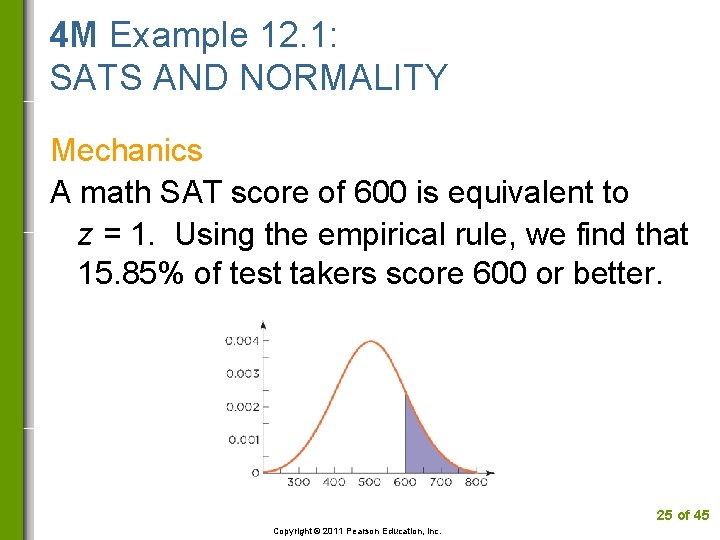

4 M Example 12. 1: SATS AND NORMALITY Mechanics A math SAT score of 600 is equivalent to z = 1. Using the empirical rule, we find that 15. 85% of test takers score 600 or better. 25 of 45 Copyright © 2011 Pearson Education, Inc.

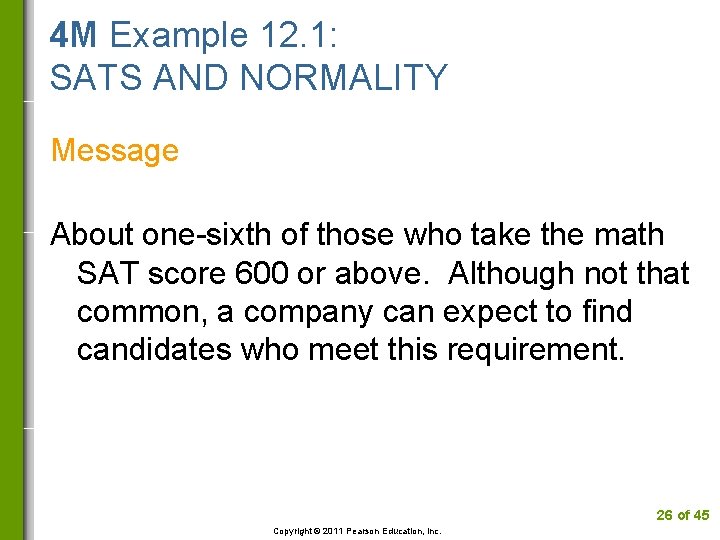

4 M Example 12. 1: SATS AND NORMALITY Message About one-sixth of those who take the math SAT score 600 or above. Although not that common, a company can expect to find candidates who meet this requirement. 26 of 45 Copyright © 2011 Pearson Education, Inc.

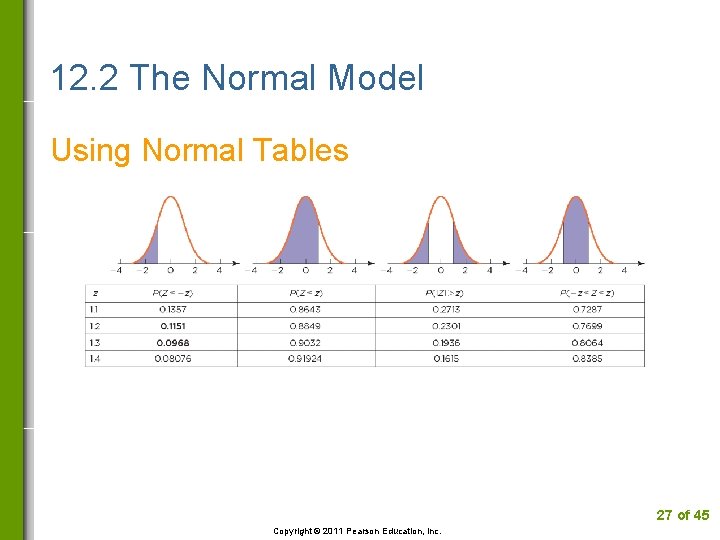

12. 2 The Normal Model Using Normal Tables 27 of 45 Copyright © 2011

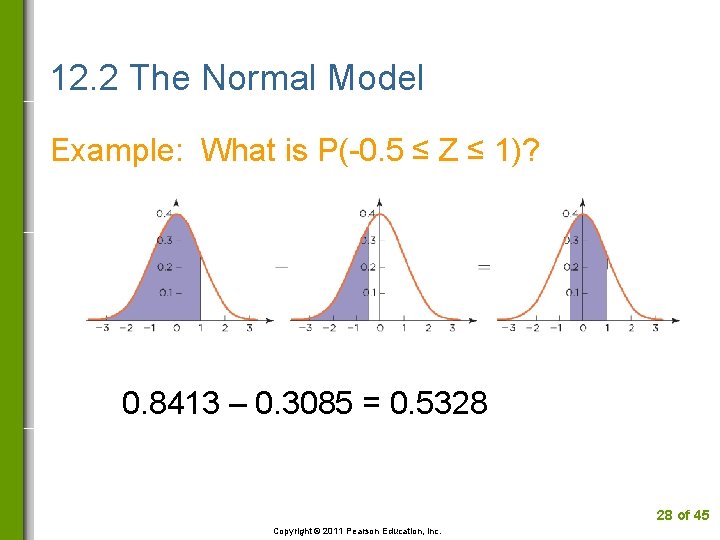

12. 2 The Normal Model Example: What is P(-0. 5 ≤ Z ≤ 1)?

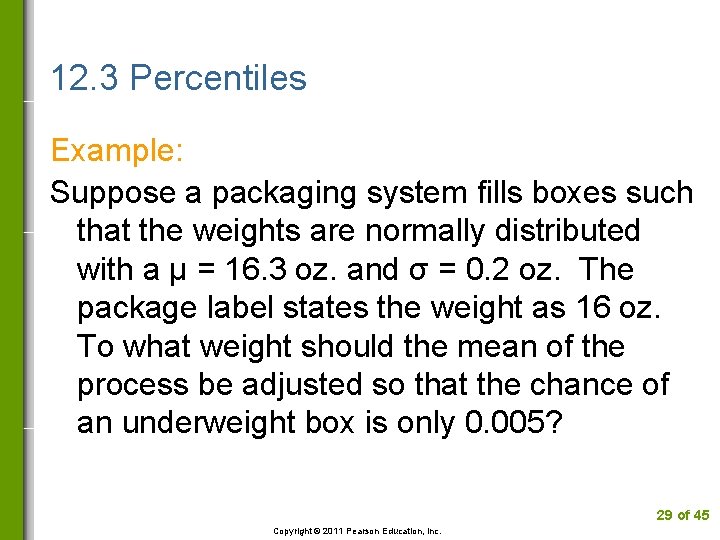

12. 3 Percentiles Example: Suppose a packaging system fills boxes such that the weights are normally distributed with a µ = 16. 3 oz. and σ = 0. 2 oz. The package label states the weight as 16 oz. To what weight should the mean of the process be adjusted so that the chance of an underweight box is only 0. 005? 29 of 45 Copyright © 2011 Pearson Education, Inc.

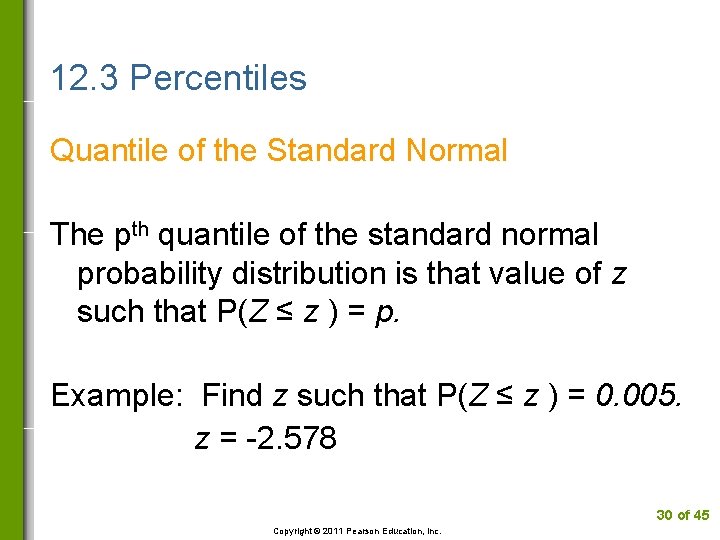

12. 3 Percentiles Quantile of the Standard Normal The pth quantile of the standard normal probability distribution is that value of z such that P(Z ≤ z ) = p. Example: Find z such that P(Z ≤ z ) = 0. 005. z = -2. 578 30 of 45 Copyright © 2011 Pearson Education, Inc.

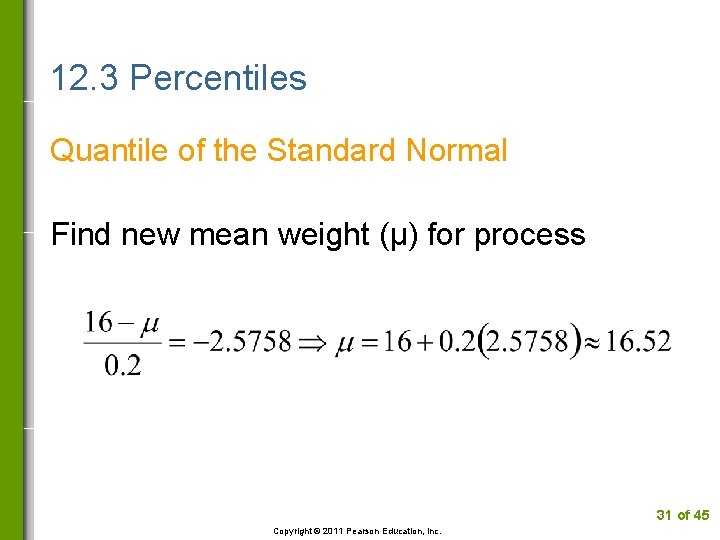

12. 3 Percentiles Quantile of the Standard Normal Find new mean weight (µ) for

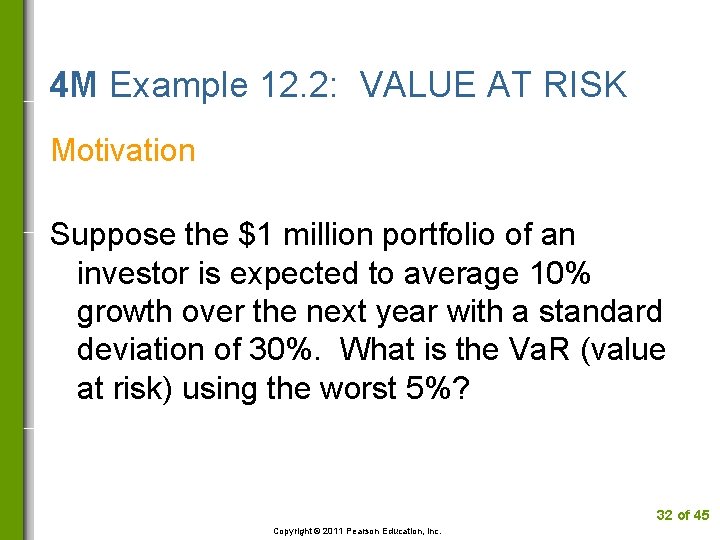

4 M Example 12. 2: VALUE AT RISK Motivation Suppose the $1 million portfolio of an investor is expected to average 10% growth over the next year with a standard deviation of 30%. What is the Va. R (value at risk) using the worst 5%? 32 of 45 Copyright © 2011 Pearson Education, Inc.

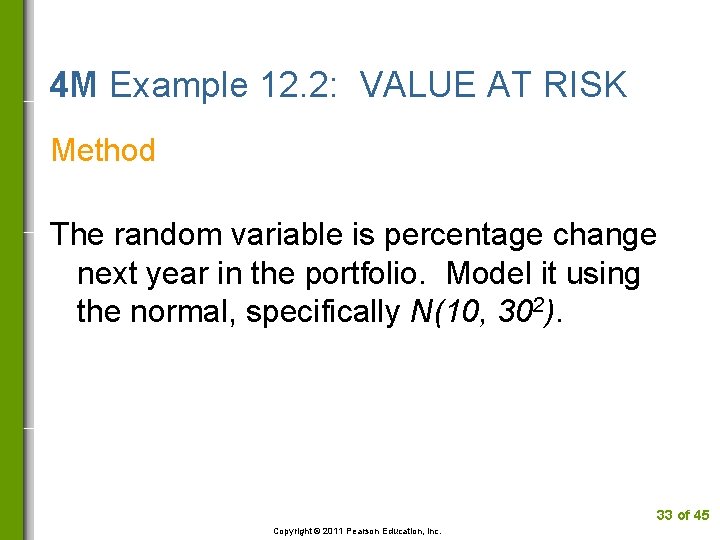

4 M Example 12. 2: VALUE AT RISK Method The random variable is percentage change next year in the portfolio. Model it using the normal, specifically N(10, 302). 33 of 45 Copyright © 2011 Pearson Education, Inc.

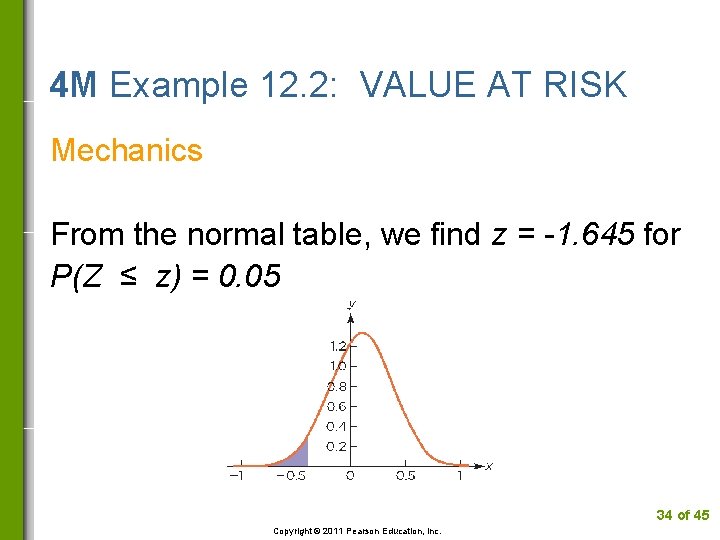

4 M Example 12. 2: VALUE AT RISK Mechanics From the normal table, we

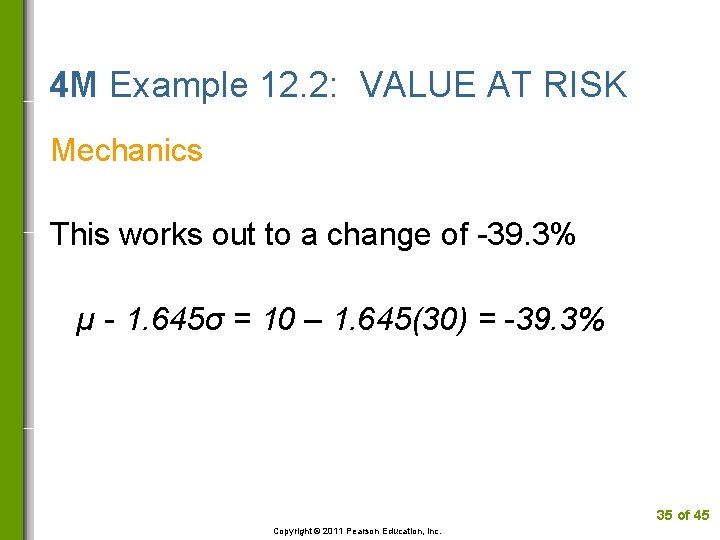

4 M Example 12. 2: VALUE AT RISK Mechanics This works out to a

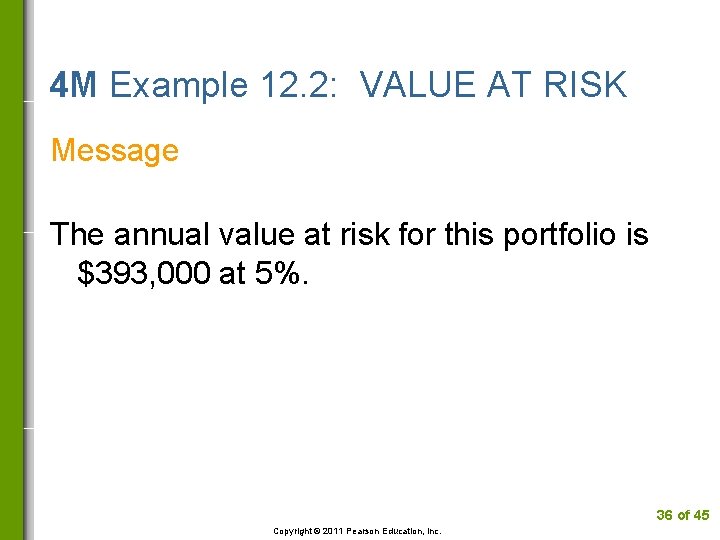

4 M Example 12. 2: VALUE AT RISK Message The annual value at risk

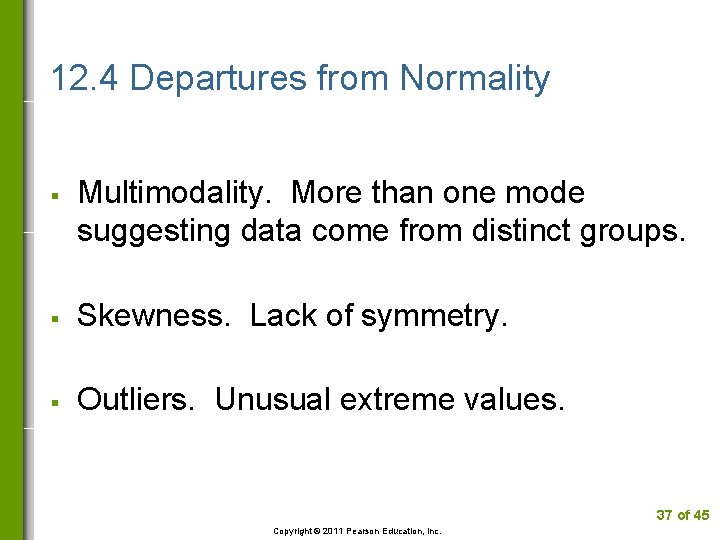

12. 4 Departures from Normality § Multimodality. More than one mode suggesting data come from distinct groups. § Skewness. Lack of symmetry. § Outliers. Unusual extreme values. 37 of 45 Copyright © 2011 Pearson Education, Inc.

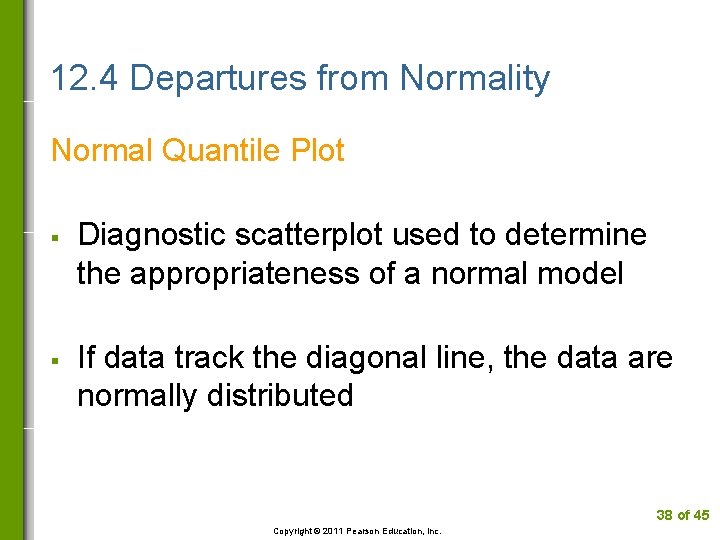

12. 4 Departures from Normality Normal Quantile Plot § § Diagnostic scatterplot used to determine the appropriateness of a normal model If data track the diagonal line, the data are normally distributed 38 of 45 Copyright © 2011 Pearson Education, Inc.

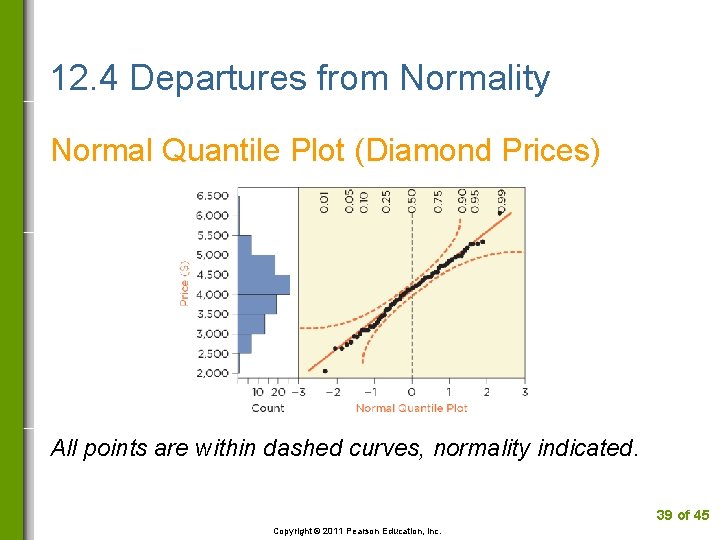

12. 4 Departures from Normality Normal Quantile Plot (Diamond Prices) All points are within

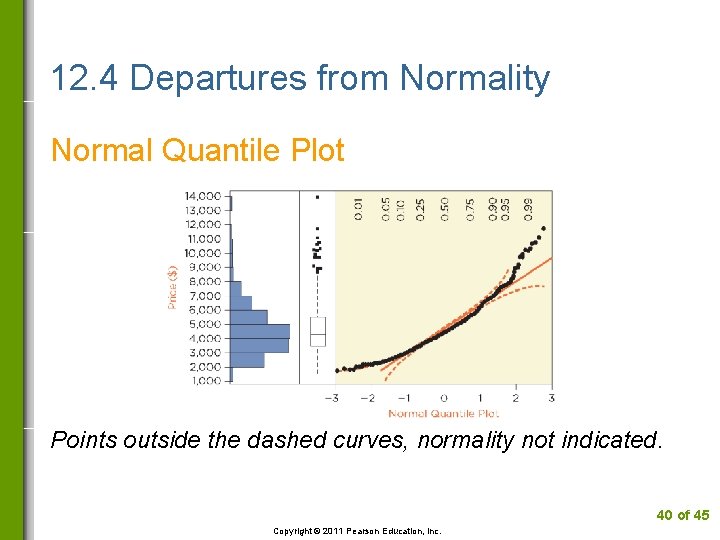

12. 4 Departures from Normality Normal Quantile Plot Points outside the dashed curves, normality

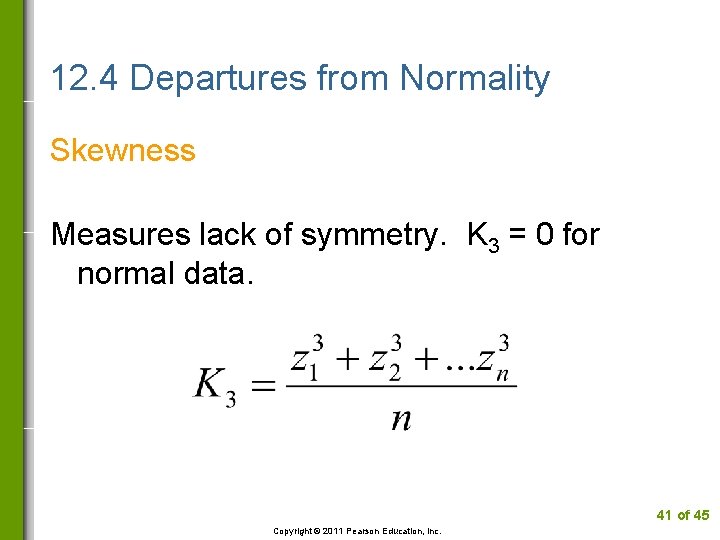

12. 4 Departures from Normality Skewness Measures lack of symmetry. K 3 = 0

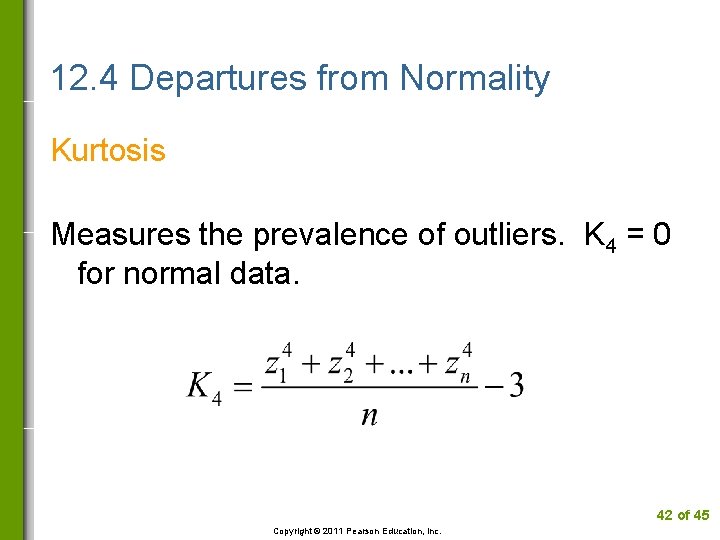

12. 4 Departures from Normality Kurtosis Measures the prevalence of outliers. K 4 =

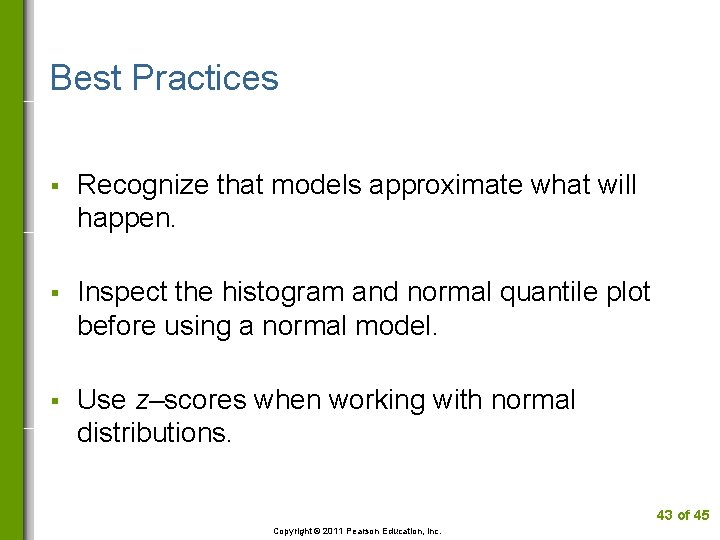

Best Practices § Recognize that models approximate what will happen. § Inspect the histogram and normal quantile plot before using a normal model. § Use z–scores when working with normal distributions. 43 of 45 Copyright © 2011 Pearson Education, Inc.

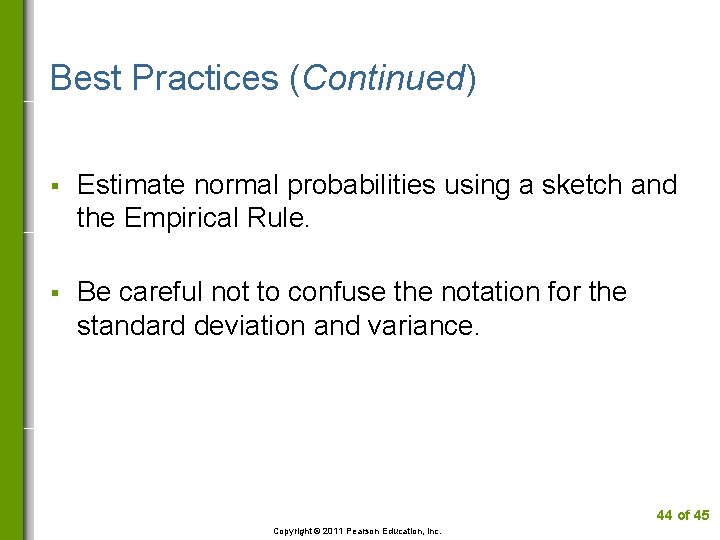

Best Practices (Continued) § Estimate normal probabilities using a sketch and the Empirical Rule. § Be careful not to confuse the notation for the standard deviation and variance. 44 of 45 Copyright © 2011 Pearson Education, Inc.

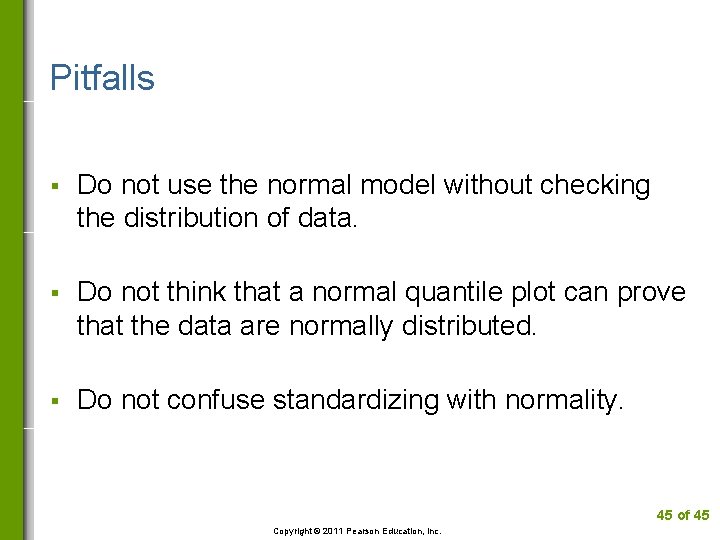

Pitfalls § Do not use the normal model without checking the distribution of data. § Do not think that a normal quantile plot can prove that the data are normally distributed. § Do not confuse standardizing with normality. 45 of 45 Copyright © 2011 Pearson Education, Inc.
