Chapter 12 Static Equilibrium and Elasticity Reading assignment

Chapter 12: (Static) Equilibrium and Elasticity Reading assignment: Chapter 13. 1 -13. 3 Homework : (due Wednesday, Oct. 26, 2005): Problems: 4, 10, 24, 31, 35, 42 • Objects in static equilibrium don’t move. • Of special interest to civil and mechanical engineers and architects. • We’ll also learn about elastic (reversible) deformations. • Plastic deformations are irreversible (like play dough)

Conditions for static equilibrium Objects in static equilibrium don’t ______ or _______.

Conditions for static equilibrium (For ______ objects) 1. The net force acting on the particle must be _____. 2. The net torque about any axis acting on the particle must be ______. 3. The _______ and _______ speeds must be zero.

Conditions for static equilibrium (For extended objects) Is this object in static equilibrium? A force couple is acting on an object. A ___________ is a pair of forces of equal magnitude and opposite direction along parallel lines of action

It matters at which point the force is applied!! If equal and opposite forces are applied at _________ points object is not in equilibrium, since there is a net torque. If equal and opposite forces are applied at the same ______ or along the same ________ object is in equilibrium

Conditions for static equilibrium (For extended objects) 1. The net force acting on the particle must be zero. 2. The net torque about any axis acting on the particle must be zero. 3. The angular and linear speeds must be zero. We restrict ourselves to forces in the x-y plane. Thus:

How do we treat the _______ force? Center of gravity Consider an extended object. - The gravitational force ___ always acts on the center of gravity! - The center of gravity is equal to the center of _______(Ch. 9. 2).

Examples of rigid objects in static equilibrium We will only consider objects that are ________ and in a ____________ gravitational field.

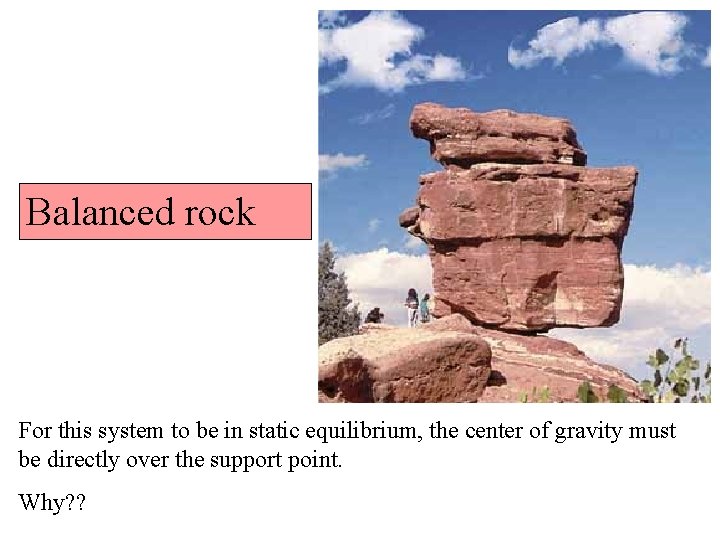

Balanced rock For this system to be in static equilibrium, the center of gravity must be directly over the support point. Why? ?

Problem-solving hints: Objects in static equilibrium 1. Draw a __________ diagram. - Show and label all the _______ forces acting on the object. - Indicate ______ the forces are applied. 2. Establish a convenient _______ system forces. Then apply condition 1: Net force must equal _____. 3. Establish a convenient ______ system for torque. Then apply condition 2: Net torque must equal _______.

Black board example 12. 1 A uniform 40. 0 N board supports a father (800 N) and daughter (350 N) as shown. The support is under the center of gravity of the board and the father is 1. 00 m from the center. (a) Determine the magnitude of the upward force n exerted on the board by the support. (b) Determine where the child should sit to balance the system.

Black board example 12. 2 HW 9 A diver of weight 580 N stands at the end of a 4. 5 m diving board of negligible mass (see Fig). The board is attached to two pedestals 1. 5 m apart. (a) Draw a free body diagram. (b) What are the magnitude and direction of the force on the board from left pedestal? (c) What are the magnitude and direction of the force on the board from right pedestal? (d) Which pedestal is being stretched and which is compressed?

Elastic properties of solids We will consider three types of deformations and define an elastic modulus for each. 1. Change in length. ________ MODULUS measures the resistance of a solid to a change in its length. 2. Shearing. _______ MODULUS measures the resistance to shearing. 3. Change in volume. ________ MODULUS measures the resistance to changes in volume.

Elastic properties of solids Definitions of stress and strain. Stress: _____ per unit cross sectional area. Strain: Measure of the degree of ______.

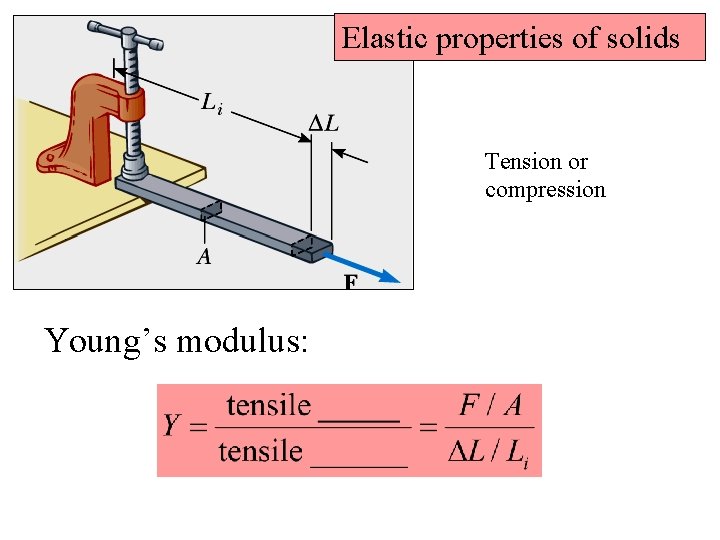

Elastic properties of solids Tension or compression Young’s modulus:

Stress-strain curve

Elastic properties of solids Shear modulus:

Elastic properties of solids Hydraulic _______ or stress Bulk modulus: P… pressure

Black board example 12. 4 A 200 kg load is hung on a wire with a length of 4. 00 m, a cross-sectional area of 2. 00· 10 -5 m and a Youngs modulus of 8. 00· 1010 N/m 2. What is its increase in length (Assume elastic deformation)?
