Chapter 12 Multicasting Multicast Http netwk hannam ac
- Slides: 76
Chapter 12 Multicasting 과 Multicast 라우팅 프로토 콜 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 1
Chapter Outline 12. 1 Introduction 12. 2 Multicast Addresses 12. 3 IGMP 12. 4 Multicast Routing 12. 5 Routing Protocols 12. 6 MBONE Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 4
Topics Discussed in the Section ü Unicasting ü Multicasting ü Broadcasting Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 6
유니캐스팅(Unicasting) <하나의 송신지와 하나의 목적지간 통신 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 7

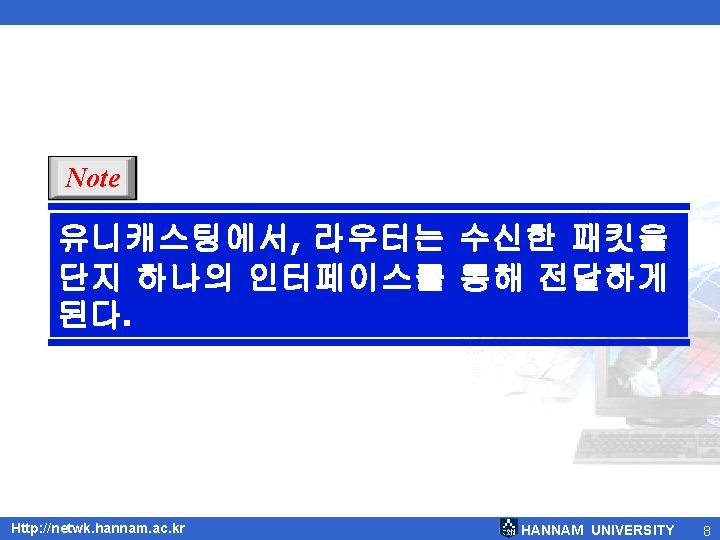

멀티캐스팅(Multicasting) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 9
멀티캐스팅과 다중 유니캐스팅 비교 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 11

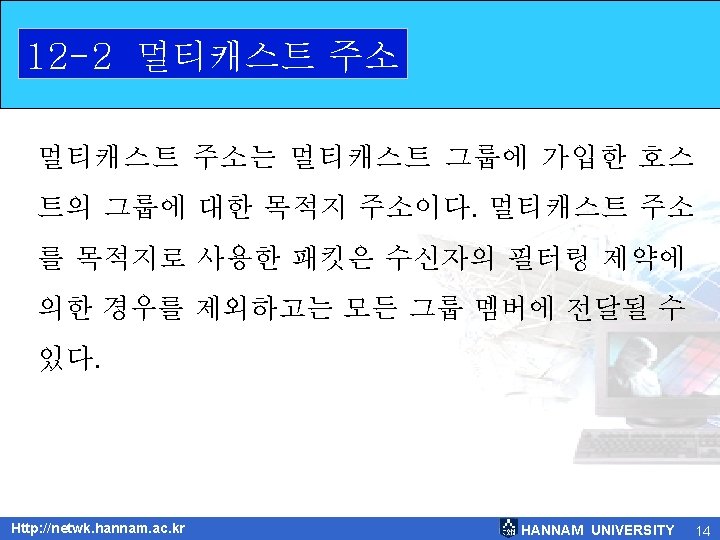

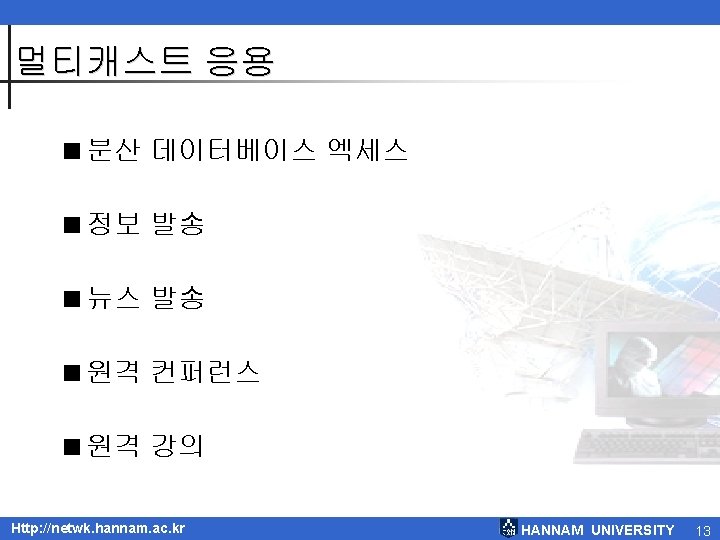

Topics Discussed in the Section ü Multicast Addresses in IPv 4 ü Selecting Multicast Addresses ü Delivery of Multicast Packets at Data Link Layer Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 15

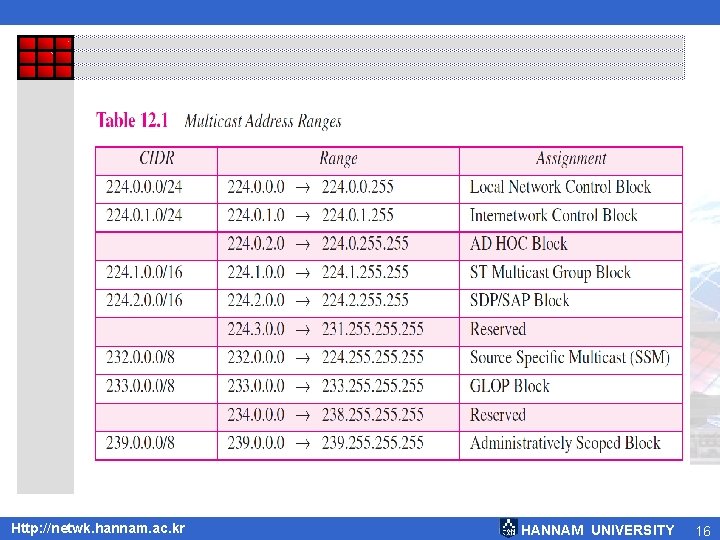

Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 16
Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 17

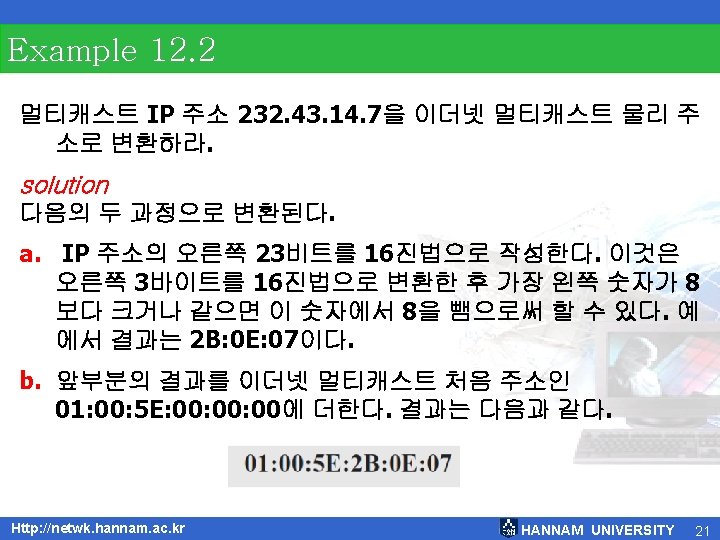

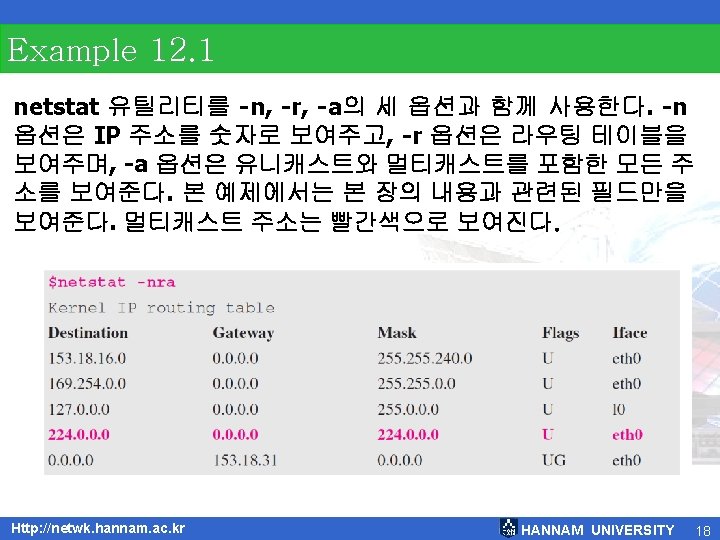

Figure 12. 4 Mapping class D to Ethernet physical address Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 19

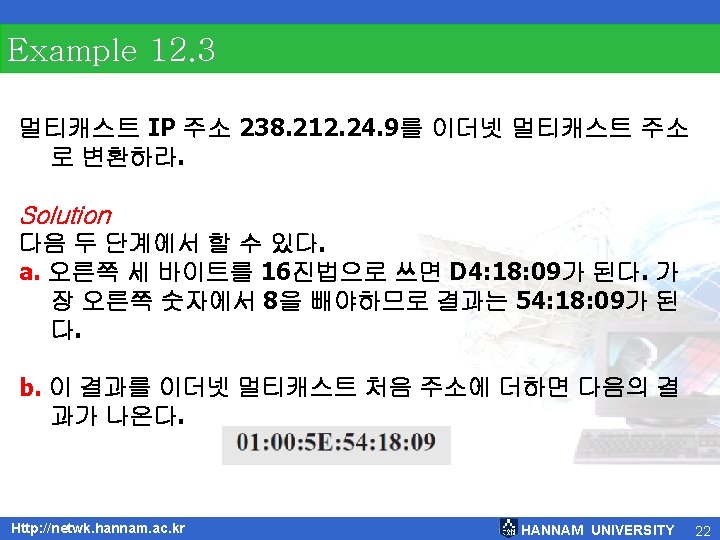

Note 이더넷 멀티캐스트 물리 주소의 범위는 다 음과 같다. 01: 00: 5 E: 00: 00에서 01: 00: 5 E: 7 F: FF 까지 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 20
터널링(Tunneling) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 23

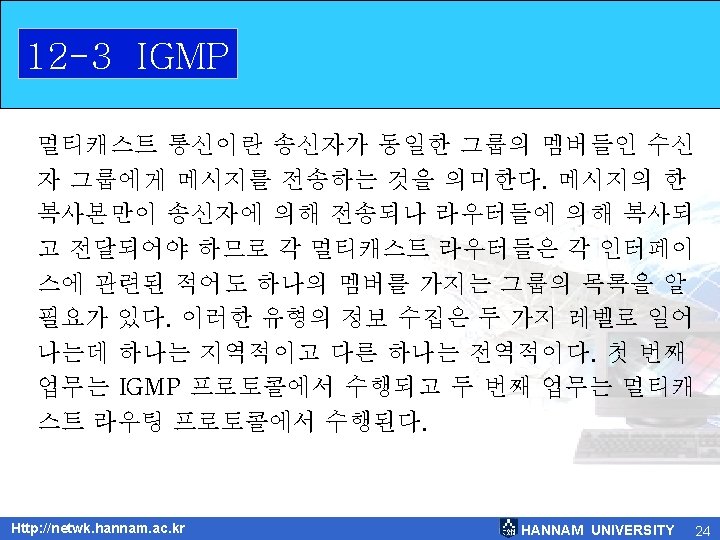

Topics Discussed in the Section ü Group Management ü IGMP Messages ü IGMP Protocol Applied to host ü IGMP Protocol Applied to Router ü Role of IGMP in Forwarding ü Variables and Timers ü Encapsulation ü Compatibility with other Versions Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 25
네트워크 계층에서 IGMP 위치 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 26

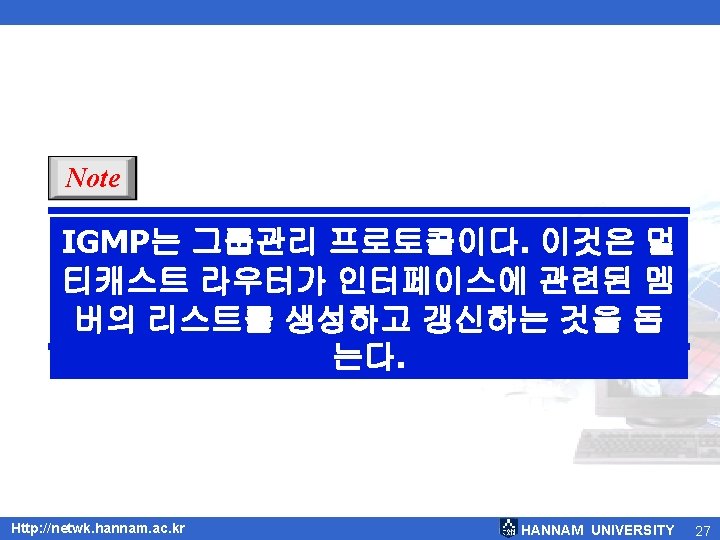

IGMP 메시지 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 28
멤버쉽 질의(Membership query) 메시지 형 식 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 29
질의(query) 메시지 형식 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 30

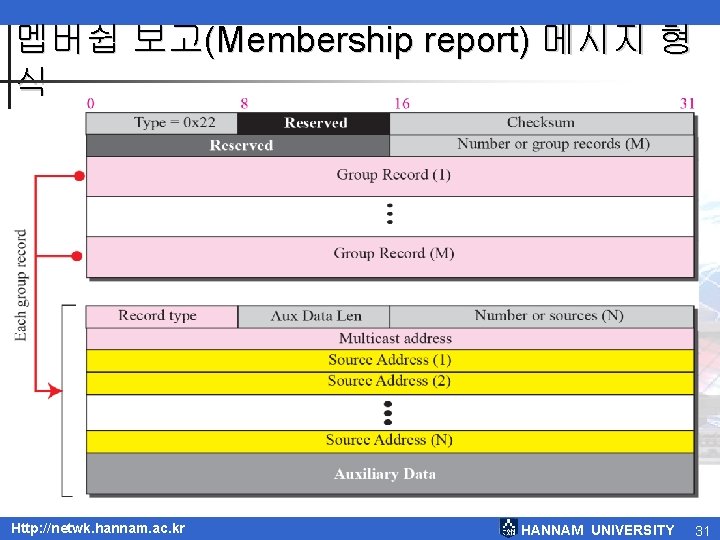

멥버쉽 보고(Membership report) 메시지 형 식 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 31
Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 32

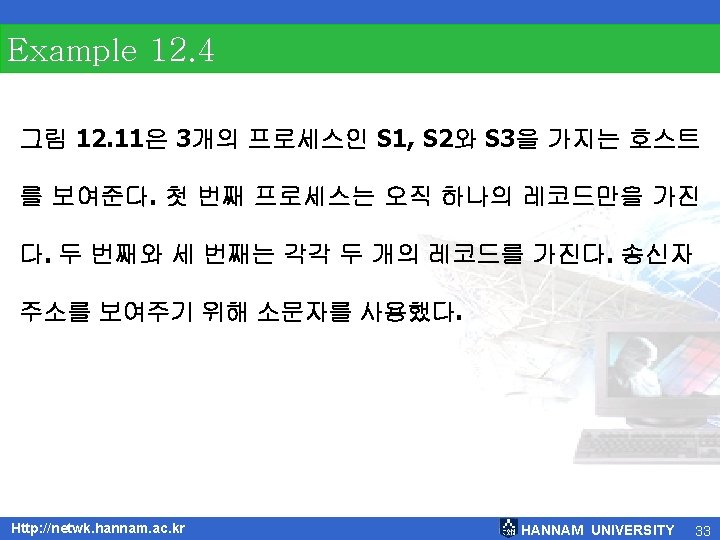

소켓 상태(Socket state) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 34

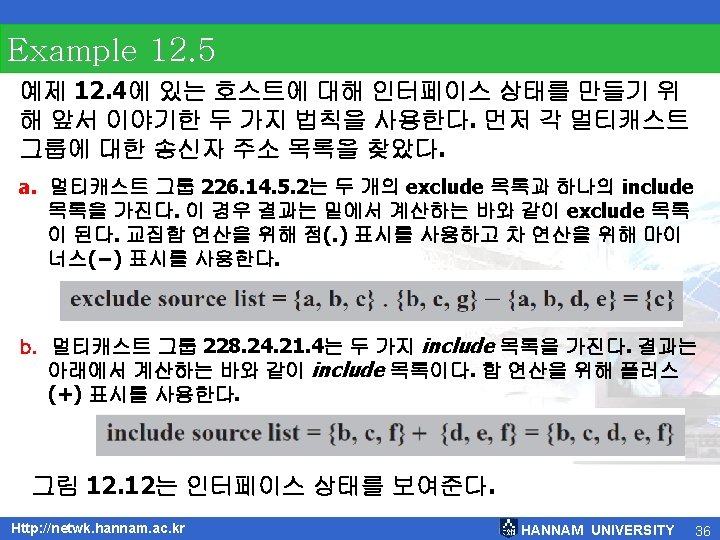

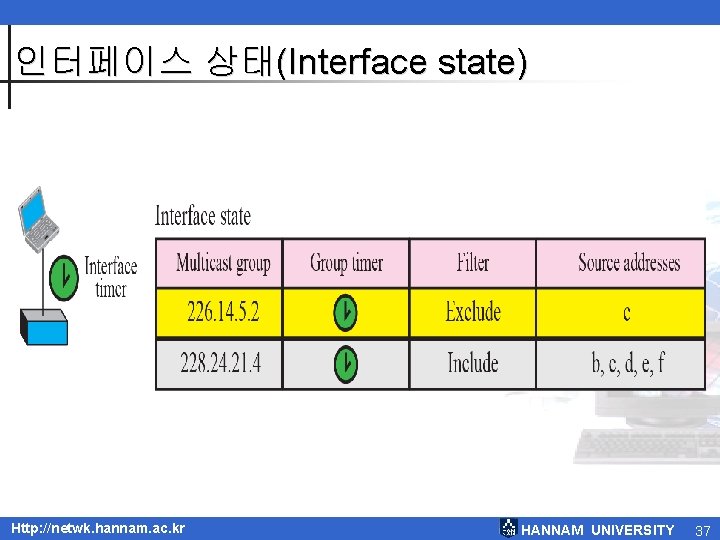

인터페이스 상태(Interface state) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 37
변경 상태 보고 보내기 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 38
라우터 상태 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 39

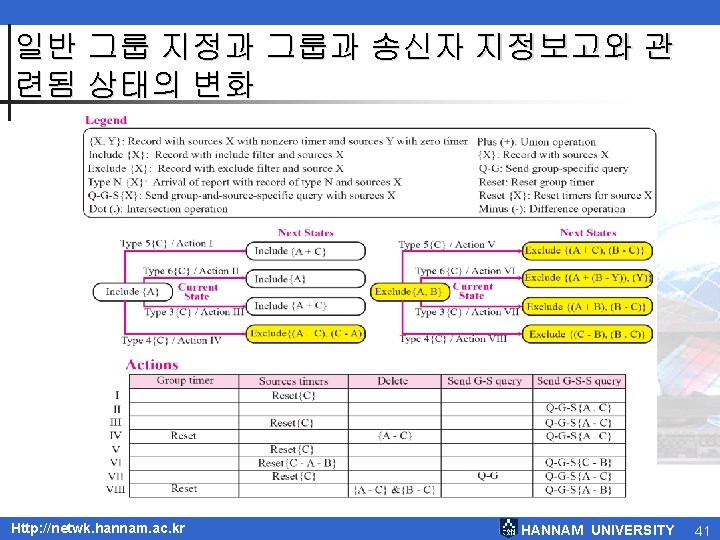

일반 질의 보고와 관련된 상태의 변화 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 40
Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 42
최대 응답 시간 계산 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 43
Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 44

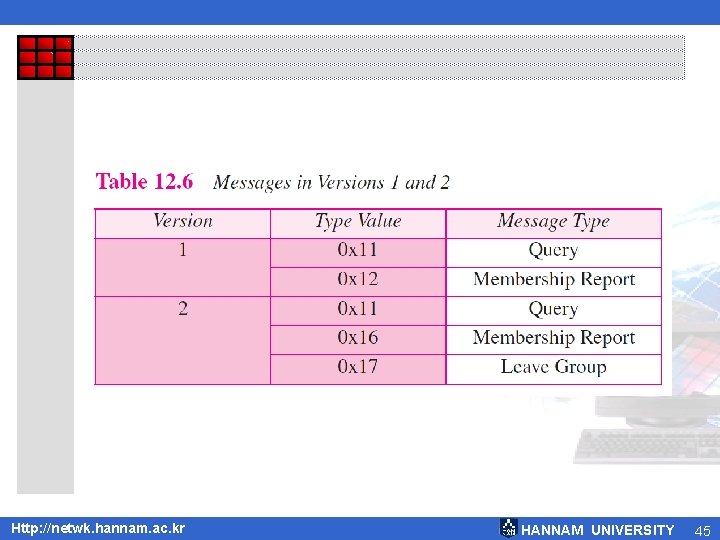

Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 45

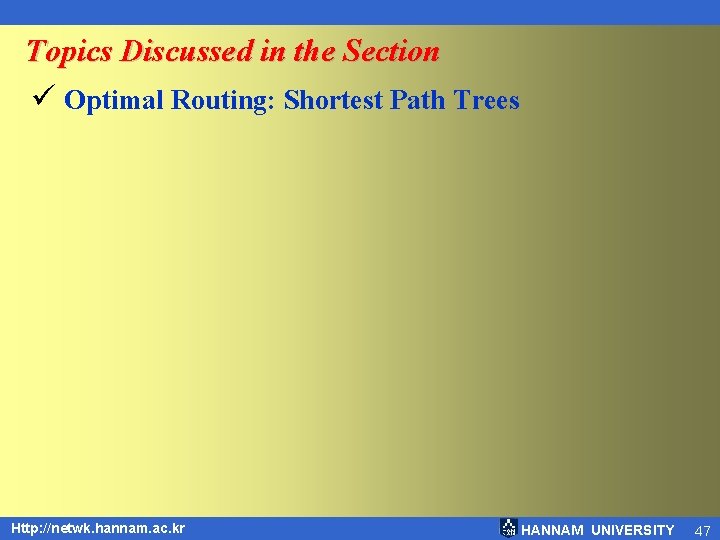

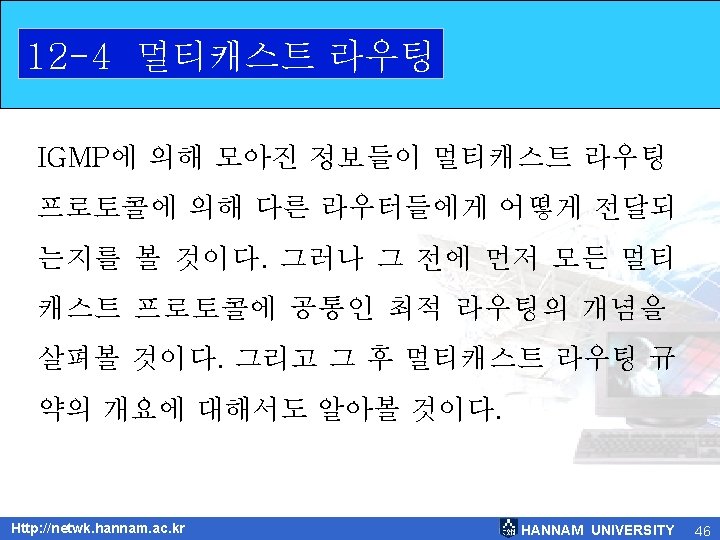

Topics Discussed in the Section ü Optimal Routing: Shortest Path Trees Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 47

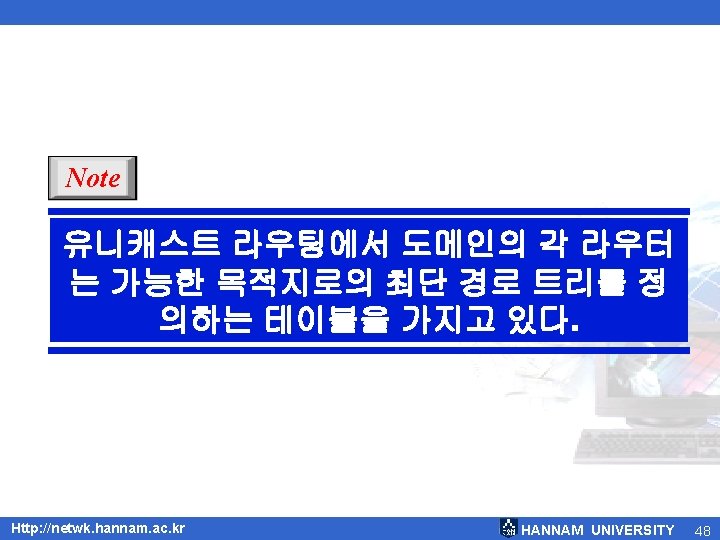

유니캐스트 라우팅에서 최단 경로 트리 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 49

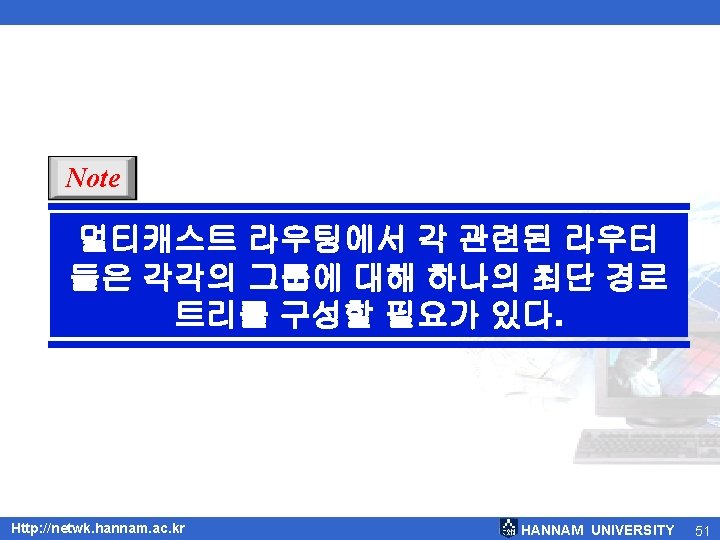

Note In multicast routing, each involved router needs to construct a shortest path tree for each group. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 50
송신자-기반 트리 접근 방법 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 52

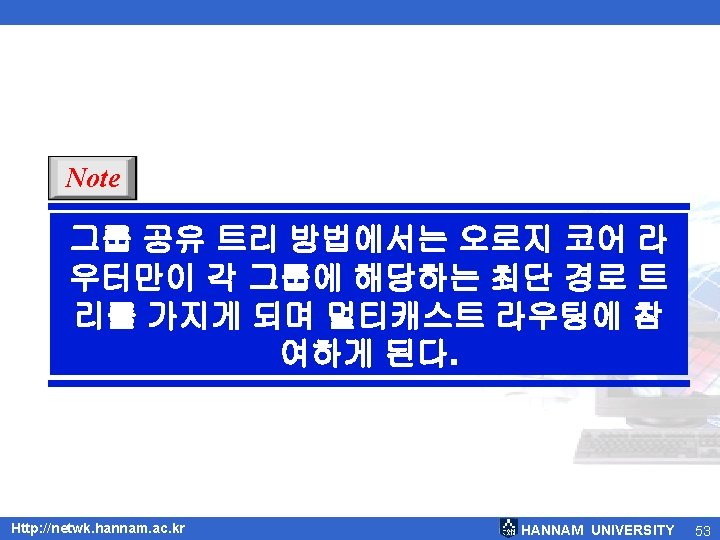

그룹-공유(Group-shared) 트리 접근방법 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 54

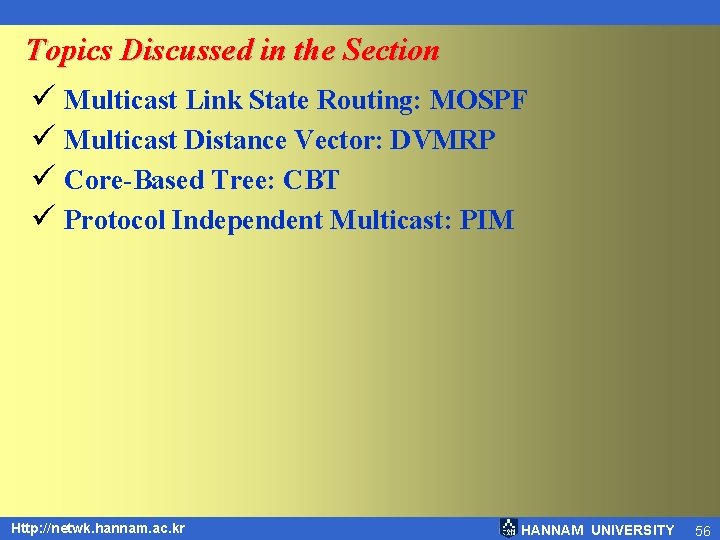

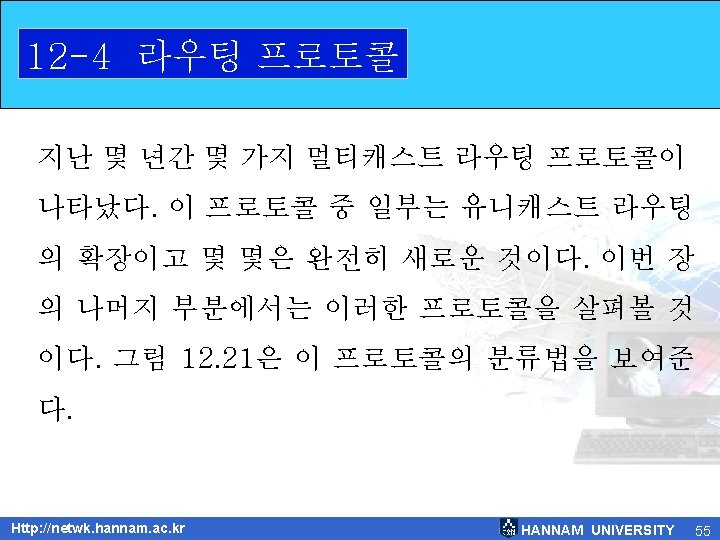

Topics Discussed in the Section ü Multicast Link State Routing: MOSPF ü Multicast Distance Vector: DVMRP ü Core-Based Tree: CBT ü Protocol Independent Multicast: PIM Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 56
멀티캐스트 라우팅 분류 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 57

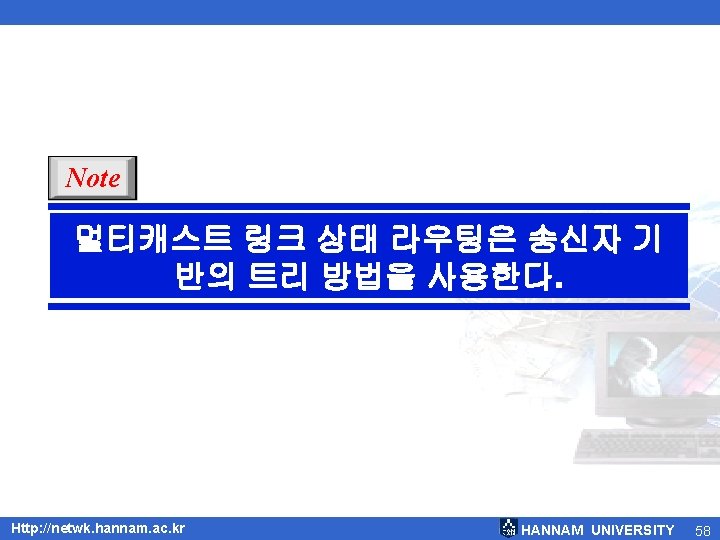

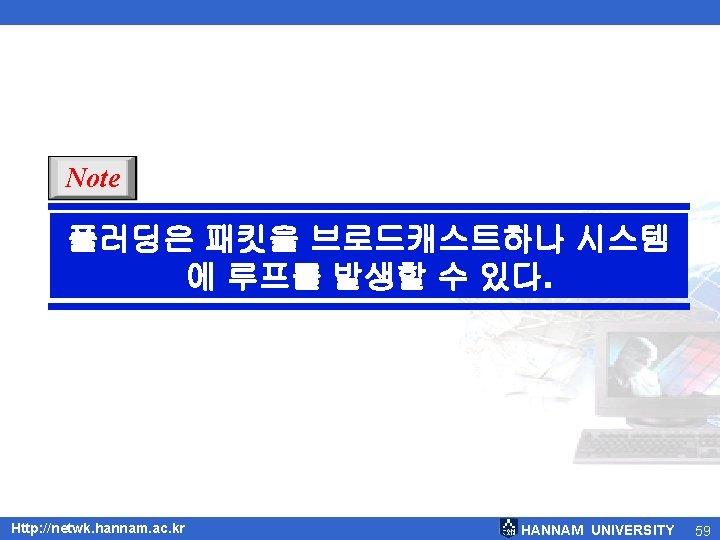

RPF(reverse path forwarding) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 60
Note RPF는 플러딩 절차에서 루프를 제거한다. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 61
RPF 문제점 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 62
Figure 12. 24 Http: //netwk. hannam. ac. kr RPM versus RPB HANNAM UNIVERSITY 63
Note RPB creates a shortest path broadcast tree from the source to each destination. It guarantees that each destination receives one and only one copy of the packet. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 64
Figure 12. 25 Http: //netwk. hannam. ac. kr RPF, RPB, and RPM HANNAM UNIVERSITY 65
Note RPM adds pruning and grafting to RPB to create a multicast shortest path tree that supports dynamic membership changes. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 66
Figure 12. 26 Group-shared tree with rendezvous router Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 67
Figure 12. 27 Sending a multicast packet to the rendezvous router TCP/IP Protocol Suite Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 68
Note In CBT, the source sends the multicast packet (encapsulated in a unicast packet) to the core router. The core router decapsulates the packet and forwards it to all interested interfaces. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 69
Note PIM-DM is used in a dense multicast environment, such as a LAN. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 70
Note PIM-DM uses RPF and pruning/grafting strategies to handle multicasting. However, it is independent from the underlying unicast protocol. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 71
Note PIM-SM is used in a sparse multicast environment such as a WAN. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 72
Note PIM-SM is similar to CBT but uses a simpler procedure. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 73
12 -6 MBONE Multimedia and real-time communication have increased the need for multicasting in the Internet. However, only a small fraction of Internet routers are multicast routers. Although this problem may be solved in the next few years by adding more and more multicast routers, there is another solution for this problem. The solution is tunneling. The multicast routers are seen as a group of routers on top of unicast routers. The multicast routers may not be connected directly, but they are connected logically. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 74
Figure 12. 28 Http: //netwk. hannam. ac. kr Logical tunneling HANNAM UNIVERSITY 75
Figure 12. 29 Http: //netwk. hannam. ac. kr MBONE HANNAM UNIVERSITY 76
