Chapter 12 Lesson 2 Simple Machines Types of

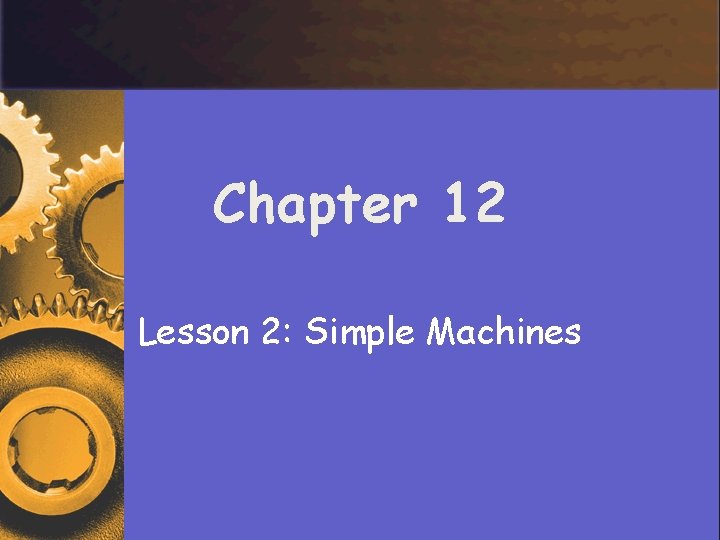

Chapter 12 Lesson 2: Simple Machines

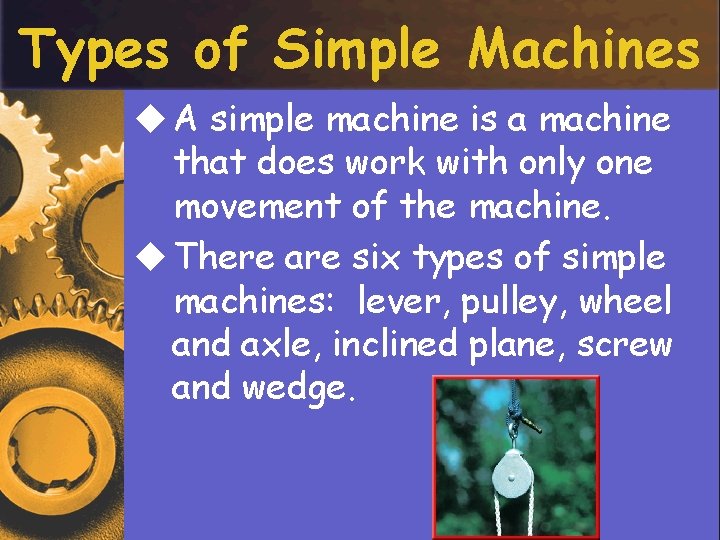

Types of Simple Machines u A simple machine is a machine that does work with only one movement of the machine. u There are six types of simple machines: lever, pulley, wheel and axle, inclined plane, screw and wedge.

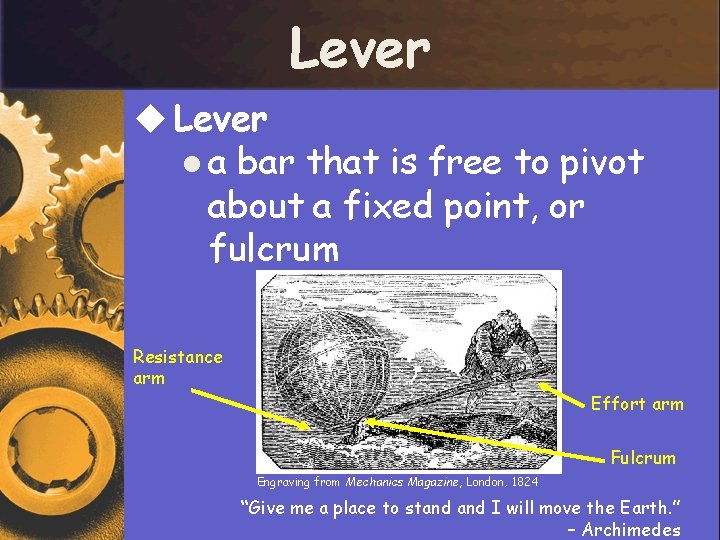

Lever u Lever l a bar that is free to pivot about a fixed point, or fulcrum Resistance arm Effort arm Fulcrum Engraving from Mechanics Magazine, London, 1824 “Give me a place to stand I will move the Earth. ” – Archimedes

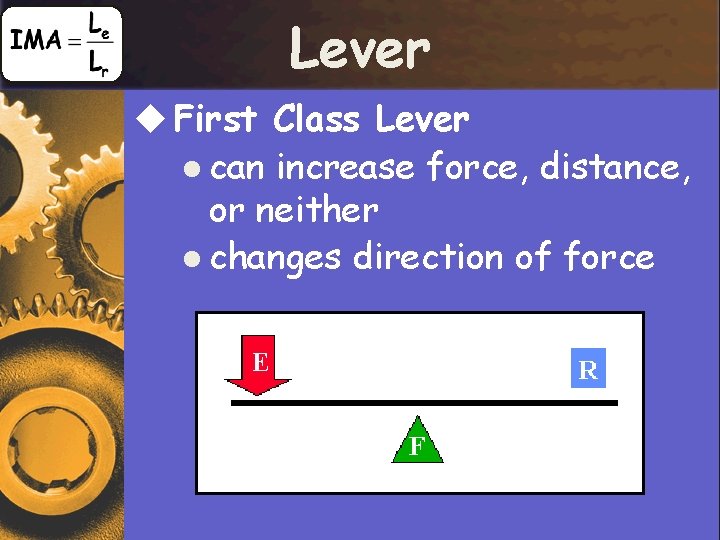

Lever u First Class Lever l can increase force, distance, or neither l changes direction of force

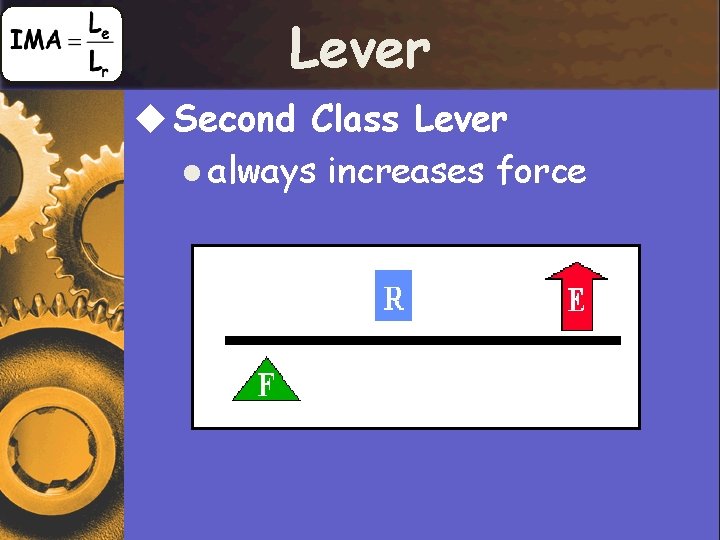

Lever u Second Class Lever l always increases force

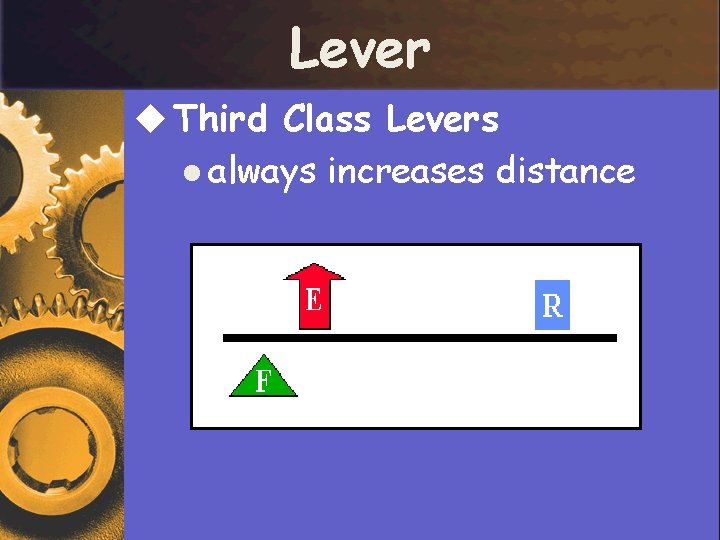

Lever u Third Class Levers l always increases distance

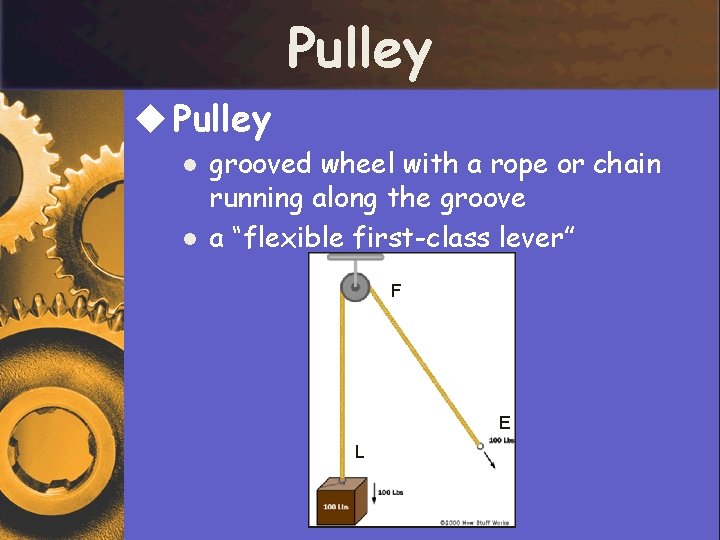

Pulley u Pulley l l grooved wheel with a rope or chain running along the groove a “flexible first-class lever” F F E L

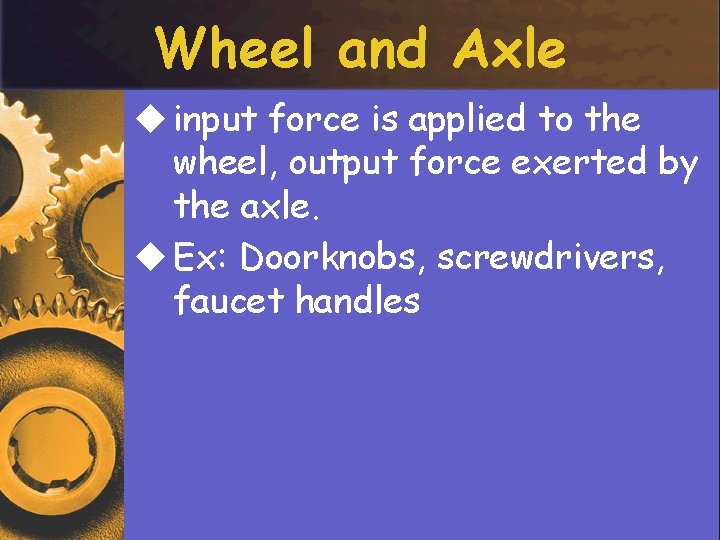

Wheel and Axle u Wheel and Axle l two wheels of different sizes that rotate together l a pair of Wheel “rotating levers” Axle

Wheel and Axle u input force is applied to the wheel, output force exerted by the axle. u Ex: Doorknobs, screwdrivers, faucet handles

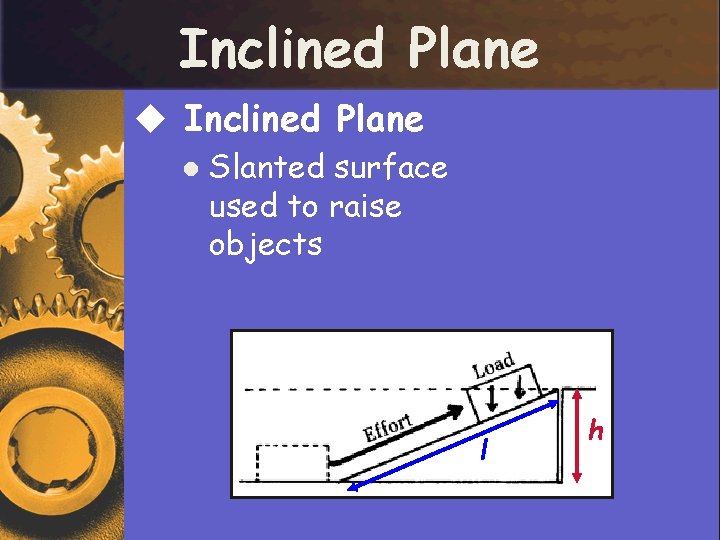

Inclined Plane u Inclined Plane l Slanted surface used to raise objects l h

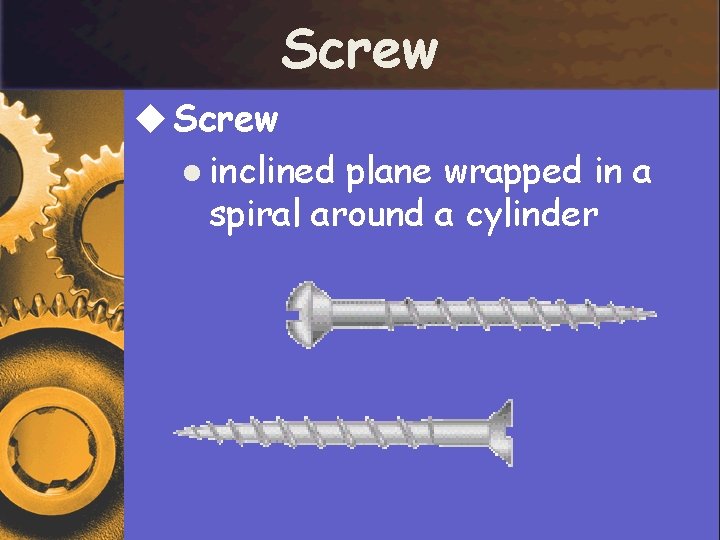

Screw u Screw l inclined plane wrapped in a spiral around a cylinder

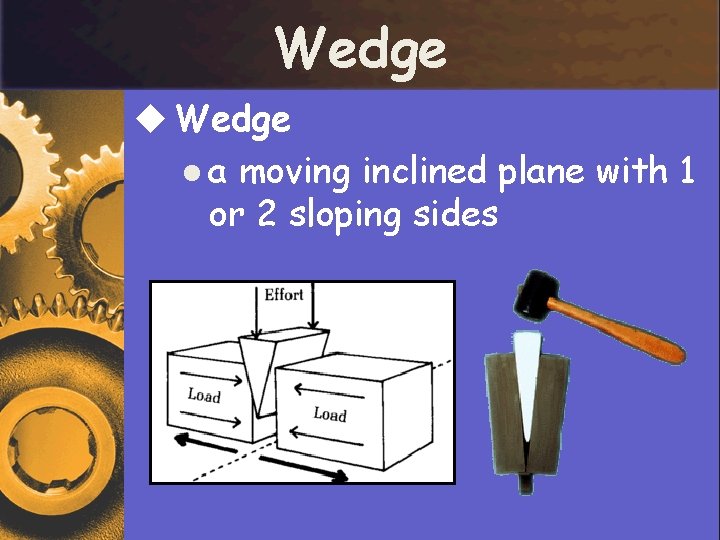

Wedge u Wedge l a moving inclined plane with 1 or 2 sloping sides

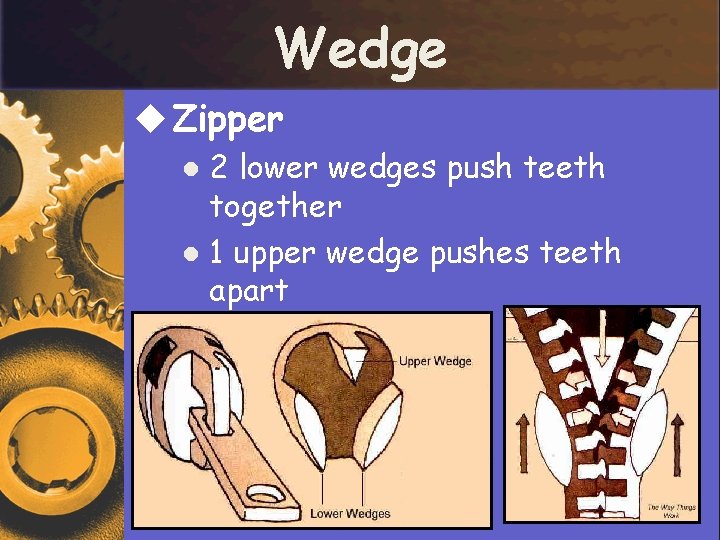

Wedge u Zipper 2 lower wedges push teeth together l 1 upper wedge pushes teeth apart l

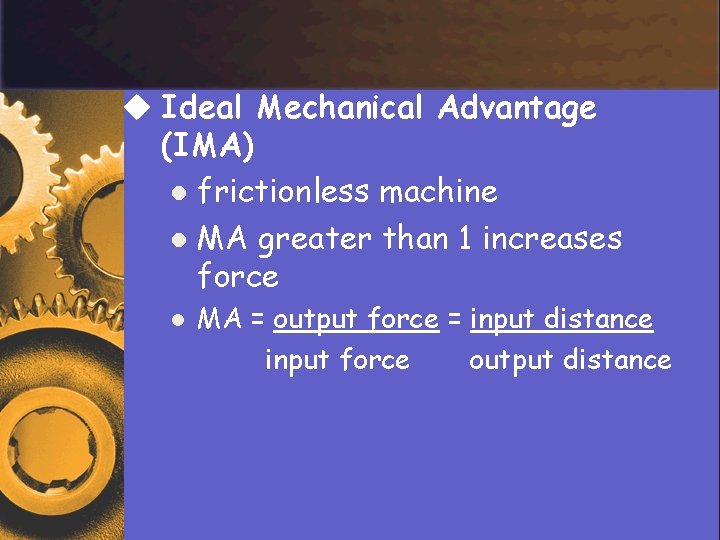

u Ideal Mechanical Advantage (IMA) l frictionless machine l MA greater than 1 increases force l MA = output force = input distance input force output distance
