Chapter 12 Kernel Memory Allocation Introduction Resource Map

Chapter 12. Kernel Memory Allocation • Introduction • Resource Map Allocator • Simple Power-of-Two Free Lists • Mckusick-Karels Allocator • Buddy System • Mach-OSF/1 Zone Allocator • Solaris 2. 4 Slab Allocator 1

Introduction • Page-level allocator – Paging system • Supports virtual memory system – Kernel memory allocator • Provides odd-sized buffers of memory to various kernel subsystems • Kernel frequently needs chunks of memory of various sizes usually for short periods of time 2

Introduction (cont) • Users of the kernel memory allocator – pathname translation routine – allocb( ) allocates STREAMs buffers of arbitrary size – In SVR 4, the kernel allocates many objects (proc structures, vnodes, file descriptor blocks) dynamically when needed 3

Introduction (cont) physical memory Page-level allocator kernel memory allocator network buffers proc structures Paging system inodes, file descriptors user processes block buffer cache 4

Kernel Memory Allocator (KMA) • Functional requirements – Page-level allocator pre-allocates part of main memory to KMA, which must use this memory pool efficiently – KMA also have to monitor which part of its pool are allocated and which are free • Evaluation criteria – Utilization factor – KMA must be fast • Both average and worst-cast latency are important – Interaction with the paging system 5

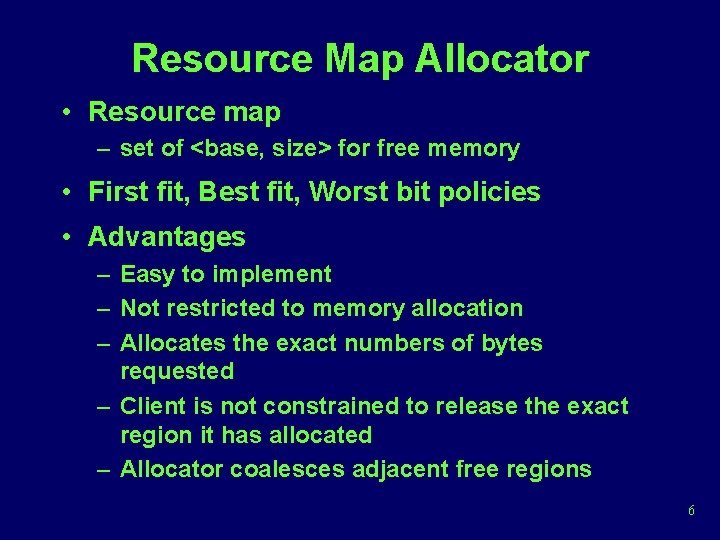

Resource Map Allocator • Resource map – set of <base, size> for free memory • First fit, Best fit, Worst bit policies • Advantages – Easy to implement – Not restricted to memory allocation – Allocates the exact numbers of bytes requested – Client is not constrained to release the exact region it has allocated – Allocator coalesces adjacent free regions 6

Resource Map Allocator (cont) • Drawbacks – Map may become highly fragmented – As the fragmentation increases, so does the size of the map – Sorting for coalescing adjacent regions is expensive – Linear search to find a free region 7

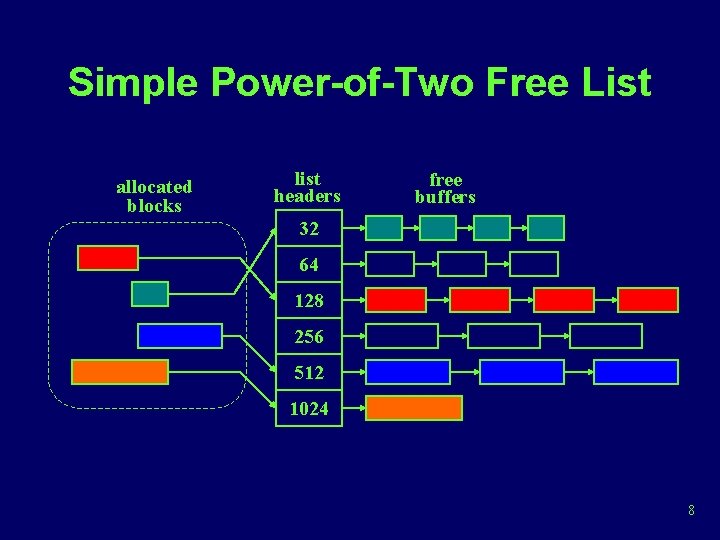

Simple Power-of-Two Free List allocated blocks list headers free buffers 32 64 128 256 512 1024 8

Simple Power-of-Two Free List (cont) • Used frequently to implement malloc( ), and free( ) in the user-level C library • One-word header for each buffer • Advantages – Avoids the lengthy linear search of the resource map method – Eliminates the fragmentation problem 9

Simple Power-of-Two Free List (cont) • Drawbacks – Rounding of requests to the next power of two results in poor memory utilization – No provision for coalescing adjacent free buffer to satisfy larger requests – No provision to return surplus free buffers to the page-level allocator 10

Mckusick-Karels Allocator freelistaddr[ ] allocated blocks free buffers 32 64 128 256 512 kmemsizes[ ] 32 512 64 F 32 128 F 32 32 256 64 F 2 K F 128 freepages 11

Mckusick-Karels Allocator (cont) • Used in 4. 4 BSD, Digital UNIX • Requires that – a set of contiguous pages – all buffers belonging to the same page to be the same size • States of each page – Free • corresponding element of kmemsizes[ ] contains a pointer to the element for the next free page – Divided into buffers of a particular size • kmemsizes[ ] element contains the size 12

Mckusick-Karels Allocator (cont) – Part of a buffer that spanned multiple pages • kmemsizes[ ] element corresponding to the first page of the buffer contains the buffer size • Improvement over simple power-of-two – Faster, wastes less memory, can handle large and small request efficiently • Drawbacks – No provision for moving memory from one list to another – No way to return memory to the paging system 13

Buddy System • Basic idea – Combines free buffer coalescing with a powerof-two allocator – When a buffer is split, each buffer is called the buddy of the other • Advantages – Coalescing adjacent free buffers – Easy exchange of memory between the allocator and the paging system • Disadvantages – Performance degradation due to coalescing – Program interface needs the size of the buffer 14

Buddy System (e. g. ) allocate(256) allocate(128) allocate(64) bitmap 1 1 1 1 0 0 0 0 0 free list headers 0 32 256 B C 64 128 256 512 384 448 512 D D’ 1023 A’ C’ B’ free in use A 15

Buddy System (e. g. ) allocate(128) release(C, 128) bitmap 1 1 1 1 0 0 1 1 0 0 0 free list headers 0 32 256 B C 64 128 384 448 512 D D’ 256 640 F 512 768 F’ 1023 E’ C’ B’ A E A’ 16

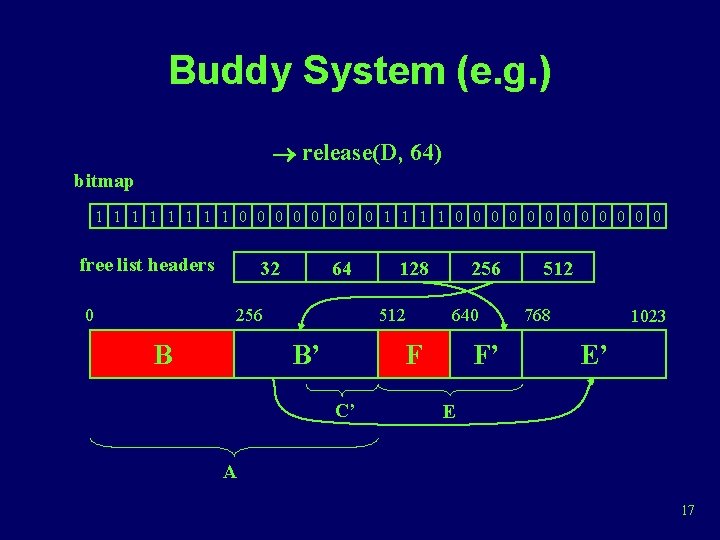

Buddy System (e. g. ) release(D, 64) bitmap 1 1 1 1 0 0 0 0 0 0 free list headers 0 32 64 256 B 128 512 B’ 256 640 F C’ F’ 512 768 1023 E’ E A 17

SVR 4 Lazy Buddy System • Basic idea – Defer coalescing until it becomes necessary, and then to coalesce as many buffers as possible • Lazy coalescing – N buffers, A buffers are active, L are locally free, G are globally free – N=A+L+G – slack = N - 2 L - G = A - L 18

SVR 4 Lazy Buddy System (cont) • Lazy state (slack = 0) – buffer consumption is in a steady state and coalescing is not necessary • Reclaiming state (slack = 1) – consumption is borderline, coalescing is needed • Accelerated state (slack = 2 or more) – consumption is not in a steady state, and the allocator must coalesce faster 19

Mach-OSF/1 Zone Allocator active zones zone of zones free objects free_elements struct zone struct obj 1 struct objn next_zone first_zone last_zone of zones . . . zone of zones 20

Mach-OSF/1 Zone Allocator (cont) • Basic idea – Each class of dynamically allocated objects is assigned to its own size, which is simply a pool of free objects of that class – Any single page is only used for one zone – Free objects of each zone are maintained on a linked list, headed by a struct zone – Allocation and release involve nothing more than removing objects from and returning objects to the free list – If an allocation request finds the free list empty, it asks the page-level allocator for alloc( ) more bytes 21

Mach-OSF/1 Zone Allocator (cont) • Garbage collection – Free pages can be returned to the paging system and later recovered for other zones • Analysis – Zone allocator is fast and efficient – No provision for releasing only part of the allocated object – Zone objects are exactly the required size – Garbage collector provides a mechanism for memory reuse 22

Hierarchical Allocator for Multiprocessors Coalesce-to. Page layer per-pages freelists Global layer global freelist bucket list target = 3 Per-CPU cache main freelist aux freelist target = 3 23

Solaris 2. 4 Slab Allocator • Better performance and memory utilization than other implementation • Main issues – Object reuse • advantage of caching and reusing the same object, rather than allocating and initializing arbitrary chunks of memory – Hardware cache utilization • Most kernel objects have their important, frequently accessed fields at the beginning of the object 24

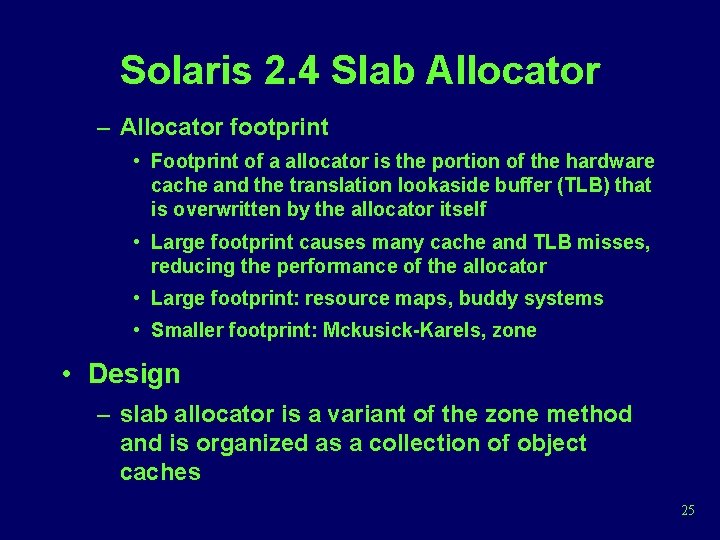

Solaris 2. 4 Slab Allocator – Allocator footprint • Footprint of a allocator is the portion of the hardware cache and the translation lookaside buffer (TLB) that is overwritten by the allocator itself • Large footprint causes many cache and TLB misses, reducing the performance of the allocator • Large footprint: resource maps, buddy systems • Smaller footprint: Mckusick-Karels, zone • Design – slab allocator is a variant of the zone method and is organized as a collection of object caches 25

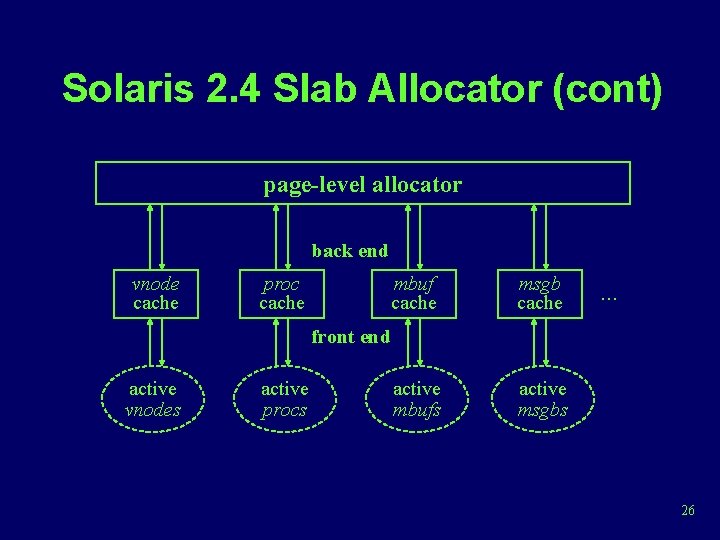

Solaris 2. 4 Slab Allocator (cont) page-level allocator back end vnode cache proc cache mbuf cache msgb cache active mbufs active msgbs . . . front end active vnodes active procs 26

Solaris 2. 4 Slab Allocator (cont) • Implementation slab data unused space coloring area (unused) free active freelist free active linked list of slabs in same cache NULL pointers extra space for linkage 27

Solaris 2. 4 Slab Allocator (cont) • Analysis – Space efficient – Coalescing scheme results in better hardware cache and memory bus utilization – Small footprint (only one slab for most requests) 28
