Chapter 12 Indexing and Hashing n Indexing Basic
Chapter 12: Indexing and Hashing n Indexing Basic Concepts n Ordered Indices n B+-Tree Index Files n n Hashing Static n Dynamic Hashing n n More: bitmap indexing 1

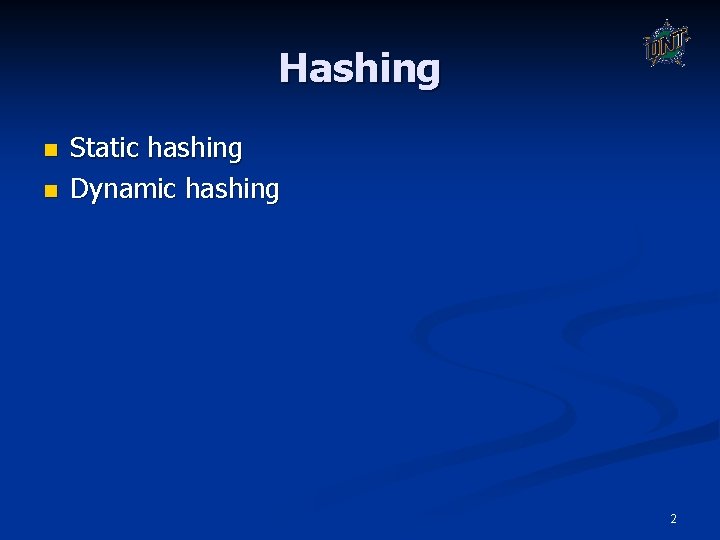

Hashing n n Static hashing Dynamic hashing 2

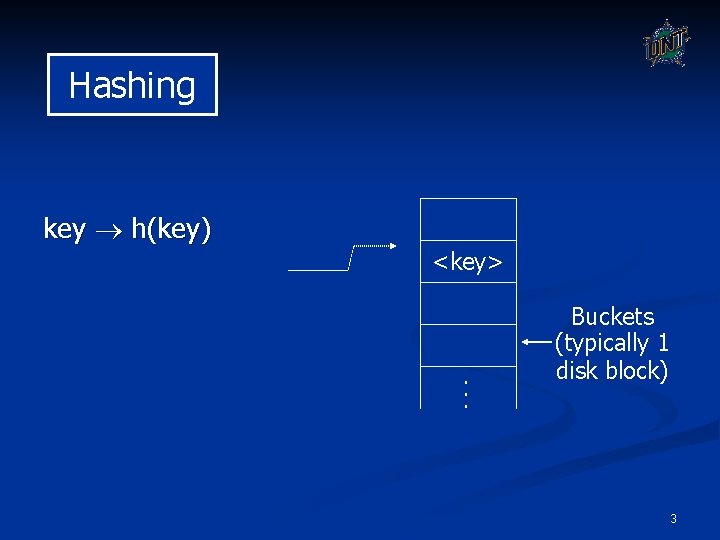

Hashing key h(key) <key> . . . Buckets (typically 1 disk block) 3
Example hash function n Key = ‘x 1 x 2 … xn’ n byte character string Have b buckets h: add x 1 + x 2 + …. . xn n compute sum modulo b 4
This may not be best function … Good hash Expected number of function: keys/bucket is the same for all buckets 5
Within a bucket: n Do we keep keys sorted? n Yes, if CPU time critical & Inserts/Deletes not too frequent 6
Next: example to illustrate inserts, overflows, deletes h(K) 7

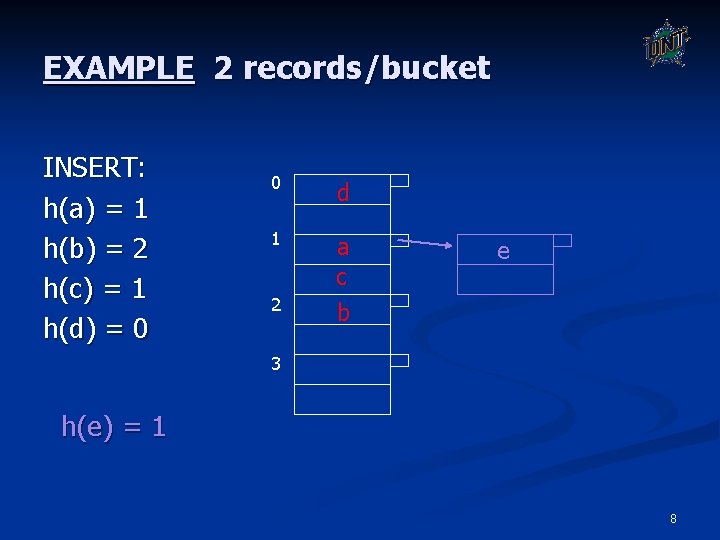

EXAMPLE 2 records/bucket INSERT: h(a) = 1 h(b) = 2 h(c) = 1 h(d) = 0 0 d 1 a c b 2 e 3 h(e) = 1 8

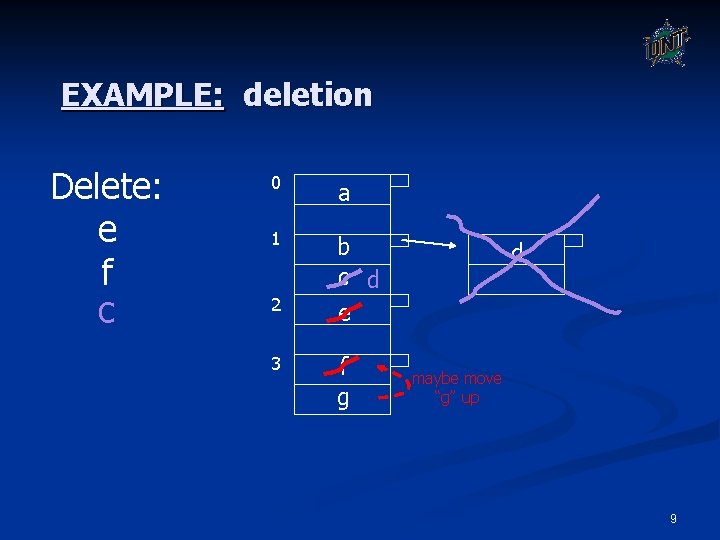

EXAMPLE: deletion Delete: e f c 0 a 1 b c d e 2 3 f g d maybe move “g” up 9
Rule of thumb: n Try to keep space utilization between 50% and 80% Utilization = # keys used total # keys that fit n If < 50%, wasting space If > 80%, overflows significant depends on how good hash function is & on # keys/bucket n 10
How do we cope with growth? n n Overflows and reorganizations Dynamic hashing n n Extensible Linear 11
Extensible hashing: two ideas (a) Use i of b bits output by hash function b h(K) 00110101 use i grows over time…. 12
(b) Use directory h(K)[i ] . . . to bucket . . . 13
Example: h(k) is 4 bits; 2 keys/bucket 1 0001 i= 2 00 01 1 2 1001 1010 1100 Insert 1010 1 2 1100 10 11 New directory 14
Example continued i= 2 00 01 10 11 Insert: 0111 2 0000 0001 1 2 0001 0111 2 1001 1010 2 1100 0000 15

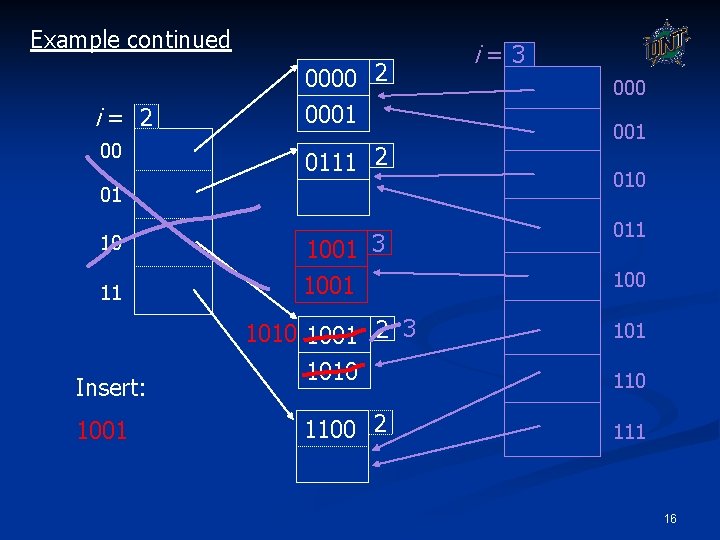

Example continued i= 2 00 0000 2 0001 0111 2 01 10 11 Insert: 1001 3 1001 1010 1001 2 3 1010 1100 2 i=3 000 001 010 011 100 101 110 111 16

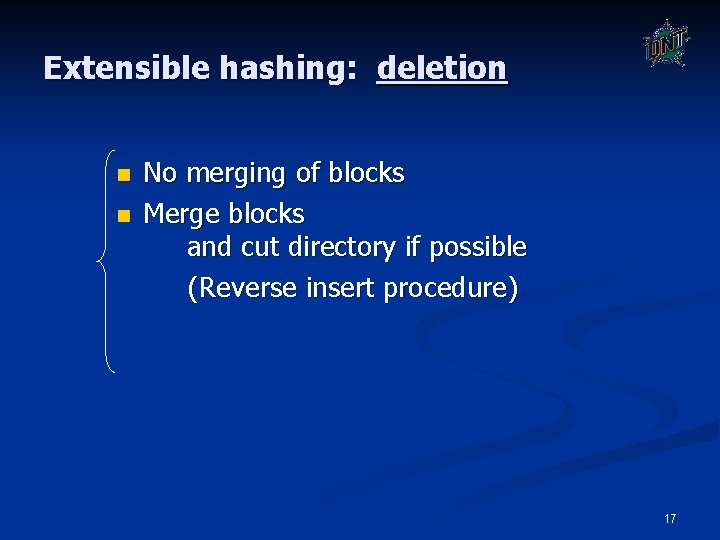

Extensible hashing: deletion n n No merging of blocks Merge blocks and cut directory if possible (Reverse insert procedure) 17
Deletion example: n Run thru insert example in reverse! 18
Summary Extensible hashing + Can handle growing files - with less wasted space - with no full reorganizations - Indirection (Not bad if directory in memory) Directory doubles in size (Now it fits, now it does not) 19
Advanced indexing n n Multiple attributes Bitmap indexing 20
Multiple-Key Access n n Use multiple indices for certain types of queries. Example: select account-number from account where branch-name = “Perryridge” and balance = 1000 n Possible strategies? 21
Indices on Multiple Attributes n where branch-name = “PP” and balance = 1000 Suppose we have an index on combined search-key PP, 1500 PP, 1560 CC, 200 PP, 800 PP, 1500 PP, 800 PP, 1000 PP, 1300 CC, 200 PP, 300 CC, 200 DD, 300 AB, 200 AC, 200 AA, 2000 AA, 2300 AA, 2500 AB, 200 BB, 1000 (branch-name, balance). 22

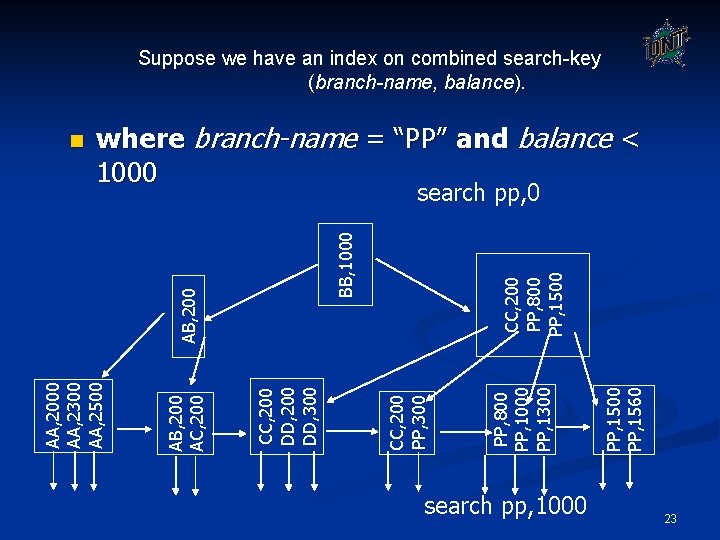

Suppose we have an index on combined search-key (branch-name, balance). n where branch-name = “PP” and balance < 1000 search pp, 1000 PP, 1560 CC, 200 PP, 800 PP, 1500 PP, 800 PP, 1000 PP, 1300 CC, 200 PP, 300 CC, 200 DD, 300 AB, 200 AC, 200 AA, 2000 AA, 2300 AA, 2500 AB, 200 BB, 1000 search pp, 0 23
PP, 1500 PP, 1560 PP, 800 PP, 1000 PP, 1300 CC, 200 PP, 300 CC, 200 DD, 300 CC, 200 PP, 800 PP, 1500 BB, 1000 AB, 200 n AB, 200 AC, 200 AA, 2000 AA, 2300 AA, 2500 Suppose we have an index on combined search-key (branch-name, balance). NO! where branch-name < “PP” and balance = 1000? 24
Bitmap Indices n An index designed for multiple valued search keys 25
Bitmap Indices (Cont. ) The income-level value of record 3 is L 1 Bitmap(size = table size) Unique values of gender Unique values of income-level 26
Bitmap Indices (Cont. ) n Some properties of bitmap indices n n n Number of bitmaps for each attribute? Size of each bitmap? When is the bitmap matrix sparse and what attributes are good for bitmap indices? 27
Bitmap Indices (Cont. ) n Bitmap indices generally very small compared with relation size n n E. g. if record is 100 bytes, space for a single bitmap is 1/800 of space used by relation. If number of distinct attribute values is 8, bitmap is only 1% of relation size What about insertion? Deletion? 28
Bitmap Indices Queries Sample query: Males with income level L 1 10010 AND 10100 = 10000 even faster! What about the number of males with income level L 1? 29

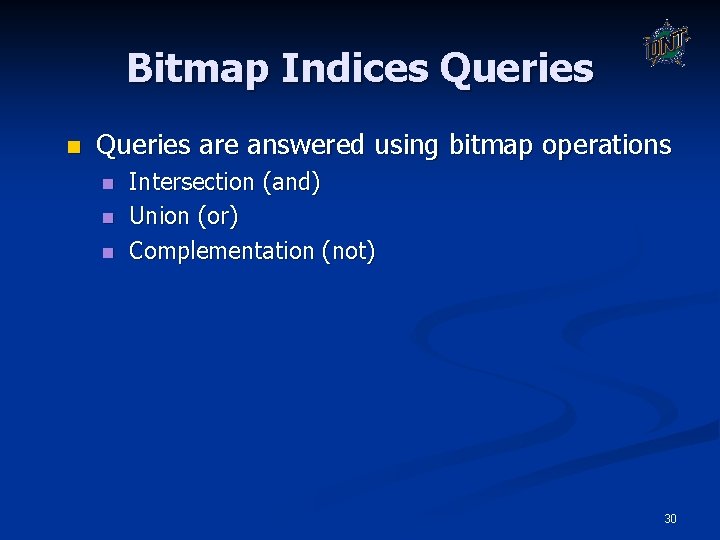

Bitmap Indices Queries n Queries are answered using bitmap operations n n n Intersection (and) Union (or) Complementation (not) 30
