Chapter 12 File and Secondary Storage Management

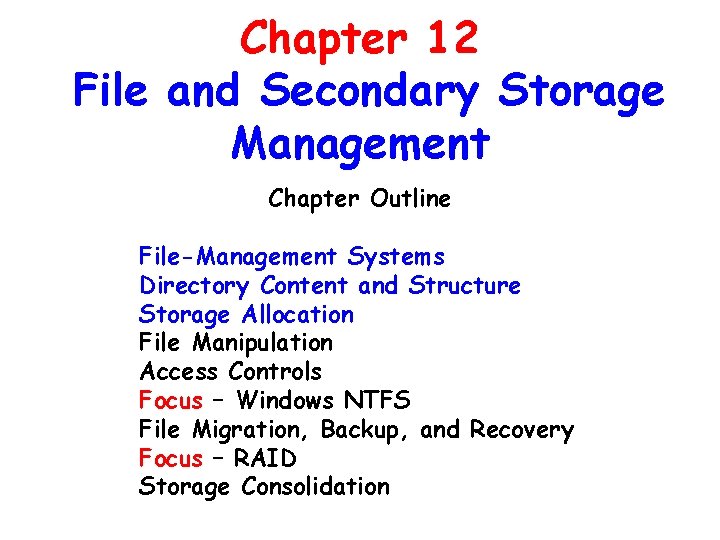

Chapter 12 File and Secondary Storage Management Chapter Outline File-Management Systems Directory Content and Structure Storage Allocation File Manipulation Access Controls Focus – Windows NTFS File Migration, Backup, and Recovery Focus – RAID Storage Consolidation

Chapter Goals • Describe the components and functions of a file management system • Compare the logical and physical organization of files and directories • Explain how secondary storage locations are allocated to files and describe the data structures used to record those allocations • Describe file manipulation operations, including open, close, read, delete, and undelete operations • List access controls that can be applied to files and directories • Describe security, backup, recovery, and fault tolerance methods and procedures • Compare and contrast storage area networks and network-attached storage

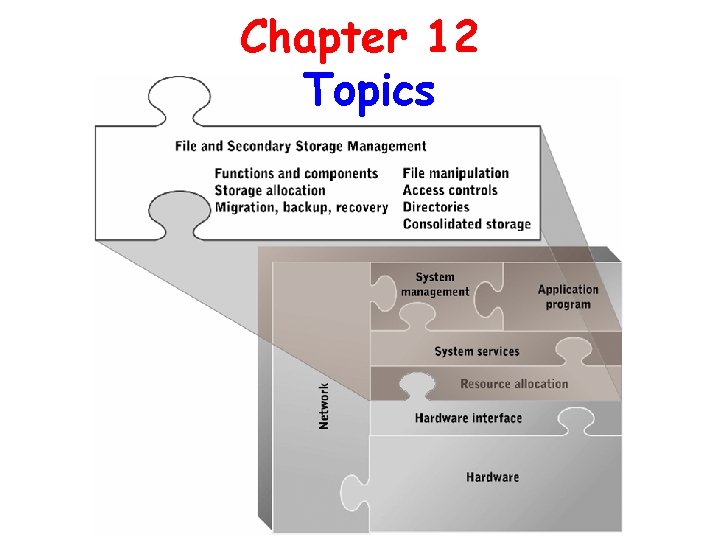

Chapter 12 Topics

File Management Systems • Collection of system software that manages all aspects of user and program access to secondary storage • Usually part of the operating system • Translates operations into commands to physical storage devices • Implemented in four layers (command layer, file control, storage I/O control, and secondary storage devices)

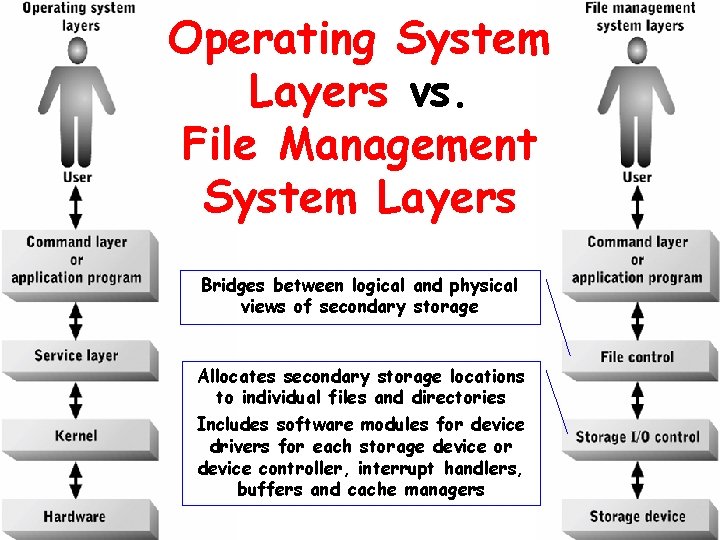

Operating System Layers vs. File Management System Layers Bridges between logical and physical views of secondary storage Allocates secondary storage locations to individual files and directories Includes software modules for device drivers for each storage device or device controller, interrupt handlers, buffers and cache managers

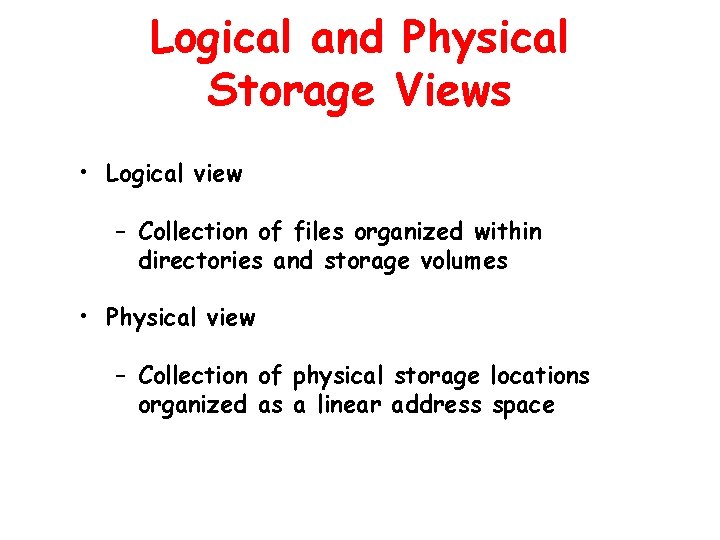

Logical and Physical Storage Views • Logical view – Collection of files organized within directories and storage volumes • Physical view – Collection of physical storage locations organized as a linear address space

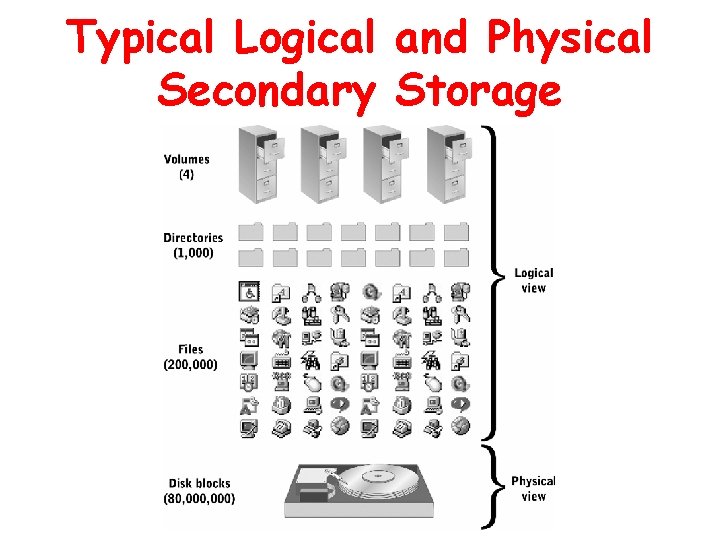

Typical Logical and Physical Secondary Storage

Logical Structure of a Data File The file is subdivided into multiple records and each record is composed of multiple fields.

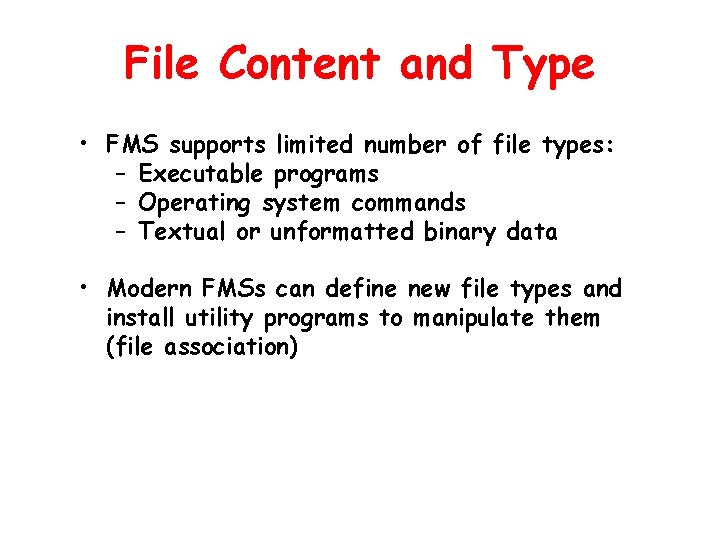

File Content and Type • FMS supports limited number of file types: – Executable programs – Operating system commands – Textual or unformatted binary data • Modern FMSs can define new file types and install utility programs to manipulate them (file association)

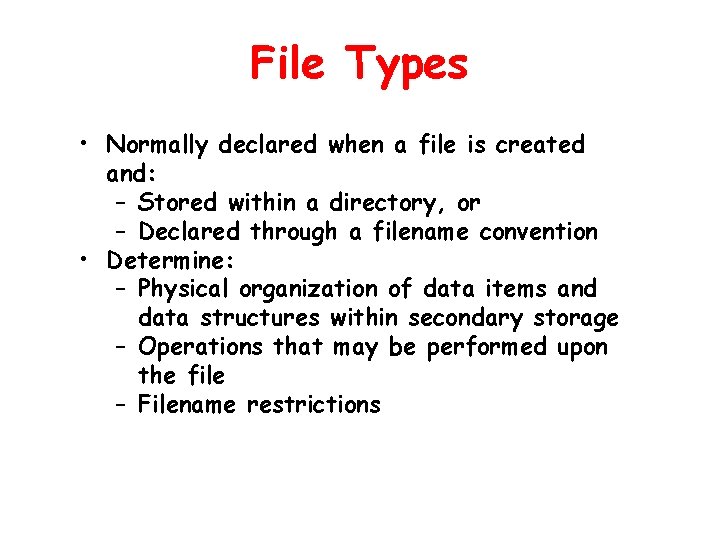

File Types • Normally declared when a file is created and: – Stored within a directory, or – Declared through a filename convention • Determine: – Physical organization of data items and data structures within secondary storage – Operations that may be performed upon the file – Filename restrictions

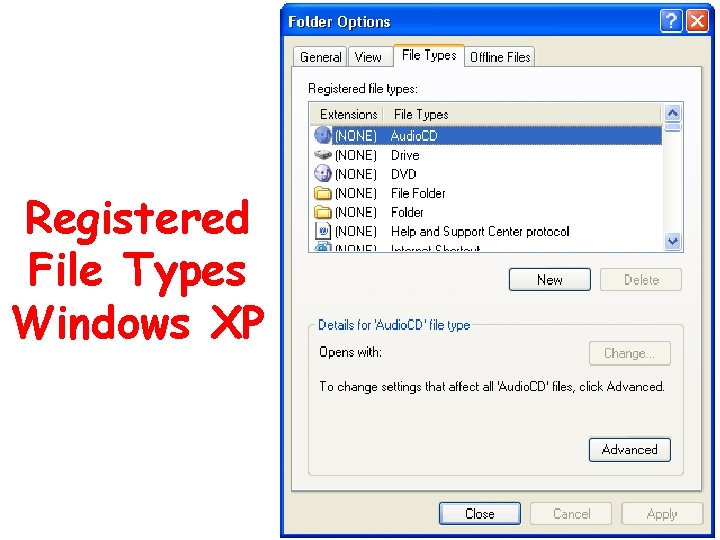

Registered File Types Windows XP

Association Details of a File Type in Windows XP

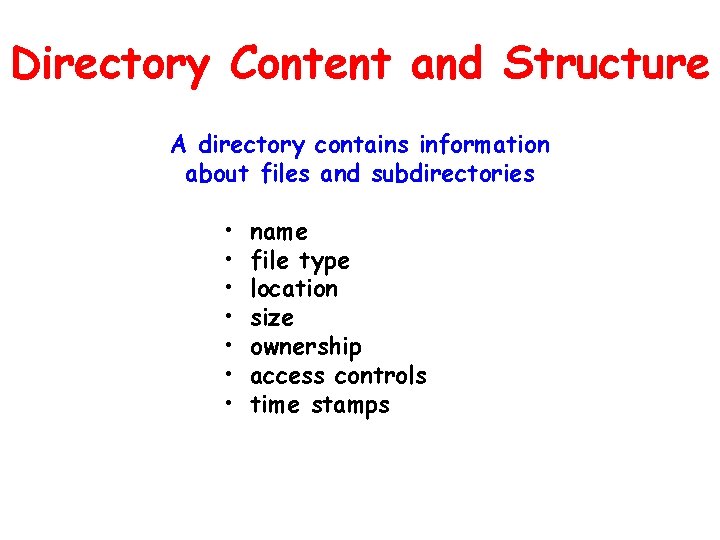

Directory Content and Structure A directory contains information about files and subdirectories • • name file type location size ownership access controls time stamps

Hierarchical Directory Structure • Directories can contain other directories, creating a tree structure, but cannot be contained within more than one parent • Ways that names of access paths can be specified: – Complete path (fully qualified reference) – Relative path • Each storage device has a root directory

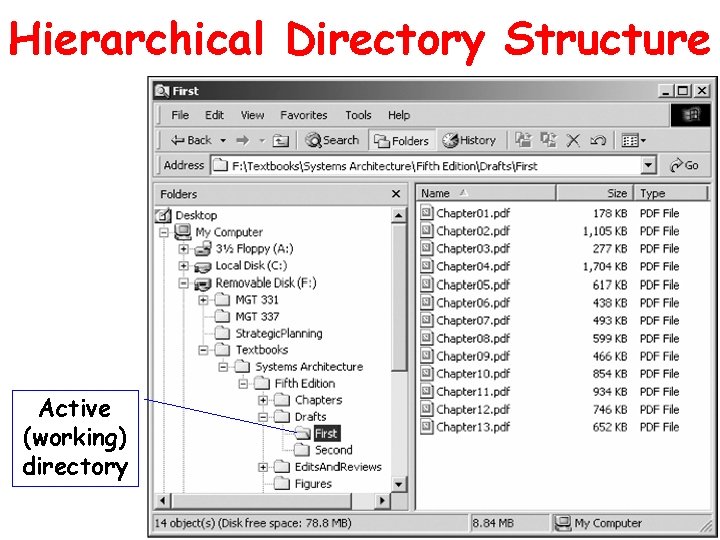

Hierarchical Directory Structure Active (working) directory

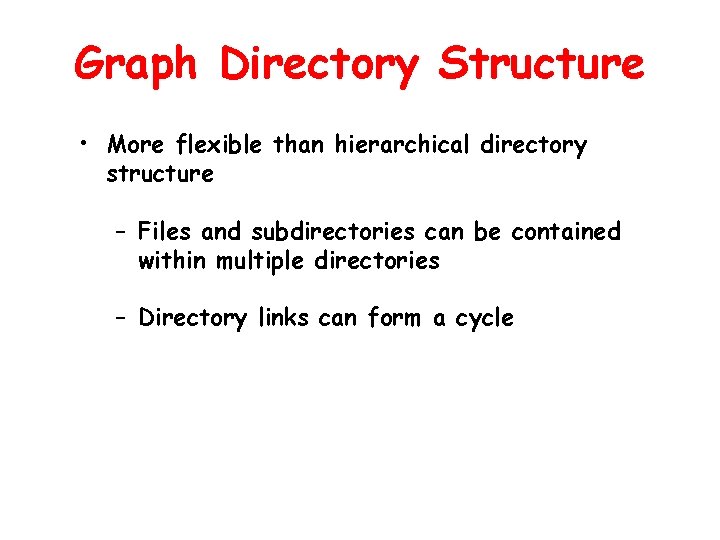

Graph Directory Structure • More flexible than hierarchical directory structure – Files and subdirectories can be contained within multiple directories – Directory links can form a cycle

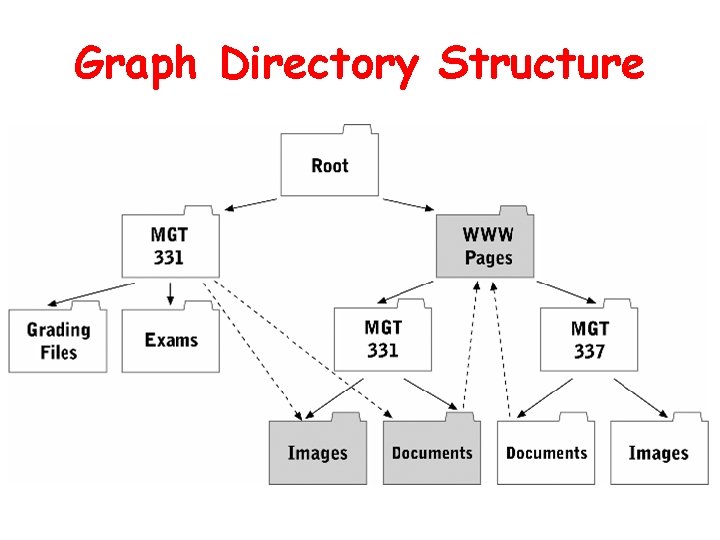

Graph Directory Structure

Storage Allocation • Secondary storage devices – Large number of storage locations – Low frequency of allocation changes – Divided into allocation units

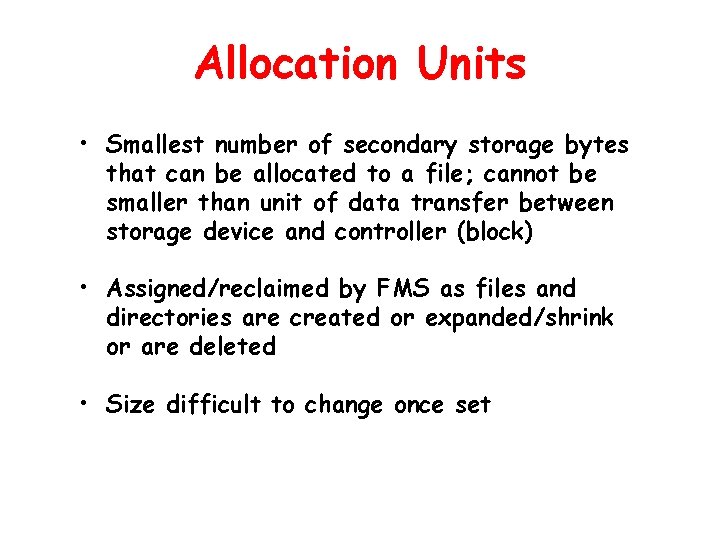

Allocation Units • Smallest number of secondary storage bytes that can be allocated to a file; cannot be smaller than unit of data transfer between storage device and controller (block) • Assigned/reclaimed by FMS as files and directories are created or expanded/shrink or are deleted • Size difficult to change once set

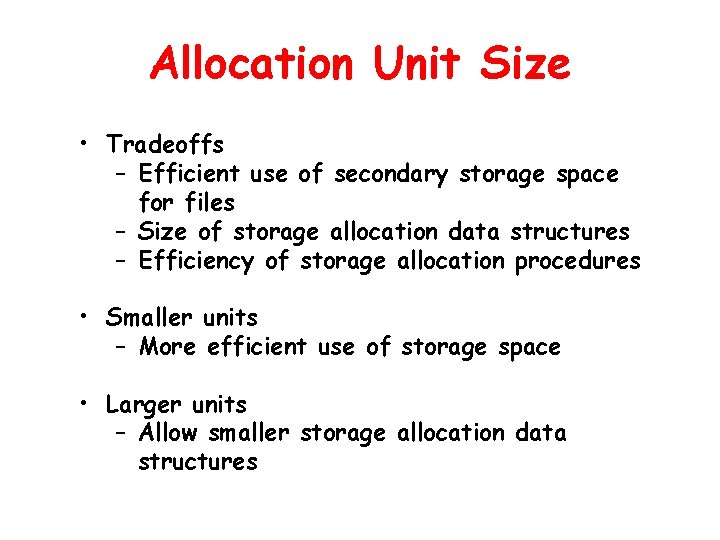

Allocation Unit Size • Tradeoffs – Efficient use of secondary storage space for files – Size of storage allocation data structures – Efficiency of storage allocation procedures • Smaller units – More efficient use of storage space • Larger units – Allow smaller storage allocation data structures

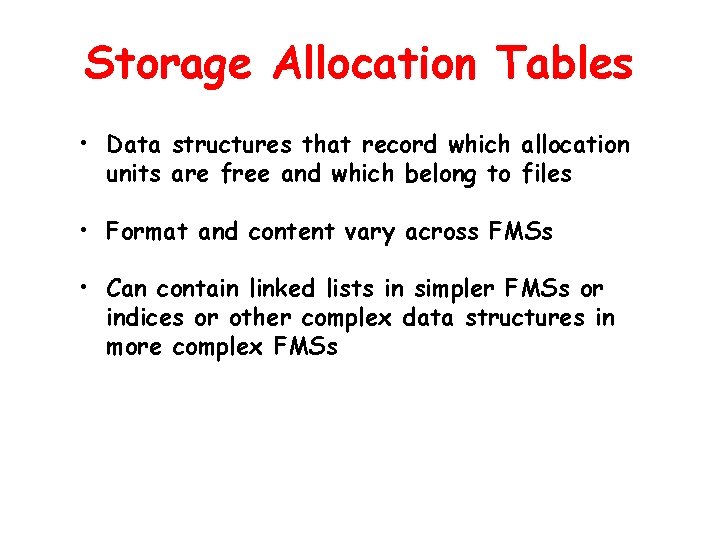

Storage Allocation Tables • Data structures that record which allocation units are free and which belong to files • Format and content vary across FMSs • Can contain linked lists in simpler FMSs or indices or other complex data structures in more complex FMSs

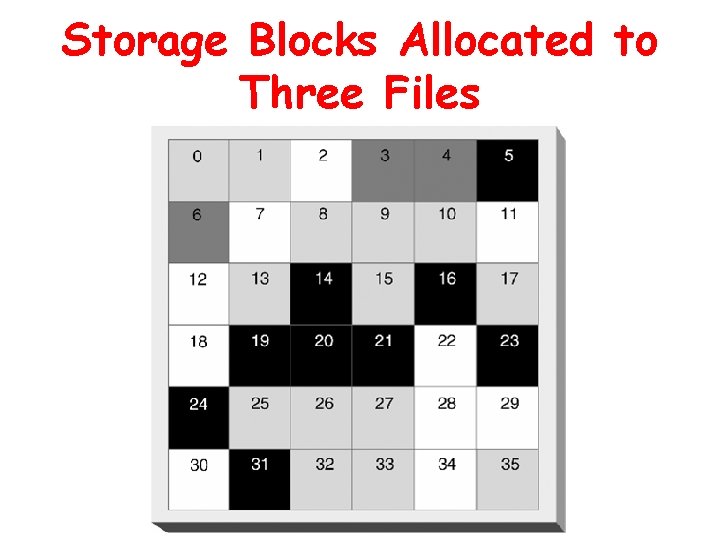

Storage Blocks Allocated to Three Files

Directory Content for the Three Files Free allocation units are assigned to a hidden system file called Sys. Free

Storage Allocation Table for the Three Files All of a file allocation’s units are “chained” together in sequential order by a series of pointers.

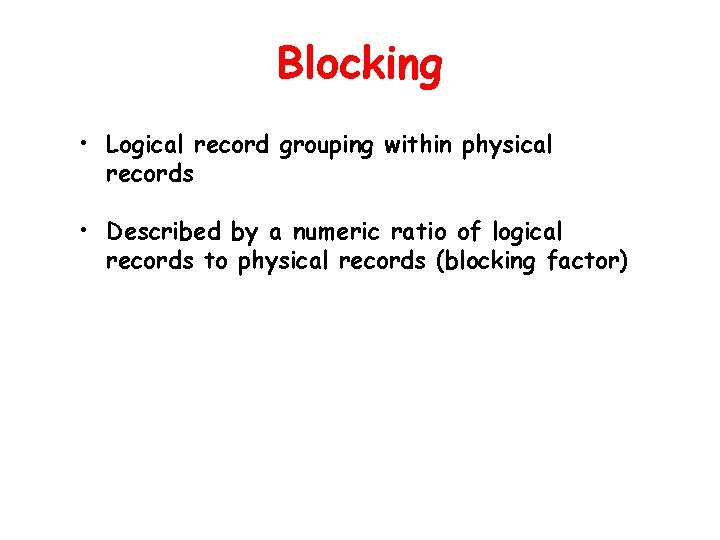

Blocking • Logical record grouping within physical records • Described by a numeric ratio of logical records to physical records (blocking factor)

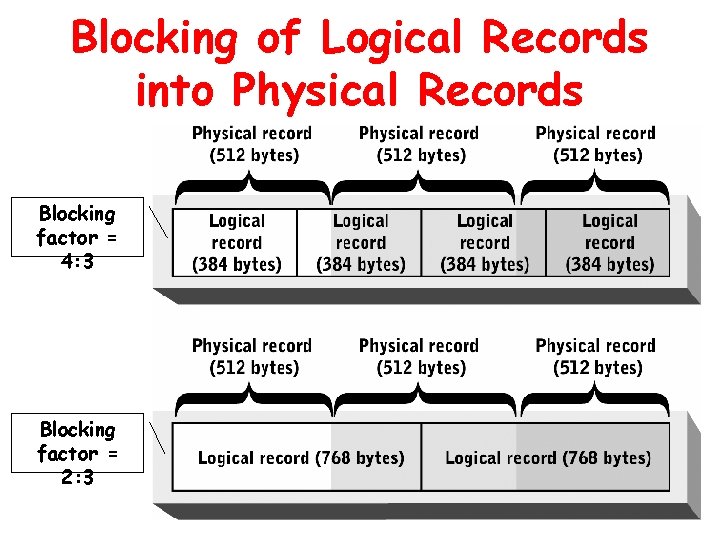

Blocking of Logical Records into Physical Records Blocking factor = 4: 3 Blocking factor = 2: 3

Buffering • Temporary storage of data as it moves between programs and secondary storage devices – Physical records are stored in the buffer as they are read from secondary storage – FMS extracts logical records from buffers and copies them to data area of the application program • Each buffer is the size of one allocation unit • Improves I/O performance if enough are used

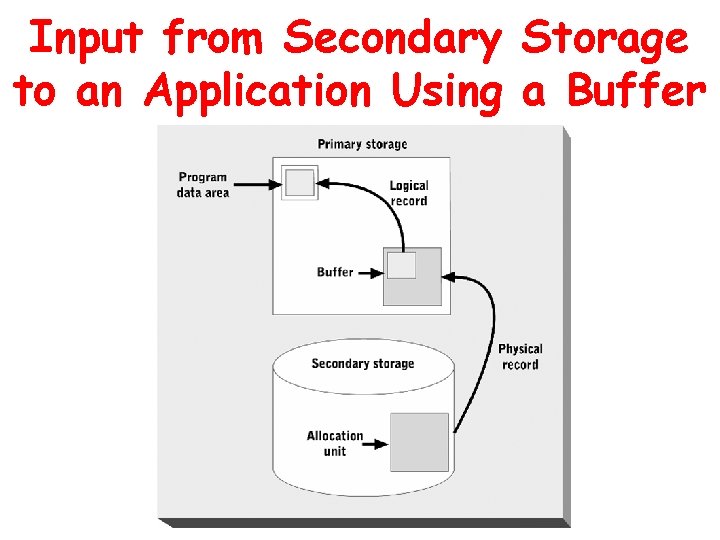

Input from Secondary Storage to an Application Using a Buffer

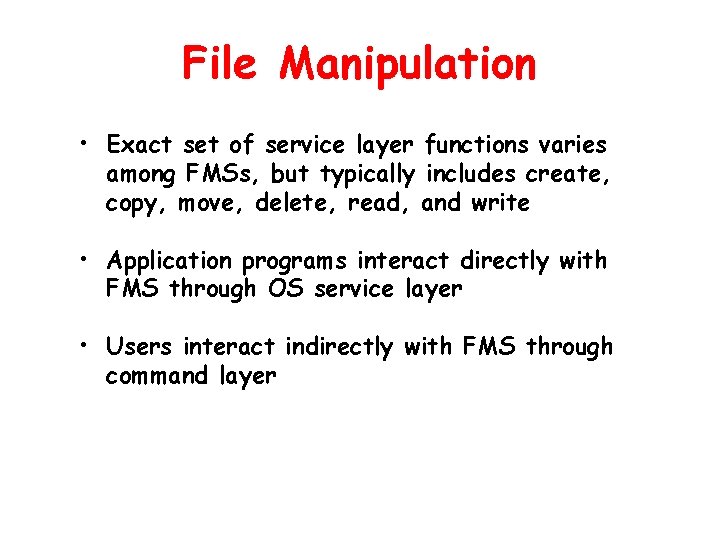

File Manipulation • Exact set of service layer functions varies among FMSs, but typically includes create, copy, move, delete, read, and write • Application programs interact directly with FMS through OS service layer • Users interact indirectly with FMS through command layer

NTFS MFT Records

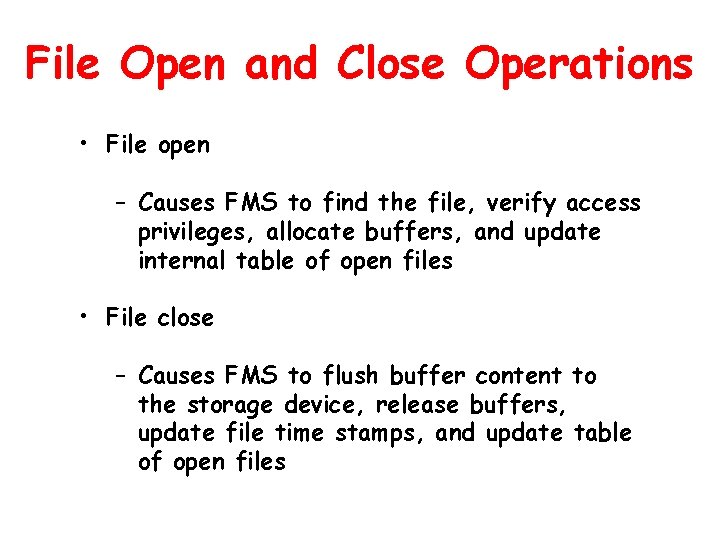

File Open and Close Operations • File open – Causes FMS to find the file, verify access privileges, allocate buffers, and update internal table of open files • File close – Causes FMS to flush buffer content to the storage device, release buffers, update file time stamps, and update table of open files

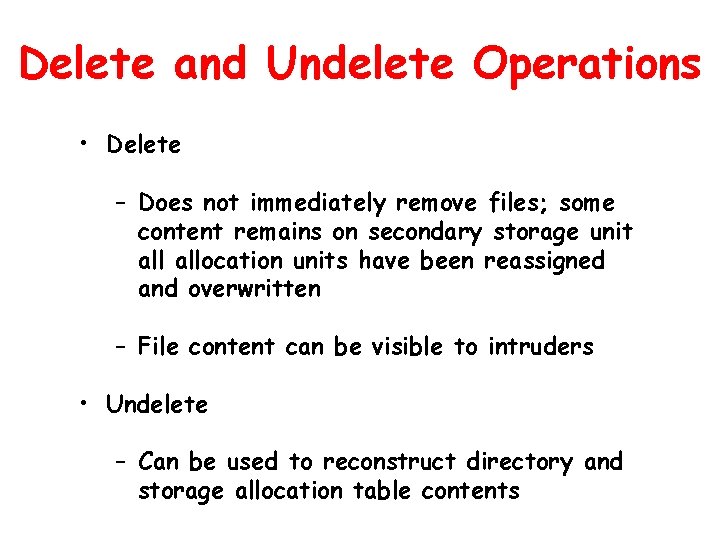

Delete and Undelete Operations • Delete – Does not immediately remove files; some content remains on secondary storage unit allocation units have been reassigned and overwritten – File content can be visible to intruders • Undelete – Can be used to reconstruct directory and storage allocation table contents

Access Controls • Granted by file owners and system administrators for reading, writing, and executing files • Provide security at the expense of additional FMS overhead

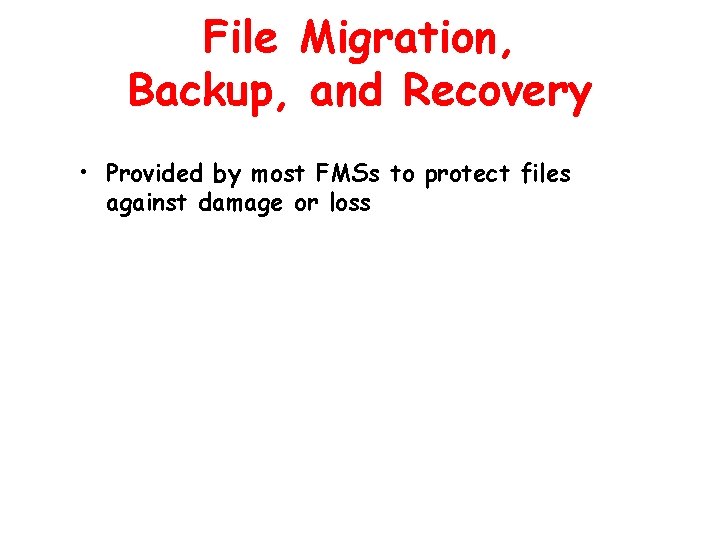

File Migration, Backup, and Recovery • Provided by most FMSs to protect files against damage or loss

File Migration (Version Control) • Automatic storage and backup of old file versions • Balances storage cost of each file version with anticipated user demand for that version

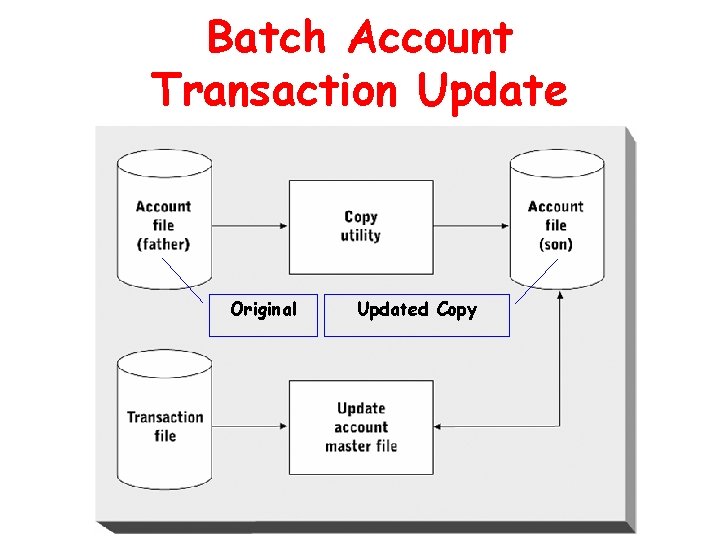

Batch Account Transaction Update Original Updated Copy

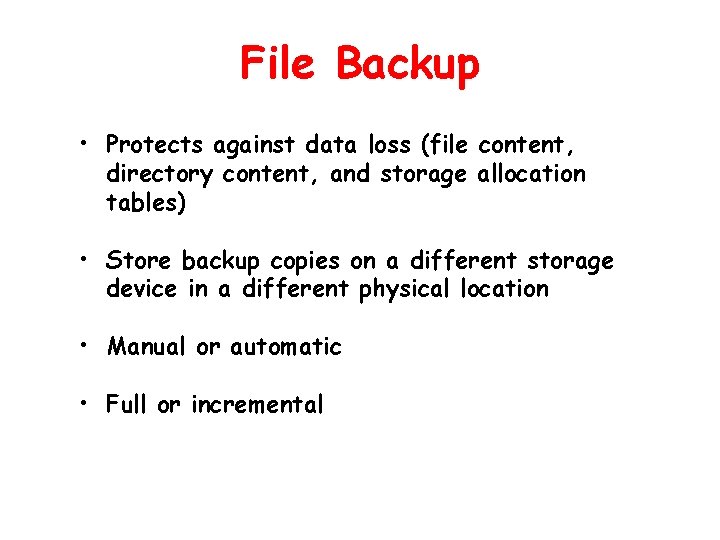

File Backup • Protects against data loss (file content, directory content, and storage allocation tables) • Store backup copies on a different storage device in a different physical location • Manual or automatic • Full or incremental

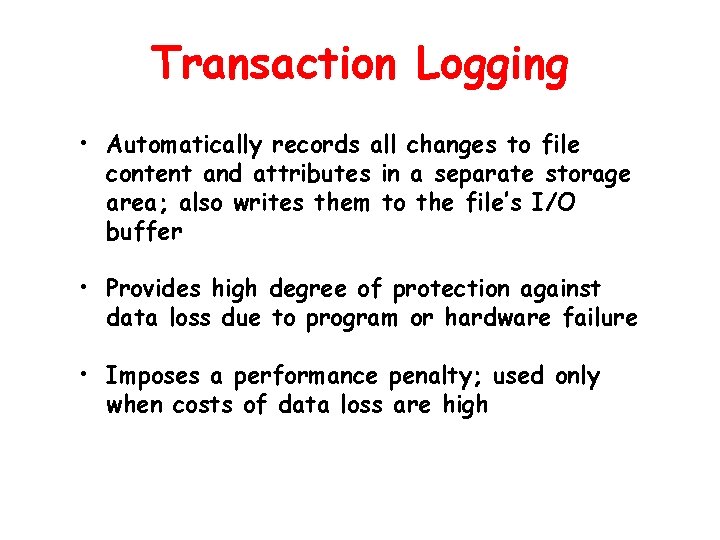

Transaction Logging • Automatically records all changes to file content and attributes in a separate storage area; also writes them to the file’s I/O buffer • Provides high degree of protection against data loss due to program or hardware failure • Imposes a performance penalty; used only when costs of data loss are high

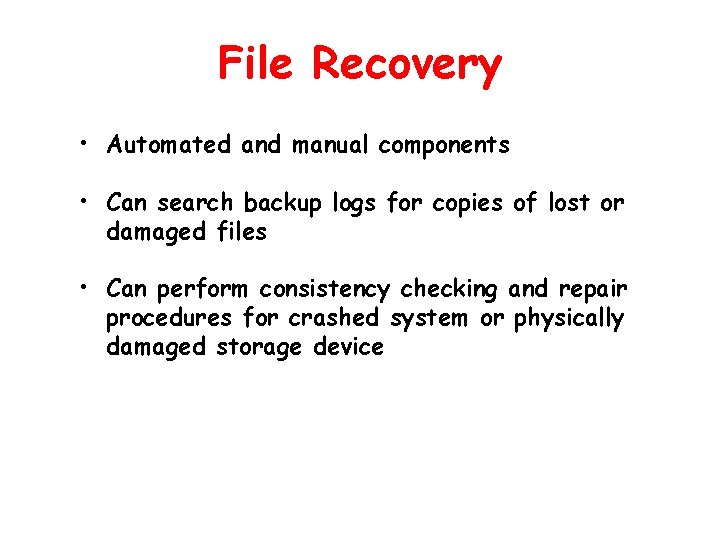

File Recovery • Automated and manual components • Can search backup logs for copies of lost or damaged files • Can perform consistency checking and repair procedures for crashed system or physically damaged storage device

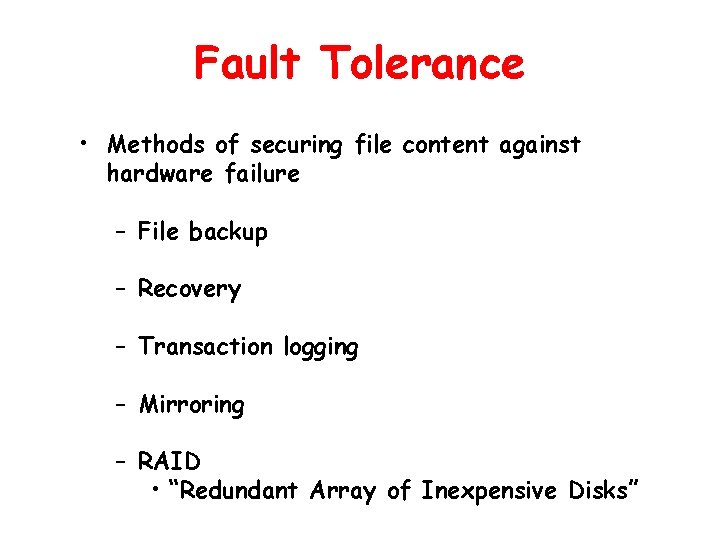

Fault Tolerance • Methods of securing file content against hardware failure – File backup – Recovery – Transaction logging – Mirroring – RAID • “Redundant Array of Inexpensive Disks”

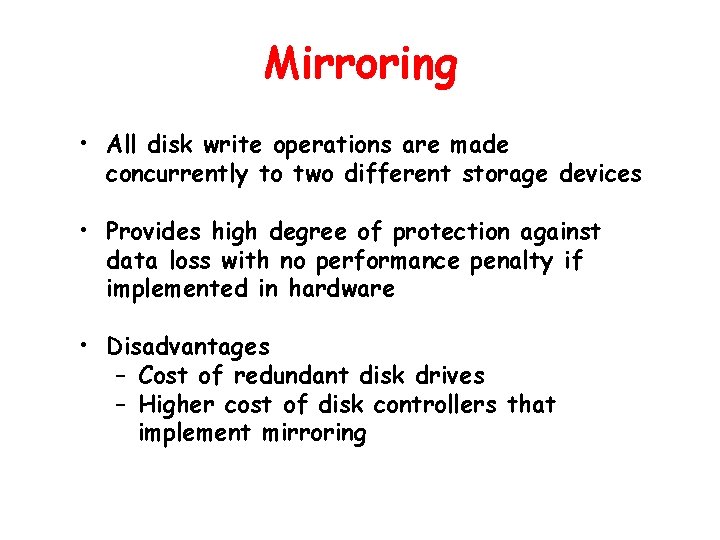

Mirroring • All disk write operations are made concurrently to two different storage devices • Provides high degree of protection against data loss with no performance penalty if implemented in hardware • Disadvantages – Cost of redundant disk drives – Higher cost of disk controllers that implement mirroring

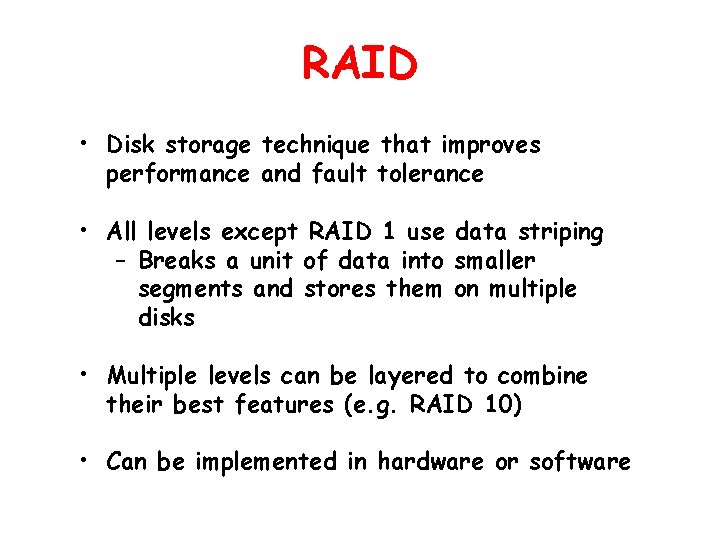

RAID • Disk storage technique that improves performance and fault tolerance • All levels except RAID 1 use data striping – Breaks a unit of data into smaller segments and stores them on multiple disks • Multiple levels can be layered to combine their best features (e. g. RAID 10) • Can be implemented in hardware or software

RAID Levels

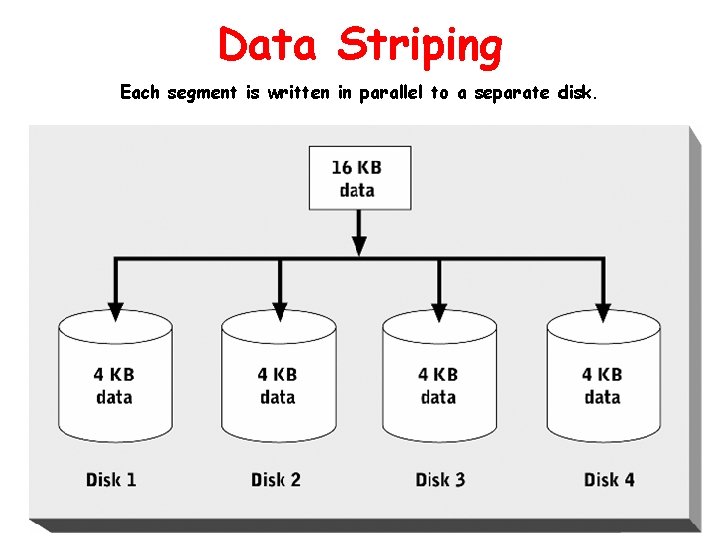

Data Striping Each segment is written in parallel to a separate disk.

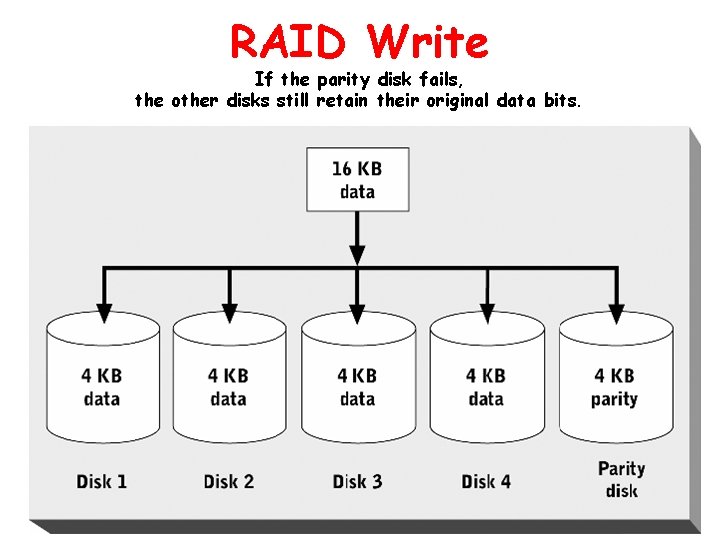

RAID Write If the parity disk fails, the other disks still retain their original data bits.

RAID 10 Mirrors individual disks (RAID 1), then stripes data (RAID 0) across multiple mirrored pairs.

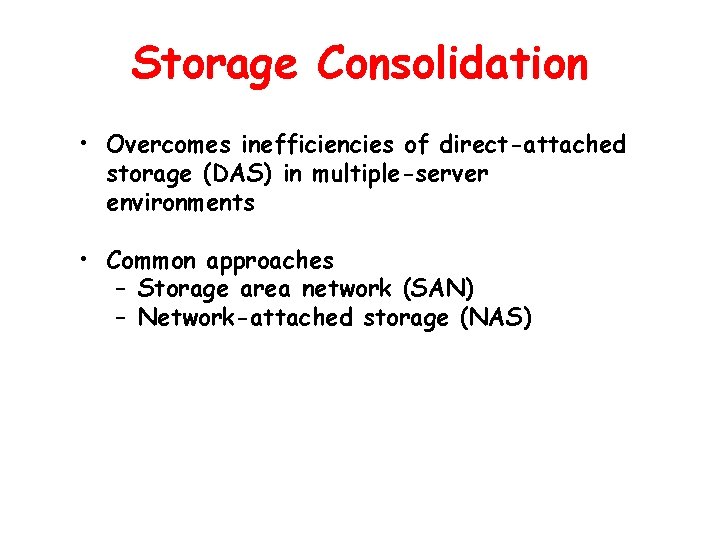

Storage Consolidation • Overcomes inefficiencies of direct-attached storage (DAS) in multiple-server environments • Common approaches – Storage area network (SAN) – Network-attached storage (NAS)

Storage Consolidation Storage Area Network (SAN) • High-speed interconnection among general-purpose servers and one or more storage servers • Block-oriented access • Common in multi-server environments with mainframes or supercomputers and substantial overlap among server storage needs • Expensive to purchase and administer, but avoid costs of duplicate storage and storage administration Network-Attached Storage (NAS) • Dedicated to managing one or more file systems • Accessed by other servers and clients over a local or wide area network • File-oriented access • Common when geographically dispersed servers need access to a common file system • Cheaper to acquire than SAN, but at the price of lower performance

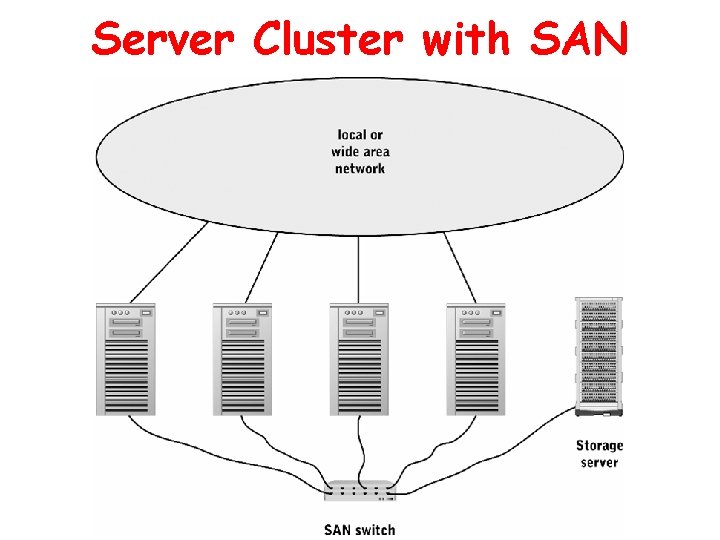

Server Cluster with SAN

Server Cluster with NAS

Summary File management systems Directory content and structure Storage allocation File manipulation Access controls File migration, backup, and recovery Storage consolidation

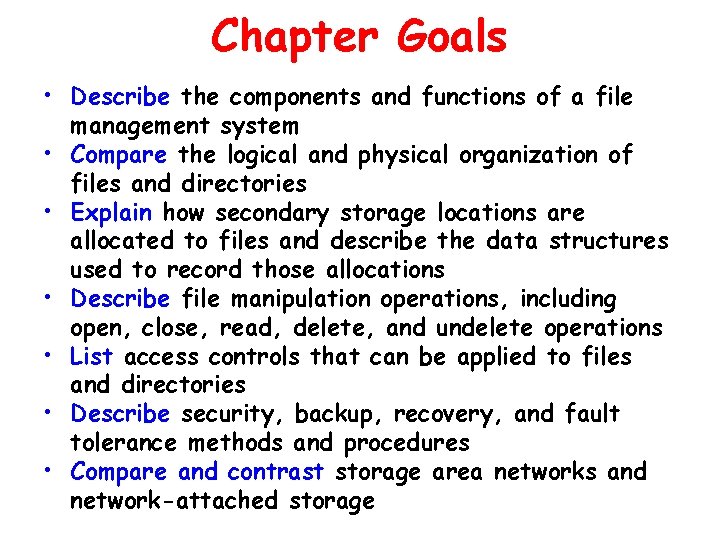

Chapter Goals • Describe the components and functions of a file management system • Compare the logical and physical organization of files and directories • Explain how secondary storage locations are allocated to files and describe the data structures used to record those allocations • Describe file manipulation operations, including open, close, read, delete, and undelete operations • List access controls that can be applied to files and directories • Describe security, backup, recovery, and fault tolerance methods and procedures • Compare and contrast storage area networks and network-attached storage
