Chapter 11 The Periodic Table Preview Section 1
Chapter 11 The Periodic Table Preview Section 1 Arranging the Elements Section 2 Grouping the Elements Concept Mapping

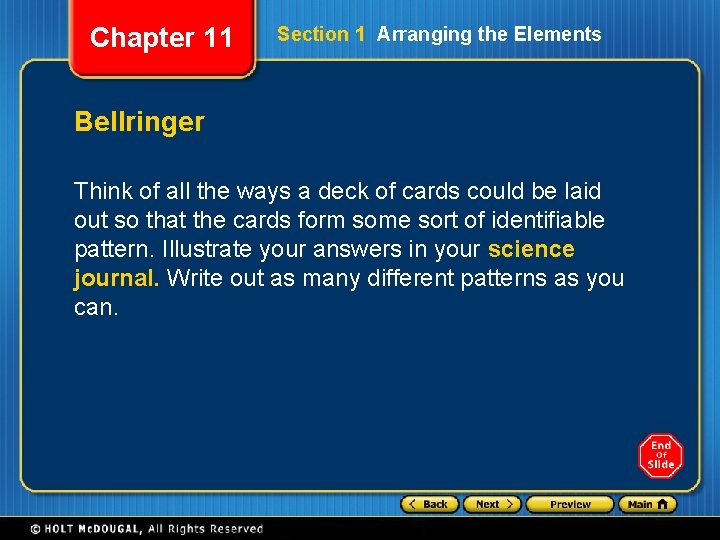

Chapter 11 Section 1 Arranging the Elements Bellringer Think of all the ways a deck of cards could be laid out so that the cards form some sort of identifiable pattern. Illustrate your answers in your science journal. Write out as many different patterns as you can.

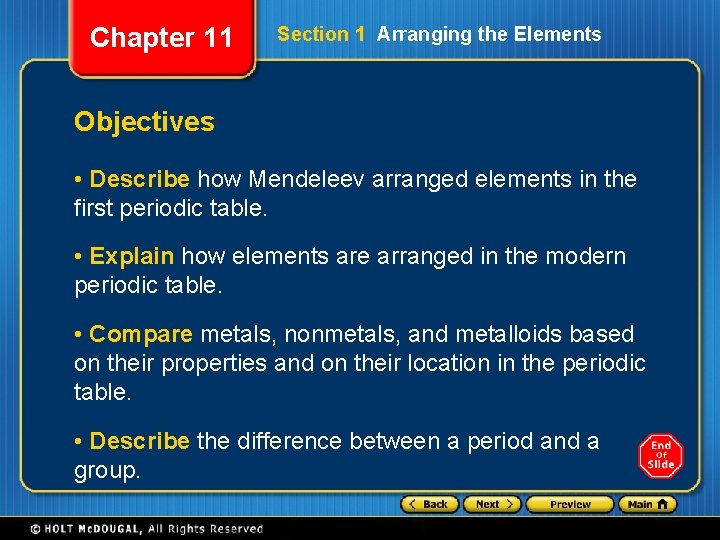

Chapter 11 Section 1 Arranging the Elements Objectives • Describe how Mendeleev arranged elements in the first periodic table. • Explain how elements are arranged in the modern periodic table. • Compare metals, nonmetals, and metalloids based on their properties and on their location in the periodic table. • Describe the difference between a period and a group.

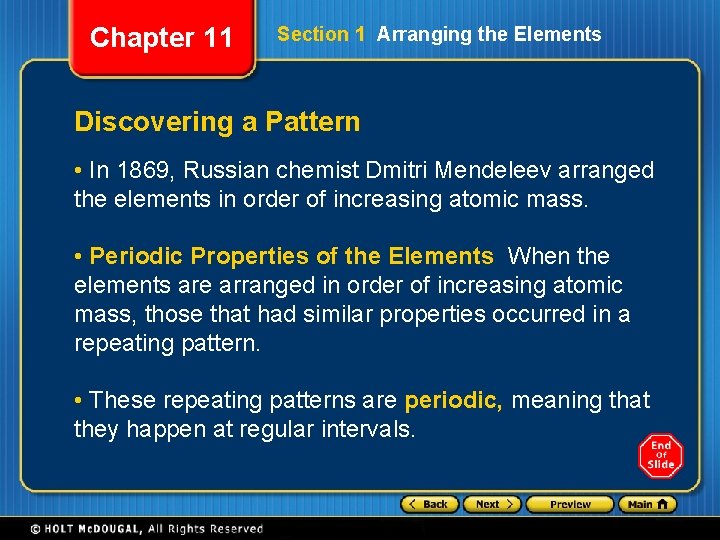

Chapter 11 Section 1 Arranging the Elements Discovering a Pattern • In 1869, Russian chemist Dmitri Mendeleev arranged the elements in order of increasing atomic mass. • Periodic Properties of the Elements When the elements are arranged in order of increasing atomic mass, those that had similar properties occurred in a repeating pattern. • These repeating patterns are periodic, meaning that they happen at regular intervals.

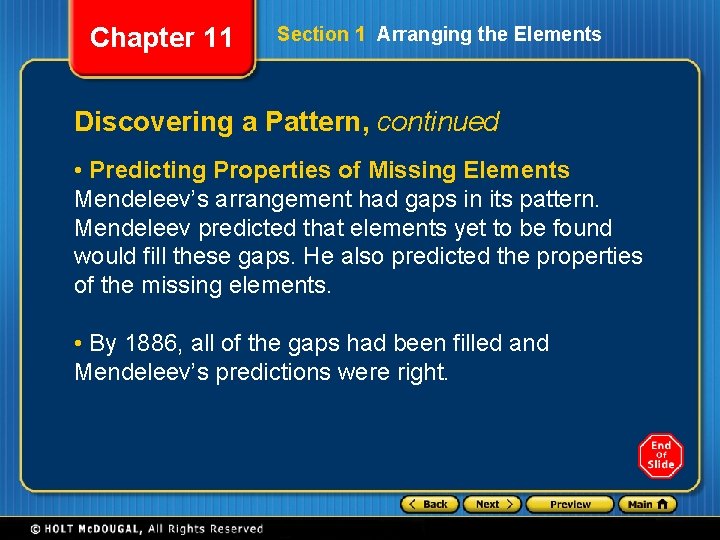

Chapter 11 Section 1 Arranging the Elements Discovering a Pattern, continued • Predicting Properties of Missing Elements Mendeleev’s arrangement had gaps in its pattern. Mendeleev predicted that elements yet to be found would fill these gaps. He also predicted the properties of the missing elements. • By 1886, all of the gaps had been filled and Mendeleev’s predictions were right.

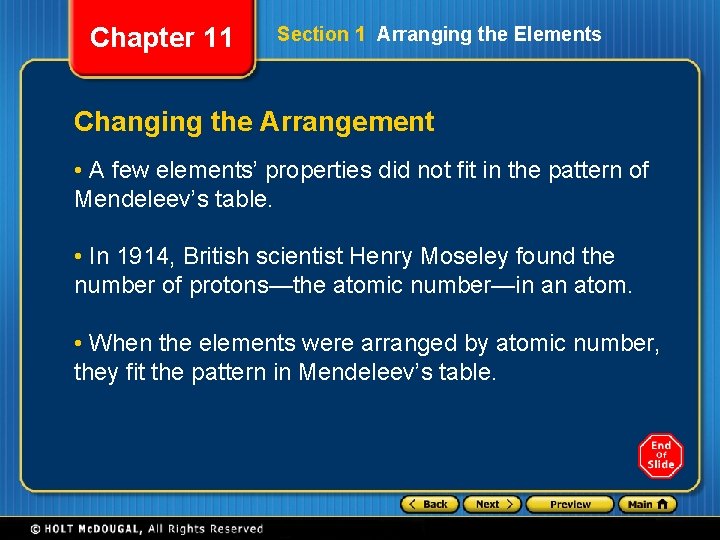

Chapter 11 Section 1 Arranging the Elements Changing the Arrangement • A few elements’ properties did not fit in the pattern of Mendeleev’s table. • In 1914, British scientist Henry Moseley found the number of protons—the atomic number—in an atom. • When the elements were arranged by atomic number, they fit the pattern in Mendeleev’s table.

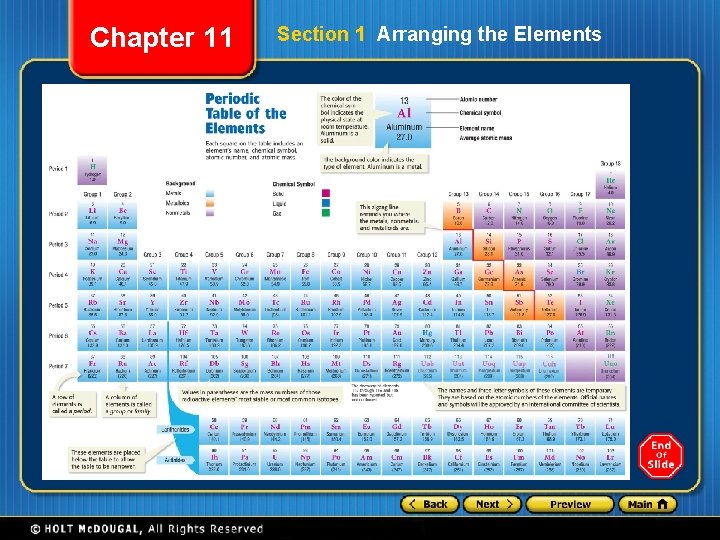

Chapter 11 Section 1 Arranging the Elements

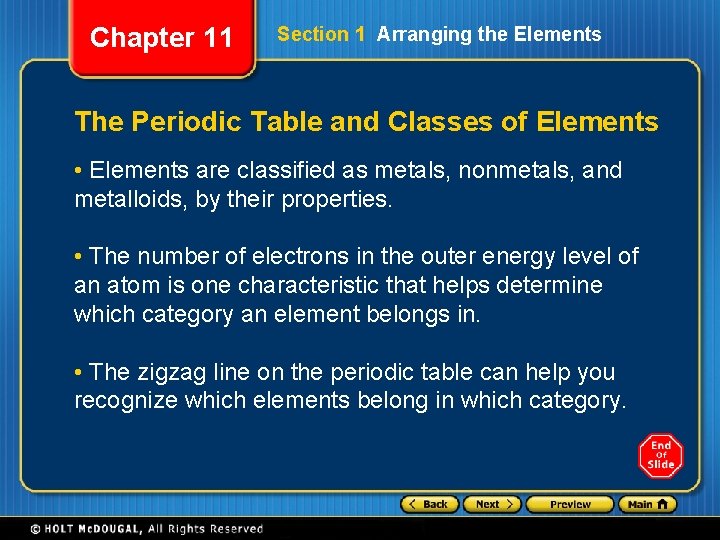

Chapter 11 Section 1 Arranging the Elements The Periodic Table and Classes of Elements • Elements are classified as metals, nonmetals, and metalloids, by their properties. • The number of electrons in the outer energy level of an atom is one characteristic that helps determine which category an element belongs in. • The zigzag line on the periodic table can help you recognize which elements belong in which category.

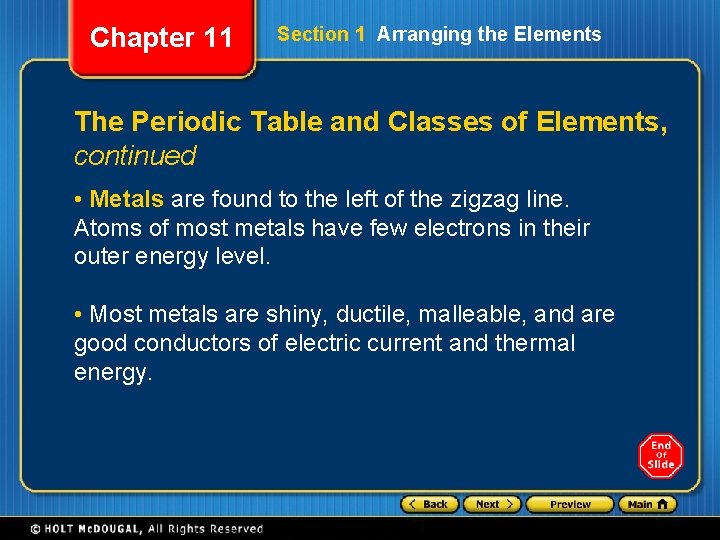

Chapter 11 Section 1 Arranging the Elements The Periodic Table and Classes of Elements, continued • Metals are found to the left of the zigzag line. Atoms of most metals have few electrons in their outer energy level. • Most metals are shiny, ductile, malleable, and are good conductors of electric current and thermal energy.

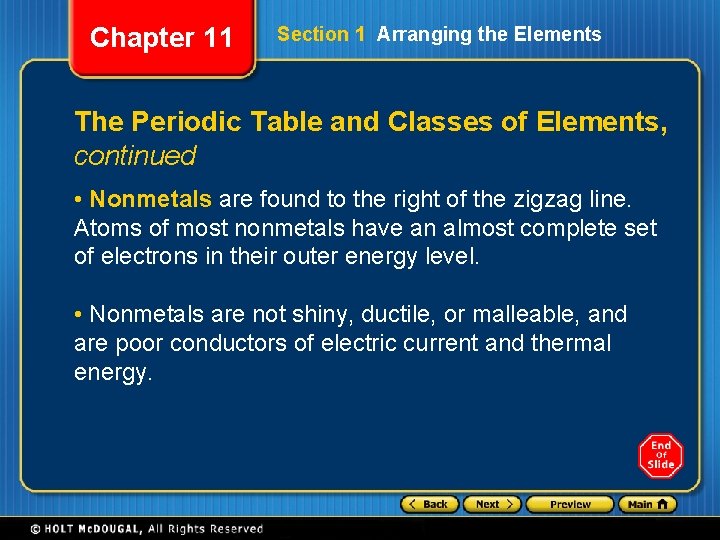

Chapter 11 Section 1 Arranging the Elements The Periodic Table and Classes of Elements, continued • Nonmetals are found to the right of the zigzag line. Atoms of most nonmetals have an almost complete set of electrons in their outer energy level. • Nonmetals are not shiny, ductile, or malleable, and are poor conductors of electric current and thermal energy.

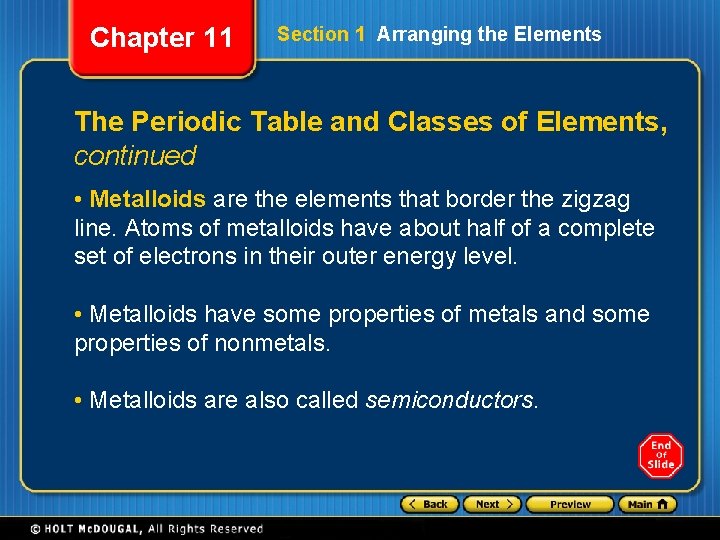

Chapter 11 Section 1 Arranging the Elements The Periodic Table and Classes of Elements, continued • Metalloids are the elements that border the zigzag line. Atoms of metalloids have about half of a complete set of electrons in their outer energy level. • Metalloids have some properties of metals and some properties of nonmetals. • Metalloids are also called semiconductors.

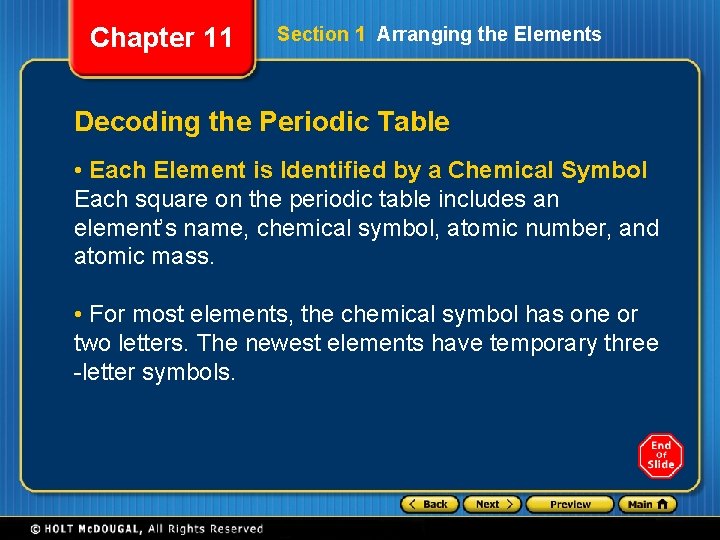

Chapter 11 Section 1 Arranging the Elements Decoding the Periodic Table • Each Element is Identified by a Chemical Symbol Each square on the periodic table includes an element’s name, chemical symbol, atomic number, and atomic mass. • For most elements, the chemical symbol has one or two letters. The newest elements have temporary three -letter symbols.

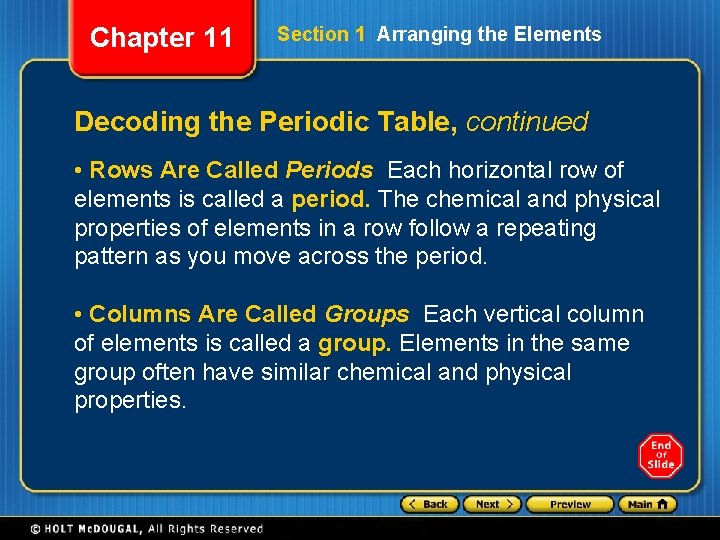

Chapter 11 Section 1 Arranging the Elements Decoding the Periodic Table, continued • Rows Are Called Periods Each horizontal row of elements is called a period. The chemical and physical properties of elements in a row follow a repeating pattern as you move across the period. • Columns Are Called Groups Each vertical column of elements is called a group. Elements in the same group often have similar chemical and physical properties.

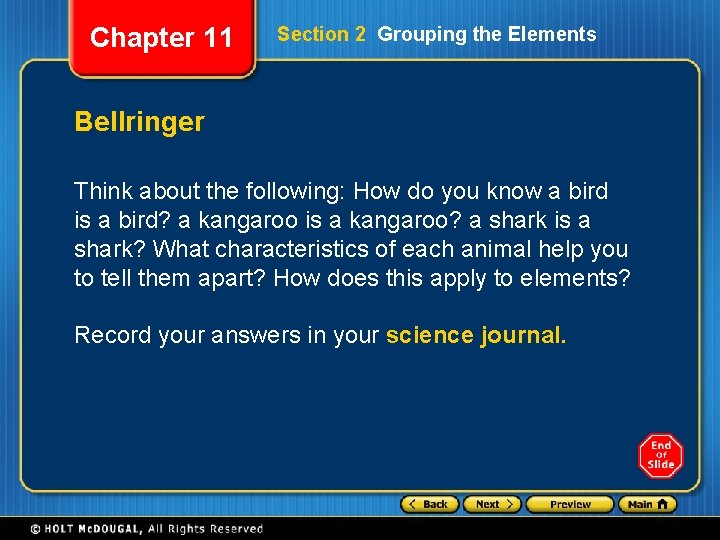

Chapter 11 Section 2 Grouping the Elements Bellringer Think about the following: How do you know a bird is a bird? a kangaroo is a kangaroo? a shark is a shark? What characteristics of each animal help you to tell them apart? How does this apply to elements? Record your answers in your science journal.

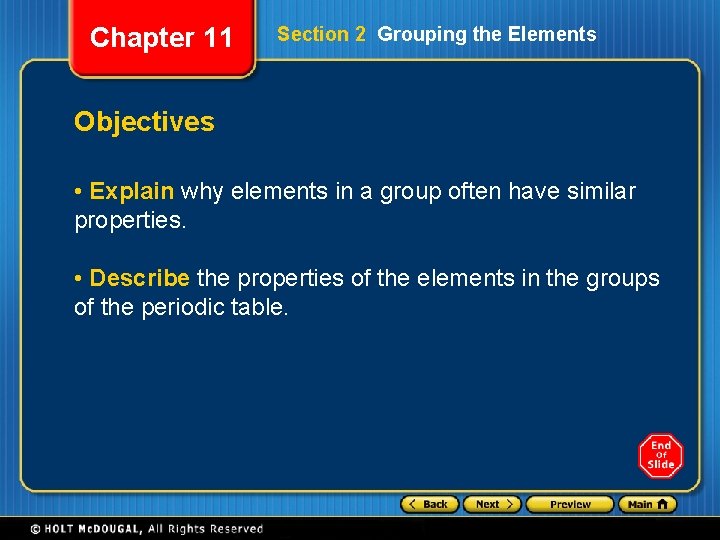

Chapter 11 Section 2 Grouping the Elements Objectives • Explain why elements in a group often have similar properties. • Describe the properties of the elements in the groups of the periodic table.

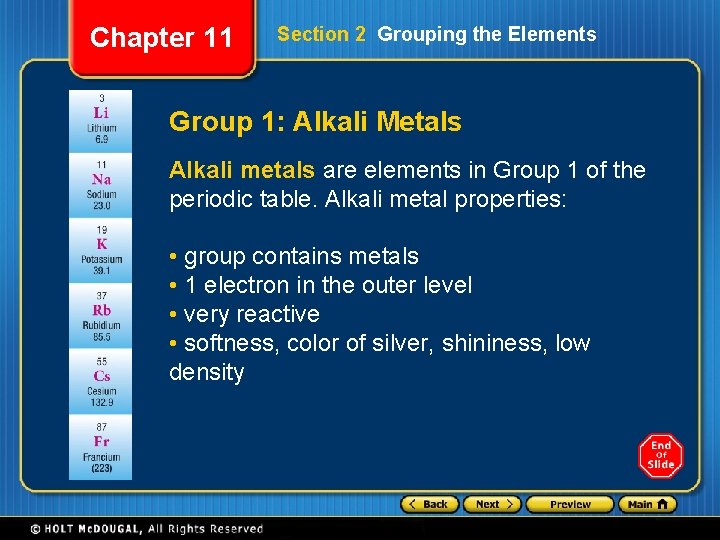

Chapter 11 Section 2 Grouping the Elements Group 1: Alkali Metals Alkali metals are elements in Group 1 of the periodic table. Alkali metal properties: • group contains metals • 1 electron in the outer level • very reactive • softness, color of silver, shininess, low density

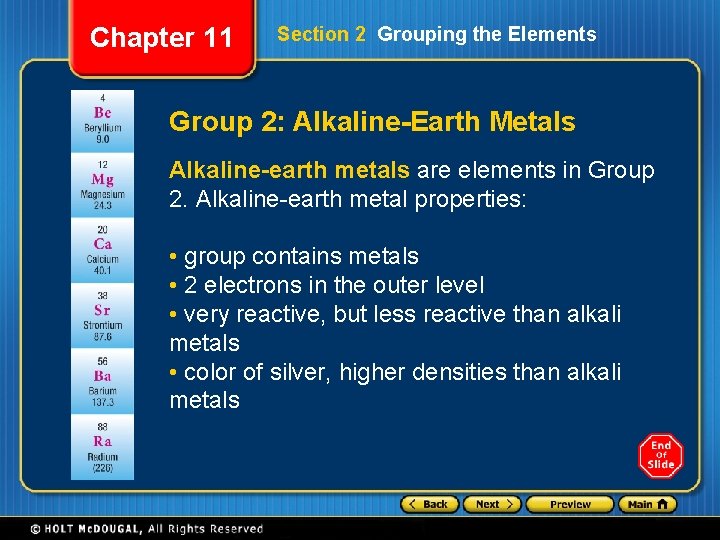

Chapter 11 Section 2 Grouping the Elements Group 2: Alkaline-Earth Metals Alkaline-earth metals are elements in Group 2. Alkaline-earth metal properties: • group contains metals • 2 electrons in the outer level • very reactive, but less reactive than alkali metals • color of silver, higher densities than alkali metals

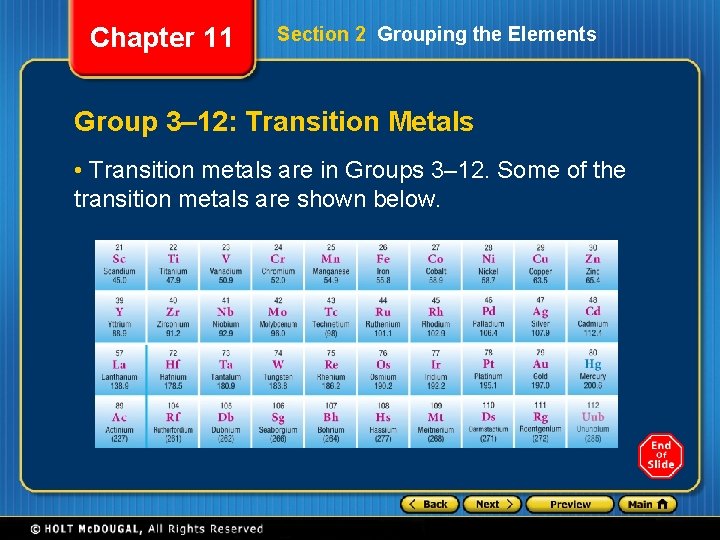

Chapter 11 Section 2 Grouping the Elements Group 3– 12: Transition Metals • Transition metals are in Groups 3– 12. Some of the transition metals are shown below.

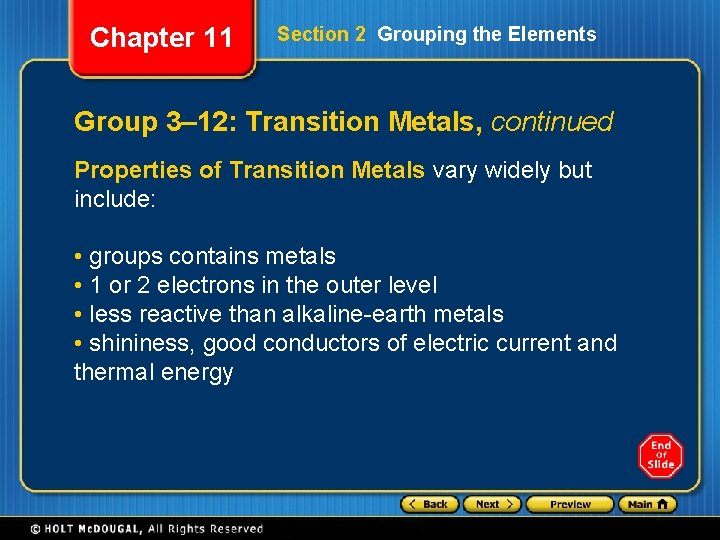

Chapter 11 Section 2 Grouping the Elements Group 3– 12: Transition Metals, continued Properties of Transition Metals vary widely but include: • groups contains metals • 1 or 2 electrons in the outer level • less reactive than alkaline-earth metals • shininess, good conductors of electric current and thermal energy

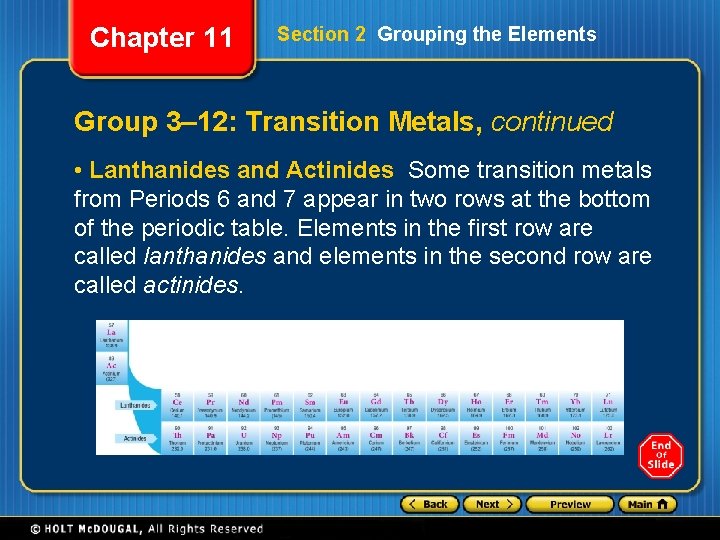

Chapter 11 Section 2 Grouping the Elements Group 3– 12: Transition Metals, continued • Lanthanides and Actinides Some transition metals from Periods 6 and 7 appear in two rows at the bottom of the periodic table. Elements in the first row are called lanthanides and elements in the second row are called actinides.

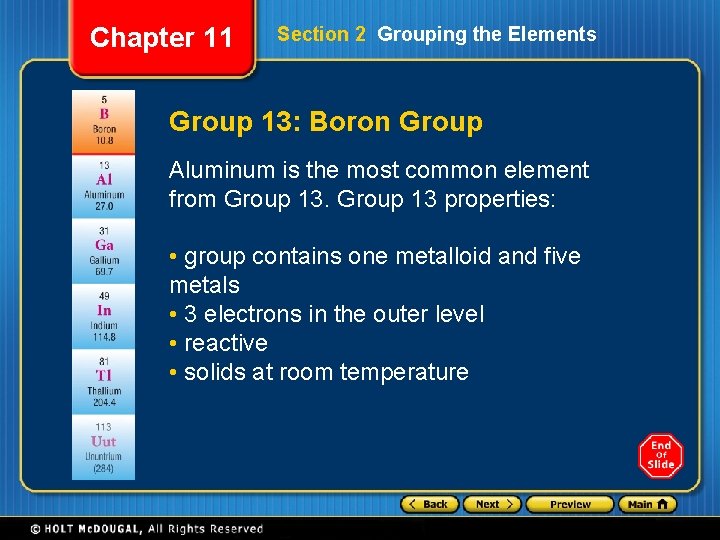

Chapter 11 Section 2 Grouping the Elements Group 13: Boron Group Aluminum is the most common element from Group 13 properties: • group contains one metalloid and five metals • 3 electrons in the outer level • reactive • solids at room temperature

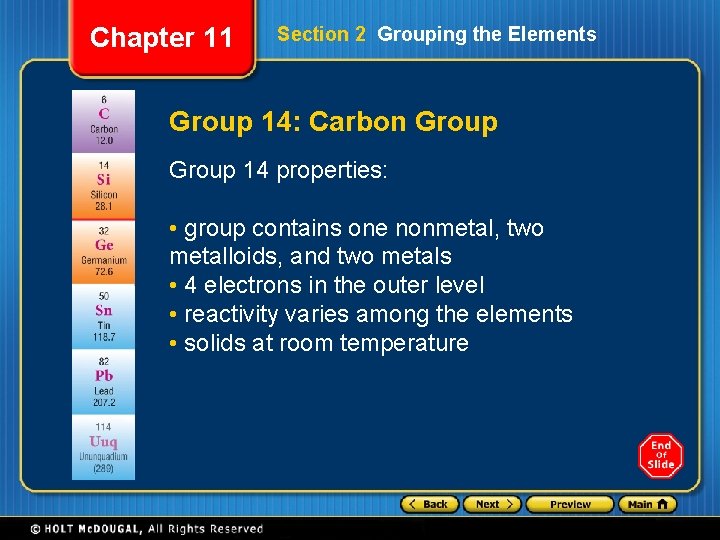

Chapter 11 Section 2 Grouping the Elements Group 14: Carbon Group 14 properties: • group contains one nonmetal, two metalloids, and two metals • 4 electrons in the outer level • reactivity varies among the elements • solids at room temperature

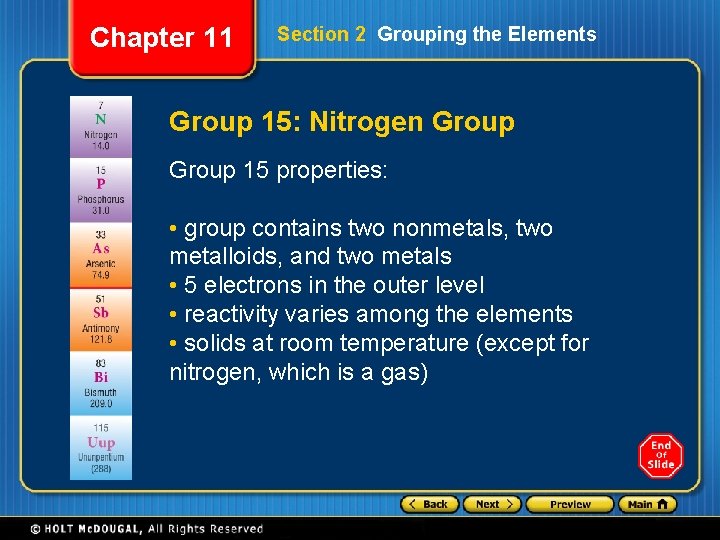

Chapter 11 Section 2 Grouping the Elements Group 15: Nitrogen Group 15 properties: • group contains two nonmetals, two metalloids, and two metals • 5 electrons in the outer level • reactivity varies among the elements • solids at room temperature (except for nitrogen, which is a gas)

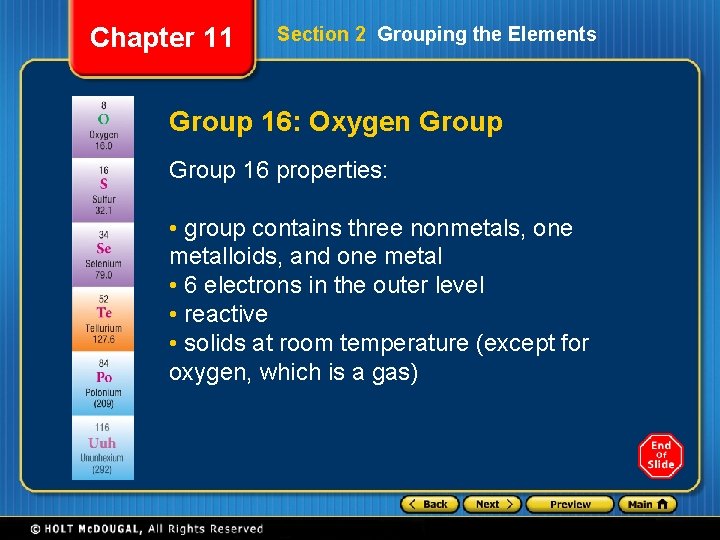

Chapter 11 Section 2 Grouping the Elements Group 16: Oxygen Group 16 properties: • group contains three nonmetals, one metalloids, and one metal • 6 electrons in the outer level • reactive • solids at room temperature (except for oxygen, which is a gas)

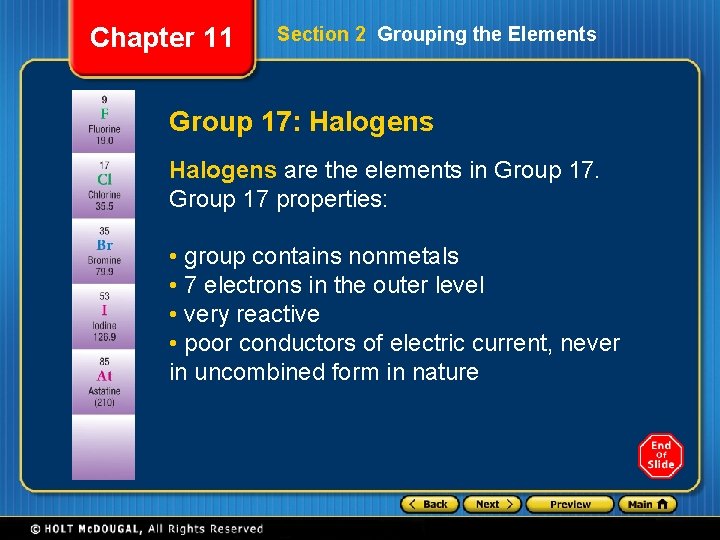

Chapter 11 Section 2 Grouping the Elements Group 17: Halogens are the elements in Group 17 properties: • group contains nonmetals • 7 electrons in the outer level • very reactive • poor conductors of electric current, never in uncombined form in nature

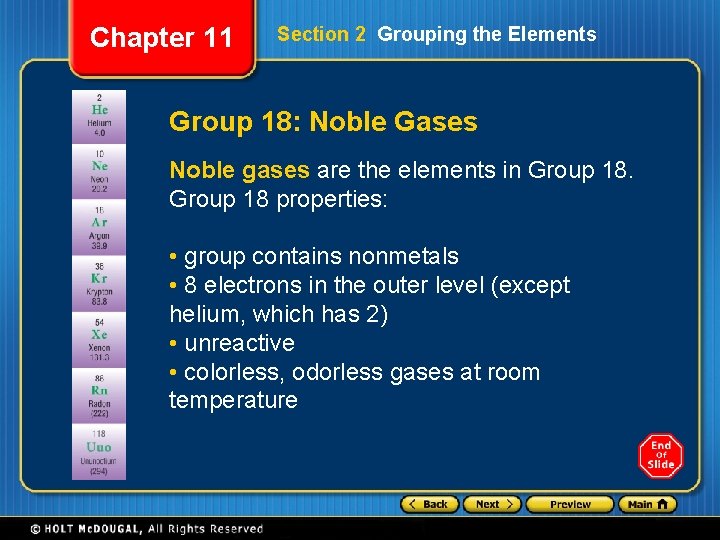

Chapter 11 Section 2 Grouping the Elements Group 18: Noble Gases Noble gases are the elements in Group 18 properties: • group contains nonmetals • 8 electrons in the outer level (except helium, which has 2) • unreactive • colorless, odorless gases at room temperature

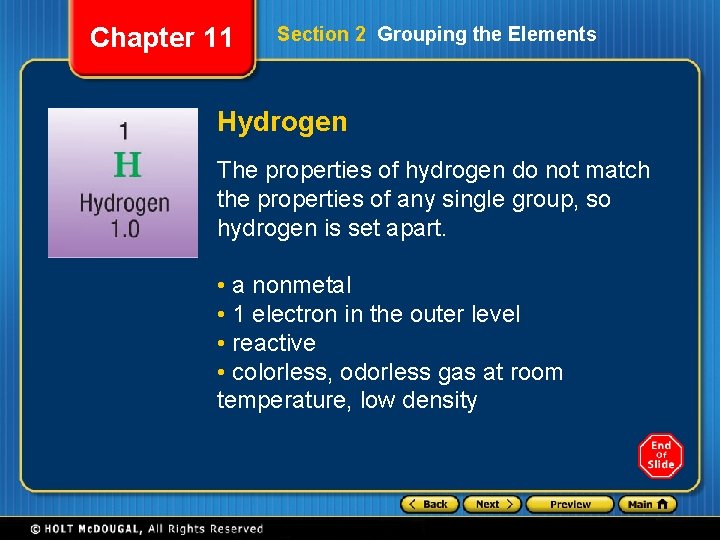

Chapter 11 Section 2 Grouping the Elements Hydrogen The properties of hydrogen do not match the properties of any single group, so hydrogen is set apart. • a nonmetal • 1 electron in the outer level • reactive • colorless, odorless gas at room temperature, low density

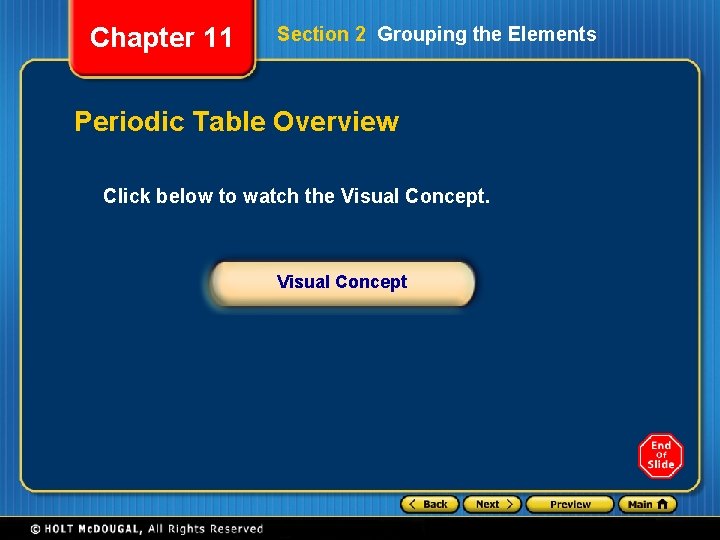

Chapter 11 Section 2 Grouping the Elements Periodic Table Overview Click below to watch the Visual Concept

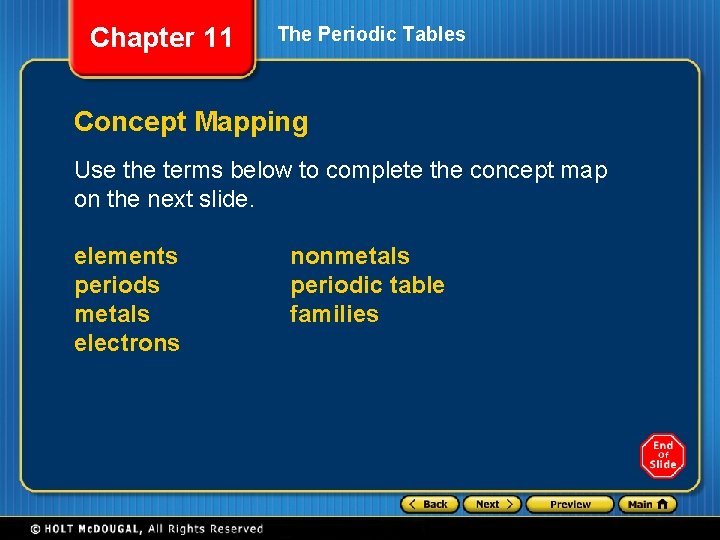

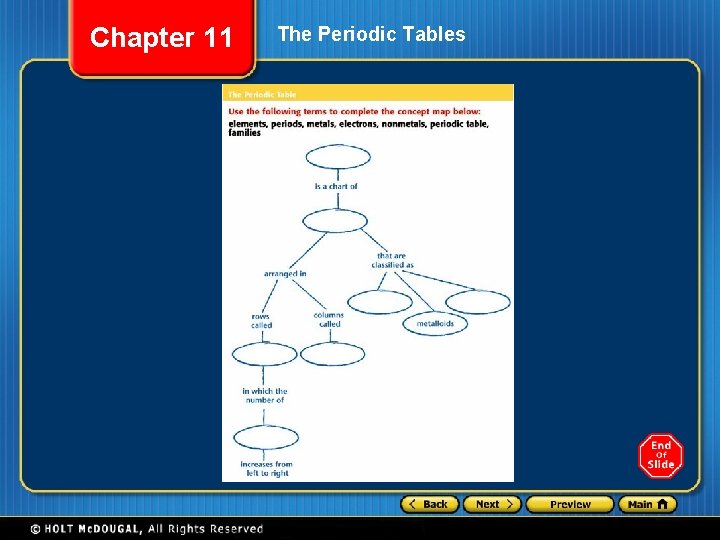

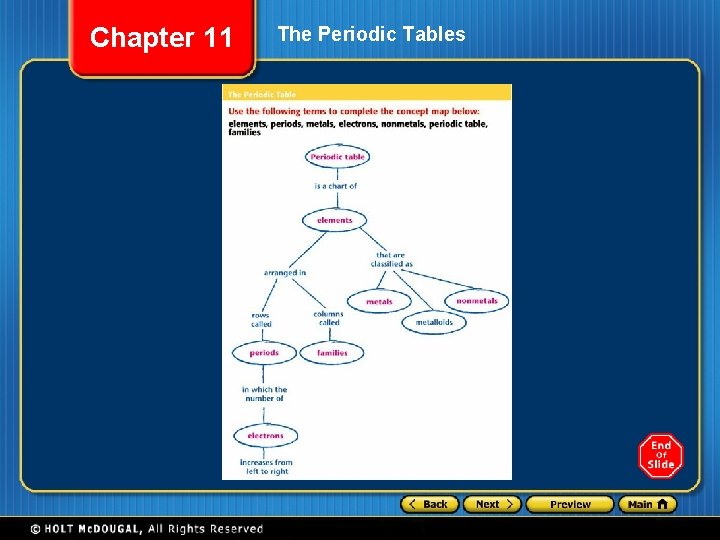

Chapter 11 The Periodic Tables Concept Mapping Use the terms below to complete the concept map on the next slide. elements periods metals electrons nonmetals periodic table families
Chapter 11 The Periodic Tables
Chapter 11 The Periodic Tables
