Chapter 11 Hurricanes Tropical weather n Anatomy of

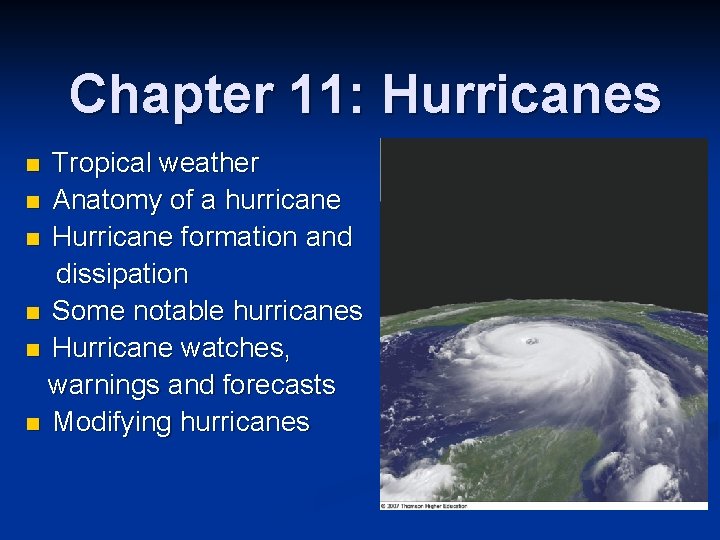

Chapter 11: Hurricanes Tropical weather n Anatomy of a hurricane n Hurricane formation and dissipation n Some notable hurricanes n Hurricane watches, warnings and forecasts n Modifying hurricanes n

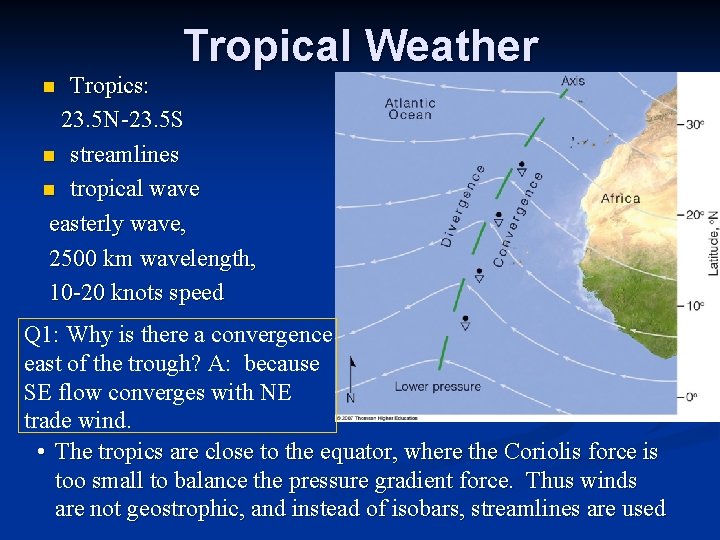

Tropical Weather Tropics: 23. 5 N-23. 5 S n streamlines n tropical wave easterly wave, 2500 km wavelength, 10 -20 knots speed n Q 1: Why is there a convergence east of the trough? A: because SE flow converges with NE trade wind. • The tropics are close to the equator, where the Coriolis force is too small to balance the pressure gradient force. Thus winds are not geostrophic, and instead of isobars, streamlines are used

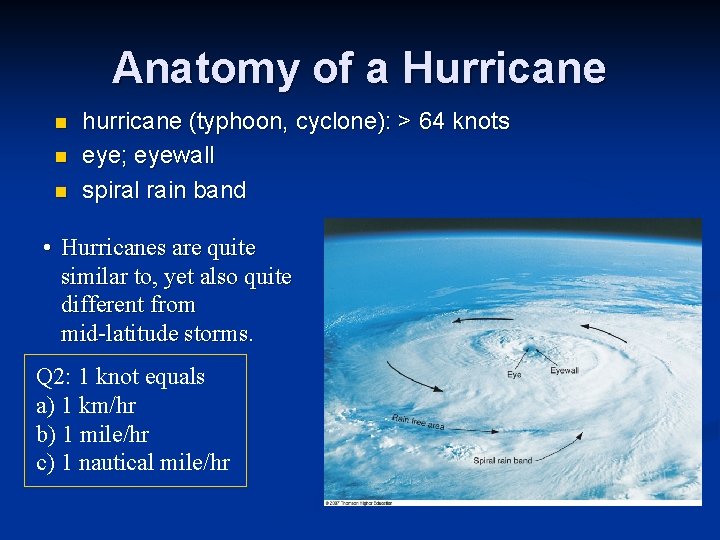

Anatomy of a Hurricane n n n hurricane (typhoon, cyclone): > 64 knots eye; eyewall spiral rain band • Hurricanes are quite similar to, yet also quite different from mid-latitude storms. Q 2: 1 knot equals a) 1 km/hr b) 1 mile/hr c) 1 nautical mile/hr

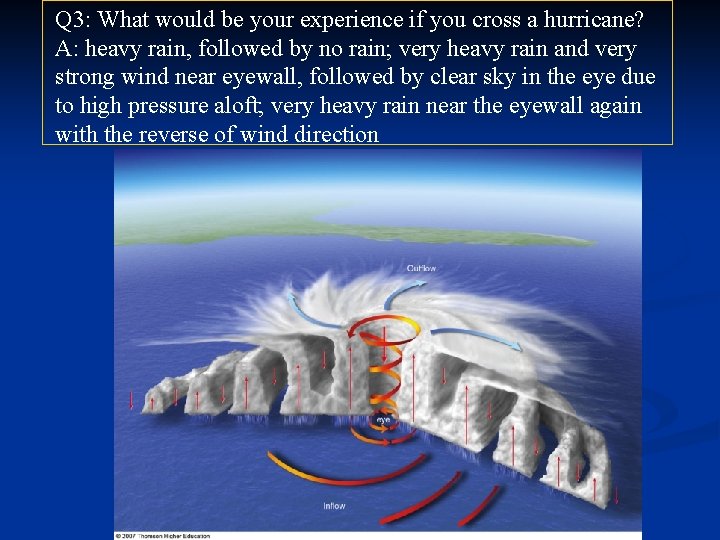

Q 3: What would be your experience if you cross a hurricane? A: heavy rain, followed by no rain; very heavy rain and very strong wind near eyewall, followed by clear sky in the eye due to high pressure aloft; very heavy rain near the eyewall again with the reverse of wind direction

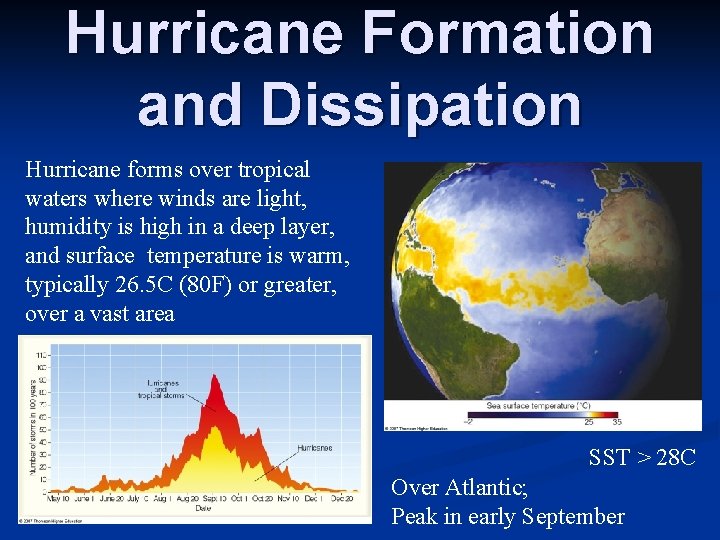

Hurricane Formation and Dissipation Hurricane forms over tropical waters where winds are light, humidity is high in a deep layer, and surface temperature is warm, typically 26. 5 C (80 F) or greater, over a vast area SST > 28 C Over Atlantic; Peak in early September

The Right Environment Convergence trigger ITCZ, easterly waves, midlatitude fronts to tropics n Weak trade wind inversion n Weak upper wind e. g. , during a La Nina event (for more hurricanes over Atlantic) n Some Coriolis force: 5 -20 deg latitude n Q 4: Why are relatively strong temperature inversion and strong wind shear required for supercell? A: weak inversion would lead to ordinary thunderstorms only and weak wind shear would selfdestroy the storm by downdraft. Q 5: Why are weak inversion and weak upper wind are required for hurricanes? A: warm ocean surface is the energy source that is not much affected by downdraft; strong inversion prevents the formation of thunderstorms; strong wind disrupts the organized pattern of convection.

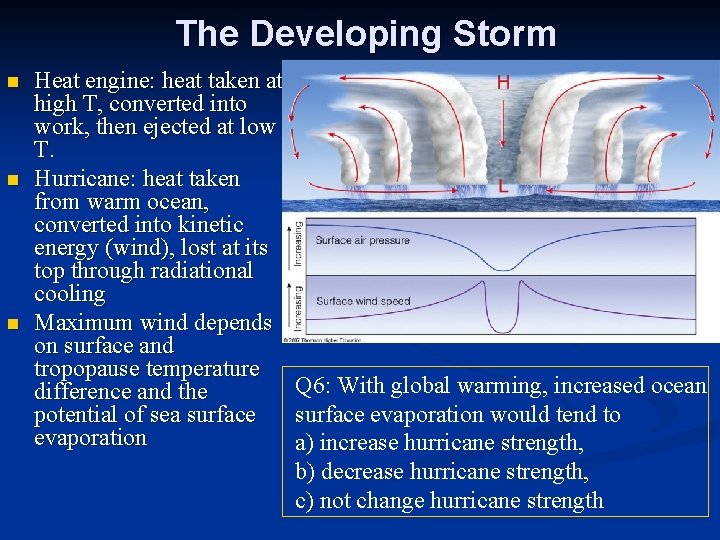

The Developing Storm n n n Heat engine: heat taken at high T, converted into work, then ejected at low T. Hurricane: heat taken from warm ocean, converted into kinetic energy (wind), lost at its top through radiational cooling Maximum wind depends on surface and tropopause temperature Q 6: With global warming, increased ocean difference and the surface evaporation would tend to potential of sea surface evaporation a) increase hurricane strength, b) decrease hurricane strength, c) not change hurricane strength

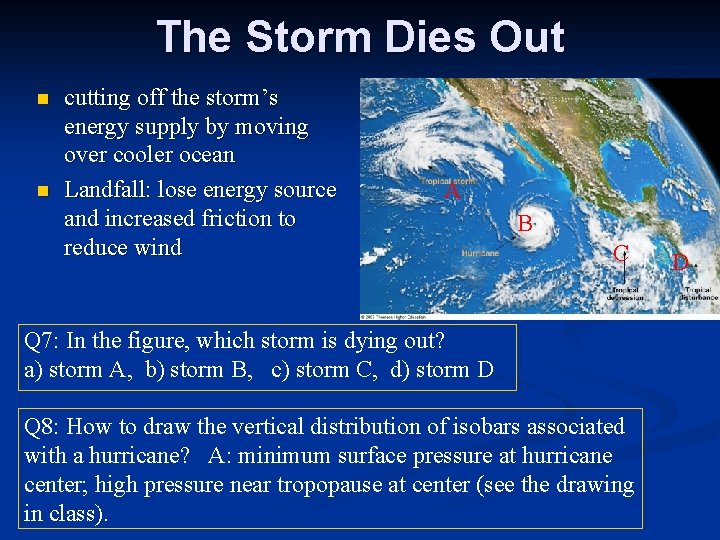

The Storm Dies Out n n cutting off the storm’s energy supply by moving over cooler ocean Landfall: lose energy source and increased friction to reduce wind A B C Q 7: In the figure, which storm is dying out? a) storm A, b) storm B, c) storm C, d) storm D Q 8: How to draw the vertical distribution of isobars associated with a hurricane? A: minimum surface pressure at hurricane center; high pressure near tropopause at center (see the drawing in class). D

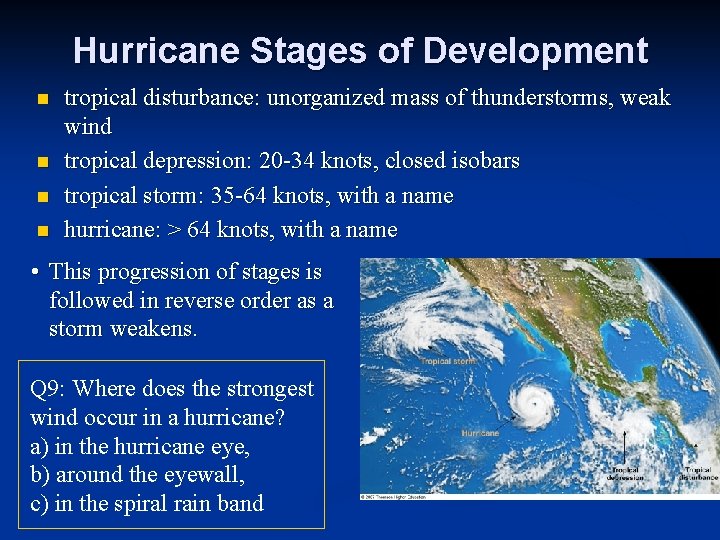

Hurricane Stages of Development n n tropical disturbance: unorganized mass of thunderstorms, weak wind tropical depression: 20 -34 knots, closed isobars tropical storm: 35 -64 knots, with a name hurricane: > 64 knots, with a name • This progression of stages is followed in reverse order as a storm weakens. Q 9: Where does the strongest wind occur in a hurricane? a) in the hurricane eye, b) around the eyewall, c) in the spiral rain band

Q 10: Hurricanes can form over oceans with surface temperature a) > 17 C, b) > 22 C, c) > 27 C Q 11: Do usually hurricanes form at the equator? a) yes, b) no Q 12: Hurricane wind is stronger than a) 34 knots, b) 44 knots, c) 54 knots, d) 64 knots Q 13: Favorable conditions for hurricane development include a) strong inversion and strong upper wind b) strong inversion and weak upper wind c) weak inversion and strong upper wind d) weak inversion and weak upper wind

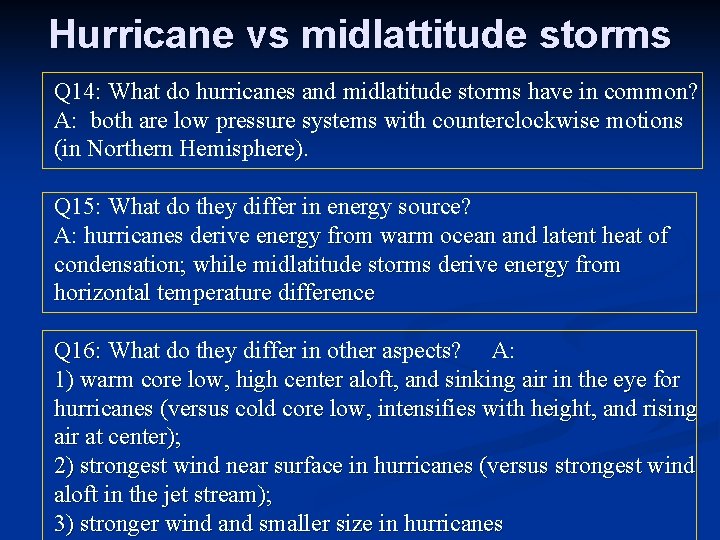

Hurricane vs midlattitude storms Q 14: What do hurricanes and midlatitude storms have in common? A: both are low pressure systems with counterclockwise motions (in Northern Hemisphere). Q 15: What do they differ in energy source? A: hurricanes derive energy from warm ocean and latent heat of condensation; while midlatitude storms derive energy from horizontal temperature difference Q 16: What do they differ in other aspects? A: 1) warm core low, high center aloft, and sinking air in the eye for hurricanes (versus cold core low, intensifies with height, and rising air at center); 2) strongest wind near surface in hurricanes (versus strongest wind aloft in the jet stream); 3) stronger wind and smaller size in hurricanes

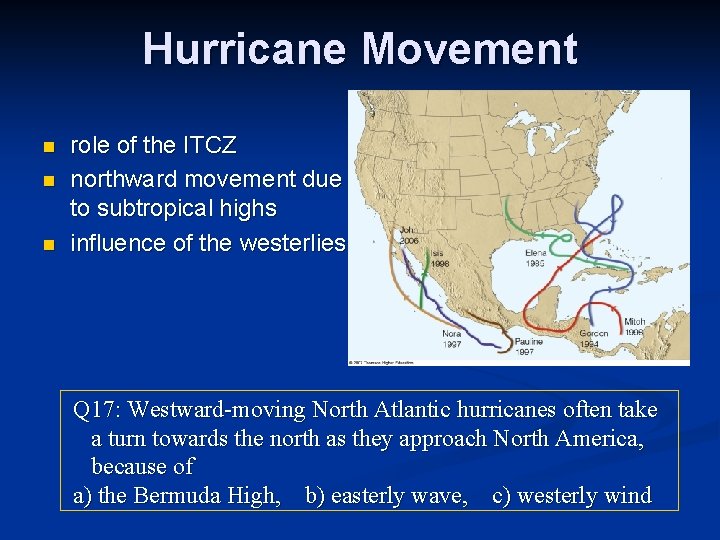

Hurricane Movement n n n role of the ITCZ northward movement due to subtropical highs influence of the westerlies Q 17: Westward-moving North Atlantic hurricanes often take a turn towards the north as they approach North America, because of a) the Bermuda High, b) easterly wave, c) westerly wind

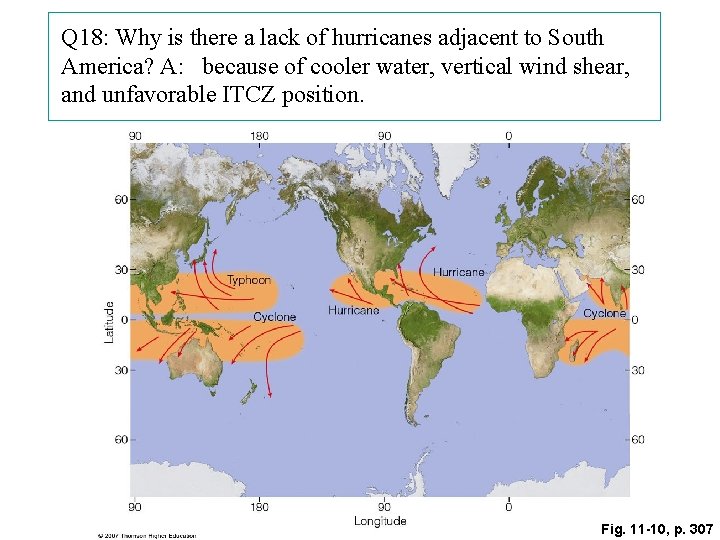

Q 18: Why is there a lack of hurricanes adjacent to South America? A: because of cooler water, vertical wind shear, and unfavorable ITCZ position. Fig. 11 -10, p. 307

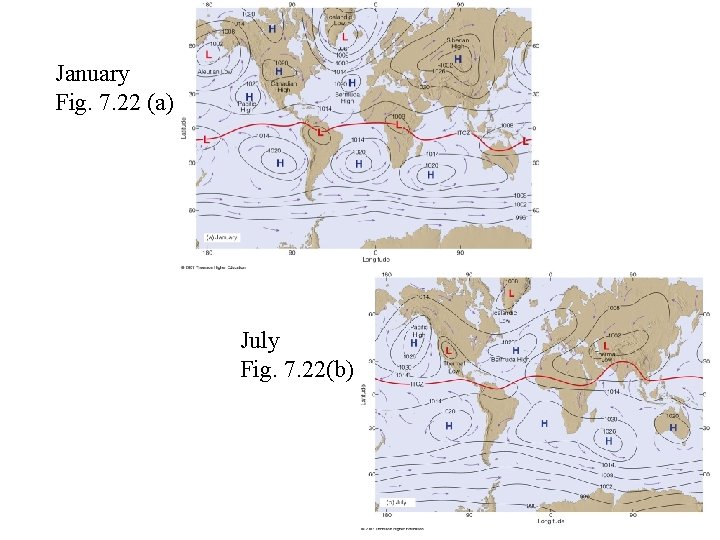

January Fig. 7. 22 (a) July Fig. 7. 22(b)

Naming Hurricanes and Tropical Storms past practices: female names n current protocol: female and male names; in n alphabetic order so that the first hurricane starts with the letter A; then in Greek alphabet • Letters Q, U, X, Y not used over north Atlantic • Letters Q, U not used over north Pacific • Whenever a hurricane has had a major impact, any country affected by the storm can request that the name of the hurricane be retired by the World Meteorological Organization.

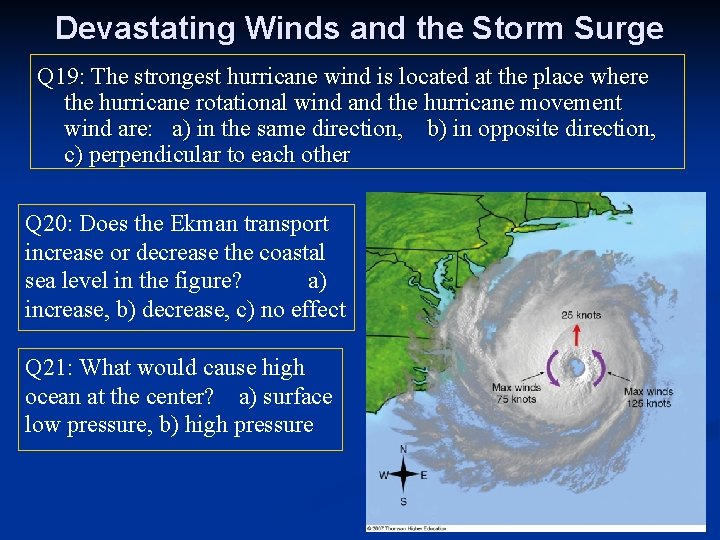

Devastating Winds and the Storm Surge Q 19: The strongest hurricane wind is located at the place where the hurricane rotational wind and the hurricane movement wind are: a) in the same direction, b) in opposite direction, c) perpendicular to each other Q 20: Does the Ekman transport increase or decrease the coastal sea level in the figure? a) increase, b) decrease, c) no effect Q 21: What would cause high ocean at the center? a) surface low pressure, b) high pressure

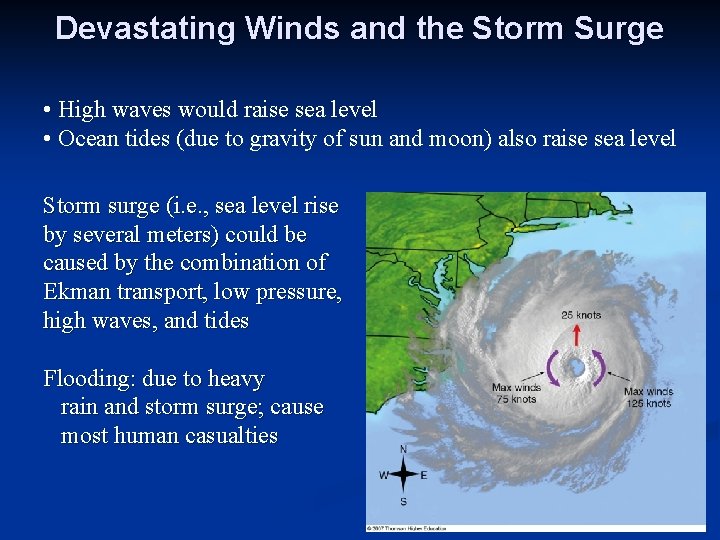

Devastating Winds and the Storm Surge • High waves would raise sea level • Ocean tides (due to gravity of sun and moon) also raise sea level Storm surge (i. e. , sea level rise by several meters) could be caused by the combination of Ekman transport, low pressure, high waves, and tides Flooding: due to heavy rain and storm surge; cause most human casualties

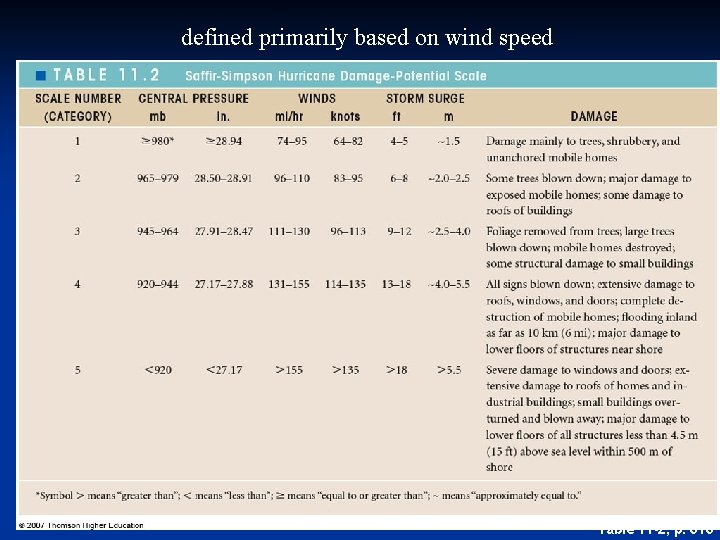

defined primarily based on wind speed Table 11 -2, p. 313

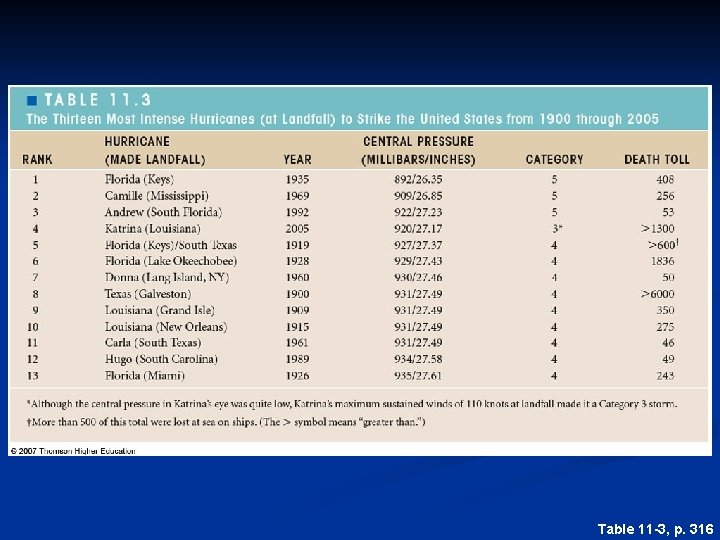

Table 11 -3, p. 316

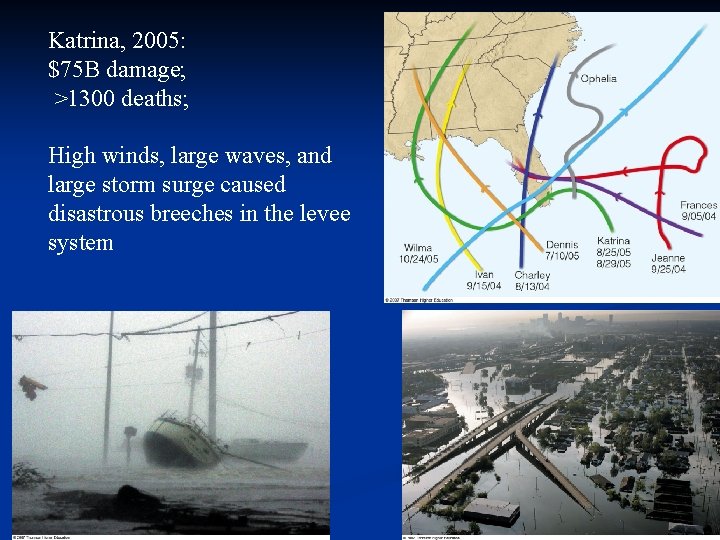

Katrina, 2005: $75 B damage; >1300 deaths; High winds, large waves, and large storm surge caused disastrous breeches in the levee system Figure 4, p. 319

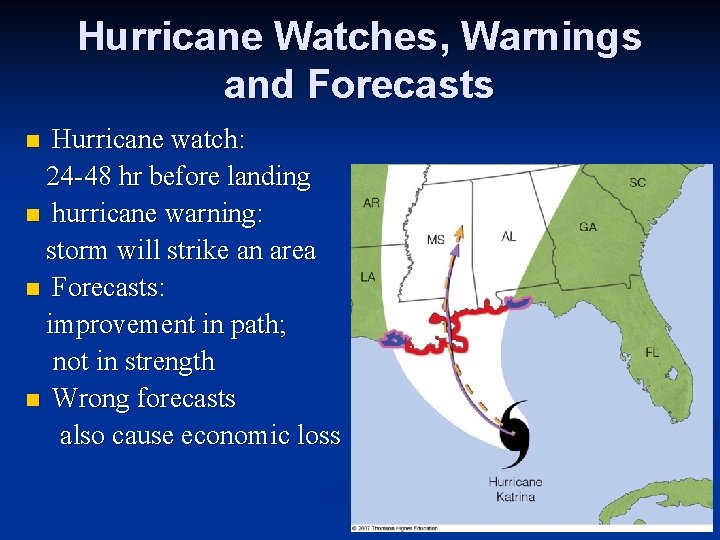

Hurricane Watches, Warnings and Forecasts Hurricane watch: 24 -48 hr before landing n hurricane warning: storm will strike an area n Forecasts: improvement in path; not in strength n Wrong forecasts also cause economic loss n

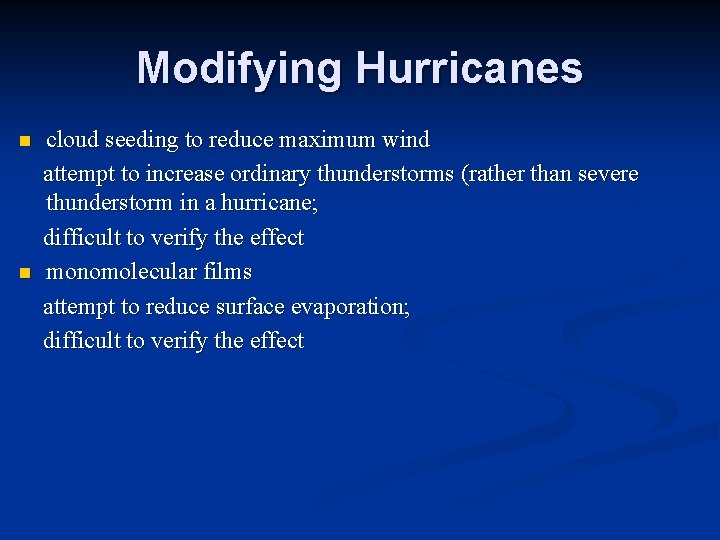

Modifying Hurricanes n n cloud seeding to reduce maximum wind attempt to increase ordinary thunderstorms (rather than severe thunderstorm in a hurricane; difficult to verify the effect monomolecular films attempt to reduce surface evaporation; difficult to verify the effect
