Chapter 11 Abstract Data Types and Encapsulation Concepts

Chapter 11: Abstract Data Types and Encapsulation Concepts • • The Concept of Abstraction Introduction to Data Abstraction Design Issues for Abstract Data Types Language Examples Parameterized Abstract Data Types Encapsulation Constructs Naming Encapsulations 1

The Concept of Abstraction • An abstraction is a view or representation of an entity that includes only the most significant attributes • The concept of abstraction is fundamental in programming (and computer science) • Nearly all programming languages support process abstraction with subprograms • Nearly all programming languages designed since 1980 support data abstraction 2

Introduction to Data Abstraction • An abstract data type is a user-defined data type that satisfies the following two conditions: – The representation of, and operations on, objects of the type are defined in a single syntactic unit – The representation of objects of the type is hidden from the program units that use these objects, so the only operations possible are those provided in the type's definition 3

Advantages of Data Abstraction • Advantage of the first condition – Program organization, modifiability (everything associated with a data structure is together), and separate compilation • Advantage of the secondition – Reliability: by hiding the data representations, user code cannot directly access objects of the type or depend on the representation, allowing the representation to be changed without affecting user code 4

Example of Implementation hiding • A bounded buffer with indexes front & rear: • The public view is different from the private view (implementation) 5

Design Issues • A syntactic unit to define an ADT • Built-in operations – Assignment – Comparison • Common operations – Accessors – Constructors – Destructors • Parameterized ADTs 6

Language Examples: Ada • The encapsulation construct is called packages – Specification package (the interface) – Body package (implementation of the entities named in the specification) • Two ways for Information Hiding – The representation of type appears in a part of the specification called the private part • More restricted form with limited private types: objects of this type have no built-in operations – Define the ADT as a pointer and provide the pointed-to structure’s definition in the body package, whose entire contents are hidden from clients. 7

An Example in Ada package Stack_Pack is -- public interface type stack_type is limited private; max_size: constant : = 100; function empty(stk: in stack_type) return Boolean; procedure push(stk: in out stack_type; elem: in Integer); procedure pop(stk: in out stack_type); function top(stk: in stack_type) return Integer; private -- hidden from clients type list_type is array (1. . max_size) of Integer; type stack_type is record list: list_type; topsub: Integer range 0. . max_size) : = 0; end record; end Stack_Pack 8

Language Examples: C++ • Based on C struct type and Simula 67 classes • The class is the encapsulation device • All of the class instances of a class share a single copy of the member functions • Each instance of a class has its own copy of the class data members • Instances can be static, stack dynamic, or heap dynamic 9

Language Examples: C++ (continued) • Information Hiding – Private clause for hidden entities – Public clause for interface entities – Protected clause for inheritance (see Ch 12) 10

An Example in C++ class stack { private: int *stack. Ptr, max. Len, top. Ptr; public: stack() { // a constructor stack. Ptr = new int [100]; max. Len = 99; top. Ptr = -1; }; ~stack () {delete [] stack. Ptr; }; void push (int num) {…}; void pop () {…}; int top () {…}; int empty () {…}; } void main() {. . . . stack stk; //Create an instance of the stack class. . } 11

Language Examples: C++ (continued) • Constructors: – Name is the same as the class name – Implicitly called when an instance is created – initialize the data members of instances (they do not create the objects) – May also allocate storage if part of the object is heapdynamic – Can include parameters to provide parameterization of the objects – Example: struct Complex { float re; float im; Complex(float r, i) {re = r; im= i; } }; Complex x (1, 2); //need to give parameters for the //constructer 12

Language Examples: C++ (continued) • Destructors – Name is the class name, preceded by a tilde (~) – Implicitly called when the object’s lifetime ends – cleanup after an instance is destroyed; usually just to reclaim heap storage 13

Language Examples: C++ (continued) • A friend declaration within a class gives nonmember function access to the private members of the class. – Necessary in C++ • See the next two pages for an example. – The class List defines a circularly linked list • push: add to the front • put: add at the back – The class Cell is used to form lists. 14

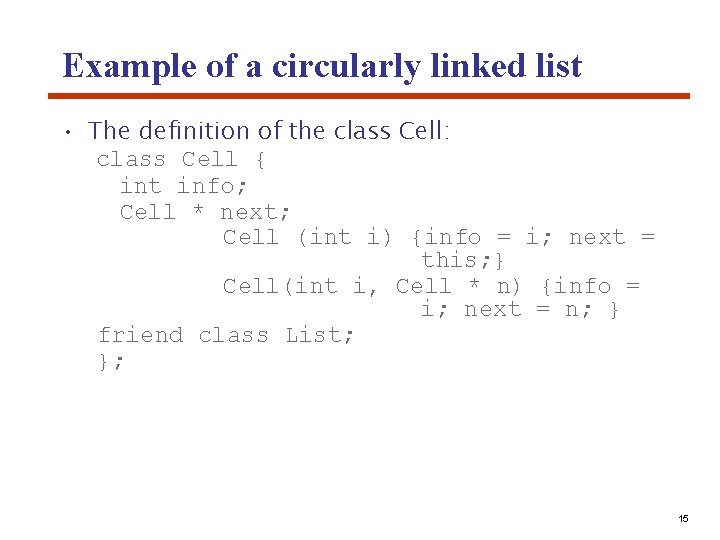

Example of a circularly linked list • The definition of the class Cell: class Cell { int info; Cell * next; Cell (int i) {info = i; next = this; } Cell(int i, Cell * n) {info = i; next = n; } friend class List; }; 15

Example of a circularly linked list (cont) • The definition of the class List: class List { cell *rear; public: void put(int x) {rear->info = x; rear = rear->next = new Cell(0, rear->next); }; void push(int x) {rear->next = new Cell(x, rear->next); int pop ( ); int empty ( ) {return rear == rear-> next; } List( ) {rear = new Cell(0); } ~List( ) { while (!empty( )) pop( ); } }; int List: : pop( ){ if (empty( )) return 0; Cell *front = rear->next; rear->next = front->next; int x = front->info; delete front; return x; } 16

Language Examples: Java • Similar to C++, except: – All user-defined types are classes – All objects are allocated from the heap and accessed through reference variables (see the next page) – Individual entities in classes have access control modifiers (private or public), rather than clauses – Java has a second scoping mechanism, package scope, which can be used in place of friends • All entities in all classes in a package that do not have access control modifiers are visible throughout the package (also see page 28) 17

An Example in Java class Stack. Class { private: private int [] stack. Ref; private int max. Len, top. Index; public Stack. Class() { // a constructor stack. Ref = new int [100]; max. Len = 99; top. Ptr = -1; }; public void push (int num) {…}; public void pop () {…}; public int top () {…}; public boolean empty () {…}; }. . . Stack. Class my. Stack = new Stack. Class(); 18

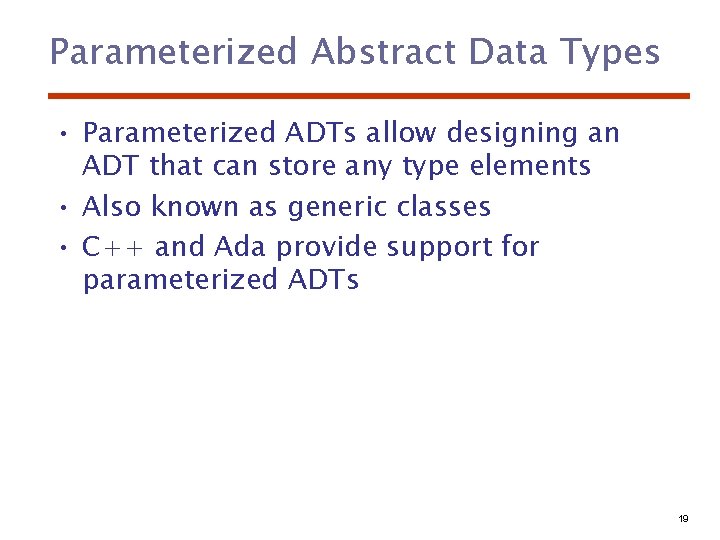

Parameterized Abstract Data Types • Parameterized ADTs allow designing an ADT that can store any type elements • Also known as generic classes • C++ and Ada provide support for parameterized ADTs 19

Parameterized ADTs in C++ • Classes can be somewhat generic by writing parameterized constructor functions • The following makes the stack generic in size – Change the constructor function in page 12 as follows: stack (int size) { }; … stk. Ptr = new int [size]; max. Len = size - 1; top = -1; stack stk(100); 20

Parameterized ADTs in C++ (cont) • The following makes the type of the stack generic – element of the stack has the type Type: template <class Type> class stack{ int top. Ptr; int max. Len; Type * stk. Ptr; public: Stack(){stk. Ptr = new Type[100]; max. Len = 99; top. Ptr = -1; } Stack(int size){stk. Ptr = new Type[size]; max. Len = size-1; top. Ptr = -1; } ~Stack( ) {delete stk. Ptr; } void push(Type a) {stk. Ptr[++top. Ptr] = a; } Type pop( ) {top. Ptr--; return stk. Ptr[top. Ptr+1]; } }; 21

Parameterized ADTs in C++ (cont) • When the class is used as a type name, it must be supplied a type as an explicit parameter, e. g. , stack <int> s (99); stack <char> t (80); • If the body of a member function appears outside a class declaration, then a type parameter has to be introduced afresh, e. g. , template <class x> void stack <x>: : push(x a){ top. Ptr++; stk. Ptr[top. Ptr] = a; } Another name x can be used instead of T 22

Overloaded Subprograms • An overloaded subprogram is one that has the same name as another subprogram in the same referencing environment – Every version of an overloaded subprogram has a unique protocol • C++, Java, C#, and Ada – include predefined overloaded subprograms – allow users to write multiple versions of subprograms with the same name – usually used to define overloading constructors 23

Encapsulation constructs for large programs • Large programs have two special needs: – Some means of organization, other than simply division into subprograms – Some means of partial compilation (compilation units that are smaller than the whole program) • Obvious solution: a grouping of subprograms that are logically related into a unit that can be separately compiled (compilation units) • Such collections are called encapsulation 24

Encapsulation in C • Files containing one or more subprograms can be independently compiled • The interface to such file (library) is placed in a header file • The header file is used in the client code, using the #include preprocessor specification, so that references to functions and data in the client code can be type-checked. 25

Ada Packages • Ada specification packages can include any number of data and subprogram declarations • Ada packages can be compiled separately • A package’s specification and body parts can be compiled separately 26

Naming Encapsulations • Large programs may consist of many independently written codes, where naming conflicts might occur. • A naming encapsulation define name scopes that assist in avoiding name conflicts. • C++ Namespaces – Can place each library in its own namespace and qualify names used outside with the namespace – Example of declaration: namespace My. Stack{…} – Example of references: using My. Stack: : top. Ptr; using namespace My. Stack; 27

Naming Encapsulations (cont) • Java Packages – Packages can contain more than one class definition; – Clients of a package can use fully qualified name or use the import declaration – Example of declaration: package my. Stack; – Example of references: import my. Stack. * import my. Stack. top. Ptr; 28
