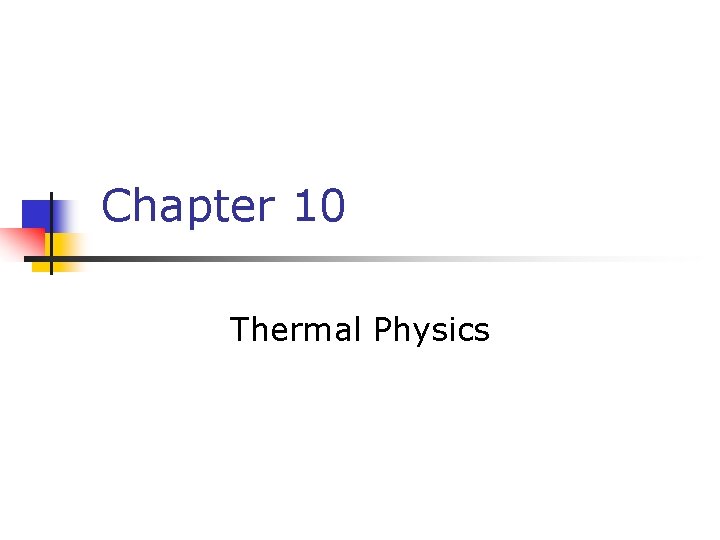

 # Chapter 10 Thermal Physics Thermal Physics n Thermal

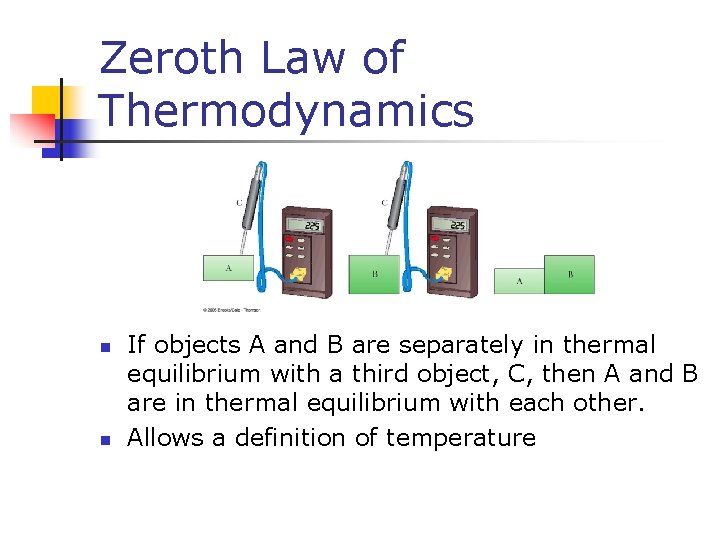

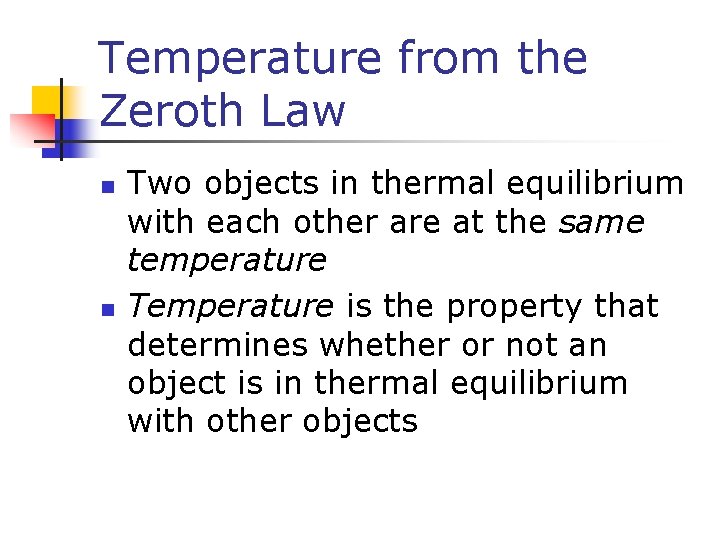

• Slides: 43 Chapter 10 Thermal Physics Thermal Physics n Thermal physics is the study of n n n Temperature Heat How these affect matter Thermal Physics, cont n n n Concerned with the concepts of energy transfers between a system and its environment and the resulting temperature variations Historically, the development of thermodynamics paralleled the development of atomic theory Concerns itself with the physical and chemical transformations of matter in all of its forms: solid, liquid, and gas Heat n n n The process by which energy is exchanged between objects because of temperature differences is called heat Objects are in thermal contact if energy can be exchanged between them Thermal equilibrium exists when two objects in thermal contact with each other cease to exchange energy Zeroth Law of Thermodynamics n n If objects A and B are separately in thermal equilibrium with a third object, C, then A and B are in thermal equilibrium with each other. Allows a definition of temperature Temperature from the Zeroth Law n n Two objects in thermal equilibrium with each other are at the same temperature Temperature is the property that determines whether or not an object is in thermal equilibrium with other objects Thermometers n n n Used to measure the temperature of an object or a system Make use of physical properties that change with temperature Many physical properties can be used n n n volume of a liquid length of a solid pressure of a gas held at constant volume of a gas held at constant pressure electric resistance of a conductor color of a very hot object Thermometers, cont n n n A mercury thermometer is an example of a common thermometer The level of the mercury rises due to thermal expansion Temperature can be defined by the height of the mercury column Temperature Scales n Thermometers can be calibrated by placing them in thermal contact with an environment that remains at constant temperature n n Environment could be mixture of ice and water in thermal equilibrium Also commonly used is water and steam in thermal equilibrium Celsius Scale n Temperature of an ice-water mixture is defined as 0º C n n Temperature of a water-steam mixture is defined as 100º C n n This is the freezing point of water This is the boiling point of water Distance between these points is divided into 100 segments or degrees Gas Thermometer n n Temperature readings are nearly independent of the gas Pressure varies with temperature when maintaining a constant volume Kelvin Scale n n n When the pressure of a gas goes to zero, its temperature is – 273. 15º C This temperature is called absolute zero This is the zero point of the Kelvin scale n n – 273. 15º C = 0 K To convert: TC = TK – 273. 15 n The size of the degree in the Kelvin scale is the same as the size of a Celsius degree Pressure-Temperature Graph n n All gases extrapolate to the same temperature at zero pressure This temperature is absolute zero Modern Definition of Kelvin Scale n Defined in terms of two points n n n Agreed upon by International Committee on Weights and Measures in 1954 First point is absolute zero Second point is the triple point of water n n n Triple point is the single point where water can exist as solid, liquid, and gas Single temperature and pressure Occurs at 0. 01º C and P = 4. 58 mm Hg Modern Definition of Kelvin Scale, cont n n The temperature of the triple point on the Kelvin scale is 273. 16 K Therefore, the current definition of of the Kelvin is defined as 1/273. 16 of the temperature of the triple point of water Some Kelvin Temperatures n n n Some representative Kelvin temperatures Note, this scale is logarithmic Absolute zero has never been reached Fahrenheit Scales n n Most common scale used in the US Temperature of the freezing point is 32º Temperature of the boiling point is 212º 180 divisions between the points Comparing Temperature Scales Converting Among Temperature Scales Thermal Expansion n The thermal expansion of an object is a consequence of the change in the average separation between its constituent atoms or molecules At ordinary temperatures, molecules vibrate with a small amplitude As temperature increases, the amplitude increases n This causes the overall object as a whole to expand Linear Expansion n n For small changes in temperature , the coefficient of linear expansion, depends on the material n n See table 10. 1 These are average coefficients, they can vary somewhat with temperature Applications of Thermal Expansion – Bimetallic Strip n Thermostats n n Use a bimetallic strip Two metals expand differently n Since they have different coefficients of expansion Area Expansion n Two dimensions expand according to n g is the coefficient of area expansion Volume Expansion n Three dimensions expand n For liquids, the coefficient of volume expansion is given in the table More Applications of Thermal Expansion n Pyrex Glass n n Thermal stresses are smaller than for ordinary glass Sea levels n Warming the oceans will increase the volume of the oceans Unusual Behavior of Water n n n As the temperature of water increases from 0ºC to 4 ºC, it contracts and its density increases Above 4 ºC, water exhibits the expected expansion with increasing temperature Maximum density of water is 1000 kg/m 3 at 4 ºC Ideal Gas n n n A gas does not have a fixed volume or pressure In a container, the gas expands to fill the container Most gases at room temperature and pressure behave approximately as an ideal gas Characteristics of an Ideal Gas n n n Collection of atoms or molecules that move randomly Exert no long-range force on one another Each particle is individually pointlike n Occupying a negligible volume Moles n n It’s convenient to express the amount of gas in a given volume in terms of the number of moles, n One mole is the amount of the substance that contains as many particles as there atoms in 12 g of carbon-12 Avogadro’s Number n The number of particles in a mole is called Avogadro’s Number n n n NA=6. 02 x 1023 particles / mole Defined so that 12 g of carbon contains NA atoms The mass of an individual atom can be calculated: Avogadro’s Number and Masses n n The mass in grams of one Avogadro's number of an element is numerically the same as the mass of one atom of the element, expressed in atomic mass units, u Carbon has a mass of 12 u n n 12 g of carbon consists of NA atoms of carbon Holds for molecules, also Ideal Gas Law n PV = n R T n n R is the Universal Gas Constant R = 8. 31 J / mole. K R = 0. 0821 L. atm / mole. K Is the equation of state for an ideal gas Ideal Gas Law, Alternative Version n P V = N k. B T n n k. B is Boltzmann’s Constant k. B = R / NA = 1. 38 x 10 -23 J/ K N is the total number of molecules n = N / NA n n n is the number of moles N is the number of molecules Kinetic Theory of Gases – Assumptions n n The number of molecules in the gas is large and the average separation between them is large compared to their dimensions The molecules obey Newton’s laws of motion, but as a whole they move randomly Kinetic Theory of Gases – Assumptions, cont. n n n The molecules interact only by short-range forces during elastic collisions The molecules make elastic collisions with the walls The gas under consideration is a pure substance, all the molecules are identical Pressure of an Ideal Gas n The pressure is proportional to the number of molecules per unit volume and to the average translational kinetic energy of a molecule Pressure, cont n n The pressure is proportional to the number of molecules per unit volume and to the average translational kinetic energy of the molecule Pressure can be increased by n n Increasing the number of molecules per unit volume in the container Increasing the average translational kinetic energy of the molecules n Increasing the temperature of the gas Molecular Interpretation of Temperature n n Temperature is proportional to the average kinetic energy of the molecules The total kinetic energy is proportional to the absolute temperature Internal Energy n n n In a monatomic gas, the KE is the only type of energy the molecules can have U is the internal energy of the gas In a polyatomic gas, additional possibilities for contributions to the internal energy are rotational and vibrational energy in the molecules Speed of the Molecules n n Expressed as the root-mean-square (rms) speed At a given temperature, lighter molecules move faster, on average, than heavier ones n Lighter molecules can more easily reach escape speed from the earth Some rms Speeds Maxwell Distribution n n A system of gas at a given temperature will exhibit a variety of speeds Three speeds are of interest: n n n Most probable Average rms Maxwell Distribution, cont n n n For every gas, vmp < vav < vrms As the temperature rises, these three speeds shift to the right The total area under the curve on the graph equals the total number of molecules
