Chapter 10 Rotation of a Rigid Object about

Chapter 10 Rotation of a Rigid Object about a Fixed Axis Putaran Objek Tegar Terhadap Paksi Tetap

Subtopik-subtopik n n n n Kedudukan sudut, halaju dan pecutan Kinematik putaran: pergerakan memutar dgn. Pecutan sudut malar Hubungan antara kuantiti sudut & linear Tenaga kinetik memutar Momen Inertia Tork, tork & pecutan sudut Kerja, kuasa & tenaga di dalam pergerakan memutar Pergerakan berguling bagi objek tegar

Rigid Object (Objek Tegar) n A rigid object is one that is nondeformable (tidak berubah bentuk) n n The relative locations of all particles making up the object remain constant All real objects are deformable to some extent, but the rigid object model is very useful in many situations where the deformation is negligible

Angular Position (kedudukan sudut) n n n Axis of rotation (paksi putaran) is the center of the disc Choose a fixed reference line (garisan rujukan) Point P is at a fixed distance r from the origin

Angular Position, 2 n n Point P will rotate about the origin in a circle of radius r Every particle on the disc undergoes circular motion about the origin, O Polar coordinates (koordinat kutub) are convenient to use to represent the position of P (or any other point) P is located at (r, ) where r is the distance from the origin to P and is the measured counterclockwise from the reference line

Angular Position, 3 n n n As the particle moves, the only coordinate that changes is As the particle moves through , it moves though an arc length (panjang arca), s. The arc length and r are related: n s= r

Radian n This can also be expressed as n is a pure number, but commonly is n given the artificial unit, radian One radian is the angle subtended by an arc length equal to the radius of the arc

Conversions (darjah radian) n Comparing degrees and radians 1 rad = n = 57. 3° Converting from degrees to radians θ [rad] = [degrees]

Angular Position, final n We can associate the angle with the entire rigid object as well as with an individual particle n n Remember every particle on the object rotates through the same angle The angular position of the rigid object is the angle between the reference line on the object and the fixed reference line in space n The fixed reference line in space is often the x-axis

Angular Displacement (sesaran sudut) n The angular displacement is defined as the angle the object rotates through during some time interval n This is the angle that the reference line of length r sweeps out

Average Angular Speed (purata laju sudut) n The average angular speed, ω, of a rotating rigid object is the ratio of the angular displacement to the time interval

Instantaneous Angular Speed (Laju sudut seketika) n The instantaneous angular speed is defined as the limit of the average speed as the time interval approaches zero

Angular Speed, final n Units of angular speed are radians/sec n n n rad/s or s-1 since radians have no dimensions Angular speed will be positive if θ is increasing (counterclockwise) Angular speed will be negative if θ is decreasing (clockwise)

Average Angular Acceleration (purata pecutan sudut) n The average angular acceleration, , of an object is defined as the ratio of the change in the angular speed to the time it takes for the object to undergo the change:

Instantaneous Angular Acceleration (pecutan sudut seketika) n The instantaneous angular acceleration is defined as the limit of the average angular acceleration as the time goes to 0

Angular Acceleration, final n Units of angular acceleration are rad/s² or s-2 since radians have no dimensions n Angular acceleration will be positive if an object rotating counterclockwise is speeding up n Angular acceleration will also be positive if an object rotating clockwise is slowing down

Angular Motion, General Notes n When a rigid object rotates about a fixed axis in a given time interval, every portion on the object rotates through the same angle in a given time interval and has the same angular speed and the same angular acceleration n So , , all characterize the motion of the entire rigid object as well as the individual particles in the object

Directions, details n n Strictly speaking, the speed and acceleration ( , ) are the magnitudes of the velocity and acceleration vectors The directions are actually given by the right-hand rule

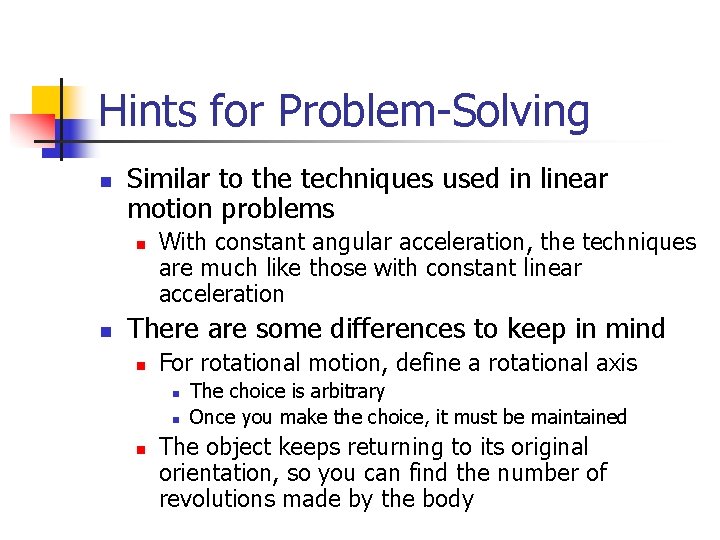

Hints for Problem-Solving n Similar to the techniques used in linear motion problems n n With constant angular acceleration, the techniques are much like those with constant linear acceleration There are some differences to keep in mind n For rotational motion, define a rotational axis n n n The choice is arbitrary Once you make the choice, it must be maintained The object keeps returning to its original orientation, so you can find the number of revolutions made by the body

Rotational Kinematics (Kinematiks putaran) n Under constant angular acceleration, we can describe the motion of the rigid object using a set of kinematic equations n n These are similar to the kinematic equations for linear motion The rotational equations have the same mathematical form as the linear equations

Rotational Kinematic Equations

Comparison Between Rotational and Linear Equations

Relationship Between Angular and Linear Quantities n Displacements n Speeds n Accelerations n n Every point on the rotating object has the same angular motion Every point on the rotating object does not have the same linear motion

Speed Comparison n The linear velocity is always tangent to the circular path n n called the tangential velocity The magnitude is defined by the tangential speed

Acceleration Comparison n The tangential acceleration is the derivative of the tangential velocity

Speed and Acceleration Note n All points on the rigid object will have the same angular speed, but not the same tangential speed n All points on the rigid object will have the same angular acceleration, but not the same tangential acceleration n The tangential quantities depend on r, and r is not the same for all points on the object

Centripetal Acceleration (pecutan memusat) n An object traveling in a circle, even though it moves with a constant speed, will have an acceleration n Therefore, each point on a rotating rigid object will experience a centripetal acceleration

Resultant Acceleration n The tangential component of the acceleration is due to changing speed The centripetal component of the acceleration is due to changing direction Total acceleration can be found from these components

Rotational Motion Example n n For a compact disc player to read a CD, the angular speed must vary to keep the tangential speed constant (vt = r) At the inner sections, the angular speed is faster than at the outer sections

CONTOH 1: Kedudukan sudut, halaju & pecutan n During a certain period of time, the angular position of a swinging door is described by where is in radians and t is seconds. Determine the angular position, angular speed, and angular acceleration of the door (a) at t=0. 0 (b) at t=3. 00 s.

Penyelesaian contoh 1: (a) Pada t=0 s. = 5. 00 rad. (b) Gunakan kaedah yang sama bagi t=3. 00 s.

CONTOH 2: Kedudukan sudut, halaju & pecutan n A wheel rotates with a constant angular acceleration of 3. 50 rad s-2 (a) If the angular speed of the wheel is 2. 00 rad s-1 at t=0, through what angular displacement does the wheel rotate in 2. 00 s? (b) Through how many revolution has the wheel turned during this time interval? (c) What is the angular speed of the wheel at t=2. 00 s?

Penyelesaian contoh 2: Diberi: =3. 50 rad s-2, i=2. 00 rad s-1 (a) f = i + t+(1/2) t 2 Anggap i=0. f =0 + (2. 00 rad s-1)(2. 00 s)+ (1/2)(3. 50 rad s-2)2=11. 0 rad =(11. 0 rad)(57. 3 /rad)=630 (b) Bilangan putaran=630 /360 =1. 75 putaran (c) f= i+ t=2. 00 rad s-1+ (3. 50 rad s-2)(2. 00 s)=9. 00 rad s-1

CONTOH 3: Kinematik Putaran n A wheel starts from rest and rotates with constant angular acceleration to reach an angular speed of 12. 0 rad/s in 3. 00 s. Find (a) the magnitude of angular acceleration of the wheel and (b) the angle in radians through which it rotates in this time.

Penyelesaian contoh 3: Diberi: (i) t=0 s, =0 rad, =12. 0 rad/s (ii) t=3. 00 s, =12. 0 rad/s (a)

Penyelesaian contoh 3:

Rotational Kinetic Energy n n An object rotating about some axis with an angular speed, ω, has rotational kinetic energy even though it may not have any translational kinetic energy Each particle has a kinetic energy of n n K i = ½ m i vi 2 Since the tangential velocity depends on the distance, r, from the axis of rotation, we can substitute vi = i r

Rotational Kinetic Energy, cont n n The total rotational kinetic energy of the rigid object is the sum of the energies of all its particles Where I is called the moment of inertia

Rotational Kinetic Energy, final n n n There is an analogy between the kinetic energies associated with linear motion (K = ½ mv 2) and the kinetic energy associated with rotational motion (KR= ½ I 2) Rotational kinetic energy is not a new type of energy, the form is different because it is applied to a rotating object The units of rotational kinetic energy are Joules (J)

Moment of Inertia (Momen Inersia) n n n The definition of moment of inertia is The dimensions of moment of inertia are ML 2 and its SI units are kg. m 2 We can calculate the moment of inertia of an object more easily by assuming it is divided into many small volume elements, each of mass Dmi

Moment of Inertia, cont n n n We can rewrite the expression for I in terms of Dm With the small volume segment assumption, If r is constant, the integral can be evaluated with known geometry, otherwise its variation with position must be known

Notes on Various Densities n n n Volumetric Mass Density –> mass per unit volume: r = m / V Face Mass Density –> mass per unit thickness of a sheet of uniform thickness, t : s = rt Linear Mass Density –> mass per unit length of a rod of uniform crosssectional area: l = m / L = r. A

Moment of Inertia of a Uniform Thin Hoop n Since this is a thin hoop, all mass elements are the same distance from the center

Moment of Inertia of a Uniform Rigid Rod n The shaded area has a mass n n dm = l dx Then the moment of inertia is

Moment of Inertia of a Uniform Solid Cylinder n n Divide the cylinder into concentric shells with radius r, thickness dr and length L Then for I

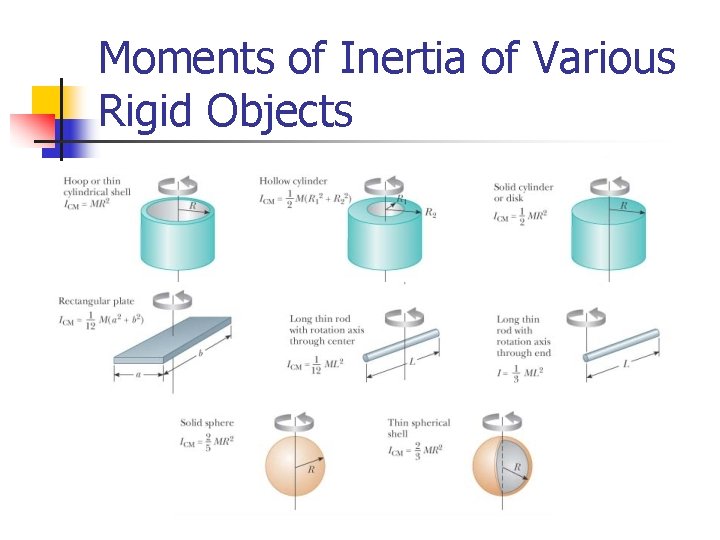

Moments of Inertia of Various Rigid Objects

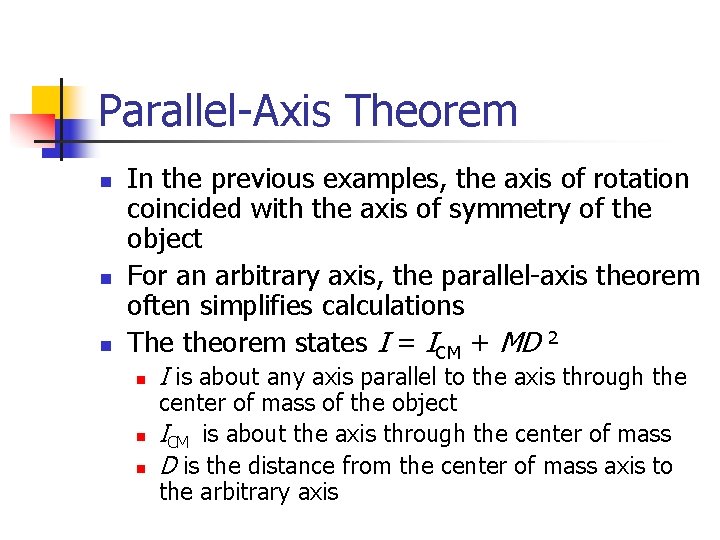

Parallel-Axis Theorem n n n In the previous examples, the axis of rotation coincided with the axis of symmetry of the object For an arbitrary axis, the parallel-axis theorem often simplifies calculations The theorem states I = ICM + MD 2 n n n I is about any axis parallel to the axis through the center of mass of the object ICM is about the axis through the center of mass D is the distance from the center of mass axis to the arbitrary axis

Parallel-Axis Theorem Example n n n The axis of rotation goes through O The axis through the center of mass is shown The moment of inertia about the axis through O would be IO = ICM + MD 2

Moment of Inertia for a Rod Rotating Around One End n The moment of inertia of the rod about its center is n D is ½ L n Therefore,

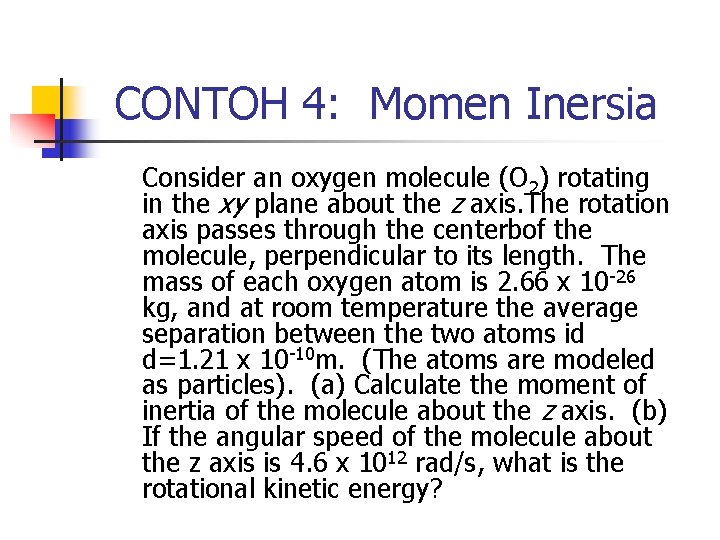

CONTOH 4: Momen Inersia Consider an oxygen molecule (O 2) rotating in the xy plane about the z axis. The rotation axis passes through the centerbof the molecule, perpendicular to its length. The mass of each oxygen atom is 2. 66 x 10 -26 kg, and at room temperature the average separation between the two atoms id d=1. 21 x 10 -10 m. (The atoms are modeled as particles). (a) Calculate the moment of inertia of the molecule about the z axis. (b) If the angular speed of the molecule about the z axis is 4. 6 x 1012 rad/s, what is the rotational kinetic energy?

Penyelesaian contoh 4: (a) Setiap atom berada pada jarak d/2 dari paksi z. Maka, momen inersia dari paksi z adalah (b)Tenaga kinetik= (1/2)I 2 =(1/2)(1. 95 x 10 -46 kgm 2). (4. 6 x 1012 rad/s)2=2. 06 x 10 -21 J

Torque (tork) n Torque, t, is the tendency of a force to rotate an object about some axis n n Torque is a vector t = r F sin f = F d n n n F is the force f is the angle the force makes with the horizontal d is the moment arm (or lever arm)

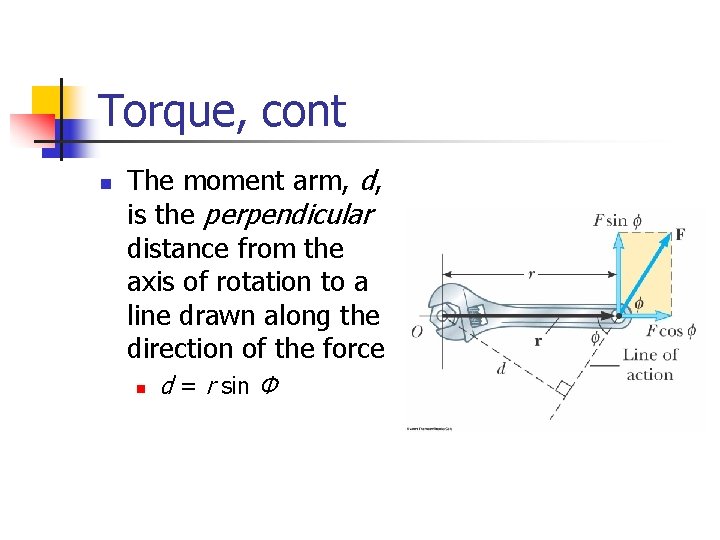

Torque, cont n The moment arm, d, is the perpendicular distance from the axis of rotation to a line drawn along the direction of the force n d = r sin Φ

Torque, final n n The horizontal component of F (F cos f) has no tendency to produce a rotation Torque will have direction n n If the turning tendency of the force is counterclockwise, the torque will be positive If the turning tendency is clockwise, the torque will be negative

Net Torque (tork paduan) n n n The force F 1 will tend to cause a counterclockwise rotation about O The force F 2 will tend to cause a clockwise rotation about O S t = t 1 + t 2 = F 1 d 1 – F 2 d 2

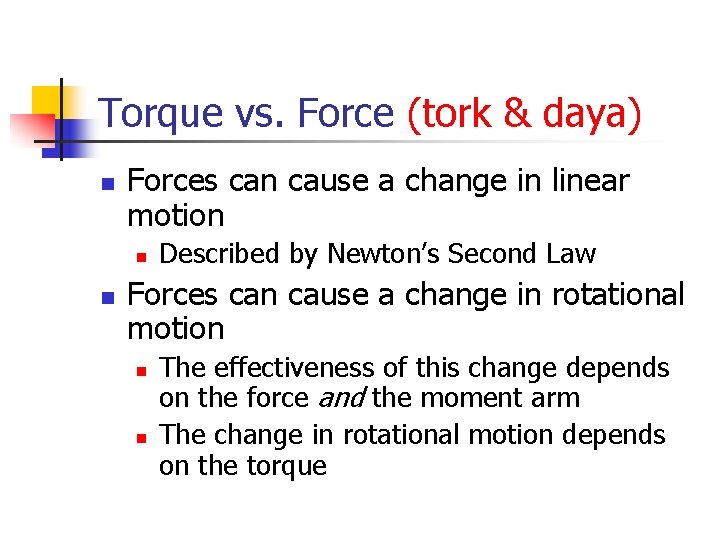

Torque vs. Force (tork & daya) n Forces can cause a change in linear motion n n Described by Newton’s Second Law Forces can cause a change in rotational motion n n The effectiveness of this change depends on the force and the moment arm The change in rotational motion depends on the torque

Torque Units n The SI units of torque are N. m n n Although torque is a force multiplied by a distance, it is very different from work and energy The units for torque are reported in N. m and not changed to Joules

Torque and Angular Acceleration (tork & pecutan sudut) n n Consider a particle of mass m rotating in a circle of radius r under the influence of tangential force Ft The tangential force provides a tangential acceleration: n Ft = mat

Torque and Angular Acceleration, Particle cont. n n n The magnitude of the torque produced by Ft around the center of the circle is n t = Ft r = (mat) r The tangential acceleration is related to the angular acceleration 2 n t = (mat) r = (mr ) Since mr 2 is the moment of inertia of the particle, n t = Ia n The torque is directly proportional to the angular acceleration and the constant of proportionality is the moment of inertia

Torque and Angular Acceleration, Extended n n n Consider the object consists of an infinite number of mass elements dm of infinitesimal size Each mass element rotates in a circle about the origin, O Each mass element has a tangential acceleration

Torque and Angular Acceleration, Extended cont. n From Newton’s Second Law n n The torque associated with the force and using the angular acceleration gives n n d. Ft = (dm) at dt = r d. Ft = atr dm = r 2 dm Finding the net torque n n This becomes St = I

Torque and Angular Acceleration, Extended final n n This is the same relationship that applied to a particle The result also applies when the forces have radial components n n The line of action of the radial component must pass through the axis of rotation These components will produce zero torque about the axis

Torque and Angular Acceleration, Wheel Example n The wheel is rotating and so we apply St = I n n The tension supplies the tangential force The mass is moving in a straight line, so apply Newton’s Second Law n SFy = may = mg - T

Torque and Angular Acceleration, Multi-body Ex. , 1 n n Both masses move in linear directions, so apply Newton’s Second Law Both pulleys rotate, so apply the torque equation

Torque and Angular Acceleration, Multi-body Ex. , 2 n n The mg and n forces on each pulley act at the axis of rotation and so supply no torque Apply the appropriate signs for clockwise and counterclockwise rotations in the torque equations

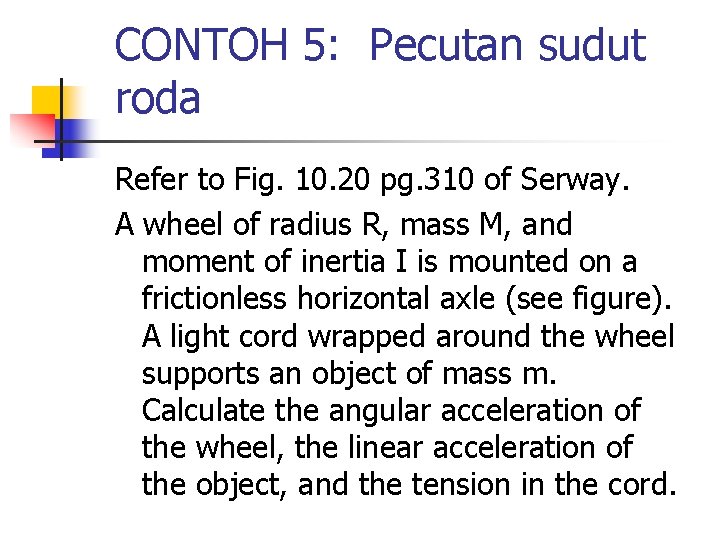

CONTOH 5: Pecutan sudut roda Refer to Fig. 10. 20 pg. 310 of Serway. A wheel of radius R, mass M, and moment of inertia I is mounted on a frictionless horizontal axle (see figure). A light cord wrapped around the wheel supports an object of mass m. Calculate the angular acceleration of the wheel, the linear acceleration of the object, and the tension in the cord.

Penyelesaian contoh 5: Tork yg bertindak ke atas roda terhadap paksi putaran adalah =TR di mana T adalah daya dari tali ke atas bibir roda. Maka, tork Guna hukum Newton kedua terhadap pergerakan objek

Penyelesaian contoh 5: Pecutan sudut roda dan pecutan linear objek berkaitan: a=R Maka, Ini menghasilkan,

Penyelesaian contoh 5: Apa implikasi apabila Jawapannya adalah Apa maksud persamaan ini? ?

Work in Rotational Motion n n Find the work done by F on the object as it rotates through an infinitesimal distance ds = r d d. W = F. d s = (F sin f) r d d. W = t d The radial component of F does no work because it is perpendicular to the displacement

Power in Rotational Motion n n The rate at which work is being done in a time interval dt is This is analogous to P = Fv in a linear system

Work-Kinetic Energy Theorem in Rotational Motion n The work-kinetic energy theorem for rotational motion states that the net work done by external forces in rotating a symmetrical rigid object about a fixed axis equals the change in the object’s rotational kinetic energy

Work-Kinetic Energy Theorem, General n The rotational form can be combined with the linear form which indicates the net work done by external forces on an object is the change in its total kinetic energy, which is the sum of the translational and rotational kinetic energies

Energy in an Atwood Machine, Example n n The blocks undergo changes in translational kinetic energy and gravitational potential energy The pulley undergoes a change in rotational kinetic energy

CONTOH 6: Tenaga & mesin Atwood Refer to Fig. 10. 25 pg. 315 of Serway. Consider two cylinders having different masses m 1 and m 2, connected by a string passing over a pulley as shown in the figure. The pulley has radius R and moment of inertia I about the axis of rotation. The string does not slip on the pulley, and the system is released from rest. Find the linear speed of the cylinders after cylinder 2 descends through a distance of h, and the angular speed of the pulley at this time. n

Penyelesaian contoh 6: n Kita gunakan kaedah tenaga. Sistem tersebut mengandungi 2 silinder dan satu takal. Tenaga mekanik sistem adalah abadi.

Penyelesaian contoh 6:

Penyelesaian contoh 6:

Summary of Useful Equations

Rolling Object n The red curve shows the path moved by a point on the rim of the object n n This path is called a cycloid The green line shows the path of the center of mass of the object

Pure Rolling Motion n n In pure rolling motion, an object rolls without slipping In such a case, there is a simple relationship between its rotational and translational motions

Rolling Object, Center of Mass n n The velocity of the center of mass is The acceleration of the center of mass is

Rolling Object, Other Points n n A point on the rim, P, rotates to various positions such as Q and P ’ At any instant, the point on the rim located at point P is at rest relative to the surface since no slipping occurs

Rolling Motion Cont. n Rolling motion can be modeled as a combination of pure translational motion and pure rotational motion

Total Kinetic Energy of a Rolling Object n The total kinetic energy of a rolling object is the sum of the translational energy of its center of mass and the rotational kinetic energy about its center of mass n K = ½ ICM w 2 + ½ Mv. CM 2

Total Kinetic Energy, Example n Accelerated rolling motion is possible only if friction is present between the sphere and the incline n The friction produces the net torque required for rotation

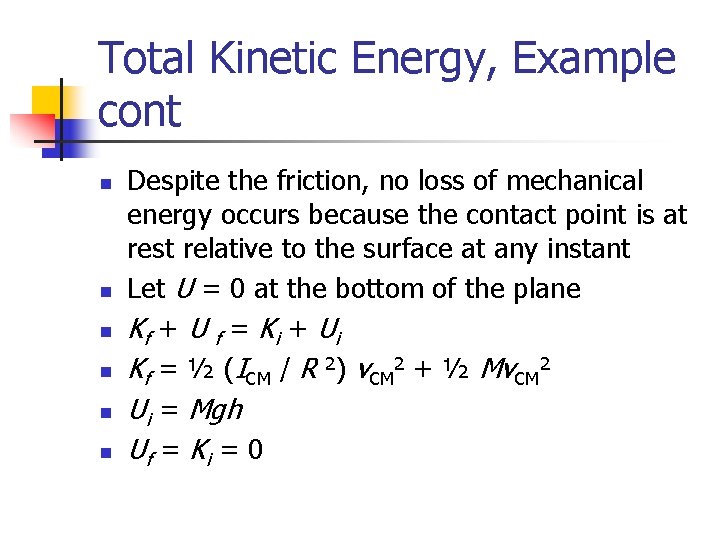

Total Kinetic Energy, Example cont n n n Despite the friction, no loss of mechanical energy occurs because the contact point is at rest relative to the surface at any instant Let U = 0 at the bottom of the plane Kf + U f = Ki + Ui Kf = ½ (ICM / R 2) v. CM 2 + ½ Mv. CM 2 Ui = Mgh Uf = Ki = 0
