Chapter 10 ReExpression of Curved Relationships Objective To

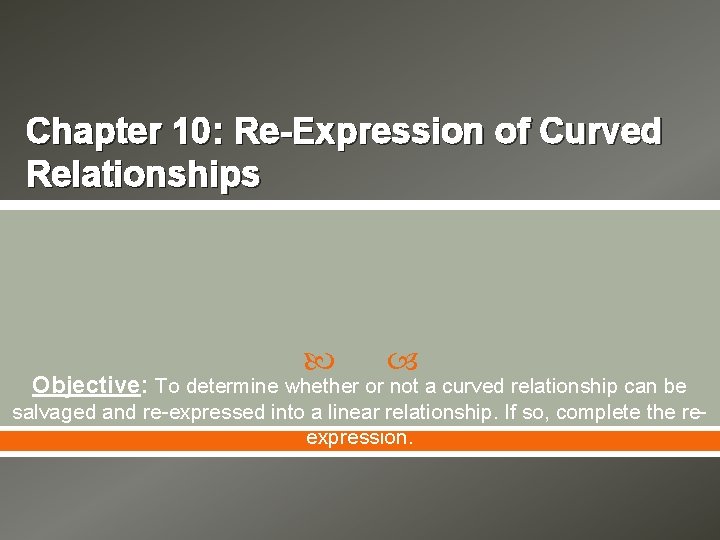

Chapter 10: Re-Expression of Curved Relationships Objective: To determine whether or not a curved relationship can be salvaged and re-expressed into a linear relationship. If so, complete the reexpression.

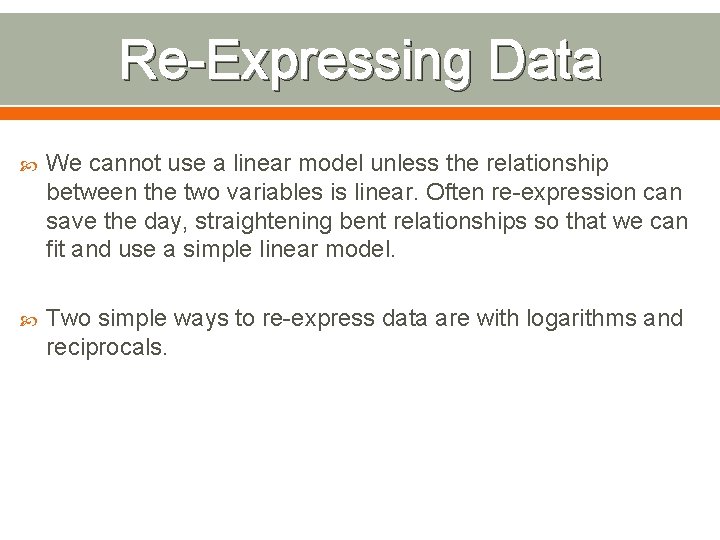

Re-Expressing Data We cannot use a linear model unless the relationship between the two variables is linear. Often re-expression can save the day, straightening bent relationships so that we can fit and use a simple linear model. Two simple ways to re-express data are with logarithms and reciprocals.

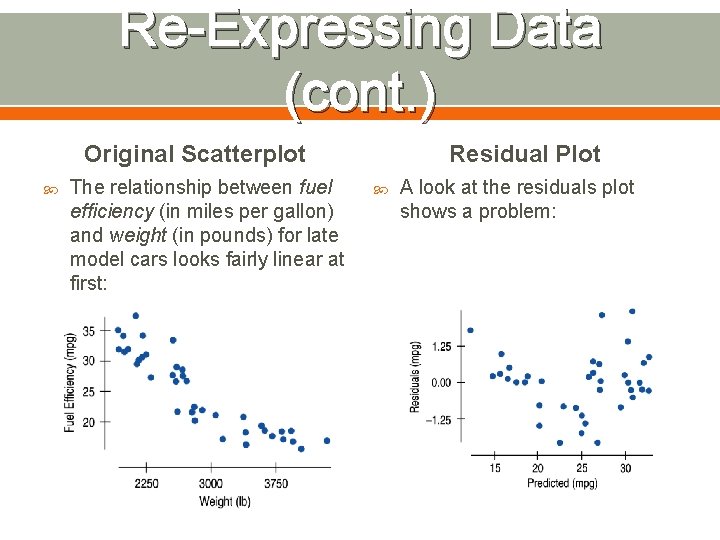

Re-Expressing Data (cont. ) Original Scatterplot The relationship between fuel efficiency (in miles per gallon) and weight (in pounds) for late model cars looks fairly linear at first: Residual Plot A look at the residuals plot shows a problem:

Re-Expressing Data (cont. ) Re-Expressed Residual Re-Expressed Scatterplot We can re-express fuel efficiency as gallons per hundred miles (a reciprocalmultiplying each by 100) and eliminate the bend in the original scatterplot: Plot A look at the residuals plot for the new model seems more reasonable:

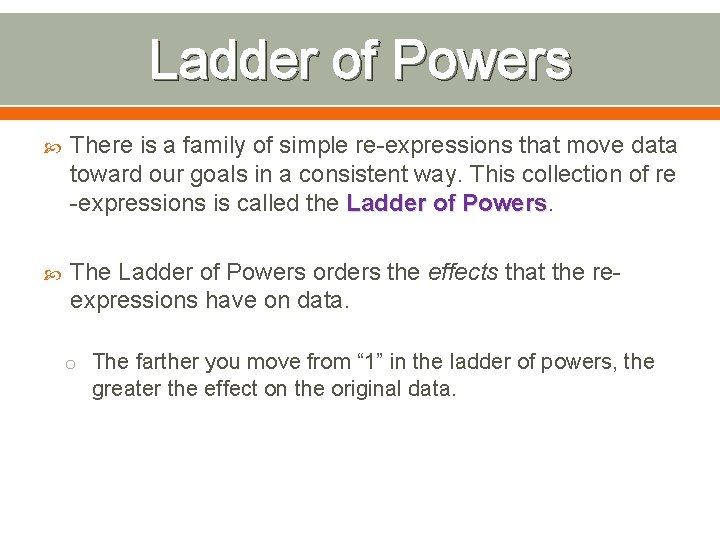

Ladder of Powers There is a family of simple re-expressions that move data toward our goals in a consistent way. This collection of re -expressions is called the Ladder of Powers The Ladder of Powers orders the effects that the reexpressions have on data. o The farther you move from “ 1” in the ladder of powers, the greater the effect on the original data.

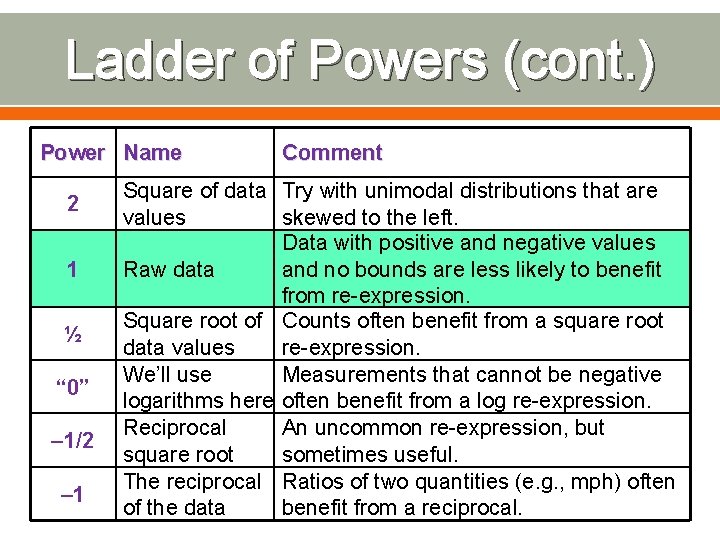

Ladder of Powers (cont. ) Power Name 2 1 ½ “ 0” – 1/2 – 1 Comment Square of data Try with unimodal distributions that are values skewed to the left. Data with positive and negative values Raw data and no bounds are less likely to benefit from re-expression. Square root of Counts often benefit from a square root data values re-expression. We’ll use Measurements that cannot be negative logarithms here often benefit from a log re-expression. Reciprocal An uncommon re-expression, but square root sometimes useful. The reciprocal Ratios of two quantities (e. g. , mph) often of the data benefit from a reciprocal.

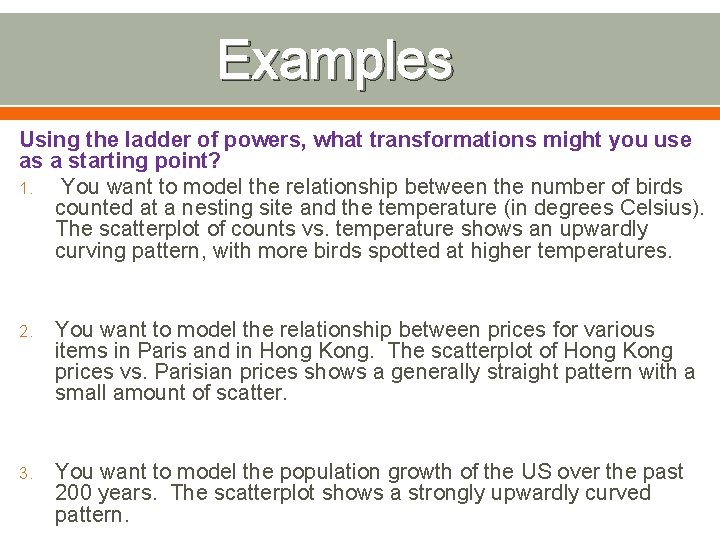

Examples Using the ladder of powers, what transformations might you use as a starting point? 1. You want to model the relationship between the number of birds counted at a nesting site and the temperature (in degrees Celsius). The scatterplot of counts vs. temperature shows an upwardly curving pattern, with more birds spotted at higher temperatures. 2. You want to model the relationship between prices for various items in Paris and in Hong Kong. The scatterplot of Hong Kong prices vs. Parisian prices shows a generally straight pattern with a small amount of scatter. 3. You want to model the population growth of the US over the past 200 years. The scatterplot shows a strongly upwardly curved pattern.

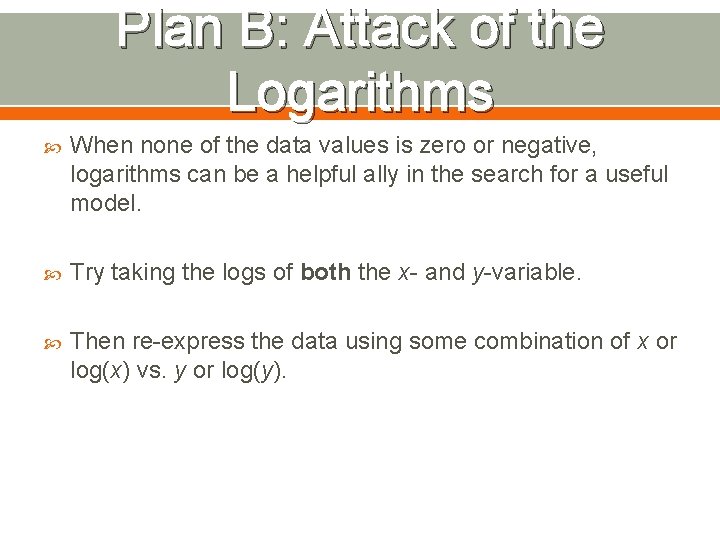

Plan B: Attack of the Logarithms When none of the data values is zero or negative, logarithms can be a helpful ally in the search for a useful model. Try taking the logs of both the x- and y-variable. Then re-express the data using some combination of x or log(x) vs. y or log(y).

Plan B: Attack of the Logarithms When none of the data values is zero or negative, logarithms can be a helpful ally in the search for a useful model. Try taking the logs of both the x- and y-variable. Then re-express the data using some combination of x or log(x) vs. y or log(y).

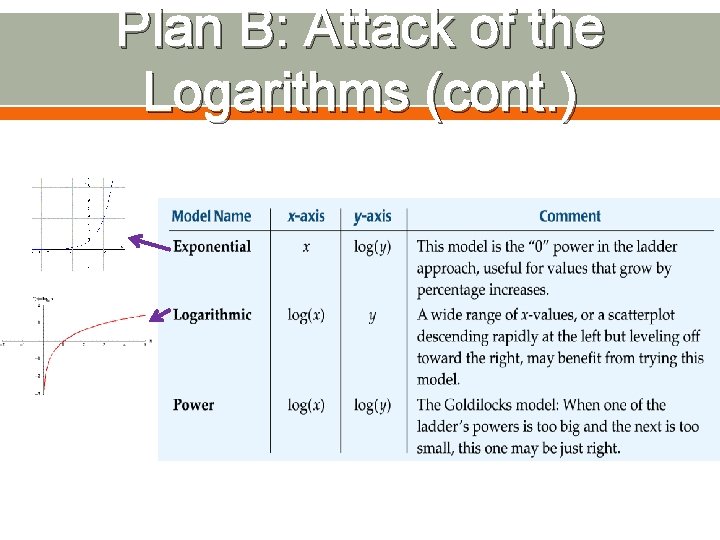

Plan B: Attack of the Logarithms (cont. )

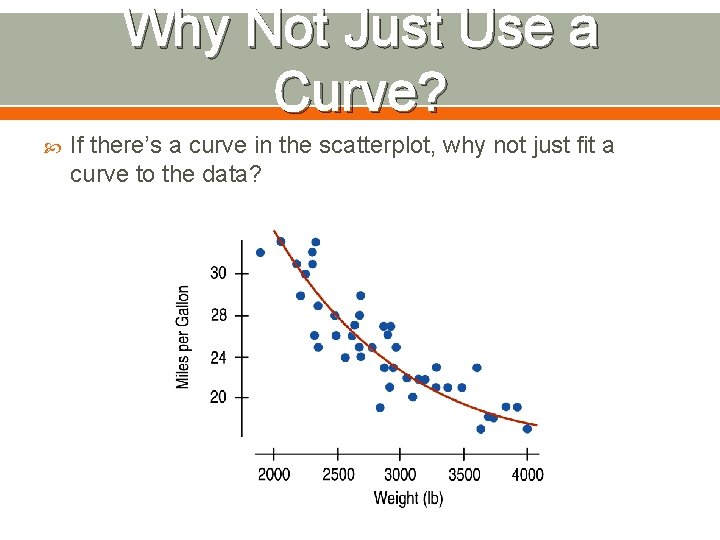

Why Not Just Use a Curve? If there’s a curve in the scatterplot, why not just fit a curve to the data?

Why Not Just Use a Curve? (cont. ) The mathematics and calculations for “curves of best fit” are considerably more difficult than “lines of best fit. ” Besides, straight lines are easy to understand. o We know how to think about the slope and the y- intercept.

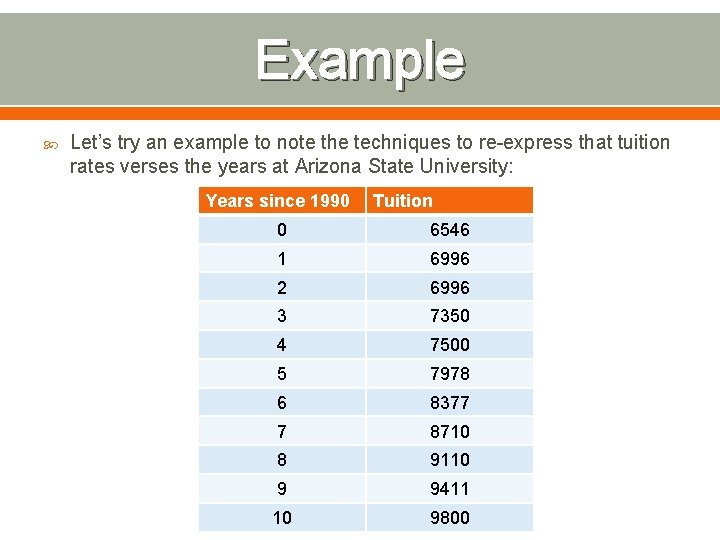

Example Let’s try an example to note the techniques to re-express that tuition rates verses the years at Arizona State University: Years since 1990 Tuition 0 6546 1 6996 2 6996 3 7350 4 7500 5 7978 6 8377 7 8710 8 9110 9 9411 10 9800

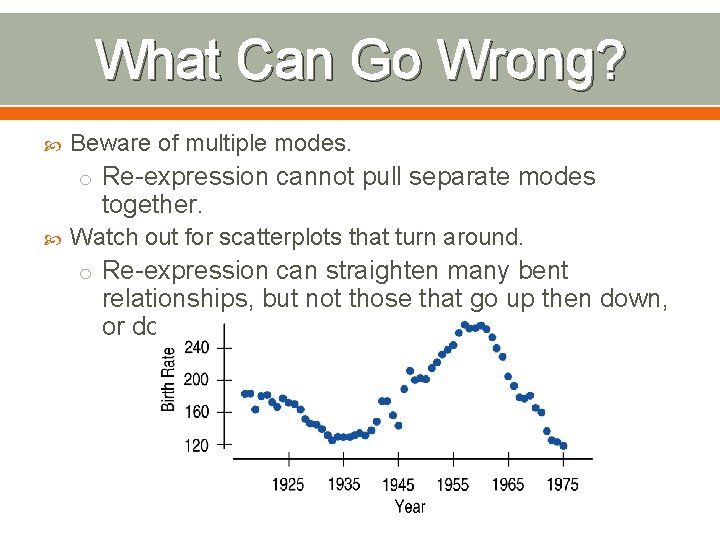

What Can Go Wrong? Beware of multiple modes. o Re-expression cannot pull separate modes together. Watch out for scatterplots that turn around. o Re-expression can straighten many bent relationships, but not those that go up then down, or down then up.

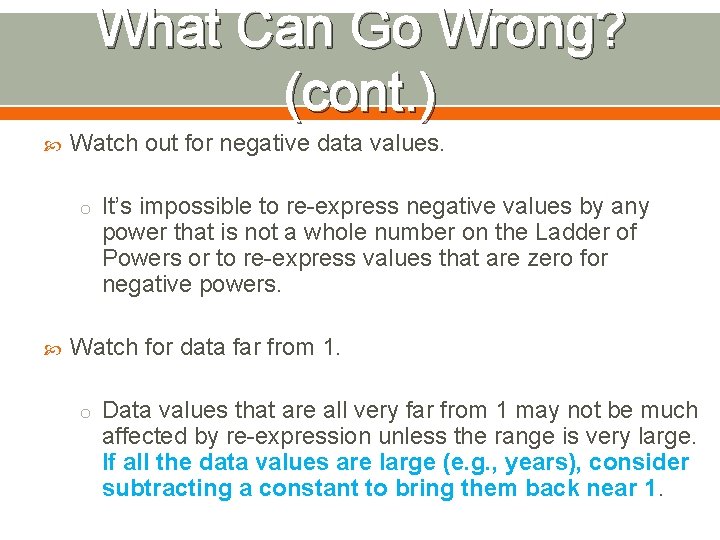

What Can Go Wrong? (cont. ) Watch out for negative data values. o It’s impossible to re-express negative values by any power that is not a whole number on the Ladder of Powers or to re-express values that are zero for negative powers. Watch for data far from 1. o Data values that are all very far from 1 may not be much affected by re-expression unless the range is very large. If all the data values are large (e. g. , years), consider subtracting a constant to bring them back near 1.

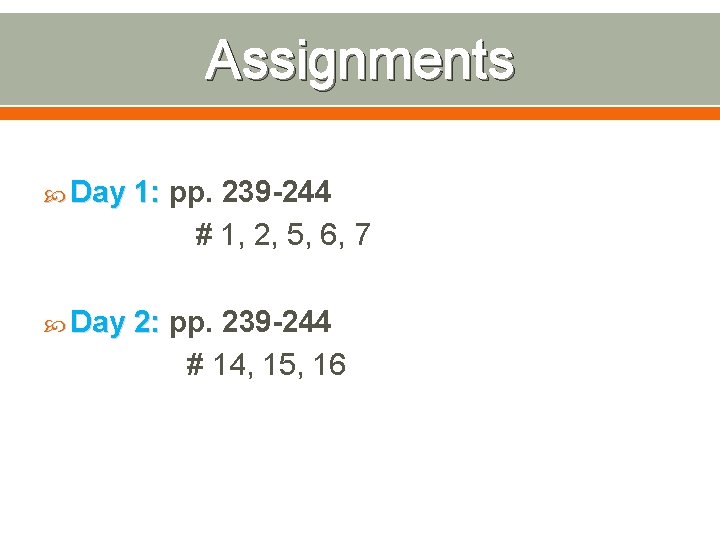

Assignments Day 1: pp. 239 -244 # 1, 2, 5, 6, 7 Day 2: pp. 239 -244 # 14, 15, 16
