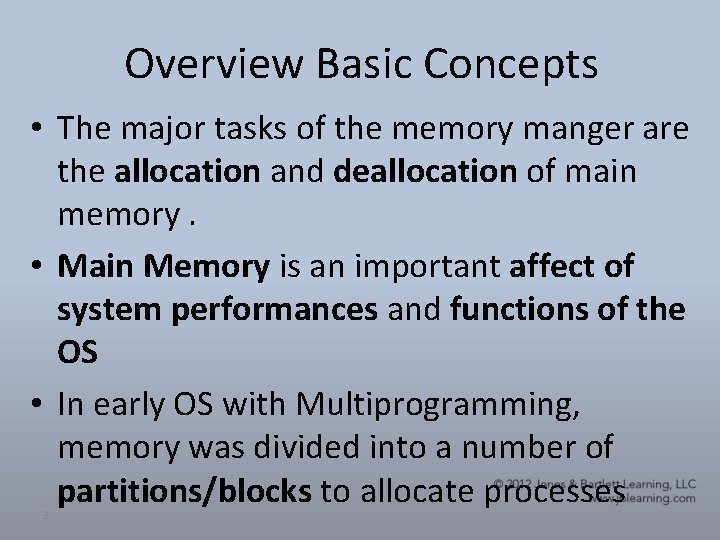

Overview Basic Concepts • The major tasks of the memory manger are the allocation and deallocation of main memory. • Main Memory is an important affect of system performances and functions of the OS • In early OS with Multiprogramming, memory was divided into a number of partitions/blocks to allocate processes 2

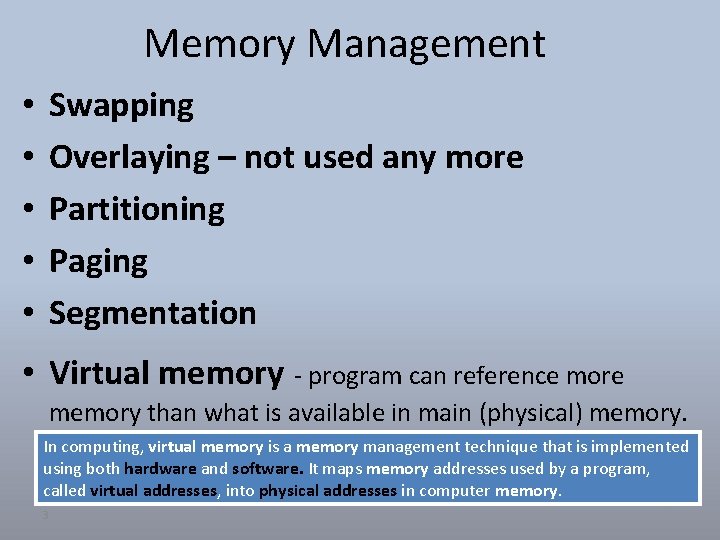

Memory Management • • • Swapping Overlaying – not used any more Partitioning Paging Segmentation • Virtual memory - program can reference more memory than what is available in main (physical) memory. In computing, virtual memory is a memory management technique that is implemented using both hardware and software. It maps memory addresses used by a program, called virtual addresses, into physical addresses in computer memory. 3

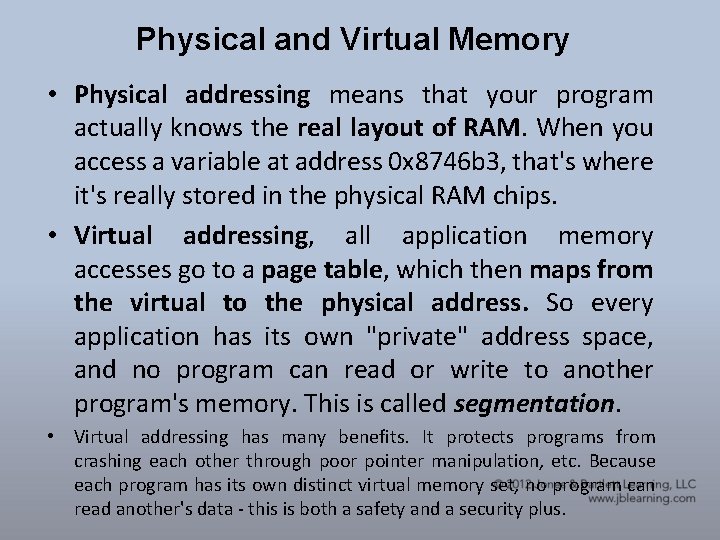

Physical and Virtual Memory • Physical addressing means that your program actually knows the real layout of RAM. When you access a variable at address 0 x 8746 b 3, that's where it's really stored in the physical RAM chips. • Virtual addressing, all application memory accesses go to a page table, which then maps from the virtual to the physical address. So every application has its own "private" address space, and no program can read or write to another program's memory. This is called segmentation. • Virtual addressing has many benefits. It protects programs from crashing each other through poor pointer manipulation, etc. Because each program has its own distinct virtual memory set, no program can read another's data - this is both a safety and a security plus.

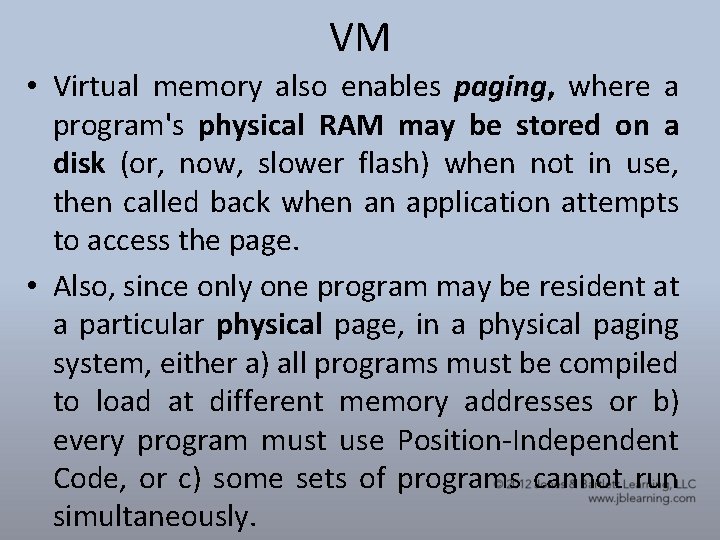

VM • Virtual memory also enables paging, where a program's physical RAM may be stored on a disk (or, now, slower flash) when not in use, then called back when an application attempts to access the page. • Also, since only one program may be resident at a particular physical page, in a physical paging system, either a) all programs must be compiled to load at different memory addresses or b) every program must use Position-Independent Code, or c) some sets of programs cannot run simultaneously.

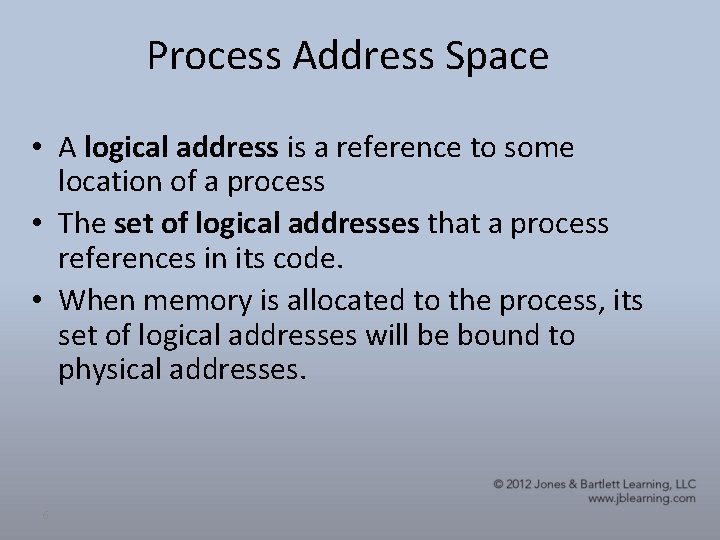

Process Address Space • A logical address is a reference to some location of a process • The set of logical addresses that a process references in its code. • When memory is allocated to the process, its set of logical addresses will be bound to physical addresses. 6

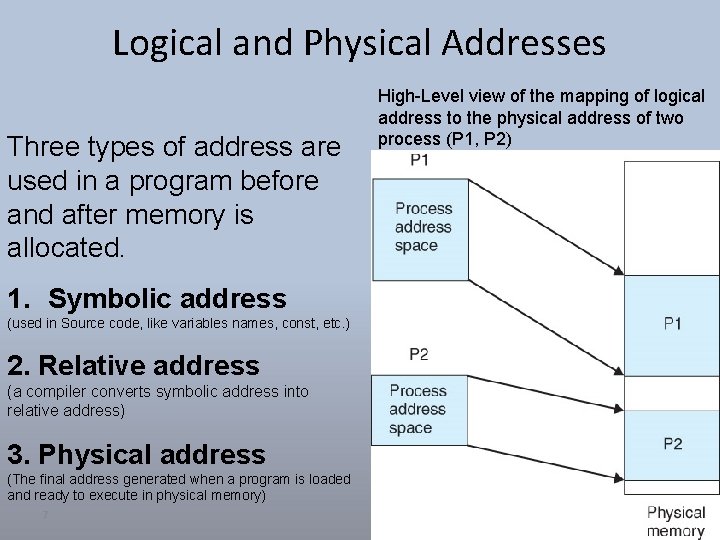

Logical and Physical Addresses Three types of address are used in a program before and after memory is allocated. 1. Symbolic address (used in Source code, like variables names, const, etc. ) 2. Relative address (a compiler converts symbolic address into relative address) 3. Physical address (The final address generated when a program is loaded and ready to execute in physical memory) 7 High-Level view of the mapping of logical address to the physical address of two process (P 1, P 2)

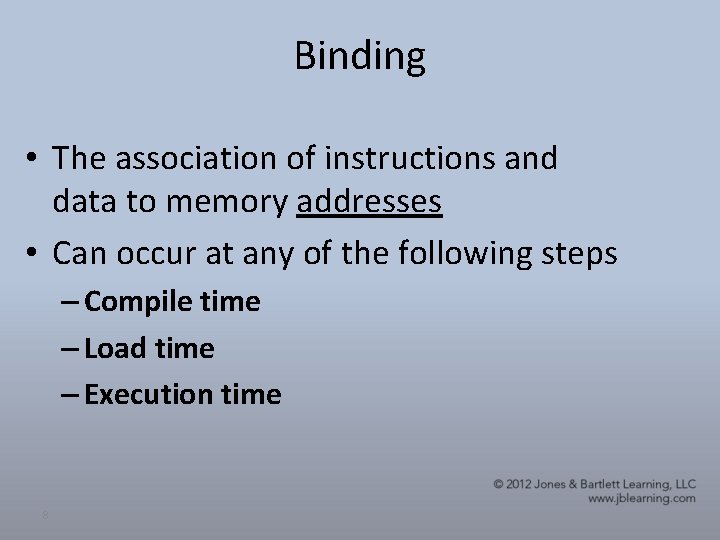

Binding • The association of instructions and data to memory addresses • Can occur at any of the following steps – Compile time – Load time – Execution time 8

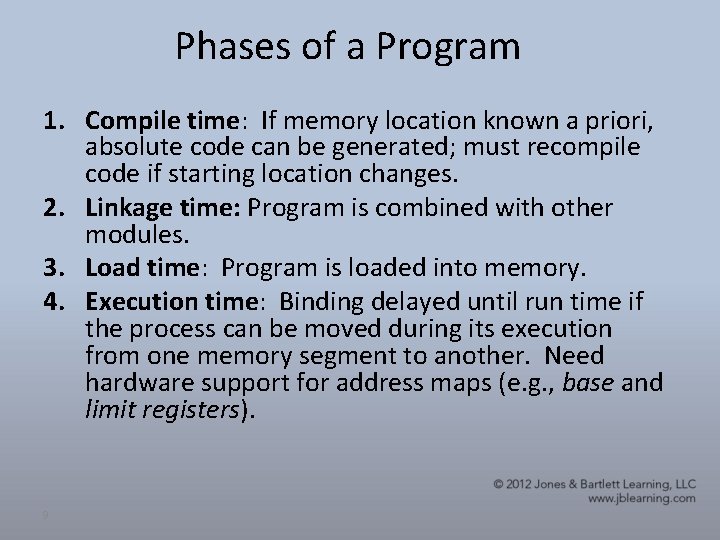

Phases of a Program 1. Compile time: If memory location known a priori, absolute code can be generated; must recompile code if starting location changes. 2. Linkage time: Program is combined with other modules. 3. Load time: Program is loaded into memory. 4. Execution time: Binding delayed until run time if the process can be moved during its execution from one memory segment to another. Need hardware support for address maps (e. g. , base and limit registers). 9

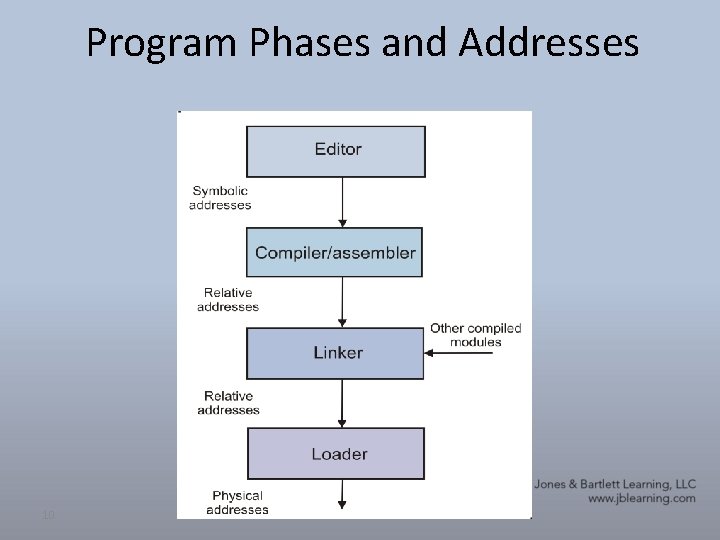

Program Phases and Addresses 10

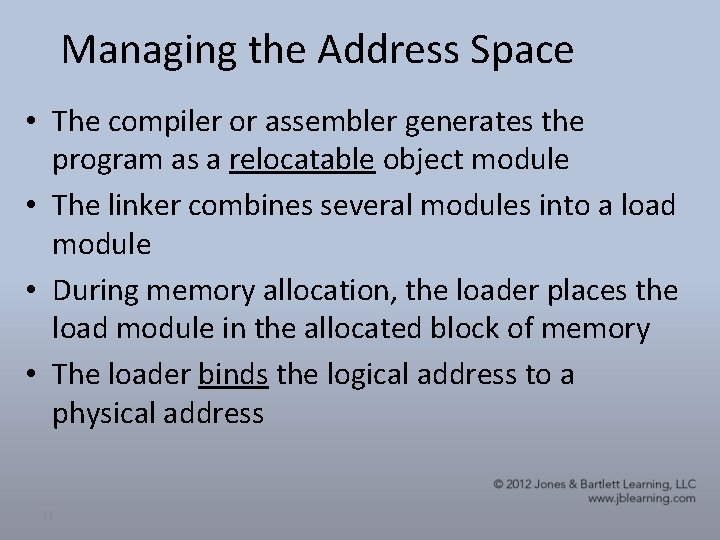

Managing the Address Space • The compiler or assembler generates the program as a relocatable object module • The linker combines several modules into a load module • During memory allocation, the loader places the load module in the allocated block of memory • The loader binds the logical address to a physical address 11

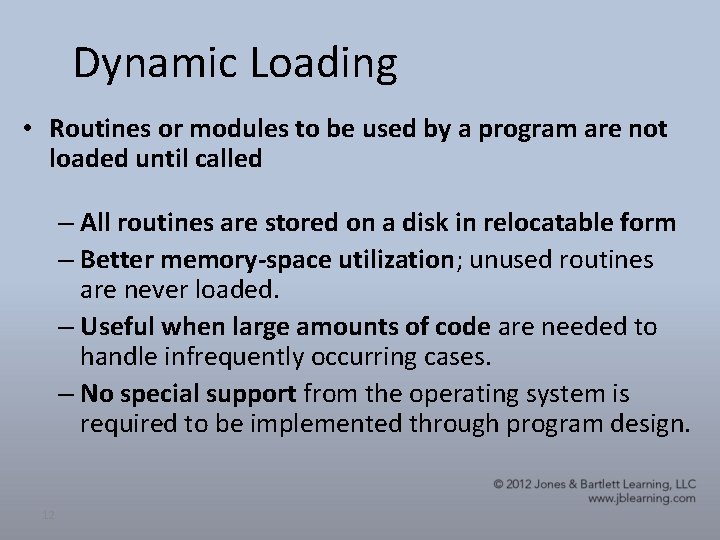

Dynamic Loading • Routines or modules to be used by a program are not loaded until called – All routines are stored on a disk in relocatable form – Better memory-space utilization; unused routines are never loaded. – Useful when large amounts of code are needed to handle infrequently occurring cases. – No special support from the operating system is required to be implemented through program design. 12

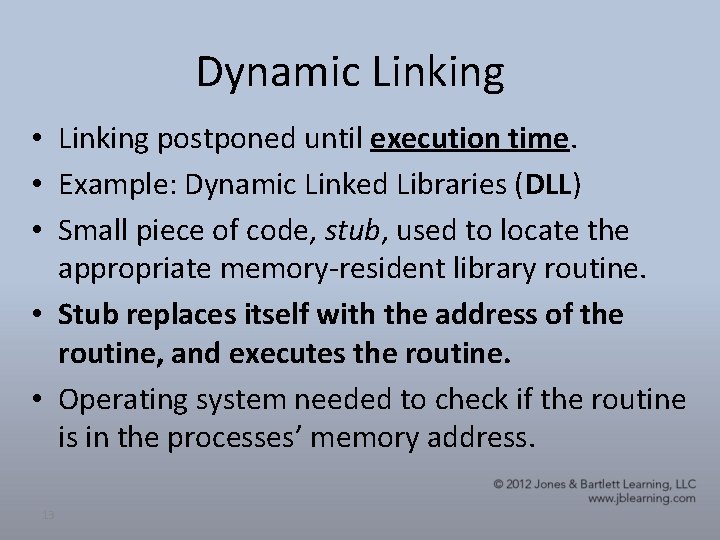

Dynamic Linking • Linking postponed until execution time. • Example: Dynamic Linked Libraries (DLL) • Small piece of code, stub, used to locate the appropriate memory-resident library routine. • Stub replaces itself with the address of the routine, and executes the routine. • Operating system needed to check if the routine is in the processes’ memory address. 13

Memory-Management Unit (MMU) • Hardware device that maps virtual to physical address. • In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory. • The user program deals with logical addresses; it never directly references the real physical addresses. 14

Static Relocation • A process executes at a specific address. • Addresses are assigned at load time. • Relocation modifies instructions that address locations in memory. • Static relocation does not solve protection. 15

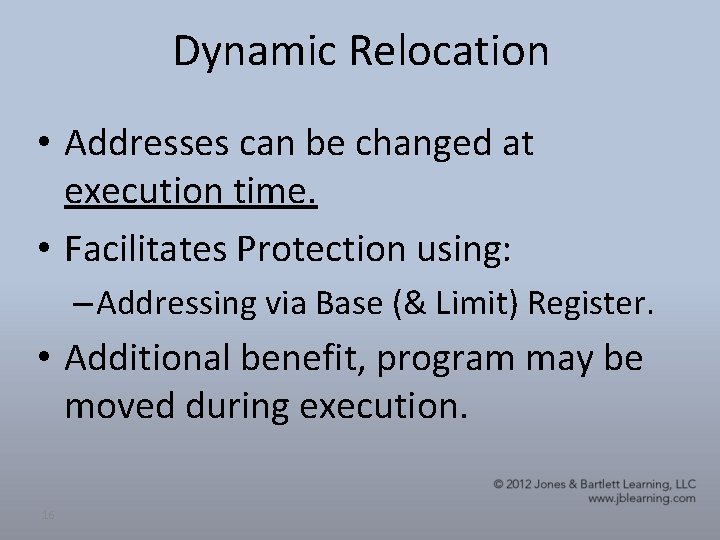

Dynamic Relocation • Addresses can be changed at execution time. • Facilitates Protection using: – Addressing via Base (& Limit) Register. • Additional benefit, program may be moved during execution. 16

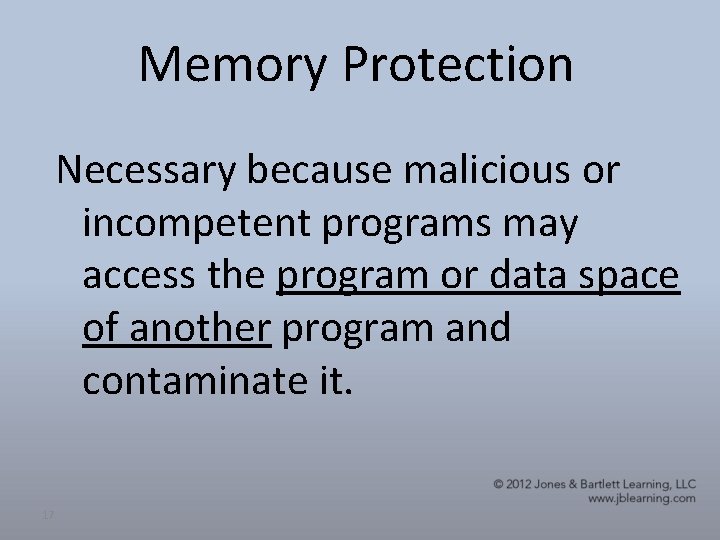

Memory Protection Necessary because malicious or incompetent programs may access the program or data space of another program and contaminate it. 17

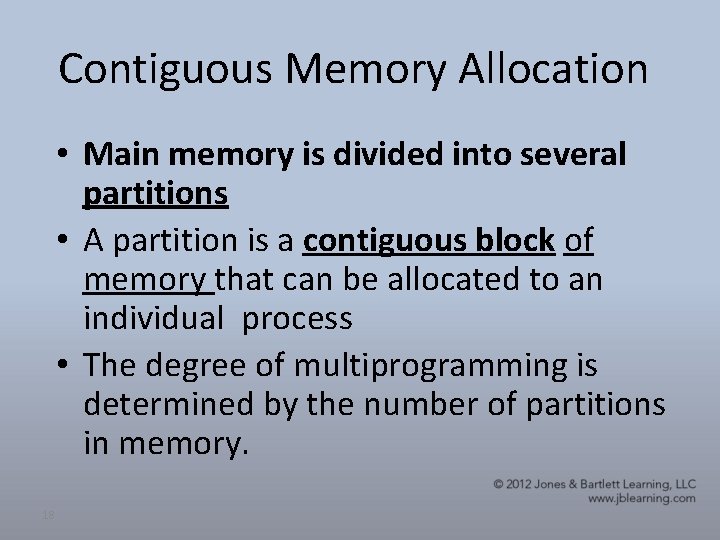

Contiguous Memory Allocation • Main memory is divided into several partitions • A partition is a contiguous block of memory that can be allocated to an individual process • The degree of multiprogramming is determined by the number of partitions in memory. 18

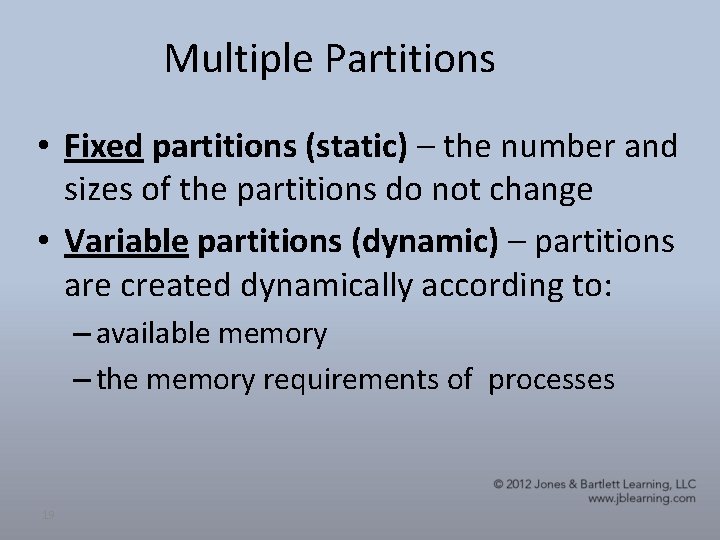

Multiple Partitions • Fixed partitions (static) – the number and sizes of the partitions do not change • Variable partitions (dynamic) – partitions are created dynamically according to: – available memory – the memory requirements of processes 19

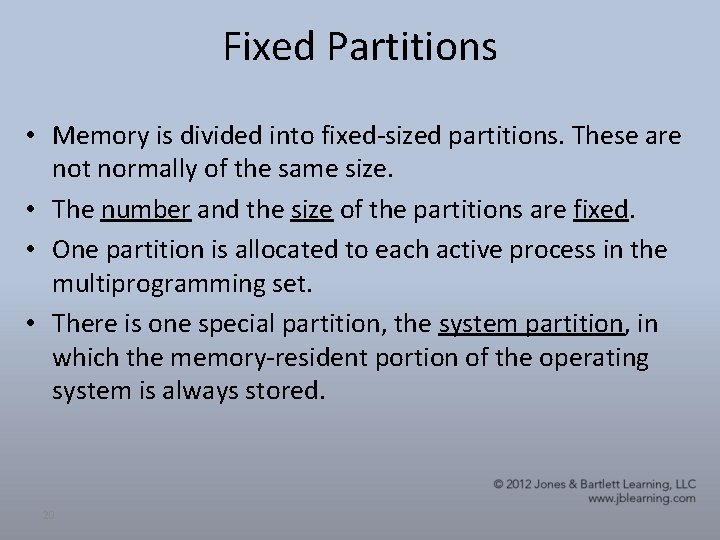

Fixed Partitions • Memory is divided into fixed-sized partitions. These are not normally of the same size. • The number and the size of the partitions are fixed. • One partition is allocated to each active process in the multiprogramming set. • There is one special partition, the system partition, in which the memory-resident portion of the operating system is always stored. 20

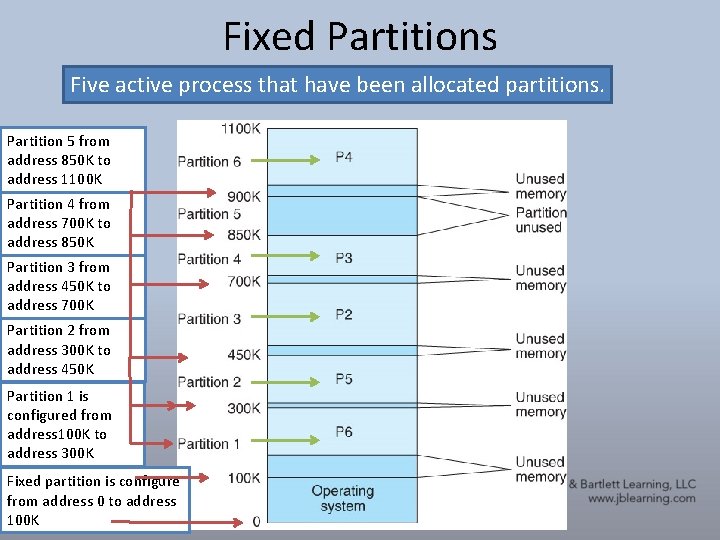

Fixed Partitions Five active process that have been allocated partitions. Partition 5 from address 850 K to address 1100 K Partition 4 from address 700 K to address 850 K Partition 3 from address 450 K to address 700 K Partition 2 from address 300 K to address 450 K Partition 1 is configured from address 100 K to address 300 K Fixed partition is configure from address 0 to address 100 K 21

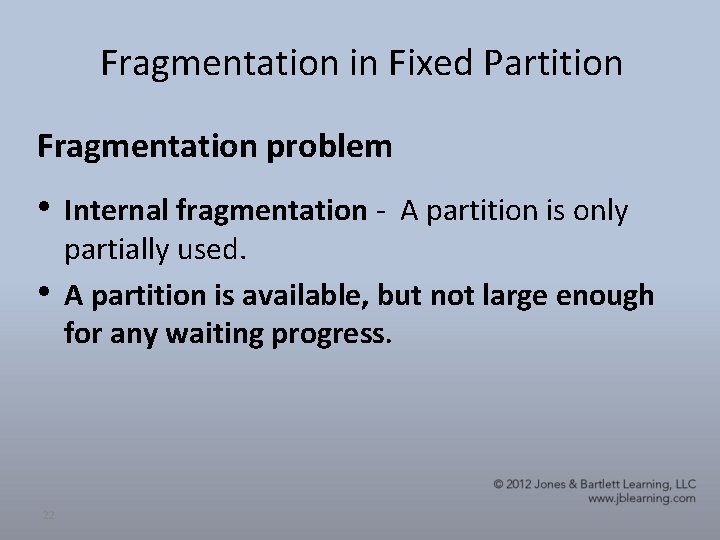

Fragmentation in Fixed Partition Fragmentation problem • Internal fragmentation - A partition is only • 22 partially used. A partition is available, but not large enough for any waiting progress.

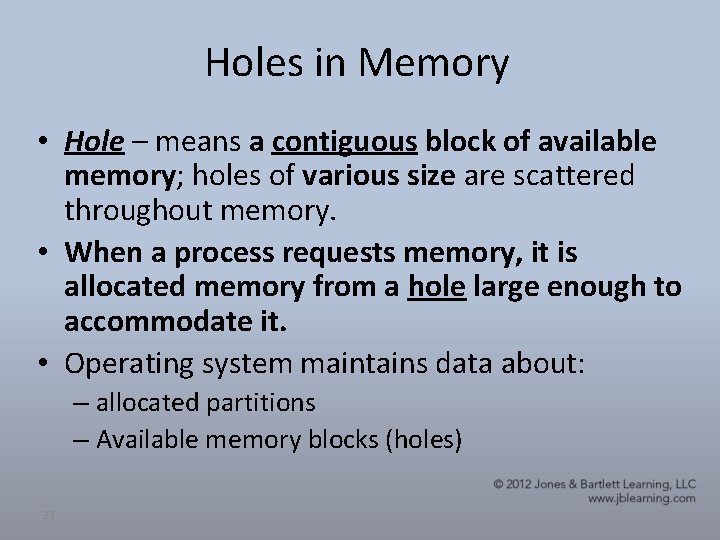

Holes in Memory • Hole – means a contiguous block of available memory; holes of various size are scattered throughout memory. • When a process requests memory, it is allocated memory from a hole large enough to accommodate it. • Operating system maintains data about: – allocated partitions – Available memory blocks (holes) 23

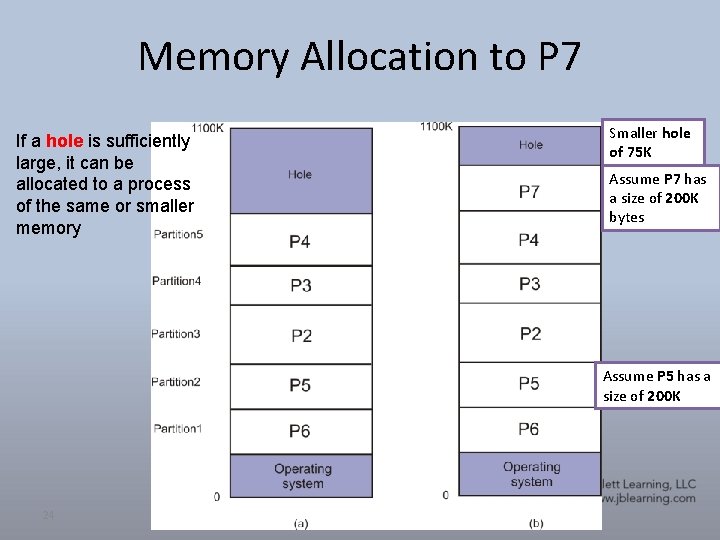

Memory Allocation to P 7 If a hole is sufficiently large, it can be allocated to a process of the same or smaller memory Smaller hole of 75 K Assume P 7 has a size of 200 K bytes Assume P 5 has a size of 200 K 24

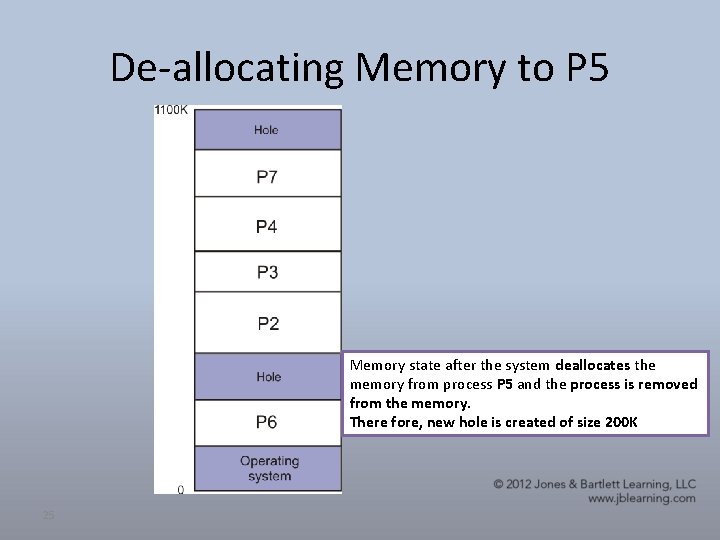

De-allocating Memory to P 5 Memory state after the system deallocates the memory from process P 5 and the process is removed from the memory. There fore, new hole is created of size 200 K 25

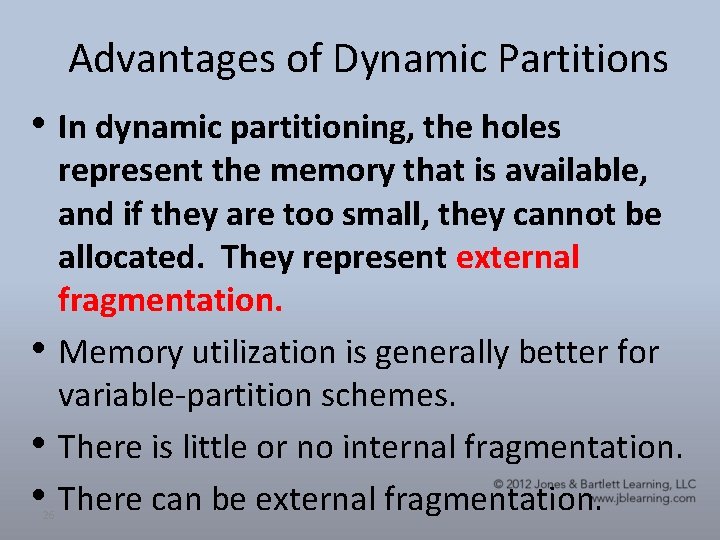

Advantages of Dynamic Partitions • In dynamic partitioning, the holes • • • 26 represent the memory that is available, and if they are too small, they cannot be allocated. They represent external fragmentation. Memory utilization is generally better for variable-partition schemes. There is little or no internal fragmentation. There can be external fragmentation.

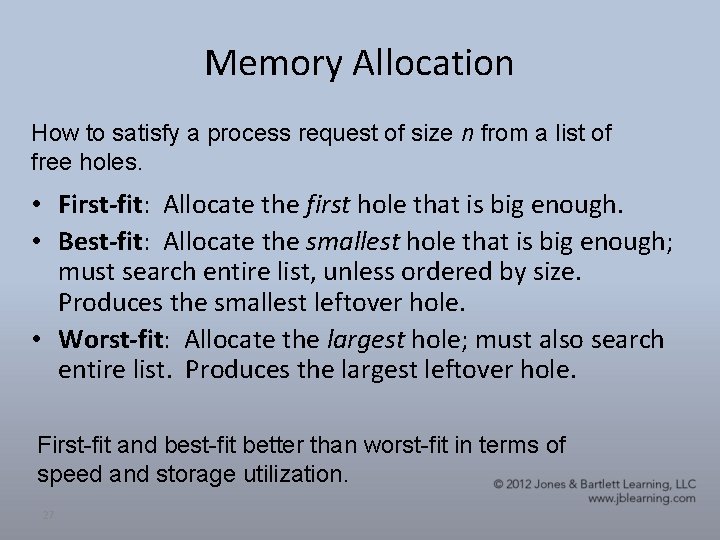

Memory Allocation How to satisfy a process request of size n from a list of free holes. • First-fit: Allocate the first hole that is big enough. • Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size. Produces the smallest leftover hole. • Worst-fit: Allocate the largest hole; must also search entire list. Produces the largest leftover hole. First-fit and best-fit better than worst-fit in terms of speed and storage utilization. 27

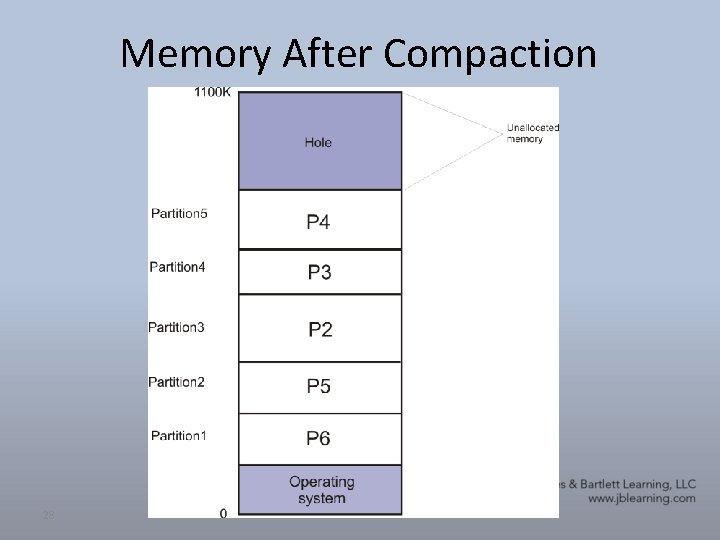

Memory After Compaction 28

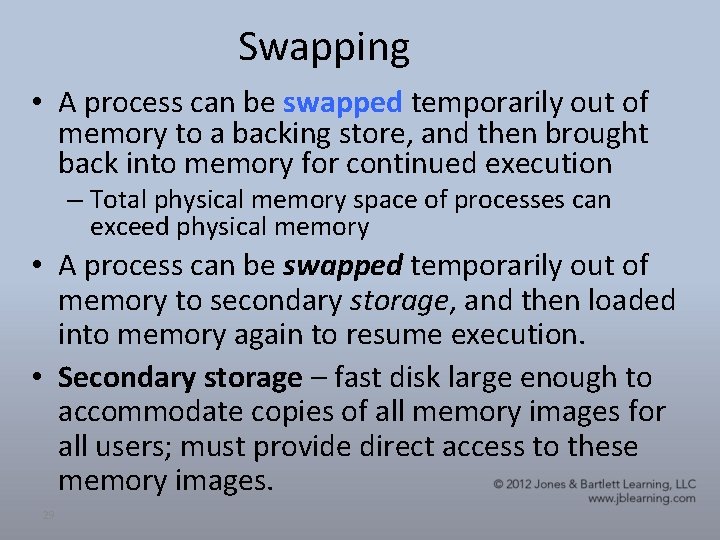

Swapping • A process can be swapped temporarily out of memory to a backing store, and then brought back into memory for continued execution – Total physical memory space of processes can exceed physical memory • A process can be swapped temporarily out of memory to secondary storage, and then loaded into memory again to resume execution. • Secondary storage – fast disk large enough to accommodate copies of all memory images for all users; must provide direct access to these memory images. 29

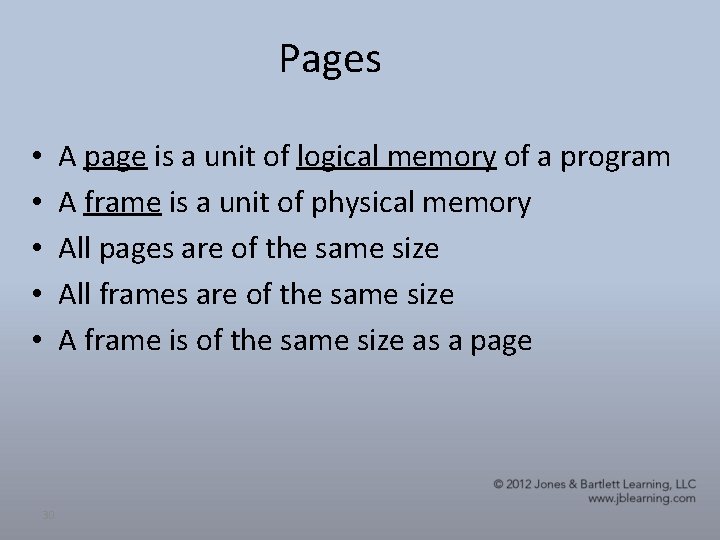

Pages A page is a unit of logical memory of a program A frame is a unit of physical memory All pages are of the same size All frames are of the same size A frame is of the same size as a page • • • 30

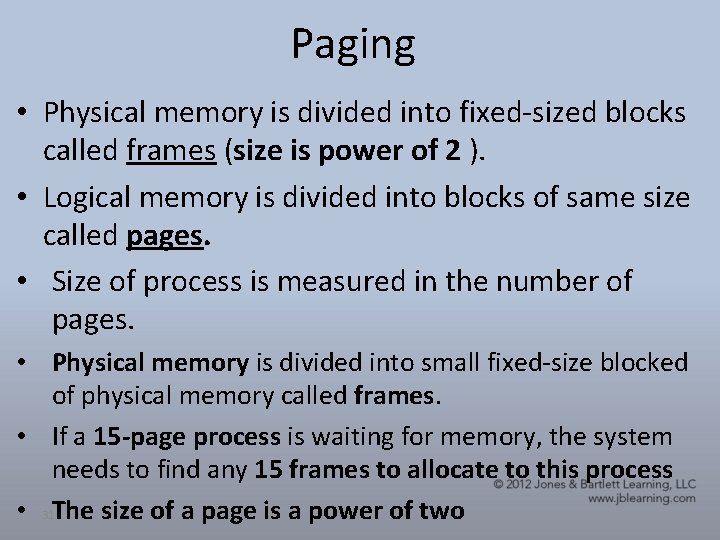

Paging • Physical memory is divided into fixed-sized blocks called frames (size is power of 2 ). • Logical memory is divided into blocks of same size called pages. • Size of process is measured in the number of pages. • Physical memory is divided into small fixed-size blocked of physical memory called frames. • If a 15 -page process is waiting for memory, the system needs to find any 15 frames to allocate to this process • 31 The size of a page is a power of two

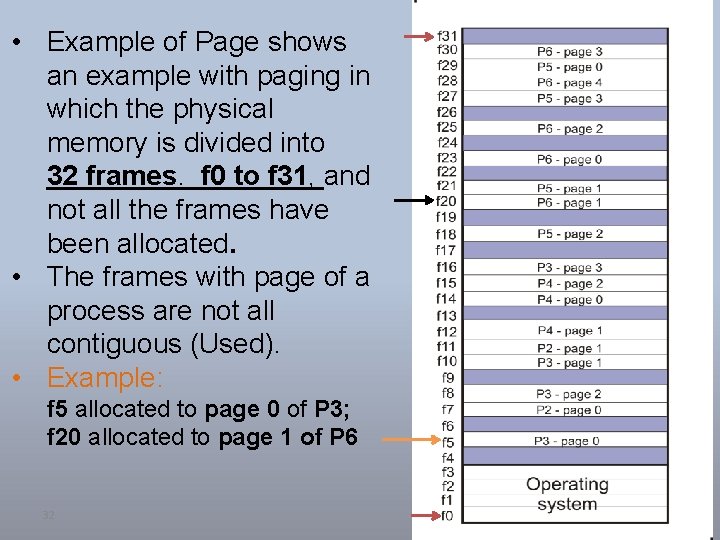

• Example of Page shows an example with paging in which the physical memory is divided into 32 frames. f 0 to f 31, and not all the frames have been allocated. • The frames with page of a process are not all contiguous (Used). • Example: f 5 allocated to page 0 of P 3; f 20 allocated to page 1 of P 6 32

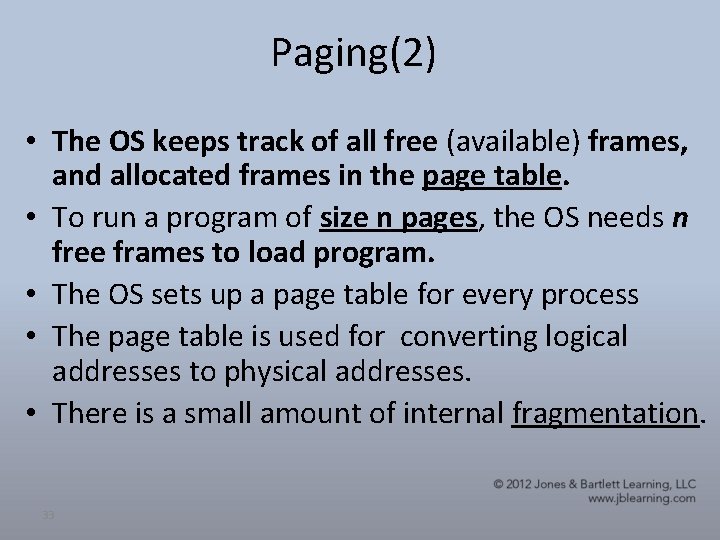

Paging(2) • The OS keeps track of all free (available) frames, and allocated frames in the page table. • To run a program of size n pages, the OS needs n free frames to load program. • The OS sets up a page table for every process • The page table is used for converting logical addresses to physical addresses. • There is a small amount of internal fragmentation. 33

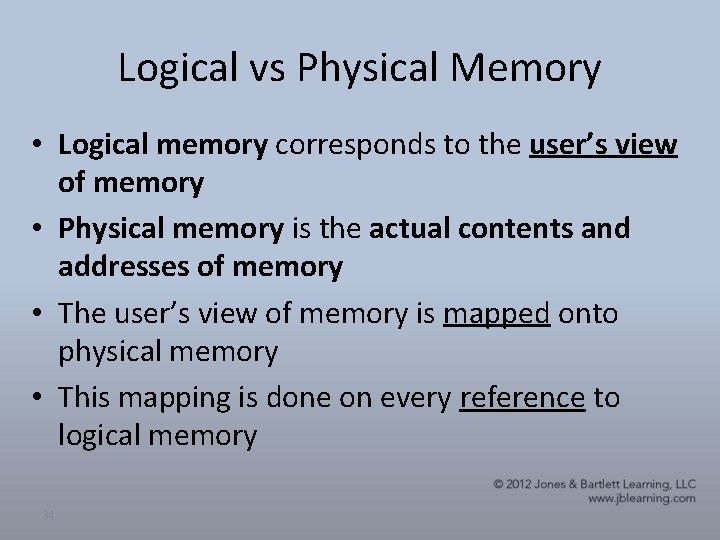

Logical vs Physical Memory • Logical memory corresponds to the user’s view of memory • Physical memory is the actual contents and addresses of memory • The user’s view of memory is mapped onto physical memory • This mapping is done on every reference to logical memory 34

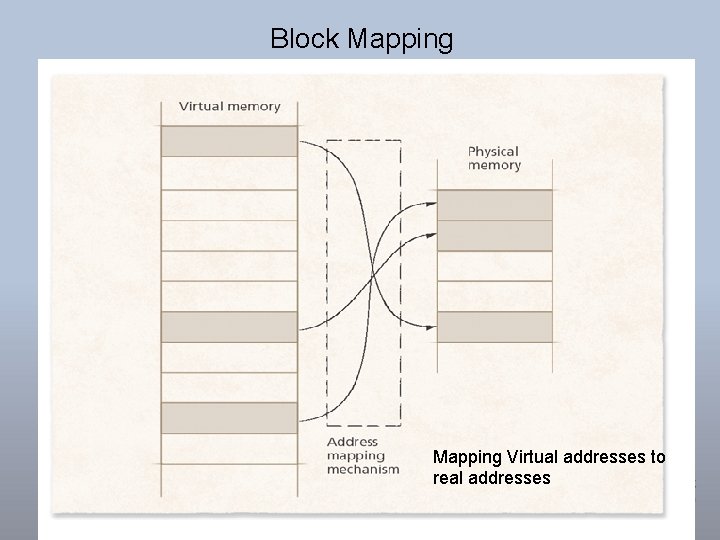

Block Mapping Virtual addresses to real addresses

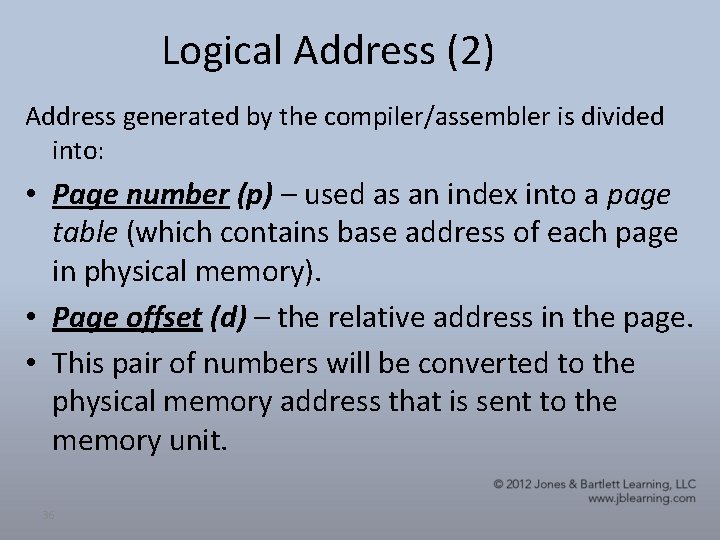

Logical Address (2) Address generated by the compiler/assembler is divided into: • Page number (p) – used as an index into a page table (which contains base address of each page in physical memory). • Page offset (d) – the relative address in the page. • This pair of numbers will be converted to the physical memory address that is sent to the memory unit. 36

Example of a Logical Address 20 –bit address is a system that used 1 k pages Higher 10 bits are used to reference the page number Lower bits of the address 2 power 10 = 1024 Page number = 2 37 Offset = 478

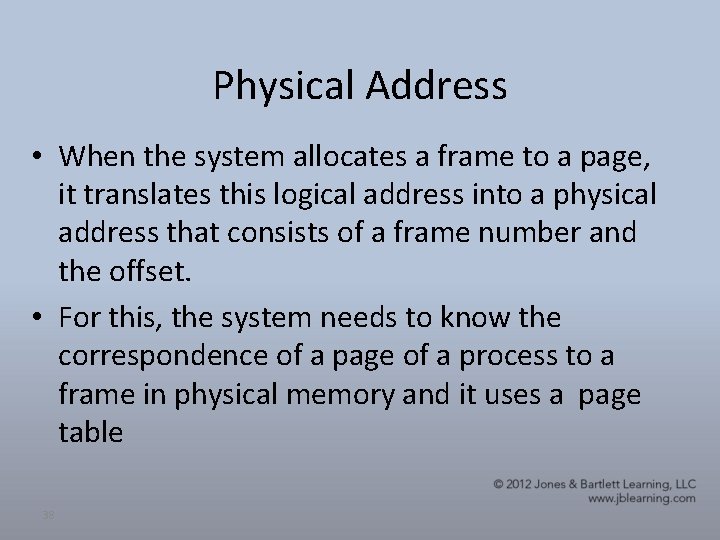

Physical Address • When the system allocates a frame to a page, it translates this logical address into a physical address that consists of a frame number and the offset. • For this, the system needs to know the correspondence of a page of a process to a frame in physical memory and it uses a page table 38

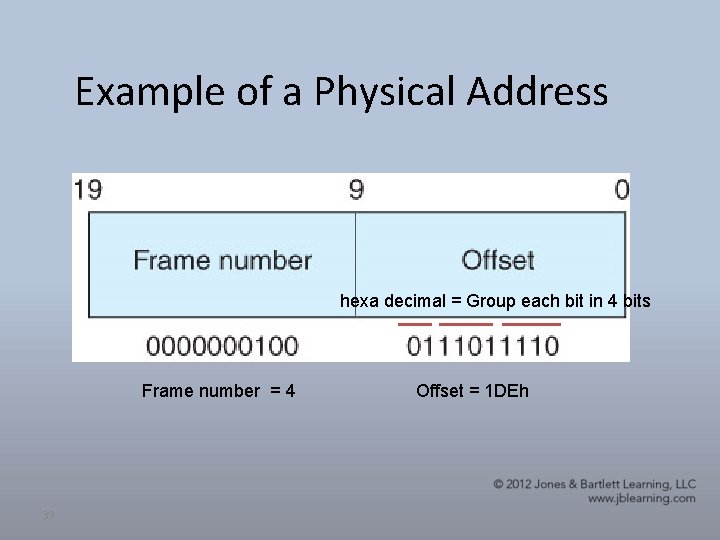

Example of a Physical Address hexa decimal = Group each bit in 4 bits Frame number = 4 39 Offset = 1 DEh

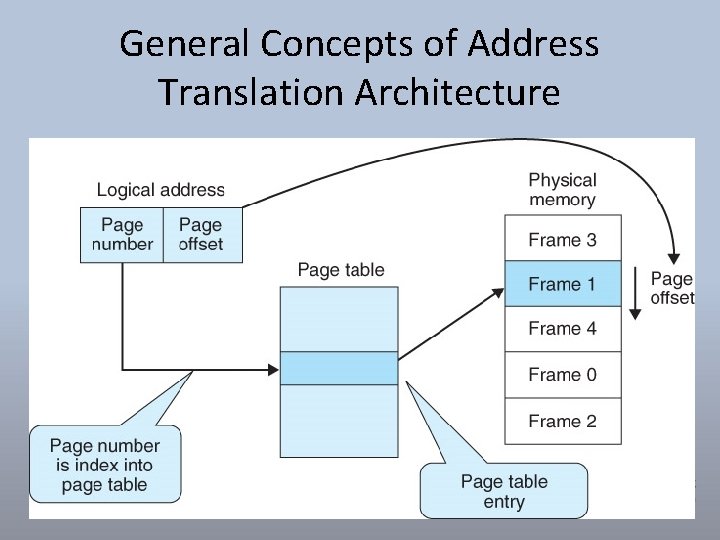

General Concepts of Address Translation Architecture 40

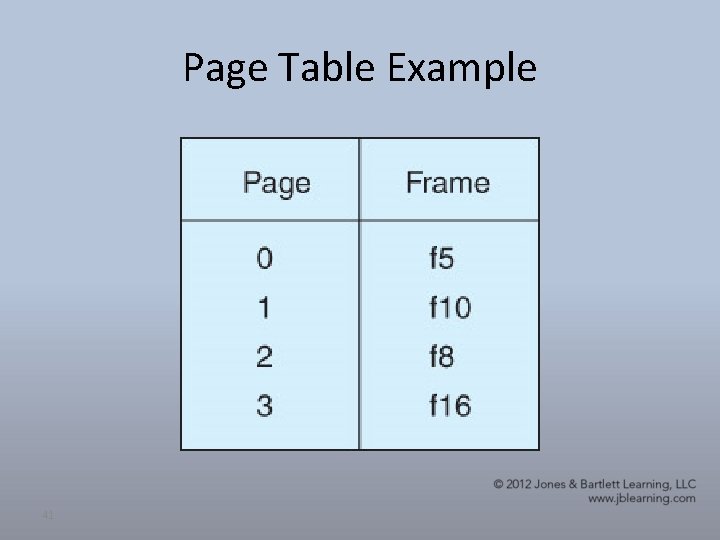

Page Table Example 41

Chapter 10 Memory Management (continued - Part_2)

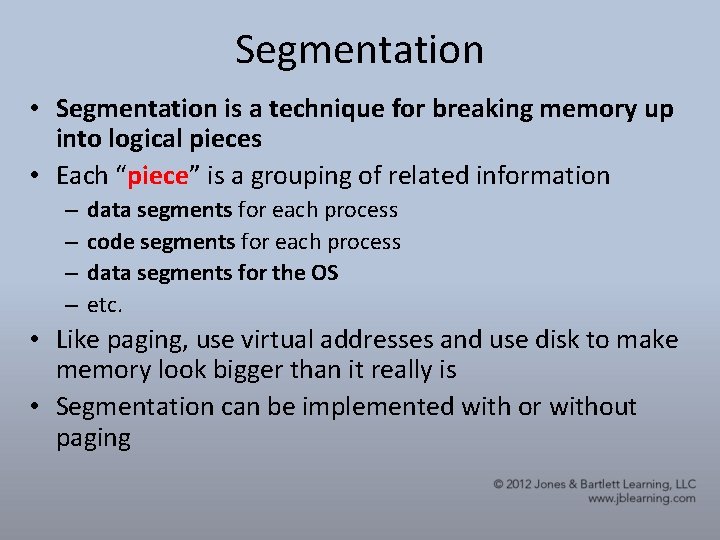

Segmentation • Segmentation is a technique for breaking memory up into logical pieces • Each “piece” is a grouping of related information – – data segments for each process code segments for each process data segments for the OS etc. • Like paging, use virtual addresses and use disk to make memory look bigger than it really is • Segmentation can be implemented with or without paging

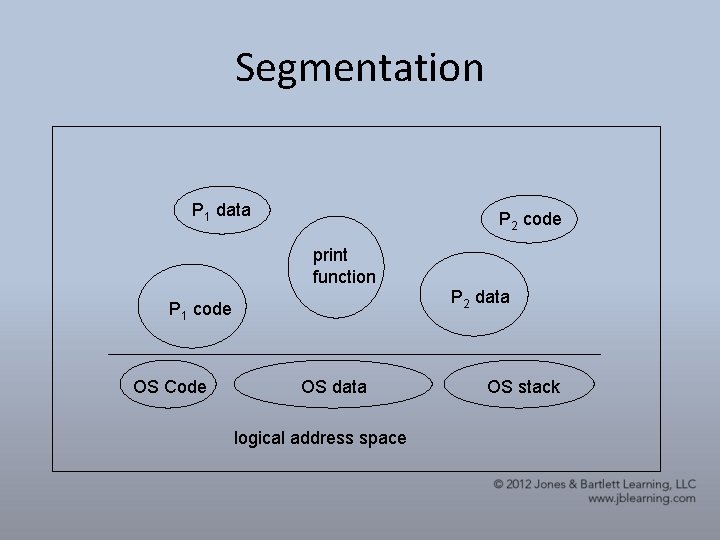

Segmentation P 1 data P 2 code print function P 2 data P 1 code OS Code OS data logical address space OS stack

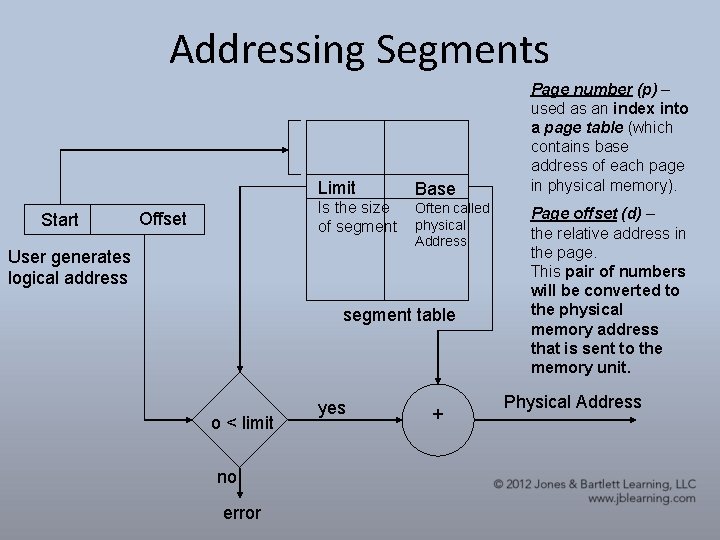

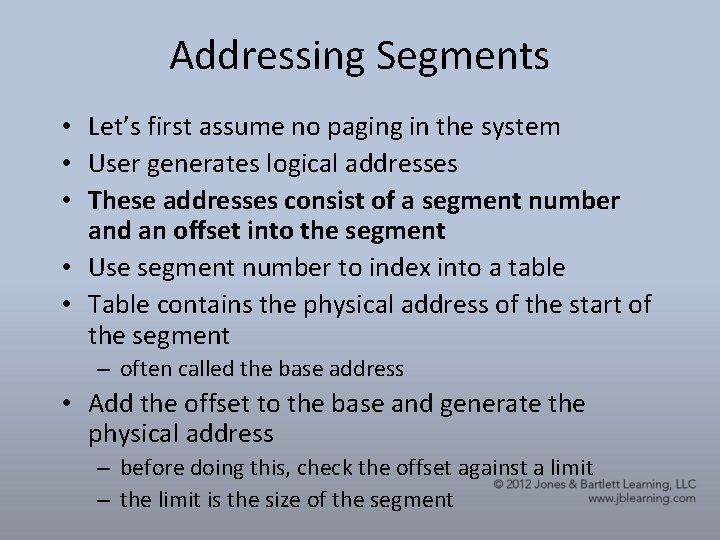

Addressing Segments • Let’s first assume no paging in the system • User generates logical addresses • These addresses consist of a segment number and an offset into the segment • Use segment number to index into a table • Table contains the physical address of the start of the segment – often called the base address • Add the offset to the base and generate the physical address – before doing this, check the offset against a limit – the limit is the size of the segment

Addressing Segments Limit Start Is the size of segment Offset User generates logical address Base Often called physical Address segment table o < limit no error yes + Page number (p) – used as an index into a page table (which contains base address of each page in physical memory). Page offset (d) – the relative address in the page. This pair of numbers will be converted to the physical memory address that is sent to the memory unit. Physical Address

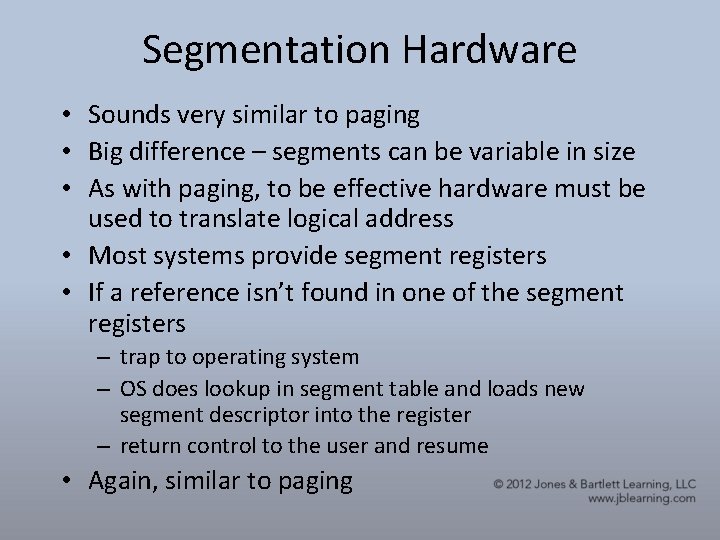

Segmentation Hardware • Sounds very similar to paging • Big difference – segments can be variable in size • As with paging, to be effective hardware must be used to translate logical address • Most systems provide segment registers • If a reference isn’t found in one of the segment registers – trap to operating system – OS does lookup in segment table and loads new segment descriptor into the register – return control to the user and resume • Again, similar to paging

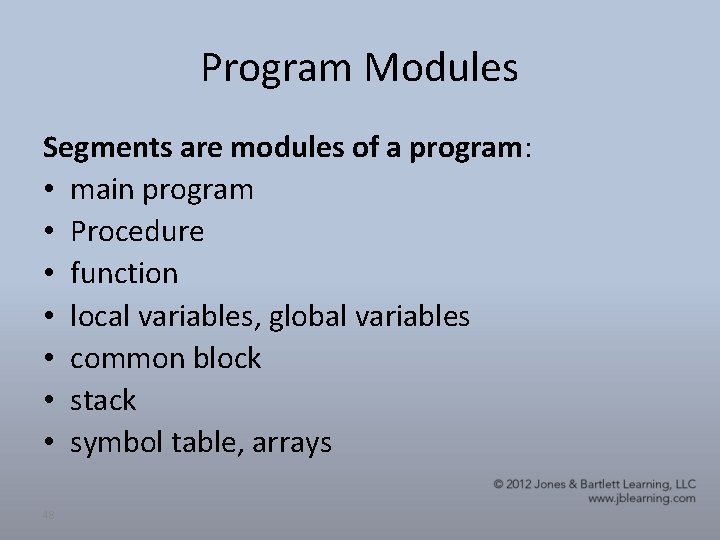

Program Modules Segments are modules of a program: • main program • Procedure • function • local variables, global variables • common block • stack • symbol table, arrays 48

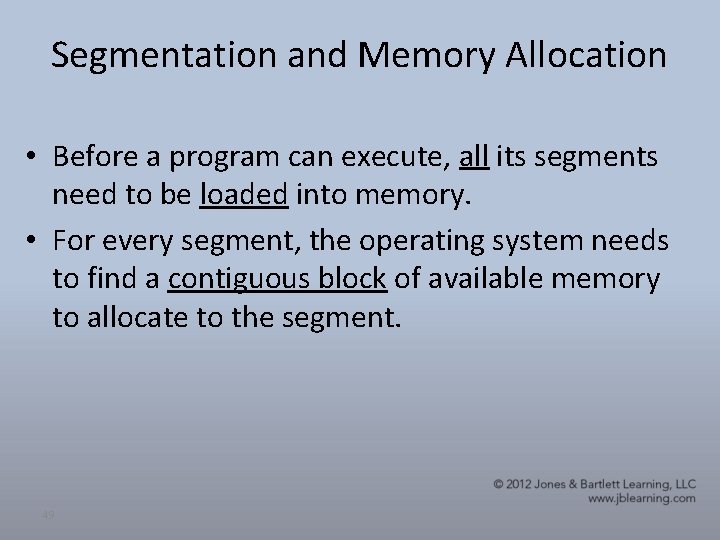

Segmentation and Memory Allocation • Before a program can execute, all its segments need to be loaded into memory. • For every segment, the operating system needs to find a contiguous block of available memory to allocate to the segment. 49

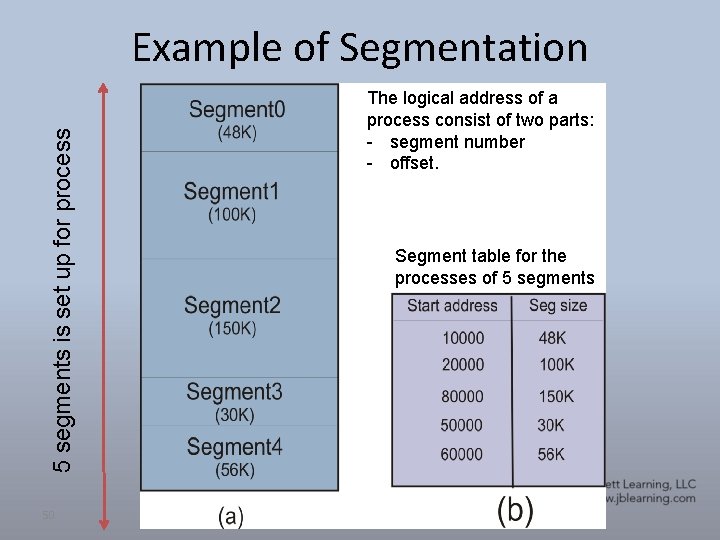

5 segments is set up for process Example of Segmentation 50 The logical address of a process consist of two parts: - segment number - offset. Segment table for the processes of 5 segments

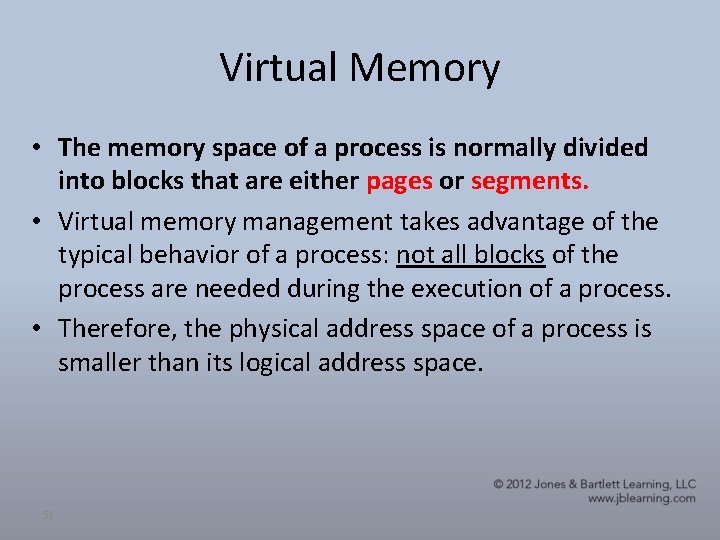

Virtual Memory • The memory space of a process is normally divided into blocks that are either pages or segments. • Virtual memory management takes advantage of the typical behavior of a process: not all blocks of the process are needed during the execution of a process. • Therefore, the physical address space of a process is smaller than its logical address space. 51

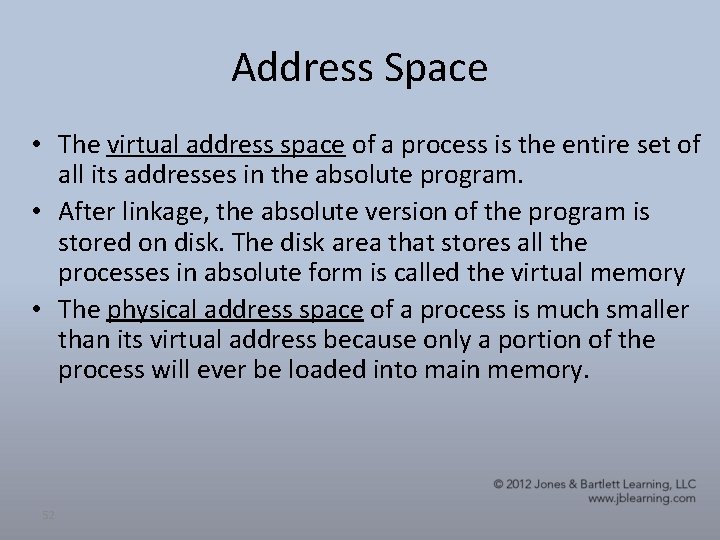

Address Space • The virtual address space of a process is the entire set of all its addresses in the absolute program. • After linkage, the absolute version of the program is stored on disk. The disk area that stores all the processes in absolute form is called the virtual memory • The physical address space of a process is much smaller than its virtual address because only a portion of the process will ever be loaded into main memory. 52

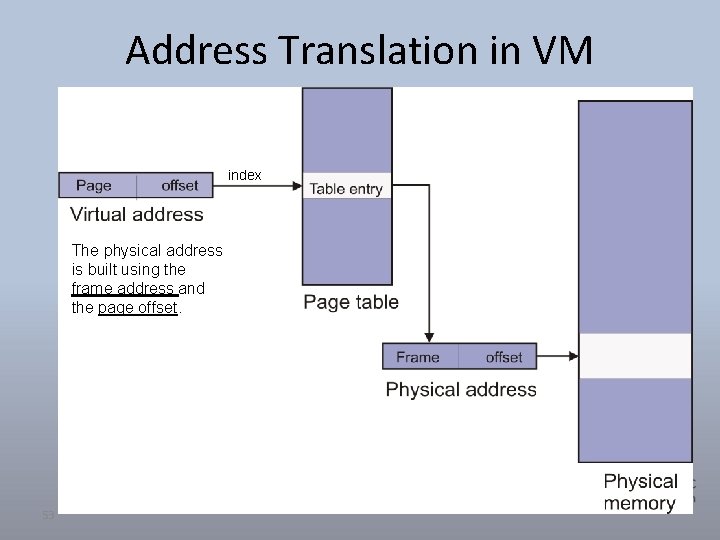

Address Translation in VM index The physical address is built using the frame address and the page offset. 53

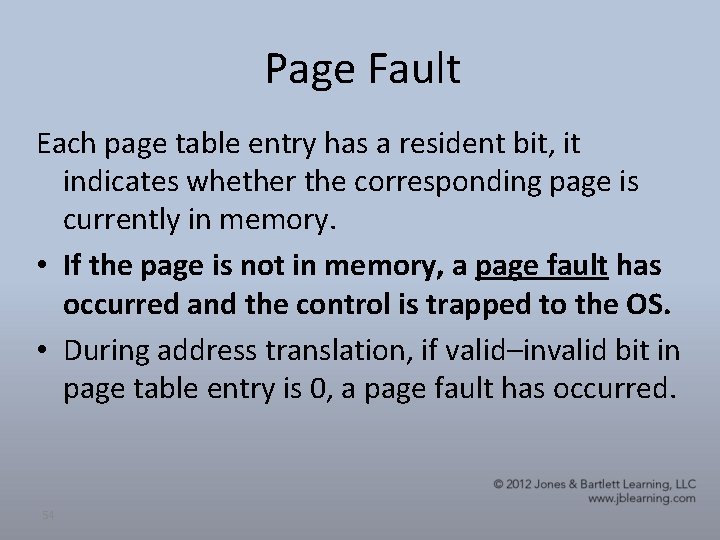

Page Fault Each page table entry has a resident bit, it indicates whether the corresponding page is currently in memory. • If the page is not in memory, a page fault has occurred and the control is trapped to the OS. • During address translation, if valid–invalid bit in page table entry is 0, a page fault has occurred. 54

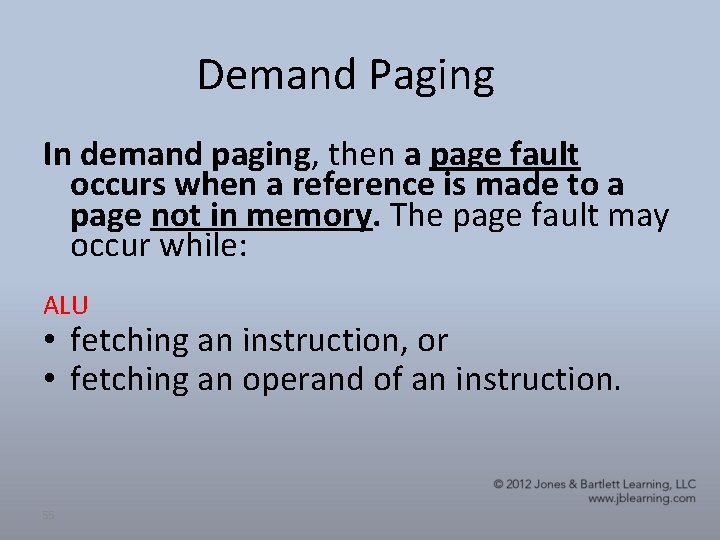

Demand Paging In demand paging, then a page fault occurs when a reference is made to a page not in memory. The page fault may occur while: ALU • fetching an instruction, or • fetching an operand of an instruction. 55

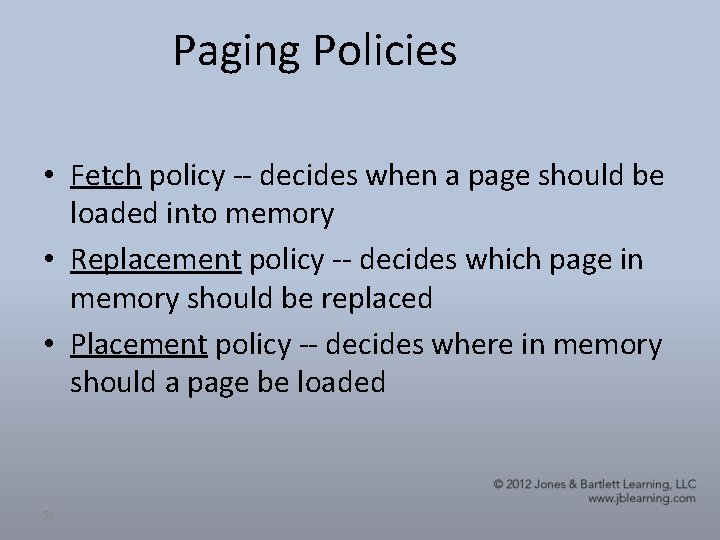

Paging Policies • Fetch policy -- decides when a page should be loaded into memory • Replacement policy -- decides which page in memory should be replaced • Placement policy -- decides where in memory should a page be loaded 56

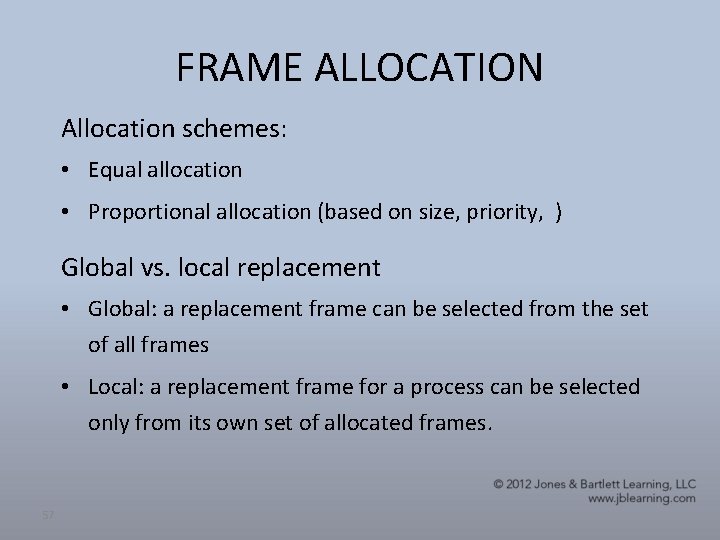

FRAME ALLOCATION Allocation schemes: • Equal allocation • Proportional allocation (based on size, priority, ) Global vs. local replacement • Global: a replacement frame can be selected from the set of all frames • Local: a replacement frame for a process can be selected only from its own set of allocated frames. 57

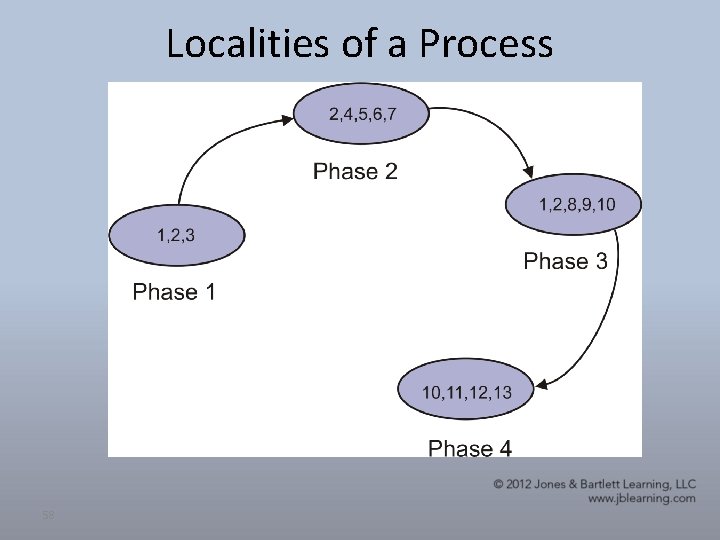

Localities of a Process 58

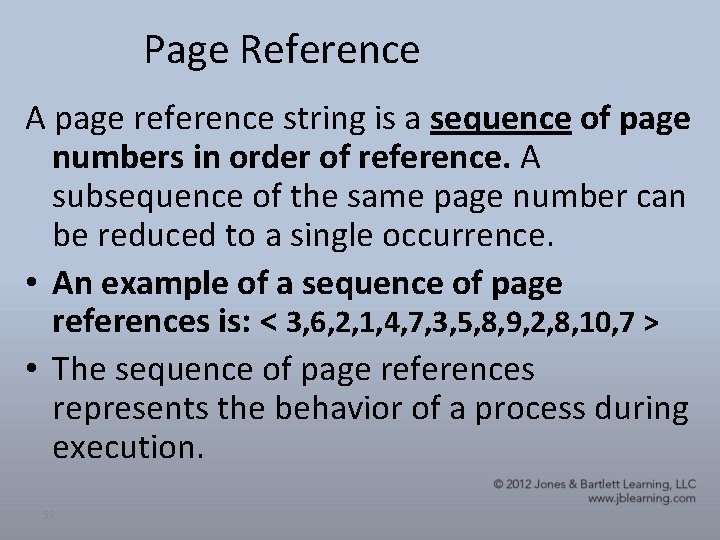

Page Reference A page reference string is a sequence of page numbers in order of reference. A subsequence of the same page number can be reduced to a single occurrence. • An example of a sequence of page references is: < 3, 6, 2, 1, 4, 7, 3, 5, 8, 9, 2, 8, 10, 7 > • The sequence of page references represents the behavior of a process during execution. 59

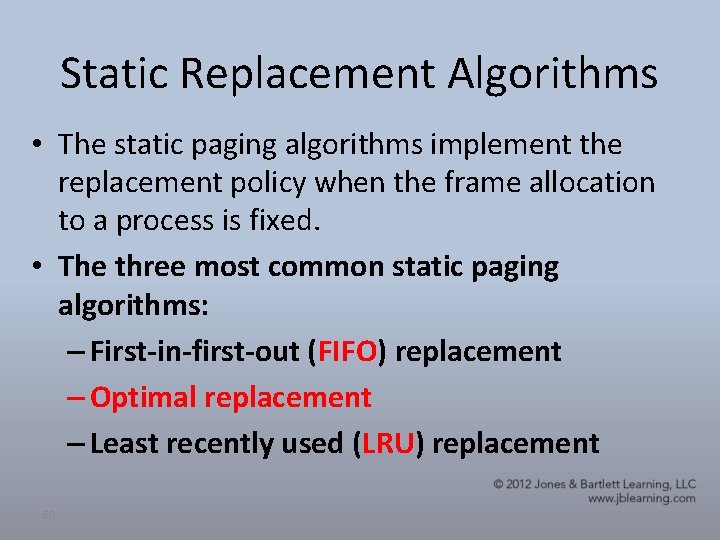

Static Replacement Algorithms • The static paging algorithms implement the replacement policy when the frame allocation to a process is fixed. • The three most common static paging algorithms: – First-in-first-out (FIFO) replacement – Optimal replacement – Least recently used (LRU) replacement 60

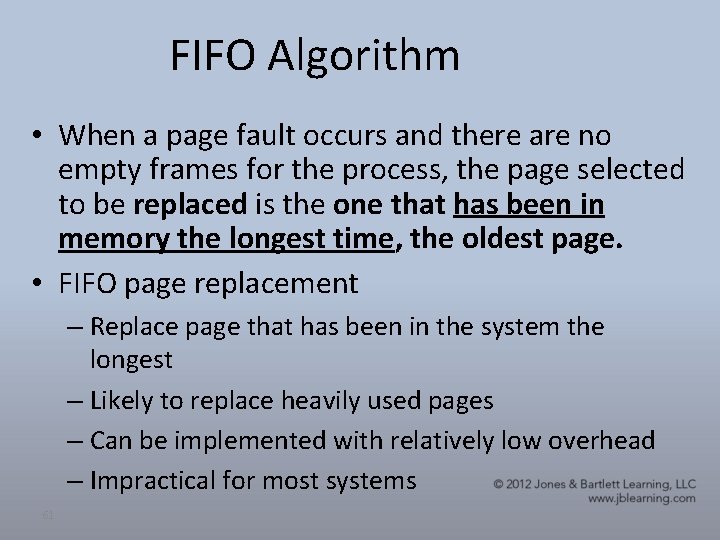

FIFO Algorithm • When a page fault occurs and there are no empty frames for the process, the page selected to be replaced is the one that has been in memory the longest time, the oldest page. • FIFO page replacement – Replace page that has been in the system the longest – Likely to replace heavily used pages – Can be implemented with relatively low overhead – Impractical for most systems 61

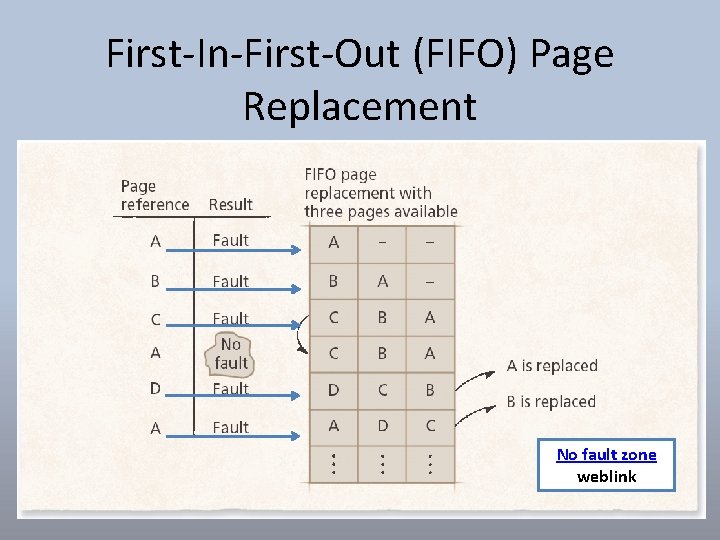

First-In-First-Out (FIFO) Page Replacement No fault zone weblink

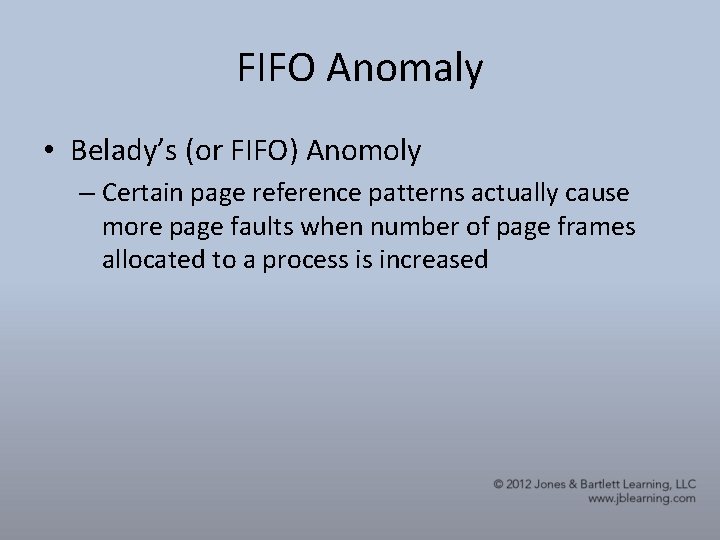

FIFO Anomaly • Belady’s (or FIFO) Anomoly – Certain page reference patterns actually cause more page faults when number of page frames allocated to a process is increased

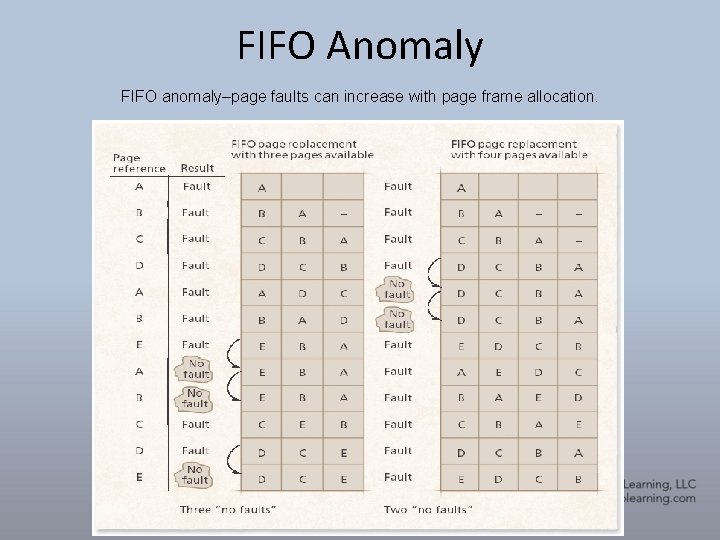

FIFO Anomaly FIFO anomaly–page faults can increase with page frame allocation.

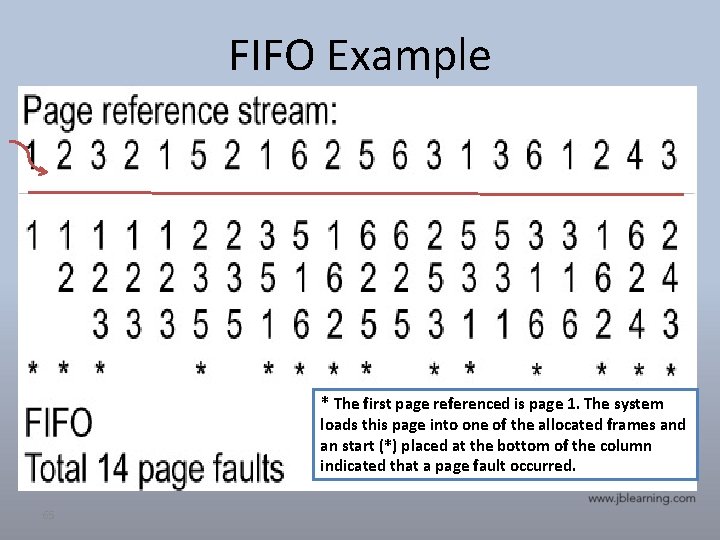

FIFO Example * The first page referenced is page 1. The system loads this page into one of the allocated frames and an start (*) placed at the bottom of the column indicated that a page fault occurred. 65

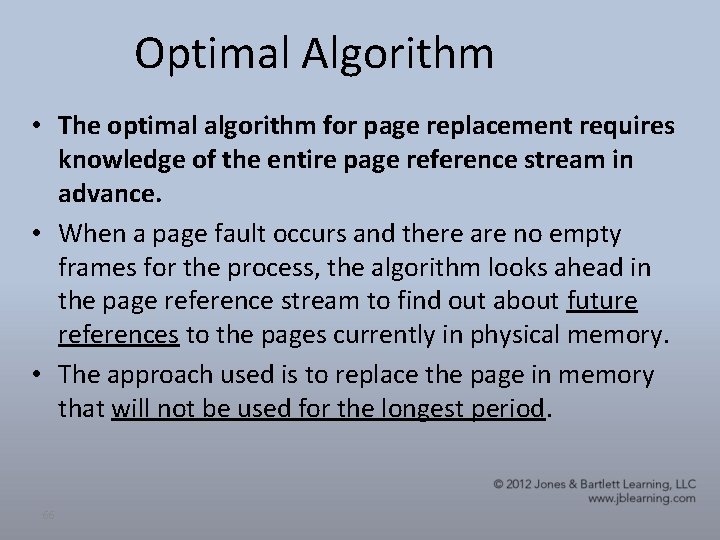

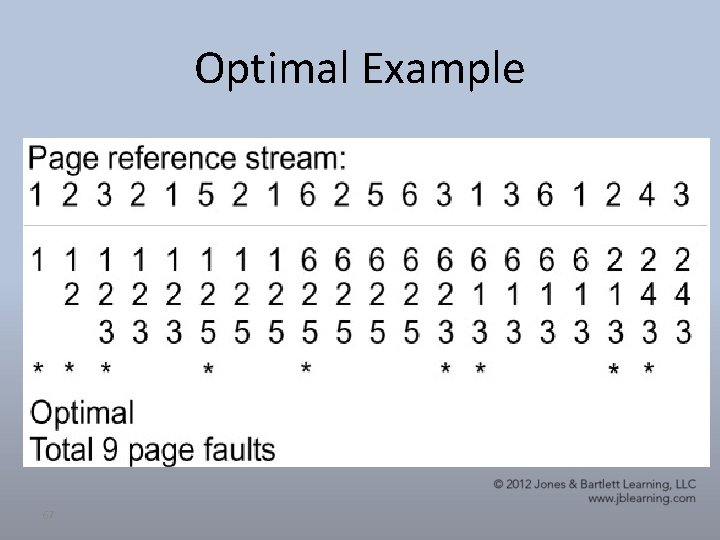

Optimal Algorithm • The optimal algorithm for page replacement requires knowledge of the entire page reference stream in advance. • When a page fault occurs and there are no empty frames for the process, the algorithm looks ahead in the page reference stream to find out about future references to the pages currently in physical memory. • The approach used is to replace the page in memory that will not be used for the longest period. 66

Optimal Example 67

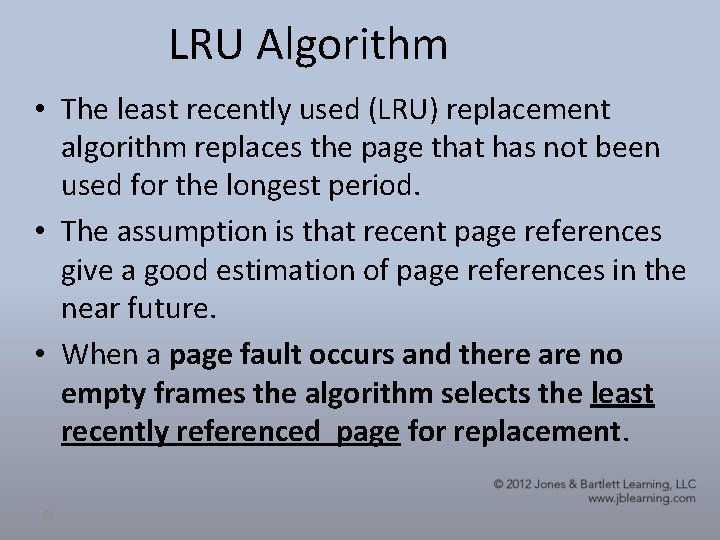

LRU Algorithm • The least recently used (LRU) replacement algorithm replaces the page that has not been used for the longest period. • The assumption is that recent page references give a good estimation of page references in the near future. • When a page fault occurs and there are no empty frames the algorithm selects the least recently referenced page for replacement. 68

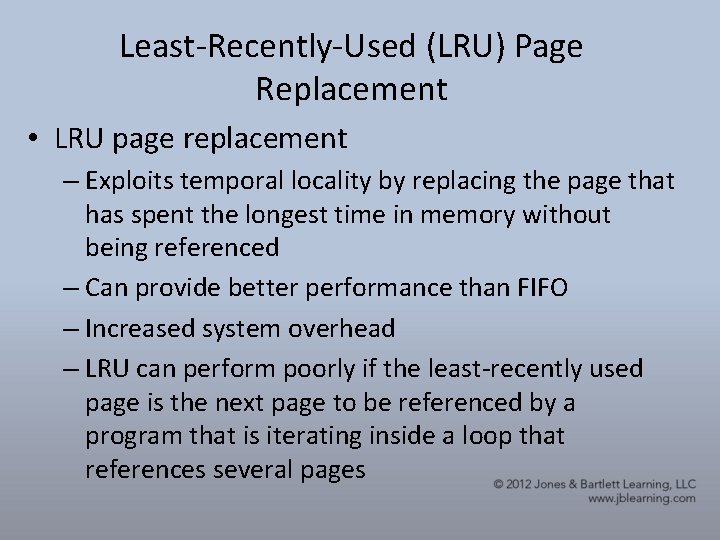

Least-Recently-Used (LRU) Page Replacement • LRU page replacement – Exploits temporal locality by replacing the page that has spent the longest time in memory without being referenced – Can provide better performance than FIFO – Increased system overhead – LRU can perform poorly if the least-recently used page is the next page to be referenced by a program that is iterating inside a loop that references several pages

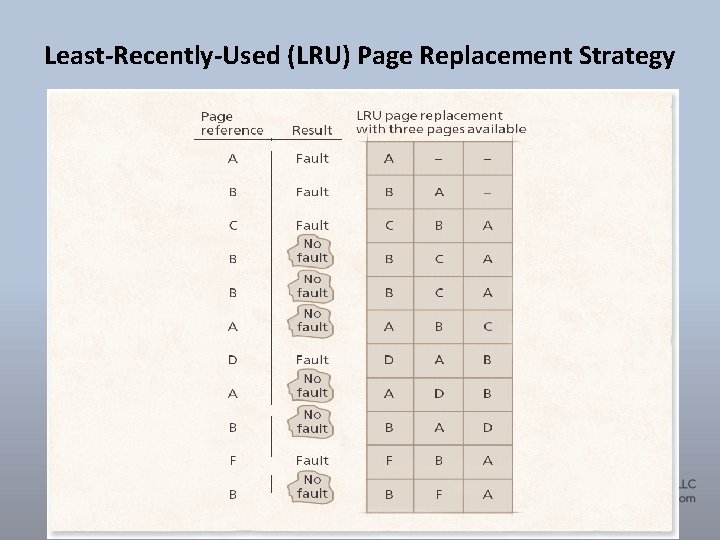

Least-Recently-Used (LRU) Page Replacement Strategy

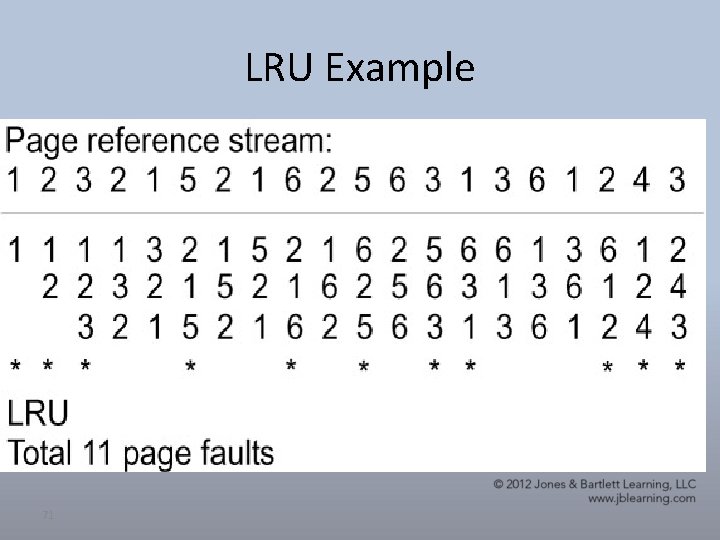

LRU Example 71

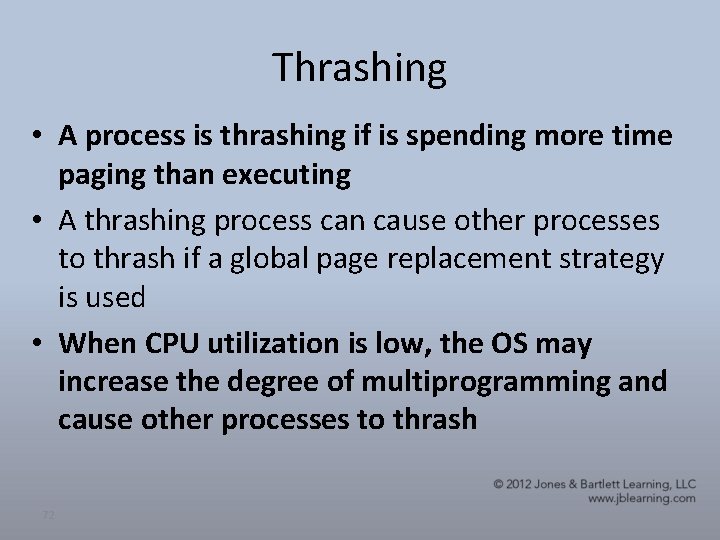

Thrashing • A process is thrashing if is spending more time paging than executing • A thrashing process can cause other processes to thrash if a global page replacement strategy is used • When CPU utilization is low, the OS may increase the degree of multiprogramming and cause other processes to thrash 72

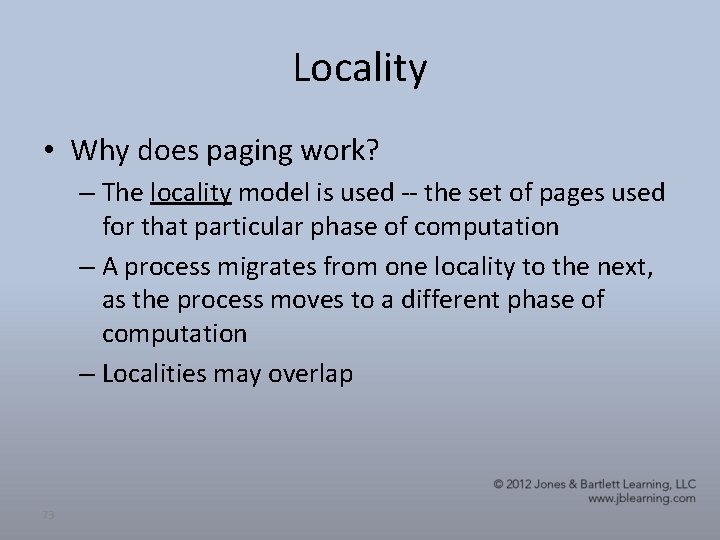

Locality • Why does paging work? – The locality model is used -- the set of pages used for that particular phase of computation – A process migrates from one locality to the next, as the process moves to a different phase of computation – Localities may overlap 73
