Chapter 10 Machine Learning SymbolBased Contents A Framework

Chapter 10 Machine Learning: Symbol-Based Contents A Framework Version Space Search ID 3: Decision Tree CSC 411 Artificial Intelligence 1

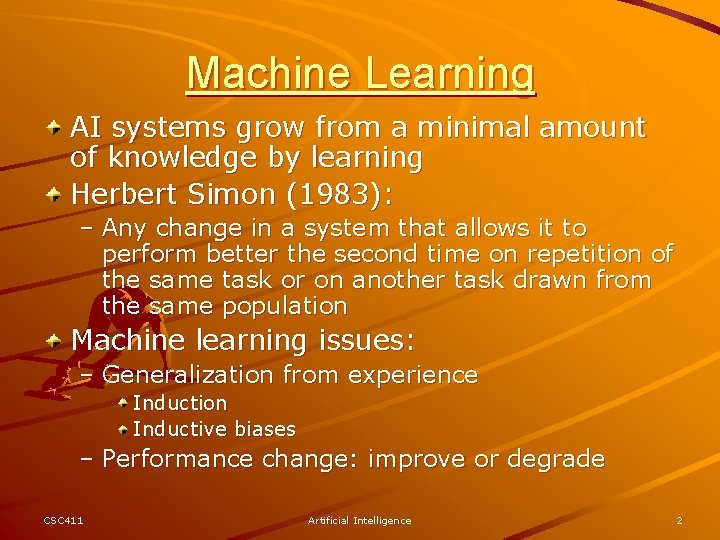

Machine Learning AI systems grow from a minimal amount of knowledge by learning Herbert Simon (1983): – Any change in a system that allows it to perform better the second time on repetition of the same task or on another task drawn from the same population Machine learning issues: – Generalization from experience Induction Inductive biases – Performance change: improve or degrade CSC 411 Artificial Intelligence 2

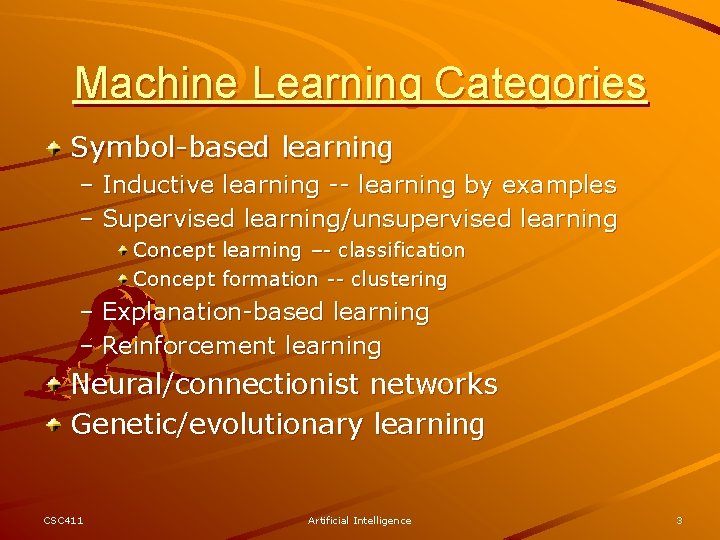

Machine Learning Categories Symbol-based learning – Inductive learning -- learning by examples – Supervised learning/unsupervised learning Concept learning –- classification Concept formation -- clustering – Explanation-based learning – Reinforcement learning Neural/connectionist networks Genetic/evolutionary learning CSC 411 Artificial Intelligence 3

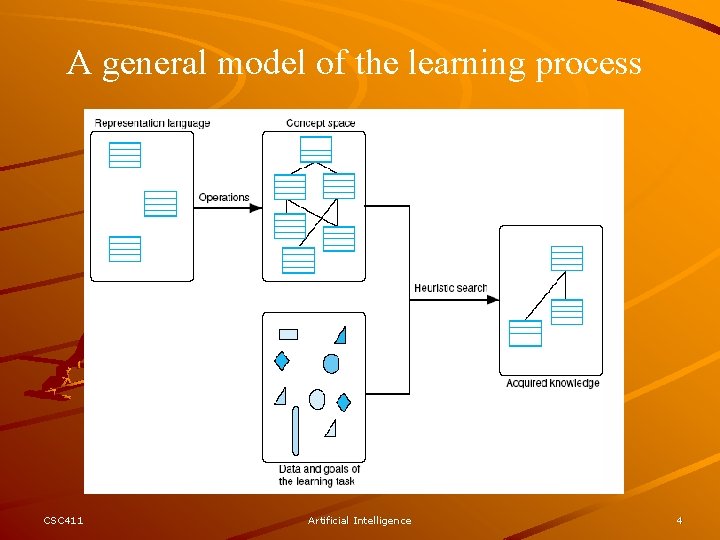

A general model of the learning process CSC 411 Artificial Intelligence 4

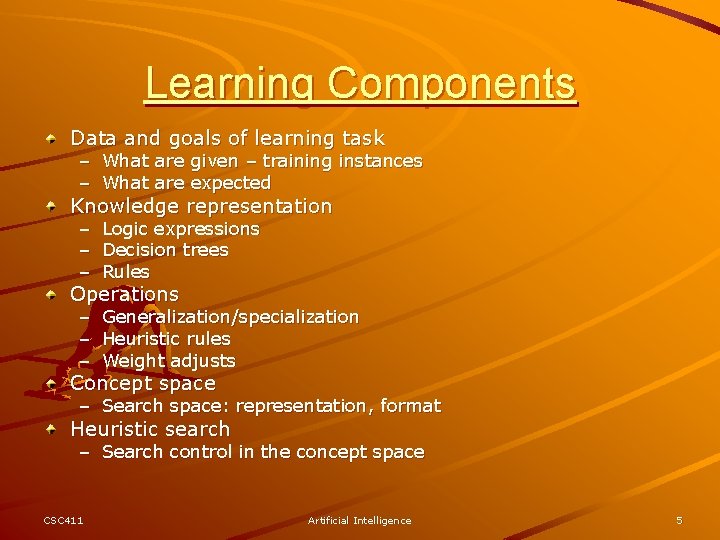

Learning Components Data and goals of learning task – What are given – training instances – What are expected Knowledge representation – Logic expressions – Decision trees – Rules Operations – – – Generalization/specialization Heuristic rules Weight adjusts Concept space – Search space: representation, format Heuristic search – Search control in the concept space CSC 411 Artificial Intelligence 5

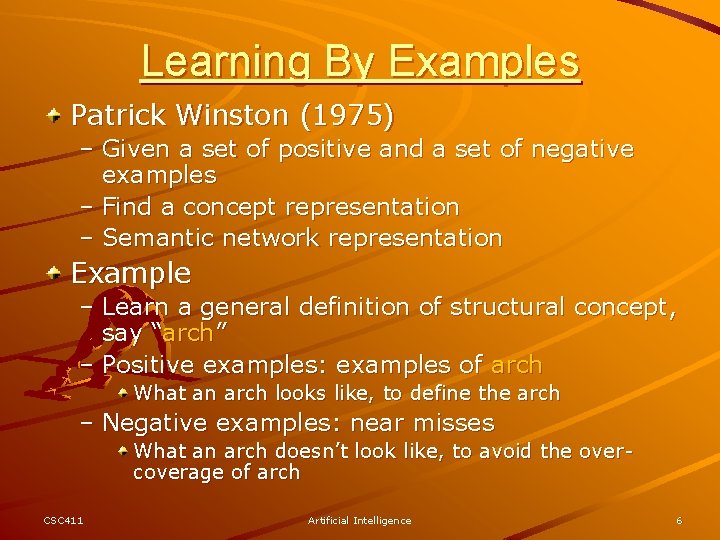

Learning By Examples Patrick Winston (1975) – Given a set of positive and a set of negative examples – Find a concept representation – Semantic network representation Example – Learn a general definition of structural concept, say “arch” – Positive examples: examples of arch What an arch looks like, to define the arch – Negative examples: near misses What an arch doesn’t look like, to avoid the overcoverage of arch CSC 411 Artificial Intelligence 6

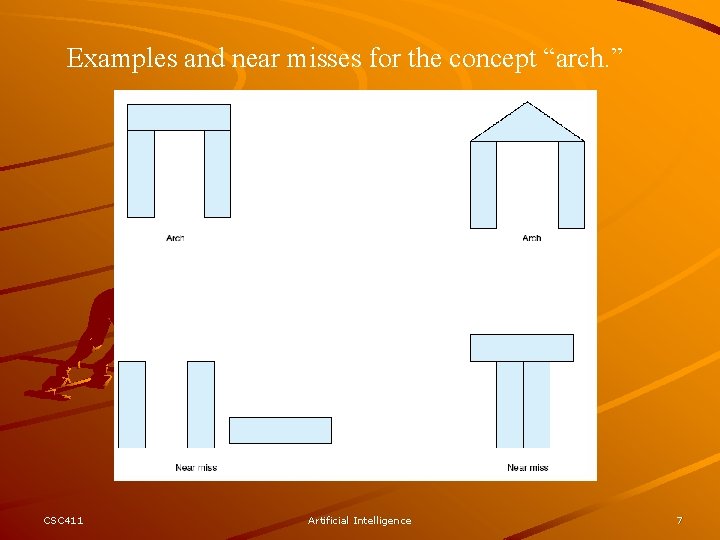

Examples and near misses for the concept “arch. ” CSC 411 Artificial Intelligence 7

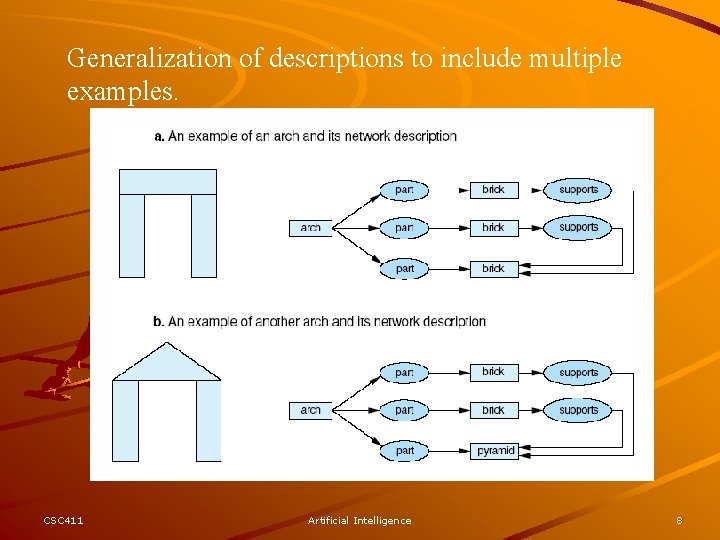

Generalization of descriptions to include multiple examples. CSC 411 Artificial Intelligence 8

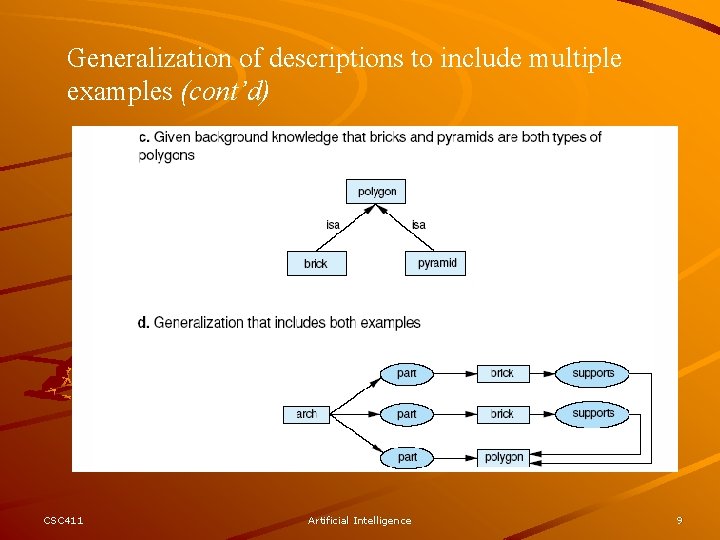

Generalization of descriptions to include multiple examples (cont’d) CSC 411 Artificial Intelligence 9

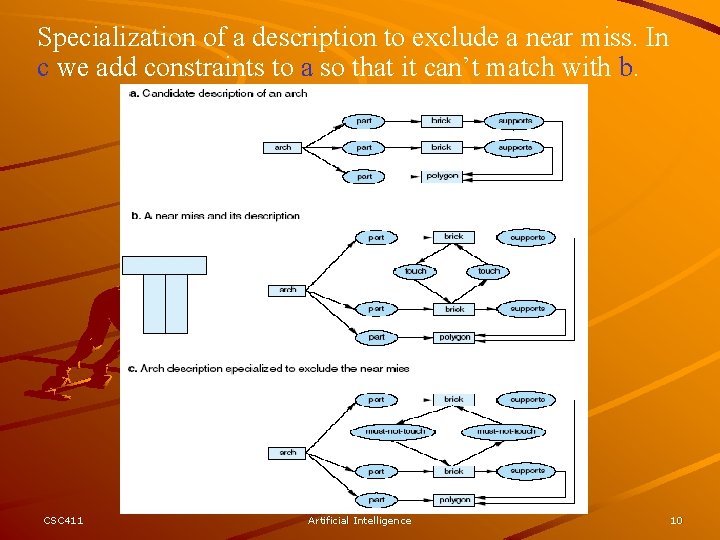

Specialization of a description to exclude a near miss. In c we add constraints to a so that it can’t match with b. CSC 411 Artificial Intelligence 10

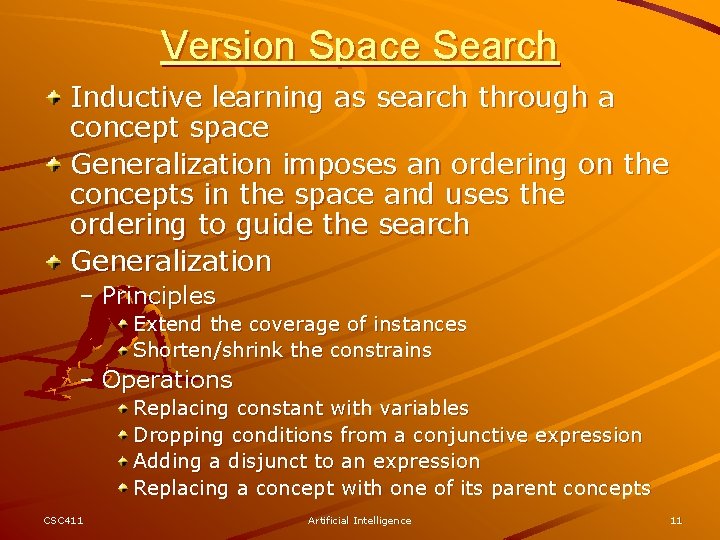

Version Space Search Inductive learning as search through a concept space Generalization imposes an ordering on the concepts in the space and uses the ordering to guide the search Generalization – Principles Extend the coverage of instances Shorten/shrink the constrains – Operations Replacing constant with variables Dropping conditions from a conjunctive expression Adding a disjunct to an expression Replacing a concept with one of its parent concepts CSC 411 Artificial Intelligence 11

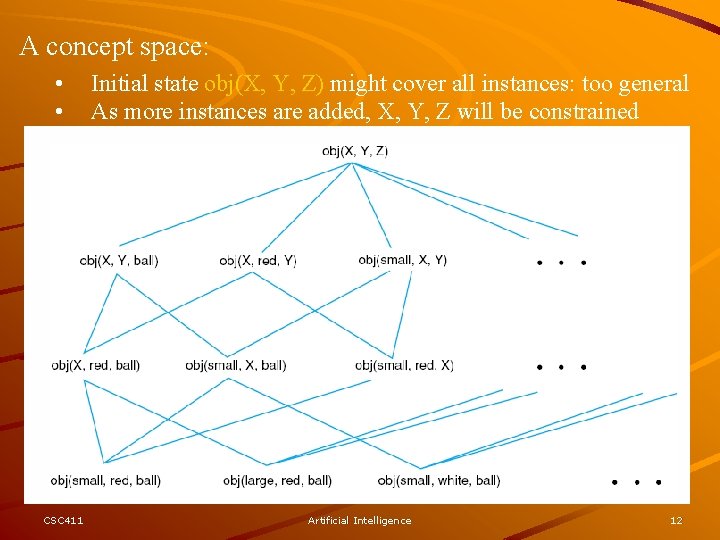

A concept space: • • CSC 411 Initial state obj(X, Y, Z) might cover all instances: too general As more instances are added, X, Y, Z will be constrained Artificial Intelligence 12

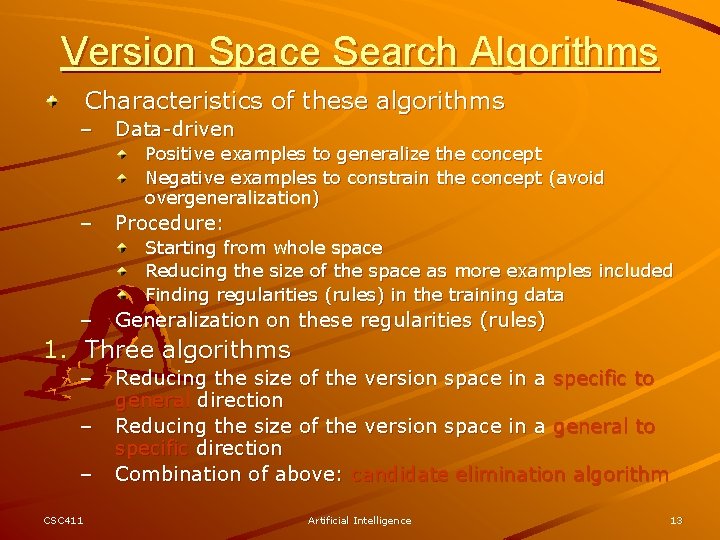

Version Space Search Algorithms Characteristics of these algorithms – Data-driven Positive examples to generalize the concept Negative examples to constrain the concept (avoid overgeneralization) – Procedure: Starting from whole space Reducing the size of the space as more examples included Finding regularities (rules) in the training data – Generalization on these regularities (rules) 1. Three algorithms – – – CSC 411 Reducing the size of the version space in a specific to general direction Reducing the size of the version space in a general to specific direction Combination of above: candidate elimination algorithm Artificial Intelligence 13

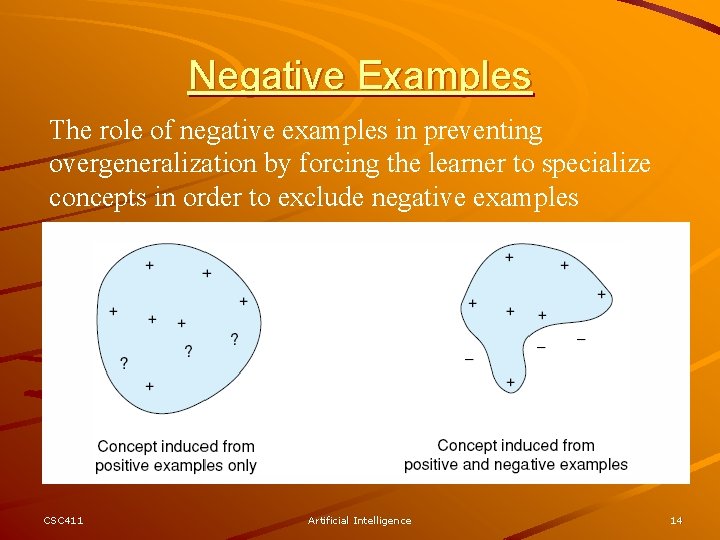

Negative Examples The role of negative examples in preventing overgeneralization by forcing the learner to specialize concepts in order to exclude negative examples CSC 411 Artificial Intelligence 14

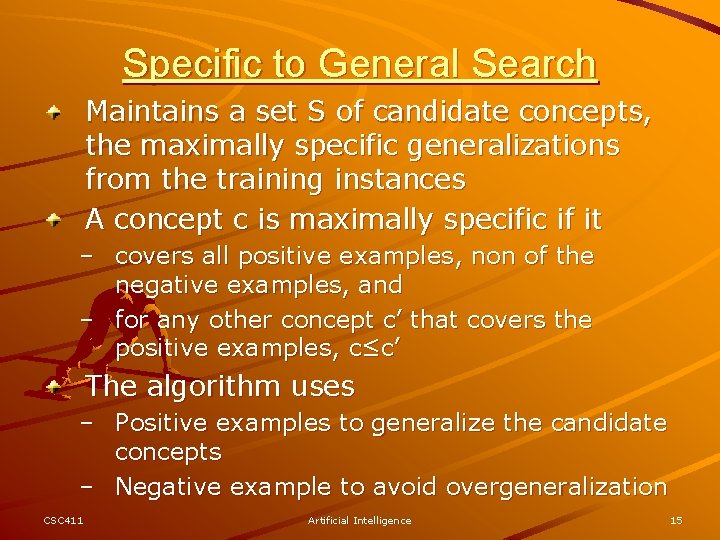

Specific to General Search Maintains a set S of candidate concepts, the maximally specific generalizations from the training instances A concept c is maximally specific if it – covers all positive examples, non of the negative examples, and – for any other concept c’ that covers the positive examples, c≤c’ The algorithm uses – Positive examples to generalize the candidate concepts – Negative example to avoid overgeneralization CSC 411 Artificial Intelligence 15

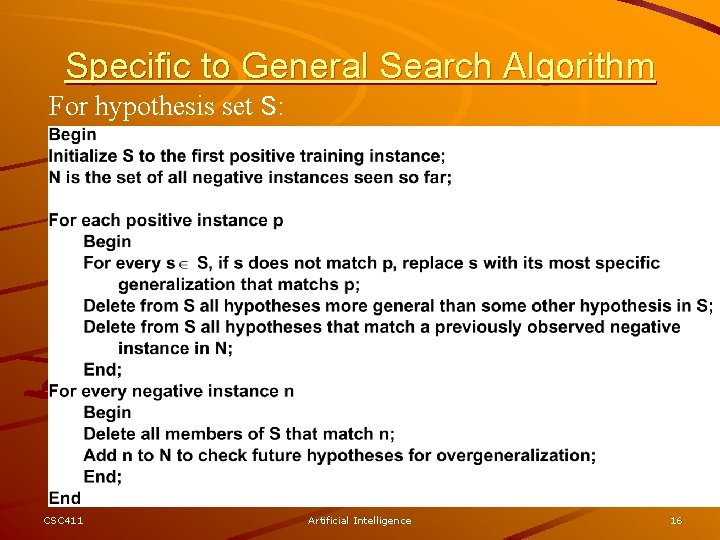

Specific to General Search Algorithm For hypothesis set S: CSC 411 Artificial Intelligence 16

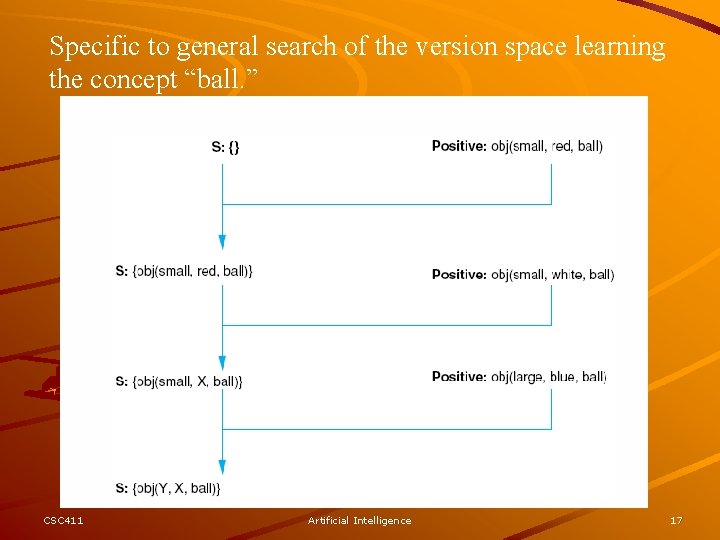

Specific to general search of the version space learning the concept “ball. ” CSC 411 Artificial Intelligence 17

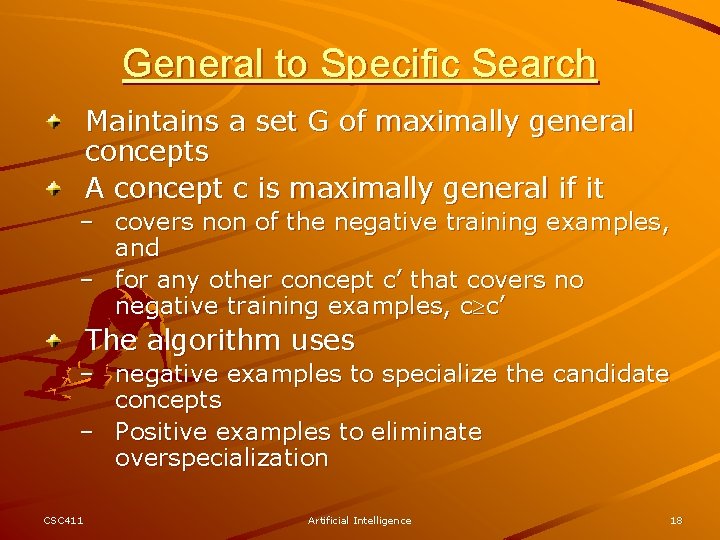

General to Specific Search Maintains a set G of maximally general concepts A concept c is maximally general if it – covers non of the negative training examples, and – for any other concept c’ that covers no negative training examples, c c’ The algorithm uses – negative examples to specialize the candidate concepts – Positive examples to eliminate overspecialization CSC 411 Artificial Intelligence 18

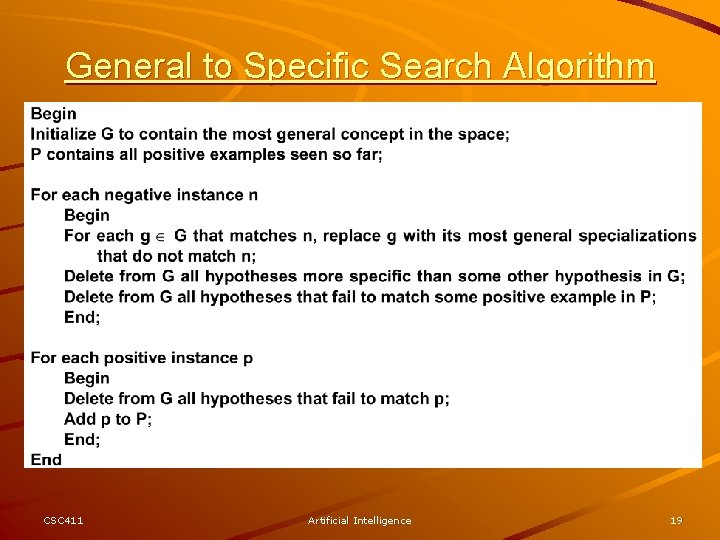

General to Specific Search Algorithm CSC 411 Artificial Intelligence 19

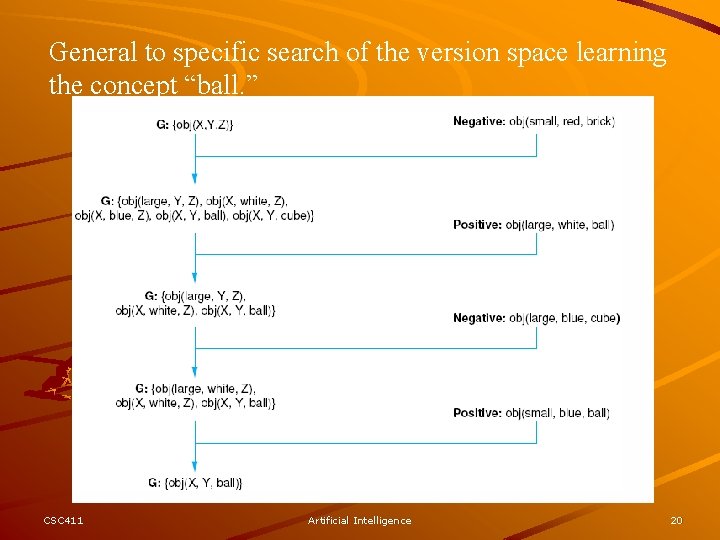

General to specific search of the version space learning the concept “ball. ” CSC 411 Artificial Intelligence 20

Candidate Elimination Algorithm Combination of above two algorithms into a bi-direction search Maintains two sets of candidate concepts – G, the set of maximally general candidates – S, the set of maximally specific candidates The algorithm specializes G and generalizes S until they converge on the target concept. CSC 411 Artificial Intelligence 21

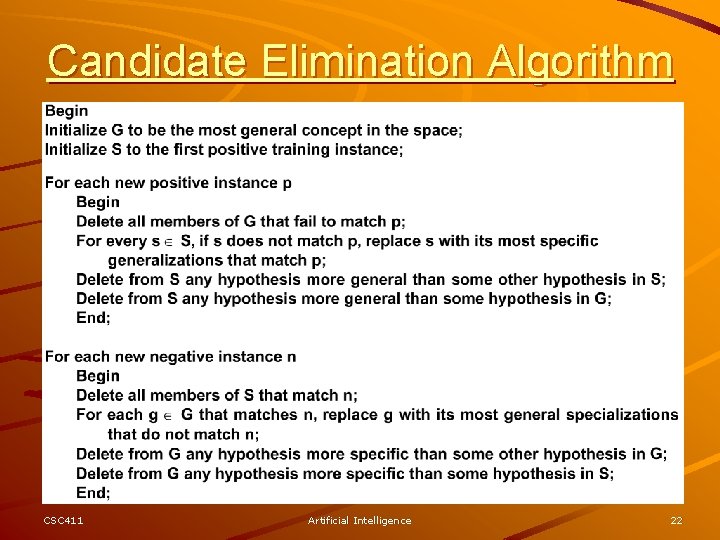

Candidate Elimination Algorithm CSC 411 Artificial Intelligence 22

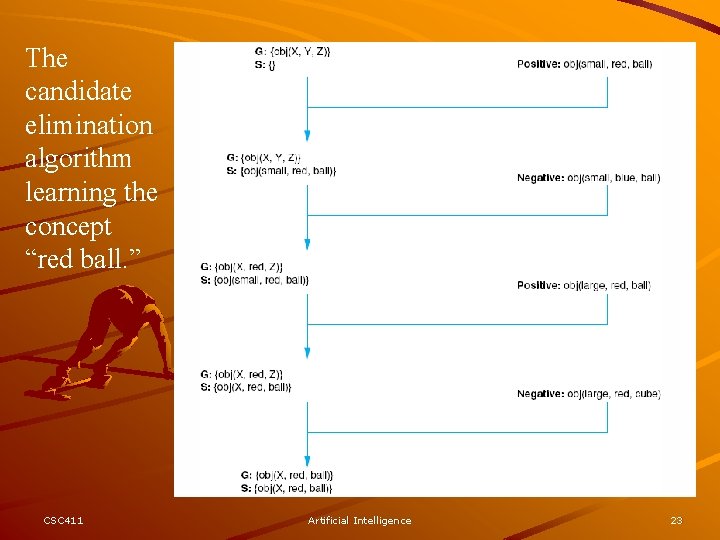

The candidate elimination algorithm learning the concept “red ball. ” CSC 411 Artificial Intelligence 23

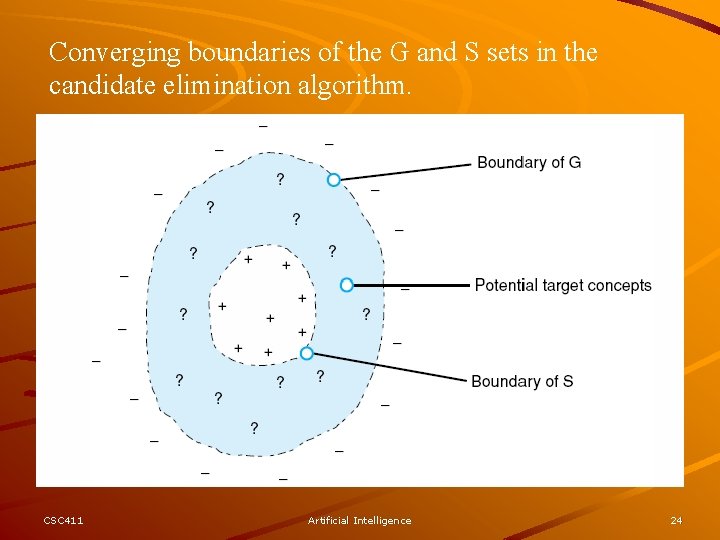

Converging boundaries of the G and S sets in the candidate elimination algorithm. CSC 411 Artificial Intelligence 24

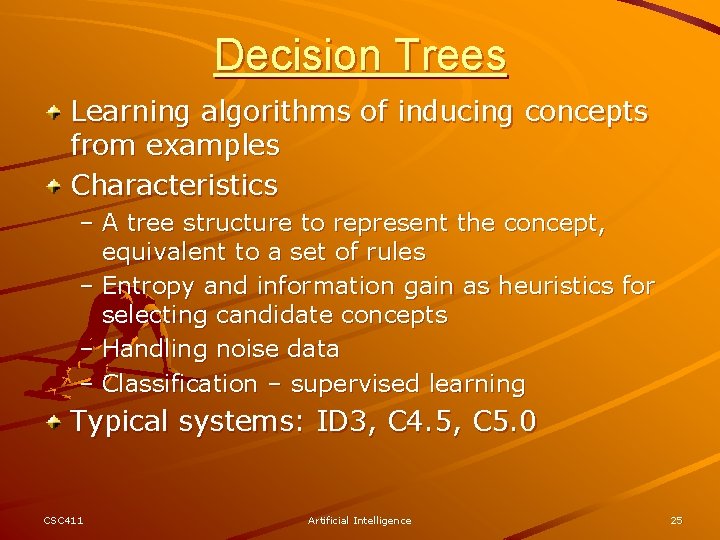

Decision Trees Learning algorithms of inducing concepts from examples Characteristics – A tree structure to represent the concept, equivalent to a set of rules – Entropy and information gain as heuristics for selecting candidate concepts – Handling noise data – Classification – supervised learning Typical systems: ID 3, C 4. 5, C 5. 0 CSC 411 Artificial Intelligence 25

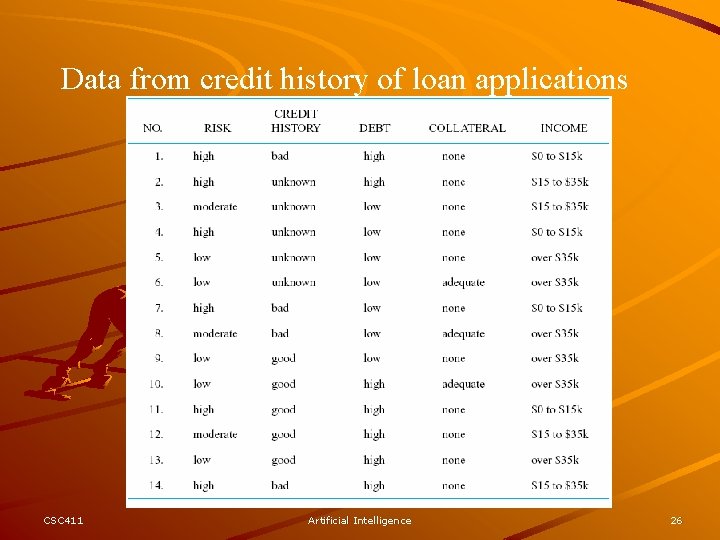

Data from credit history of loan applications CSC 411 Artificial Intelligence 26

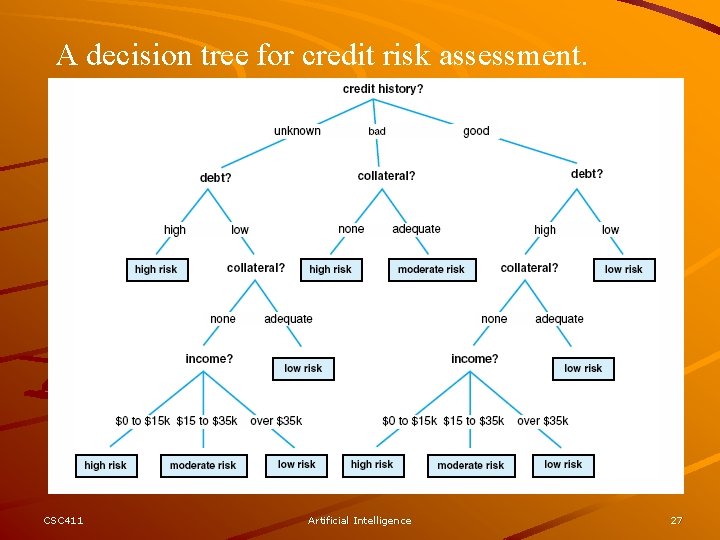

A decision tree for credit risk assessment. CSC 411 Artificial Intelligence 27

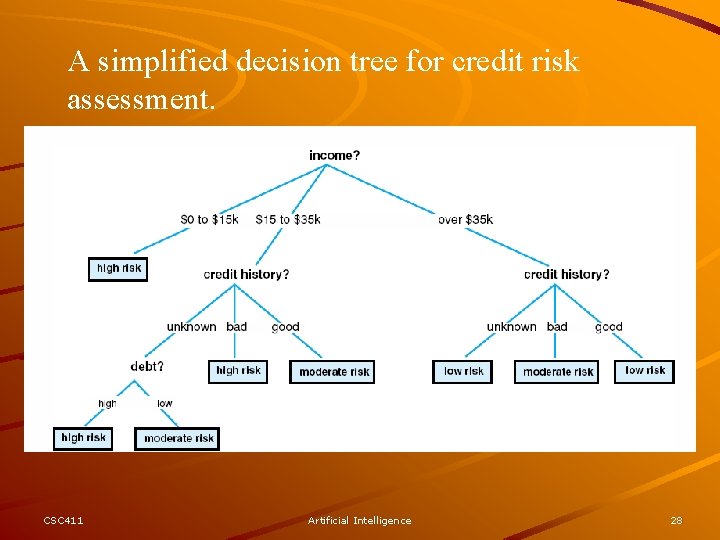

A simplified decision tree for credit risk assessment. CSC 411 Artificial Intelligence 28

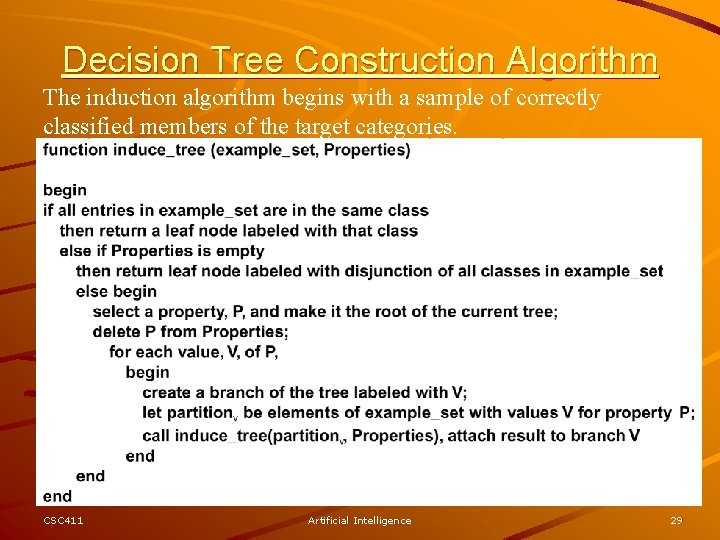

Decision Tree Construction Algorithm The induction algorithm begins with a sample of correctly classified members of the target categories. CSC 411 Artificial Intelligence 29

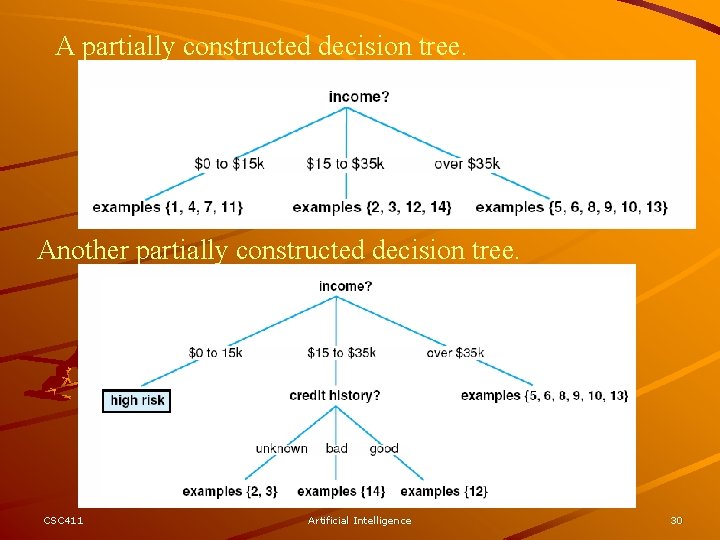

A partially constructed decision tree. Another partially constructed decision tree. CSC 411 Artificial Intelligence 30
