Chapter 10 Facility Layout Operations Management by R

Chapter 10 – Facility Layout Operations Management by R. Dan Reid & Nada R. Sanders 4 th Edition © Wiley 2010 1

Learning Objectives n n n n Define layout planning and explain its importance Identify and describe different types of layouts Compare process layouts & product layouts Describe the steps involved in designing a process layout Describe the steps involved in designing a product layout Explain the advantages of hybrid layouts Define the meaning of group technology (cell) layouts © Wiley 2010 2

Layout Planning Layout planning is deciding the best physical arrangement of all resources that consumes space within a facility n n Facility resource arrangement can significantly affect productivity and quality of products/services Two broad categories of operations: n n Intermittent processing systems – low volume of many different products Continuous processing systems – high volume of a few standardized products © Wiley 2010 3

Types of Layouts Four basic layout types consisting of: n Fixed-Position layouts - Product is too large to move; e. g. a building n n Process layouts - Group similar resources together Product layouts - arrange activities according to sequence of operations for a particular product/service n Hybrid layouts - Combine aspects of both process and product layouts © Wiley 2010 4

Underlying Process Relationship Between Volume and Standardization Continuum © Wiley 2010 5

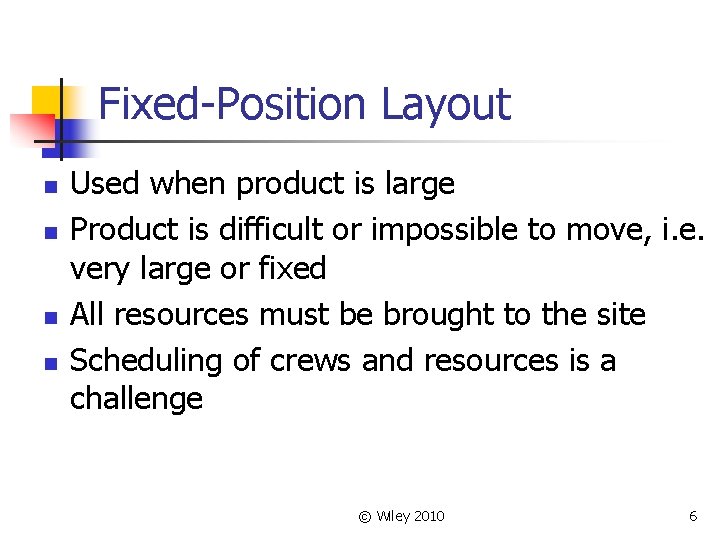

Fixed-Position Layout n n Used when product is large Product is difficult or impossible to move, i. e. very large or fixed All resources must be brought to the site Scheduling of crews and resources is a challenge © Wiley 2010 6

Process Layout in Services Women’s lingerie Shoes Housewares Women’s dresses Cosmetics and jewelry Children’s department Women’s sportswear Entry and display area Men’s department © Wiley 2010 7

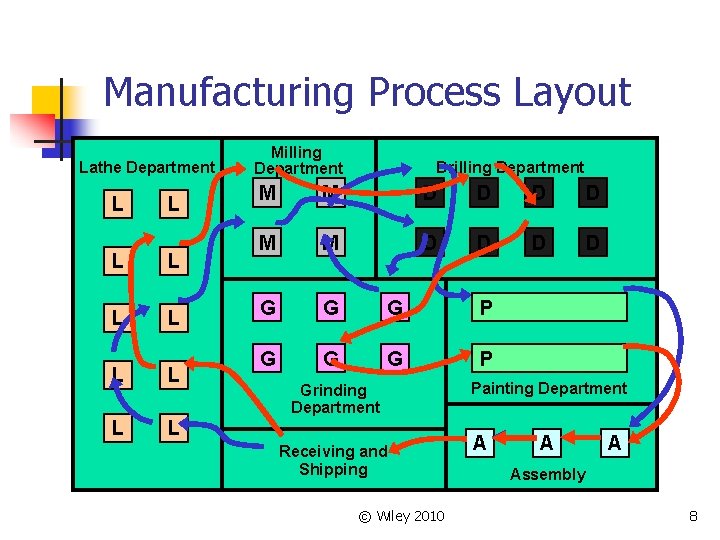

Manufacturing Process Layout Lathe Department L L L L L Milling Department Drilling Department M M D D D D G G G P Grinding Department Receiving and Shipping © Wiley 2010 Painting Department A Assembly 8

A Product Layout In Out © Wiley 2010 9

Process vs. Product Layouts Here are the characteristic differences between a process and product layout. © Wiley 2010 10

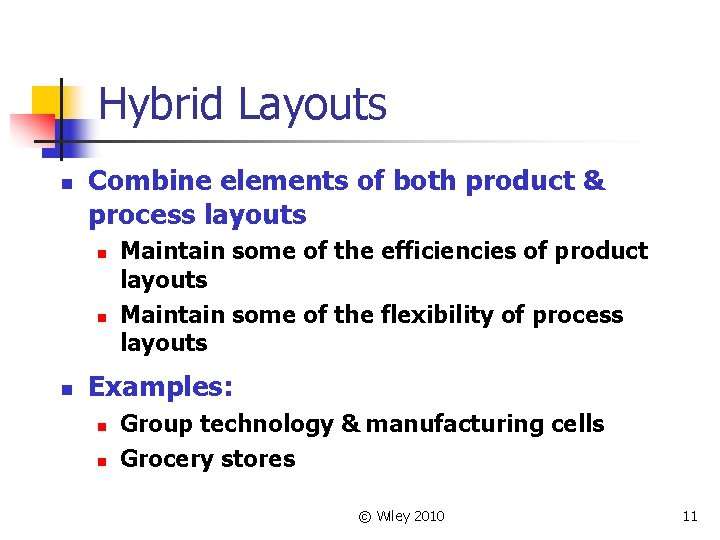

Hybrid Layouts n Combine elements of both product & process layouts n n n Maintain some of the efficiencies of product layouts Maintain some of the flexibility of process layouts Examples: n n Group technology & manufacturing cells Grocery stores © Wiley 2010 11

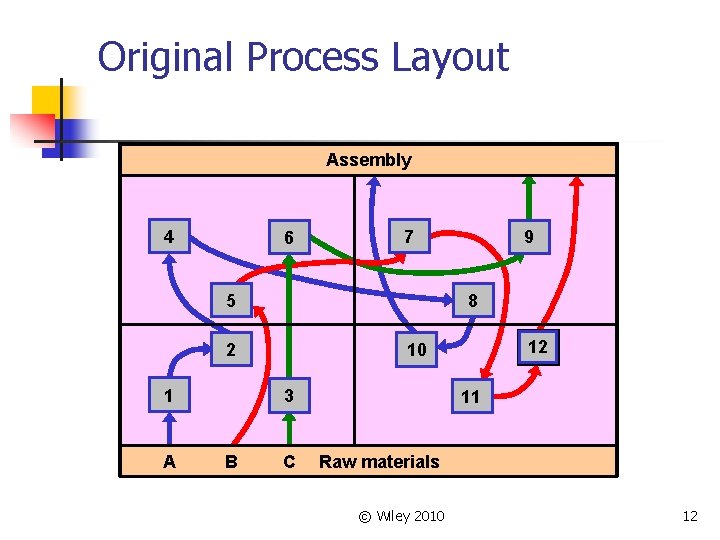

Original Process Layout Assembly 4 6 7 8 5 2 A B 12 10 3 1 9 C 11 Raw materials © Wiley 2010 12

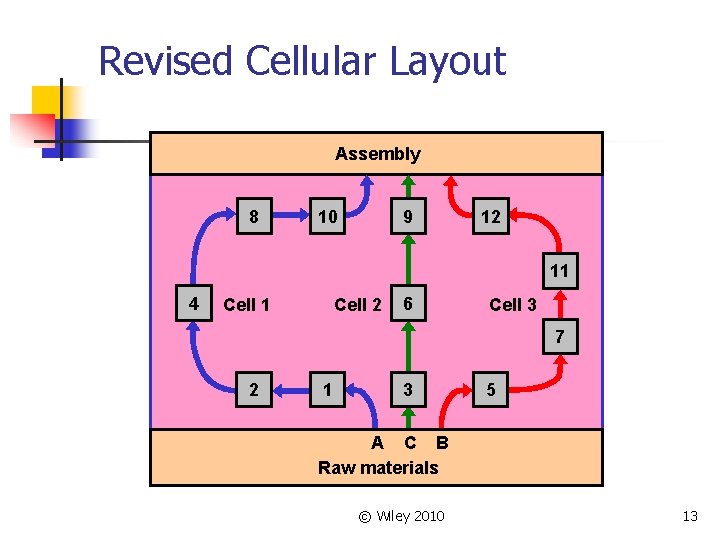

Revised Cellular Layout Assembly 8 10 9 12 11 4 Cell 1 Cell 2 6 Cell 3 7 2 1 3 5 A C B Raw materials © Wiley 2010 13

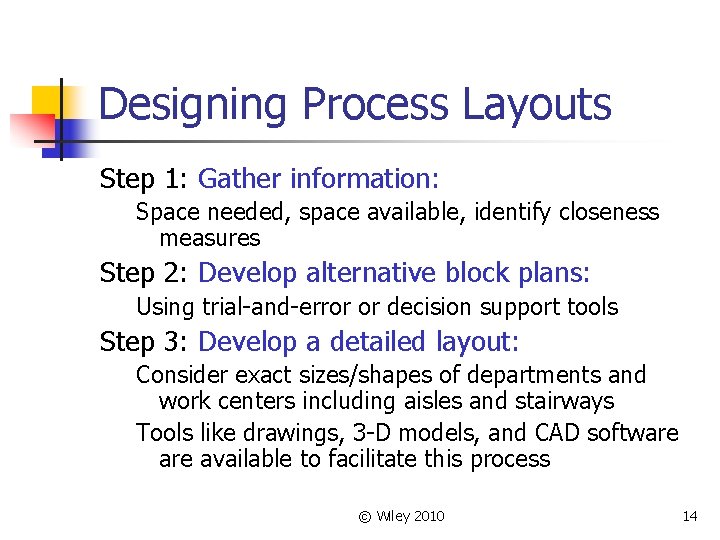

Designing Process Layouts Step 1: Gather information: Space needed, space available, identify closeness measures Step 2: Develop alternative block plans: Using trial-and-error or decision support tools Step 3: Develop a detailed layout: Consider exact sizes/shapes of departments and work centers including aisles and stairways Tools like drawings, 3 -D models, and CAD software available to facilitate this process © Wiley 2010 14

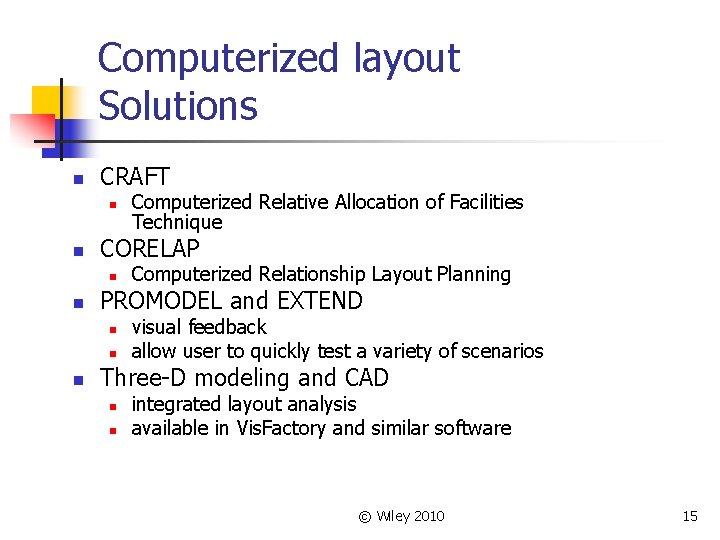

Computerized layout Solutions n CRAFT n n CORELAP n n Computerized Relationship Layout Planning PROMODEL and EXTEND n n n Computerized Relative Allocation of Facilities Technique visual feedback allow user to quickly test a variety of scenarios Three-D modeling and CAD n n integrated layout analysis available in Vis. Factory and similar software © Wiley 2010 15

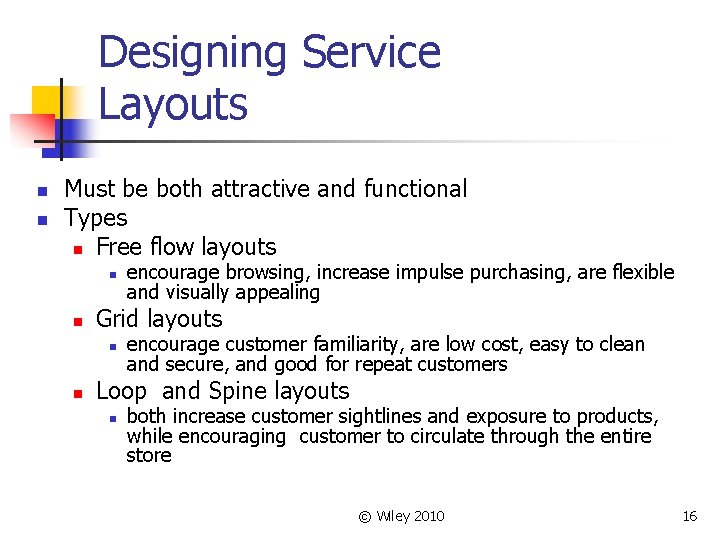

Designing Service Layouts n n Must be both attractive and functional Types n Free flow layouts n n Grid layouts n n encourage browsing, increase impulse purchasing, are flexible and visually appealing encourage customer familiarity, are low cost, easy to clean and secure, and good for repeat customers Loop and Spine layouts n both increase customer sightlines and exposure to products, while encouraging customer to circulate through the entire store © Wiley 2010 16

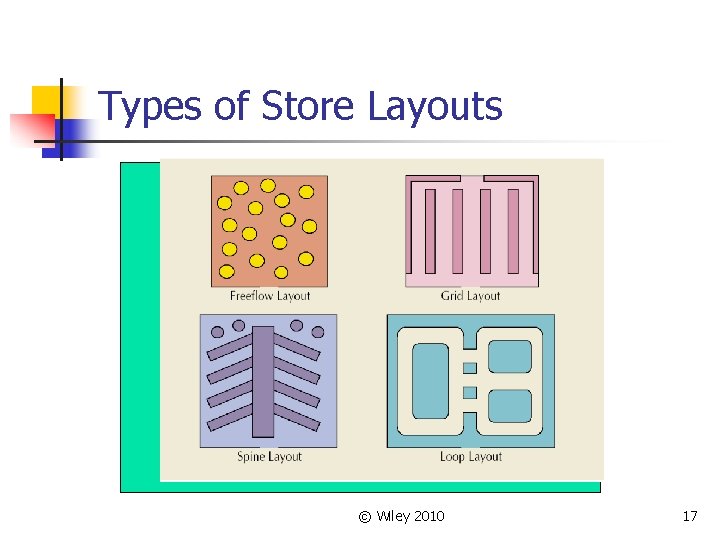

Types of Store Layouts © Wiley 2010 17

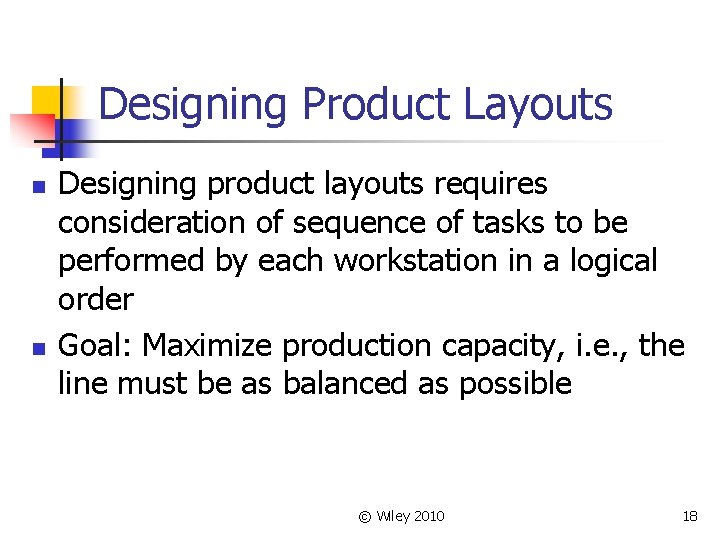

Designing Product Layouts n n Designing product layouts requires consideration of sequence of tasks to be performed by each workstation in a logical order Goal: Maximize production capacity, i. e. , the line must be as balanced as possible © Wiley 2010 18

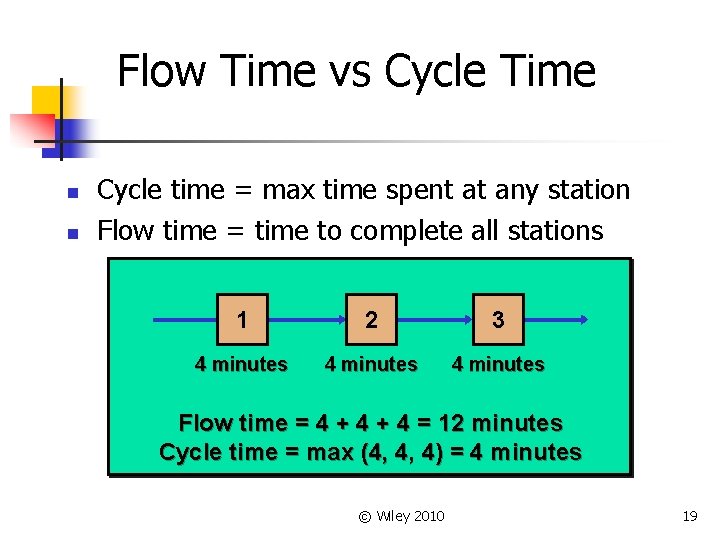

Flow Time vs Cycle Time n n Cycle time = max time spent at any station Flow time = time to complete all stations 1 2 3 4 minutes Flow time = 4 + 4 = 12 minutes Cycle time = max (4, 4, 4) = 4 minutes © Wiley 2010 19

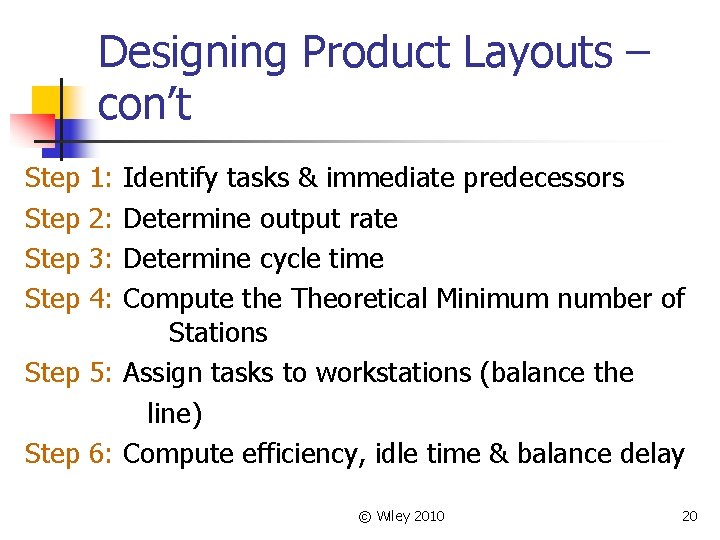

Designing Product Layouts – con’t Step 1: 2: 3: 4: Identify tasks & immediate predecessors Determine output rate Determine cycle time Compute the Theoretical Minimum number of Stations Step 5: Assign tasks to workstations (balance the line) Step 6: Compute efficiency, idle time & balance delay © Wiley 2010 20

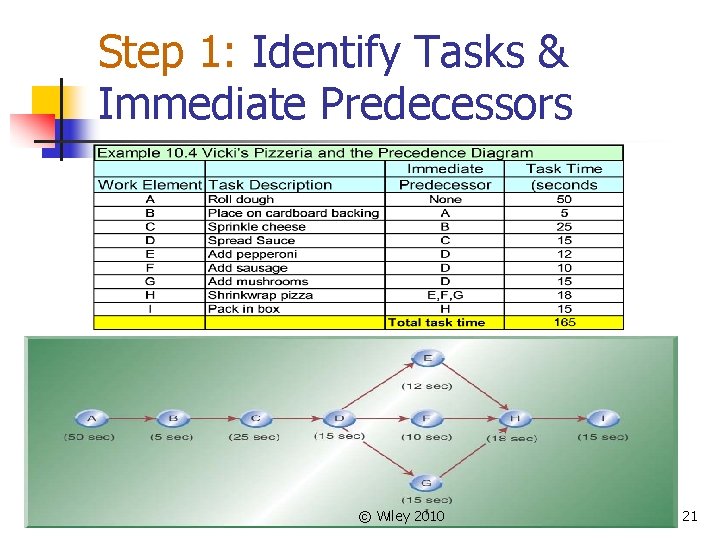

Step 1: Identify Tasks & Immediate Predecessors © Wiley 2010 21

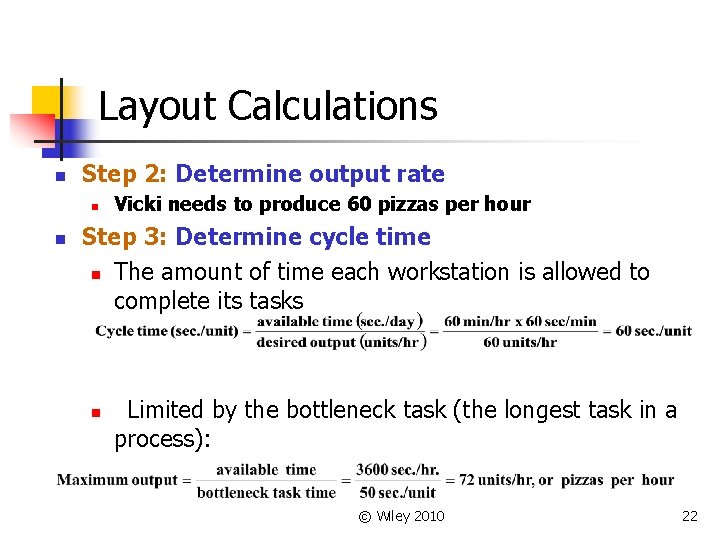

Layout Calculations n Step 2: Determine output rate n n Vicki needs to produce 60 pizzas per hour Step 3: Determine cycle time n The amount of time each workstation is allowed to complete its tasks n Limited by the bottleneck task (the longest task in a process): © Wiley 2010 22

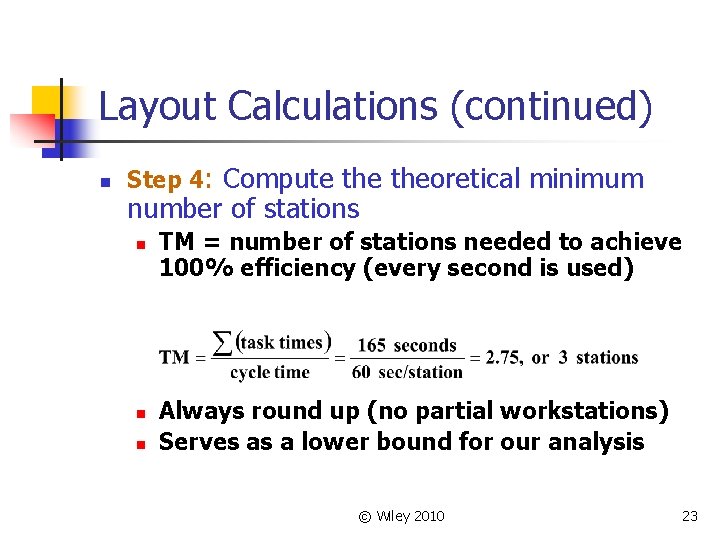

Layout Calculations (continued) n Step 4: Compute theoretical minimum number of stations n n n TM = number of stations needed to achieve 100% efficiency (every second is used) Always round up (no partial workstations) Serves as a lower bound for our analysis © Wiley 2010 23

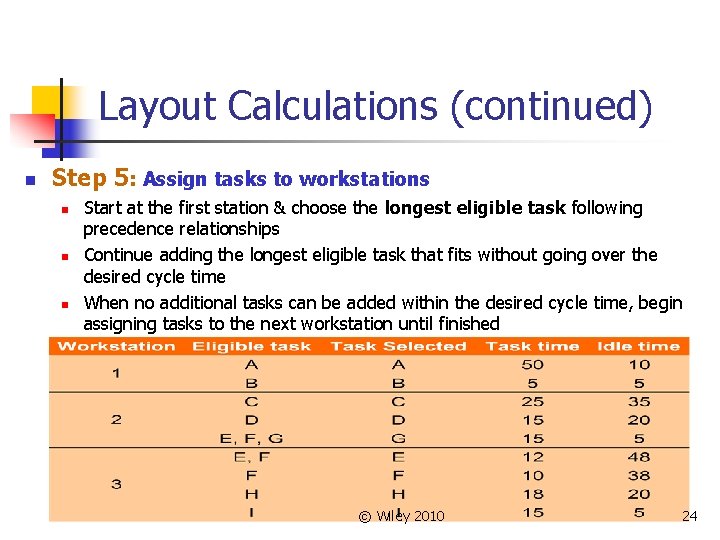

Layout Calculations (continued) n Step 5: Assign tasks to workstations n n n Start at the first station & choose the longest eligible task following precedence relationships Continue adding the longest eligible task that fits without going over the desired cycle time When no additional tasks can be added within the desired cycle time, begin assigning tasks to the next workstation until finished © Wiley 2010 24

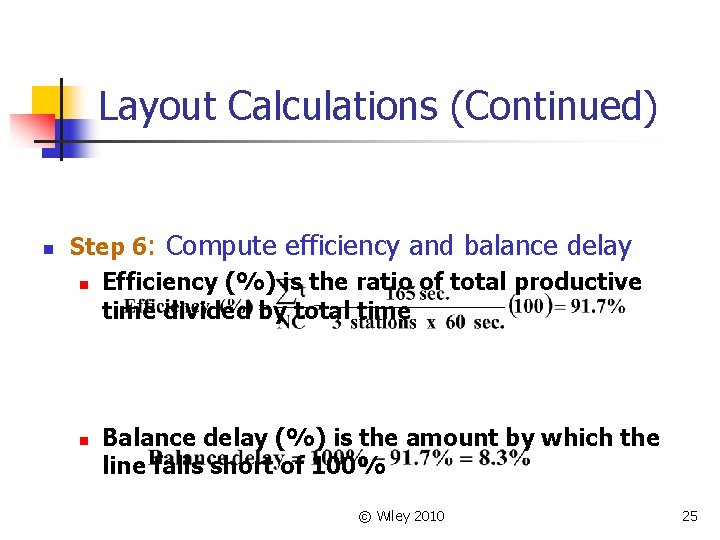

Layout Calculations (Continued) n Step 6: Compute efficiency and balance delay n Efficiency (%) is the ratio of total productive time divided by total time n Balance delay (%) is the amount by which the line falls short of 100% © Wiley 2010 25

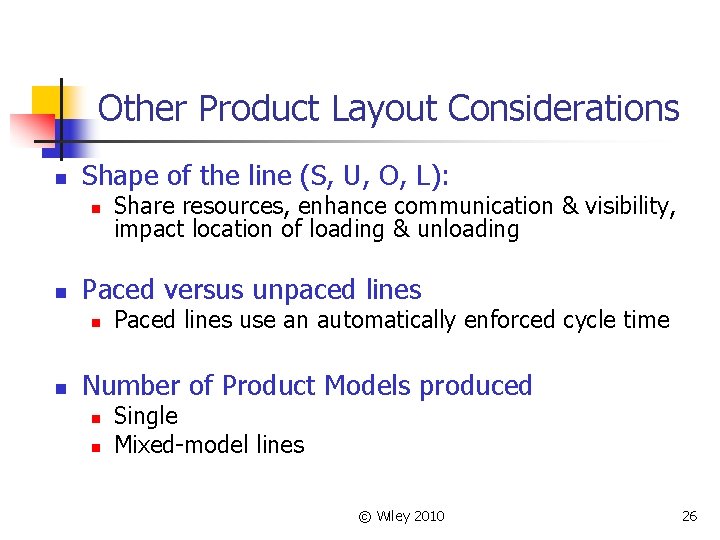

Other Product Layout Considerations n Shape of the line (S, U, O, L): n n Paced versus unpaced lines n n Share resources, enhance communication & visibility, impact location of loading & unloading Paced lines use an automatically enforced cycle time Number of Product Models produced n n Single Mixed-model lines © Wiley 2010 26

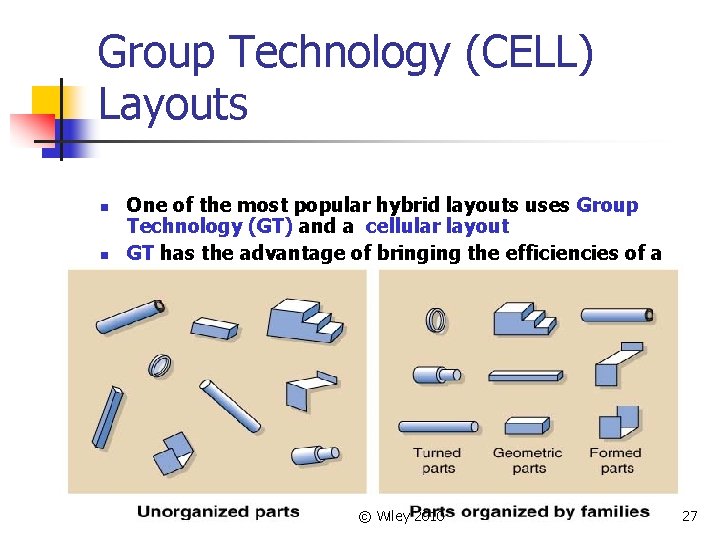

Group Technology (CELL) Layouts n n One of the most popular hybrid layouts uses Group Technology (GT) and a cellular layout GT has the advantage of bringing the efficiencies of a product layout to a process layout environment © Wiley 2010 27

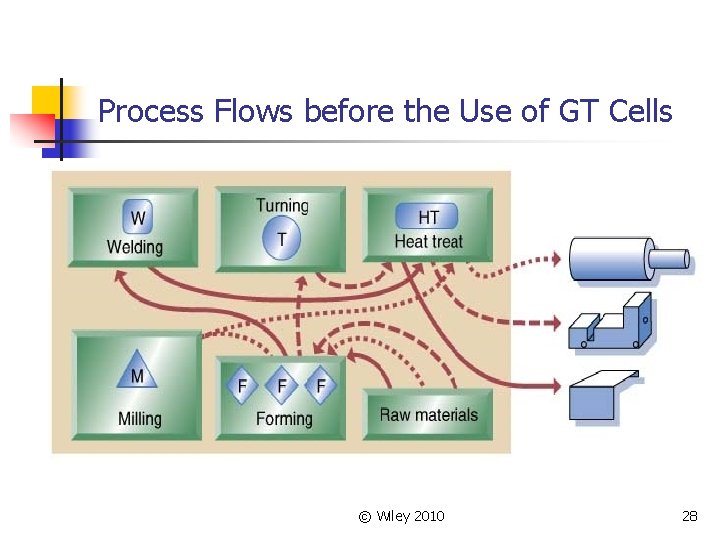

Process Flows before the Use of GT Cells © Wiley 2010 28

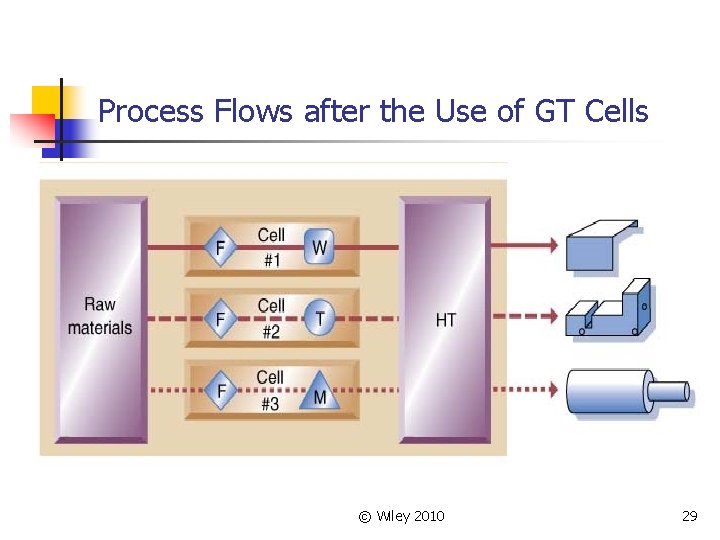

Process Flows after the Use of GT Cells © Wiley 2010 29

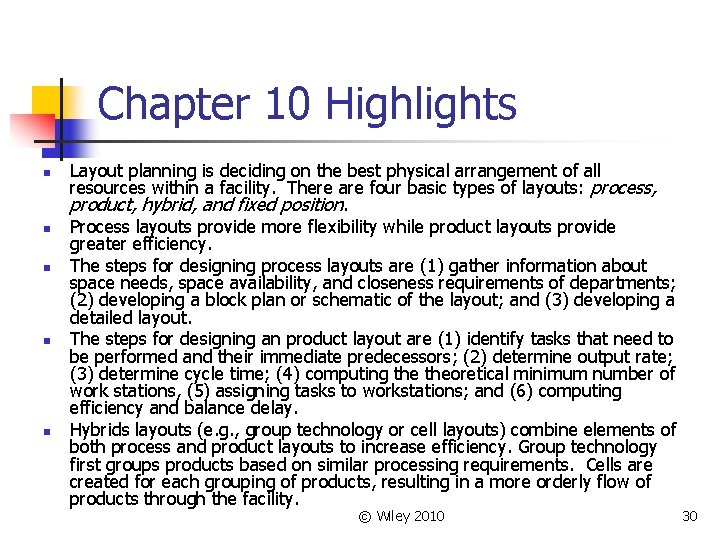

Chapter 10 Highlights n n n Layout planning is deciding on the best physical arrangement of all resources within a facility. There are four basic types of layouts: process, product, hybrid, and fixed position. Process layouts provide more flexibility while product layouts provide greater efficiency. The steps for designing process layouts are (1) gather information about space needs, space availability, and closeness requirements of departments; (2) developing a block plan or schematic of the layout; and (3) developing a detailed layout. The steps for designing an product layout are (1) identify tasks that need to be performed and their immediate predecessors; (2) determine output rate; (3) determine cycle time; (4) computing theoretical minimum number of work stations, (5) assigning tasks to workstations; and (6) computing efficiency and balance delay. Hybrids layouts (e. g. , group technology or cell layouts) combine elements of both process and product layouts to increase efficiency. Group technology first groups products based on similar processing requirements. Cells are created for each grouping of products, resulting in a more orderly flow of products through the facility. © Wiley 2010 30
