Chapter 1 Wireless Network Chapter 1 Wireless Network

  • Slides: 61
Download presentation
Chapter 1 Wireless Network Chapter 1 - Wireless Network

Chapter 1 Wireless Network Chapter 1 - Wireless Network

Introduction q FIRST-GENERATION (1 G) q In the late 1970 s. q Aim of

Introduction q FIRST-GENERATION (1 G) q In the late 1970 s. q Aim of providing voice telephony services. q Analog frequency modulation (FM). q FDMA – Frequency Division Multiple Access as its multiple access architecture. q One subscriber by physical channel. q Major Technologies: q AMPS - Advanced Mobile Phone Service in EUA. q TACS - Total Access Communication System, ETACS European TACS and NMT – Nordic Mobile Telephone system in Europe. q JTACS – Japan TACS and NTACS - Nippon TACS in Japan. Chapter 1 - Wireless Network 2

Introduction q SECOND-GENERATION (2 G) q In the early 1990 s. q Aim of

Introduction q SECOND-GENERATION (2 G) q In the early 1990 s. q Aim of providing: q Better spectral efficiency. q More robust communication. q Voicresponsiblepeed data services. q Voice privacy. q Authentication capabilities. q Based on digital transmission techniques. q Major technologies: q GSM – Global System for Mobile communications. q D-AMPS – Digital AMPS or TIA/EIA/IS-136 (IS-136). q TIA/EIA/IS-95 A (IS-95 A). Chapter 1 - Wireless Network 3

Introduction q GSM and IS-136 use TDMA – Time Division Multiple Access whereas IS-95

Introduction q GSM and IS-136 use TDMA – Time Division Multiple Access whereas IS-95 A uses CDMA – Code Division Multiple Access. q Data transmission capability is modest. q An evolution of the existing 2 G systems to support data transmission. q Major technologies: q GPRS – General Packet Radio Service. q IS-95 B – an evolution of IS-95 A. q HDR – High Date Rate. Chapter 1 - Wireless Network 4

Introduction q THIRD-GENERATION (3 G) q Is embodied by the IMT-2000 (International Mobile Telecommunications).

Introduction q THIRD-GENERATION (3 G) q Is embodied by the IMT-2000 (International Mobile Telecommunications). q IMT-2000 – under the auspices of the ITU (International Telecommunications Union. q Must provide for: q q Multimedia services. All user sectors. Terrestrial-based and satellite-based networks. Personal pocket, vehicle-mounted or any other special terminal. q Major transmission technologies: q UTRA – Universal Terrestrial Radio Access. q CDMA 2000 – CDMA Multi-Carrier radio interface. Chapter 1 - Wireless Network 5

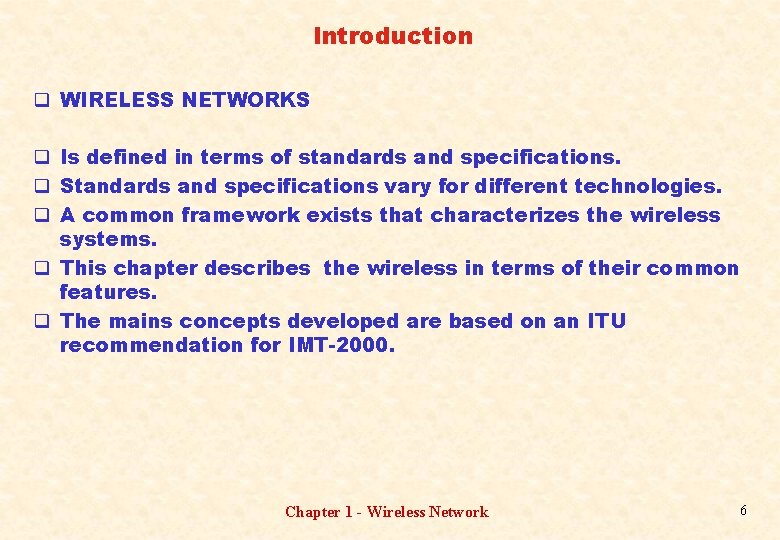

Introduction q WIRELESS NETWORKS q Is defined in terms of standards and specifications. q

Introduction q WIRELESS NETWORKS q Is defined in terms of standards and specifications. q Standards and specifications vary for different technologies. q A common framework exists that characterizes the wireless systems. q This chapter describes the wireless in terms of their common features. q The mains concepts developed are based on an ITU recommendation for IMT-2000. Chapter 1 - Wireless Network 6

Intelligent Network q CONCEPT “In an Intelligent Network (IN), the logic for controlling telecommunications

Intelligent Network q CONCEPT “In an Intelligent Network (IN), the logic for controlling telecommunications services migrates from the traditional switching points to computer-based, service-independent platforms. ” q Services are separated from switching equipment. q Their implementation is based on the following steps: q Creation of separate service data in a centralized database outside the switching node. q Separation of the service programs, or service logic, and definition of a protocol that allows interaction between switching systems and intelligent nodes containing the service logic and data. Chapter 1 - Wireless Network 7

Intelligent Network q Rapid creation and deployment of enhanced services and new features are

Intelligent Network q Rapid creation and deployment of enhanced services and new features are substantially eased. q Services are detached from switching equipment. Chapter 1 - Wireless Network 8

Intelligent Network q IN Protocol Architecture q The IN architecture is based on the

Intelligent Network q IN Protocol Architecture q The IN architecture is based on the Signaling System 7 (SS 7) and its protocol architecture. q The IN protocol contains the following elements: q Message Transfer Part (MTP) – handles the physical layer, data link layer and network layer. q Signaling Connection Control Part (SCCP) – provides both connectionlessoriented and connection-oriented message transport and enables addressing capabilities for message routing. q Transaction Capabilities Application Part (TCAP) – responsible for providing procedures for real-time transaction control. q Intelligent Network Application Protocol (INAP) – defines the necessary operations between the various IN elements. Chapter 1 - Wireless Network 9

Intelligent Network q IN Elements q In an IN, several physical entities (PEs), comprising

Intelligent Network q IN Elements q In an IN, several physical entities (PEs), comprising functional entities (FEs), are identified. q These PEs are represented by rectangles and their corresponding FEs , represented by ellipses. q Description: q Service Switching Point (SSP). The following FEs are encompassed by SSP: Call Control Function (CCF), Service Switching Function (SSF), Specialized Resource Function (SRF) and Call Control Agent Function (CCAF). q Service Control Point (SCP). The following FEs are encompassed by SCP: Service Control Function (SCF) and Service Data Function (SDF). Chapter 1 - Wireless Network 10

Intelligent Network q Intelligent Peripheral (IP). The IP is described by the following FE:

Intelligent Network q Intelligent Peripheral (IP). The IP is described by the following FE: Specialized Resource Function (SRF). q Service Management Point (SMP). The SMP is described by the following FEs: Service Management Function (SMF), Service Management Access Function (SMAF). q Service Creation Environment Point (SCEP). The SCEP is described by the following FE: Service Creation Environment (SCE). q Service Data Point (SDP). The SDP is described by the following FE: Service Data Function (SDF). Chapter 1 - Wireless Network 11

Physical entities and functional entities in an IN Chapter 1 - Wireless Network 12

Physical entities and functional entities in an IN Chapter 1 - Wireless Network 12

Intelligent Network q The communication between the several PEs relies on out-ofband signaling or

Intelligent Network q The communication between the several PEs relies on out-ofband signaling or on SS 7 protocols. q The SS 7 protocols provide means to: q Place service logic and service data into network elements responsible for handling control and connection remotely. q Enable the communication between intelligent applications and other applications. q Access databases located in various parts of the network. Chapter 1 - Wireless Network 13

Open Systems Interconnection q The Open System Interconnection (OSI) Reference Model was formulated by

Open Systems Interconnection q The Open System Interconnection (OSI) Reference Model was formulated by the International Standards Organization (ISO) in the early 1980 s. q The model simplifies the design of complex networks by means of the use of a modular and structures approach. q It is partitioned into seven layers and protocols implement the functionality assigned to each layer. Appendix A - Open Systems Interconnection 14

Open Systems Interconnection q Each layer provides services to the layer above it and

Open Systems Interconnection q Each layer provides services to the layer above it and uses the service from the layer bellow it. q At the transmitting side, each layer adds its own header to the message received from the layer above it and delivers the composite message to the layer bellow it. q On the receiving side, each layer removes the corresponding header from the message and delivers I to the layer above it. Appendix A - Open Systems Interconnection 15

Open Systems Interconnection q The seven layers of the OSI Reference Model are: q

Open Systems Interconnection q The seven layers of the OSI Reference Model are: q Physical Layer (Layer 1). q Data Link Layer (Layer 2). q Network Layer (Layer 3). q Transport Layer (Layer 4). q Session Layer (Layer 5). q Presentation Layer (Layer 6). q Application Layer (Layer 7). Appendix A - Open Systems Interconnection 16

Open Systems Interconnection q The OSI/ISO Reference Model Appendix A - Open Systems Interconnection

Open Systems Interconnection q The OSI/ISO Reference Model Appendix A - Open Systems Interconnection 17

Signaling System Number 7 q Signaling System Number 7 (SS 7) emerged as an

Signaling System Number 7 q Signaling System Number 7 (SS 7) emerged as an international standard and gained worldwide acceptance. q SS 7 conforms to a layered model that parallels the OSI Reference Model. q SS 7 is responsible for the control of the fixed network as well as the mobile network. Appendix B - Signaling System Number 7 18

Signaling System Number 7 q SS 7 parts: q Message Transfer Part Level 1

Signaling System Number 7 q SS 7 parts: q Message Transfer Part Level 1 (MTP 1). q Message Transfer Part Level 2 (MTP 2). q Message Transfer Part Level 3 (MTP 3). q Telephone User Port (TUP). q ISDN TUP (ISUP). q Signaling Connection Control Part (SCCP). q Transaction Capabilities Application Part (TCAP). q Base Station System Management Applications Part (BSSMAP). q Direct Transfer Application Part (DTAP). q BSSMAP and DTAP. q Mobile Application Part (MAP). Appendix B - Signaling System Number 7 19

Signaling System Number 7 q SS 7 and the corresponding OSI layers Appendix B

Signaling System Number 7 q SS 7 and the corresponding OSI layers Appendix B - Signaling System Number 7 20

Intelligent Network q Wireless Service Requirements (1/2) q Roaming Mobility, a feature inherent to

Intelligent Network q Wireless Service Requirements (1/2) q Roaming Mobility, a feature inherent to a wireless network, creates situations in which subscribers may roam out of their local calling area or out of their service provider's area. q Carrier Select Carrier-select services allow providers to select the network to be used to handle a call. In the same way, they allow subscribers to route their calls selectively through their network of preference. q Hands-Free Operation For voice-activated dialing and feature activation, voice recognition technology must be available. In such a case, messages or voice signals must be collected, translated into data, and routed to the required device, the so-called intelligent peripheral (IP). Chapter 1 - Wireless Network 21

Intelligent Network q Wireless Service Requirements (2/2) q Fee Structure The interaction among the

Intelligent Network q Wireless Service Requirements (2/2) q Fee Structure The interaction among the various networks involved in a call, both wired and wireless, renders billing a difficult task. IN flags can be used to facilitate the billing. They can be included into the call record so that billing reflects the specific call handling and fees can be processed more easily. q Data-Service Capability Wireless phones are allowed to send and receive messages in addition to making or taking telephone calls. SMS works like a pager, and requires SS 7 messages for the several tasks involved in its implementation: access to database, authentication, message encapsulation, paging, routing, etc. IN procedures are certainly required to implement SMS. Chapter 1 - Wireless Network 22

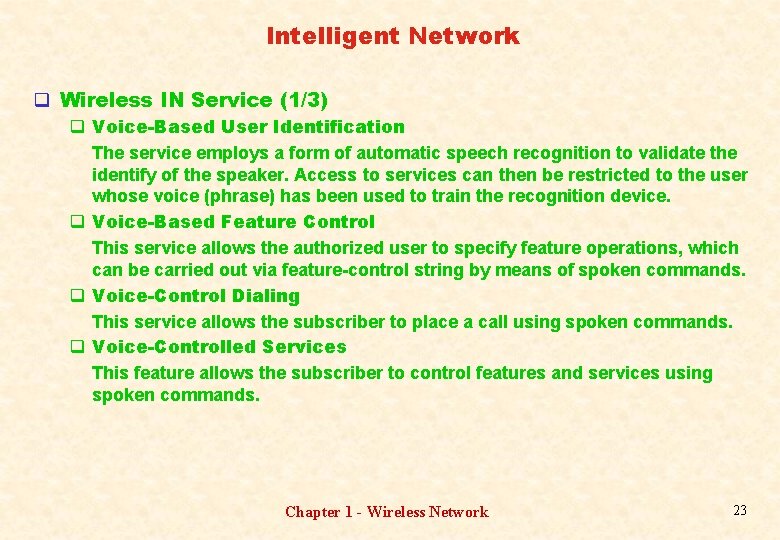

Intelligent Network q Wireless IN Service (1/3) q Voice-Based User Identification The service employs

Intelligent Network q Wireless IN Service (1/3) q Voice-Based User Identification The service employs a form of automatic speech recognition to validate the identify of the speaker. Access to services can then be restricted to the user whose voice (phrase) has been used to train the recognition device. q Voice-Based Feature Control This service allows the authorized user to specify feature operations, which can be carried out via feature-control string by means of spoken commands. q Voice-Control Dialing This service allows the subscriber to place a call using spoken commands. q Voice-Controlled Services This feature allows the subscriber to control features and services using spoken commands. Chapter 1 - Wireless Network 23

Intelligent Network q Wireless IN Service (2/3) q Incoming Call-Restriction/Control This service allows user

Intelligent Network q Wireless IN Service (2/3) q Incoming Call-Restriction/Control This service allows user to impose restrictions to an incoming call as follows: it may terminate normally to the subscriber; it may terminate to the subscriber with normal alerting; it may terminate to the subscriber with special alerting; it may be forwarded to another number; it may be forwarded to voice mail; it may be routed to any specific announcement; or it may be blocked. q Calling Name Presentation This service provides the name identification of the calling party (personal name, company name, restricted, not a available) as well as the date and time of the call. q Password Call Acceptance This service allows the subscriber to restrict incoming calls only to those callers who can provide valid passwords. Chapter 1 - Wireless Network 24

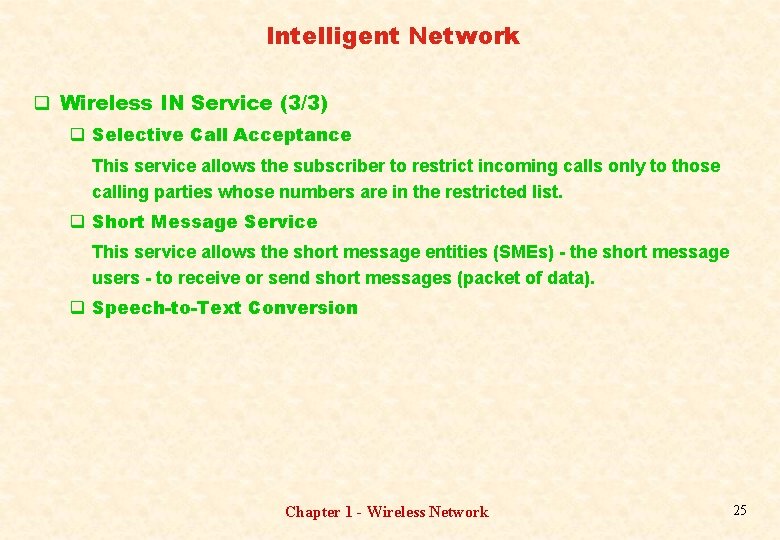

Intelligent Network q Wireless IN Service (3/3) q Selective Call Acceptance This service allows

Intelligent Network q Wireless IN Service (3/3) q Selective Call Acceptance This service allows the subscriber to restrict incoming calls only to those calling parties whose numbers are in the restricted list. q Short Message Service This service allows the short message entities (SMEs) - the short message users - to receive or send short messages (packet of data). q Speech-to-Text Conversion Chapter 1 - Wireless Network 25

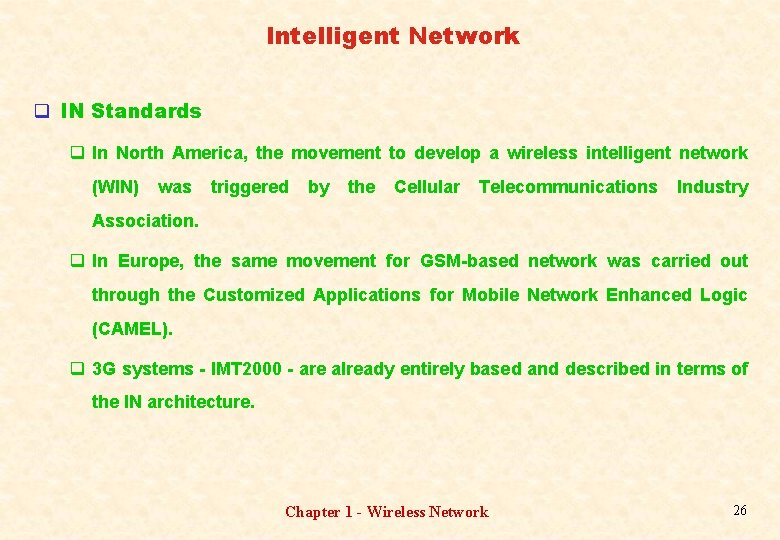

Intelligent Network q IN Standards q In North America, the movement to develop a

Intelligent Network q IN Standards q In North America, the movement to develop a wireless intelligent network (WIN) was triggered by the Cellular Telecommunications Industry Association. q In Europe, the same movement for GSM-based network was carried out through the Customized Applications for Mobile Network Enhanced Logic (CAMEL). q 3 G systems - IMT 2000 - are already entirely based and described in terms of the IN architecture. Chapter 1 - Wireless Network 26

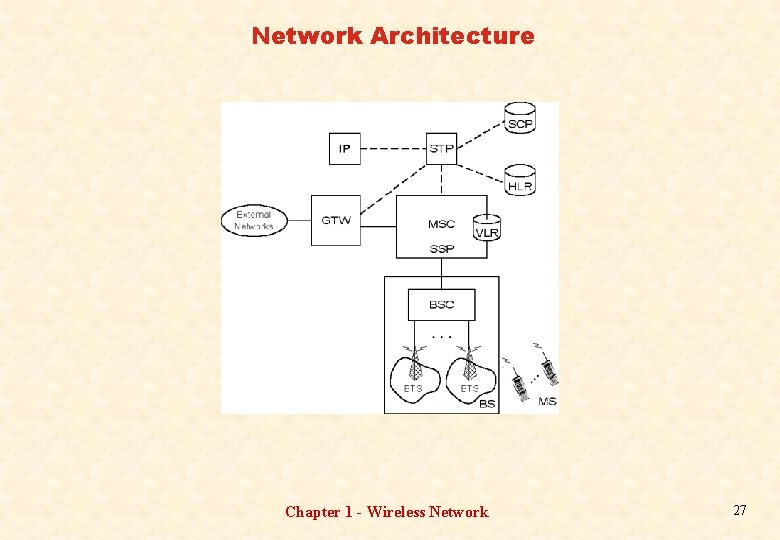

Network Architecture Chapter 1 - Wireless Network 27

Network Architecture Chapter 1 - Wireless Network 27

Network Architecture q The main Components of a wireless System (1/3) q Mobile Station

Network Architecture q The main Components of a wireless System (1/3) q Mobile Station (MS) It incorporates user interface functions, radio functions, and control functions, with the most common equipment implemented in the form of a mobile telephone. q Base Station (BS) q Base Transceiver Station (BTS). The BTS consist of a radio equipment (transmitter and receiver - transceiver) and provides the radio coverage for a given cell or sector. q Base Station Controller (BSC). The BSC incorporates a control capability to manage one or more BTSs, executing the interfacing functions between BTSs and the network. q Mobile Switching Center (MSC) The MSC provides an automatic switching between users within the same network or other public switched networks, coordinating calls and routing procedures. Chapter 1 - Wireless Network 28

Network Architecture q The main Components of a wireless System (2/3) q Visitor Location

Network Architecture q The main Components of a wireless System (2/3) q Visitor Location Register (VLR) The VLR is a database containing temporary records associated with subscribers under the status of a visitors. A subscriber is considered a visitor if such a subscriber is in a roaming condition. q Home Location Register (HLR) The HLR is the primary database for the home subscriber. It mantains information records on subscriber current location, subscriber identifications, user profile, and so forth. An HLR usually operates on a centralized basis and serves many MSCs. q Gateway (GTW) The GTW serves as an interface between the wireless network and the external network. Chapter 1 - Wireless Network 29

Network Architecture q The main Components of a wireless System (3/3) q Service Control

Network Architecture q The main Components of a wireless System (3/3) q Service Control Point (SCP) The SCP provides a centralized element to control service delivery to subscribers. It is responsible for higher-level services that are usually carried out by the MSC in wireless networks not using IN facilities. q Service Transfer Point (STP) The STP is a packet switch device that handles the distribution of control signals between different elements in the network. q Intelligent Peripheral (IP) The IP processes the information of subscribers in support of IN services within a wireless network. q External Network The external network constitutes the ISDN, CSPDN (Circuit-Switched Public Data Network), PSPDN (Packet-Switched Public Data Network) and PSTN (Public-Switched Telephone Network). Chapter 1 - Wireless Network 30

Protocol Architecture q A general radio protocol contains the three lowest layers of the

Protocol Architecture q A general radio protocol contains the three lowest layers of the OSI/ISO Reference Model, as follows: q Physical Layer The physical layer is responsible for providing a radio link over the radio interface. Such a radio link is characterized by its throughput and data quality. q Data Link Layer q Medium Access Control (MAC) sublayer. The MAC sublayer is responsible for controlling the physical layer. It performs link quality control and mapping of data flow onto this radio link. It is defined for the BTS and for the MT. q Link Access Control (LAC) sublayer. The LAC sublayer is responsible for performing functions essential to the logical link connection such as setup, maintenance, and release of a link. It is defined for BSC, BTS, MT, and control functionalities of the MS. q Network Layer The network layer contains functions dealing with call control, mobility management, and radio resource management. It is mostly independent of radio transmission technology. Such a layer can be transparent for user data in certain user services. It is defined for BSC, BTS, MT, and control functionalities of the MS. Chapter 1 - Wireless Network 31

Channel Structure q A channel provides means of conveying information between two network elements

Channel Structure q A channel provides means of conveying information between two network elements q RF Channel An RF channel is defined in terms of a carrier frequency centered within a specified bandwidth, representing a portion of the RF spectrum. The RF channel constitutes the means of carrying information over the radio interface. It can be shared in the frequency domain, time domain, code domain, or space domain. q Physical Channel A physical channel corresponds to a portion of one or more RF channels used to convey any given information. Such a portion is defined in terms of frequency, time, code, space, or a combination of these. A physical channel may be partitioned into a frame structure, with the specific timing defined in accordance with the control and management functions to be performed. Chapter 1 - Wireless Network 32

Channel Structure q Logical Channel (1/3) A logical channel is defined by the type

Channel Structure q Logical Channel (1/3) A logical channel is defined by the type of information it conveys. The logical channels are mapped onto one or more physical channels. Logic channels may be combined by means of a multiplexing process, using a frame structure. Chapter 1 - Wireless Network 33

Channel Structure q Logical Channel (2/3) q Traffic Channels q Dedicated Traffic Channel (DTCH).

Channel Structure q Logical Channel (2/3) q Traffic Channels q Dedicated Traffic Channel (DTCH). The DTCH conveys user information. It may be defined in one or both directions. q Random Traffic Channel (RTCH). The RTCH conveys packet-type data user information. It is usually defined in one direction. q Control Channels q Dedicated Control Channels (DCCH). A DCCH is a point-to-point channel defined in both directions. Two DCCHs are specified: q Associated Control Channel (ACCH). An ACCH is always allocated with a traffic channel or with an SDCCH. q Stand-Alone Dedicated Control Channel (SDCCH). An SDCCH is allocated independently of the allocation of a traffic channel. Chapter 1 - Wireless Network 34

Channel Structure q Common Control Channels (CCCH). A CCCH is a point-to-multipoint or multipoint

Channel Structure q Common Control Channels (CCCH). A CCCH is a point-to-multipoint or multipoint -to-point channel used to convey signaling information (connectionless messages) for access management purposes. Four types of CCCHs are specified: q Broadcast Control Channel (BCCH). The BCCH is a downlink channel used to broadcast system information. It is a point-to-multipoint channel listed to by all MSs, from which information is obtained before any access attempt is made. q Forward Access Channel (FACH). The FACH is a downlink channel conveying a number of system management messages, including enquiries to the MS and radio-related and mobility-related resource assignment. It may also convey packet-type user data. q Paging Channel (PCH). The PCH is downlink channel used for paging MSs. A page is defined as the process of seeking an MS in the event that an incoming call is addressed to that MS. q Random Access Channel (RACH). The RACH is an uplink channel used to convey messages related to call establishment request and responses to network -originated inquiries. Chapter 1 - Wireless Network 35

Narrowband Wideband Systems q Narrowband systems support low-bit-rate transmission; q Systems operating with channels

Narrowband Wideband Systems q Narrowband systems support low-bit-rate transmission; q Systems operating with channels substantially narrower than the coherence bandwidth are known as narrowband system; q In narrowband systems, all the components of signals are equally influenced by multipath propagation; q Narrowband systems are affected by selective fading. q Wideband Systems q wideband systems support high-bit-rate transmission; q Wideband systems operate with channels substantially wider than the coherence bandwidth; q In wideband systems, the various frequency components of the signal may be differently affected by fading. Chapter 1 - Wireless Network 36

Narrowband Wideband Systems q Coherence Bandwidth The coherence bandwidth, BC, is defined as the

Narrowband Wideband Systems q Coherence Bandwidth The coherence bandwidth, BC, is defined as the frequency components are equally affected by fading due to multipath propagation phenomena. where the time span between the arrival of the first and the last multipath signals that can be sensed by the receiver is known as delay spread ( T). q Coherence Time The coherence time, TC, is defined as the time interval during which the fading characteristics of the channel remain approximately unchanged. where fm is the maximum Doppler shift, in hertz, is given as v/ , where v, in m/s, is the speed of the mobile terminal and , in m, is the wavelength of the signal. Chapter 1 - Wireless Network 37

Multiple Access q Wireless networks are multiuser systems in which information is conveyed by

Multiple Access q Wireless networks are multiuser systems in which information is conveyed by means of radio waves. q In a multiuser environment, access coordination can be accomplished via several mechanisms: q by insulating the various signals sharing the same access medium; q by allowing the signals to contend for the access; q or by combining these two approaches. q The choice for the appropriate scheme must take into account a number of factors, such as: q type of traffic under consideration; q available technology; q cost and complexity. Chapter 1 - Wireless Network 38

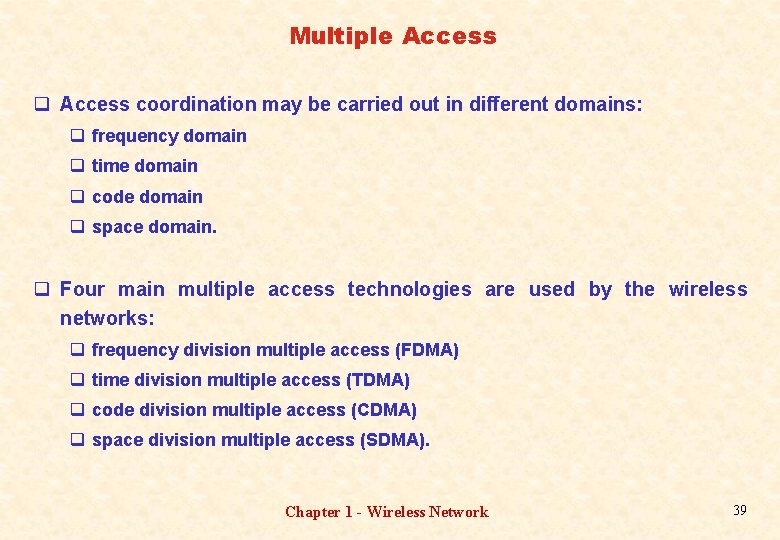

Multiple Access q Access coordination may be carried out in different domains: q frequency

Multiple Access q Access coordination may be carried out in different domains: q frequency domain q time domain q code domain q space domain. q Four main multiple access technologies are used by the wireless networks: q frequency division multiple access (FDMA) q time division multiple access (TDMA) q code division multiple access (CDMA) q space division multiple access (SDMA). Chapter 1 - Wireless Network 39

Multiple Access q Frequency Division Multiple Access q FDMA is certainly the most conventional

Multiple Access q Frequency Division Multiple Access q FDMA is certainly the most conventional method of multiple access and was the first technique to be employed in modern wireless application. q The channel bandwidth is a function of the services to be provided and of the available technology and is identified by its center frequency, known as a carrier. q Time Division Multiple Access q TDMA is another widely known multiple-access technique and succeeded FDMA in modern wireless applications. q In TDMA, the entire bandwidth is made available to all signals but on a time-sharing basis. q Transmission then occurs within a time interval known as a (time) slot. Chapter 1 - Wireless Network 40

Multiple Access q Code Division Multiple Access q CDMA is a nonconventional multiple-access technique

Multiple Access q Code Division Multiple Access q CDMA is a nonconventional multiple-access technique that immediately found wide application in modern wireless systems. q In CDMA, the entire bandwidth is made available simultaneously to all signals. q In theory, very little dynamic coordination is required, as opposed to FDMA and TDMA in which frequency and time management have a direct impact on performance. q To accomplish CDMA systems, spread-spectrum techniques are used. q In CDMA, signals are discriminated by means of code sequences or signature sequences. q Each pair of transmitter-receivers is allotted one code sequence with which a communication is established. Chapter 1 - Wireless Network 41

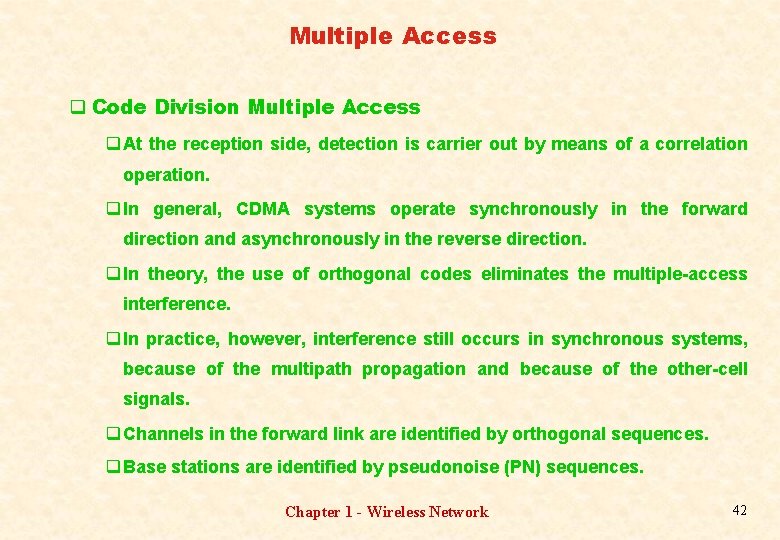

Multiple Access q Code Division Multiple Access q At the reception side, detection is

Multiple Access q Code Division Multiple Access q At the reception side, detection is carrier out by means of a correlation operation. q In general, CDMA systems operate synchronously in the forward direction and asynchronously in the reverse direction. q In theory, the use of orthogonal codes eliminates the multiple-access interference. q In practice, however, interference still occurs in synchronous systems, because of the multipath propagation and because of the other-cell signals. q Channels in the forward link are identified by orthogonal sequences. q Base stations are identified by pseudonoise (PN) sequences. Chapter 1 - Wireless Network 42

Multiple Access q Code Division Multiple Access q Hence, multiple access in the forward

Multiple Access q Code Division Multiple Access q Hence, multiple access in the forward link is accomplished by the use of spreading orthogonal sequences. q In general, the use of orthogonal codes in the reverse link finds no direct application, because the reverse link is intrinsically asynchronous. q Some systems implement some sort of synchronous transmission on the reverse link. q Several PN sequences are used in the various systems. q Two main orthogonal sequences used in all CDMA systems: q Walsh codes q Orthogonal variable spreading functions (OVSF). Chapter 1 - Wireless Network 43

Multiple Access q Space Division Multiple Access q SDMA is a nonconventional multiple-access technique

Multiple Access q Space Division Multiple Access q SDMA is a nonconventional multiple-access technique that finds application in modern wireless systems mainly in combination with other multiple-access techniques. q In SDMA, the entire bandwidth is made available simultaneously to all signals. q Signals are discriminated spatially, and the communication trajectory constitutes the physical channels. q The implementation of an SDMA architecture is based strongly on antennas technology coupled with advanced digital signal processing. q The antenna beams must be electronically and adaptively directed to the user so that. q The location alone is enough to discriminate the user. Chapter 1 - Wireless Network 44

Summary q Wireless network are multiuser systems in which information is conveyed by radio

Summary q Wireless network are multiuser systems in which information is conveyed by radio waves. Modern wireless networks have evolved through different generations: q 1 G systems, based on analog technology, aimed at providing voice telephony service; q 2 G systems, based on digital technology, aimed at providing a better spectral efficiency, a more robust communication, voice privacy, and authentication capabilities; q 2. 5 G systems, based on 2 G systems, aimed at providing the 2 G systems with a better data rate capability; q and 3 G systems that aim at providing for multimedia services in their entirety. Chapter 1 - Wireless Network 45

Spread Spectrum q Spread Spectrum is defined as a communication technique in which the

Spread Spectrum q Spread Spectrum is defined as a communication technique in which the intend signal is spread over a bandwidth in excess of the minimum bandwidth required to transmit the signal. q This is accomplished by the use of a wideband encoding signal at the transmitter, which operates in synchronism with the receiver, where the encoding signal is also known. q Generating a spread spectrum signal involves two steps: q first, the carrier is modulated by the baseband digital information with rate Rb=1/Tb q second, the modulated signal is used to modulate a wideband function with rate Rc=1/Tc. Appendix C - Spread Spectrum

Spread Spectrum q The desired wideband signal arrives at the receiver together with other

Spread Spectrum q The desired wideband signal arrives at the receiver together with other wideband signals, interference, and noise. q Other waveforms are not correlated and will be spread, appearing a noise to the modulator. q The correlated signal is then a band-pass signal, whereas the noise component is a wideband signal. q Two main spread spectrum techniques are used: q direct sequence spread spectrum; q and frequency hopping spread spectrum. Appendix C - Spread Spectrum 47

Correlation q The correlation function quantifies the degree of similarity between two functions. q

Correlation q The correlation function quantifies the degree of similarity between two functions. q Lets x(t) and y(t) be two nonperiodic waveforms with finite energy. The cross-correlation function Rx, y( ) is given by q If x(t) and y(t) are periodic waveforms, with period T, then q The autocorrelation Rz( ) for either type of waveform z(t) is defined as Appendix C - Spread Spectrum 48

Correlation q Assume that z(t) is a binary waveform defined as where Zk {+1,

Correlation q Assume that z(t) is a binary waveform defined as where Zk {+1, -1}, the pulse. Then is the pulse shape, and 1/W is the duration of where K is the number of pulses composing the period of the sequence, RX, Y(k) is the cross-correlation function of the two periodic binary sequences Xk and Yk, and is the nonperiodic crosscorrelation function for the basic waveforms and. The crosscorrelation between Xk and Yk is defined as Appendix C - Spread Spectrum 49

Correlation q The autocorrelation function RZ(k) of the sequence Zi is defined as q

Correlation q The autocorrelation function RZ(k) of the sequence Zi is defined as q The autocorrelation function for z(t) is Figure C. 1 A rectangular pulse (a) and its autocorrelation (b). Appendix C - Spread Spectrum 50

Correlation q Now, for a sequence of K binary symbols, in which the number

Correlation q Now, for a sequence of K binary symbols, in which the number of +1 s and -1 s differ by one, the autocorrelation is K, for k=0 and -1 for k 0. Figure C. 2 Autocorrelation function of a real signal waveform q Two real-valued waveforms are said to be orthogonal if Rx, y(0)=0. Appendix C - Spread Spectrum 51

Pseudonoise Sequences q Pseudonoise (PN) or pseudorandom sequences are used for two main purposes

Pseudonoise Sequences q Pseudonoise (PN) or pseudorandom sequences are used for two main purposes data scrambling and spread spectrum modulation. q Note, in the scrambling operation (as well as in the modulation operation), that both transmitter and receiver must work exactly the same PN sequence. q A sequence with a period equal to 2 n-1 is known as maximal length sequence or m-sequence or PN sequence. The following main properties characterize the m-sequence: q Balance Property Within a complete period of sequence, the number of 1 s and 0 s differs from each other by at most 1. q Correlation Property By comparing a complete sequence with any shifted version of it, within the sequence period, the number of agreements minus the number of disagreements is always -1. Appendix C - Spread Spectrum 52

Walsh Codes q The Walsh sequence can be generated by means of Rademacher functions

Walsh Codes q The Walsh sequence can be generated by means of Rademacher functions or by the Hadamard matrices. q The Hadamard matrix is defined as q The Walsh sequences are indexed by the row of matrix. An example of the Hadamard matrix for n=2 is shown as follows: Appendix C - Spread Spectrum 53

Orthogonal Variable Spreading Factor Codes q Channelization in multirate CDMA systems can be provided

Orthogonal Variable Spreading Factor Codes q Channelization in multirate CDMA systems can be provided by orthogonal variable spreading factor (OVSF) codes. q Uplink and downlink channels make use of OVSF codes. q The OVSF codes preserve the orthogonality between channels of different rates and spreading factors. q They can be defined as Appendix C - Spread Spectrum 54

Orthogonal Variable Spreading Factor Codes Figure C. 3 OVSF code tree. Appendix C -

Orthogonal Variable Spreading Factor Codes Figure C. 3 OVSF code tree. Appendix C - Spread Spectrum 55

Rake Receiver q In a multipath propagation environment, the received signal contains replicas of

Rake Receiver q In a multipath propagation environment, the received signal contains replicas of attenuated and delayed version of the transmitted signal. q Assume that the signal is pseudorandom with a correlation width of 1/W. Figure C. 4 Basic structure of a Rake receiver. Appendix C - Spread Spectrum 56

Processing Gain q Processing gain G is defined as the ratio between the bandwidth

Processing Gain q Processing gain G is defined as the ratio between the bandwidth W of the spread signal and the bandwidth w of the unspread signal, i. e. , which represents the gain achieved by processing a spread spectrum signal over an unspread signal. q It can be obtained by the difference in decibels between the output signal-to-noise ratio (SNRo, SNR of the spread information) and the input signal-to-noise ratio (SNRi, SNR of unspread information), i. e. , Appendix C - Spread Spectrum 57

Direct Sequence Spread Spectrum q Direct sequence (DS) spread spectrum (SS) uses PN sequence

Direct Sequence Spread Spectrum q Direct sequence (DS) spread spectrum (SS) uses PN sequence to modulate a carrier. q In principle, any modulation technique such as AM (pulse), FM, or PM can be used. However, the most widespread form is the binary phase shift keying (BPSK) modulation. q At the receiver, which is assumed to operate in synchronism with the transmitter, an exact replica of PN codes is used to unspread the received signal. Appendix C - Spread Spectrum 58

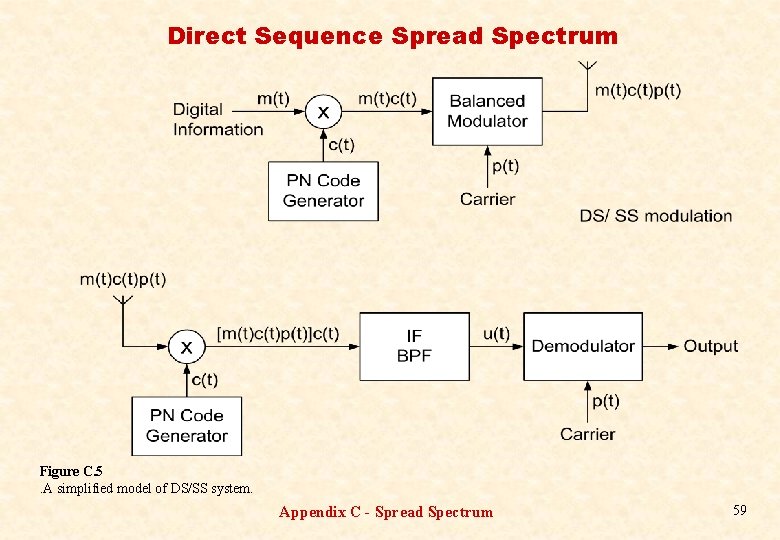

Direct Sequence Spread Spectrum Figure C. 5. A simplified model of DS/SS system. Appendix

Direct Sequence Spread Spectrum Figure C. 5. A simplified model of DS/SS system. Appendix C - Spread Spectrum 59

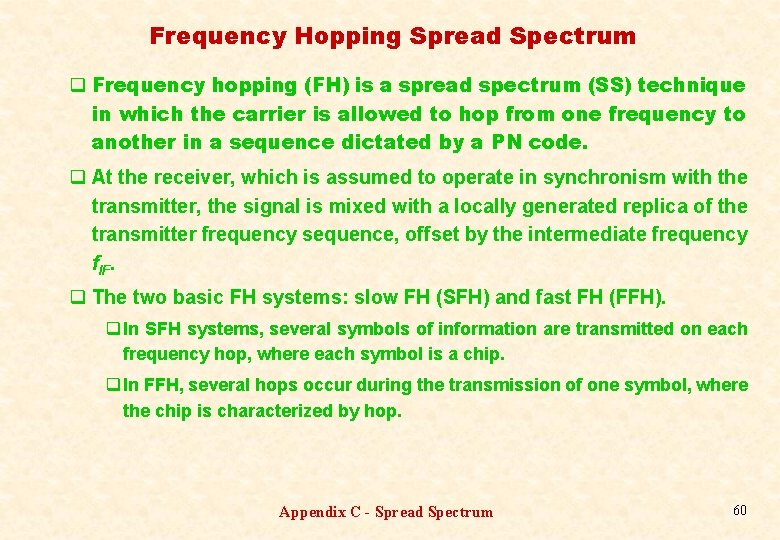

Frequency Hopping Spread Spectrum q Frequency hopping (FH) is a spread spectrum (SS) technique

Frequency Hopping Spread Spectrum q Frequency hopping (FH) is a spread spectrum (SS) technique in which the carrier is allowed to hop from one frequency to another in a sequence dictated by a PN code. q At the receiver, which is assumed to operate in synchronism with the transmitter, the signal is mixed with a locally generated replica of the transmitter frequency sequence, offset by the intermediate frequency f. IF. q The two basic FH systems: slow FH (SFH) and fast FH (FFH). q In SFH systems, several symbols of information are transmitted on each frequency hop, where each symbol is a chip. q In FFH, several hops occur during the transmission of one symbol, where the chip is characterized by hop. Appendix C - Spread Spectrum 60

Frequency Hopping Spread Spectrum Figure C. 5. A simplified model of FH/SS system. Appendix

Frequency Hopping Spread Spectrum Figure C. 5. A simplified model of FH/SS system. Appendix C - Spread Spectrum 61
