Chapter 1 INTRODUCTION TO DATABASES University of Shanghai

Chapter 1 INTRODUCTION TO DATABASES University of Shanghai for Science and Technology

Chapter 1 - Objectives �Some common uses of database systems. �Characteristics of file-based systems. �Problems with file-based approach. �Meaning of the term database. �Meaning of the term Database Management System (DBMS). University of Shanghai for Science and Technology

Chapter 1 - Objectives �Typical functions of a DBMS. �Major components of the DBMS environment. �Personnel involved in the DBMS environment. �History of the development of DBMSs. �Advantages and disadvantages of DBMSs. University of Shanghai for Science and Technology

Examples of Database Applications �Purchases from the supermarket �Purchases using your credit card �Booking a holiday at the travel agents �Using the local library �Taking out insurance �Renting a video �Using the Internet �Studying at university University of Shanghai for Science and Technology

File-Based Systems �Collection of application programs that perform services for the end users (e. g. reports). �Each program defines and manages its own data. University of Shanghai for Science and Technology

File-Based Processing University of Shanghai for Science and Technology

Limitations of File-Based Approach �Separation and isolation of data Each program maintains its own set of data. Users of one program may be unaware of potentially useful data held by other programs. �Duplication of data Same data is held by different programs. Wasted space and potentially different values and/or different formats for the same item. University of Shanghai for Science and Technology

Limitations of File-Based Approach �Data dependence File structure is defined in the program code. �Incompatible file formats Programs are written in different languages, and so cannot easily access each other’s files. �Fixed Queries/Proliferation of application programs Programs are written to satisfy particular functions. Any new requirement needs a new program. University of Shanghai for Science and Technology

Database Approach �Arose because: Definition of data was embedded in application programs, rather than being stored separately and independently. No control over access and manipulation of data beyond that imposed by application programs. �Result: the database and Database Management System (DBMS). University of Shanghai for Science and Technology

Database �Shared collection of logically related data (and a description of this data), designed to meet the information needs of an organization. �System catalog (metadata) provides description of data to enable program–data independence. �Logically related data comprises entities, attributes, and relationships of an organization’s information. University of Shanghai for Science and Technology

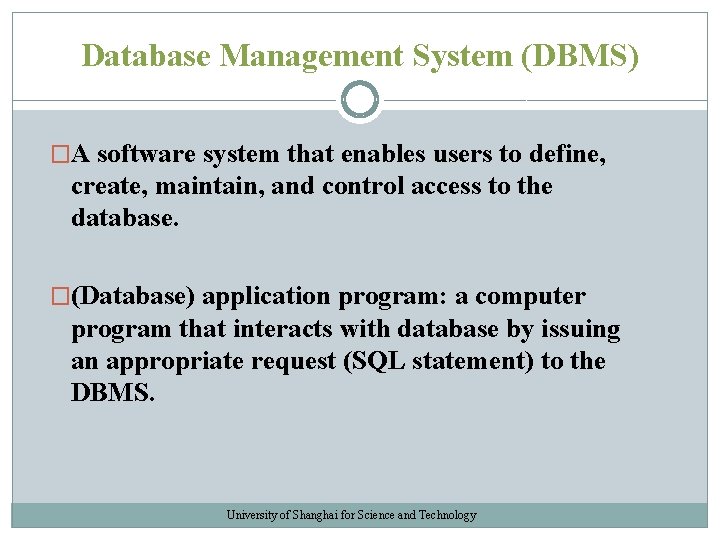

Database Management System (DBMS) �A software system that enables users to define, create, maintain, and control access to the database. �(Database) application program: a computer program that interacts with database by issuing an appropriate request (SQL statement) to the DBMS. University of Shanghai for Science and Technology

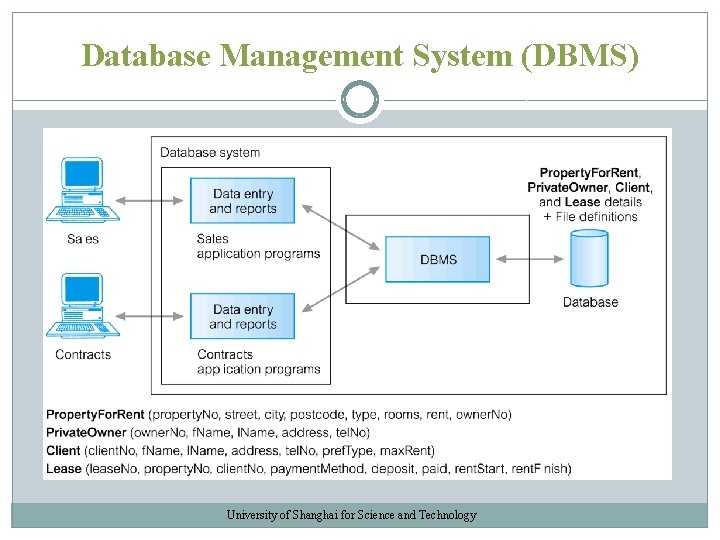

Database Management System (DBMS) University of Shanghai for Science and Technology

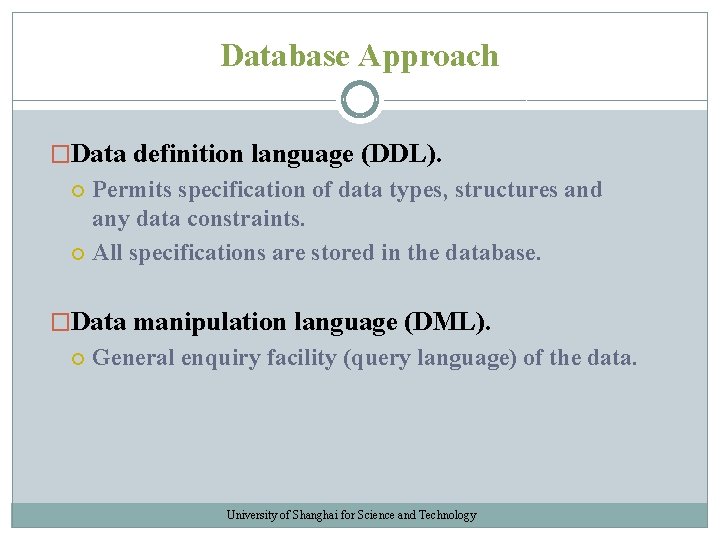

Database Approach �Data definition language (DDL). Permits specification of data types, structures and any data constraints. All specifications are stored in the database. �Data manipulation language (DML). General enquiry facility (query language) of the data. University of Shanghai for Science and Technology

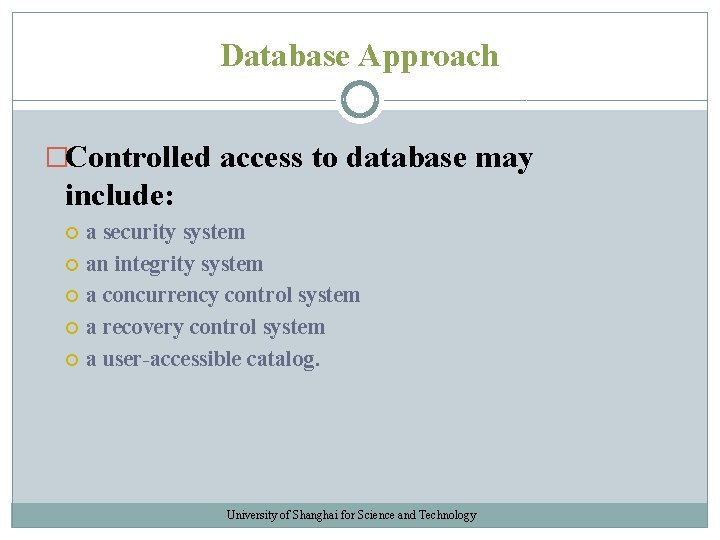

Database Approach �Controlled access to database may include: a security system an integrity system a concurrency control system a recovery control system a user-accessible catalog. University of Shanghai for Science and Technology

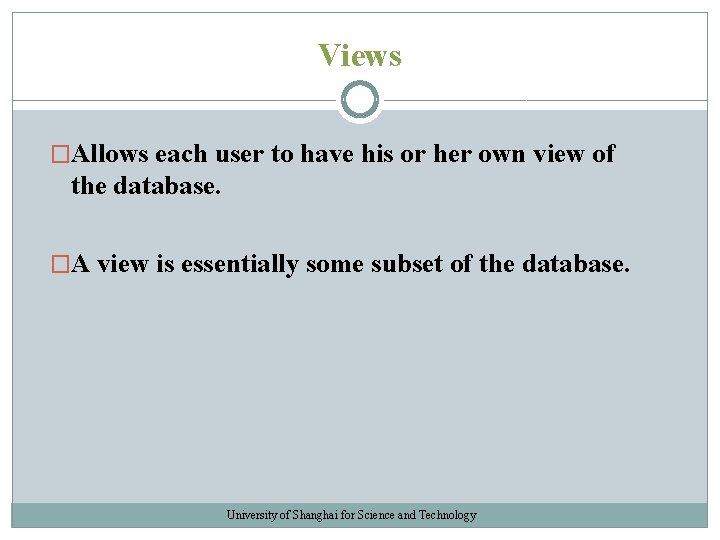

Views �Allows each user to have his or her own view of the database. �A view is essentially some subset of the database. University of Shanghai for Science and Technology

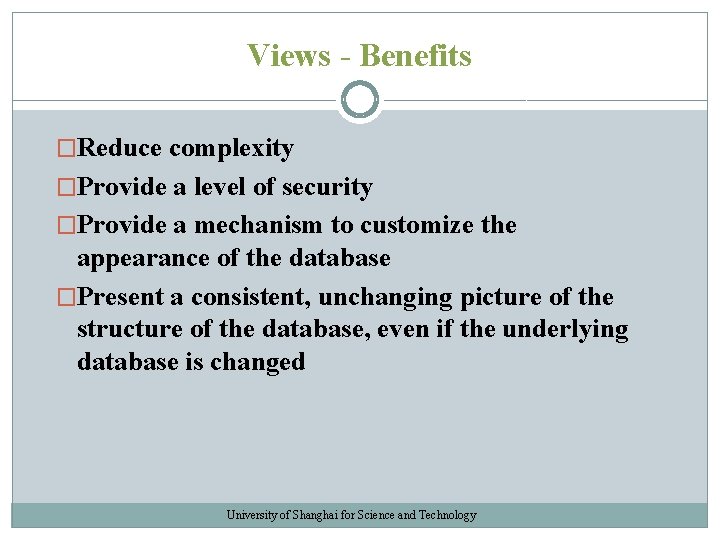

Views - Benefits �Reduce complexity �Provide a level of security �Provide a mechanism to customize the appearance of the database �Present a consistent, unchanging picture of the structure of the database, even if the underlying database is changed University of Shanghai for Science and Technology

Components of DBMS Environment University of Shanghai for Science and Technology

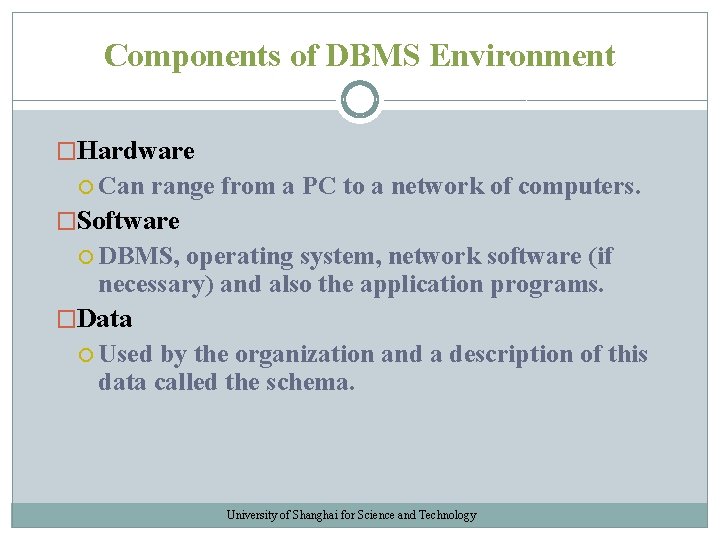

Components of DBMS Environment �Hardware Can range from a PC to a network of computers. �Software DBMS, operating system, network software (if necessary) and also the application programs. �Data Used by the organization and a description of this data called the schema. University of Shanghai for Science and Technology

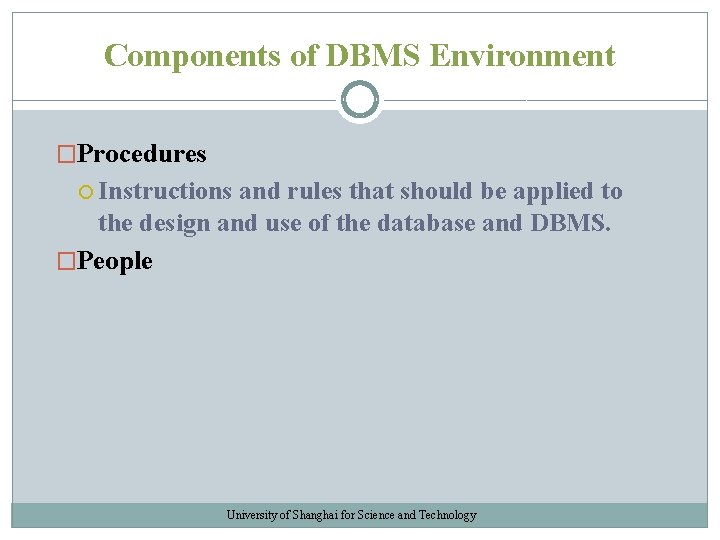

Components of DBMS Environment �Procedures Instructions and rules that should be applied to the design and use of the database and DBMS. �People University of Shanghai for Science and Technology

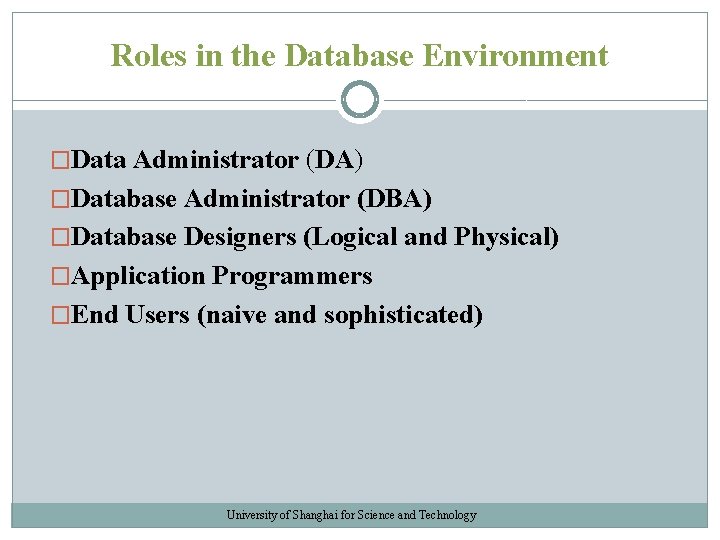

Roles in the Database Environment �Data Administrator (DA) �Database Administrator (DBA) �Database Designers (Logical and Physical) �Application Programmers �End Users (naive and sophisticated) University of Shanghai for Science and Technology

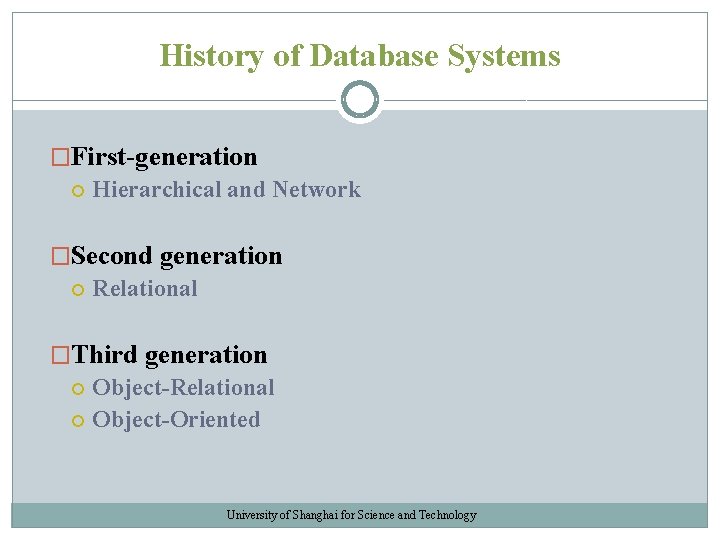

History of Database Systems �First-generation Hierarchical and Network �Second generation Relational �Third generation Object-Relational Object-Oriented University of Shanghai for Science and Technology

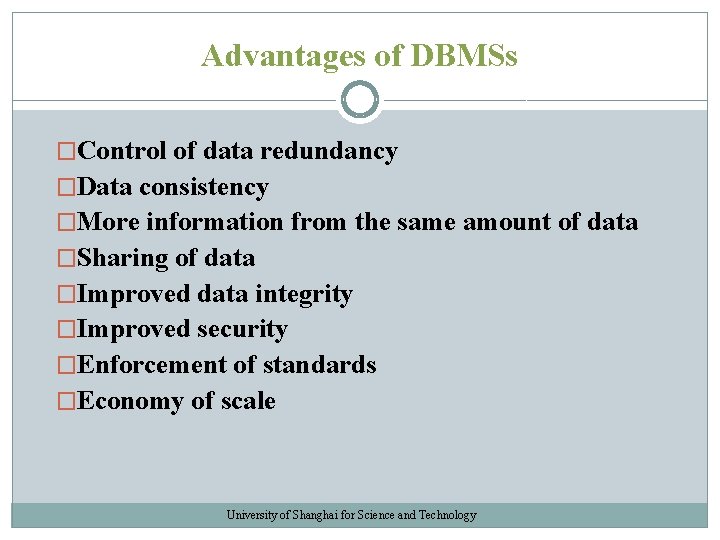

Advantages of DBMSs �Control of data redundancy �Data consistency �More information from the same amount of data �Sharing of data �Improved data integrity �Improved security �Enforcement of standards �Economy of scale University of Shanghai for Science and Technology

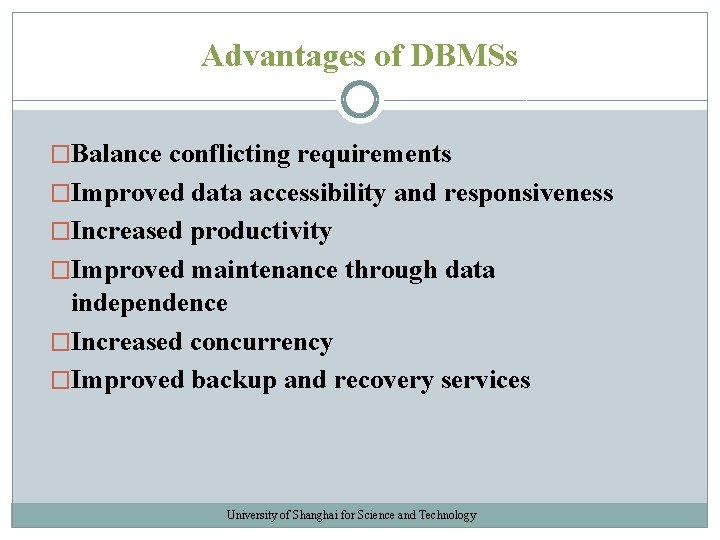

Advantages of DBMSs �Balance conflicting requirements �Improved data accessibility and responsiveness �Increased productivity �Improved maintenance through data independence �Increased concurrency �Improved backup and recovery services University of Shanghai for Science and Technology

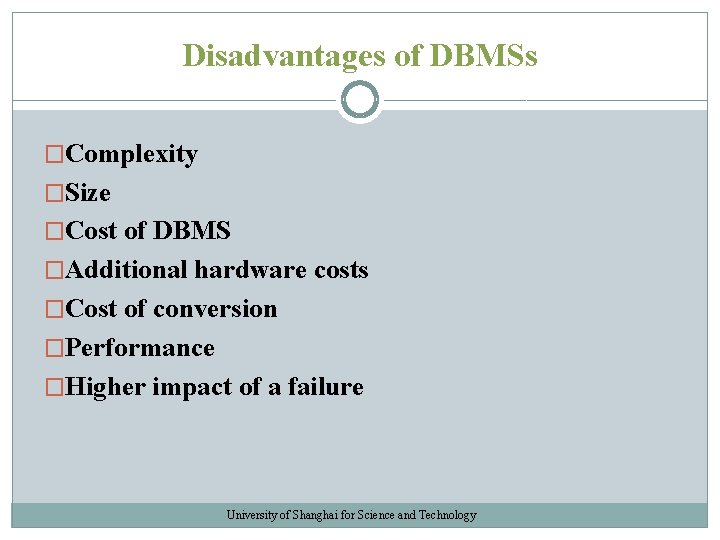

Disadvantages of DBMSs �Complexity �Size �Cost of DBMS �Additional hardware costs �Cost of conversion �Performance �Higher impact of a failure University of Shanghai for Science and Technology
