Chapter 1 Computer Basics Chapter 1 Computer Basics

Chapter 1: Computer Basics

Chapter 1: Computer Basics Learning Objectives: Understand the purpose and elements of information systems Recognize the different types of computers Distinguish the main software types Identify the components of a computer system Understand how computers communicate

Understanding Information Systems Information system: An interconnected environment for managing and processing data using a computer Parts of an information system: § § § People Hardware Software Procedures Data

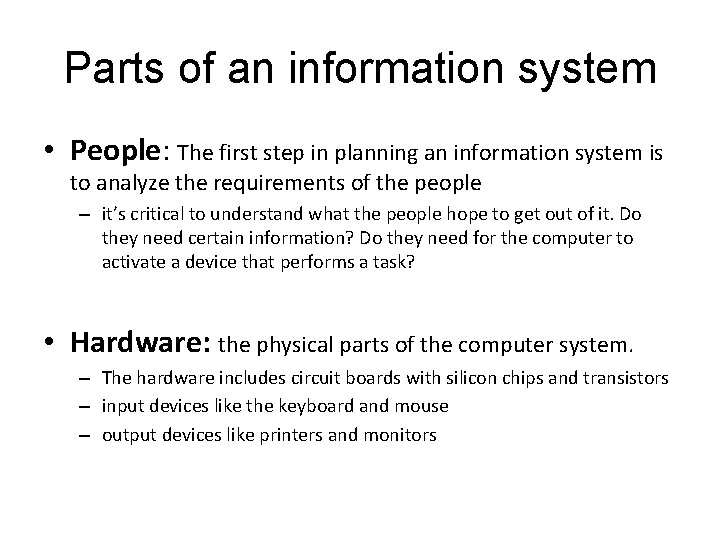

Parts of an information system • People: The first step in planning an information system is to analyze the requirements of the people – it’s critical to understand what the people hope to get out of it. Do they need certain information? Do they need for the computer to activate a device that performs a task? • Hardware: the physical parts of the computer system. – The hardware includes circuit boards with silicon chips and transistors – input devices like the keyboard and mouse – output devices like printers and monitors

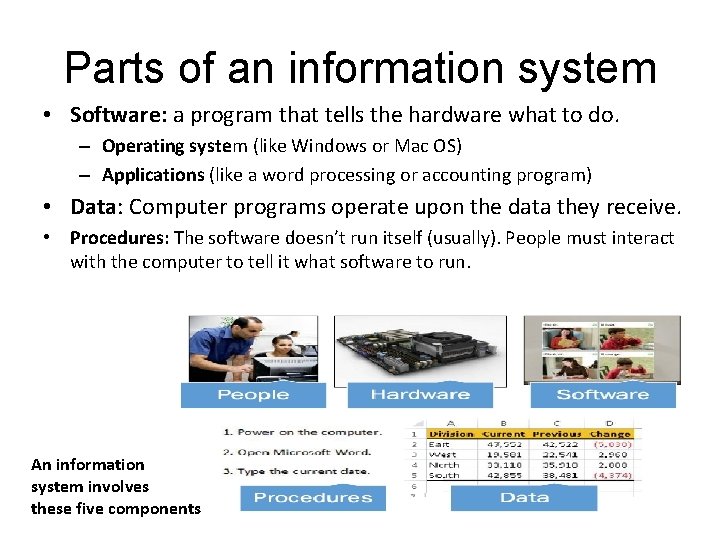

Parts of an information system • Software: a program that tells the hardware what to do. – Operating system (like Windows or Mac OS) – Applications (like a word processing or accounting program) • Data: Computer programs operate upon the data they receive. • Procedures: The software doesn’t run itself (usually). People must interact with the computer to tell it what software to run. An information system involves these five components

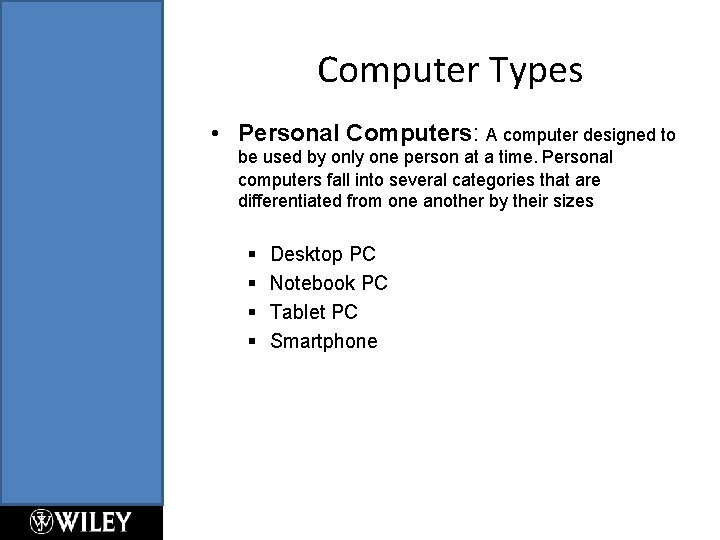

Computer Types • Personal Computers: A computer designed to be used by only one person at a time. Personal computers fall into several categories that are differentiated from one another by their sizes § § Desktop PC Notebook PC Tablet PC Smartphone

Personal Computers § Desktop PC • A computer designed to be set up at a desk and not often moved, with input and output devices separate from the system unit. • System unit, separate monitor, keyboard, mouse • System unit : The main part of the computer, containing the essential components Desktop PC § Tablet PC: Slate design, touch screen, no separate keyboard, mouse, or monitor, designed for easy portability A tablet computer is a touch sensitive slate

Personal Computers § Notebook PC: A portable PC where the screen and keyboard fold up against one another for storage and transport; also known as a laptop • built-in screen, keyboard, and pointing device • pointing device An input device such as a mouse or touchpad that enables users to move an onscreen pointer to select content and issue commands. • Netbook A smaller version of notebook PC designed primarily for accessing the Internet. A notebook PC has a built-in monitor, keyboard, pointing device (touchpad) § Smartphone: A mobile phone that can run computer applications and has Internet access capability • • touch-sensitive screen, provide voice calls, text messaging, Internet access and global positioning system (GPS) Global Positioning System (GPS) A device that determines your current position by communicating with an orbiting satellite and provides maps and driving directions A smartphone combines capabilities of cell phone a small touch-sensitive tablet screen

Computer Types § Multi-User Computers: designed to serve groups of people, from a small office to a huge international enterprise § Server § Mainframe § Supercomputer IBM Blue Gene/P supercomputer A mainframe , a powerful business computer system

Multi-User Computers § Server • • • Serves and supports a network Managing files, printers, or email for multiple users Provides centrally accessible storage space Shares printers Does not directly provide processing power to clients • Server Farm A group of servers located in the same physical area § Mainframe • Collects large amounts of business data • Provides processing support to terminals § Supercomputer • Largest and most powerful type of computer available • Used in research and academics.

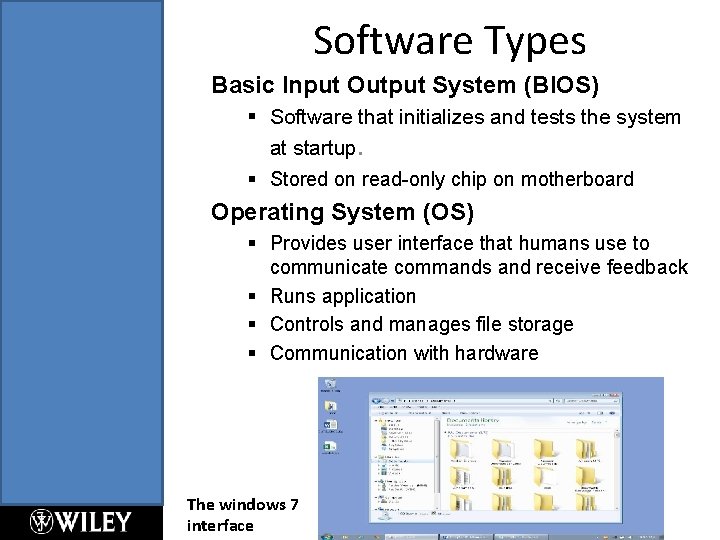

Software Types Basic Input Output System (BIOS) § Software that initializes and tests the system at startup. § Stored on read-only chip on motherboard Operating System (OS) § Provides user interface that humans use to communicate commands and receive feedback § Runs application § Controls and manages file storage § Communication with hardware The windows 7 interface

Software Types Utilities • Software that performs some useful service to the operating system, such as optimizing or correcting the file storage system, backing up files, or ensuring security or privacy Application Software • • Software that helps a human perform a useful task for work or play Productivity tools, graphics, games, multimedia • Productivity Software: Software that helps a human perform one or more business or personal enrichment tasks such as Microsoft Office • Microsoft Office: A productivity suite of applications commonly used in businesses for word processing, spreadsheets, databases, presentation, and email • Suite A group of applications designed to complement each other’s capabilities and work together closely, often with a consistent interface between the applications. MS Office applications (Word, Excel, PP) sharing a common interface

Information Processing Cycle • Information Processing Cycle The four-step process that data moves through as it is processed by a computer The information processing cycle

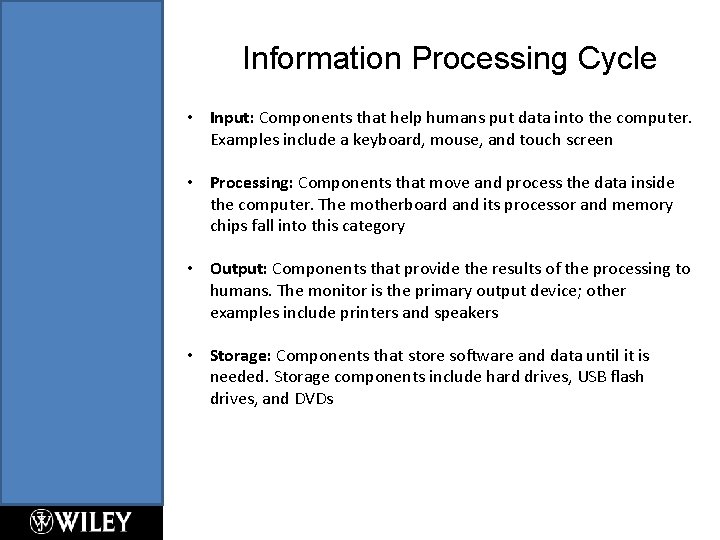

Information Processing Cycle • Input: Components that help humans put data into the computer. Examples include a keyboard, mouse, and touch screen • Processing: Components that move and process the data inside the computer. The motherboard and its processor and memory chips fall into this category • Output: Components that provide the results of the processing to humans. The monitor is the primary output device; other examples include printers and speakers • Storage: Components that store software and data until it is needed. Storage components include hard drives, USB flash drives, and DVDs

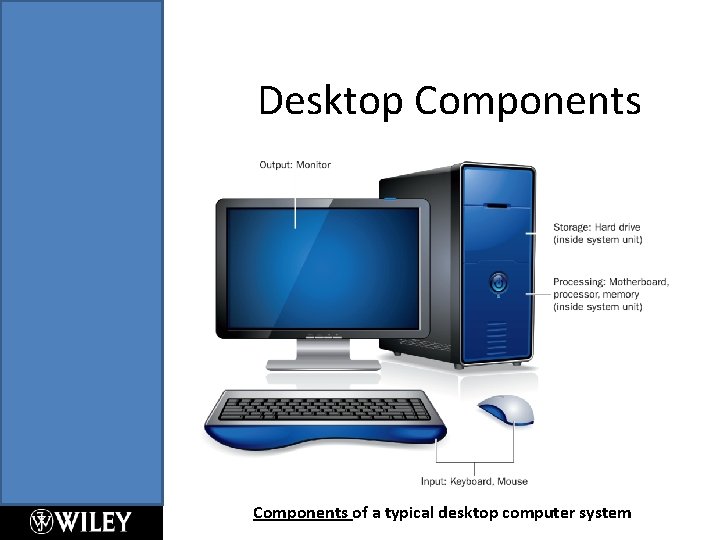

Desktop Components of a typical desktop computer system

How Data is Represented Computers combine eight binary digits (bits) to make a byte

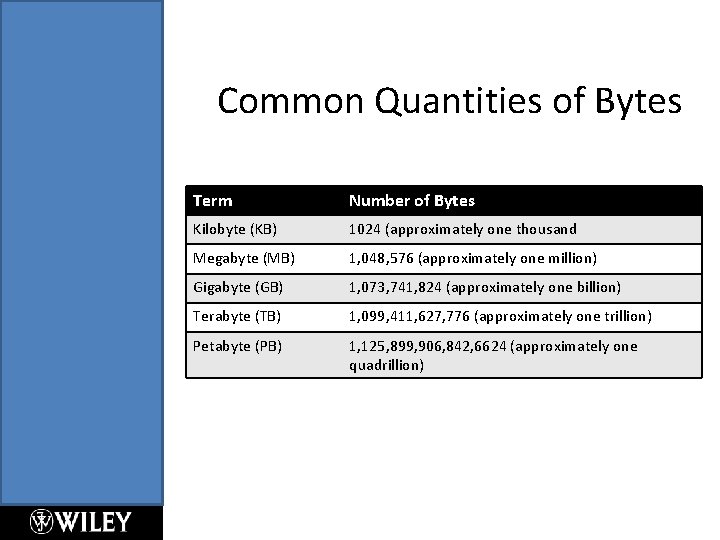

Common Quantities of Bytes Term Number of Bytes Kilobyte (KB) 1024 (approximately one thousand Megabyte (MB) 1, 048, 576 (approximately one million) Gigabyte (GB) 1, 073, 741, 824 (approximately one billion) Terabyte (TB) 1, 099, 411, 627, 776 (approximately one trillion) Petabyte (PB) 1, 125, 899, 906, 842, 6624 (approximately one quadrillion)

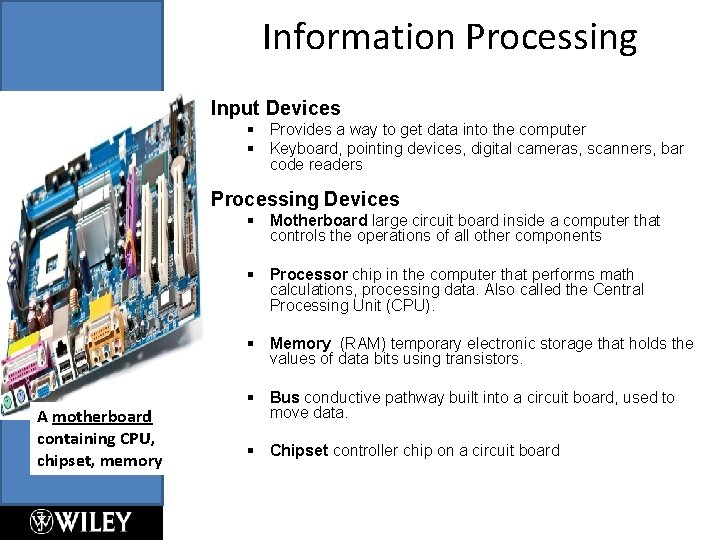

Information Processing Input Devices § Provides a way to get data into the computer § Keyboard, pointing devices, digital cameras, scanners, bar code readers Processing Devices § Motherboard large circuit board inside a computer that controls the operations of all other components § Processor chip in the computer that performs math calculations, processing data. Also called the Central Processing Unit (CPU). § Memory (RAM) temporary electronic storage that holds the values of data bits using transistors. A motherboard containing CPU, chipset, memory § Bus conductive pathway built into a circuit board, used to move data. § Chipset controller chip on a circuit board

Information Processing Output Devices § Monitor, printer Storage Devices § Hard drive sealed metal box that stores computer data using either mechanical or solid-state technology § USB flash drive, CD, DVD

Ethernet Networking • Network: two or more computers connected to share data and resources • Ethernet Networking current dominant standard for local area networking devices § Wired Ethernet § Wi-Fi (IEEE 802. 11) connecting computers and other devices wirelessly Most computers have an Ethernet port • Network Adapter hardware component that enables a computer to connect to a network

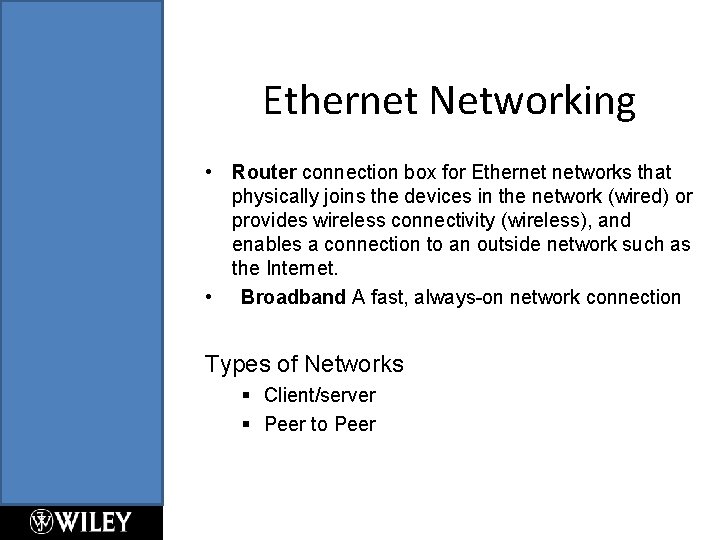

Ethernet Networking • Router connection box for Ethernet networks that physically joins the devices in the network (wired) or provides wireless connectivity (wireless), and enables a connection to an outside network such as the Internet. • Broadband A fast, always-on network connection Types of Networks § Client/server § Peer to Peer

Other Ways Computers Communicate Bluetooth § Short-range personal networking § Device connectivity Internet § World’s largest network • Internet Service Provider company that maintains a direct connection to the Internet and leases access to it to individuals and companies.

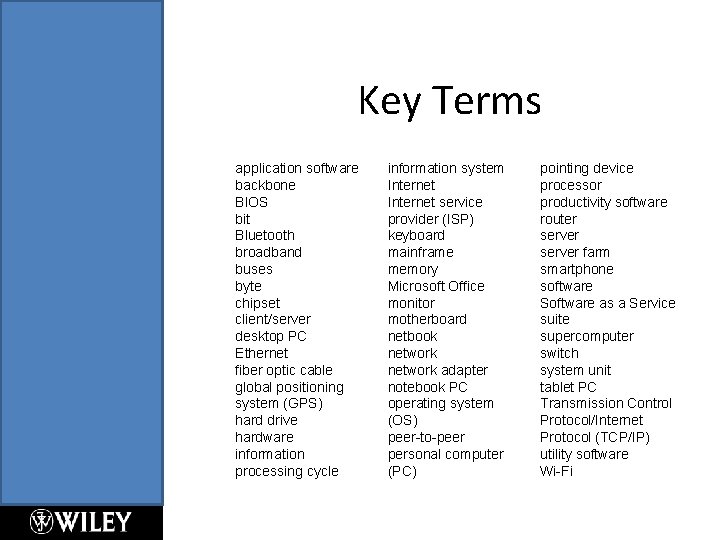

Key Terms application software backbone BIOS bit Bluetooth broadband buses byte chipset client/server desktop PC Ethernet fiber optic cable global positioning system (GPS) hard drive hardware information processing cycle information system Internet service provider (ISP) keyboard mainframe memory Microsoft Office monitor motherboard netbook network adapter notebook PC operating system (OS) peer-to-peer personal computer (PC) pointing device processor productivity software router server farm smartphone software Software as a Service suite supercomputer switch system unit tablet PC Transmission Control Protocol/Internet Protocol (TCP/IP) utility software Wi-Fi

Summary 1. What are the five parts of an information system? 2. What is the difference between a server and a mainframe? 3. What distinguishes an operating system from an application? 4. What are the four parts of the information processing cycle? 5. What is Wi-Fi and what equipment does it require?
