CHAPTER 1 BASIC CONCEPT All the programs in this file are selected from Ellis Horowitz, Sartaj Sahni, and Susan Anderson-Freed “Fundamentals of Data Structures in C”, Computer Science Press, 1992. CHAPTER 1 1
How to create programs l l l Requirements: What inputs, functions, and outputs Analysis: bottom-up vs. top-down Design: data objects and operations Refinement and Coding Verification ¡ ¡ ¡ Program Proving Testing Debugging CHAPTER 1 3
Algorithm Definition An algorithm is a finite set of instructions that accomplishes a particular task. l Criteria l ¡ ¡ ¡ Input: zero more quantities are externally supplied. Output: at least one quantity is produced. definiteness: clear and unambiguous finiteness: terminate after a finite number of steps effectiveness: instruction is basic enough to be carried out CHAPTER 1 4

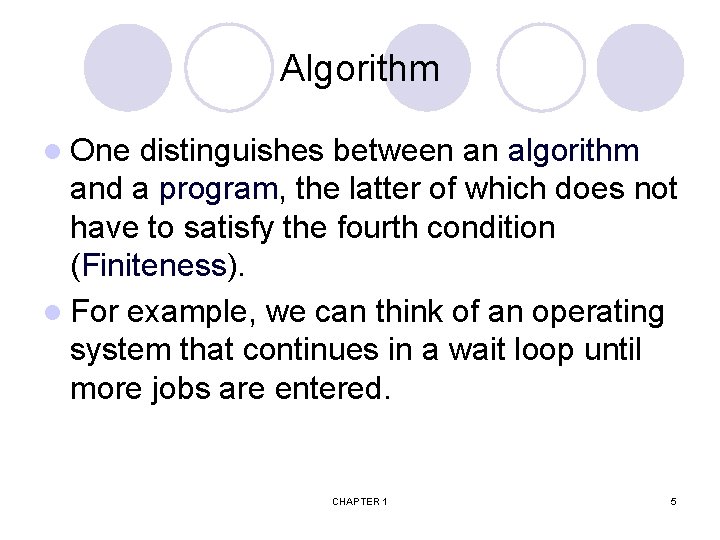

Algorithm l One distinguishes between an algorithm and a program, the latter of which does not have to satisfy the fourth condition (Finiteness). l For example, we can think of an operating system that continues in a wait loop until more jobs are entered. CHAPTER 1 5
在已排序的資料中找值 18 Sequential Search 第 7次找到 l Binary Search 第 3次找到 l 3 4 6 6 8 8 9 9 15 15 18 18 CHAPTER 1 6
Translating a Problem into an Algorithm l Problem ¡ l Solution I ¡ l Devise a program that sorts a set of n>= 1 integers From those integers that are currently unsorted, find the smallest and place it next in the sorted list Solution II for (i= 0; i< n; i++){ Examine list[i] to list[n-1] and suppose that the smallest integer is list[min]; Interchange list[i] and list[min]; } ¡ CHAPTER 1 7

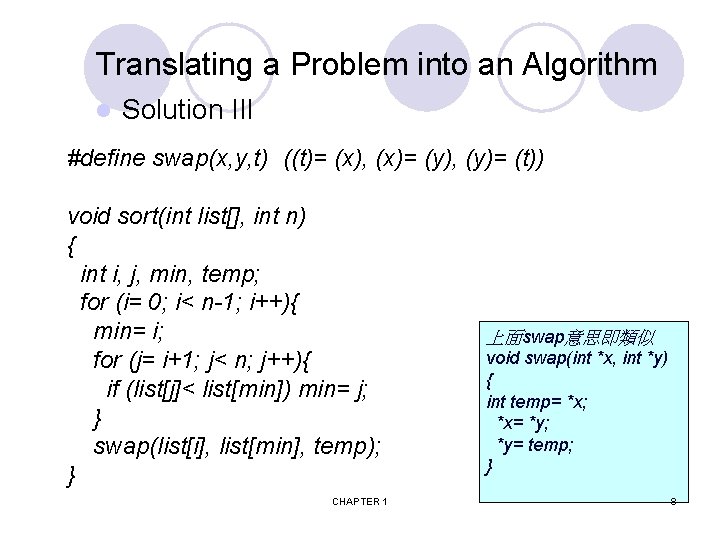

Translating a Problem into an Algorithm l Solution III #define swap(x, y, t) ((t)= (x), (x)= (y), (y)= (t)) void sort(int list[], int n) { int i, j, min, temp; for (i= 0; i< n-1; i++){ min= i; for (j= i+1; j< n; j++){ if (list[j]< list[min]) min= j; } swap(list[i], list[min], temp); } CHAPTER 1 上面swap意思即類似 void swap(int *x, int *y) { int temp= *x; *x= *y; *y= temp; } 8

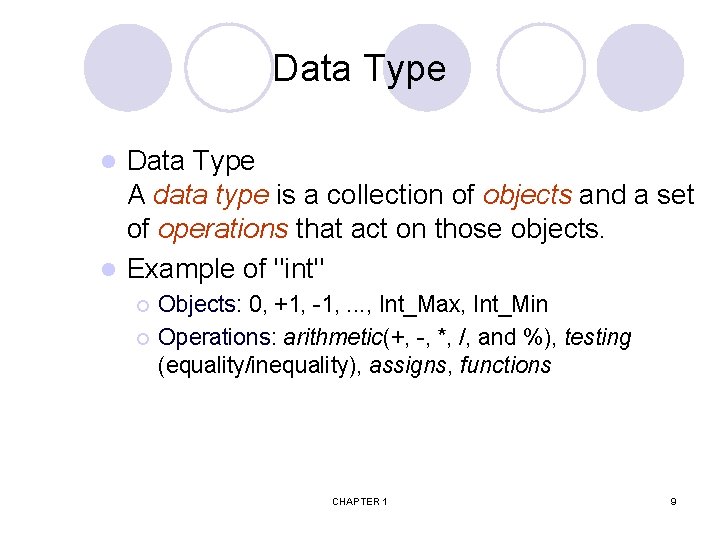

Data Type A data type is a collection of objects and a set of operations that act on those objects. l Example of "int" l ¡ ¡ Objects: 0, +1, -1, . . . , Int_Max, Int_Min Operations: arithmetic(+, -, *, /, and %), testing (equality/inequality), assigns, functions CHAPTER 1 9
Abstract Data Type An abstract data type (ADT) is a data type that is organized in such a way that the specification of the objects and the operations on the objects is separated from the representation of the objects and the implementation of the operations. l ADT Operations — only the operation name and its parameters are visible to the user — through interface l Why abstract data type ? l ¡ implementation-independent 不管如何(How)作,只管作了什麼(What) l Abstraction is … l ¡ Generalization of operations with unspecified implementation CHAPTER 1 11
Abstract data type model CHAPTER 1 12
Classifying the Functions of a Data Type Creator/constructor ¡ Create a new instance of the designated type l Transformers ¡ Also create an instance of the designated type by using one or more other instances l Observers/reporters ¡ Provide information about an instance of the type, but they do not change the instance l CHAPTER 1 13
*Structure 1. 1: Abstract data type Natural_Number (p. 17) structure Natural_Number is (denoted by Nat_No) objects: an ordered subrange of the integers starting at zero and ending at the maximum integer (INT_MAX) on the computer functions: Creator for all x, y Nat_Number; TRUE, FALSE Boolean and where +, -, <, and == are the usual integer operations. Nat_No Zero ( ) : : = 0 Boolean Is_Zero(x) : : = if (x) return FALSE else return TRUE Observer Nat_No Add(x, y) : : = if ((x+y) <= INT_MAX) return x+y else return INT_MAX Boolean Equal(x, y) : : = if (x== y) return TRUE else return FALSE Transformer Nat_No Successor(x) : : = if (x == INT_MAX) return x else return x+1 Nat_No Subtract(x, y) : : = if (x<y) return 0 else return x-y end Natural_Number CHAPTER 1 14

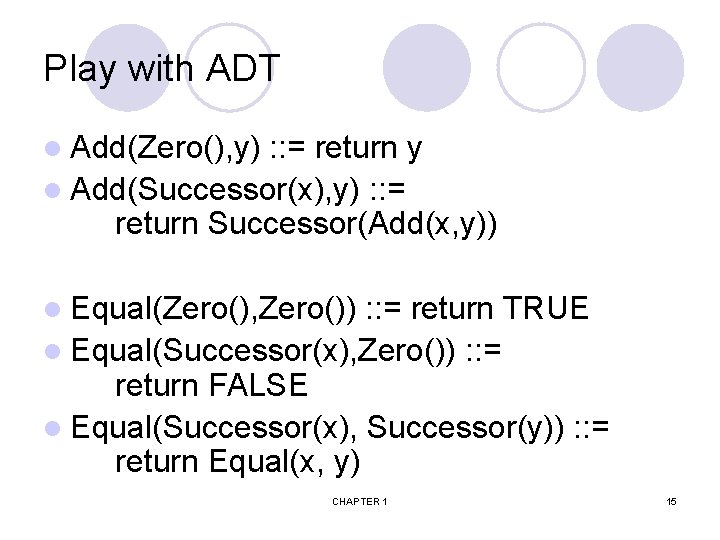

Play with ADT l Add(Zero(), y) : : = return y l Add(Successor(x), y) : : = return Successor(Add(x, y)) l Equal(Zero(), Zero()) : : = return TRUE l Equal(Successor(x), Zero()) : : = return FALSE l Equal(Successor(x), Successor(y)) : : = return Equal(x, y) CHAPTER 1 15
Play with ADT (cont’d) l 0 Zero() l 1 Successor(Zero()) l 2 Successor(Zero())) l 1 + 2 = ? ¡… l 1 + 2 == 3 ? CHAPTER 1 16
Recursive Algorithms l Direct recursion ¡ Functions call themselves l Indirect recursion ¡ Functions call other functions that invoke the calling function again l Any function that we can write using assignment, if-else, and while statements can be written recursively. CHAPTER 1 17

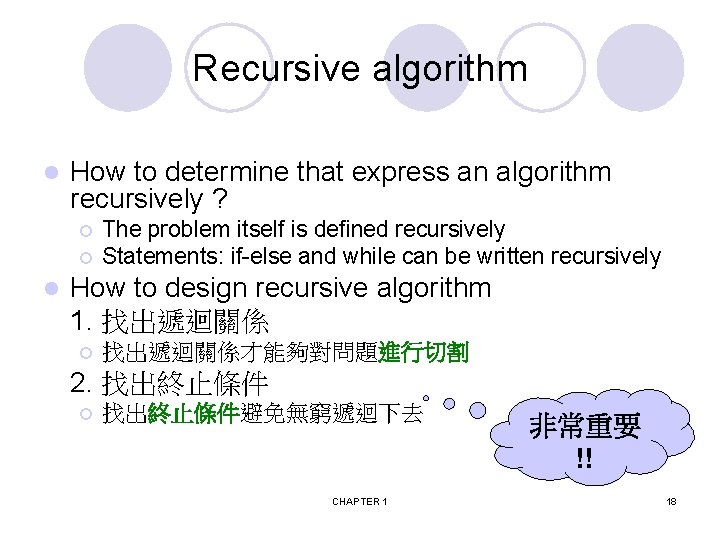

Recursive algorithm l How to determine that express an algorithm recursively ? ¡ ¡ l The problem itself is defined recursively Statements: if-else and while can be written recursively How to design recursive algorithm 1. 找出遞迴關係 ¡ 找出遞迴關係才能夠對問題進行切割 2. 找出終止條件 ¡ 找出終止條件避免無窮遞迴下去 CHAPTER 1 非常重要 !! 18
Binary Search int binsearch(int list[], int searchnum, int left, int right) {// search list[0]<= list[1]<=. . . <=list[n-1] for searchnum int middle; while (left<= right){ middle= (left+ right)/2; switch(compare(list[middle], searchnum)){ case -1: left= middle+ 1; break; int compare(int x, int y) case 0: return middle; { case 1: right= middle- 1; if (x< y) return -1; else if (x== y) return 0; } } else return 1; return -1; } } CHAPTER 1 20

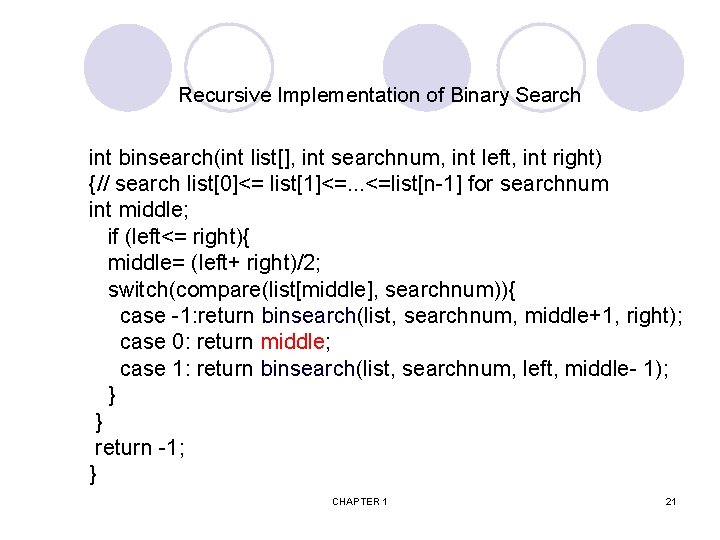

Recursive Implementation of Binary Search int binsearch(int list[], int searchnum, int left, int right) {// search list[0]<= list[1]<=. . . <=list[n-1] for searchnum int middle; if (left<= right){ middle= (left+ right)/2; switch(compare(list[middle], searchnum)){ case -1: return binsearch(list, searchnum, middle+1, right); case 0: return middle; case 1: return binsearch(list, searchnum, left, middle- 1); } } return -1; } CHAPTER 1 21

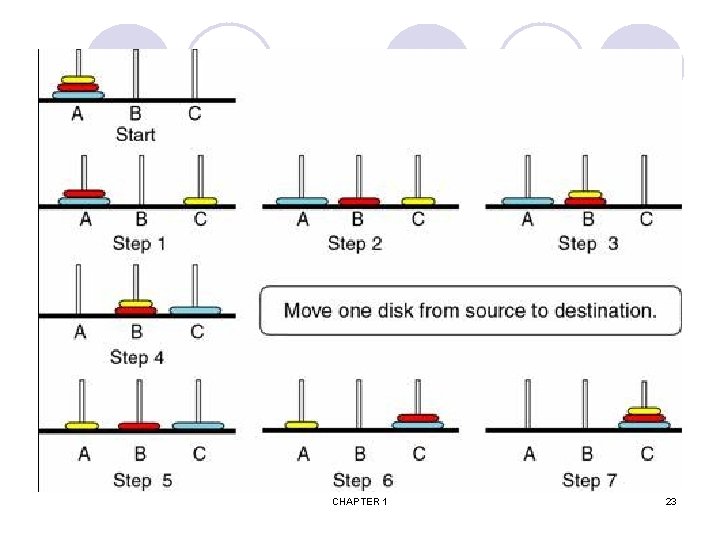

CHAPTER 1 23
河內塔程式碼 void Hanoi(int n, char x, char y, char z) { if (n > 1) { Hanoi(n-1, x, z, y); printf("Move disk %d from %c to %c. n", n, x, z); Hanoi(n-1, y, x, z); } else { printf("Move disk %d from %c to %c. n", n, x, z); } } CHAPTER 1 24
Hanoi (n , x , y , z) n=4 的結果 執行 Hanoi(3, x, z, y). 執行 Hanoi(2, x, y, z). 執行 Hanoi(1, x, z, y). 列印 Move disk 1 from x to y. 列印 Move disk 2 from x to z. 執行 Hanoi(1, y, x, z). 列印 Move disk 1 from y to z. 列印 Move disk 3 from x to y. 執行 Hanoi(2, z, x, y). 執行 Hanoi(1, z, y, x). 列印 Move disk 1 from z to x. 列印 Move disk 2 from z to y. CHAPTER 1 25
執行 Hanoi(1, x, z, y). 列印 Move disk 1 from x to y. 列印 Move disk 4 from x to z. 執行 Hanoi(3, y, x, z). 執行 Hanoi(2, y, z, x). 執行 Hanoi(1, y, x, z). 列印 Move disk 1 from y to z. 列印 Move disk 2 from y to x. 執行 Hanoi(1, z, y, x) 列印 Move disk 1 from z to x. 列印 Move disk 3 from y to z. 執行 Hanoi(2, x, y, z). 執行 Hanoi(1, x, z, y). 列印 Move disk 1 from x to y. 列印 Move disk 2 from x to z. 執行 Hanoi(1, y, x, z). 列印 Move disk 1 from y to z. CHAPTER 1 26
Performance Analysis (machine independent) l Space and Time ¡ ¡ l Does the program efficiently use primary and secondary storage? Is the program's running time acceptable for the task? Evaluate a program generally ¡ ¡ ¡ Does the program meet the original specifications of the task? Does it work correctly? Does the program contain documentation that show to use it and how it works? Does the program effectively use functions to create logical units? Is the program's code readable? CHAPTER 1 27
Performance Analysis(Cont. ) Practice l Evaluate a program Meet specifications, Work correctly, Good user-interface, Well-documentation, Readable, Effectively use functions, Running time acceptable, Efficiently use space/storage l How to achieve them? ¡ ¡ Think Good programming style, experience, and practice Discuss and think CHAPTER 1 28
S(P)= c+ Sp(I) l The space needed is the sum of ¡ l P: a program I: instance (input, output) Fixed space and Variable space Fixed space: c Includes the instructions, variables, and constants ¡ Independent of the number and size of I/O ¡ l Variable space: Sp(I) ¡ l Includes dynamic allocation, functions' recursion Total space of any program ¡ S(P)= c+ Sp(Instance) CHAPTER 1 29
*Program 1. 9: Simple arithmetic function (p. 19) float abc(float a, float b, float c) { return a + b * c + (a + b - c) / (a + b) + 4. 00; } Sabc(I) = 0 *Program 1. 10: Iterative function for summing a list of numbers (p. 20) float sum(float list[ ], int n) { float tempsum = 0; int i; for (i = 0; i<n; i++) tempsum += list [i]; return tempsum; } Ssum(I) = 0 Recall: pass the address of the first element of the array & pass by value CHAPTER 1 30

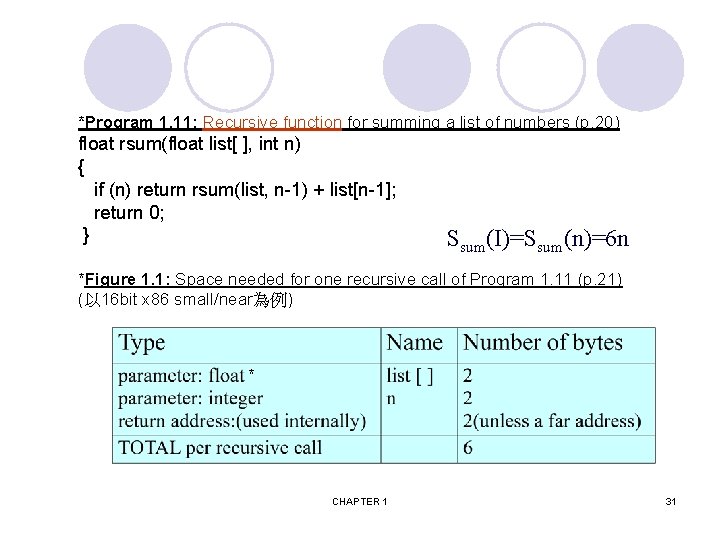

*Program 1. 11: Recursive function for summing a list of numbers (p. 20) float rsum(float list[ ], int n) { if (n) return rsum(list, n-1) + list[n-1]; return 0; } Ssum(I)=Ssum(n)=6 n *Figure 1. 1: Space needed for one recursive call of Program 1. 11 (p. 21) (以 16 bit x 86 small/near為例) * CHAPTER 1 31
Time Complexity q Total time q T(P)= compile time + run (or execution) time q May run it many times without recompilation. Run time q How to evaluate? q + - * / … (最細的估計) q Use the system clock 直接用量的比較省事 q Number of steps performed (中等的估計) q machine-independent q Instance及所費時間函數的趨勢 (粗略的估計, p. 39) q Definition of a program step q A program step is a syntactically or semantically meaningful program segment whose execution time is independent of the instance characteristics CHAPTER 1 32
Methods to compute the step count Introduce variable count into programs l Tabular method l ¡ Determine the total number of steps contributed by each statement l l ¡ steps_per_statement * frequency_for_that_statement s/e, steps/execution add up the contribution of all statements CHAPTER 1 33
Iterative summing of a list of numbers *Program 1. 12: Program 1. 10 with count statements (p. 23) float sum(float list[ ], int n) { float tempsum = 0; count++; /* for assignment */ int i; for (i = 0; i < n; i++) { count++; /*for the for loop */ tempsum += list[i]; count++; /* for assignment */ } count++; /* last execution of for */ count++; /* for return */ return tempsum; } CHAPTER 1 2 n + 3 steps 34
*Program 1. 13: Simplified version of Program 1. 12 (p. 23) float sum(float list[ ], int n) { float tempsum = 0; int i; for (i = 0; i < n; i++) count += 2; count += 3; return 0; } 2 n + 3 steps CHAPTER 1 35
Recursive summing of a list of numbers *Program 1. 14: Program 1. 11 with count statements added (p. 24) float rsum(float list[ ], int n) { count++; /*for if conditional */ if (n) { count++; /* for return and rsum invocation */ return rsum(list, n-1) + list[n-1]; } count++; return list[0]; } 2 n+2 steps CHAPTER 1 36

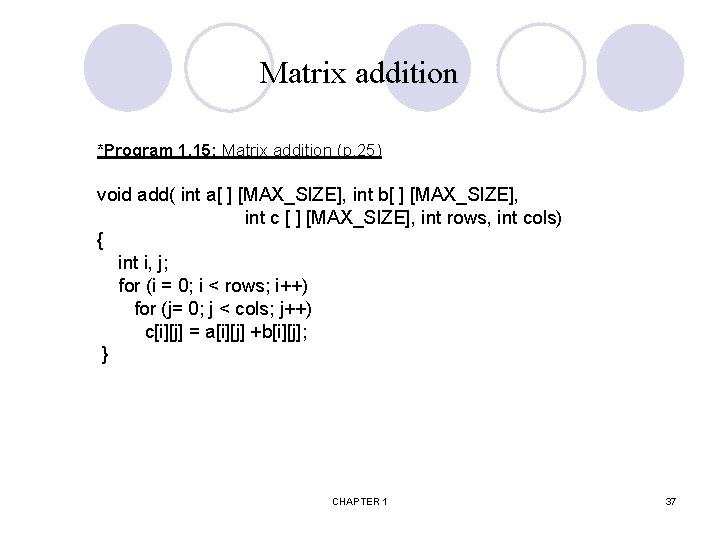

Matrix addition *Program 1. 15: Matrix addition (p. 25) void add( int a[ ] [MAX_SIZE], int b[ ] [MAX_SIZE], int c [ ] [MAX_SIZE], int rows, int cols) { int i, j; for (i = 0; i < rows; i++) for (j= 0; j < cols; j++) c[i][j] = a[i][j] +b[i][j]; } CHAPTER 1 37

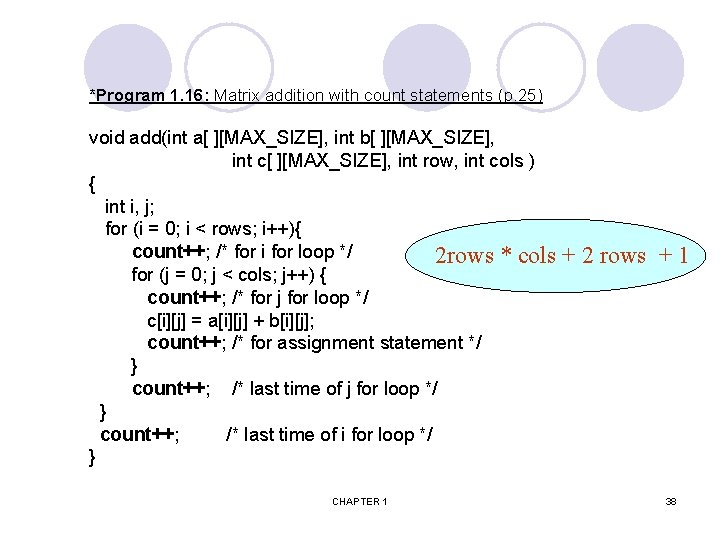

*Program 1. 16: Matrix addition with count statements (p. 25) void add(int a[ ][MAX_SIZE], int b[ ][MAX_SIZE], int c[ ][MAX_SIZE], int row, int cols ) { int i, j; for (i = 0; i < rows; i++){ count++; /* for i for loop */ 2 rows * cols for (j = 0; j < cols; j++) { count++; /* for j for loop */ c[i][j] = a[i][j] + b[i][j]; count++; /* for assignment statement */ } count++; /* last time of j for loop */ } count++; /* last time of i for loop */ } CHAPTER 1 + 2 rows + 1 38
*Program 1. 17: Simplification of Program 1. 16 (p. 26) void add(int a[ ][MAX_SIZE], int b [ ][MAX_SIZE], int c[ ][MAX_SIZE], int rows, int cols) { int i, j; for( i = 0; i < rows; i++) { for (j = 0; j < cols; j++) count += 2; } count++; 2 rows cols + 2 rows } +1 Suggestion: Interchange the loops when rows >> cols CHAPTER 1 39
Tabular Method Iterative function to sum a list of numbers *Figure 1. 2: Step count table for Program 1. 10 (p. 26) steps/execution CHAPTER 1 40

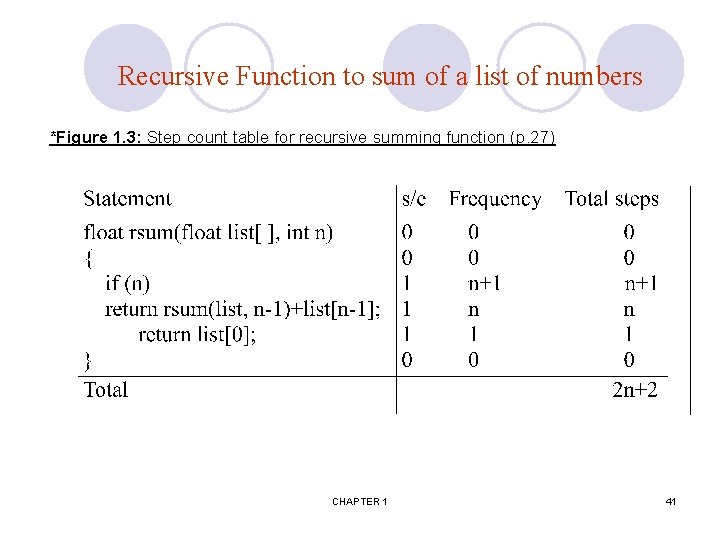

Recursive Function to sum of a list of numbers *Figure 1. 3: Step count table for recursive summing function (p. 27) CHAPTER 1 41

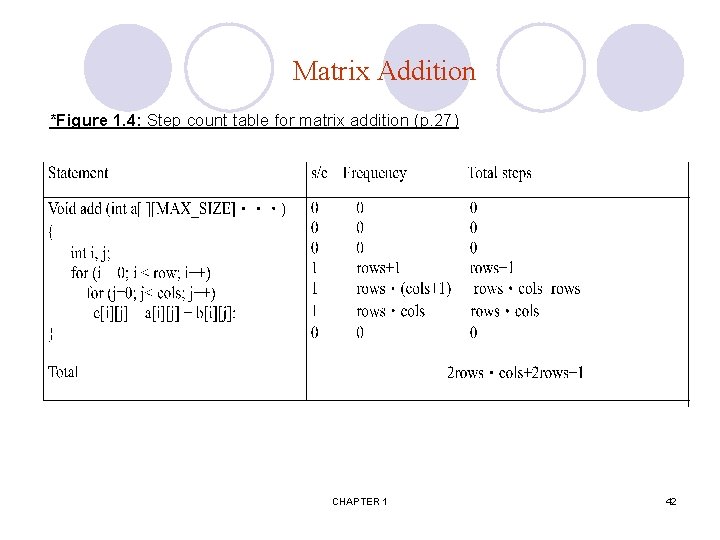

Matrix Addition *Figure 1. 4: Step count table for matrix addition (p. 27) CHAPTER 1 42

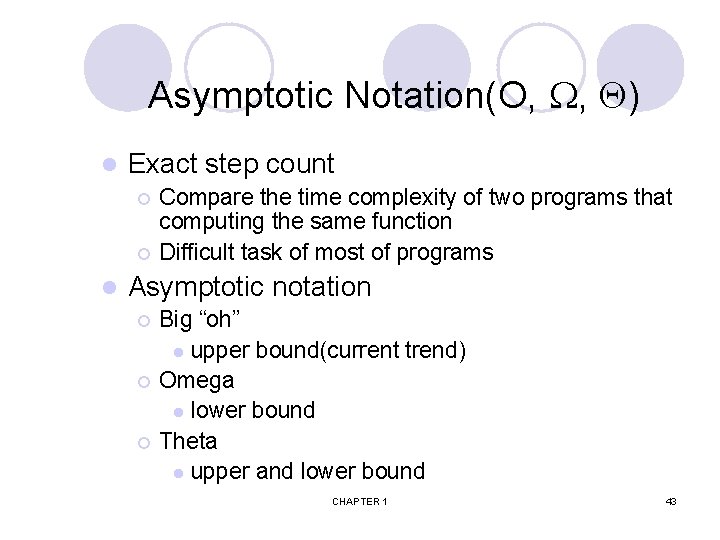

Asymptotic Notation(O, , ) l Exact step count ¡ ¡ l Compare the time complexity of two programs that computing the same function Difficult task of most of programs Asymptotic notation ¡ ¡ ¡ Big “oh” l upper bound(current trend) Omega l lower bound Theta l upper and lower bound CHAPTER 1 43
Asymptotic Notation O l Definition ¡ l Examples ¡ ¡ ¡ l f(n)= O(g(n)) iff there exist positive constants c and n 0 such that f(n)<= cg(n) for all n, n>= n 0 3 n+ 2= O(n) as 3 n+ 2<= 4 n for all n>= 2 10 n 2+ 4 n+ 2= O(n 2) as 10 n 2+ 4 n+ 2<= 11 n 2 for n>= 5 3 n+2<> O(1), 10 n 2+ 4 n+ 2<> O(n) Remarks ¡ g(n) is upper bound, the least? (估algorithm, 作答時 …) l n=O(n 2)=O(n 2. 5)= ¡ O(n 3)= O(2 n) O(1): constant, O(n): linear, O(n 2): quadratic, O(n 3): cubic, and O(2 n): exponential (各舉一例) CHAPTER 1 44

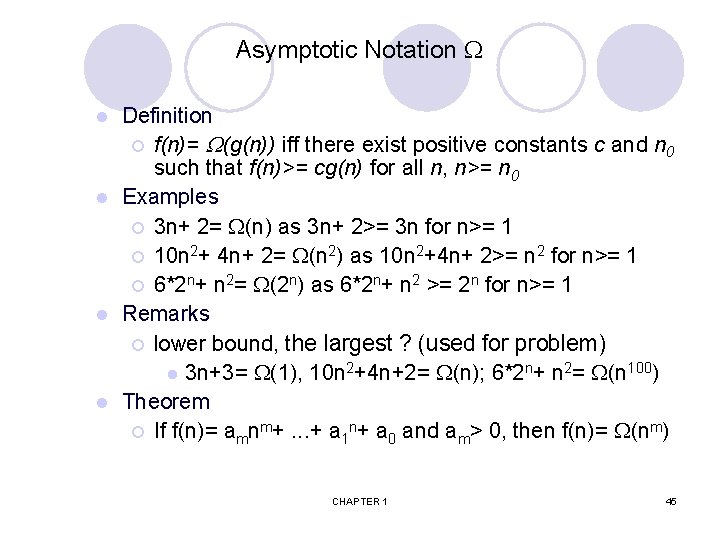

Asymptotic Notation Definition ¡ f(n)= (g(n)) iff there exist positive constants c and n 0 such that f(n)>= cg(n) for all n, n>= n 0 l Examples ¡ 3 n+ 2= (n) as 3 n+ 2>= 3 n for n>= 1 ¡ 10 n 2+ 4 n+ 2= (n 2) as 10 n 2+4 n+ 2>= n 2 for n>= 1 ¡ 6*2 n+ n 2= (2 n) as 6*2 n+ n 2 >= 2 n for n>= 1 l Remarks ¡ lower bound, the largest ? (used for problem) l 3 n+3= (1), 10 n 2+4 n+2= (n); 6*2 n+ n 2= (n 100) l Theorem ¡ If f(n)= amnm+. . . + a 1 n+ a 0 and am> 0, then f(n)= (nm) l CHAPTER 1 45
Asymptotic Notation l Definition ¡ f(n)= (g(n)) iff there exist positive constants c 1, c 2, and n 0 such that c 1 g(n)<= f(n) <= c 2 g(n) for all n, n>= n 0 l Examples ¡ ¡ l Remarks ¡ ¡ l 3 n+2= (n) as 3 n+2>=3 n for n>1 and 3 n+2<=4 n for all n>= 2 10 n 2+ 4 n+ 2= (n 2); 6*2 n+n 2= (2 n) Both an upper and lower bound 3 n+2!= (1); 10 n 2+4 n+ 2!= (n) Theorem ¡ If f(n)= amnm+. . . +a 1 n+ a 0 and am> 0, then f(n)= (nm) CHAPTER 1 46

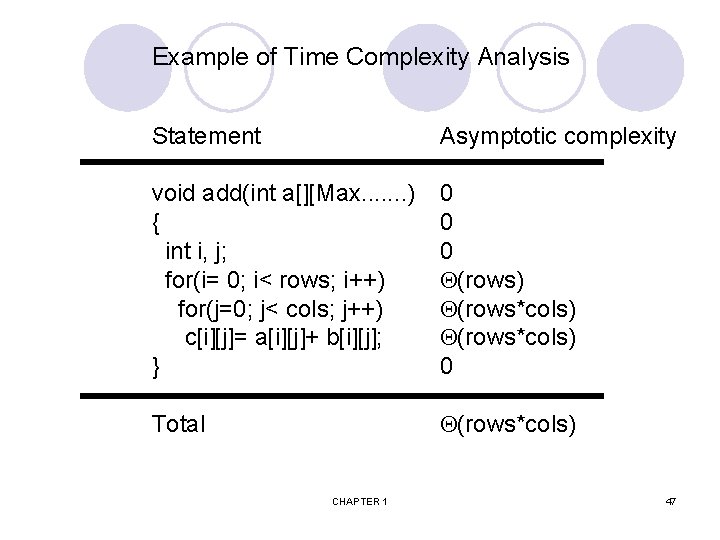

Example of Time Complexity Analysis Statement Asymptotic complexity void add(int a[][Max. . . . ) { int i, j; for(i= 0; i< rows; i++) for(j=0; j< cols; j++) c[i][j]= a[i][j]+ b[i][j]; } 0 0 0 (rows) (rows*cols) 0 Total (rows*cols) CHAPTER 1 47

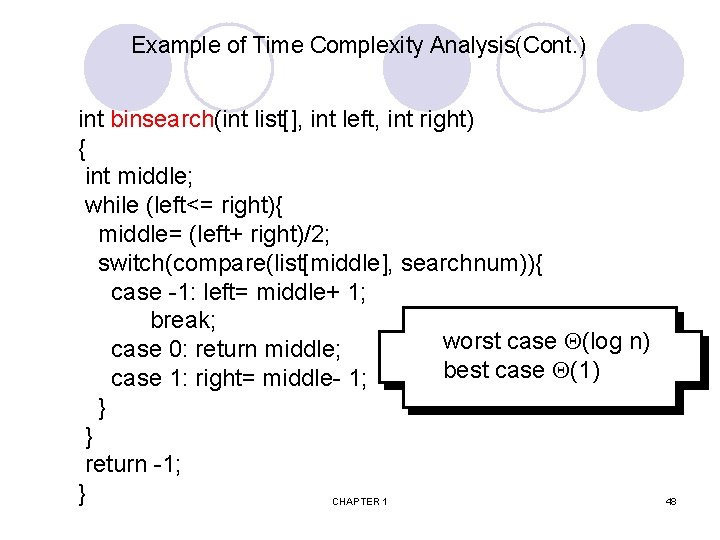

Example of Time Complexity Analysis(Cont. ) int binsearch(int list[], int left, int right) { int middle; while (left<= right){ middle= (left+ right)/2; switch(compare(list[middle], searchnum)){ case -1: left= middle+ 1; break; worst case (log n) case 0: return middle; best case (1) case 1: right= middle- 1; } } return -1; } CHAPTER 1 48

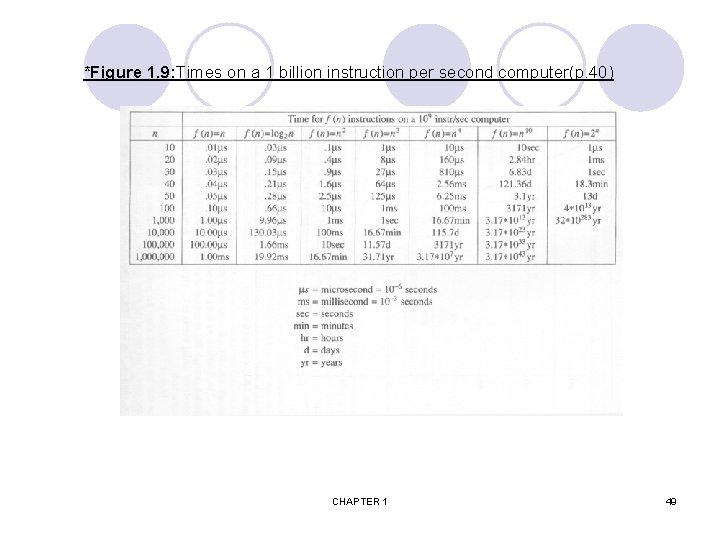

*Figure 1. 9: Times on a 1 billion instruction per second computer(p. 40) CHAPTER 1 49
*Figure 1. 8: Plot of function values(p. 39) nlogn n logn CHAPTER 1 50
Performance Measurement (machine dependent) ¡ ¡ 注意: 一般常以 average case 和 worst case 來討論 (真的要怎麼作? ) l Estimate average case : 用隨機的測試資料, 取結果的平均時間 l Estimate worst case : 用隨機的測試資料, 取結果的最大時間 There actually two different methods for timing events in C. l l Figure 1. 10 shows the major differences between these two methods. Method 1 uses clock to time events. This function gives the amount of processor time that has elapsed since the program began running. Method 2 uses time to time events. This function returns the time, measured in seconds, as the built-in type time_t. The exact syntax of the timing functions varies from computer to computer and also depends on the operating system and compiler in use. Method 1 Figure 1. 10 Start timing start=clock(); start=time(NULL); Stop timing stop=clock(); stop=time(NULL); Type returned clock_t time_t Result in seconds duration=((double)(stopstart)/CLK_TCK; duration=(double)difftime(st op, start); CHAPTER 1 CLOCKS_PER_ SEC Method 2 51
