Chapter 1 -2: Measurements in Physics

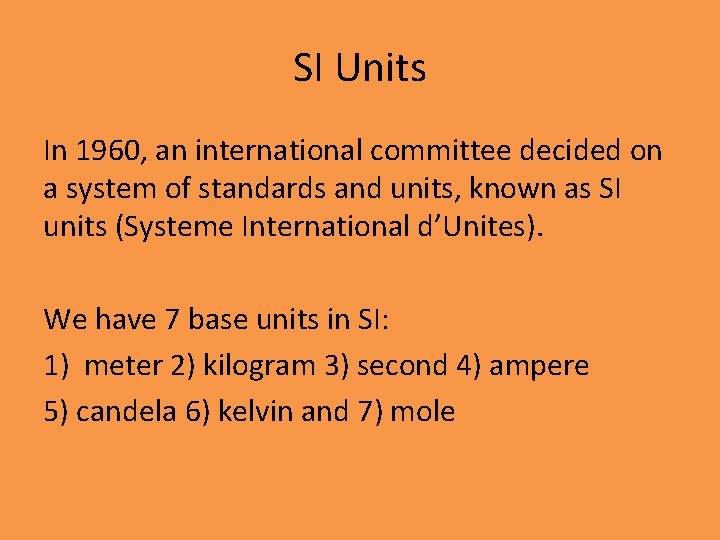

SI Units In 1960, an international committee decided on a system of standards and units, known as SI units (Systeme International d’Unites). We have 7 base units in SI: 1) meter 2) kilogram 3) second 4) ampere 5) candela 6) kelvin and 7) mole

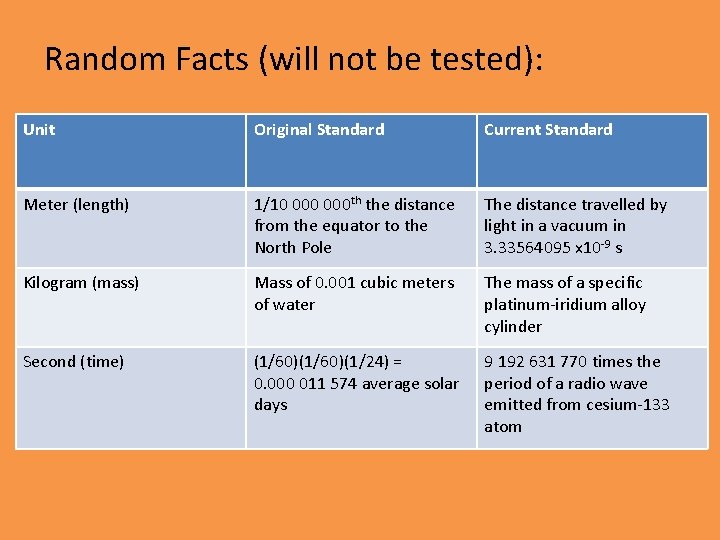

Random Facts (will not be tested): Unit Original Standard Current Standard Meter (length) 1/10 000 th the distance from the equator to the North Pole The distance travelled by light in a vacuum in 3. 33564095 x 10 -9 s Kilogram (mass) Mass of 0. 001 cubic meters of water The mass of a specific platinum-iridium alloy cylinder Second (time) (1/60)(1/24) = 0. 000 011 574 average solar days 9 192 631 770 times the period of a radio wave emitted from cesium-133 atom

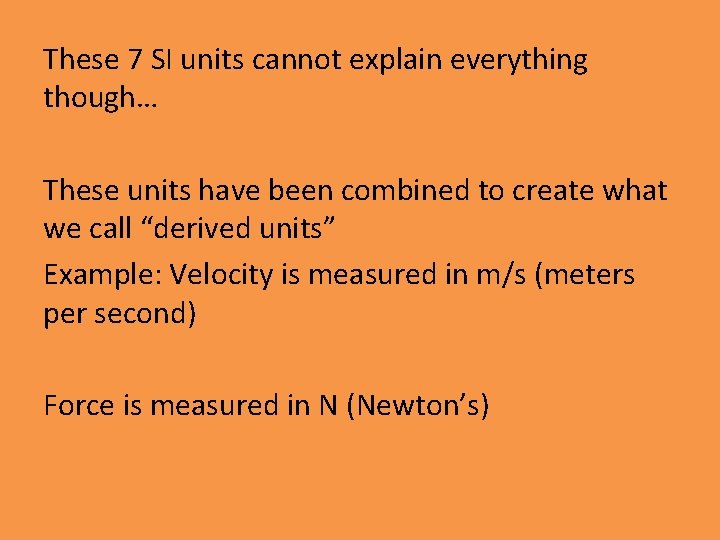

These 7 SI units cannot explain everything though… These units have been combined to create what we call “derived units” Example: Velocity is measured in m/s (meters per second) Force is measured in N (Newton’s)

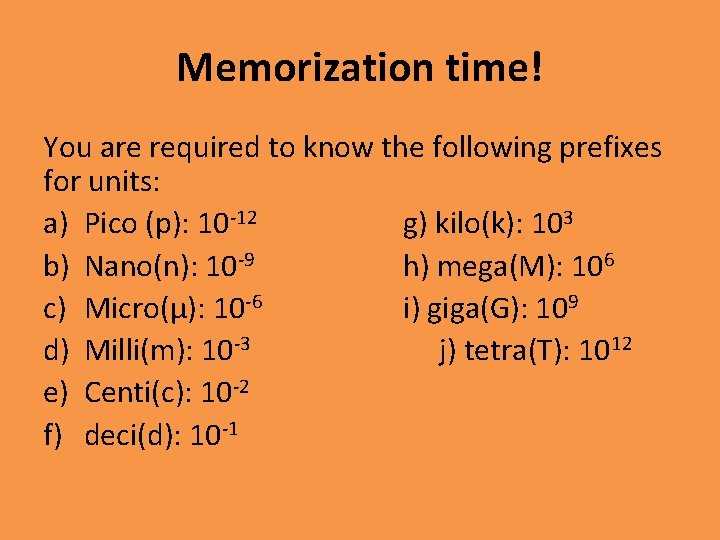

Memorization time! You are required to know the following prefixes for units: a) Pico (p): 10 -12 g) kilo(k): 103 b) Nano(n): 10 -9 h) mega(M): 106 c) Micro(μ): 10 -6 i) giga(G): 109 d) Milli(m): 10 -3 j) tetra(T): 1012 e) Centi(c): 10 -2 f) deci(d): 10 -1

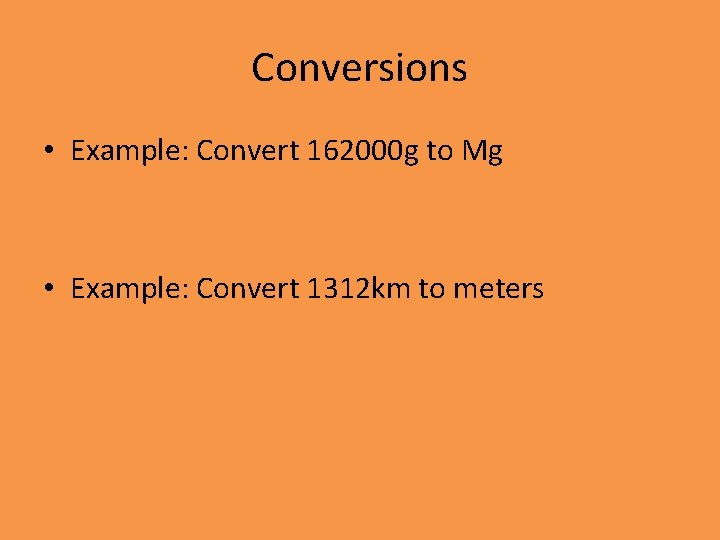

Conversions • Example: Convert 162000 g to Mg • Example: Convert 1312 km to meters

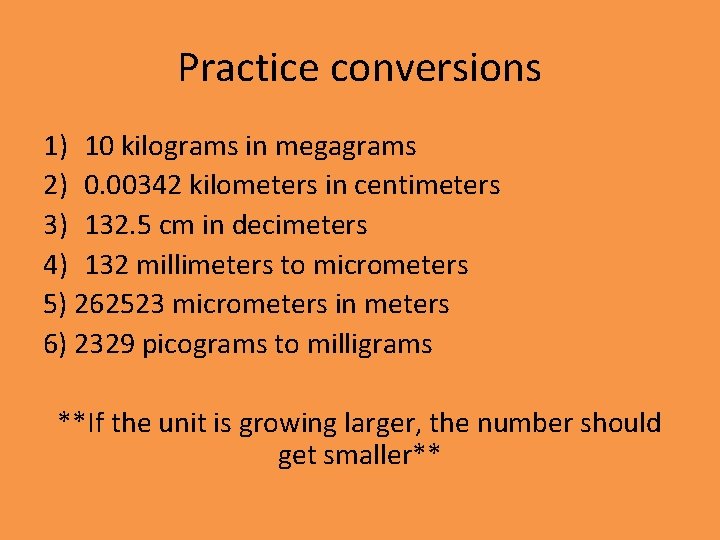

Practice conversions 1) 10 kilograms in megagrams 2) 0. 00342 kilometers in centimeters 3) 132. 5 cm in decimeters 4) 132 millimeters to micrometers 5) 262523 micrometers in meters 6) 2329 picograms to milligrams **If the unit is growing larger, the number should get smaller**

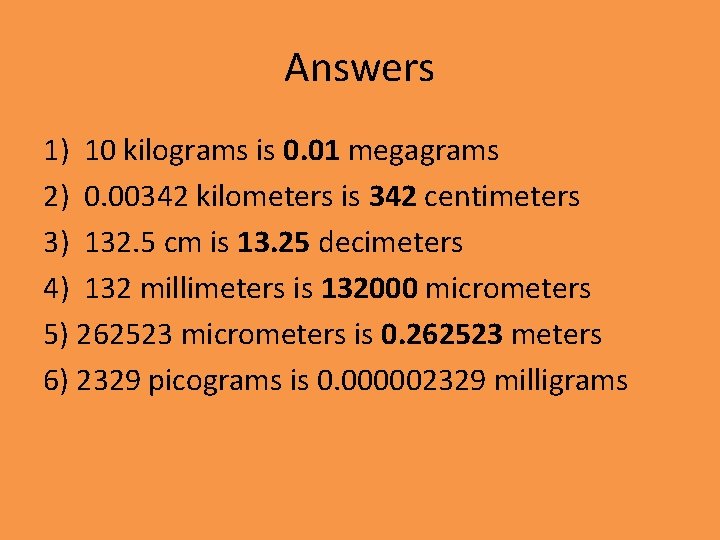

Answers 1) 10 kilograms is 0. 01 megagrams 2) 0. 00342 kilometers is 342 centimeters 3) 132. 5 cm is 13. 25 decimeters 4) 132 millimeters is 132000 micrometers 5) 262523 micrometers is 0. 262523 meters 6) 2329 picograms is 0. 000002329 milligrams

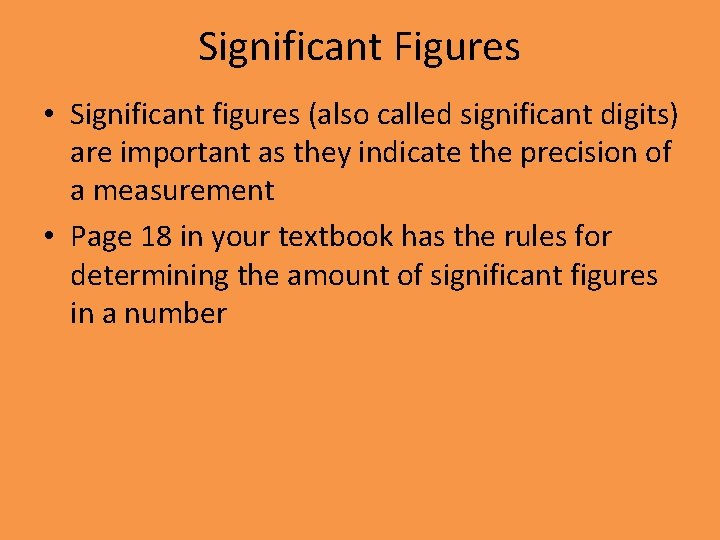

Significant Figures • Significant figures (also called significant digits) are important as they indicate the precision of a measurement • Page 18 in your textbook has the rules for determining the amount of significant figures in a number

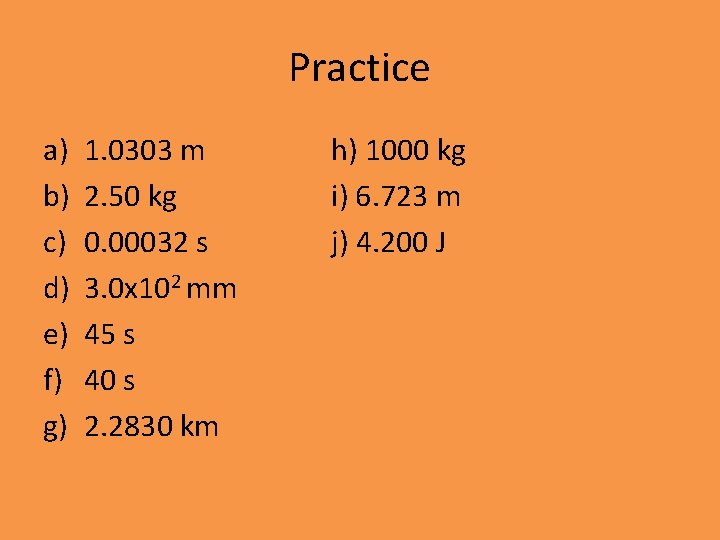

Practice a) b) c) d) e) f) g) 1. 0303 m 2. 50 kg 0. 00032 s 3. 0 x 102 mm 45 s 40 s 2. 2830 km h) 1000 kg i) 6. 723 m j) 4. 200 J

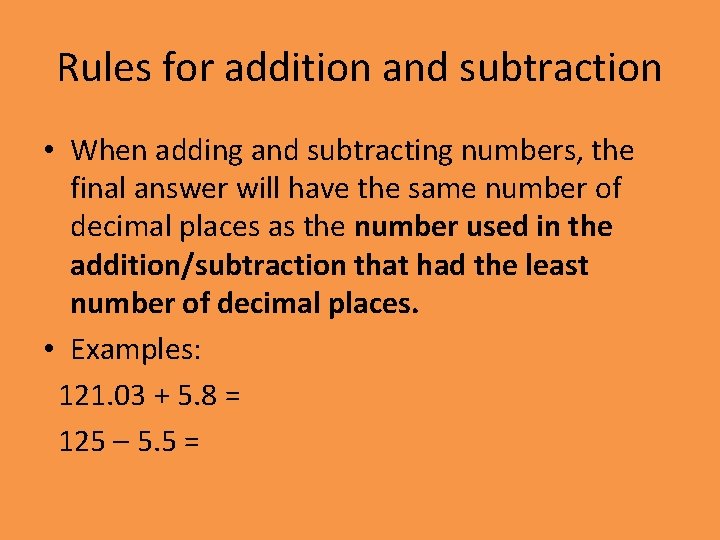

Rules for addition and subtraction • When adding and subtracting numbers, the final answer will have the same number of decimal places as the number used in the addition/subtraction that had the least number of decimal places. • Examples: 121. 03 + 5. 8 = 125 – 5. 5 =

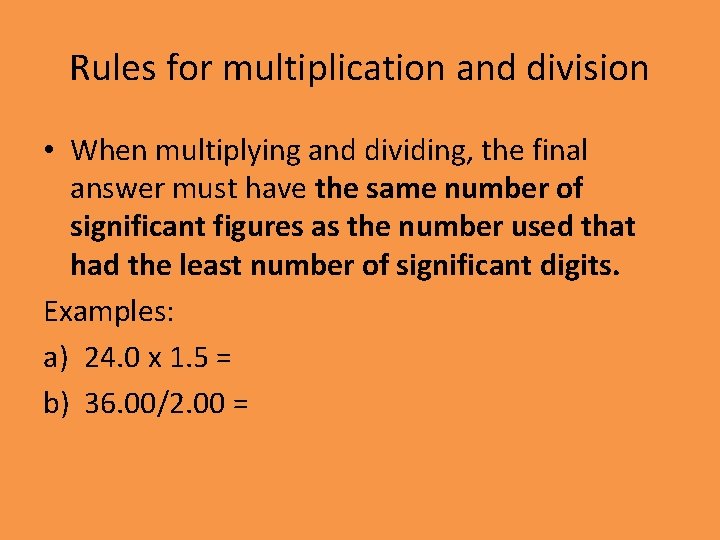

Rules for multiplication and division • When multiplying and dividing, the final answer must have the same number of significant figures as the number used that had the least number of significant digits. Examples: a) 24. 0 x 1. 5 = b) 36. 00/2. 00 =

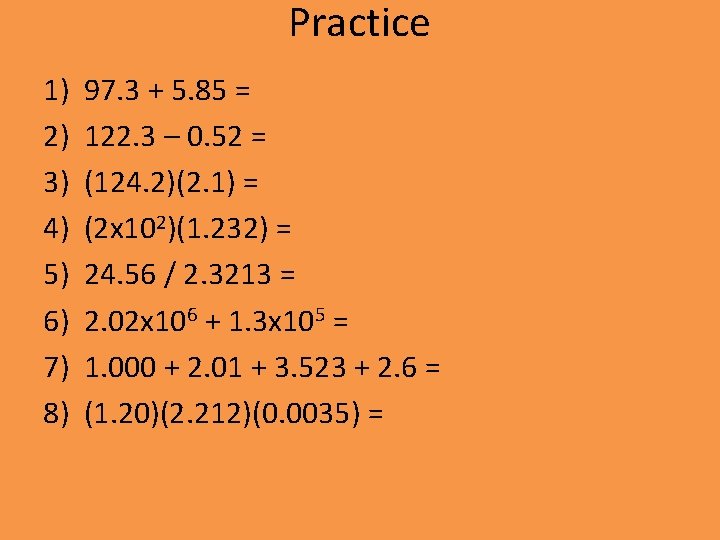

Practice 1) 2) 3) 4) 5) 6) 7) 8) 97. 3 + 5. 85 = 122. 3 – 0. 52 = (124. 2)(2. 1) = (2 x 102)(1. 232) = 24. 56 / 2. 3213 = 2. 02 x 106 + 1. 3 x 105 = 1. 000 + 2. 01 + 3. 523 + 2. 6 = (1. 20)(2. 212)(0. 0035) =
