GE’s Platform Summary MDS Orbit Platform What is it? The MDS Orbit platform is the next generation wireless communications solution integrating a range of technologies, from cellular to private, and licensed to unlicensed, supporting customers’ needs for secure private, public and hybrid communications networks. GE’s Differentiated Value Proposition • The MDS Orbit platform provides a comprehensive security framework enabling • customers to meet their current and future standards. Networking capabilities extend and simplify the communications infrastructure. Meeting the needs for functional and application • flexibility and ease of use, the MDS Orbit platform of products provides consistent packaging and configuration to streamline engineering, operations, supply chain and support. Comprehensive Security Framework • Secure the device • Secure the user • Secure the network Advanced “System” Performance • Deterministic application performance (Qo. S) • Enable convergent networks Ease of Use & Integration • Quickly create & scale hybrid networks • Integrate private to public communications • Multiple interface and enclosure options for harsh environments • Flexible interface options 2 GE Title or job number 5/25/2021

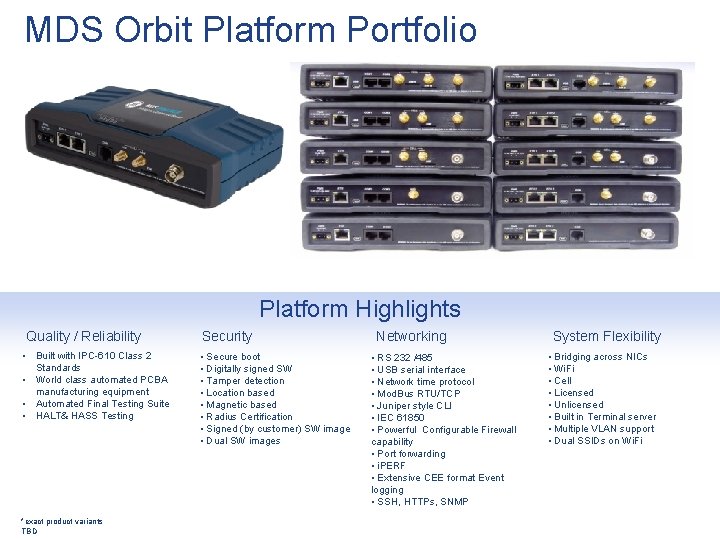

MDS Orbit Platform Portfolio Platform Highlights Quality / Reliability • Built with IPC-610 Class 2 Standards • World class automated PCBA manufacturing equipment • Automated Final Testing Suite • HALT& HASS Testing *exact product variants TBD Security • Secure boot • Digitally signed SW • Tamper detection • Location based • Magnetic based • Radius Certification • Signed (by customer) SW image • Dual SW images Networking • RS 232 /485 • USB serial interface • Network time protocol • Mod. Bus RTU/TCP • Juniper style CLI • IEC 61850 • Powerful Configurable Firewall capability • Port forwarding • i. PERF • Extensive CEE format Event logging • SSH, HTTPs, SNMP System Flexibility • Bridging across NICs • Wi. Fi • Cell • Licensed • Unlicensed • Built in Terminal server • Multiple VLAN support • Dual SSIDs on Wi. Fi
MDS Orbit Platform Overview Superior Reliability • Ruggedized die-cast aluminum enclosure provides enhanced thermal dissipation for extended reliability Comprehensive Security • Industry leading, standards-based security controls providing authentication, integrity, and confidentiality through strong cryptographic algorithms Multiple communication technologies • Designed to support global private and public communication networks enabling hybrid wireless solutions Powerful Networking • Adaptable to different network designs and topologies by providing bridging, routing, firewall and VLAN capabilities lowering cost of network installation and maintenance Flexible Interface Combinations • Multiple interface options (Ethernet, serial) provides flexibility to match specific application needs and equipment Advanced System Performance • Quality of Service (Qo. S) through traffic prioritization minimizes latency and provides deterministic application performance Page 4 GE Internal & Confidential – Commercialization Plan Judy Le. Strange
GE Digital Energy Orbit Distribu. Tech Demo 900 Mhz Distribution Substation Wind Farm Control Center Handheld Demo Large Display Monitor Live Control Center Camera Wi. Fi Wi. F IP Camera 900 Mhz i D 400 HMI 900 Mhz ORBIT 900 D 400 HMI Camera View IXIA Iexplorer App dash ORBIT 900 F 60 Ethernet 4 G Internet D 400 Abused ORBIT 4 G IXIA Traffic Simulator Internet Remote Demo Feed IXIA Traffic Generat or
Application Example Page GE Internal & Confidential – Commercialization Plan… Judy Lestrange
TM TM MDS Wi. YZ Orbit Secure Communications Framework • • • Operational Security Administrative Security Development Security Access Control Secure device management Secure development Authentication Certificate management Secure firmware Data plane security Audit and logging Vulnerability tracking Username/password login Role based access control EAP-TLS authentication IPsec VPN Stateful Packet Inspection • • • SSH, HTTPS, Netconf Complete certificate services Multi-tier PKI integration Extensive event logging Syslog-over TLS GE Internal • Secure coding practices • Third party testing • Digitally signed firmware
Simplifying the Edge • Built-in firewall eliminates need for a separate firewall, such as a Cisco ASA, at edge • 2 Ethernet ports eliminates need for an external switch when two ports is sufficient • Routing, port forwarding, and NAT capability eliminates need for an external router • Terminal server with TCP/UDP encapsulation eliminates a separate terminal server device to reach legacy serial devices • Wi. Fi Access Point functionality with dual SSID support eliminates need for standalone Wi. Fi access point Wi. Fi Access Point GE Internal Cisco ASA firewall Ethernet switch Serial terminal server 8 Orbit MCR Product Overview 5/25/2021
MCR-900 - Overview • Similar to Trans. NET/Entra. NET/i. NET, but not backwards compatible • Operates in the 902 -928 MHz ISM Band • Multiple Topologies • Point-to-Point, Point-to-Multipoint, Store-and-Forward • Medium Speed: • 125 kbps, 250 kbps, 500 kbps, 1 Mbps, 1. 25 Mbps • Long Range: • > 20 miles • Same NIC hardware supports operating in all modes: • Access Point • Station • Store-and-Forward up to 8 hops • Power Output • 20 d. Bm to 30 d. Bm in 1 d. Bm steps Page 9 23 December 2011
900 MHz ISM Details 902 to 928 MHz ISM band operation Point to multipoint with Store-and-forward abilities 20 to 30 d. Bm transmit power Five modulation rate / bandwidth combinations: Mode Rate (kbps) Channels Modulation RF bandwidth 125 FHSS 125 80 2 -GFSK 152 k. Hz (20 d. B) 250 FHSS 250 80 2 -GFSK 300 k. Hz (20 d. B) 500 DTS 500 80 2 -GFSK 505 k. Hz (6 d. B) 1000 DTS 1000 80 4 -GFSK 680 k. Hz (6 d. B) 1250 DTS 1250 80 4 -GFSK 1320 k. Hz (6 d. B) Selectable channel usage over 80 channels, 16 zones GE Internal Page 10 23 December 2011
900 MHz ISM Details 10 to 400 msec dwell time to deliver low roundtrip latency Qo. S with high/medium/low priority and extensive traffic classification Confidentiality with 128 -bit and 256 -bit AES encryption Store and forward (repeater) operation GE Internal Page 11 23 December 2011
Physical / Environmental Cast aluminum enclosure Power input 10 to 60 VDC Power consumption • 4 watts average (20% duty cycle) • 3 watts in receive • 8 watts peak Class 1 / Div 2 certified IEEE 1613 substation approved GE Internal 12 Orbit MCR Product Overview 5/25/2021
Integrated DIN Rail Mount Utility value/MM customers
