AUTOMATIC FARE COLLECTION -Changes noticed as soon as they come -Used to be focused on single operators -Currently focused to meet regional mobility

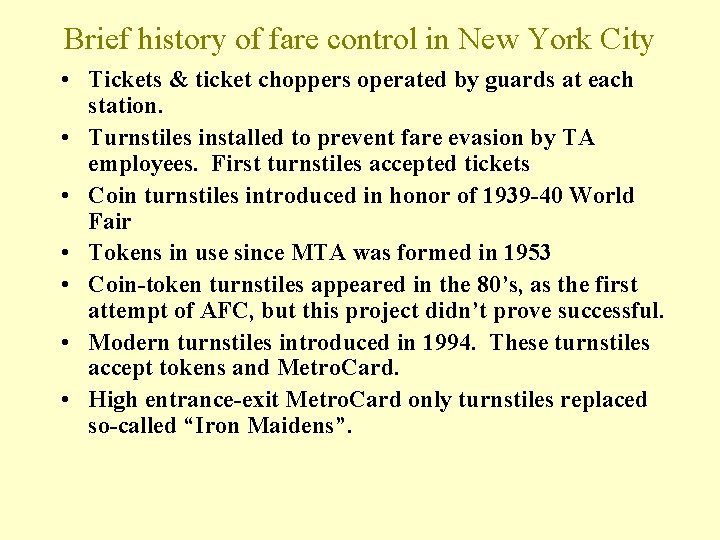

Brief history of fare control in New York City • Tickets & ticket choppers operated by guards at each station. • Turnstiles installed to prevent fare evasion by TA employees. First turnstiles accepted tickets • Coin turnstiles introduced in honor of 1939 -40 World Fair • Tokens in use since MTA was formed in 1953 • Coin-token turnstiles appeared in the 80’s, as the first attempt of AFC, but this project didn’t prove successful. • Modern turnstiles introduced in 1994. These turnstiles accept tokens and Metro. Card. • High entrance-exit Metro. Card only turnstiles replaced so-called “Iron Maidens”.

Metro. Card in New York City • 1994 – Introduction of Metro. Card at selected subway stations and buses. • May 15, 1997 – Metro. Card is accepted all over the NYC Transit system. • July 4, 1997 – Free bus-subway and subway-bus transfers are introduced. • January 1, 1998 – Introduction of the one-fare bonus for each $15 spent on a card. • July 4, 1998 – Unlimited ride Metro. Cards are introduced.

Metro. Card vending machines • Offer all kinds of Metro. Card transactions • Interacts with users via touch-sensitive screen • Larger machines accept cash, credit cards, ATM/debit cards; smaller machines don’t accept cash • Doesn’t sell tokens, but sells single-ride magneticstripe paper cards instead. • Allowed to reduce number of token-booth clerks

Dealing with fare hikes TOKEN: nice to passengers, headache to TA In face of a coming fare hike, passengers could save money by purchasing tokens in advance, unless TA introduced new tokens as happened in 1995. METROCARD: nice to TA, not as nice to passengers: AFC system can be reprogrammed as soon as the new fare is effective. No reason to change cards. No way to save money by advanced purchase.

History of fare control in Moscow Metro • • • 1935 thru 40’s: fare is paid with cardboard/paper tickets 1942 -43: first turnstiles, accepting coins, installed at some stations 1958: token turnstiles installed at some stations 1961: turnstiles reprogrammed from tokens to coins, due to monetary reform, and installed at all stations, as well as change machines 1992: new metal tokens introduced in March, and changed to plastic tokens in November 1993: two experimental turnstiles installed at one station to accept magnetic-stripe cards 1996 – AFC system installed throughout the Metro 1997 – first-generation magnetic-stripe tickets go out of use 1998 – experimental use of contactless smart cards, as well as single- and double-ride magnetic-stripe tickets 1999 – campaign against illegal magnetic-stripe cards; tokens go out of use 2000 – introduction of new smart cards good for subway and commuter rail 2002 – school passes completely changed from magneticstripe to smart cards.

Magnetic Stripe Technology • Used in Credit, Debit, ATM cards • Data are recorded to, read or erased from the magnetic stripe, similar to sound or video recording. • Stripe has particles; each particle is given a magnetic polarity • Data are recorded in tracks. The more tracks a stripe has, the more data it can store. ATM cards usually have three tracks. • Standards are established for materials from which a card or a stripe is made, stripe locations, track locations, and data encoding methods

Smart Card Technology • 8 -bit chip microprocessor embedded in a card • available for either or both contact or proximity (non-contact) reading • Card as active participant in “conversation” • 1 kilobyte of RAM, 24 kilobytes of ROM, 16 kilobytes of programmable ROM, and an 8 -bit microprocessor running at 5 MHz • Widely used in Europe, but not so much in America

Magnetic Stripe vs. Smart Card: advantages and limitations MAGNETIC STRIPE SMART CARD • • • Advantages: – Read/write capabilities – Relatively high data density – Security against casual counterfeiting – Reliability, and – Low cost-per-use Limitations: – Contact reading – Initial cost per card – Potential magnetic damage to low coercivity stripes • Advantages – Large memory allows to “personalize” each card for its user – Multi-application use is possible (though not so widespread in the U. S. , but widely used this way by many European transit systems) Limitations – cost – potential for physical damage

Smar. Trip in Washington DC • First smart card AFC system in the U. S. , started in 1999 • Based on GO CARD® System, developed by Cubic Transportation Systems • Number of cards in use exceeded 100 in year 2000 • used in place of a Metrorail paper farecard • earns a 10% bonus value when $20 or more is added using cash, credit or ATM card • maximum value of $180 (plus bonus) can be added onto a Smar. Trip card

CTA: Transit Card vs. Chicago Card • Magnetic stripe farecard, introduced in 1997 • Completely replaced tokens by 1999 • $1 bonus for each $10 spent • Unlimited-ride cards also available • Started in 2000 with Smart Card pilot program • Costs $5 even if has no money on it • A card can hold any amount from $0. 05 to $100 • Permanent store-value card, unlike the magnetic-stripe Transit Cards, which has expiration date • Chicago Card contains no magnetic material and therefore cannot be demagnetized

Leader in AFC technology • Involved in mass transportation market since 1971 • The only company still in business since those times: all its competitors came and left this business • Designs different kinds of AFC systems: magnetic stripe, smart card, automated ticketing • Designed AFC systems worldwide: New York, Chicago, Sydney, Singapore, and many others • UK/European operations are the largest part

Another worldwide Smart Card developer • • • BERLIN: the first phase of smart card fare collection field trial was implemented in 1999. The previously existing Berlin transport system operated on a flat fare, paper-based ticketing system. The new system operates with a time- and distance-based fare structure where the smart card serves as a reusable ticket. Individuals can buy public transport "units" with cash or electronic transfer payments at distribution outlets or through stationary and mobile ticketing machines. These units are loaded directly onto their smart cards and can then be debited by special contactless checkin/check-out terminals at subway stations or aboard buses and trams. NANJUNG, China: smart-card-based AFC system introduced in the city shortly after Berlin. Another Chinese city that uses Motorola’s AFC product is Lanzhou

Smart Card in New York? Why not? In December ’ 01, Governor Pataki approved the first step toward the adoption of an integrated region-wide transit fare payment system. The new $51 million fare collection system, approved by the Board on Thursday, will ensure that the PATH system accepts both "smart cards" and MTA Metro. Cards. Using this technology, PATH riders, and eventually riders of other regional transit systems, will be able to deduct transit fare purchases against user accounts that can be linked to a credit card, as is done with E-Z Pass accounts. Riders who use both PATH and NYCTA subways and buses will also be able to use Metro. Cards in both systems, marking the first integration of Metro. Cards into other transit systems. The new smart card fare collection system, expected to be in place on PATH within two years, is designed to be accepted eventually on subway, bus and rail lines throughout the region.
