Chang Shuan Eletronics Co Ltd http www csec
- Slides: 13
Chang Shuan Eletronics Co. , Ltd http: //www. csec. com. tw http: //www. adtek. com. tw 1
CS 1 SERIES FAMILY 0. 8” LED will be available on Jun. 2007 2
CS 1 series CS 1 -VA Voltage / Current Meters 0~600 V / 0~10 A for DC/AC/TRMS CS 1 -F Frequency Meters 0. 01 Hz~100 KHz (Optional ~140 KHz), 30~600 Vp CS 1 -PR Linear Process Indicators 0~10 V & 0(4)~20 m. A CS 1 -SG Strain Gauge Indicators 1. 0/2. 0/4. 0 ~ 10. 0/20. 0/40. 0 m. V/V CS 1 -PM Potentio. Meter Indicators 0~2. 0 K / 0~50. 0 K ohm ( 3 Wired) CS 1 -RS Resistance Indicators 0. 1~200/~20. 0 K/200. 0 K ohm (2 wired) 3
CS 1 series CS 1 -TP(C) Temperature Indicators Pt 100 ohm / Thermocouple K, J, E, T, R, S, B. CS 1 -RL Linear Speed / Rotation Indicators 0. 01~100 KHz /~140 KHz (Optional) NPN / PNP / Contact / Vp 4

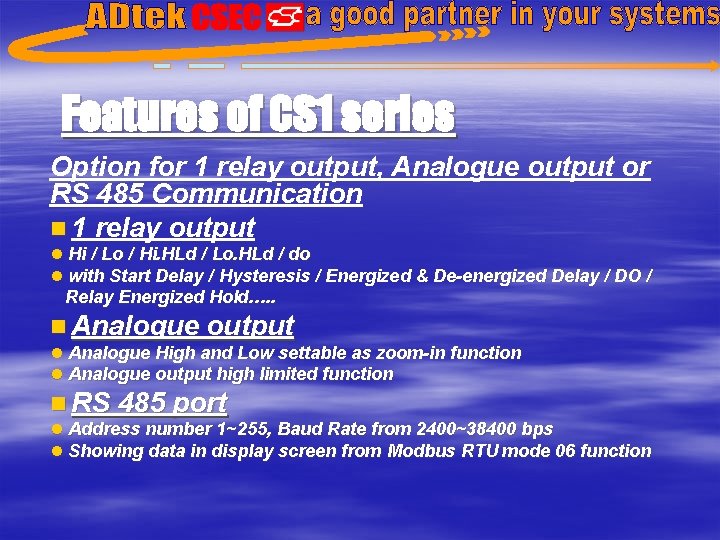

Features of CS 1 series Option for 1 relay output, Analogue output or RS 485 Communication n 1 relay output l Hi / Lo / Hi. HLd / Lo. HLd / do l with Start Delay / Hysteresis / Energized & De-energized Delay / DO / Relay Energized Hold…. . n Analogue output l Analogue High and Low settable as zoom-in function l Analogue output high limited function n RS 485 port l Address number 1~255, Baud Rate from 2400~38400 bps l Showing data in display screen from Modbus RTU mode 06 function
n Display l Present Value (PV) / Maximum or Minimum Hold / RS 485 writing l Low Cut, Average, Digital Filter, Scaling, Digital Fine adjustment…. .
n 1 relay output l Hi / Lo / Hi. HLd / Lo. HLd / do Ø Hi: High Limit Energized, when the PV >= Set-point Ø Lo: Low Limited Energized , when the PV <= Set-point Ø Hi. HLd (Lo. HLd): High (Low) Limit Energized continuously until manual reset by front key or External Control Input (ECI) Ø do: Relay energized according to the RS 485 command
n. Start Delay / Hystersis / Relay energized delay / Relay De-energized delay l Start Delay l Hysteresis: Settable range from 0~9999 Counts l Relay energized delay: Settable range from 0. 1(second)~9(minutes)59. 9(seconds); l Relay de-energized delay: Settable range from 0. 1(second)~9(minutes)59. 9(seconds) 8

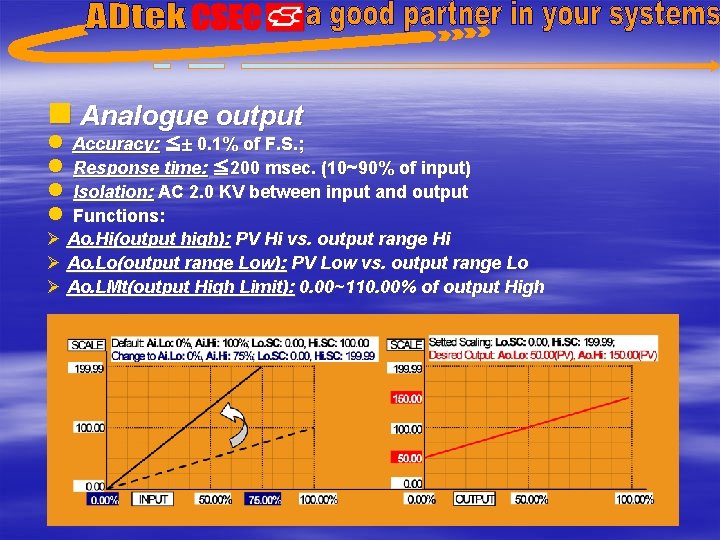

n Analogue output l l Accuracy: ≦ 0. 1% of F. S. ; Response time: ≦ 200 msec. (10~90% of input) Isolation: AC 2. 0 KV between input and output Functions: Ø Ao. Hi(output high): PV Hi vs. output range Hi Ø Ao. Lo(output range Low): PV Low vs. output range Lo Ø Ao. LMt(output High Limit): 0. 00~110. 00% of output High
n RS 485 port l Modbus RTU Mode Ø Address: 1~255. Ø Baud Rate: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 selectable. Ø Parity: Even / Odd / None parity, 8 data bits, 1 stop bit / None parity, 8 data bits, 2 stop bit selectable. l Can read External Control Input (ECI) status l Can send the data to display screen by Modbus command n Flexible Functions l Field Calibration for CS 1 -SG / CS 1 -PM / CS 1 -RS
Specification n CS 1 -VA Ø Measuring: Vdc, Vac, Adc, Aac / 0~600 V or 0~10 A Ø Accuracy: DC: ± 0. 04%~0. 1% F. S. ± 1 count; AC: ± 0. 1%~0. 1% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED n CS 1 -F Ø Measuring: 0~100 KHz(140 KHz max. ), Decimal Point auto set Ø Accuracy: ± 0. 005% F. S. ± 1 count Ø Display: 0~99999, 0. 56” high bright LED Ø Input mode: NPN / PNP / Vp changeable by Dip Switch on rear terminal block n. CS 1 -PR Ø Measuring: 0~(5)10 Vdc & 0(4)~20 m. Adc All in one Ø Accuracy: ± 0. 04%~0. 1% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED
Specification n CS 1 -SG Ø Measuring: 0~1. 0/~2. 0/~4. 0/~10. 0/~20. 0/~40. 0 m. V/V specify Ø Accuracy: ± 0. 04%~0. 1% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED n CS 1 -PM Ø Measuring: 0. 0~2. 0 KΩ/~100. 0 KΩ (3 wired) Ø Accuracy: ± 0. 04% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED n. CS 1 -RS Ø Measuring: 0. 1~200Ω/~20. 0 KΩ/~200. 0 KΩ (2 wired) Ø Accuracy: ± 0. 04% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED 12
Specification n CS 1 -TP(C) ØMeasuring: Pt 100Ω (3 wired) / Thermocouple K, J, E, T, R, S, B. . Ø Accuracy: Pt 100Ω: ± 0. 1% F. S. ± 1 count Thermocouple K, J, E, T: ± 0. 2% F. S. ± 1 count Thermocouple R, S, B: ± 0. 3% F. S. ± 1 count Ø Display: -19999~29999, 0. 56” high bright LED n CS 1 -RL Ø Measuring: 0~100 KHz(140 KHz max. ), Decimal Point auto set Ø Accuracy: ± 0. 005% F. S. ± 1 count Ø Display: 0~99999, 0. 56” high bright LED Ø Input mode: NPN / PNP / Vp changeable by Dip Switch on rear terminal block 13
