CH 5 Nomenclature Naming Compounds 5 1 5

Naming Compounds 5. 1 5. 2 5. 3 5. 4 5. 5 5. 6

Naming Compounds • Binary Compounds § • Binary Ionic Compounds § • Composed of

Naming Compounds • Binary ionic compounds contain positive cations and negative anions. § Type

Naming Compounds Type I Compounds Metals (Groups Ia, IIa, and IIIa) and Non-Metals Metal

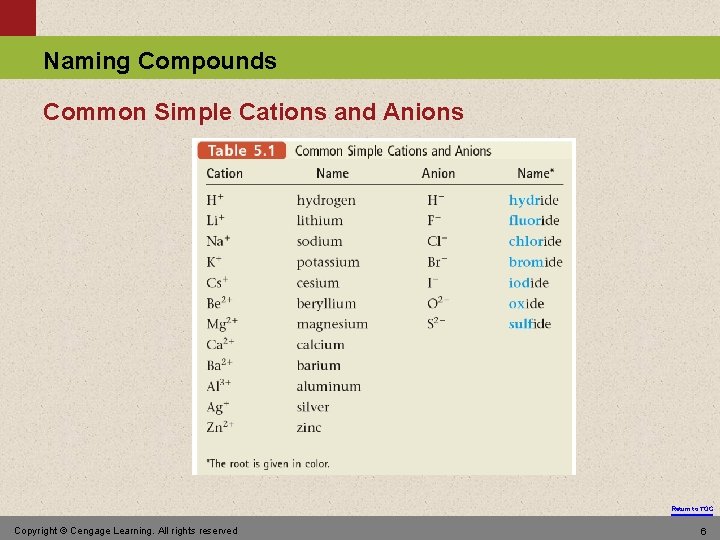

Naming Compounds Common Simple Cations and Anions Return to TOC Copyright © Cengage Learning.

Naming Compounds Rules for Naming Type I Ionic Compounds 1. The cation is always

Naming Compounds Binary Ionic Compounds (Type I) • Examples: KCl Potassium chloride Mg. Br

Naming Compounds Exercise What is the name of the compound Sr. Br 2? a)

Naming Compounds Binary Ionic Compounds (Type II) • • Metals in these compounds can

Naming Compounds Type II Compounds Metals (Transition Metals) and Non-Metals Iron +Roman Numeral (__)

Naming Compounds Common Type II Cations Return to TOC Copyright © Cengage Learning. All

Naming Compounds Rules for Naming Type II Ionic Compounds 1. The cation is always

Naming Compounds Binary Ionic Compounds (Type II) • Examples: Cu. Br Copper(I) bromide Fe.

Naming Compounds Name each of the following ionic substances, using the system that includes

Naming Compounds Exercise What is the name of the compound Cr. O 2? a)

Naming Compounds Exercise What is the correct name of the compound that results from

Review Type I and II Naming Compounds • Type I- between a ______ from

Naming Compounds Rules for Naming Type III Binary Compounds • Formed between two nonmetals.

Naming Compounds Type III Compounds Non-Metals and Non-Metals Use Prefixes such as mono, di,

Naming Compounds Prefixes Used to Indicate Numbers in Chemical Names Additional Prefixes 9 nona-

Naming Compounds Binary Covalent Compounds (Type III) • Examples: CO 2 Carbon dioxide SF

Naming Compounds Exercise What is the name of the compound Se. O 2? a)

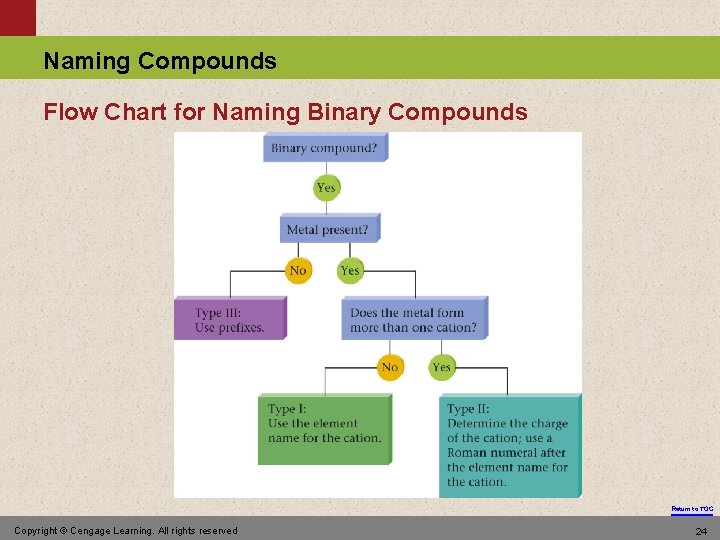

Naming Compounds Flow Chart for Naming Binary Compounds Return to TOC Copyright © Cengage

Let’s Practice! Naming Compounds Name the following. Ca. F 2 K 2 S Co.

Naming Compounds • • Polyatomic ions are charged entities composed of several atoms bound

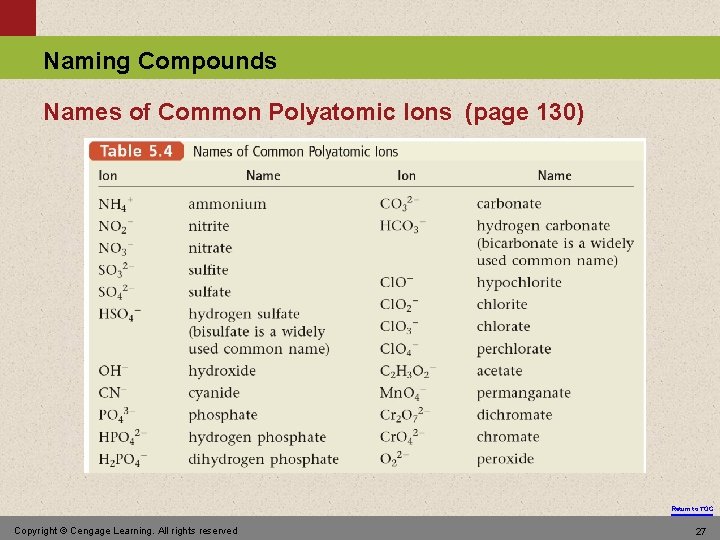

Naming Compounds Names of Common Polyatomic Ions (page 130) Return to TOC Copyright ©

Naming Compounds • Naming ionic compounds containing polyatomic ions follows rules similar to those

Naming Compounds Examples Na. OH Sodium hydroxide Mg(NO 3)2 Magnesium nitrate (NH 4)2 SO

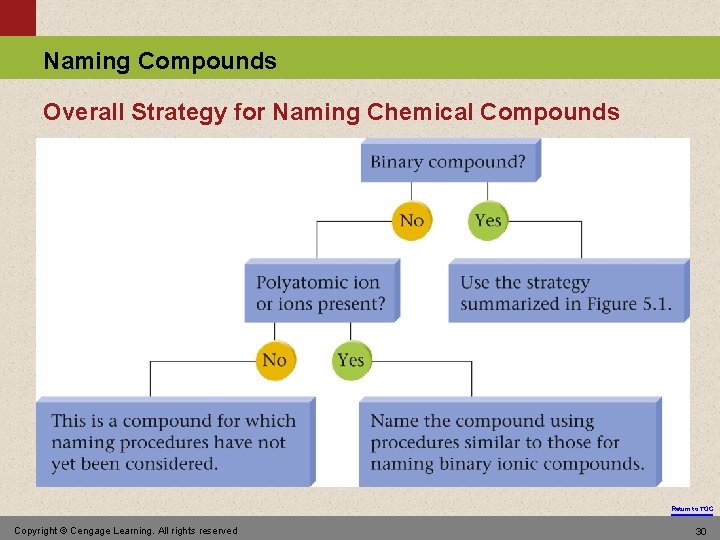

Naming Compounds Overall Strategy for Naming Chemical Compounds Return to TOC Copyright © Cengage

Naming Compounds Exercise What is the name of the compound KCl. O 3? a)

Naming Compounds Exercise Examine the following table of formulas and names. Which of the

Naming Compounds Acids • • Acids can be recognized by the hydrogen that appears

Naming Compounds Rules for Naming Acids • • If the anion does not contain

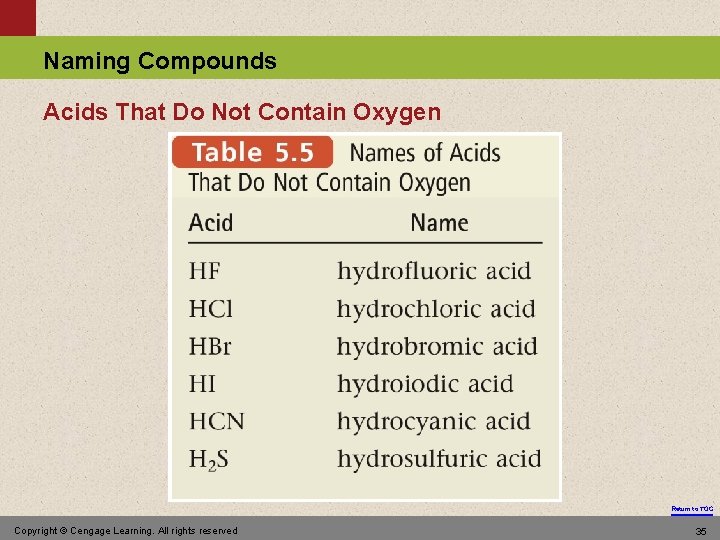

Naming Compounds Acids That Do Not Contain Oxygen Return to TOC Copyright © Cengage

Naming Compounds Rules for Naming Acids • If the anion contains oxygen: § The

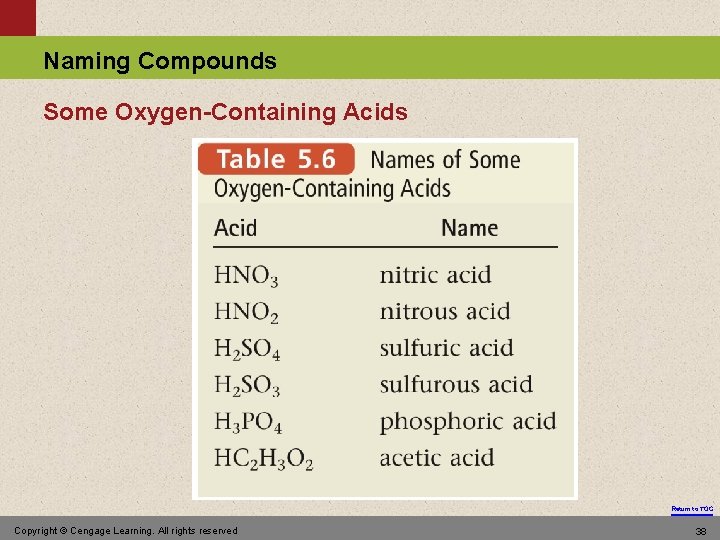

Naming Compounds Some Oxygen-Containing Acids Return to TOC Copyright © Cengage Learning. All rights

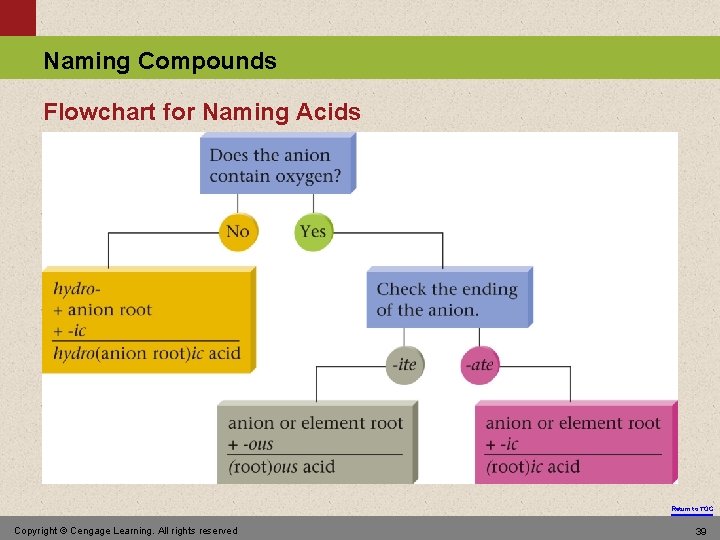

Naming Compounds Flowchart for Naming Acids Return to TOC Copyright © Cengage Learning. All

Naming Compounds Exercise Which of the following compounds is named incorrectly? a) KNO 3

Naming Compounds Examples • • • Sodium hydroxide § Na. OH Potassium carbonate §

Naming Compounds Exercise A compound has the formula XCl 3 where X could represent

Naming Compounds Lets Practice Some More! HF Hydroflouric acid Na 2 CO 3 Sodium

Slides: 43

Download presentation

CH 5: Nomenclature

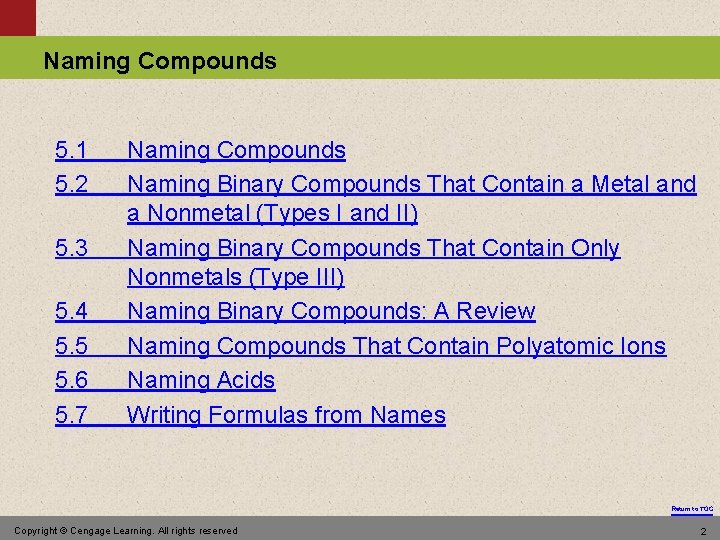

Naming Compounds 5. 1 5. 2 5. 3 5. 4 5. 5 5. 6 5. 7 Naming Compounds Naming Binary Compounds That Contain a Metal and a Nonmetal (Types I and II) Naming Binary Compounds That Contain Only Nonmetals (Type III) Naming Binary Compounds: A Review Naming Compounds That Contain Polyatomic Ions Naming Acids Writing Formulas from Names Return to TOC Copyright © Cengage Learning. All rights reserved 2

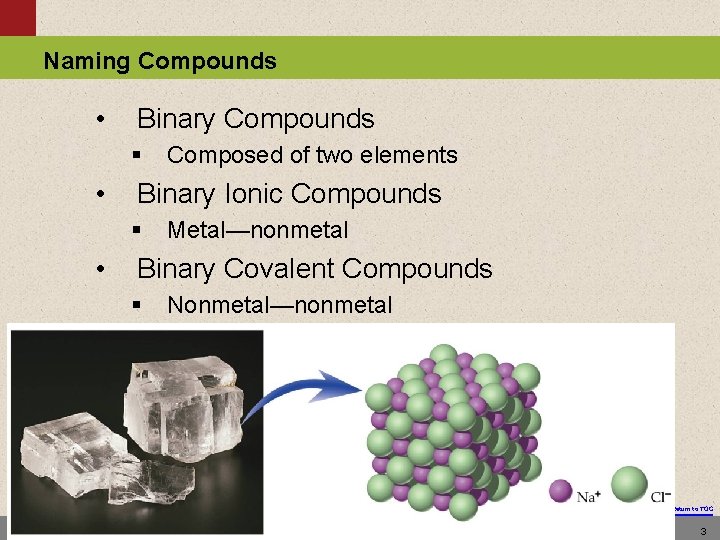

Naming Compounds • Binary Compounds § • Binary Ionic Compounds § • Composed of two elements Metal—nonmetal Binary Covalent Compounds § Nonmetal—nonmetal Return to TOC Copyright © Cengage Learning. All rights reserved 3

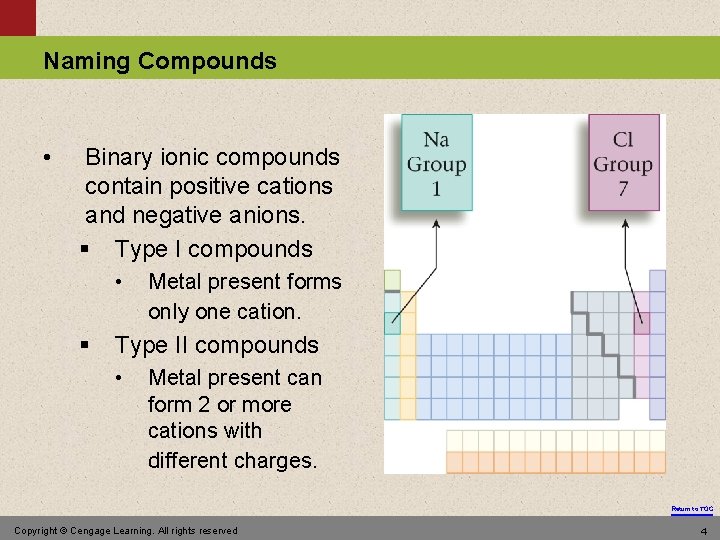

Naming Compounds • Binary ionic compounds contain positive cations and negative anions. § Type I compounds • § Metal present forms only one cation. Type II compounds • Metal present can form 2 or more cations with different charges. Return to TOC Copyright © Cengage Learning. All rights reserved 4

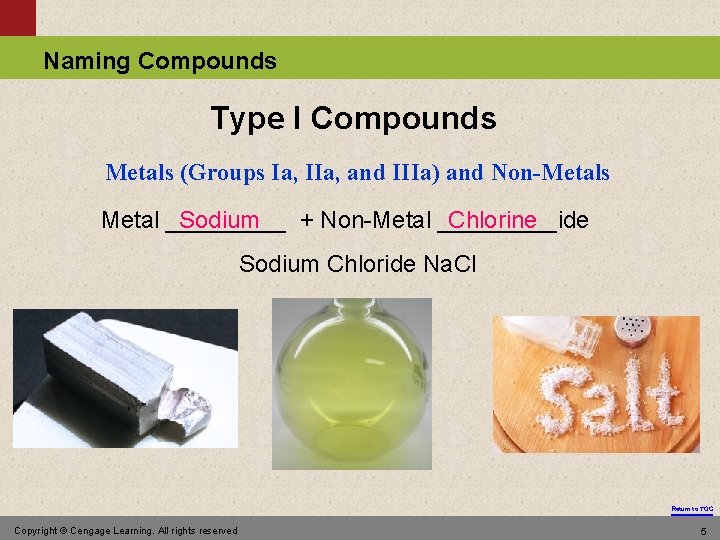

Naming Compounds Type I Compounds Metals (Groups Ia, IIa, and IIIa) and Non-Metals Metal _____ Sodium + Non-Metal _____ide Chlorine Sodium Chloride Na. Cl Return to TOC Copyright © Cengage Learning. All rights reserved 5

Naming Compounds Rules for Naming Type I Ionic Compounds 1. The cation is always named first and the anion second. 2. A simple cation takes its name from the name of the element. 3. A simple anion is named by taking the first part of the element name (the root) and adding –ide. Return to TOC Copyright © Cengage Learning. All rights reserved 7

Naming Compounds Exercise What is the name of the compound Sr. Br 2? a) b) c) d) strontium bromine sulfur bromide strontium dibromide strontium bromide Return to TOC Copyright © Cengage Learning. All rights reserved 9

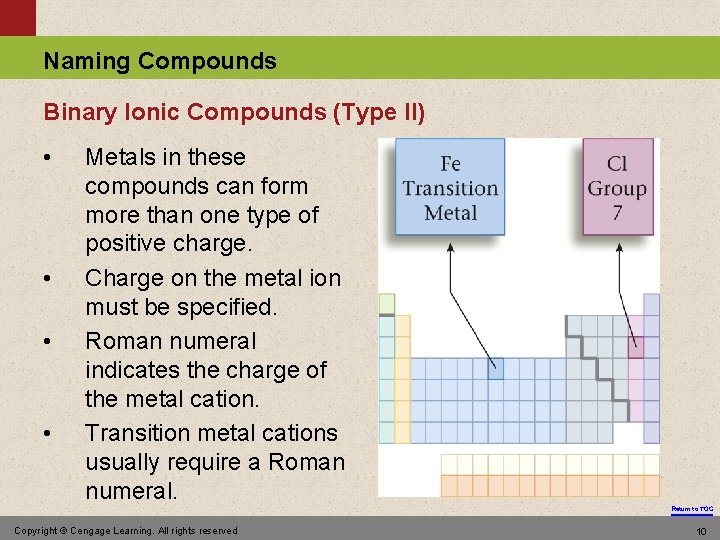

Naming Compounds Binary Ionic Compounds (Type II) • • Metals in these compounds can form more than one type of positive charge. Charge on the metal ion must be specified. Roman numeral indicates the charge of the metal cation. Transition metal cations usually require a Roman numeral. Return to TOC Copyright © Cengage Learning. All rights reserved 10

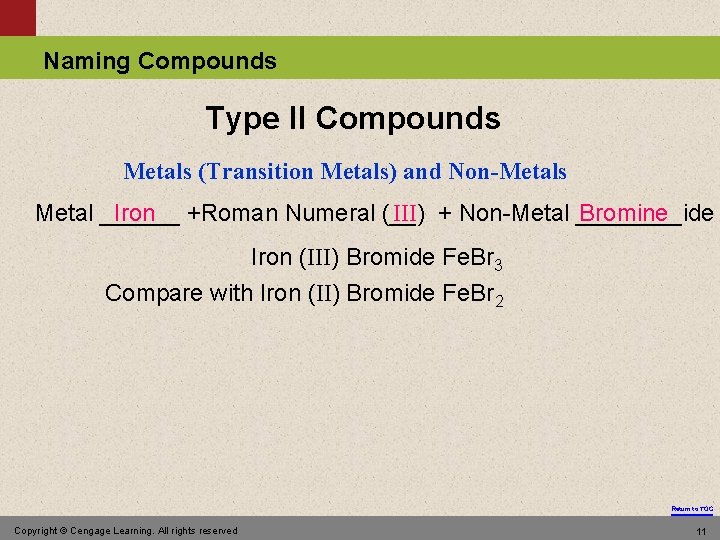

Naming Compounds Type II Compounds Metals (Transition Metals) and Non-Metals Iron +Roman Numeral (__) III + Non-Metal ____ide Bromine Metal ______ Iron (III) Bromide Fe. Br 3 Compare with Iron (II) Bromide Fe. Br 2 Return to TOC Copyright © Cengage Learning. All rights reserved 11

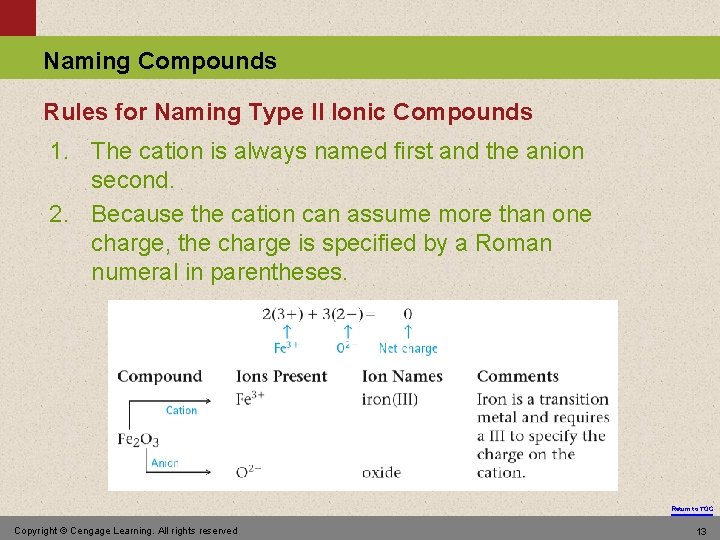

Naming Compounds Rules for Naming Type II Ionic Compounds 1. The cation is always named first and the anion second. 2. Because the cation can assume more than one charge, the charge is specified by a Roman numeral in parentheses. Return to TOC Copyright © Cengage Learning. All rights reserved 13

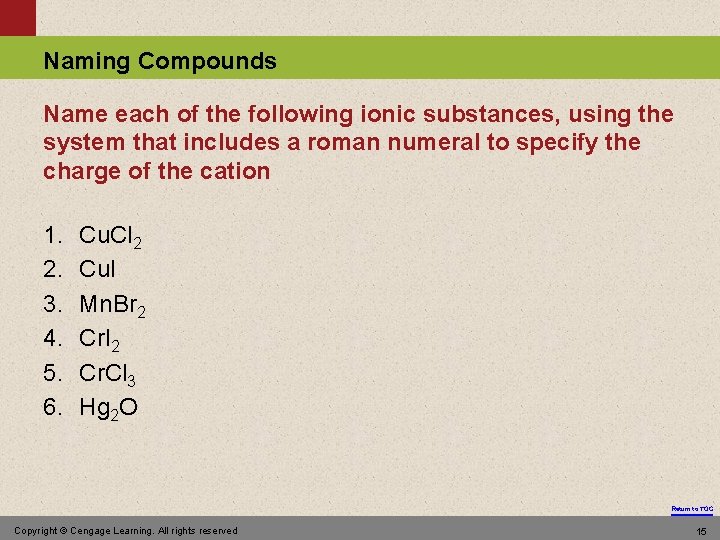

Naming Compounds Name each of the following ionic substances, using the system that includes a roman numeral to specify the charge of the cation 1. 2. 3. 4. 5. 6. Cu. Cl 2 Cu. I Mn. Br 2 Cr. I 2 Cr. Cl 3 Hg 2 O Return to TOC Copyright © Cengage Learning. All rights reserved 15

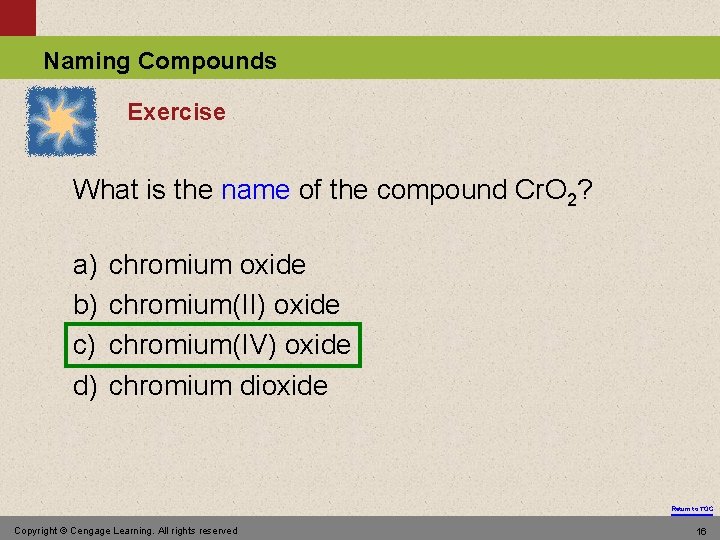

Naming Compounds Exercise What is the name of the compound Cr. O 2? a) b) c) d) chromium oxide chromium(II) oxide chromium(IV) oxide chromium dioxide Return to TOC Copyright © Cengage Learning. All rights reserved 16

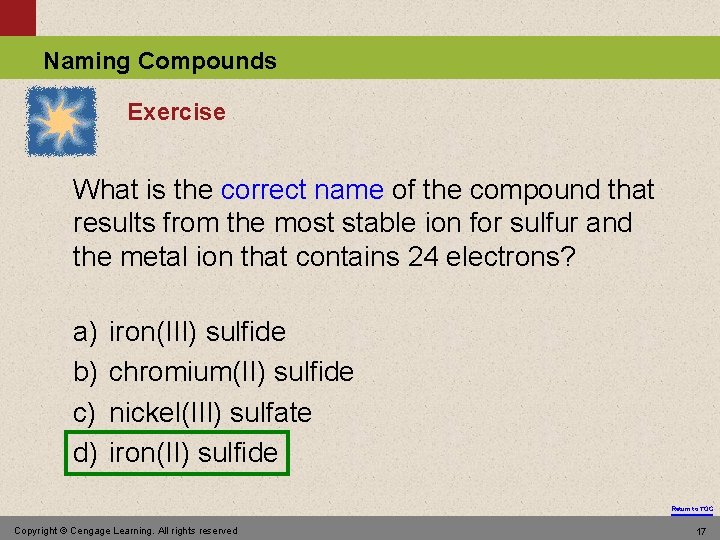

Naming Compounds Exercise What is the correct name of the compound that results from the most stable ion for sulfur and the metal ion that contains 24 electrons? a) b) c) d) iron(III) sulfide chromium(II) sulfide nickel(III) sulfate iron(II) sulfide Return to TOC Copyright © Cengage Learning. All rights reserved 17

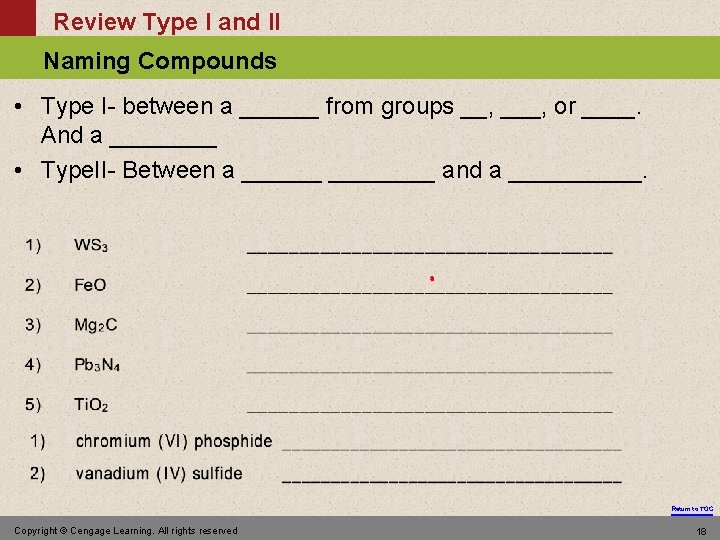

Review Type I and II Naming Compounds • Type I- between a ______ from groups __, ___, or ____. And a ____ • Type. II- Between a ________ and a _____. Return to TOC Copyright © Cengage Learning. All rights reserved 18

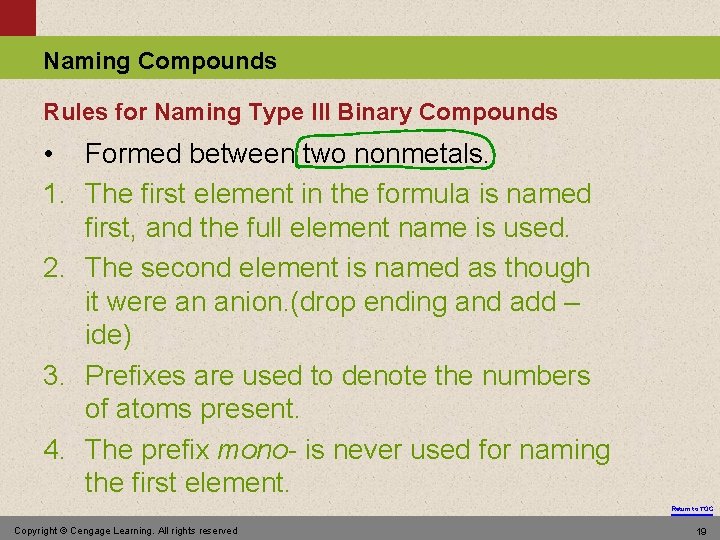

Naming Compounds Rules for Naming Type III Binary Compounds • Formed between two nonmetals. 1. The first element in the formula is named first, and the full element name is used. 2. The second element is named as though it were an anion. (drop ending and add – ide) 3. Prefixes are used to denote the numbers of atoms present. 4. The prefix mono- is never used for naming the first element. Return to TOC Copyright © Cengage Learning. All rights reserved 19

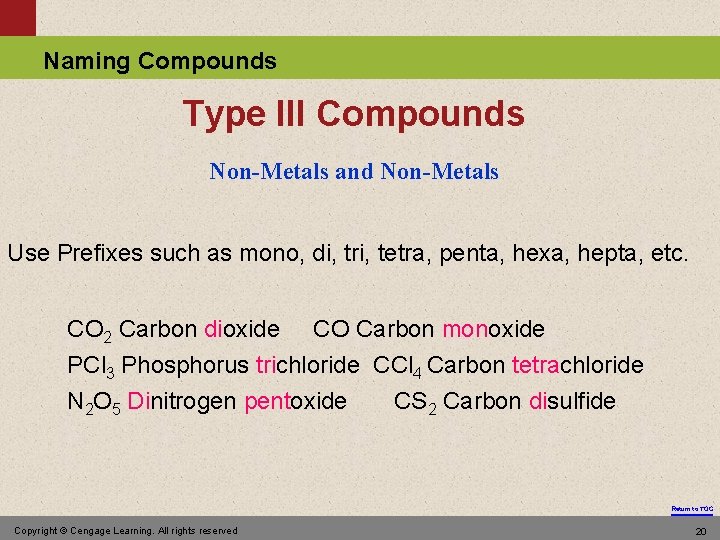

Naming Compounds Type III Compounds Non-Metals and Non-Metals Use Prefixes such as mono, di, tri, tetra, penta, hexa, hepta, etc. CO 2 Carbon dioxide CO Carbon monoxide PCl 3 Phosphorus trichloride CCl 4 Carbon tetrachloride N 2 O 5 Dinitrogen pentoxide CS 2 Carbon disulfide Return to TOC Copyright © Cengage Learning. All rights reserved 20

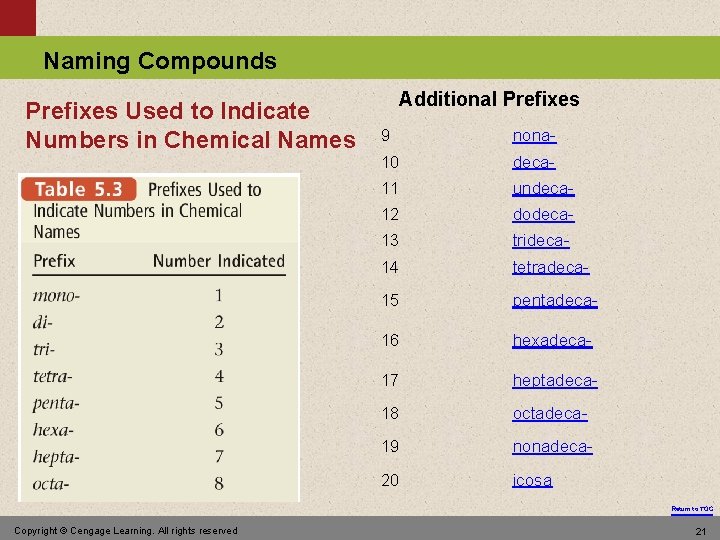

Naming Compounds Prefixes Used to Indicate Numbers in Chemical Names Additional Prefixes 9 nona- 10 deca- 11 undeca- 12 dodeca- 13 trideca- 14 tetradeca- 15 pentadeca- 16 hexadeca- 17 heptadeca- 18 octadeca- 19 nonadeca- 20 icosa Return to TOC Copyright © Cengage Learning. All rights reserved 21

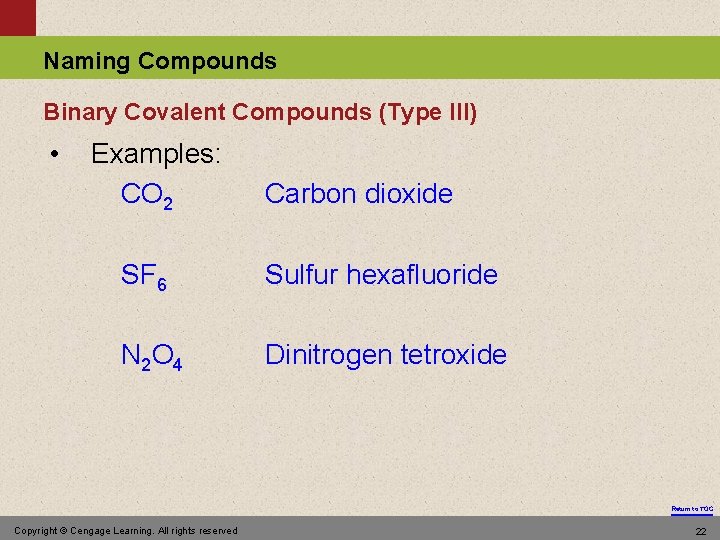

Naming Compounds Binary Covalent Compounds (Type III) • Examples: CO 2 Carbon dioxide SF 6 Sulfur hexafluoride N 2 O 4 Dinitrogen tetroxide Return to TOC Copyright © Cengage Learning. All rights reserved 22

Naming Compounds Exercise What is the name of the compound Se. O 2? a) b) c) d) selenium oxide selenium dioxide selenium(II) oxide selenium(IV) dioxide Return to TOC Copyright © Cengage Learning. All rights reserved 23

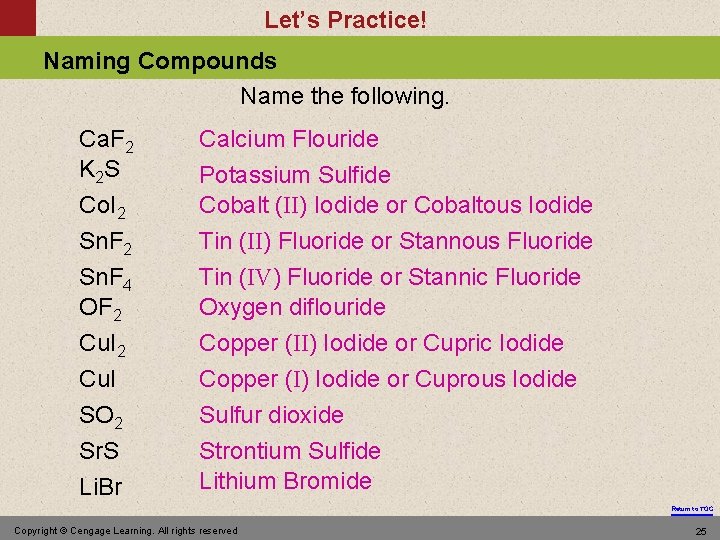

Let’s Practice! Naming Compounds Name the following. Ca. F 2 K 2 S Co. I 2 Sn. F 4 OF 2 Cu. I SO 2 Sr. S Li. Br Calcium Flouride Potassium Sulfide Cobalt (II) Iodide or Cobaltous Iodide Tin (II) Fluoride or Stannous Fluoride Tin (IV) Fluoride or Stannic Fluoride Oxygen diflouride Copper (II) Iodide or Cupric Iodide Copper (I) Iodide or Cuprous Iodide Sulfur dioxide Strontium Sulfide Lithium Bromide Return to TOC Copyright © Cengage Learning. All rights reserved 25

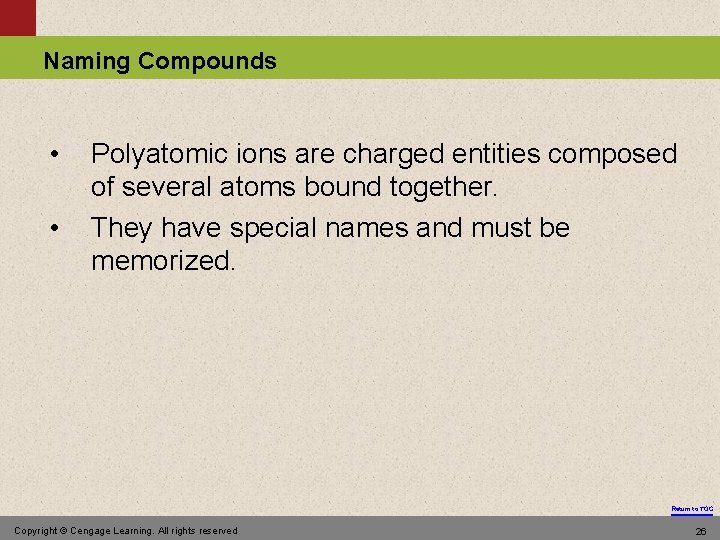

Naming Compounds • • Polyatomic ions are charged entities composed of several atoms bound together. They have special names and must be memorized. Return to TOC Copyright © Cengage Learning. All rights reserved 26

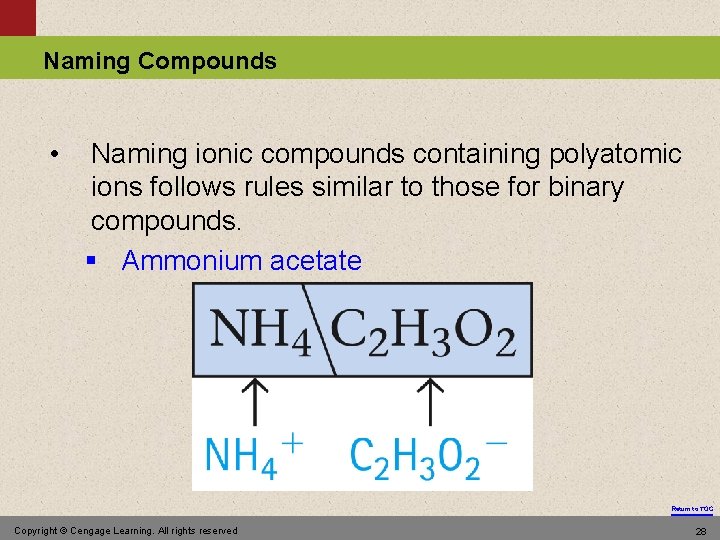

Naming Compounds • Naming ionic compounds containing polyatomic ions follows rules similar to those for binary compounds. § Ammonium acetate Return to TOC Copyright © Cengage Learning. All rights reserved 28

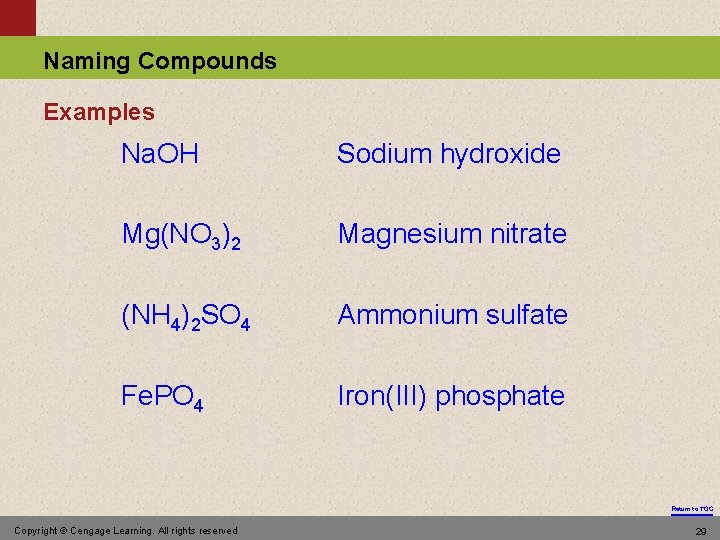

Naming Compounds Examples Na. OH Sodium hydroxide Mg(NO 3)2 Magnesium nitrate (NH 4)2 SO 4 Ammonium sulfate Fe. PO 4 Iron(III) phosphate Return to TOC Copyright © Cengage Learning. All rights reserved 29

Naming Compounds Exercise What is the name of the compound KCl. O 3? a) b) c) d) potassium chlorite potassium chlorate potassium perchlorate potassium carbonate Return to TOC Copyright © Cengage Learning. All rights reserved 31

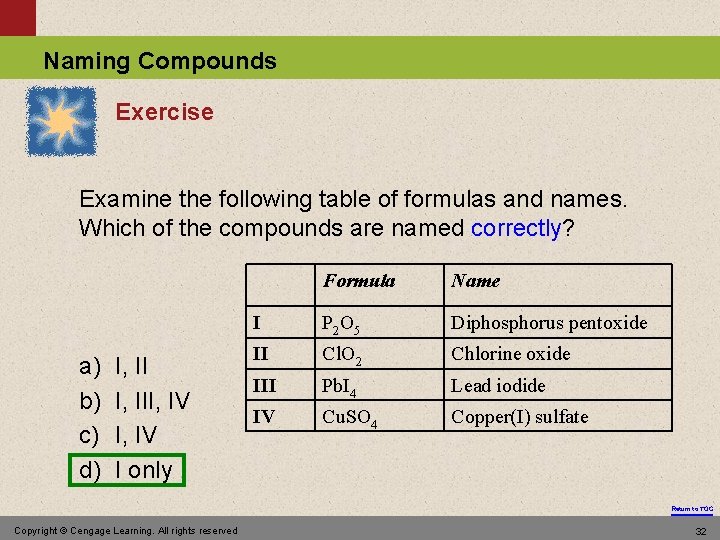

Naming Compounds Exercise Examine the following table of formulas and names. Which of the compounds are named correctly? a) b) c) d) I, III, IV I only Formula Name I P 2 O 5 Diphosphorus pentoxide II Cl. O 2 Chlorine oxide III Pb. I 4 Lead iodide IV Cu. SO 4 Copper(I) sulfate Return to TOC Copyright © Cengage Learning. All rights reserved 32

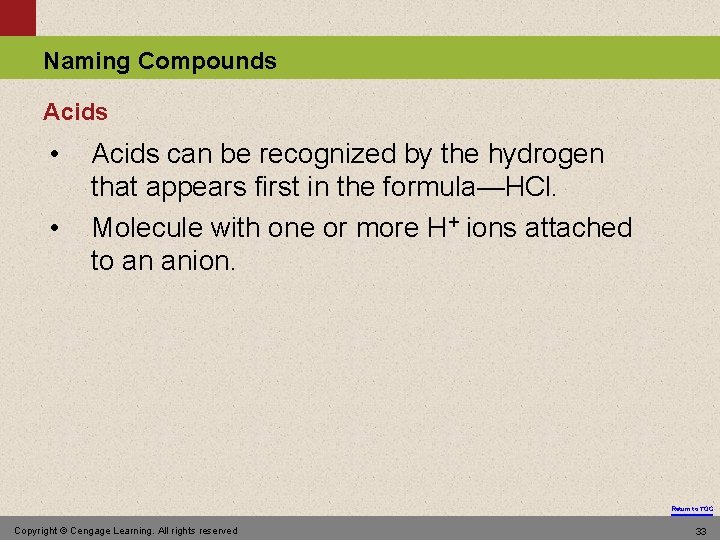

Naming Compounds Acids • • Acids can be recognized by the hydrogen that appears first in the formula—HCl. Molecule with one or more H+ ions attached to an anion. Return to TOC Copyright © Cengage Learning. All rights reserved 33

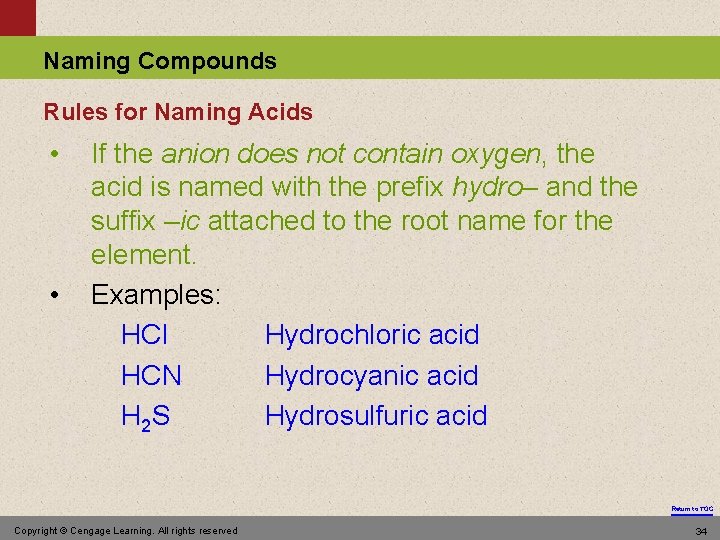

Naming Compounds Rules for Naming Acids • • If the anion does not contain oxygen, the acid is named with the prefix hydro– and the suffix –ic attached to the root name for the element. Examples: HCl Hydrochloric acid HCN Hydrocyanic acid H 2 S Hydrosulfuric acid Return to TOC Copyright © Cengage Learning. All rights reserved 34

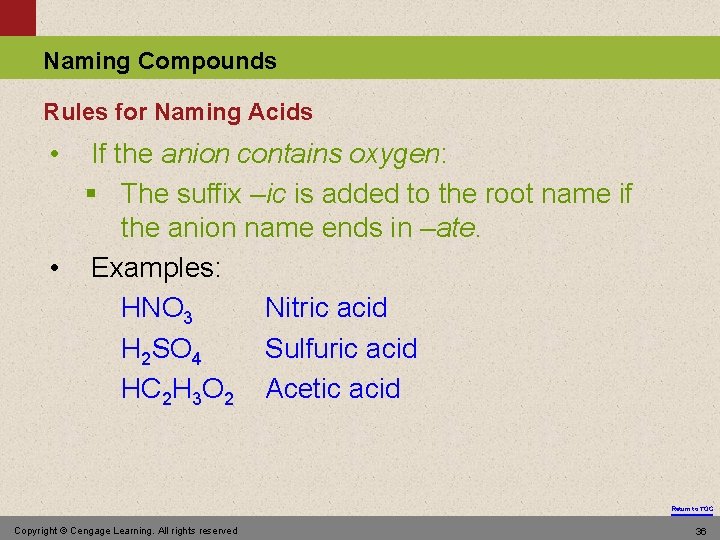

Naming Compounds Rules for Naming Acids • If the anion contains oxygen: § The suffix –ic is added to the root name if the anion name ends in –ate. • Examples: HNO 3 Nitric acid H 2 SO 4 Sulfuric acid HC 2 H 3 O 2 Acetic acid Return to TOC Copyright © Cengage Learning. All rights reserved 36

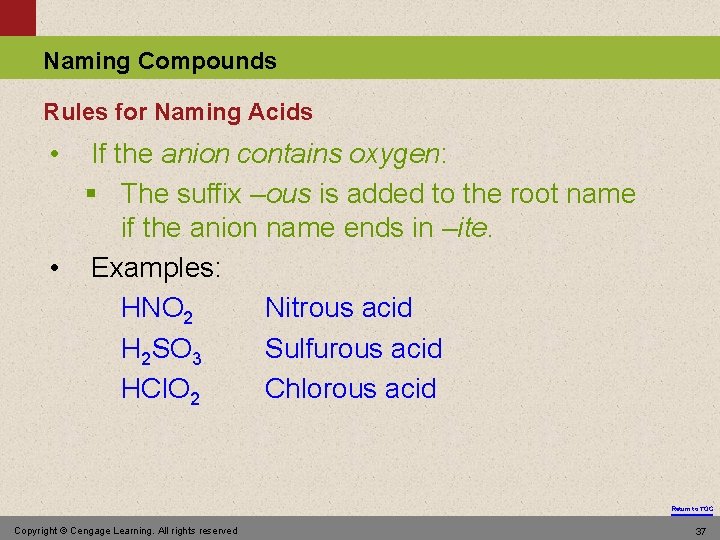

Naming Compounds Rules for Naming Acids • If the anion contains oxygen: § The suffix –ous is added to the root name if the anion name ends in –ite. • Examples: HNO 2 Nitrous acid H 2 SO 3 Sulfurous acid HCl. O 2 Chlorous acid Return to TOC Copyright © Cengage Learning. All rights reserved 37

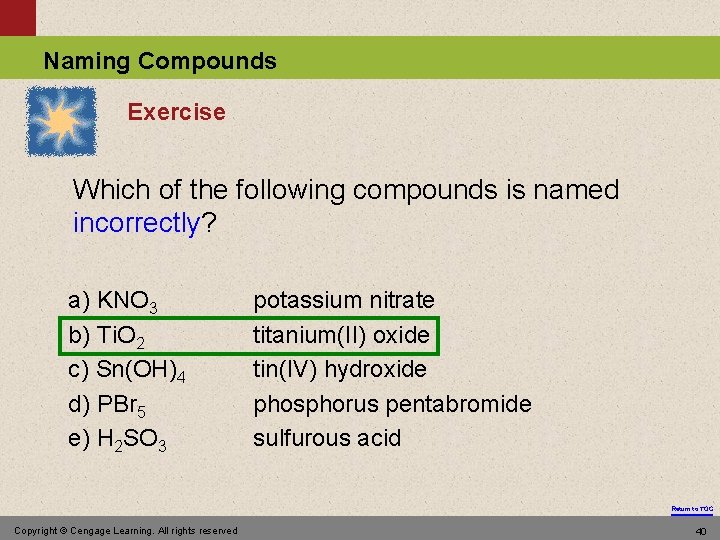

Naming Compounds Exercise Which of the following compounds is named incorrectly? a) KNO 3 b) Ti. O 2 c) Sn(OH)4 d) PBr 5 e) H 2 SO 3 potassium nitrate titanium(II) oxide tin(IV) hydroxide phosphorus pentabromide sulfurous acid Return to TOC Copyright © Cengage Learning. All rights reserved 40

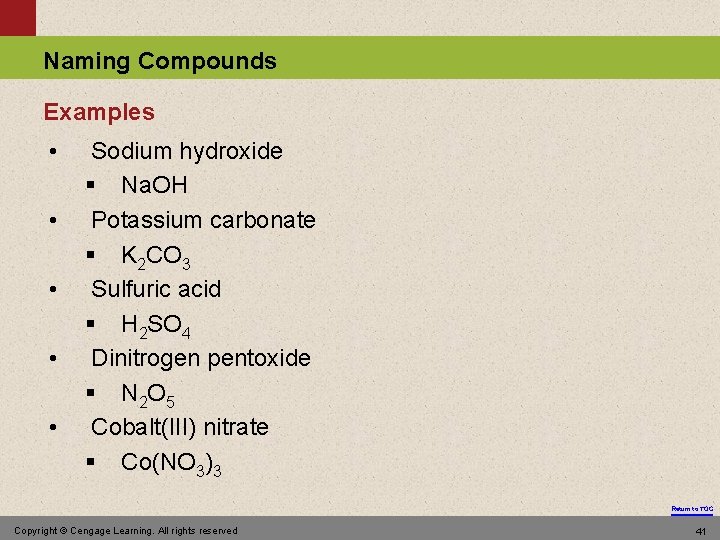

Naming Compounds Examples • • • Sodium hydroxide § Na. OH Potassium carbonate § K 2 CO 3 Sulfuric acid § H 2 SO 4 Dinitrogen pentoxide § N 2 O 5 Cobalt(III) nitrate § Co(NO 3)3 Return to TOC Copyright © Cengage Learning. All rights reserved 41

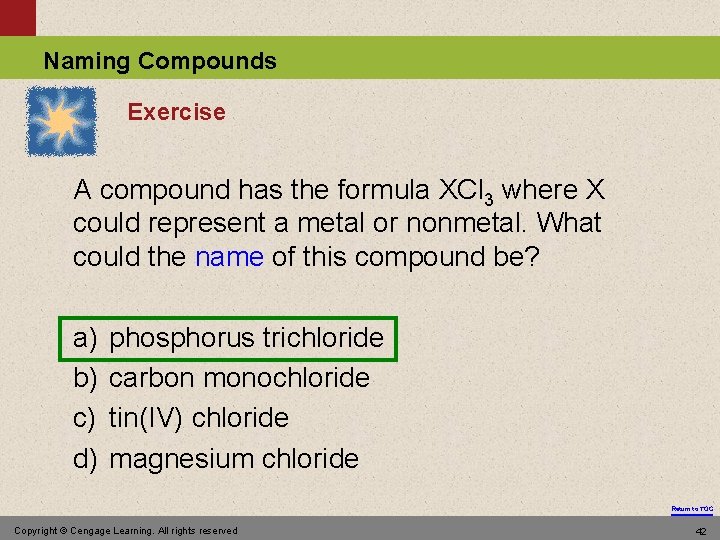

Naming Compounds Exercise A compound has the formula XCl 3 where X could represent a metal or nonmetal. What could the name of this compound be? a) b) c) d) phosphorus trichloride carbon monochloride tin(IV) chloride magnesium chloride Return to TOC Copyright © Cengage Learning. All rights reserved 42

Naming Compounds Lets Practice Some More! HF Hydroflouric acid Na 2 CO 3 Sodium carbonate H 2 CO 3 Carbonic acid KMn. O 4 Potassium permanganate HCl. O 4 Perchloric acid H 2 S Hyrdogen sulfuric acid Na. OH Sodium hydroxide Copper (II) sulfate or Cupric sulfate Cu. SO 4 Lead (II) chromate or Plubous chromate Pb. Cr. O 4 H 2 O NH 3 Hydrooxic acid (no……just water) Nitrogen trihydride (no. . just ammonia) Return to TOC Copyright © Cengage Learning. All rights reserved 43
