Ch 2 Number systems and codes Octalbase 8

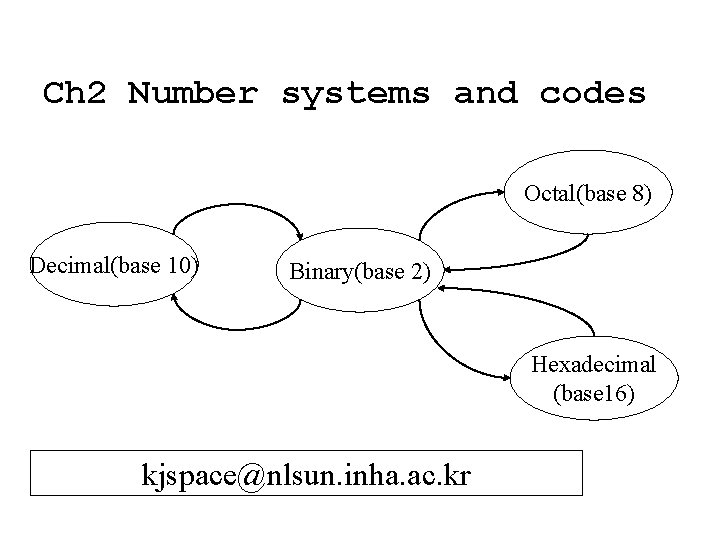

Ch 2 Number systems and codes Octal(base 8) Decimal(base 10) Binary(base 2) Hexadecimal (base 16) kjspace@nlsun. inha. ac. kr

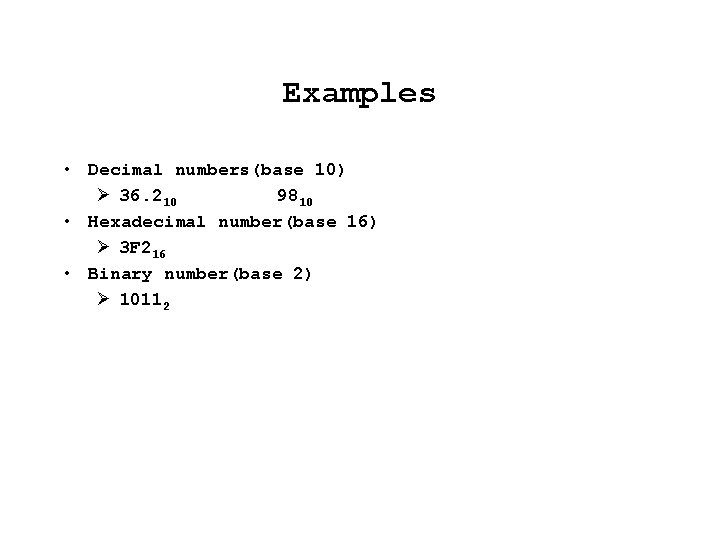

Examples • Decimal numbers(base 10) Ø 36. 210 9810 • Hexadecimal number(base 16) Ø 3 F 216 • Binary number(base 2) Ø 10112

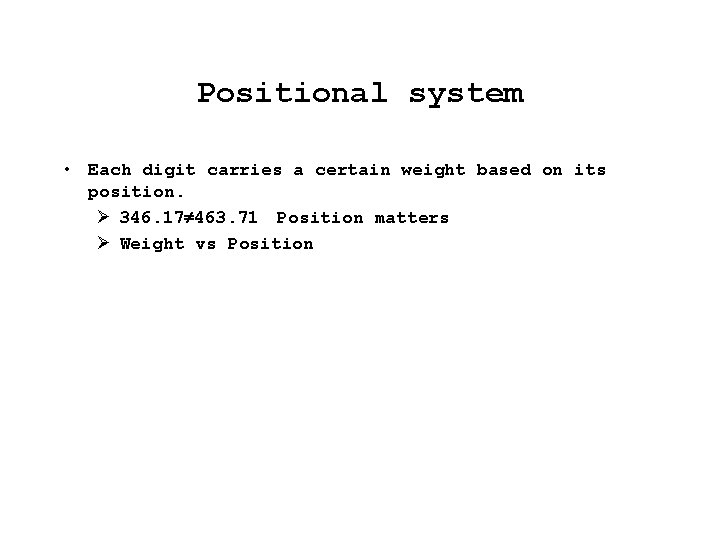

Positional system • Each digit carries a certain weight based on its position. Ø 346. 17 463. 71 Position matters Ø Weight vs Position

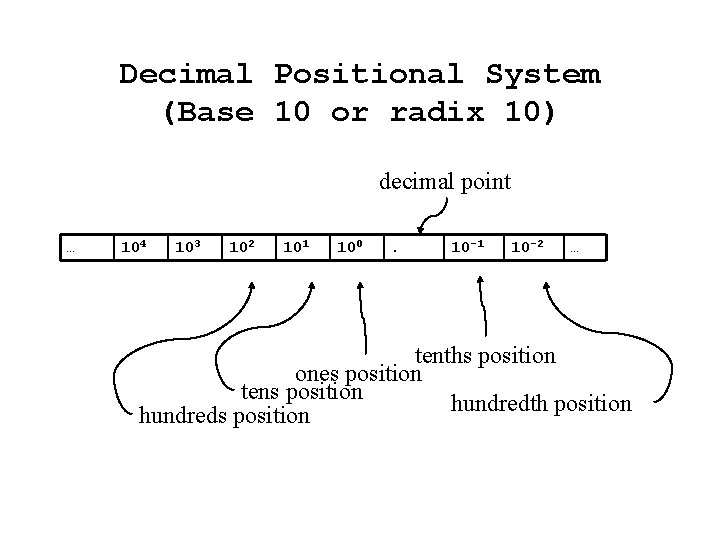

Decimal Positional System (Base 10 or radix 10) decimal point … 104 103 102 101 100 . 10 -1 10 -2 … tenths position ones position tens position hundredth position hundreds position

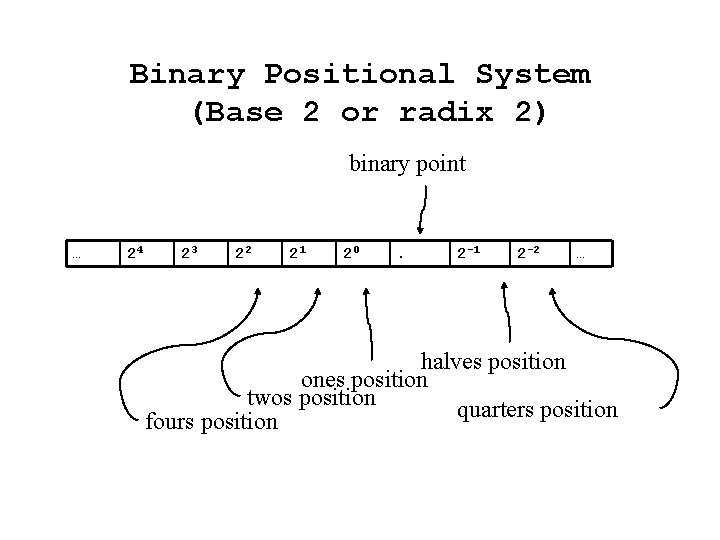

Binary Positional System (Base 2 or radix 2) binary point … 24 23 22 21 20 . 2 -1 2 -2 … halves position ones position twos position quarters position fours position

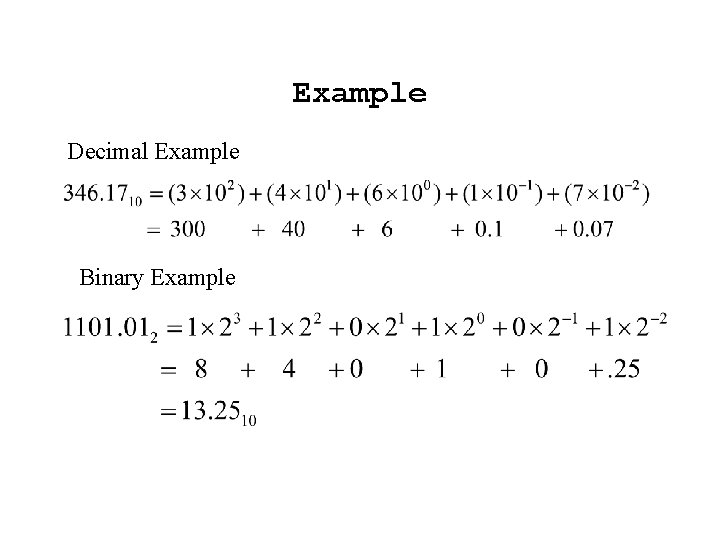

Example Decimal Example Binary Example

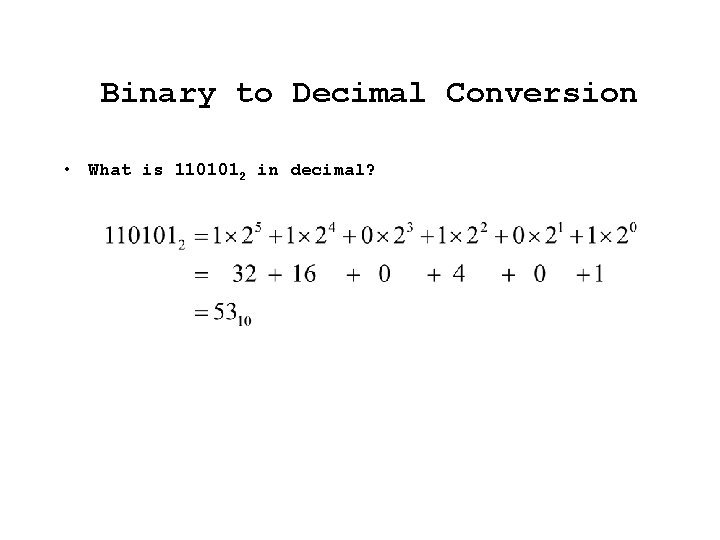

Binary to Decimal Conversion • What is 1101012 in decimal?

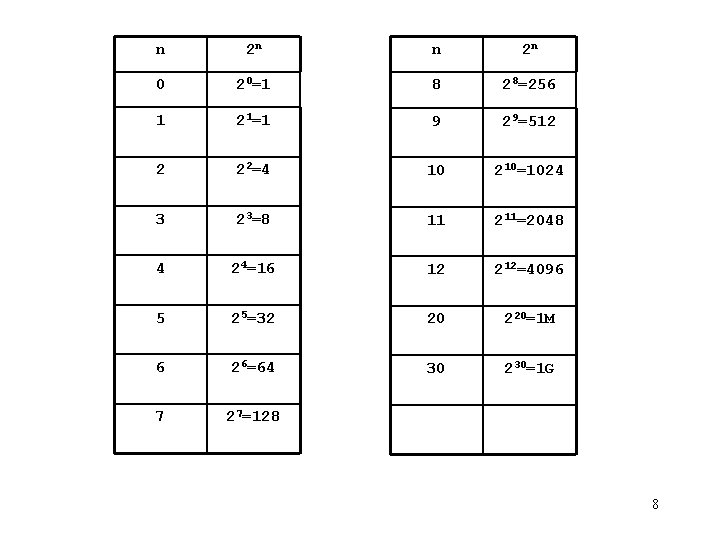

n 2 n 0 20=1 8 28=256 1 21=1 9 29=512 2 22=4 10 210=1024 3 23=8 11 211=2048 4 24=16 12 212=4096 5 25=32 20 220=1 M 6 26=64 30 230=1 G 7 27=128 8

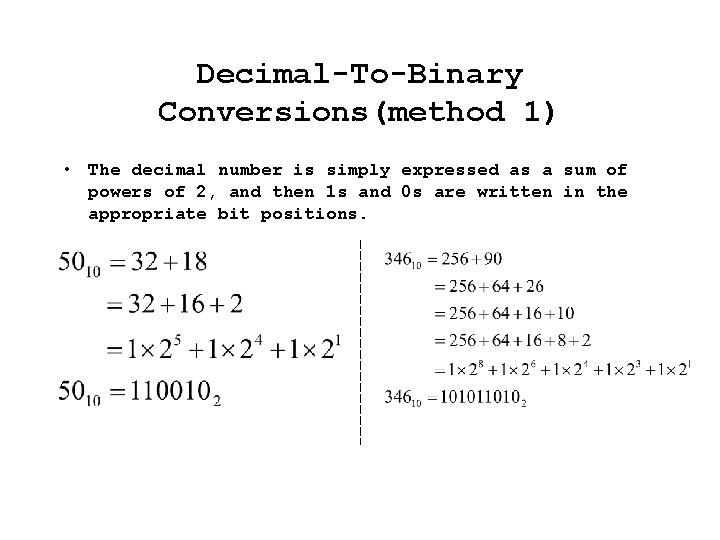

Decimal-To-Binary Conversions(method 1) • The decimal number is simply expressed as a sum of powers of 2, and then 1 s and 0 s are written in the appropriate bit positions.

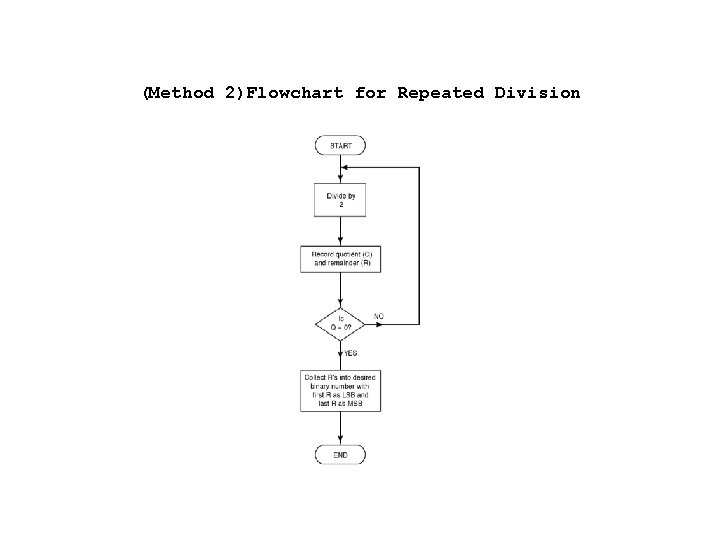

(Method 2)Flowchart for Repeated Division

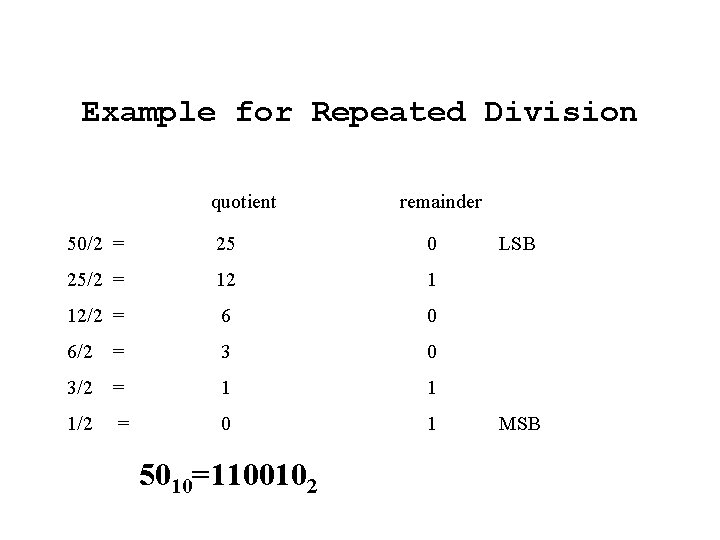

Example for Repeated Division quotient remainder 50/2 = 25 0 25/2 = 12 1 12/2 = 6 0 6/2 = 3 0 3/2 = 1 1 1/2 = 0 1 5010=1100102 LSB MSB

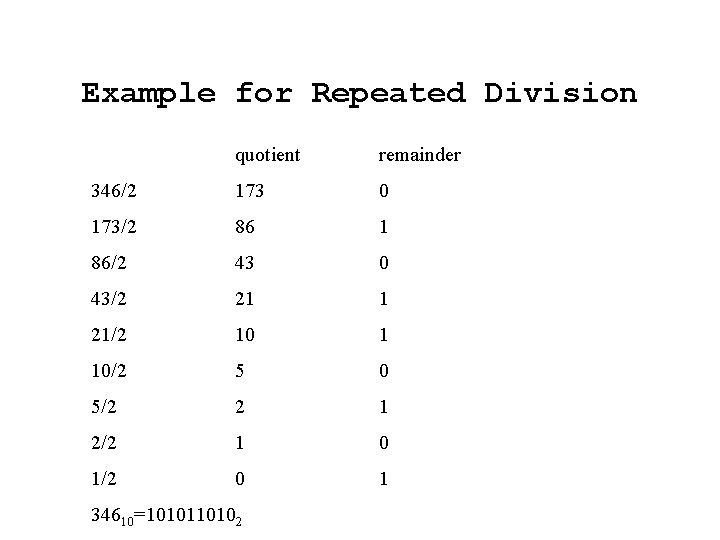

Example for Repeated Division quotient remainder 346/2 173 0 173/2 86 1 86/2 43 0 43/2 21 1 21/2 10 1 10/2 5 0 5/2 2 1 2/2 1 0 1/2 0 1 34610=1010110102

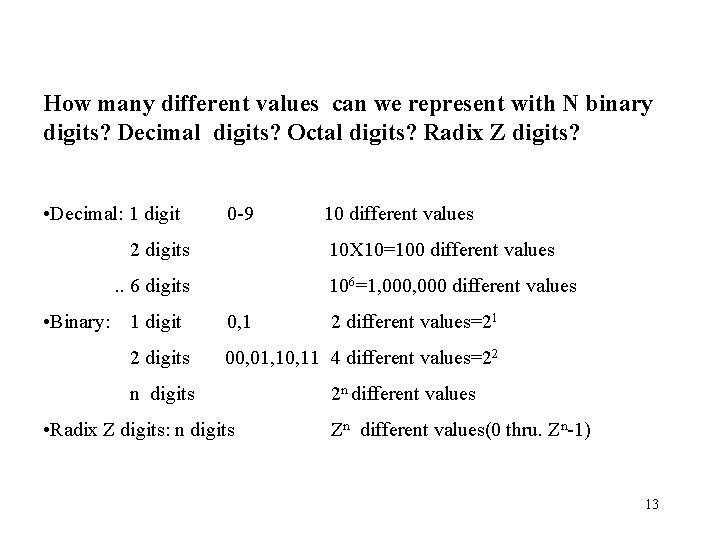

How many different values can we represent with N binary digits? Decimal digits? Octal digits? Radix Z digits? • Decimal: 1 digit 0 -9 2 digits 10 X 10=100 different values . . 6 digits • Binary: 1 digit 2 digits 10 different values 106=1, 000 different values 0, 1 2 different values=21 00, 01, 10, 11 4 different values=22 n digits • Radix Z digits: n digits 2 n different values Zn different values(0 thru. Zn-1) 13

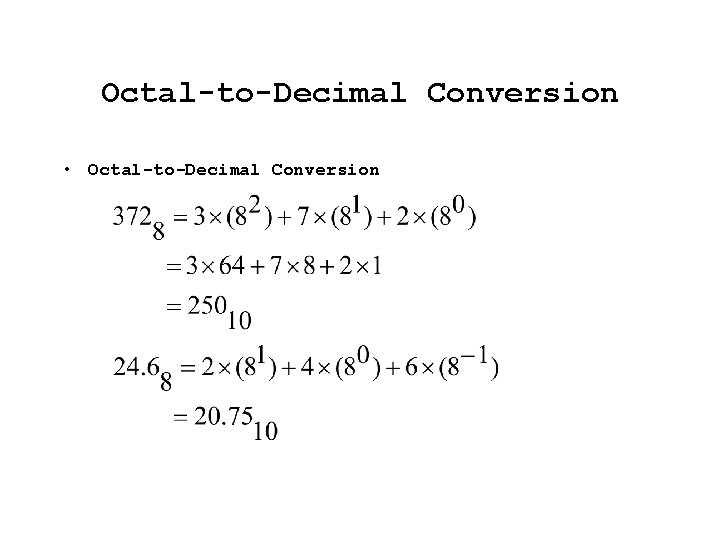

Octal-to-Decimal Conversion • Octal-to-Decimal Conversion

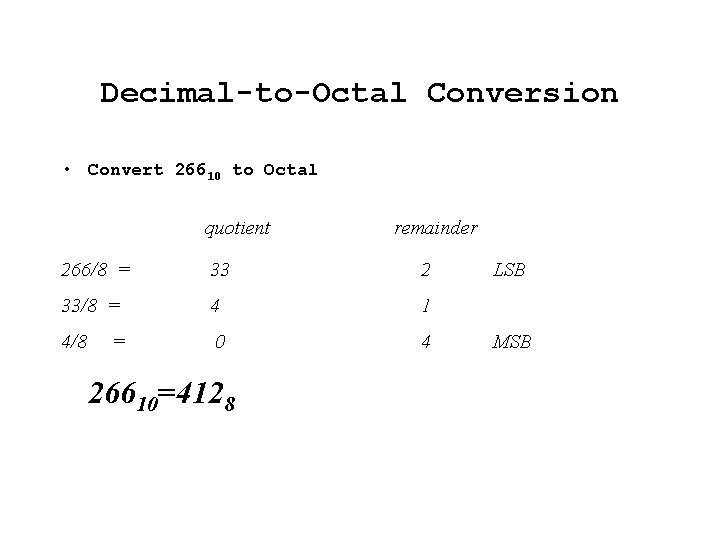

Decimal-to-Octal Conversion • Convert 26610 to Octal quotient remainder 266/8 = 33 2 33/8 = 4 1 4/8 0 4 = 26610=4128 LSB MSB

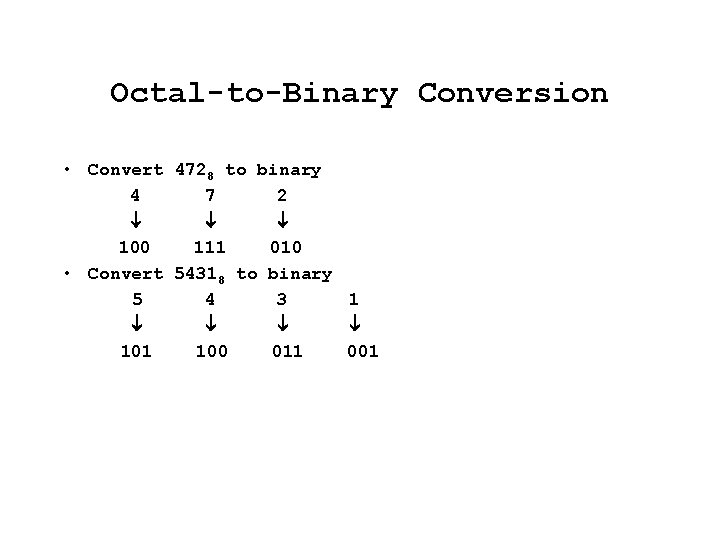

Octal-to-Binary Conversion • Convert 4728 to binary 4 7 2 100 111 010 • Convert 54318 to binary 5 4 3 1 101 100 011 001

Binary-to-Octal Conversion • Convert 1001110102 to octal • Convert 110101102 to octal

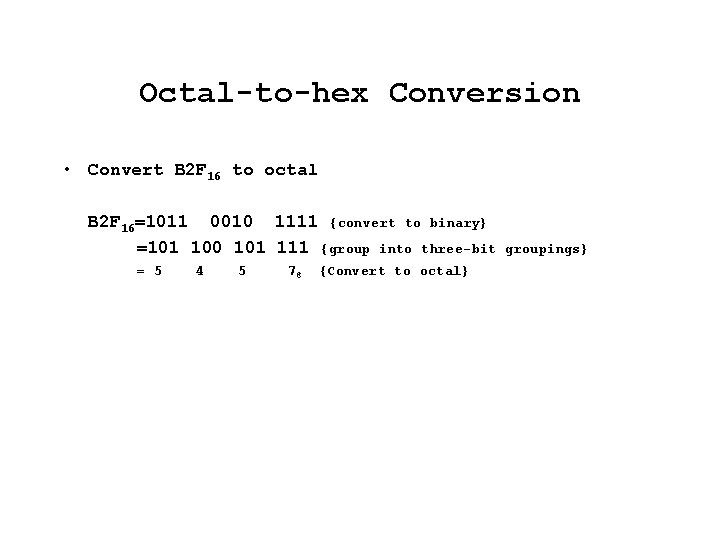

Octal-to-hex Conversion • Convert B 2 F 16 to octal B 2 F 16=1011 0010 1111 {convert to binary} =101 100 101 111 {group into three-bit = 5 4 5 78 {Convert to octal} groupings}

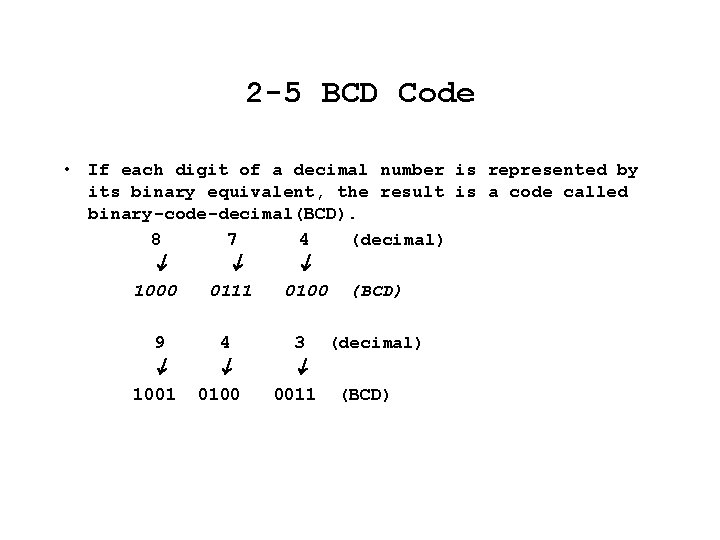

2 -5 BCD Code • If each digit of a decimal number is represented by its binary equivalent, the result is a code called binary-code-decimal(BCD). 8 7 4 (decimal) 1000 0111 0100 (BCD) 9 4 3 1001 0100 0011 (decimal) (BCD)

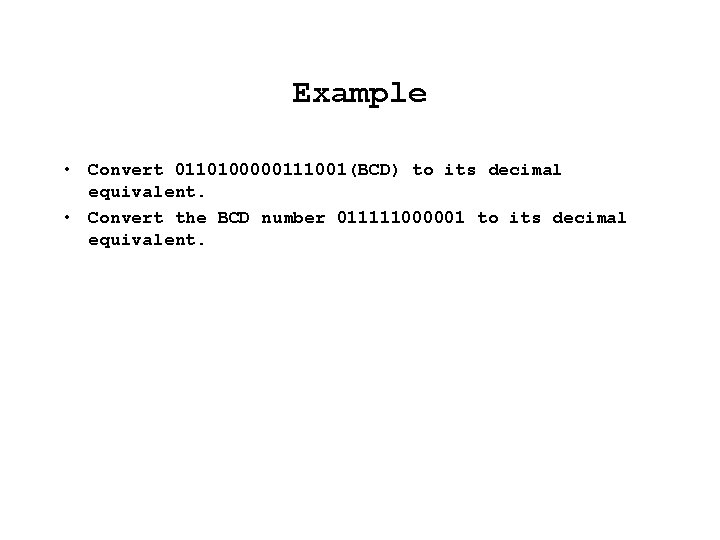

Example • Convert 0110100000111001(BCD) to its decimal equivalent. • Convert the BCD number 011111000001 to its decimal equivalent.

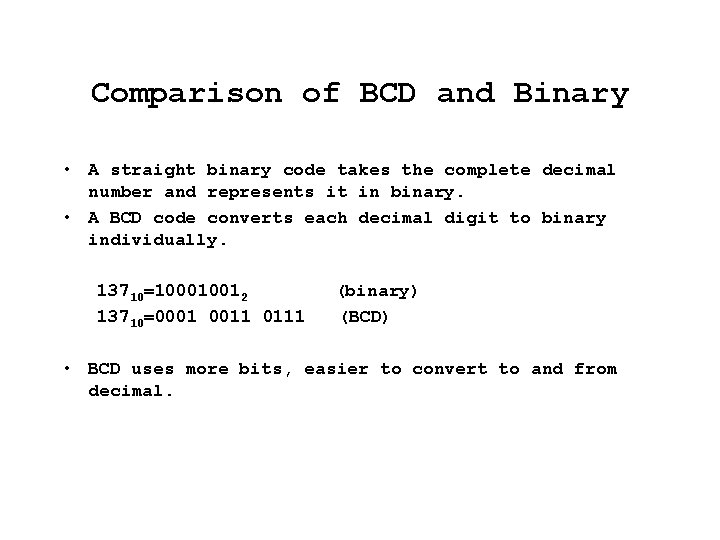

Comparison of BCD and Binary • A straight binary code takes the complete decimal number and represents it in binary. • A BCD code converts each decimal digit to binary individually. 13710=100010012 13710=0001 0011 0111 (binary) (BCD) • BCD uses more bits, easier to convert to and from decimal.

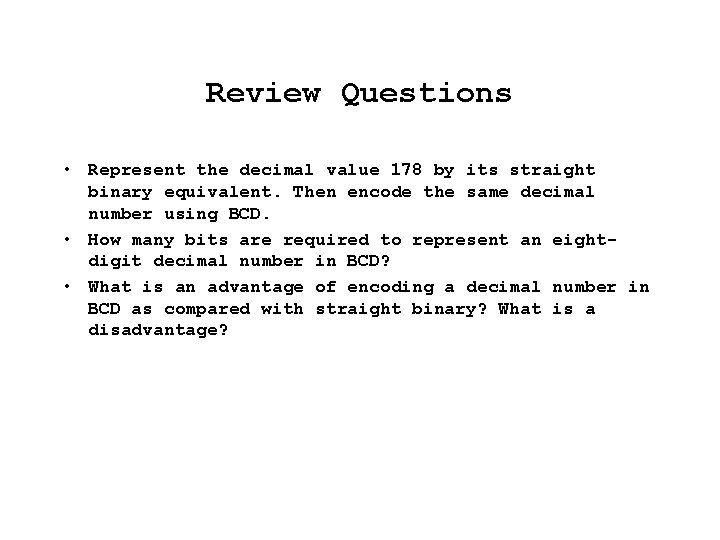

Review Questions • Represent the decimal value 178 by its straight binary equivalent. Then encode the same decimal number using BCD. • How many bits are required to represent an eightdigit decimal number in BCD? • What is an advantage of encoding a decimal number in BCD as compared with straight binary? What is a disadvantage?

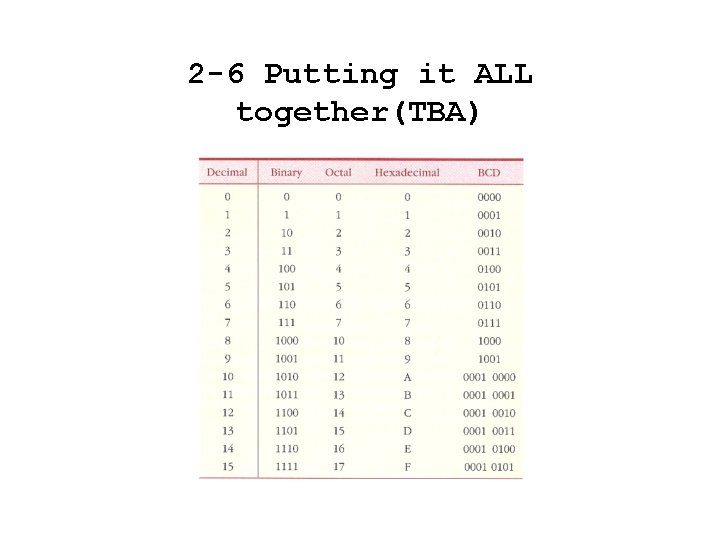

2 -6 Putting it ALL together(TBA)

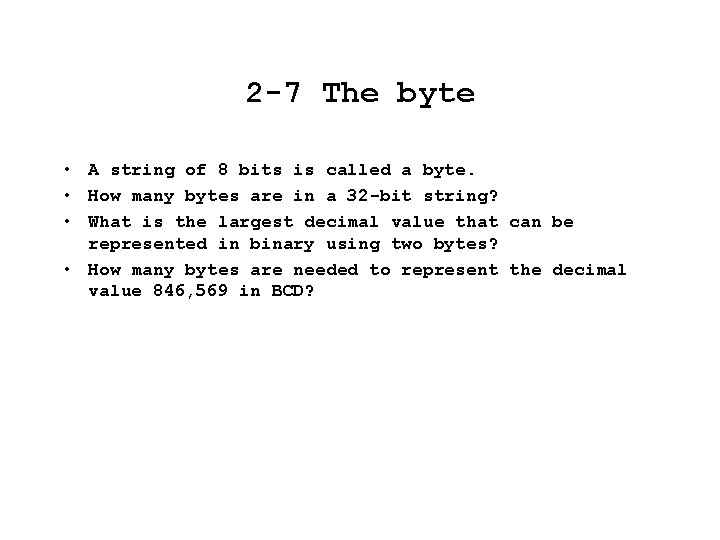

2 -7 The byte • A string of 8 bits is called a byte. • How many bytes are in a 32 -bit string? • What is the largest decimal value that can be represented in binary using two bytes? • How many bytes are needed to represent the decimal value 846, 569 in BCD?

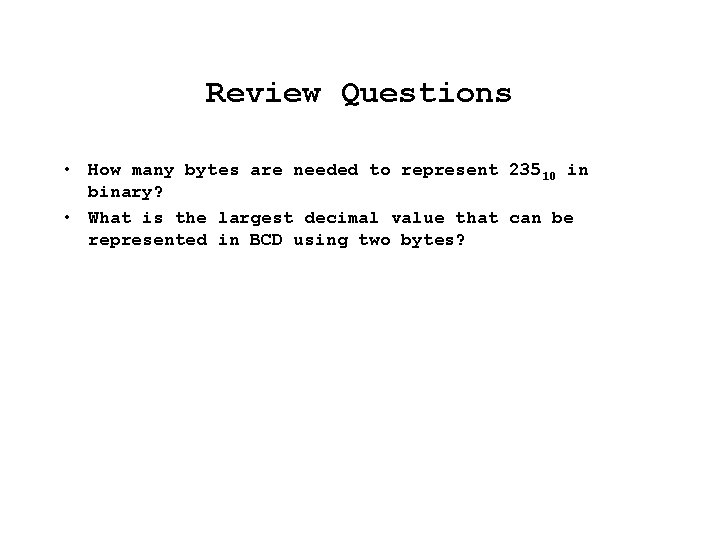

Review Questions • How many bytes are needed to represent 23510 in binary? • What is the largest decimal value that can be represented in BCD using two bytes?

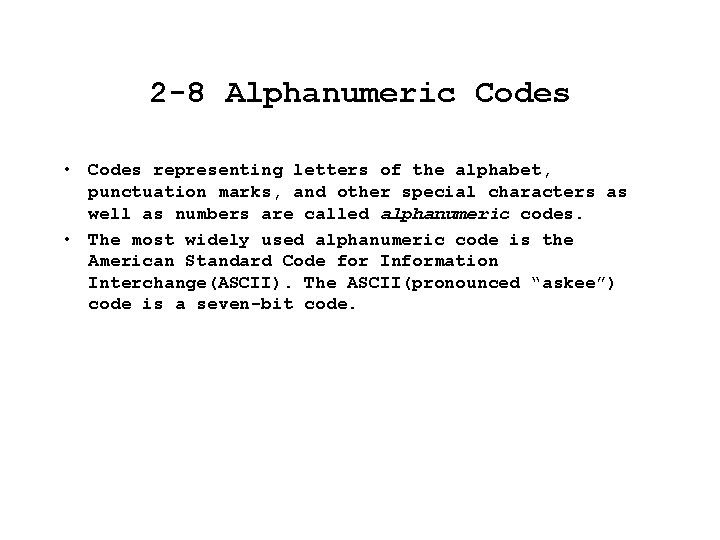

2 -8 Alphanumeric Codes • Codes representing letters of the alphabet, punctuation marks, and other special characters as well as numbers are called alphanumeric codes. • The most widely used alphanumeric code is the American Standard Code for Information Interchange(ASCII). The ASCII(pronounced “askee”) code is a seven-bit code.

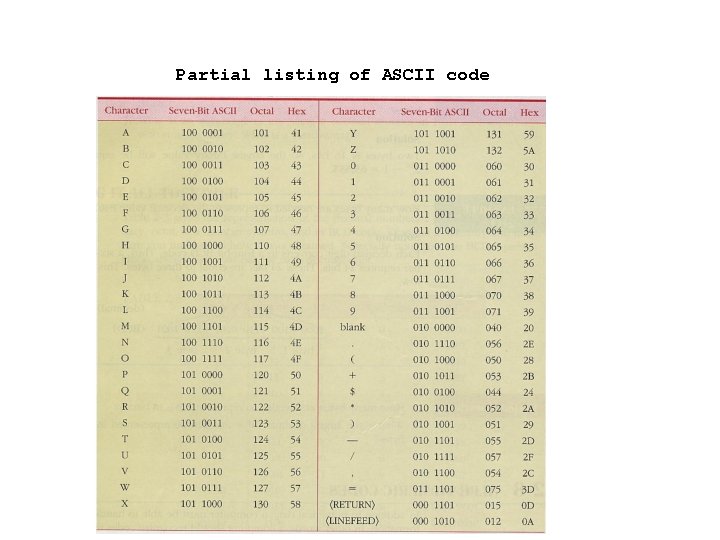

Partial listing of ASCII code

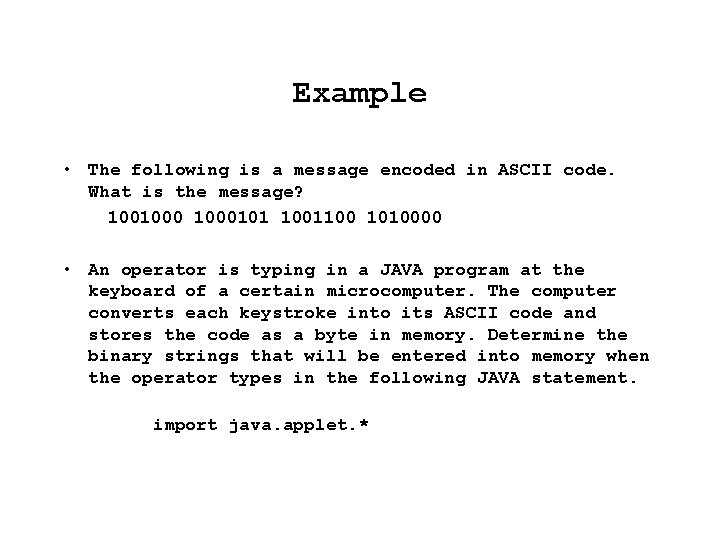

Example • The following is a message encoded in ASCII code. What is the message? 1001000101 1001100 1010000 • An operator is typing in a JAVA program at the keyboard of a certain microcomputer. The computer converts each keystroke into its ASCII code and stores the code as a byte in memory. Determine the binary strings that will be entered into memory when the operator types in the following JAVA statement. import java. applet. *

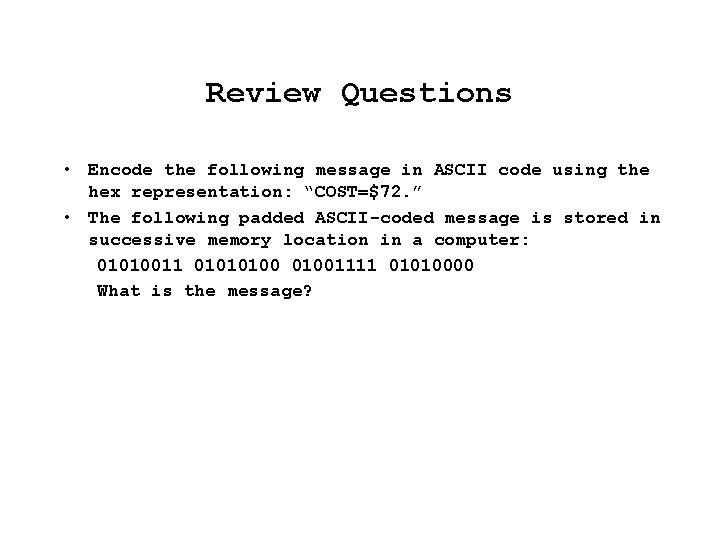

Review Questions • Encode the following message in ASCII code using the hex representation: “COST=$72. ” • The following padded ASCII-coded message is stored in successive memory location in a computer: 01010011 010101001111 01010000 What is the message?

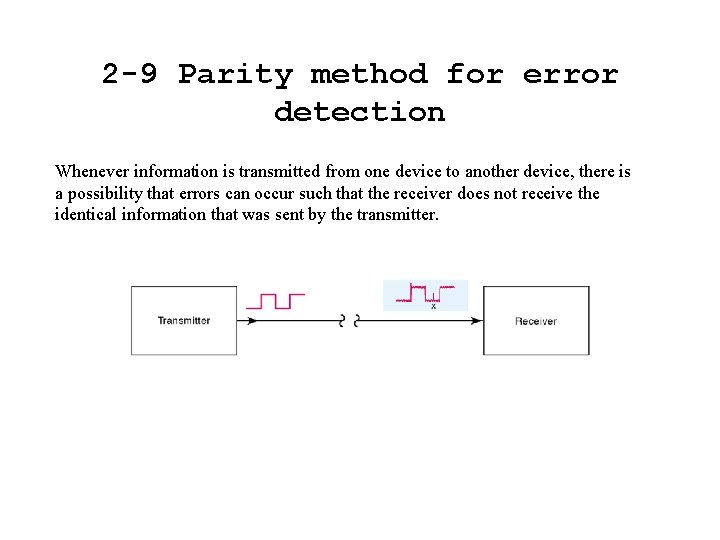

2 -9 Parity method for error detection Whenever information is transmitted from one device to another device, there is a possibility that errors can occur such that the receiver does not receive the identical information that was sent by the transmitter.

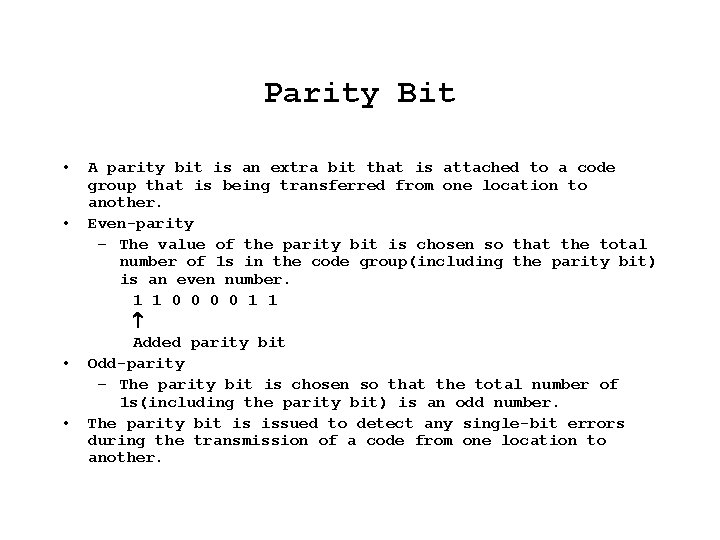

Parity Bit • • A parity bit is an extra bit that is attached to a code group that is being transferred from one location to another. Even-parity – The value of the parity bit is chosen so that the total number of 1 s in the code group(including the parity bit) is an even number. 1 1 0 0 1 1 Added parity bit Odd-parity – The parity bit is chosen so that the total number of 1 s(including the parity bit) is an odd number. The parity bit is issued to detect any single-bit errors during the transmission of a code from one location to another.

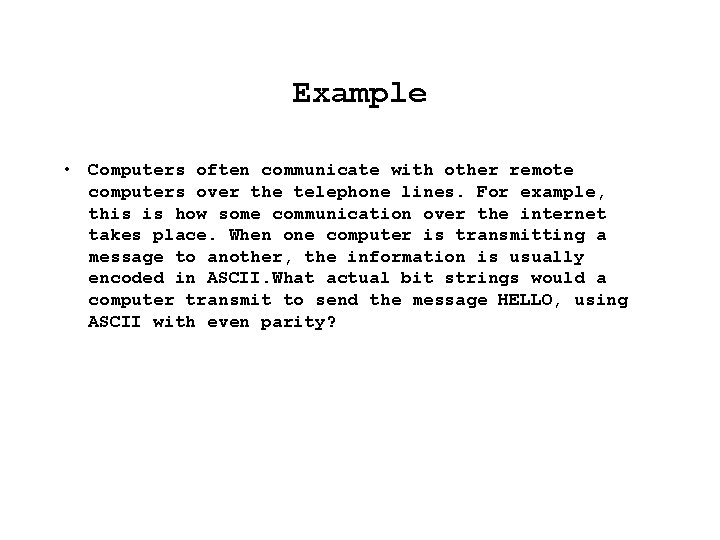

Example • Computers often communicate with other remote computers over the telephone lines. For example, this is how some communication over the internet takes place. When one computer is transmitting a message to another, the information is usually encoded in ASCII. What actual bit strings would a computer transmit to send the message HELLO, using ASCII with even parity?

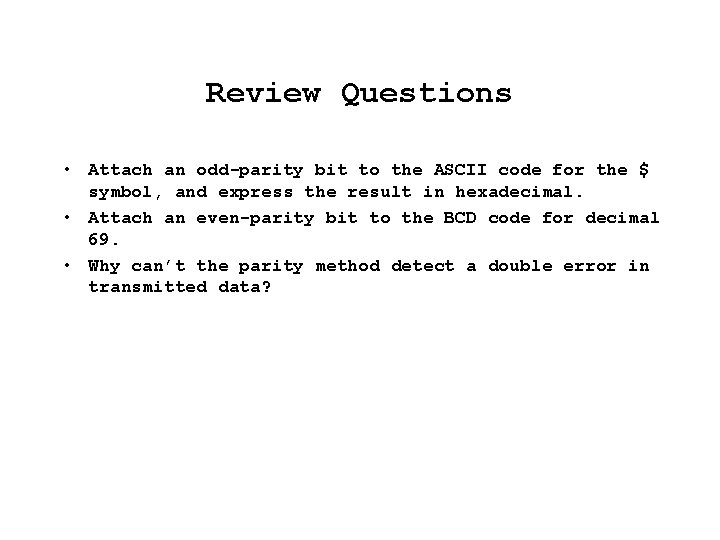

Review Questions • Attach an odd-parity bit to the ASCII code for the $ symbol, and express the result in hexadecimal. • Attach an even-parity bit to the BCD code for decimal 69. • Why can’t the parity method detect a double error in transmitted data?

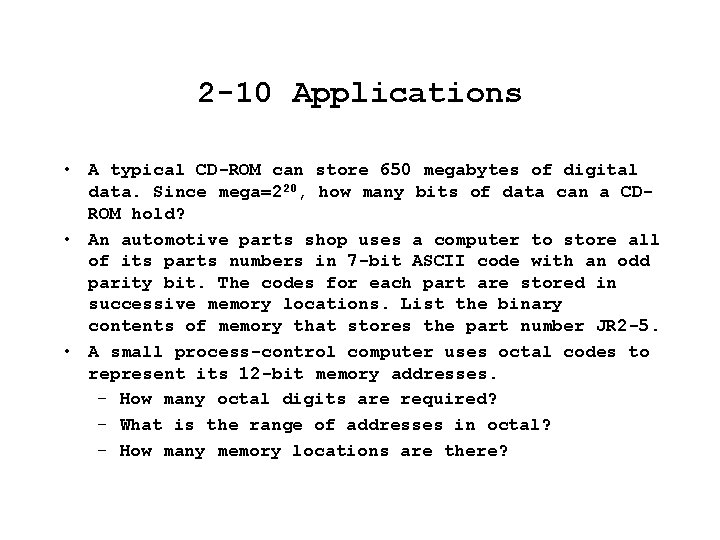

2 -10 Applications • A typical CD-ROM can store 650 megabytes of digital data. Since mega=220, how many bits of data can a CDROM hold? • An automotive parts shop uses a computer to store all of its parts numbers in 7 -bit ASCII code with an odd parity bit. The codes for each part are stored in successive memory locations. List the binary contents of memory that stores the part number JR 2 -5. • A small process-control computer uses octal codes to represent its 12 -bit memory addresses. – How many octal digits are required? – What is the range of addresses in octal? – How many memory locations are there?

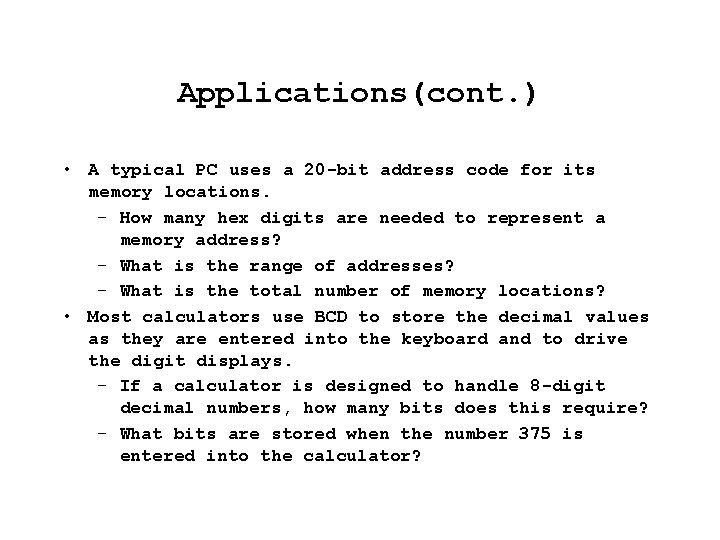

Applications(cont. ) • A typical PC uses a 20 -bit address code for its memory locations. – How many hex digits are needed to represent a memory address? – What is the range of addresses? – What is the total number of memory locations? • Most calculators use BCD to store the decimal values as they are entered into the keyboard and to drive the digit displays. – If a calculator is designed to handle 8 -digit decimal numbers, how many bits does this require? – What bits are stored when the number 375 is entered into the calculator?

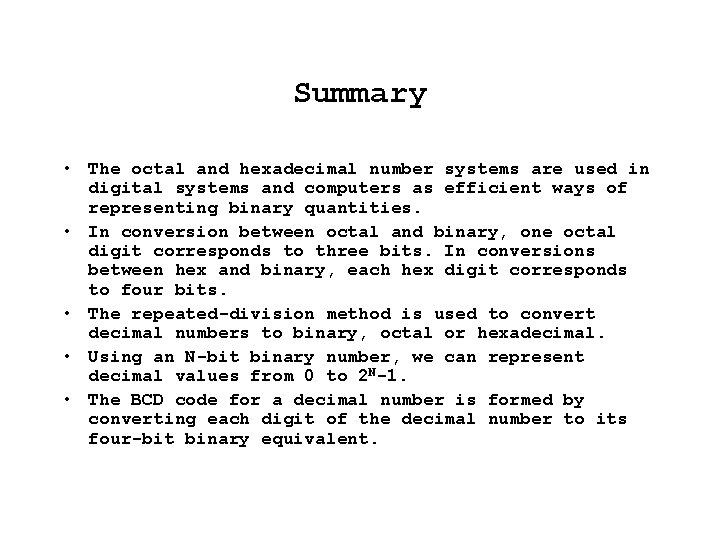

Summary • The octal and hexadecimal number systems are used in digital systems and computers as efficient ways of representing binary quantities. • In conversion between octal and binary, one octal digit corresponds to three bits. In conversions between hex and binary, each hex digit corresponds to four bits. • The repeated-division method is used to convert decimal numbers to binary, octal or hexadecimal. • Using an N-bit binary number, we can represent decimal values from 0 to 2 N-1. • The BCD code for a decimal number is formed by converting each digit of the decimal number to its four-bit binary equivalent.

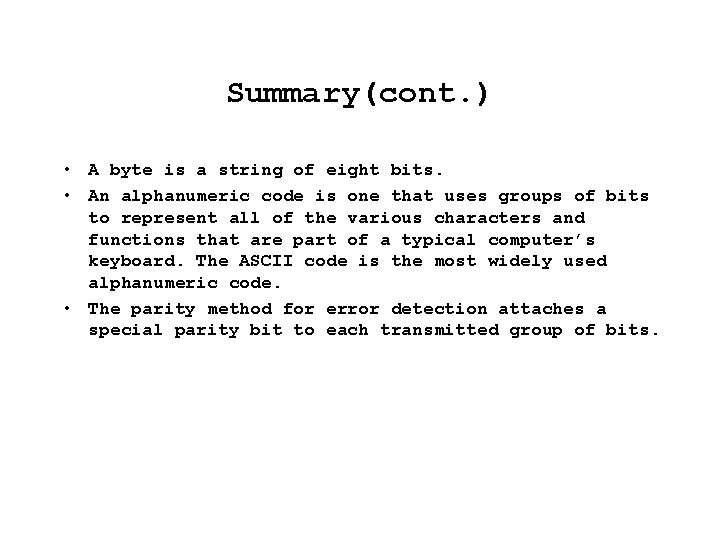

Summary(cont. ) • A byte is a string of eight bits. • An alphanumeric code is one that uses groups of bits to represent all of the various characters and functions that are part of a typical computer’s keyboard. The ASCII code is the most widely used alphanumeric code. • The parity method for error detection attaches a special parity bit to each transmitted group of bits.
