Ch. 18 Volcanoes

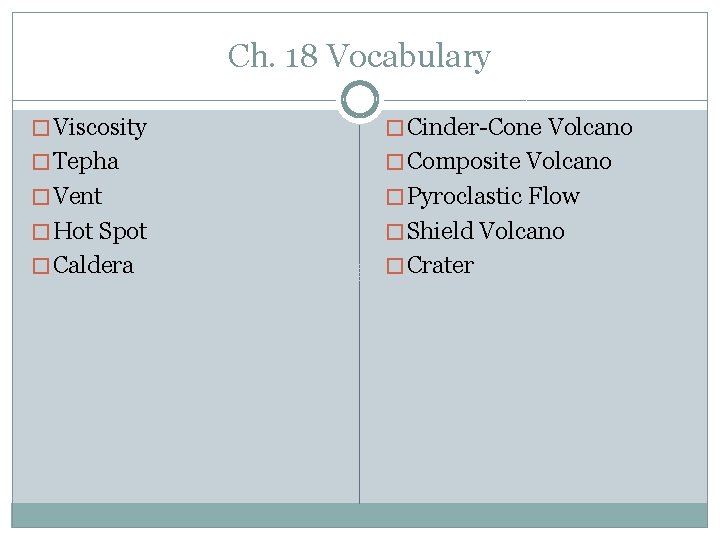

Ch. 18 Vocabulary � Viscosity � Cinder-Cone Volcano � Tepha � Composite Volcano � Vent � Pyroclastic Flow � Hot Spot � Shield Volcano � Caldera � Crater

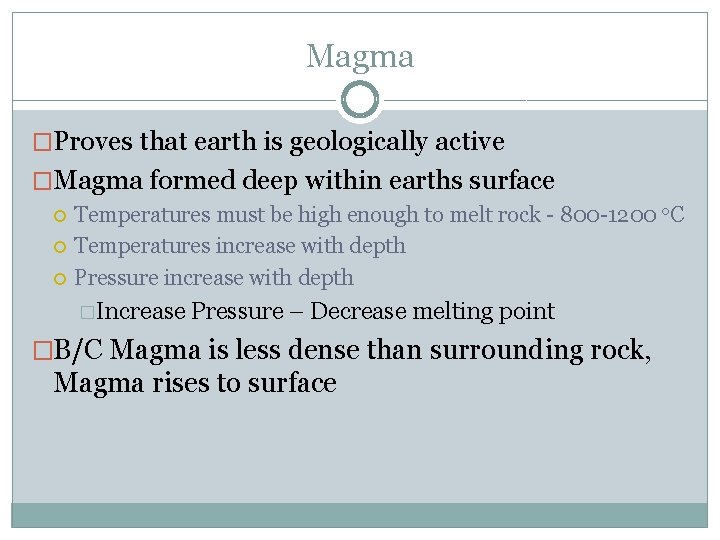

Magma �Proves that earth is geologically active �Magma formed deep within earths surface Temperatures must be high enough to melt rock - 800 -1200 o. C Temperatures increase with depth Pressure increase with depth �Increase Pressure – Decrease melting point �B/C Magma is less dense than surrounding rock, Magma rises to surface

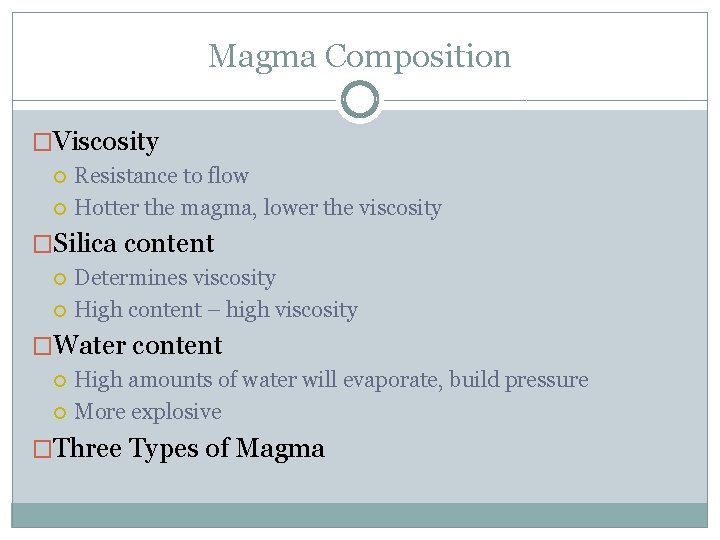

Magma Composition �Viscosity Resistance to flow Hotter the magma, lower the viscosity �Silica content Determines viscosity High content – high viscosity �Water content High amounts of water will evaporate, build pressure More explosive �Three Types of Magma

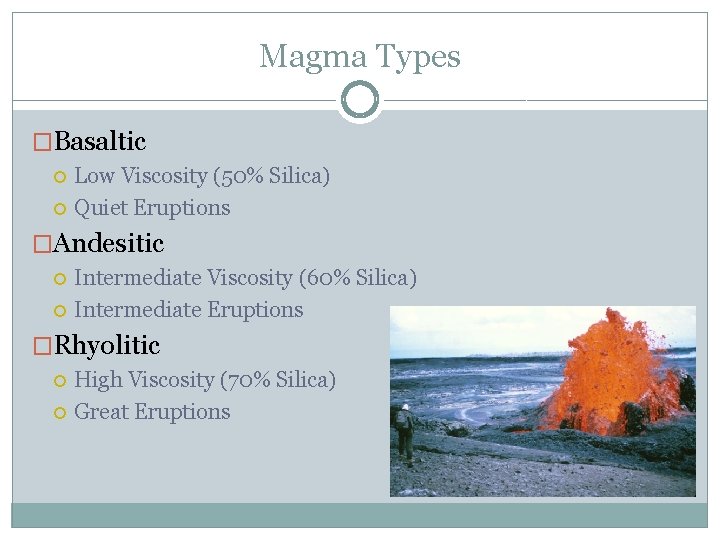

Magma Types �Basaltic Low Viscosity (50% Silica) Quiet Eruptions �Andesitic Intermediate Viscosity (60% Silica) Intermediate Eruptions �Rhyolitic High Viscosity (70% Silica) Great Eruptions

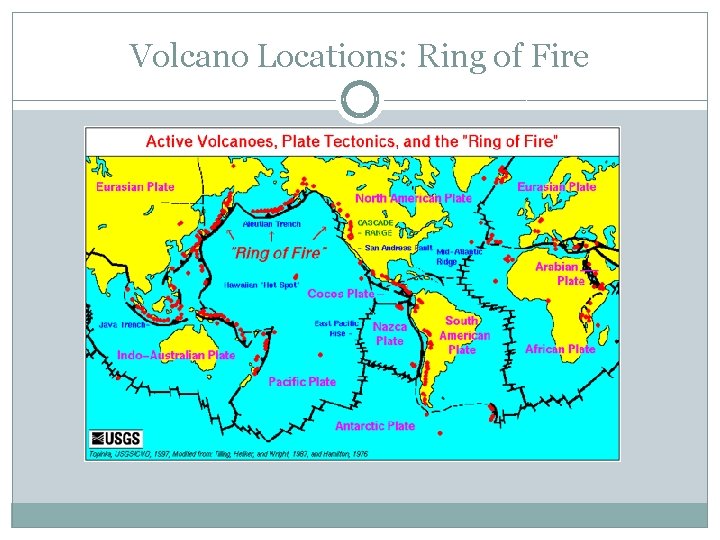

Volcano Locations: Ring of Fire

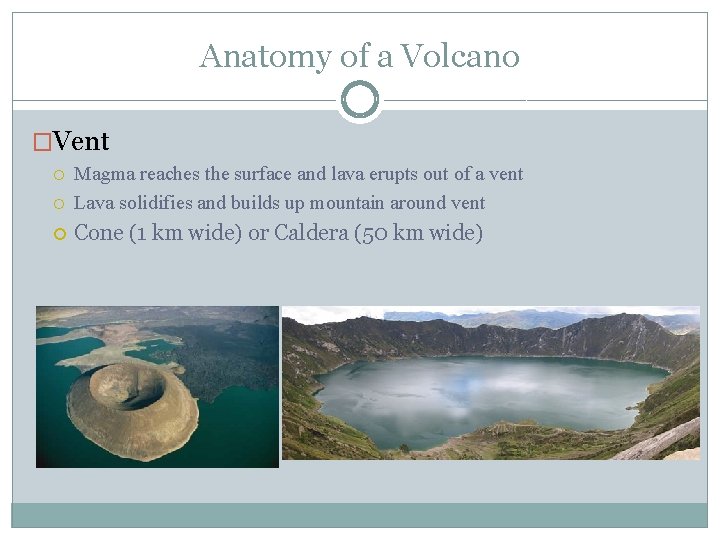

Anatomy of a Volcano �Vent Magma reaches the surface and lava erupts out of a vent Lava solidifies and builds up mountain around vent Cone (1 km wide) or Caldera (50 km wide)

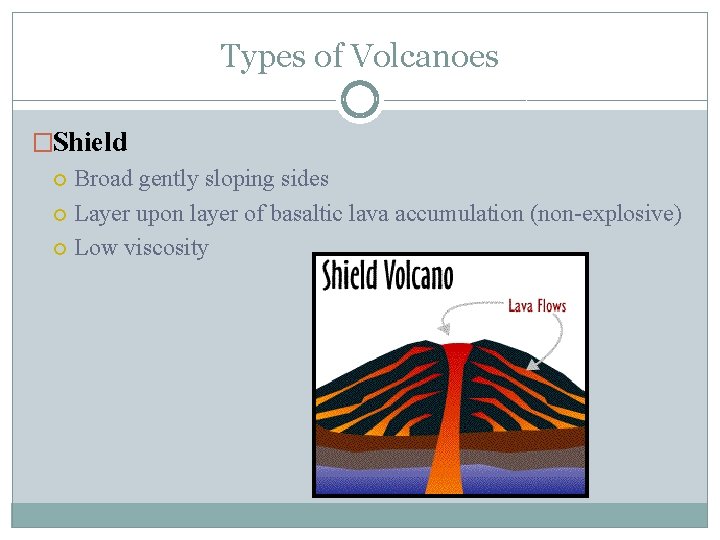

Types of Volcanoes �Shield Broad gently sloping sides Layer upon layer of basaltic lava accumulation (non-explosive) Low viscosity

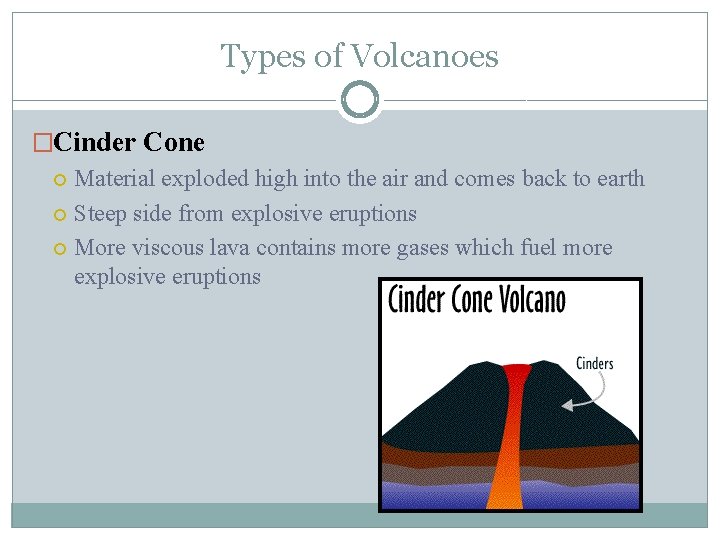

Types of Volcanoes �Cinder Cone Material exploded high into the air and comes back to earth Steep side from explosive eruptions More viscous lava contains more gases which fuel more explosive eruptions

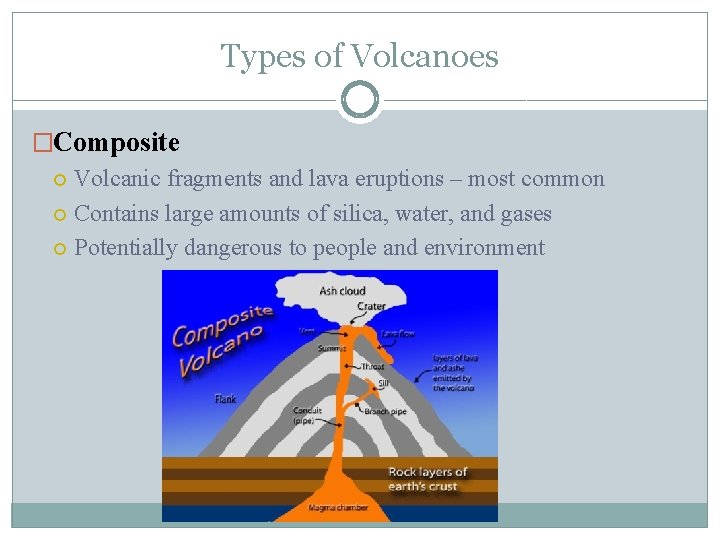

Types of Volcanoes �Composite Volcanic fragments and lava eruptions – most common Contains large amounts of silica, water, and gases Potentially dangerous to people and environment

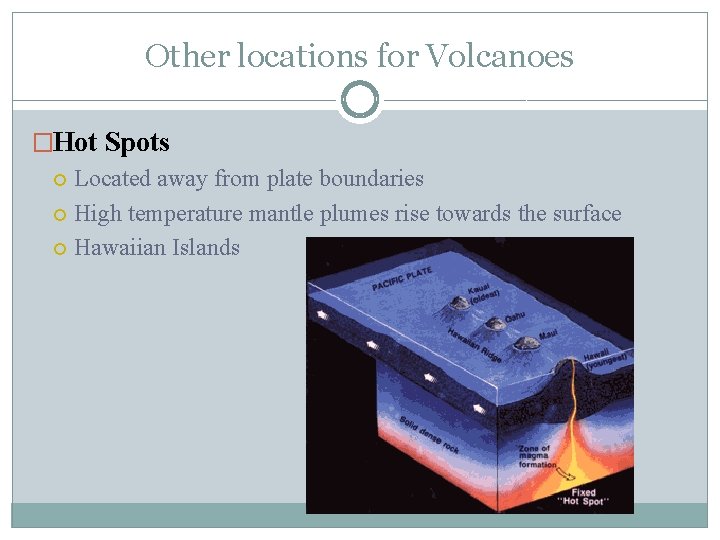

Other locations for Volcanoes �Hot Spots Located away from plate boundaries High temperature mantle plumes rise towards the surface Hawaiian Islands
