CH 103 ATOMIC MASS AND ISOTOPIC ABUNDANCE GAS

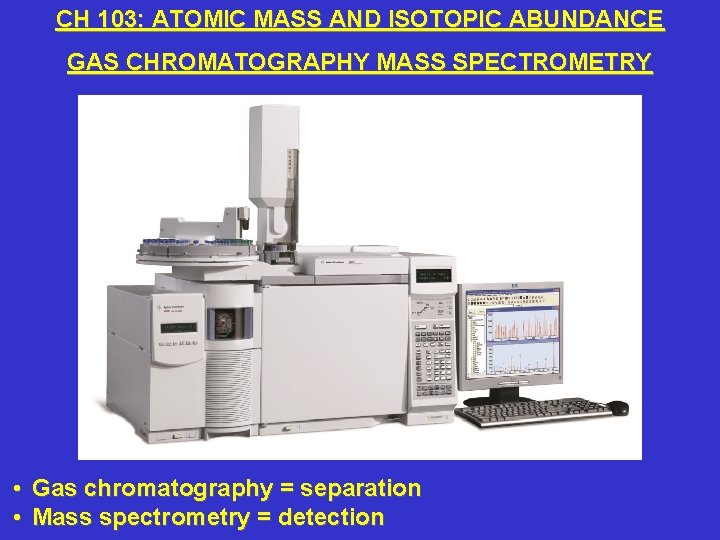

CH 103: ATOMIC MASS AND ISOTOPIC ABUNDANCE GAS CHROMATOGRAPHY MASS SPECTROMETRY • Gas chromatography = separation • Mass spectrometry = detection

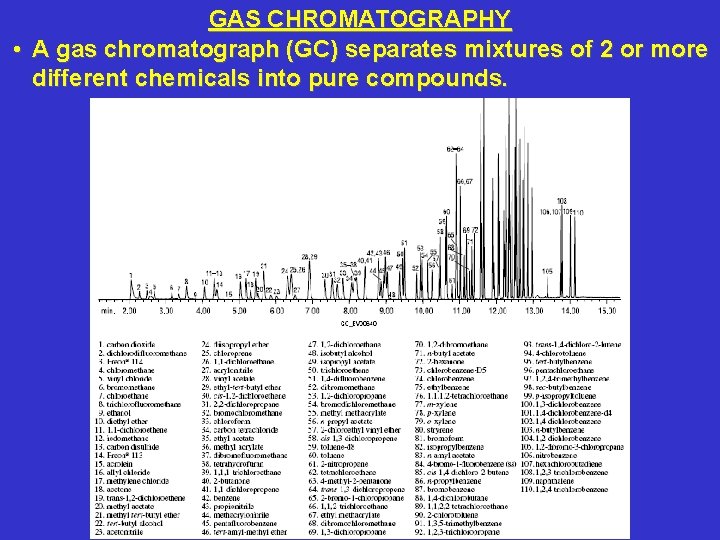

GAS CHROMATOGRAPHY • A gas chromatograph (GC) separates mixtures of 2 or more different chemicals into pure compounds.

GAS CHROMATOGRAPHY • The sample is injected into the GC inlet where it is heated and swept onto a chromatographic column by a carrier gas. • The pure compounds in a mixture are separated by interacting with the coating or packing of the column (stationary phase) and the carrier gas (mobile phase). • This separation is often improved by programming changes in column temperature and pressure.

GAS CHROMATOGRAPHY Splitless Injection Animation http: //www. restek. com/info_animation_splitless. asp • Splitless injections direct the entire sample to the column. 2 m. L/min septum purge flow + 3 m. L/min column flow = 5 m. L/min total flow • Unknowns might be analyzed with a 0. 2 μL splitless injection to identify minor components.

GAS CHROMATOGRAPHY Split Injection Animation http: //www. restek. com/info_animation_split. asp • Split injections direct a fraction of the sample to the column and the remaining sample vents out of the GC. 2 m. L/min septum purge flow + 1 m. L/min column flow + 100 m. L/min split flow = 103 m. L/min total flow • Complicated mixtures, such as petroleum, might be analyzed with a 1. 0 μL injection using a 1 to 100 split to identify major components.

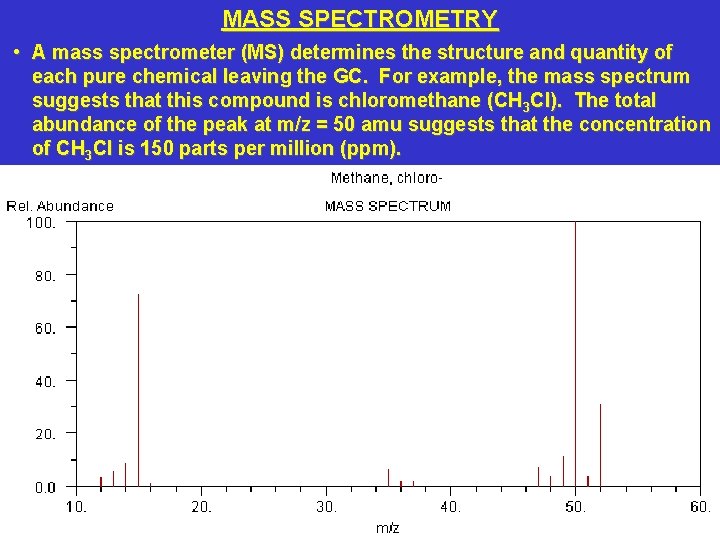

MASS SPECTROMETRY • A mass spectrometer (MS) determines the structure and quantity of each pure chemical leaving the GC. For example, the mass spectrum suggests that this compound is chloromethane (CH 3 Cl). The total abundance of the peak at m/z = 50 amu suggests that the concentration of CH 3 Cl is 150 parts per million (ppm).

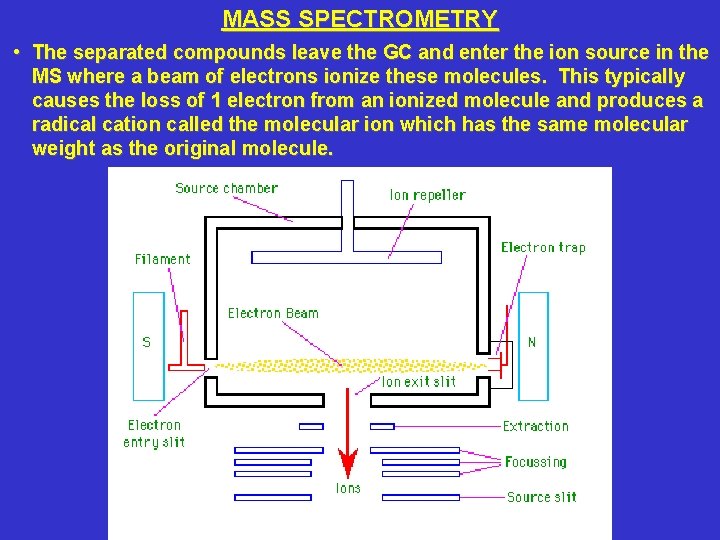

MASS SPECTROMETRY • The separated compounds leave the GC and enter the ion source in the MS where a beam of electrons ionize these molecules. This typically causes the loss of 1 electron from an ionized molecule and produces a radical cation called the molecular ion which has the same molecular weight as the original molecule.

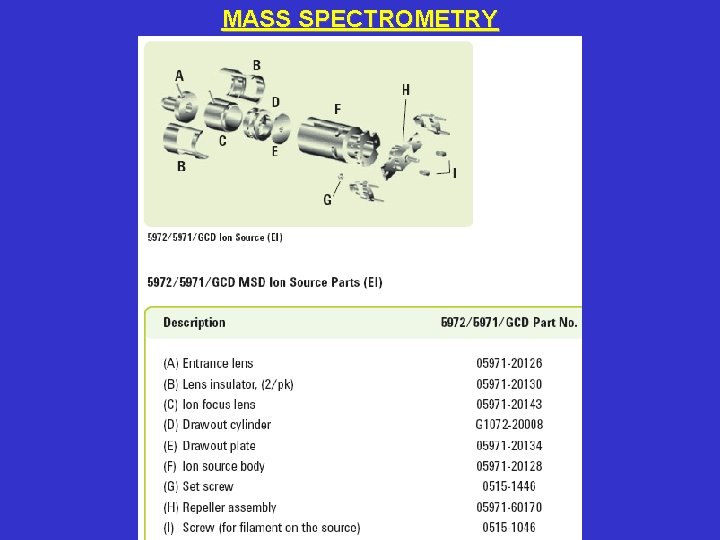

MASS SPECTROMETRY

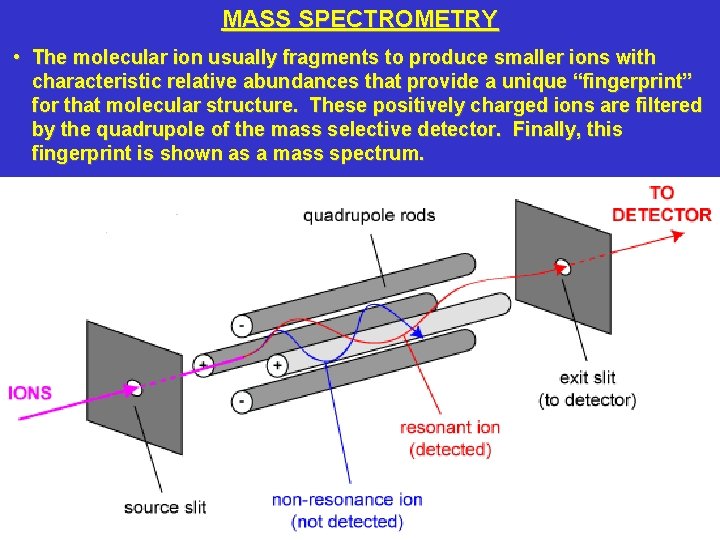

MASS SPECTROMETRY • The molecular ion usually fragments to produce smaller ions with characteristic relative abundances that provide a unique “fingerprint” for that molecular structure. These positively charged ions are filtered by the quadrupole of the mass selective detector. Finally, this fingerprint is shown as a mass spectrum.

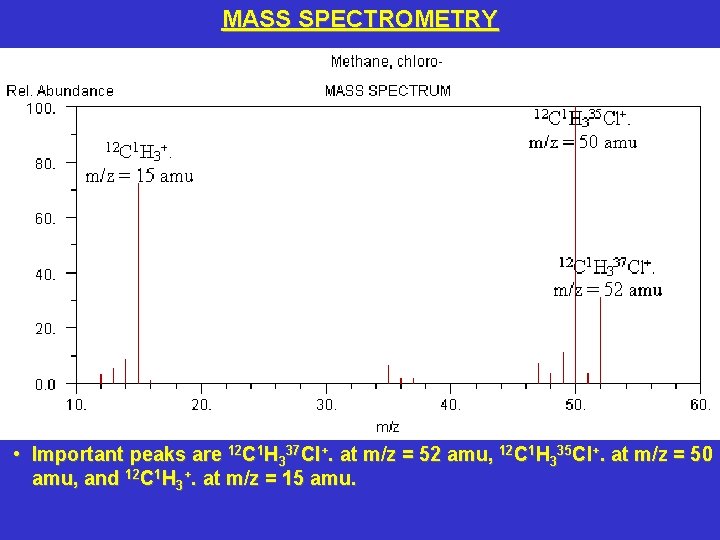

MASS SPECTROMETRY • Important peaks are 12 C 1 H 337 Cl+. at m/z = 52 amu, 12 C 1 H 335 Cl+. at m/z = 50 amu, and 12 C 1 H 3+. at m/z = 15 amu.

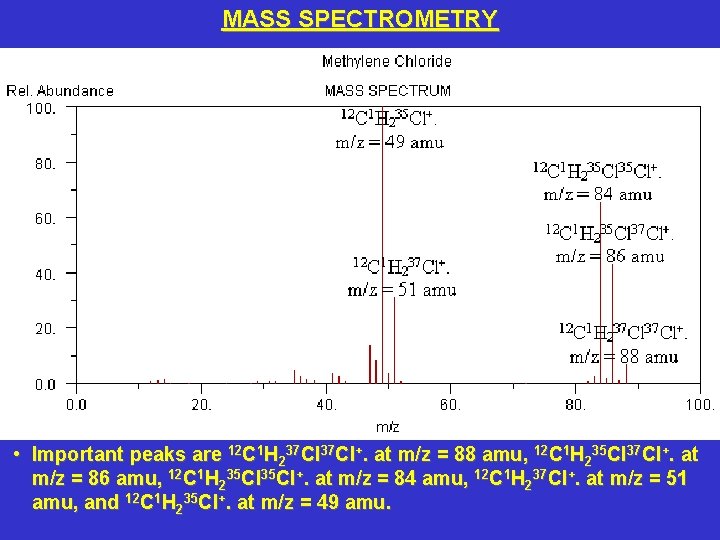

MASS SPECTROMETRY • Important peaks are 12 C 1 H 237 Cl+. at m/z = 88 amu, 12 C 1 H 235 Cl 37 Cl+. at m/z = 86 amu, 12 C 1 H 235 Cl+. at m/z = 84 amu, 12 C 1 H 237 Cl+. at m/z = 51 amu, and 12 C 1 H 235 Cl+. at m/z = 49 amu.

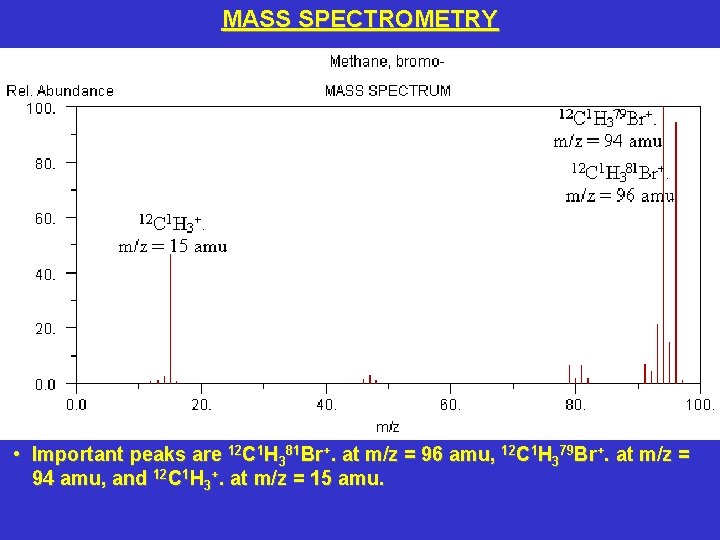

MASS SPECTROMETRY • Important peaks are 12 C 1 H 381 Br+. at m/z = 96 amu, 12 C 1 H 379 Br+. at m/z = 94 amu, and 12 C 1 H 3+. at m/z = 15 amu.

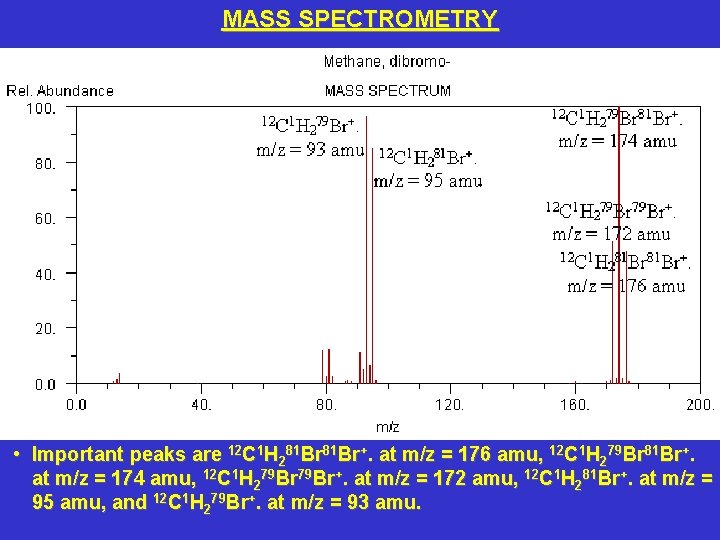

MASS SPECTROMETRY • Important peaks are 12 C 1 H 281 Br+. at m/z = 176 amu, 12 C 1 H 279 Br 81 Br+. at m/z = 174 amu, 12 C 1 H 279 Br+. at m/z = 172 amu, 12 C 1 H 281 Br+. at m/z = 95 amu, and 12 C 1 H 279 Br+. at m/z = 93 amu.
