CH 06 Considering Objects Q Set Class Type

CH 06: Considering Objects Q Set, Class, Type f…of… Q Objects, Actors, Agents f. Data and Actions • Object-Oriented Design and Development • Intro to UML (Unified modeling Language) Q Diagrams TECH CH 01 Computer Science

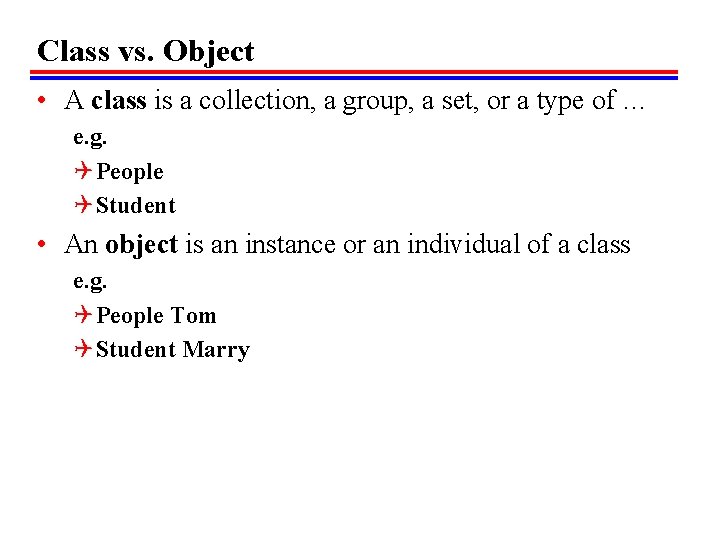

Class vs. Object • A class is a collection, a group, a set, or a type of … e. g. Q People Q Student • An object is an instance or an individual of a class e. g. Q People Tom Q Student Marry

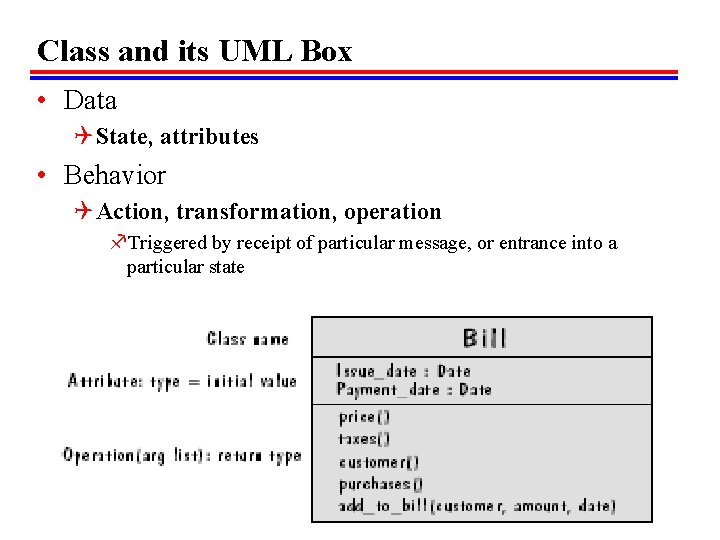

Class and its UML Box • Data Q State, attributes • Behavior Q Action, transformation, operation f. Triggered by receipt of particular message, or entrance into a particular state

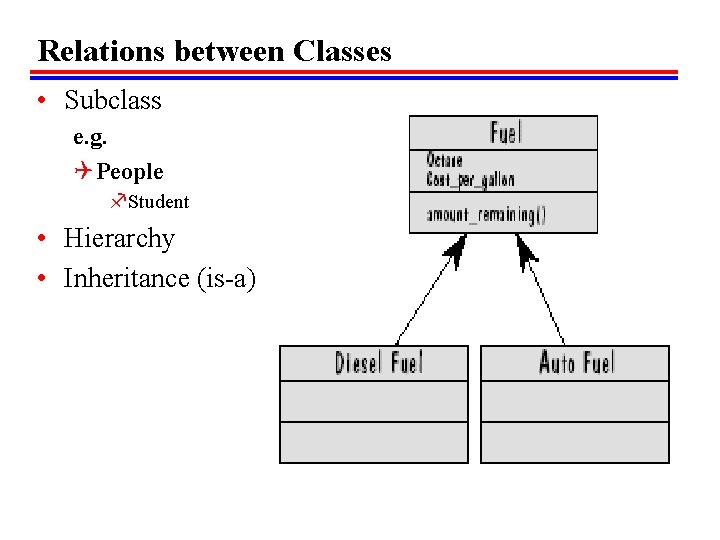

Relations between Classes • Subclass e. g. Q People f. Student • Hierarchy • Inheritance (is-a)

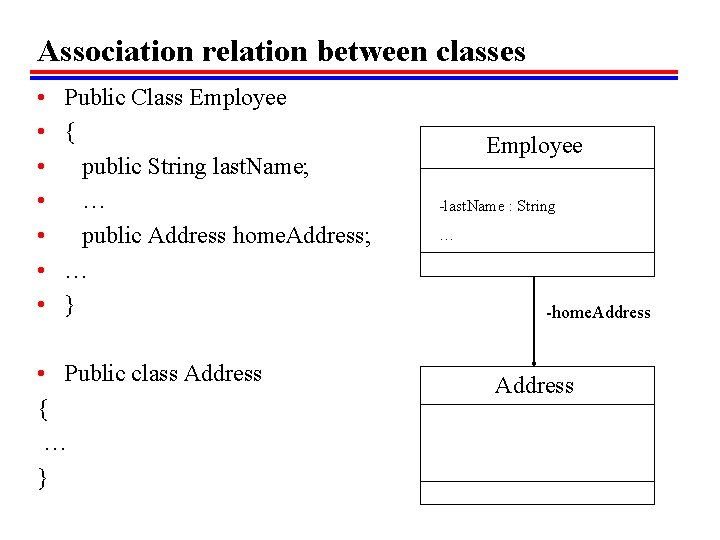

Association relation between classes • • Public Class Employee { public String last. Name; … public Address home. Address; … } • Public class Address { … } Employee -last. Name : String … -home. Address

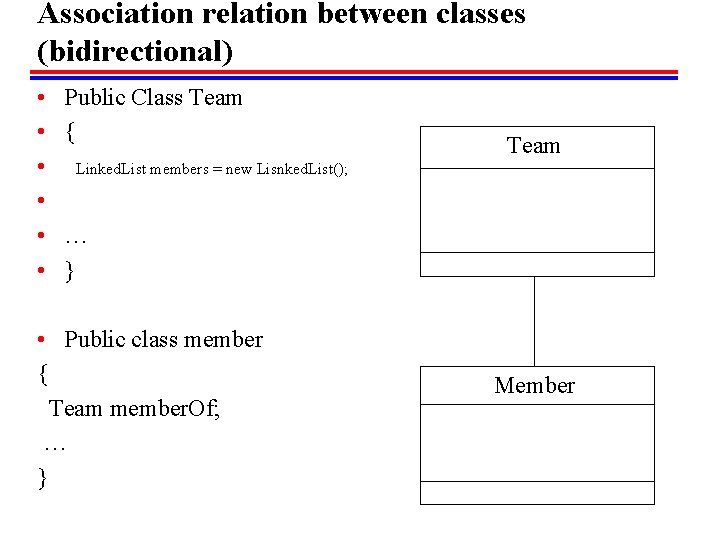

Association relation between classes (bidirectional) • • • Public Class Team { Team Linked. List members = new Lisnked. List(); … } • Public class member { Team member. Of; … } Member

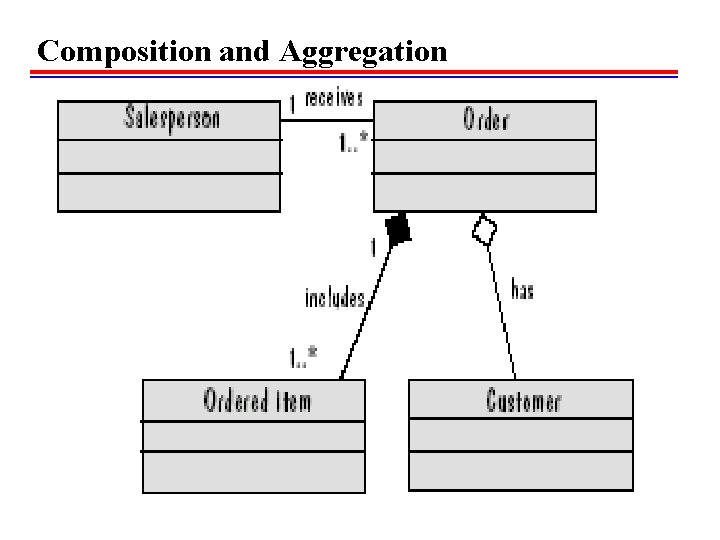

Composition and Aggregation

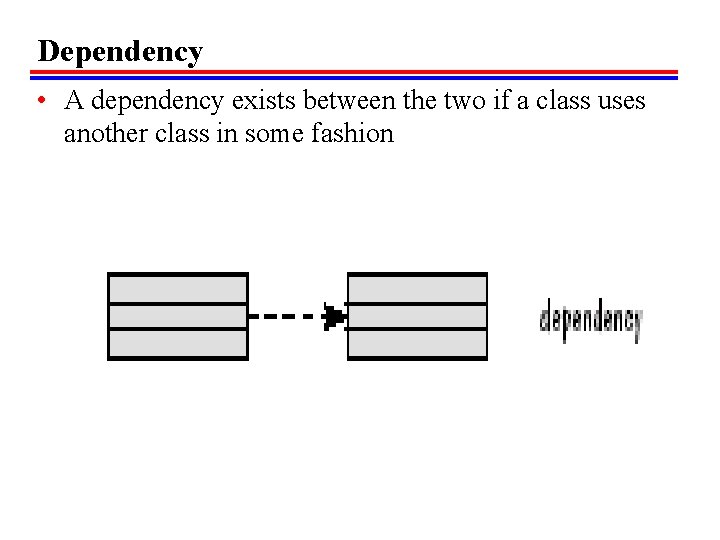

Dependency • A dependency exists between the two if a class uses another class in some fashion

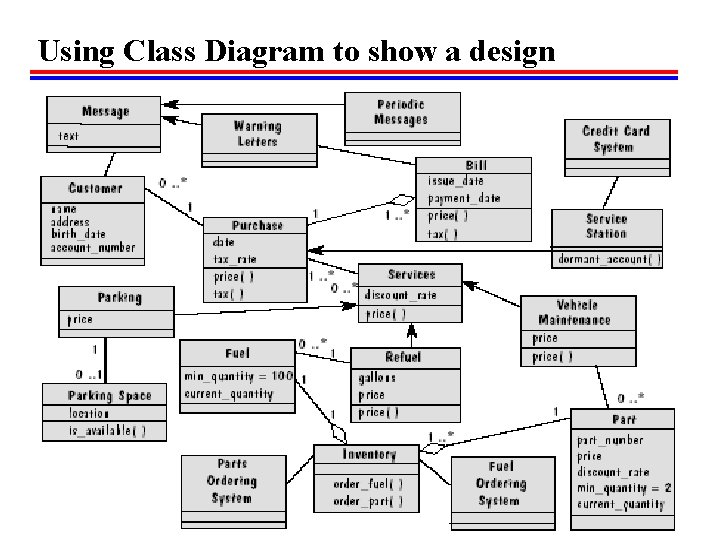

Using Class Diagram to show a design

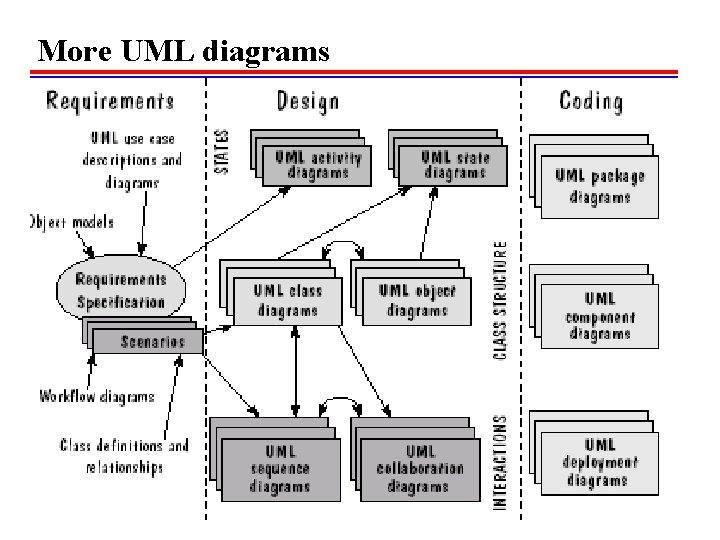

More UML diagrams

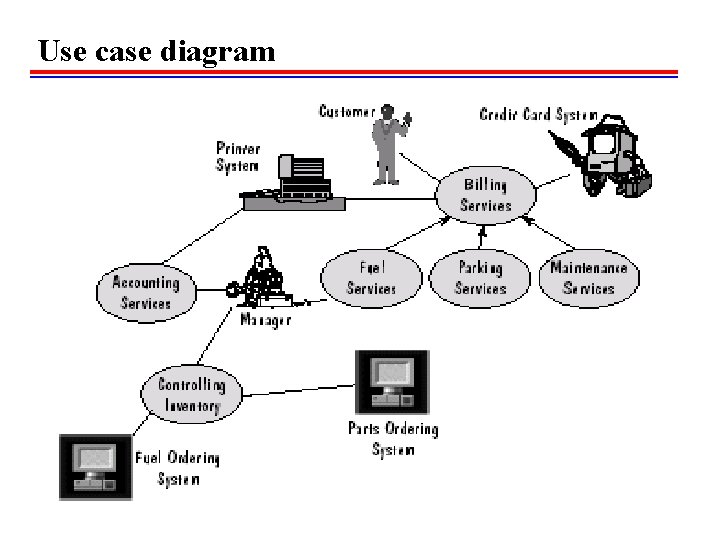

Use case diagram

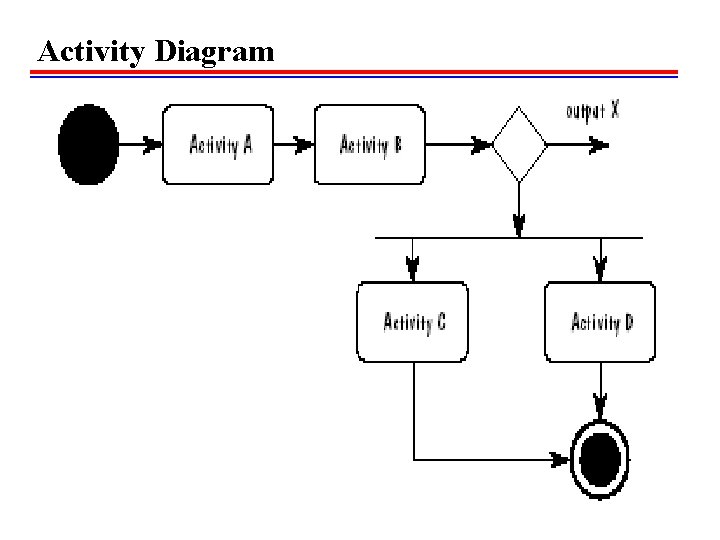

Activity Diagram

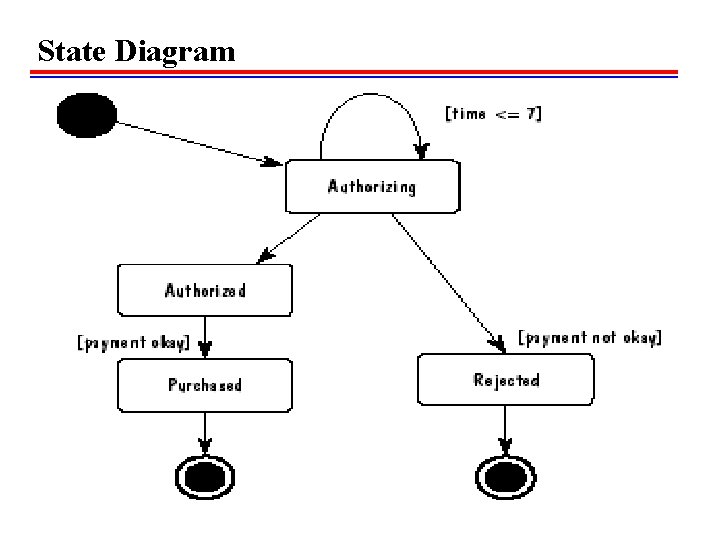

State Diagram

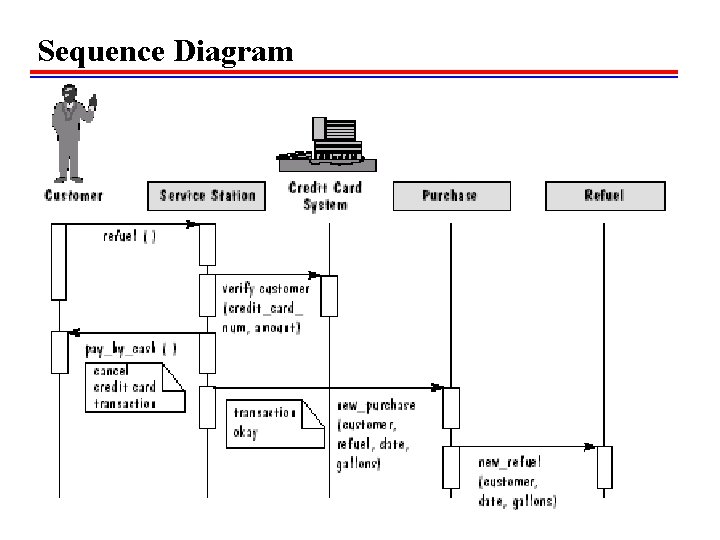

Sequence Diagram

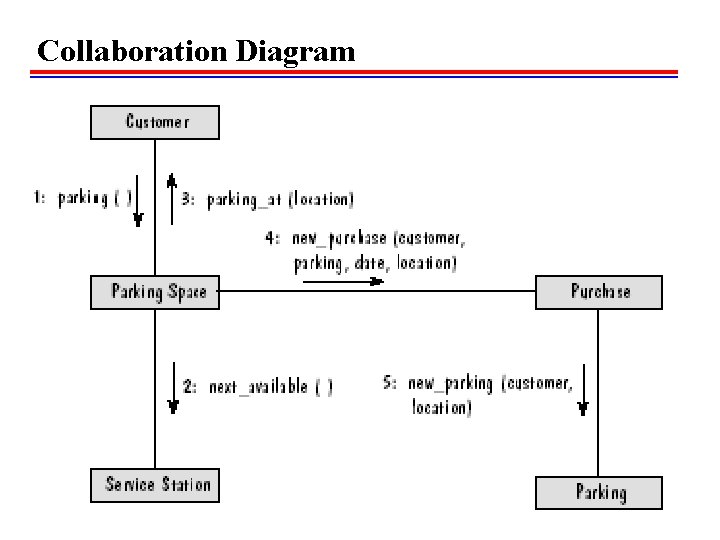

Collaboration Diagram

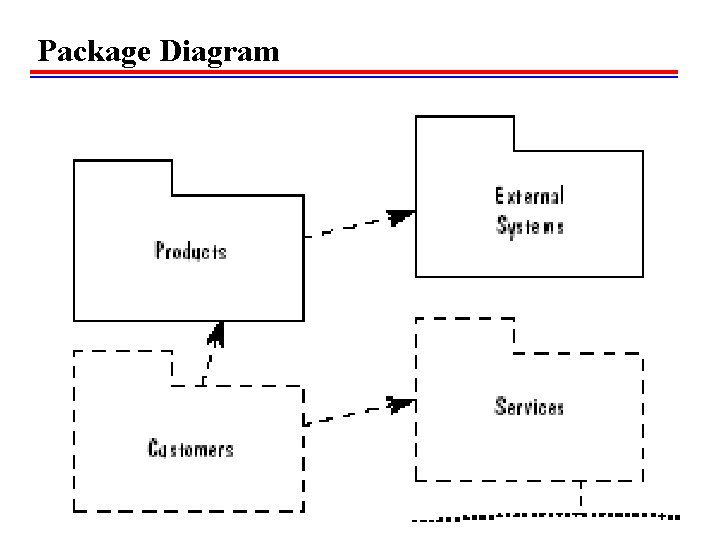

Package Diagram

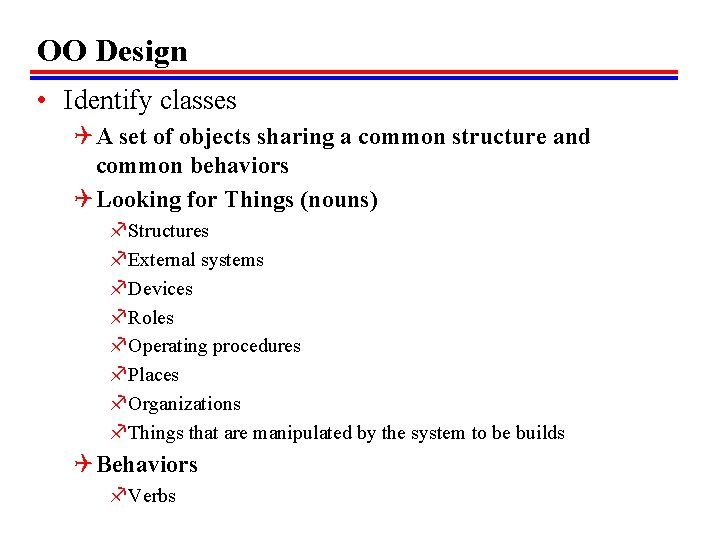

OO Design • Identify classes Q A set of objects sharing a common structure and common behaviors Q Looking for Things (nouns) f. Structures f. External systems f. Devices f. Roles f. Operating procedures f. Places f. Organizations f. Things that are manipulated by the system to be builds Q Behaviors f. Verbs

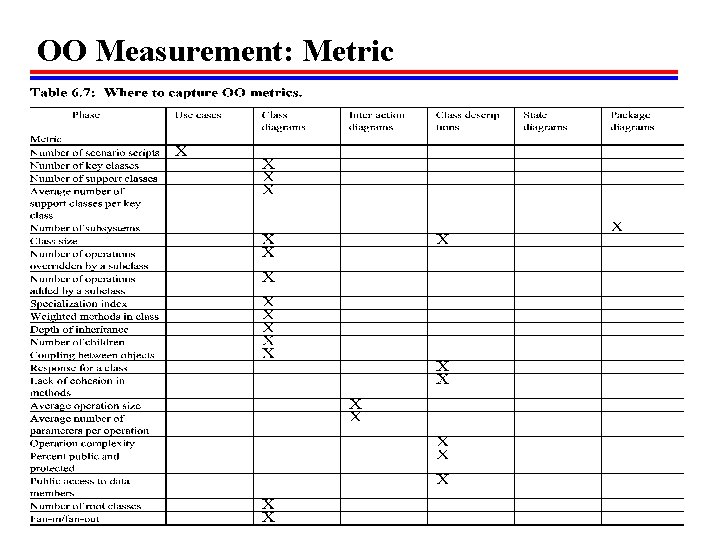

OO Measurement: Metric
