CESSNA 172 M POWER PLANT LYCOMING O320 ENGINE

CESSNA 172 -M POWER PLANT

LYCOMING O-320 ENGINE • A Lycoming O-320 -D installed in a Sympho 160 • Type Piston aero-en • Manufacturer Lycom Engines http: //en. wikipedia. org/wiki/File: Symphony. Aircr aft. SA 160 Lycoming. O-320 -D 2 A. jpg

PERFORMANC E 150 hp (112 • Power output: k. W) • Compression ratio: 7: 1 • Power-to-weight ratio: 1. 63 lb/hp (0. 99 k. W/kg) RESULT • With this engine, the 172 -M has an optimal cruise from 131 mph (211 km/h) TAS. • Sea level rate of climb at 645 ft (197 m) per minute

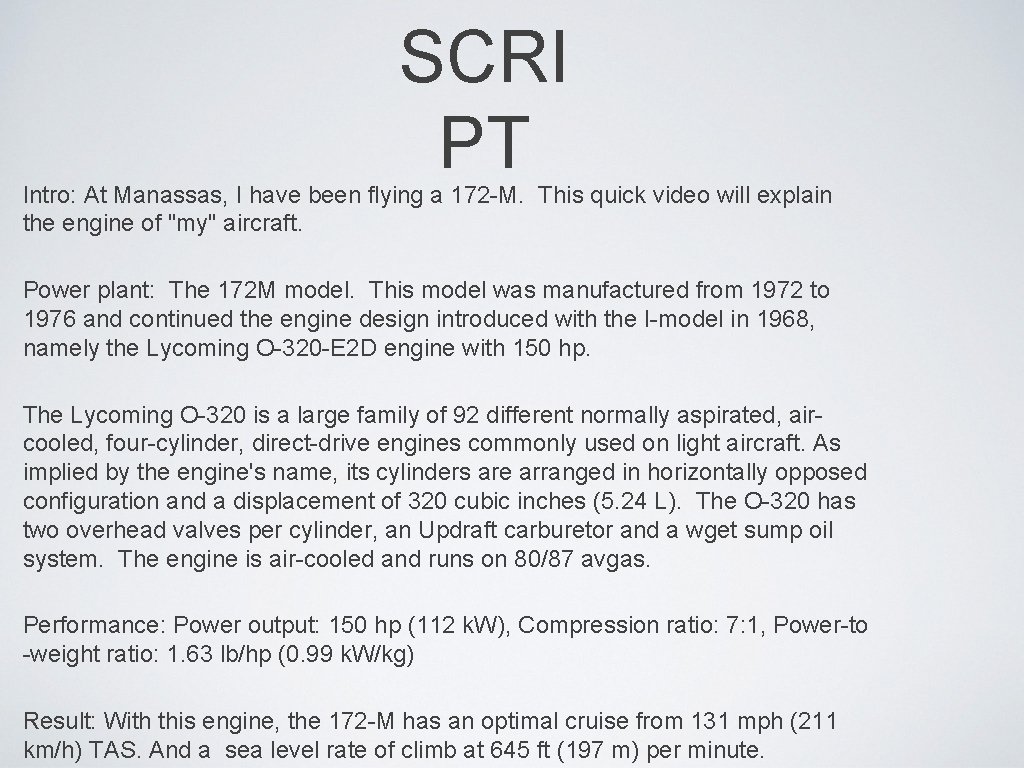

SCRI PT Intro: At Manassas, I have been flying a 172 -M. This quick video will explain the engine of "my" aircraft. Power plant: The 172 M model. This model was manufactured from 1972 to 1976 and continued the engine design introduced with the I-model in 1968, namely the Lycoming O-320 -E 2 D engine with 150 hp. The Lycoming O-320 is a large family of 92 different normally aspirated, aircooled, four-cylinder, direct-drive engines commonly used on light aircraft. As implied by the engine's name, its cylinders are arranged in horizontally opposed configuration and a displacement of 320 cubic inches (5. 24 L). The O-320 has two overhead valves per cylinder, an Updraft carburetor and a wget sump oil system. The engine is air-cooled and runs on 80/87 avgas. Performance: Power output: 150 hp (112 k. W), Compression ratio: 7: 1, Power-to -weight ratio: 1. 63 lb/hp (0. 99 k. W/kg) Result: With this engine, the 172 -M has an optimal cruise from 131 mph (211 km/h) TAS. And a sea level rate of climb at 645 ft (197 m) per minute.
