Cervical Spine Trauma Odontoid fractures Anatomic pathology Management

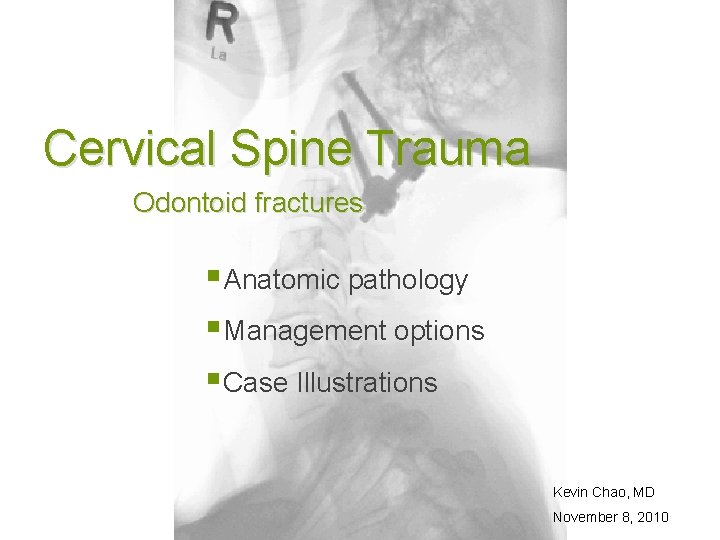

Cervical Spine Trauma Odontoid fractures § Anatomic pathology § Management options § Case Illustrations Kevin Chao, MD November 8, 2010

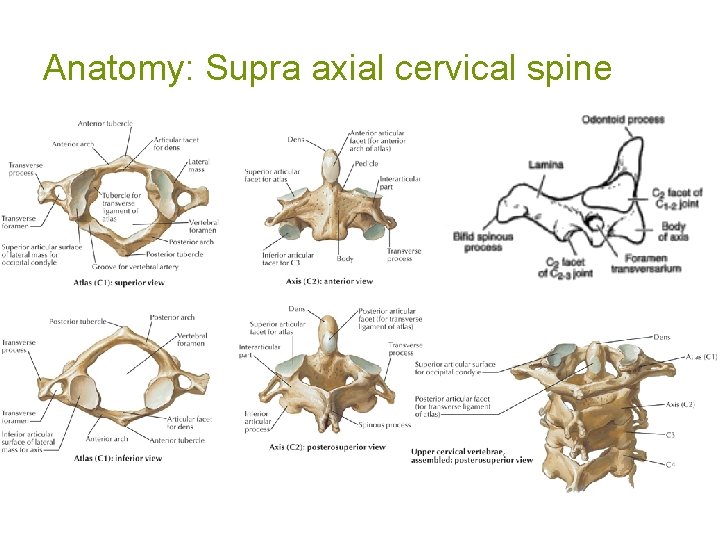

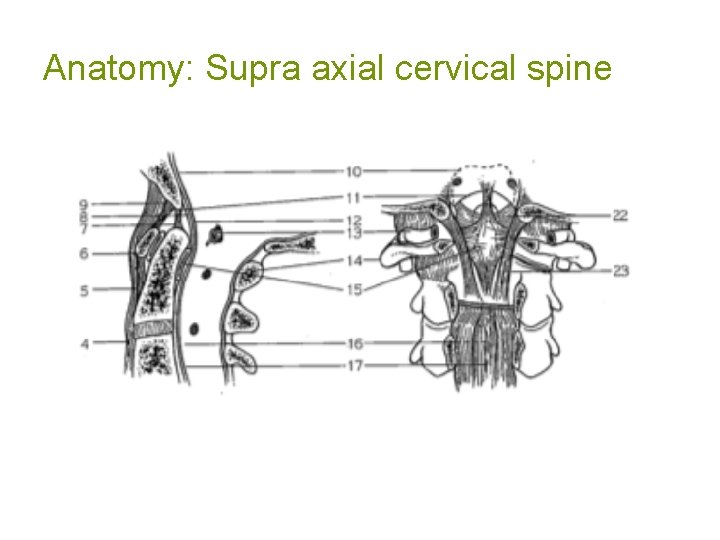

Anatomy: Supra axial cervical spine

Anatomy: Supra axial cervical spine

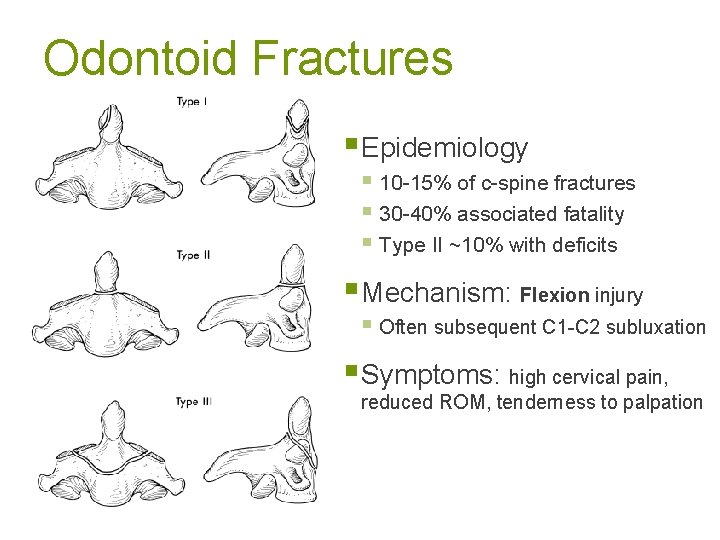

Odontoid Fractures § Epidemiology § 10 -15% of c-spine fractures § 30 -40% associated fatality § Type II ~10% with deficits § Mechanism: Flexion injury § Often subsequent C 1 -C 2 subluxation § Symptoms: high cervical pain, reduced ROM, tenderness to palpation

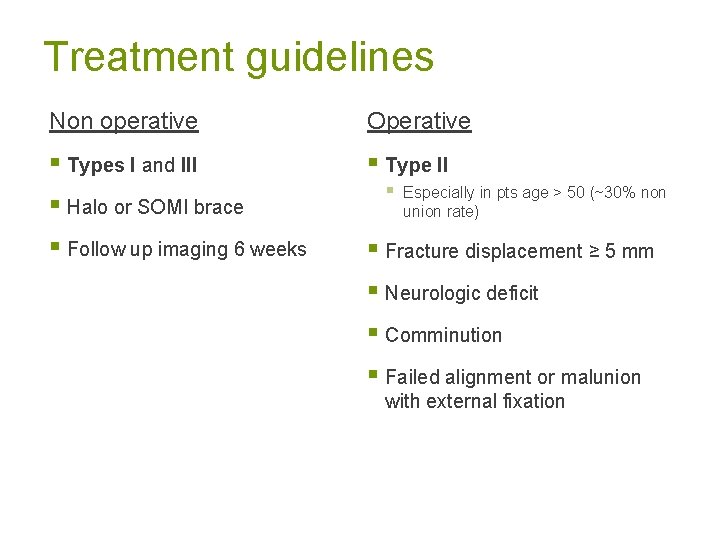

Treatment guidelines Non operative Operative § Types I and III § Type II § Halo or SOMI brace § Follow up imaging 6 weeks § Especially in pts age > 50 (~30% non union rate) § Fracture displacement ≥ 5 mm § Neurologic deficit § Comminution § Failed alignment or malunion with external fixation

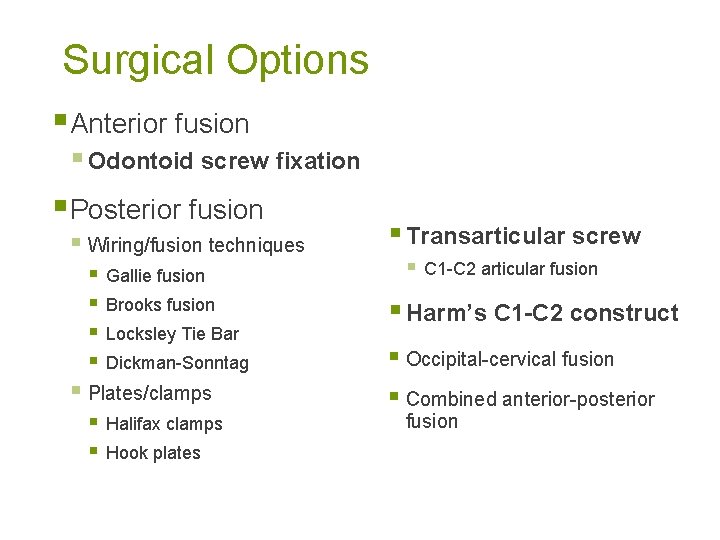

Surgical Options § Anterior fusion § Odontoid screw fixation § Posterior fusion § Wiring/fusion techniques § Gallie fusion § Brooks fusion § Locksley Tie Bar § Dickman-Sonntag § Plates/clamps § Halifax clamps § Hook plates § Transarticular screw § C 1 -C 2 articular fusion § Harm’s C 1 -C 2 construct § Occipital-cervical fusion § Combined anterior-posterior fusion

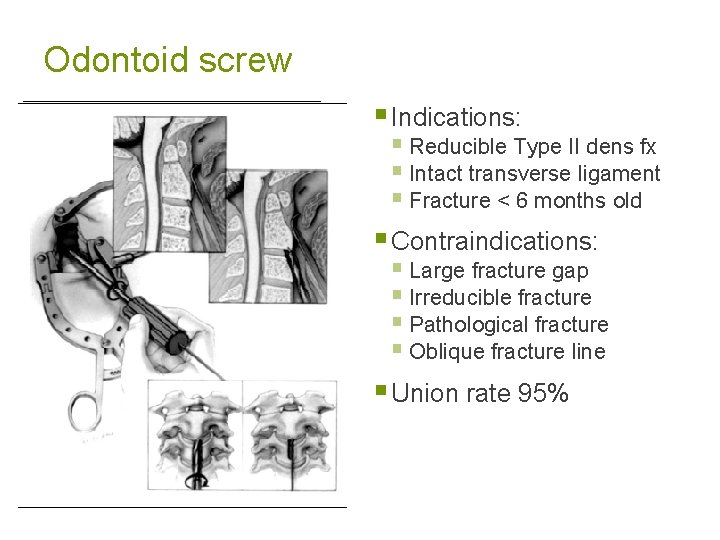

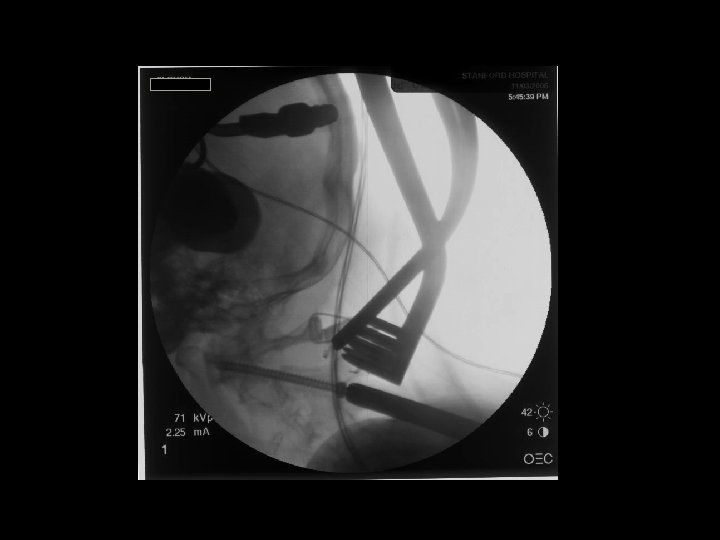

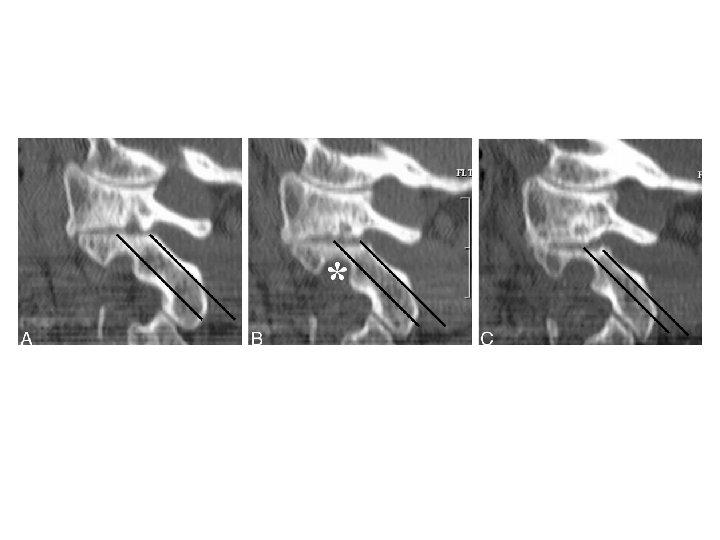

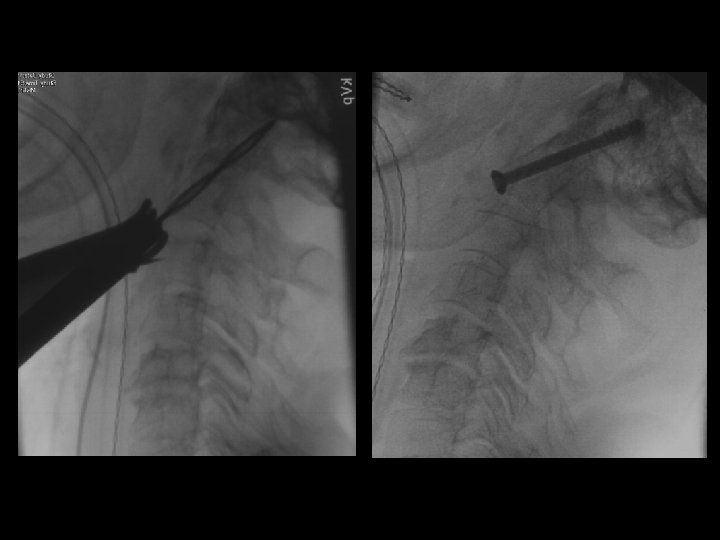

Odontoid screw § Indications: § Reducible Type II dens fx § Intact transverse ligament § Fracture < 6 months old § Contraindications: § Large fracture gap § Irreducible fracture § Pathological fracture § Oblique fracture line § Union rate 95%

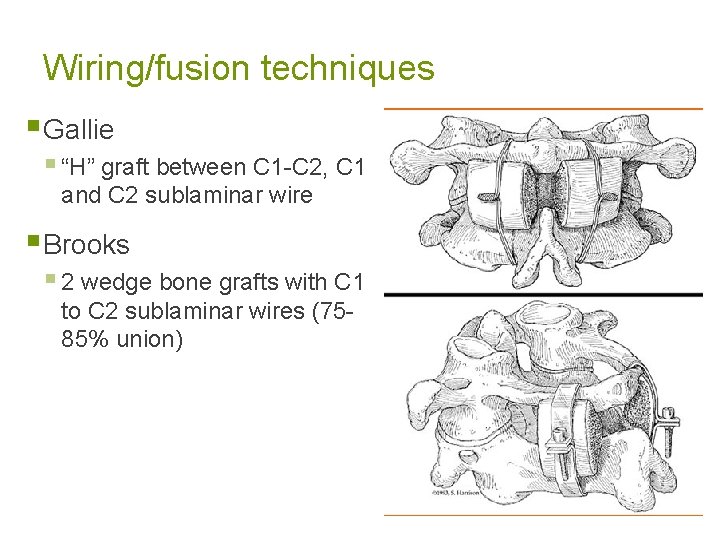

Wiring/fusion techniques § Gallie § “H” graft between C 1 -C 2, C 1 and C 2 sublaminar wire § Brooks § 2 wedge bone grafts with C 1 to C 2 sublaminar wires (7585% union)

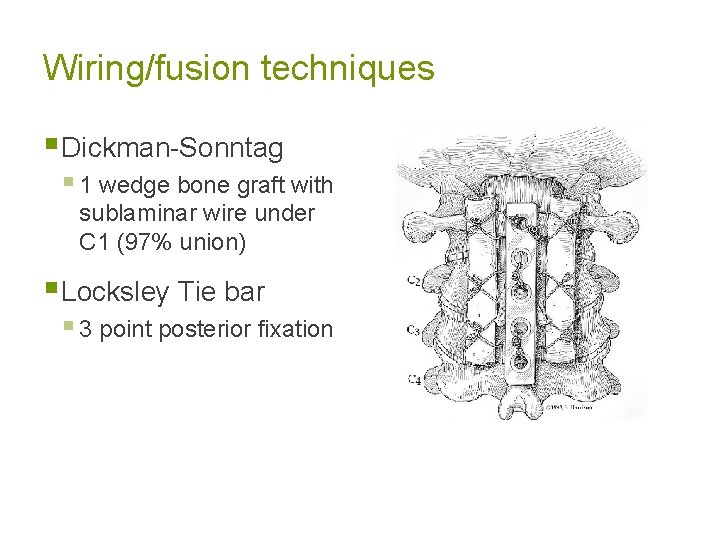

Wiring/fusion techniques § Dickman-Sonntag § 1 wedge bone graft with sublaminar wire under C 1 (97% union) § Locksley Tie bar § 3 point posterior fixation

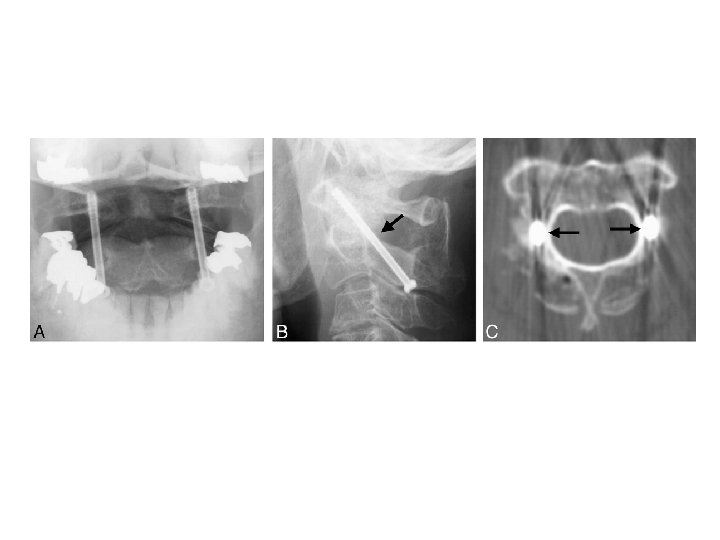

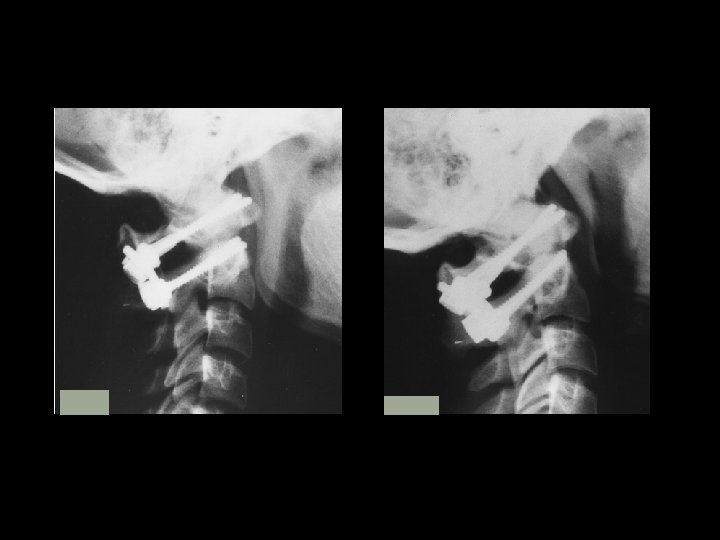

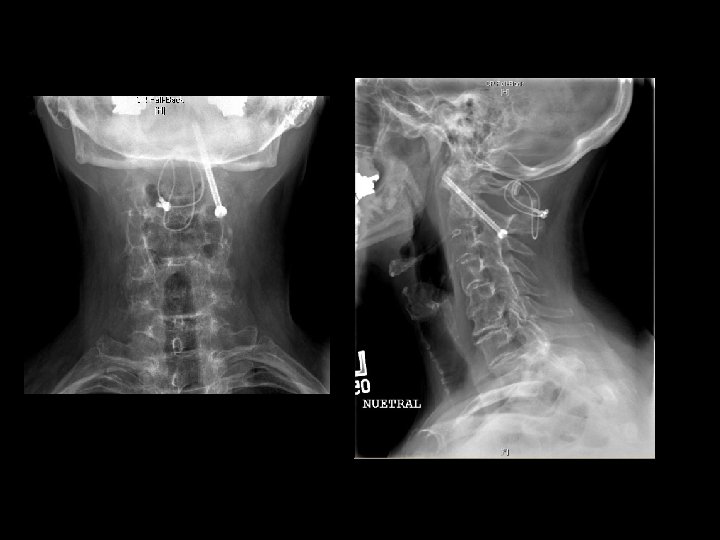

Transarticular screw § Immediate stabilization § Wire entry needs “flat” angle § Entry point § Traverse facet joint § Target superior aspect of C 1 anterior arch § Risk for vertebral artery injury

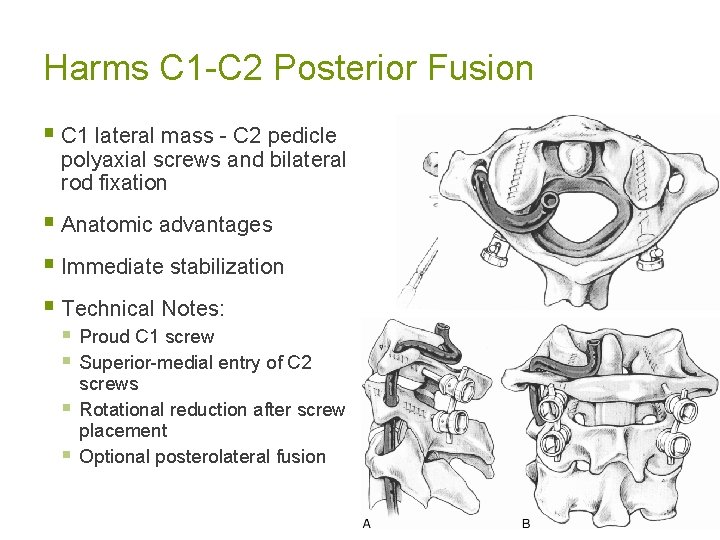

Harms C 1 -C 2 Posterior Fusion § C 1 lateral mass - C 2 pedicle polyaxial screws and bilateral rod fixation § Anatomic advantages § Immediate stabilization § Technical Notes: § Proud C 1 screw § Superior-medial entry of C 2 § § screws Rotational reduction after screw placement Optional posterolateral fusion

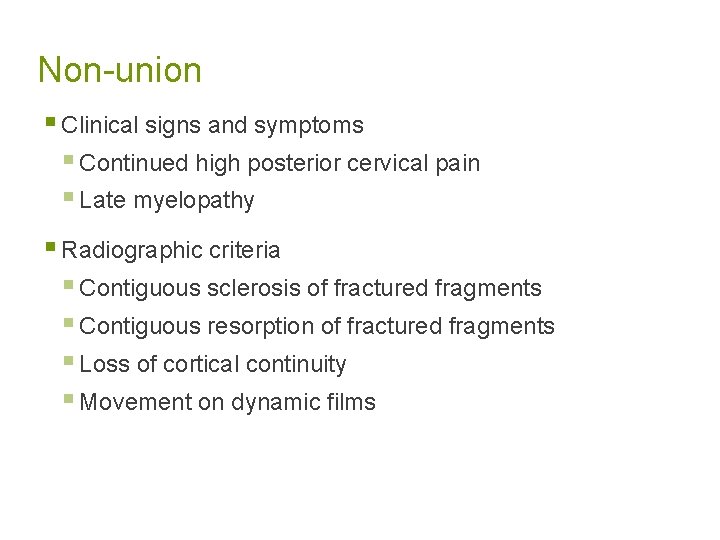

Non-union § Clinical signs and symptoms § Continued high posterior cervical pain § Late myelopathy § Radiographic criteria § Contiguous sclerosis of fractured fragments § Contiguous resorption of fractured fragments § Loss of cortical continuity § Movement on dynamic films

Spine Fracture Approach Assessment Management § Mechanism of injury § Neuro exam § Imaging § § § Levels § Bone vs soft tissue § Dynamic vs static § Vessels? § Degree of instability Surgery vs no surgery Goals? Brace? Activity restrictions § Follow up § Imaging § Rehab

Case files

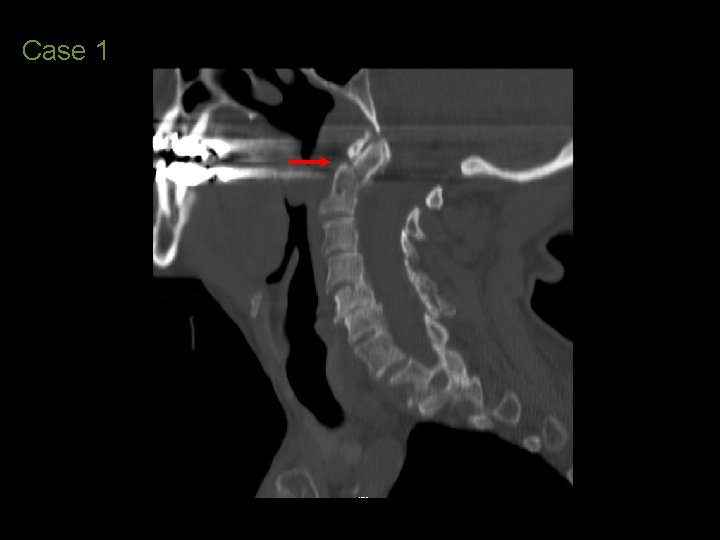

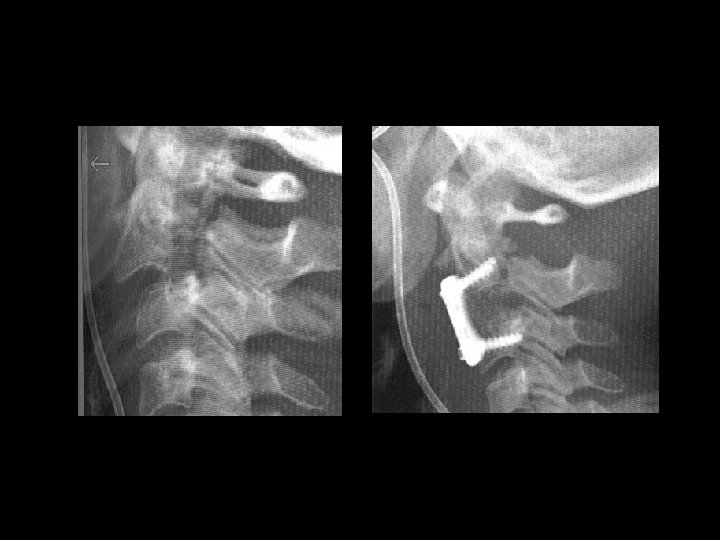

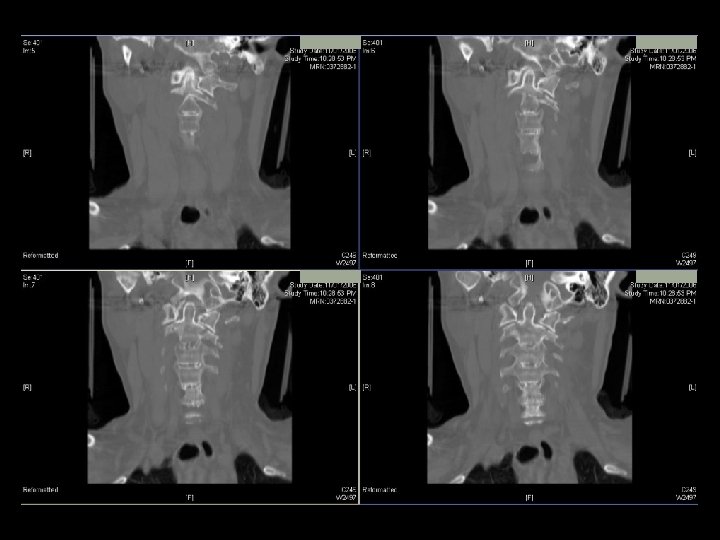

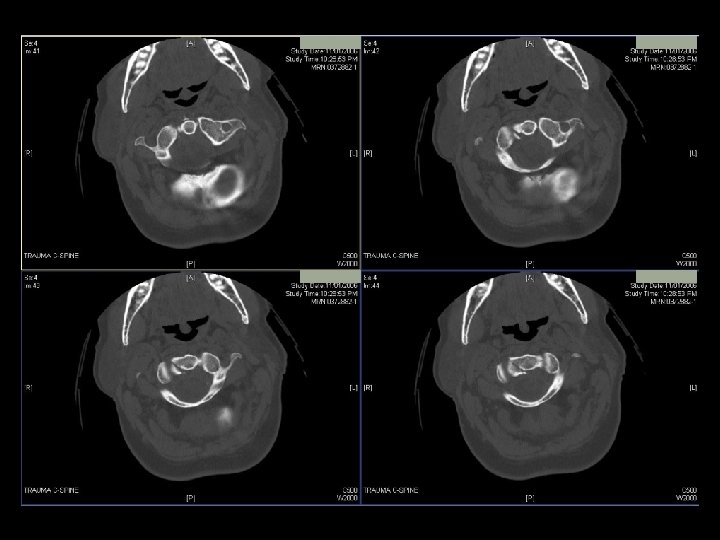

Case 1

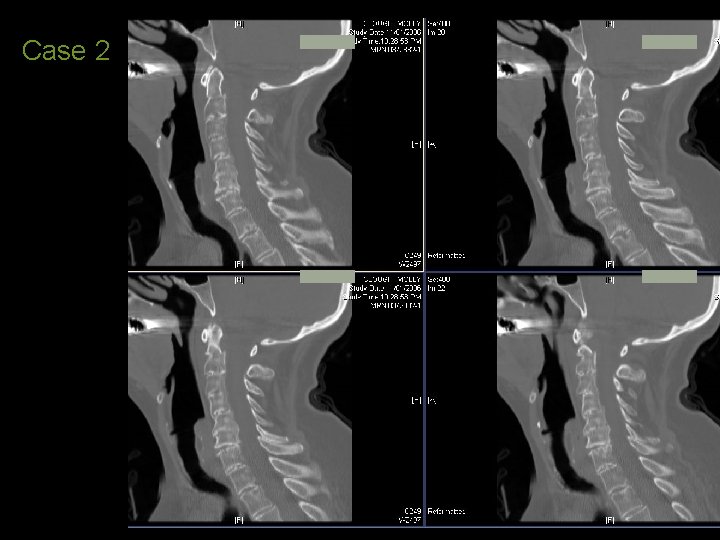

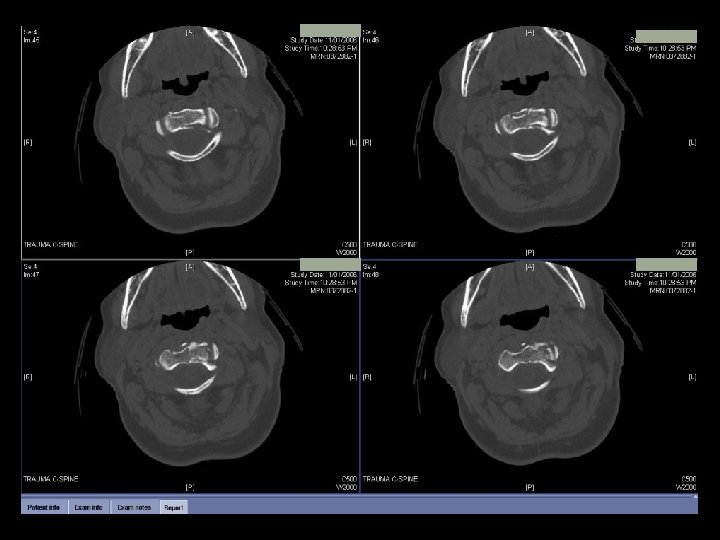

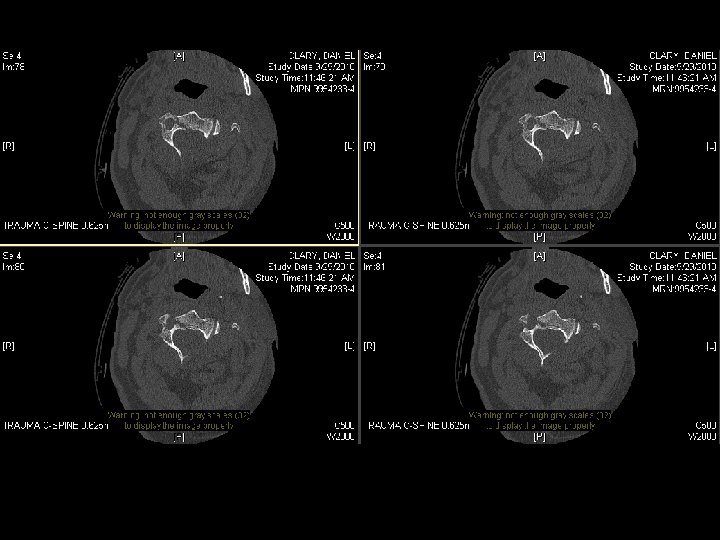

Case 2

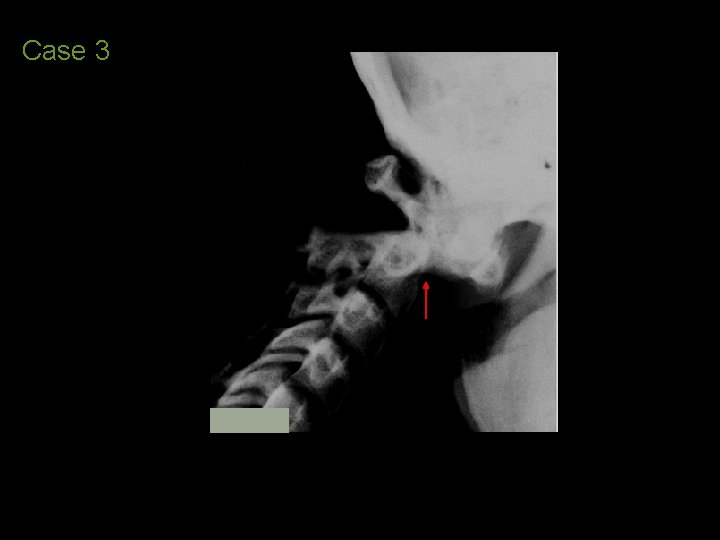

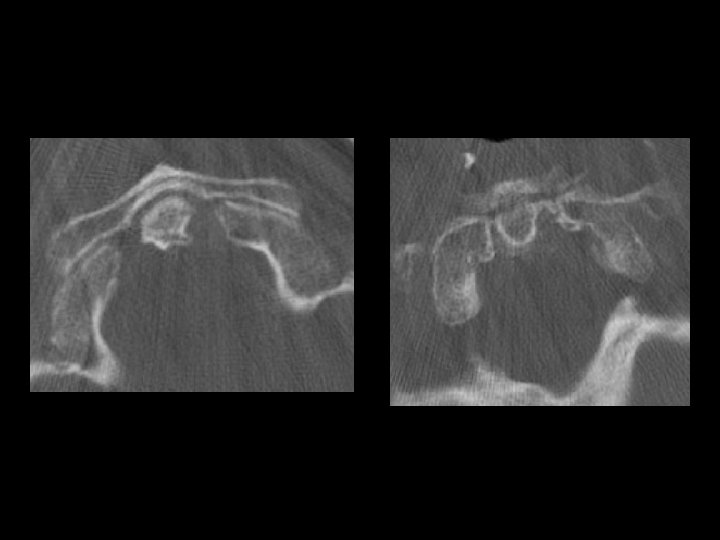

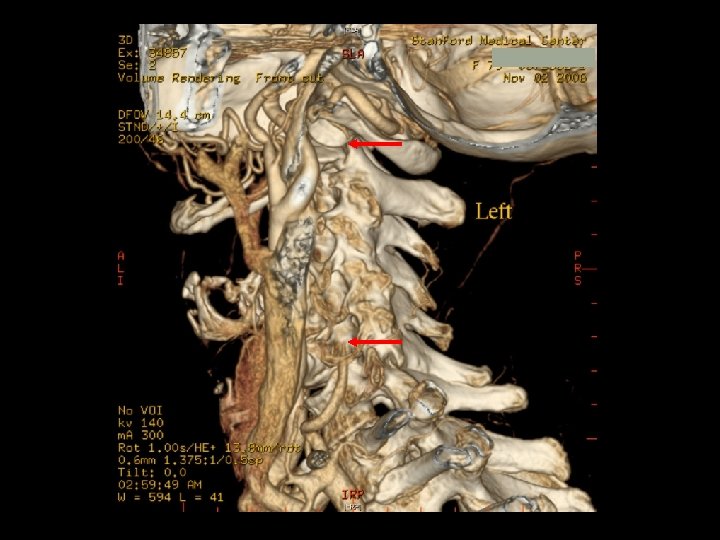

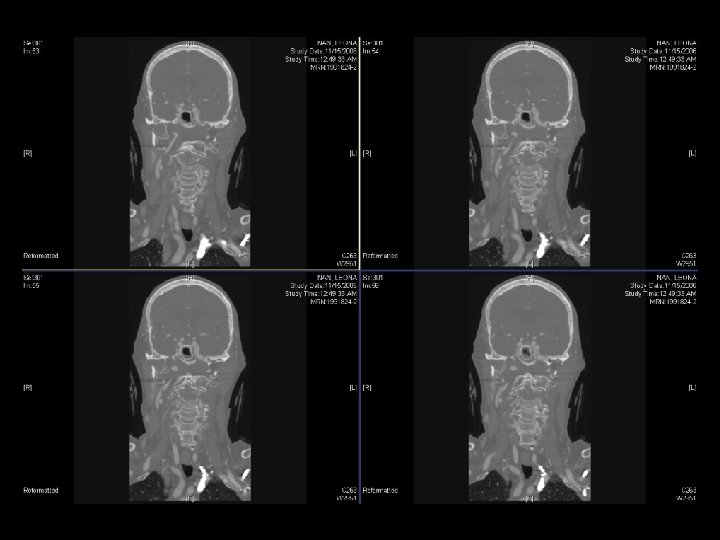

Case 3

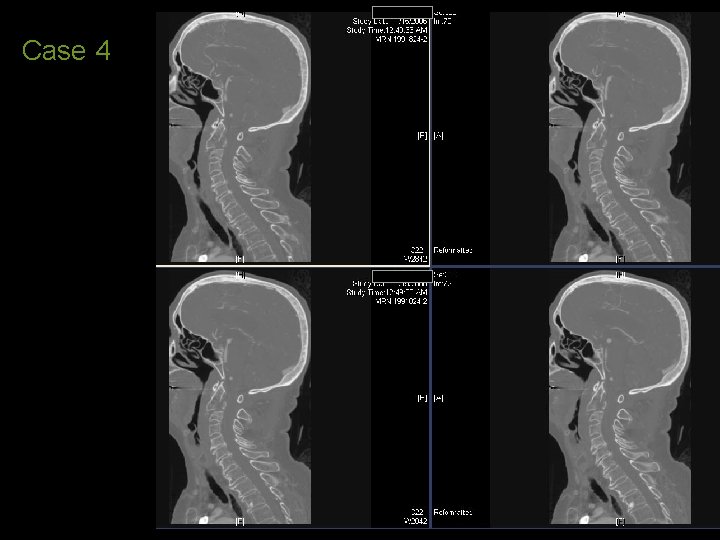

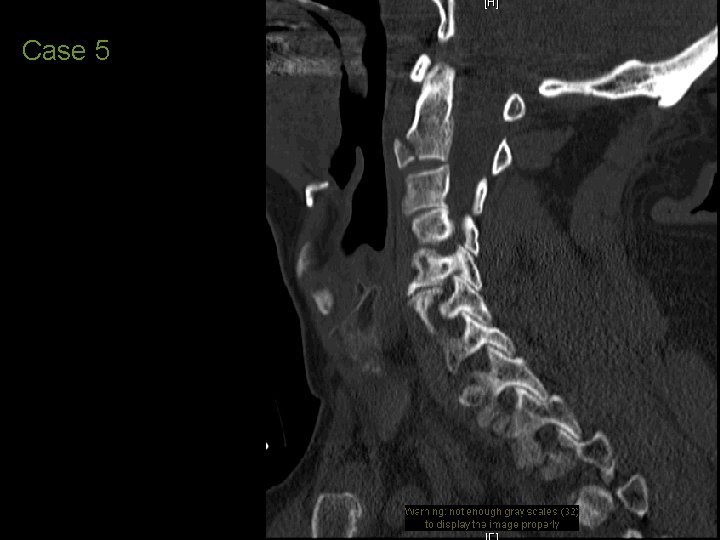

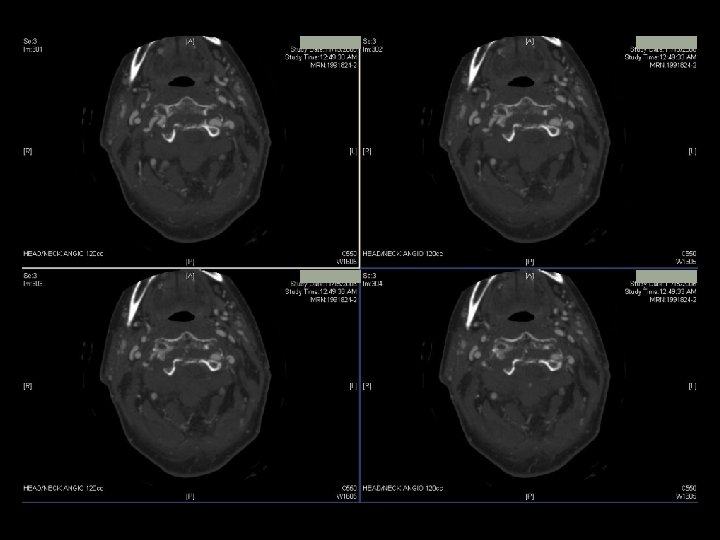

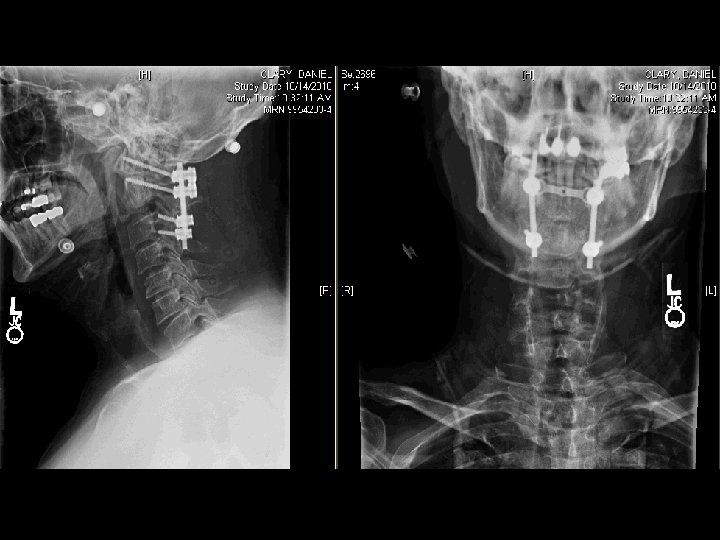

Case 4
