CERN TE-ABT-EC LIU-ABT systems: PSB BI. DIS 10 controls • • • Agenda: https: //indico. cern. ch/event/539274/ General controls (Roger Andrew Barlow) Timing system (Christophe Chanavat) IGBT’s R&D program (Tobias Stadlbauer & Luc Sermeus) Fast interlocks studies (Felipe Cordobes Dominguez) prepared by R. A. Barlow 30/056/2016 1

BI. DIS 10 Generator prototype, Jura 6 Status of technical progress • • PLC program improvement Recipe's added for settings Some functionalities sill to be implement New TIA library item for automated state machine control (in SCL) • To be desired in nearby future: • Integration of the triggering optical module inside the PFN Optimization of capacitive dividers pickups Fast interlocks integration • • • Review of logical connection to BIS ongoing (1 channel Vs. 4 channels) …still to be discussed by MPE group, now this looks more like 1 BIS system ! 2

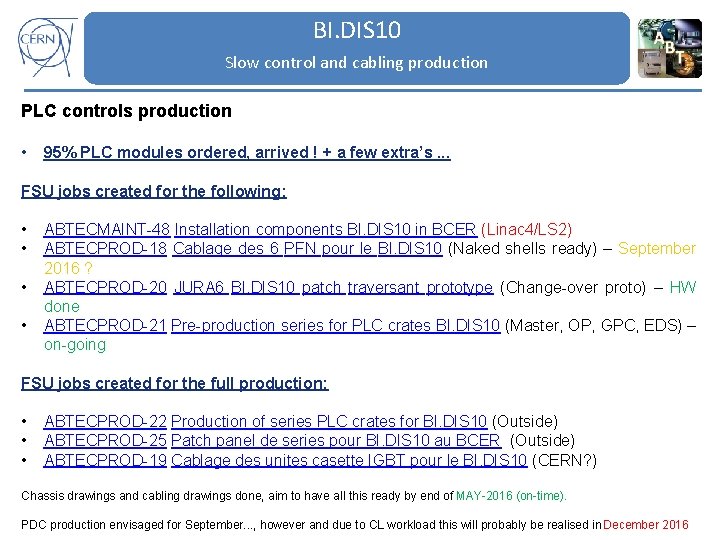

BI. DIS 10 Slow control and cabling production PLC controls production • 95% PLC modules ordered, arrived ! + a few extra’s. . . FSU jobs created for the following: • • ABTECMAINT-48 Installation components BI. DIS 10 in BCER (Linac 4/LS 2) ABTECPROD-18 Cablage des 6 PFN pour le BI. DIS 10 (Naked shells ready) – September 2016 ? ABTECPROD-20 JURA 6 BI. DIS 10 patch traversant prototype (Change-over proto) – HW done ABTECPROD-21 Pre-production series for PLC crates BI. DIS 10 (Master, OP, GPC, EDS) – on-going FSU jobs created for the full production: • • • ABTECPROD-22 Production of series PLC crates for BI. DIS 10 (Outside) ABTECPROD-25 Patch panel de series pour BI. DIS 10 au BCER (Outside) ABTECPROD-19 Cablage des unites casette IGBT pour le BI. DIS 10 (CERN? ) Chassis drawings and cabling drawings done, aim to have all this ready by end of MAY-2016 (on-time). PDC production envisaged for September. . . , however and due to CL workload this will probably be realised in December 2016

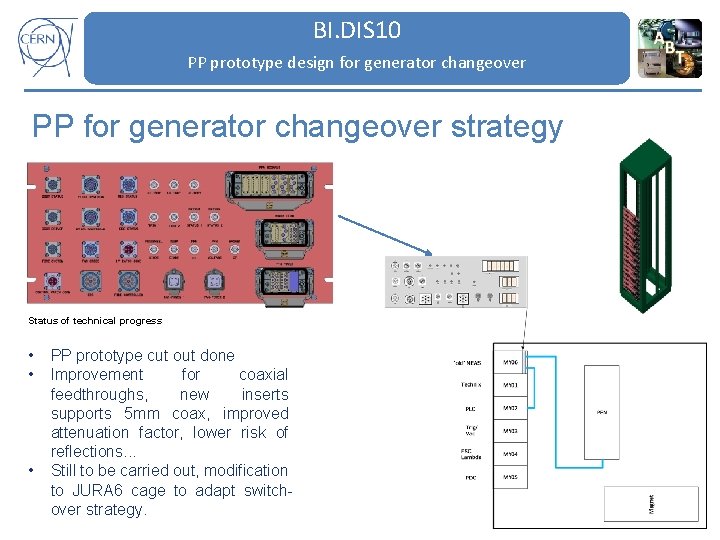

BI. DIS 10 PP prototype design for generator changeover PP for generator changeover strategy Status of technical progress • • • PP prototype cut out done Improvement for coaxial feedthroughs, new inserts supports 5 mm coax, improved attenuation factor, lower risk of reflections. . . Still to be carried out, modification to JURA 6 cage to adapt switchover strategy.

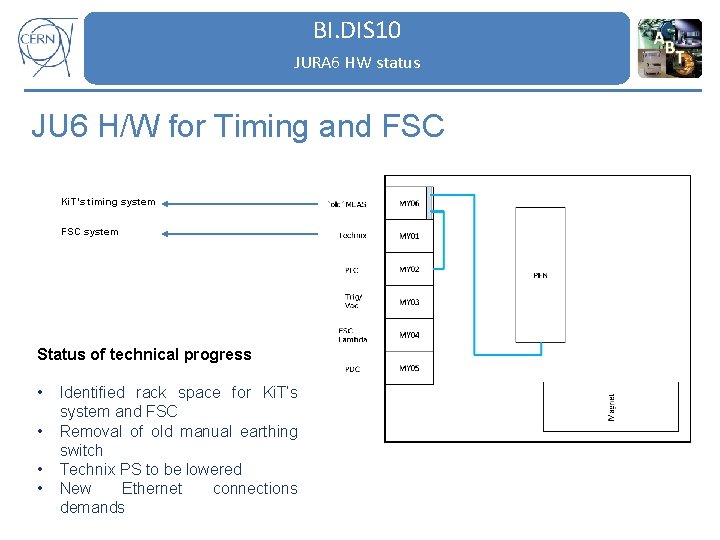

BI. DIS 10 JURA 6 HW status JU 6 H/W for Timing and FSC Ki. T’s timing system FSC system Status of technical progress • • Identified rack space for Ki. T’s system and FSC Removal of old manual earthing switch Technix PS to be lowered New Ethernet connections demands

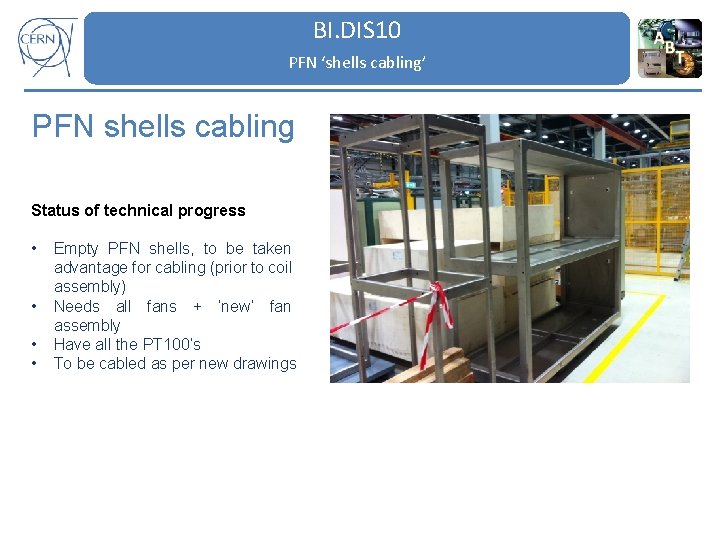

BI. DIS 10 PFN ‘shells cabling’ PFN shells cabling Status of technical progress • • Empty PFN shells, to be taken advantage for cabling (prior to coil assembly) Needs all fans + ‘new’ fan assembly Have all the PT 100’s To be cabled as per new drawings

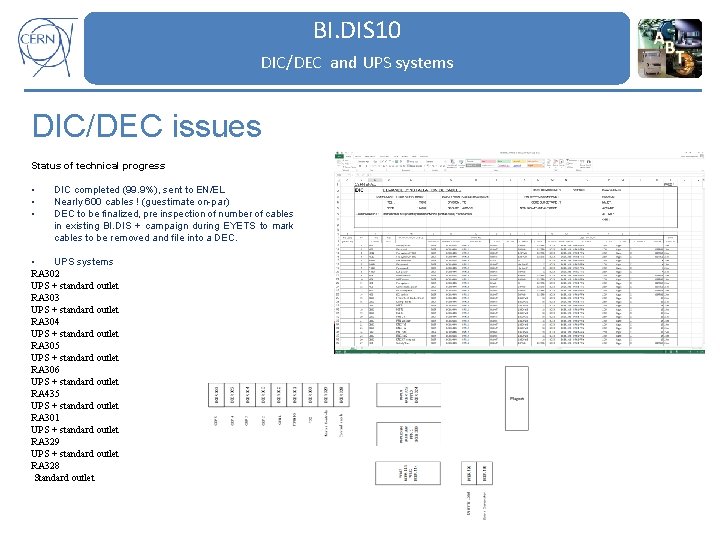

BI. DIS 10 DIC/DEC and UPS systems DIC/DEC issues Status of technical progress • • • DIC completed (99. 9%), sent to EN/EL Nearly 600 cables ! (guestimate on-par) DEC to be finalized, pre inspection of number of cables in existing BI. DIS + campaign during EYETS to mark cables to be removed and file into a DEC. • UPS systems RA 302 UPS + standard outlet RA 303 UPS + standard outlet RA 304 UPS + standard outlet RA 305 UPS + standard outlet RA 306 UPS + standard outlet RA 435 UPS + standard outlet RA 301 UPS + standard outlet RA 329 UPS + standard outlet RA 328 Standard outlet

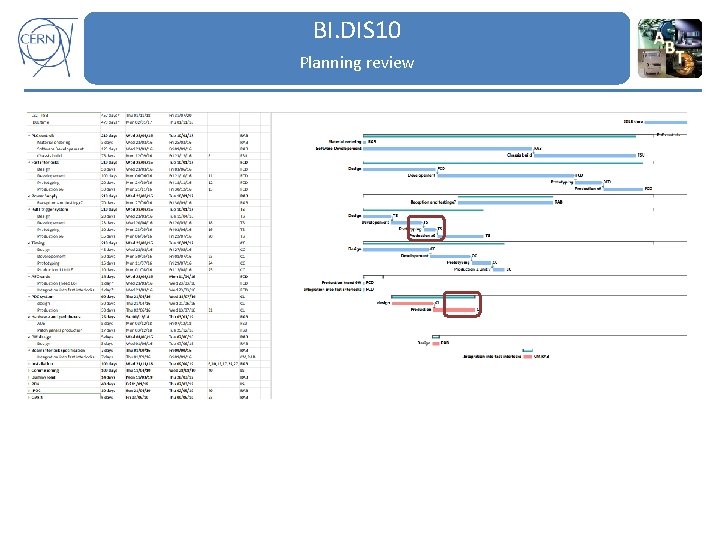

BI. DIS 10 Planning review

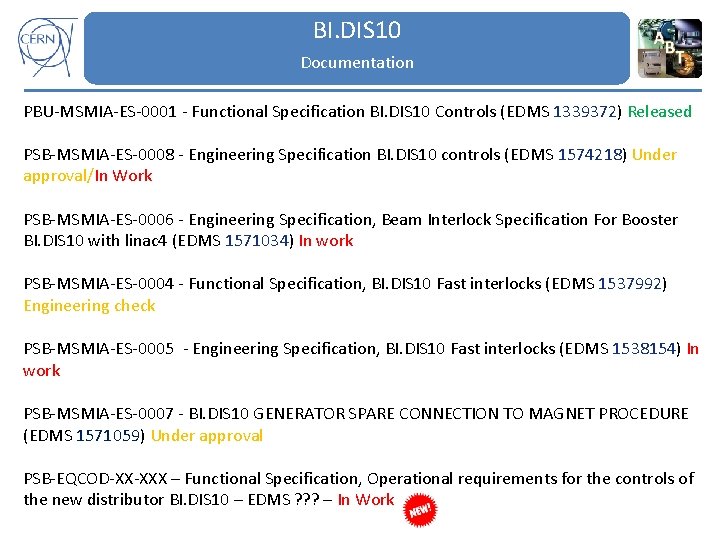

BI. DIS 10 Documentation PBU-MSMIA-ES-0001 - Functional Specification BI. DIS 10 Controls (EDMS 1339372) Released PSB-MSMIA-ES-0008 - Engineering Specification BI. DIS 10 controls (EDMS 1574218) Under approval/In Work PSB-MSMIA-ES-0006 - Engineering Specification, Beam Interlock Specification For Booster BI. DIS 10 with linac 4 (EDMS 1571034) In work PSB-MSMIA-ES-0004 - Functional Specification, BI. DIS 10 Fast interlocks (EDMS 1537992) Engineering check PSB-MSMIA-ES-0005 - Engineering Specification, BI. DIS 10 Fast interlocks (EDMS 1538154) In work PSB-MSMIA-ES-0007 - BI. DIS 10 GENERATOR SPARE CONNECTION TO MAGNET PROCEDURE (EDMS 1571059) Under approval PSB-EQCOD-XX-XXX – Functional Specification, Operational requirements for the controls of the new distributor BI. DIS 10 – EDMS ? ? ? – In Work
