CERN European Organization for Nuclear Research GS Department
- Slides: 83
CERN – European Organization for Nuclear Research GS Department – Administrative Information Services Secure software development for the World Wide Web Derek Mathieson Group Leader Advanced Information Systems CERN – Geneva, Switzerland
Agenda l Impact of Security Flaws l Definitions l Types of Attack l Techniques / Solutions CERN GS-AIS
Why Secure Web Application? CERN GS-AIS
Impact of Security Flaws l Ping of death l Morris worm (1988) – ~6, 000 infected computers l Santy (2004) – ~40, 000 infected computers (in 24 hours) l Conficker (2008) – 17, 000 infected computers CERN GS-AIS
US Army l Computer CERN GS-AIS Virus Hits U. S. Drone Fleet
SONY Play. Station Network CERN GS-AIS
Sony. Pictures. com CERN GS-AIS
SONY Play. Station Network CERN GS-AIS
Top 25 Software Errors Top 25 Most Dangerous Software Errors 2011 (CWE/SANS) 1 SQL Injection 2 OS Command Injection Classic Buffer Overflow Cross-site Scripting Missing Authentication for Critical Function Missing Authorization Use of Hard-coded Credentials Missing Encryption of Sensitive Data Unrestricted Upload of File with Dangerous Type Reliance on Untrusted Inputs in a Security Decision Execution with Unnecessary Privileges Cross-Site Request Forgery (CSRF) Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal') 3 4 5 6 7 8 9 10 11 12 CERN GS-AIS 13
Top 25 Software Errors Top 25 Most Dangerous Software Errors 2011 (CWE/SANS) 1 SQL Injection 2 OS Command Injection Classic Buffer Overflow Cross-site Scripting Missing Authentication for Critical Function Missing Authorization Use of Hard-coded Credentials Missing Encryption of Sensitive Data Unrestricted Upload of File with Dangerous Type Reliance on Untrusted Inputs in a Security Decision Execution with Unnecessary Privileges Cross-Site Request Forgery (CSRF) Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal') 3 4 5 6 7 8 9 10 11 12 CERN GS-AIS 13
Definitions l Identification l Authentication l Authorisation l Session CERN GS-AIS Management
Identification / Authentication l How Can You Prove Who You Are? – Biometric Passport – Photo ID – Fingerprint – Username / Password CERN GS-AIS
Definitions l Entity – A User, another computer system component l Identification – Providing credential such that a system can recognise the entity and distinguish it from other entities. l Authentication – The process of verifying the identity of an entity. CERN GS-AIS
Authentication Factors l Something an entity knows: – Password, PIN l Something an entity has: – ID Card, private key l Something an entity is: – Fingerprint, iris scan, … CERN GS-AIS
Authentication l Single / Multi-factor Authentication – Password only – Password + Fingerprint l Trade-off between – Convenience – Cost – Complexity – Security CERN GS-AIS
Identity Theft l Compromised Passwords – Self Service password reset l Lost ID Cards – Blocking List l Compromised Private Keys – CRL l What about Biometrics? – No easy solution CERN GS-AIS
Passwords l Server good practices – Never store them in ‘clear’ – Use encrypted communication protocols (SSL) – Log authentication failures – Use generic error messages: • User/password combination not recognised’ – Show user • Last login date • Previous failed login attempts CERN GS-AIS
Web Authentication Techniques l Basic Authentication l Digest Authentication l Form Authentication CERN GS-AIS
Basic Authentication CERN GS-AIS

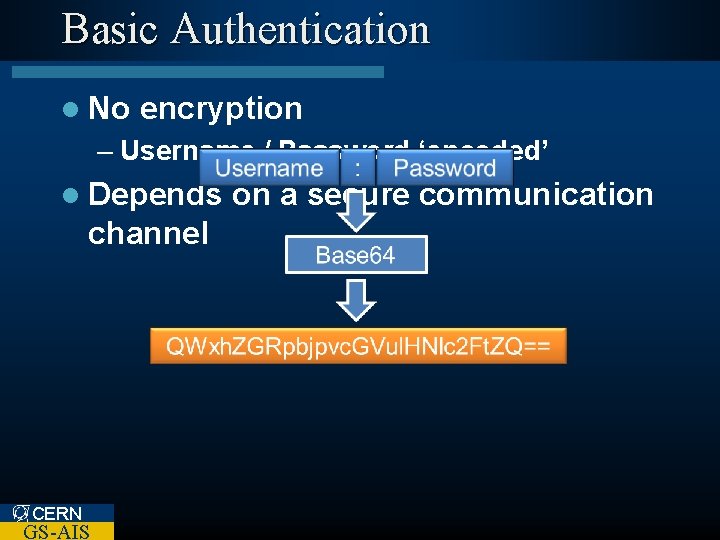

Basic Authentication Username : Password Base 64 QWxh. ZGRpbjpvc. GVu. IHNlc 2 Ft. ZQ== CERN GS-AIS
Basic Authentication l No encryption – Username / Password ‘encoded’ l Depends channel CERN GS-AIS on a secure communication
Digest Authentication CERN GS-AIS
Digest Authentication Username realm Password MD 5 348 RU 349 URFJ 934 FH 3 FH 9… =HA 1 GETMethod /Protected/secrets. html URI MD 5 CERN GS-AIS 4 I 0 R 9 I 34 F 034403 RI 4 I… =HA 2
Digest Authentication HA 1 nonce HA 2 MD 5 R 3984 UR 34 R 43 RU… CERN GS-AIS =response
Digest Authentication l Advantages – Communication is more secure • Some doubts over irreversibility of MD 5 – Server nonce can avoid replay attacks l Disadvantages – Server password file is contains usable credentials in plaintext – Vulnerable to a man-in-the-middle (Mit. M) attack CERN GS-AIS
Digest Authentication Request 401 Unauthorized + nonce Request + Digest User CERN GS-AIS Response Server
Digest Authentication t GS-AIS st + ue ed eq riz R ho ut ce na on n CERN U User Attacker 1 + d ize r o h h t au aut n U sic 1 a 40 b q Re 40 s ue Server
Digest Authentication eq t es ig Very. Secret D Derek e Password ns Username + s Re st ue Attacker po GS-AIS e ns o p es CERN u R User + R q Re t es ic s ba Server
Form Authentication CERN GS-AIS
Form Authentication l Advantages – Simple to develop – Richer User Interface – Can use multifactor authentication l Disadvantages – Depends on a secure communication channel (usually) CERN GS-AIS
Other Authentication Methods l Single Sign-on – Open. ID, Shibboleth, … l Integrated Windows Authentication l Token-based – One Time Passwords (OTP) • Secure. ID, Yubi. Key – Public key authentication (SSL client certificates). CERN GS-AIS
Authorisation CERN GS-AIS
Authorisation l An Authorisation system should: – Allow access to resources to users/systems that are permitted to access them. – Prevent access to those that are not permitted. CERN GS-AIS
Authorisation l System requirements: – Who (entity) – What (resource) – Which operation (read / update / delete / …) – Access Policy CERN GS-AIS
Role Based Access Control l Roles are identified – e. g. administrator, group leader, developer. l Rights are assigned to roles – group leader can access homepage l Roles are assigned to entities – Derek is a group leader CERN GS-AIS
AIS Roles CERN GS-AIS
Role Based Access Control l Less complex than individual assignment of access rights l Roles can link to organization roles – Automatic maintenance – Less administration CERN GS-AIS
Authorisation: Good Practices l Check every access l Centralise rights management l Principal of Least Privilege CERN GS-AIS

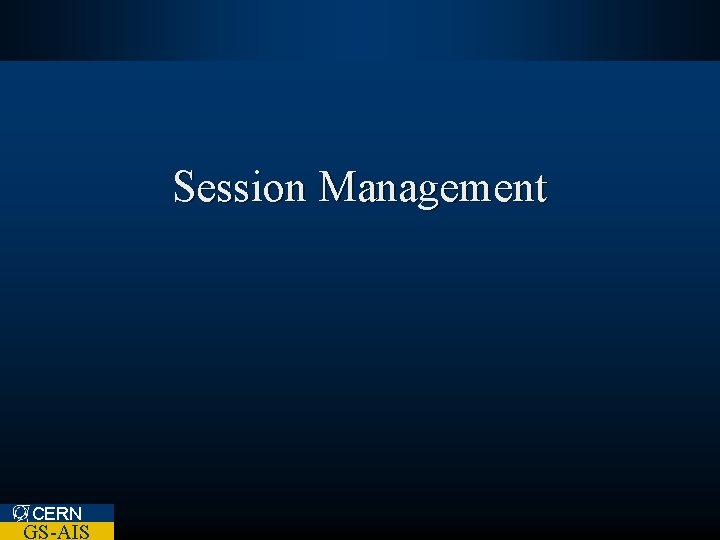

Session Management CERN GS-AIS

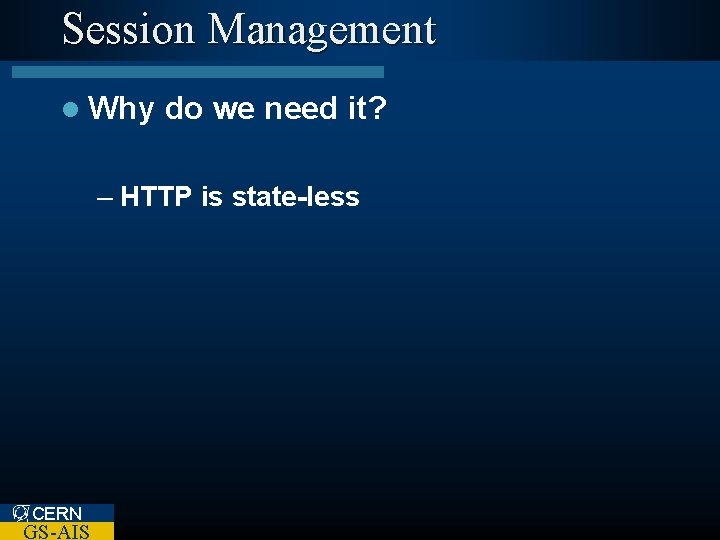

Session Management l Why do we need it? – HTTP is state-less CERN GS-AIS
Session Management Credentials Session ID: 42 User CERN GS-AIS Server User ID Session ID Derek 42 Frank 43 Jim 44 Alex 45 Jane 46 Billy 47 Lilly 48 Session Memory

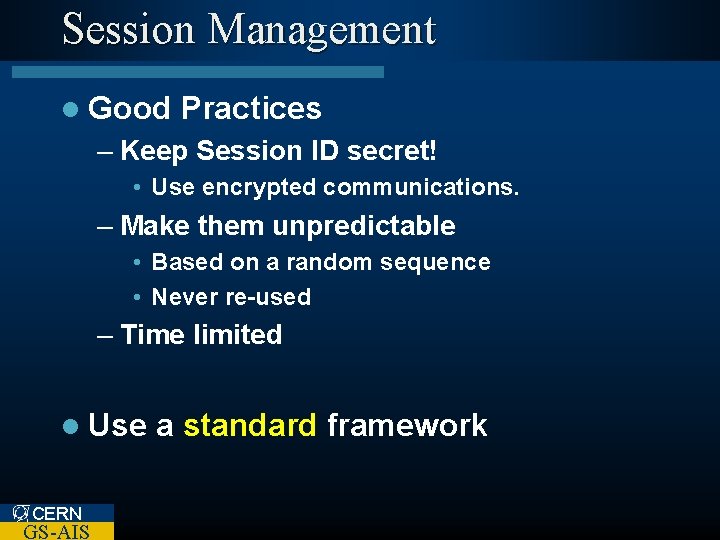

Session Management l Good Practices – Keep Session ID secret! • Use encrypted communications. – Make them unpredictable • Based on a random sequence • Never re-used – Time limited l Use CERN GS-AIS a standard framework
Types of Attack CERN GS-AIS
Types of Attack l Session – Session Fixation / Session ID Forgery – Cross-Site Scripting – Cross-Site Request Forgery l Injection – SQL Injection – Command Injection l Google CERN GS-AIS Hacks
Session ID Forgery l URL Manipulation l POST parameter Manipulation CERN GS-AIS
Citibank customers lost $2. 7 million in recent attack CERN GS-AIS June 2011
Pay. Pal 23 -year-old hacker accessed 200, 000 Pay. Pal accounts CERN GS-AIS April 2012
Cross-Site Scripting XSS CERN GS-AIS
Cross-Site Scripting l The most common publicly-reported security vulnerability – Up to 68% of websites could be vulnerable CERN GS-AIS
Cross-Site Scripting (Persistent) <s crip t>… </s crip t> Attacker q re st e u + t e s crip n po us s s re cio ali m CERN GS-AIS User Server
Cross-Site Scripting (non-persistent) ‘Click Here’ + malicious script Attacker CERN GS-AIS User + ipt t s cr e u ss q re iou c ali + t m e s crip n po us s s re cio ali m Server
Cross-Site Scripting: Impact l Site CERN GS-AIS defacement
USDA. GOV CERN GS-AIS

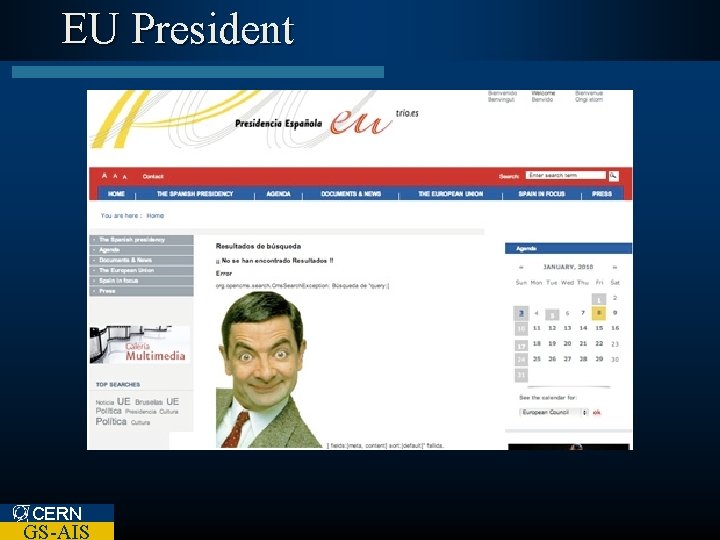

EU President CERN GS-AIS
BP. COM CERN GS-AIS
Cross-Site Scripting: Impact l Site defacement l Identity Theft l Malware distribution l… CERN GS-AIS
Word. Press corrects a cross-site request forgery (CSRF) and cross-site scripting (XSS) in version 3. 1. 1. CERN GS-AIS April 2011
e. Bay. de Potential account theft with XSS hole in e. Bay. de CERN GS-AIS August 2011
American Express CERN GS-AIS October 2011
Cross-Site Scripting: Impact l ‘Samy’ XSS Worm on My. Space – Automatically made ‘friend request’ back to author. – Within 20 hours of release over 1, 000 users were affected. l Author: Samy Kamkar – Arrested and on felony charge. • Sentenced to three years probation, 90 days community service and an undisclosed amount of restitution. CERN GS-AIS
Cross-Site Scripting: Remedies l Do not trust any User Input – Form Input – URLs – Cookies – HTTP Request Headers CERN GS-AIS
Cross-Site Scripting: Remedies l Remove / replace HTML entities – ‘White List’ or ‘Black List’ Filter l Use Non-HTML Lightweight mark-up – Wiki – bb-code – Textile l Use a Site Scanning Tool – We use Acunetix CERN GS-AIS

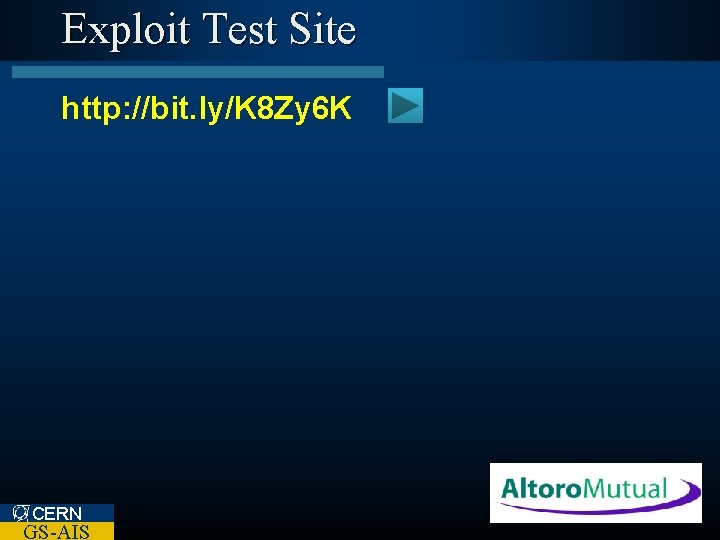

Exploit Test Site http: //bit. ly/K 8 Zy 6 K CERN GS-AIS
Cross-Site Request Forgery CSRF / XSRF CERN GS-AIS
Cross-Site Request Forgery Attacker Evil Server ‘Click Here’ d t es m u eq r d d be o sp se + an ed om c em n re ‘Hidden’ request Server CERN GS-AIS User

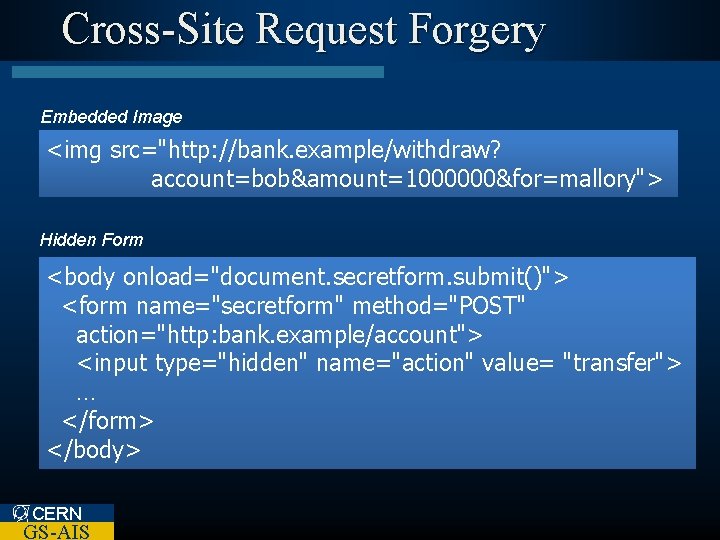

Cross-Site Request Forgery Embedded Image <img src="http: //bank. example/withdraw? account=bob&amount=1000000&for=mallory"> Hidden Form <body onload="document. secretform. submit()"> <form name="secretform" method="POST" action="http: bank. example/account"> <input type="hidden" name="action" value= "transfer"> … </form> </body> CERN GS-AIS
CSRF: Remedies l For End Users: Very Little! – Log out before visiting other sites – Don’t use ‘remember me’ features – Don’t visit ‘untrustworthy’ sites CERN GS-AIS
CSRF: Remedies l For Website Authors – Include a hidden ‘nonce’ token in forms – Ignore GET parameters when processing a POST – Include Authentication Cookies in POST body (via Java. Script) CERN GS-AIS
Injection Exploits SQL Injection CERN GS-AIS
SQL Injection l SQL Injection is user input allowed to pass through to the database directly CERN GS-AIS
SQL Injection: Example Log on to Net. Bank User name: b. cameron Password: • • • • Attacker X' or 1=1 Logon SELECT id FROM logins WHERE username = 'b. cameron' '$username' AND password = 'X' '$password' 'Secret. Word' OR 1 = 1 CERN GS-AIS
SQL Injection: Remedies l Do not trust any User Input – Form Input – URLs – Cookies – HTTP Request Headers l Use CERN GS-AIS a Site Scanning Tool

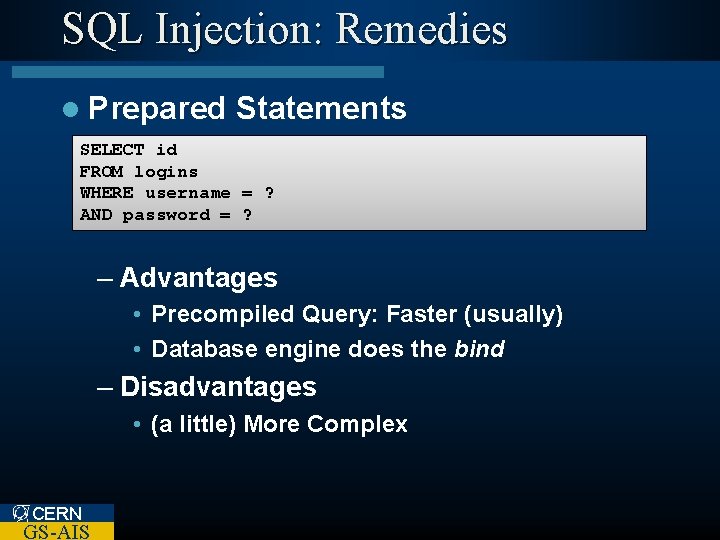

SQL Injection: Remedies l Prepared Statements SELECT id FROM logins WHERE username = ? AND password = ? – Advantages • Precompiled Query: Faster (usually) • Database engine does the bind – Disadvantages • (a little) More Complex CERN GS-AIS

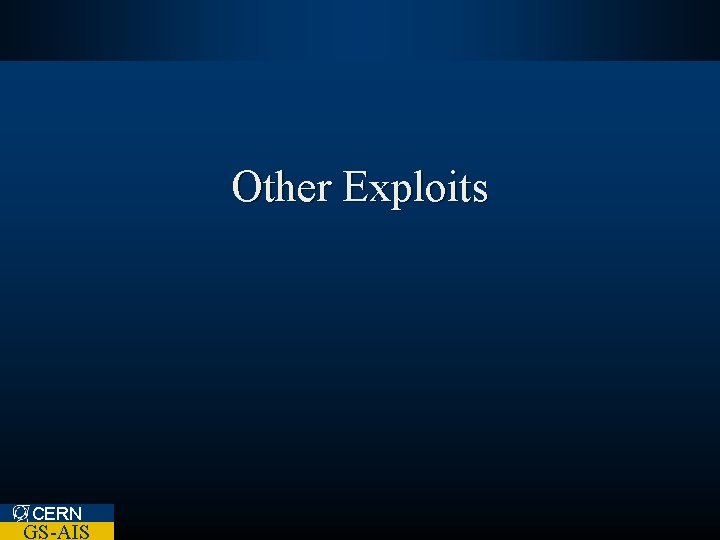

Other Exploits CERN GS-AIS
Command Injection l Variation of SQL Injection – Injects malicious OS command exec ("ls. ; " +cat /home/myfiles") $user. Path) /etc/passwd") CERN GS-AIS
Google Hacking Database l http: //www. exploit-db. com/google-dorks/ CERN GS-AIS
Summary l Do not trust any User Input – Form Input – URLs – Cookies – HTTP Request Headers l Use CERN GS-AIS a Site Scanning Tool
Thank You CERN GS-AIS
Questions l My website is not well known – No bad people will find it… l http: //www. exploit-db. com CERN GS-AIS
Questions l Hacking websites is difficult. – You need to be an expert programmer. l Metasploit l Be. EF CERN GS-AIS

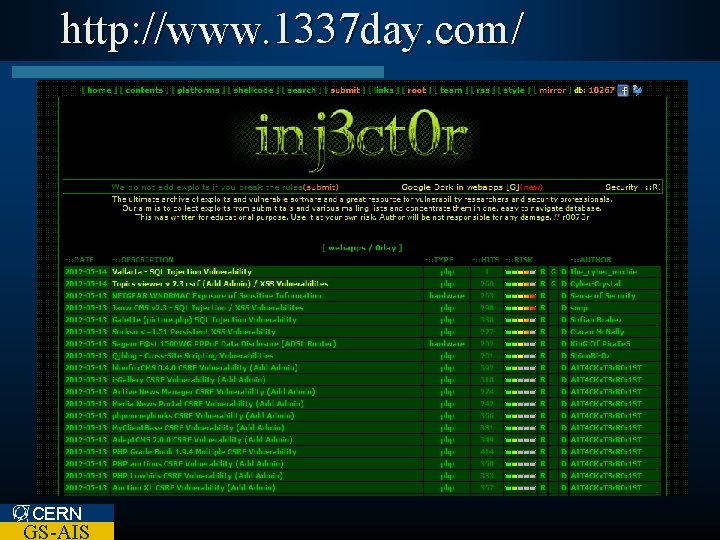

http: //www. 1337 day. com/ CERN GS-AIS

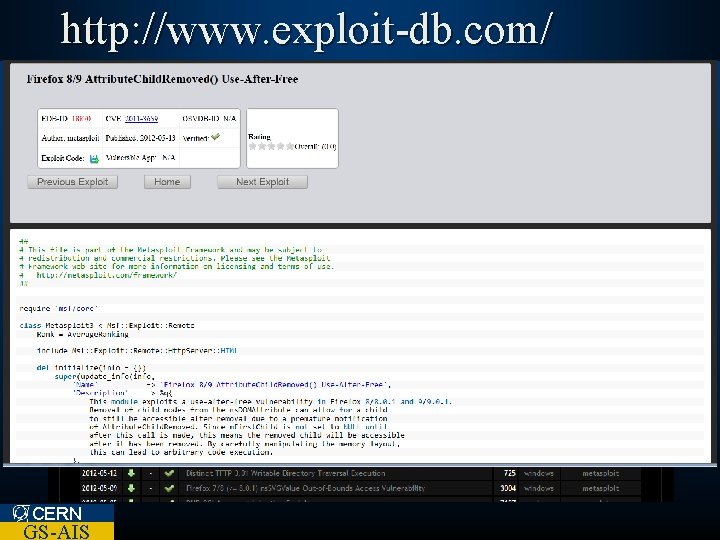

http: //www. exploit-db. com/ CERN GS-AIS
Thank You CERN GS-AIS
