HEPTech Workshop on Technology Licensing CERN Knowledge Transfer Group: MEDIPIX December 5 th, 2014 Eduardo del Castillo Knowledge Transfer | Accelerating Innovation
Outline • • Why was it developed? Hybrid pixel detector technology The Medipix collaborations The Collaboration Agreement A family of chips Applications Technology licensing Agreements signed Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014 Pictures courtesy of Simon Procz

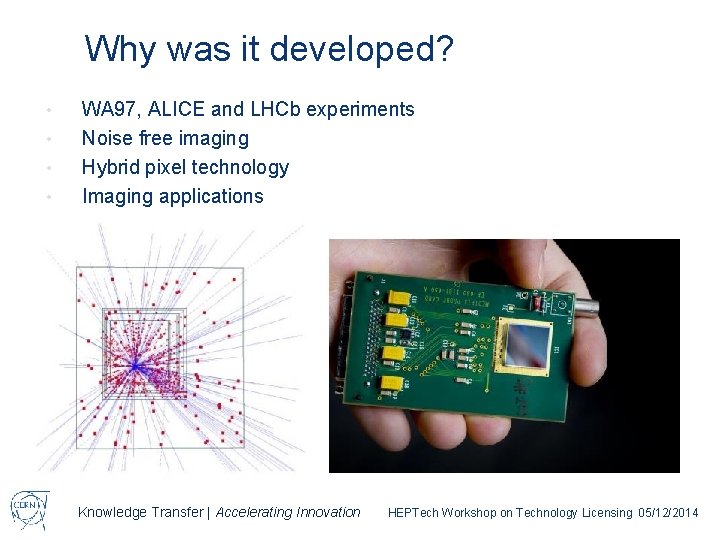

Why was it developed? • • WA 97, ALICE and LHCb experiments Noise free imaging Hybrid pixel technology Imaging applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Hybrid pixel technology • • CMOS pixel readout chip Semiconductor sensor material Hybrid pixel technology Readout chip and sensor connected through bump-bonding Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
The Medipix Collaborations • • Medipix 1 q started in the 90 s with 4 institutes q Potential of the technology Medipix 2 q new collaboration with 18 partners q Reduction of pixel size and more pixels per chip Medipix 3 q further development now with over 20 partners q Mitigate effects of charge diffusion … Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
The collaboration agreement • • • Project Management Committee q chaired by the Project Manager q Composed by the representatives of every member Project Program q Development of the chips Limitations of use q Medical applications except Ø Research and development of medical imaging systems Ø Medical devices used as diagnostic tools q Military devices q Nuclear materials related to defense or power systems q Space applications except Ø fundamental research Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014

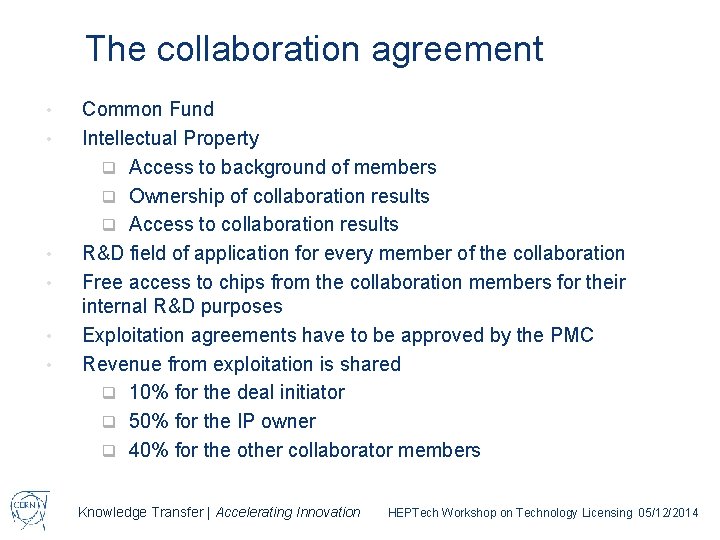

The collaboration agreement • • • Common Fund Intellectual Property q Access to background of members q Ownership of collaboration results q Access to collaboration results R&D field of application for every member of the collaboration Free access to chips from the collaboration members for their internal R&D purposes Exploitation agreements have to be approved by the PMC Revenue from exploitation is shared q 10% for the deal initiator q 50% for the IP owner q 40% for the other collaborator members Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
A family of chips • • Medipix 1 (1 um SACMOS) q 64 x 64 squared pixels q Each pixel 170 um q Photon counting Medipix 2 (0. 25 um CMOS) q 256 x 256 squared pixels q Each pixel 55 um q Photon counting Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
A family of chips • Timepix (0. 25 um CMOS) q 256 x 256 squared pixels q Each pixel 55 um q Three modes of operation Ø Photon counting Ø Time of arrival Ø Time over threshold Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
A family of chips • Medipix 3 (0. 13 um CMOS) q 256 x 256 squared pixels q Each pixel 55 um q Photon counting q Charge sharing correction Knowledge Transfer | Accelerating Innovation g g HEPTech Workshop on Technology Licensing 05/12/2014
A family of chips • Timepix 3 (0. 13 um CMOS) q 256 x 256 squared pixels q Each pixel 55 um q Simultaneous TOA and TOT q Packet based data driven readout q Shutdown/wake-up feature Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Applications Pictures courtesy of X Ray Imaging Europe Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014

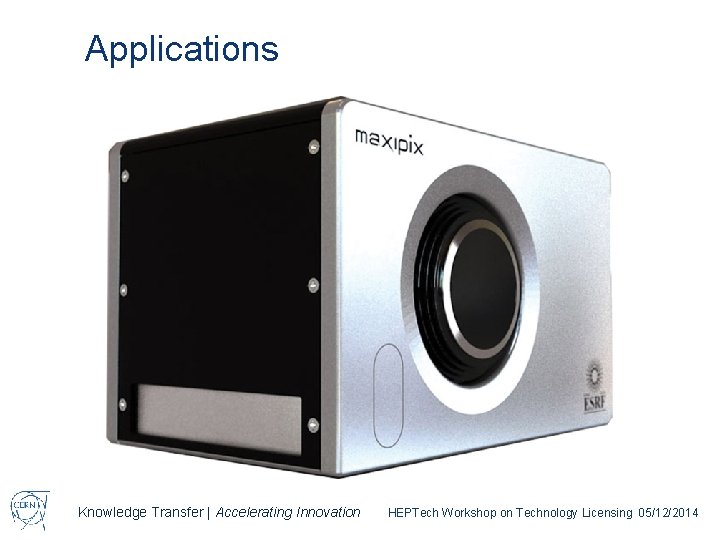

Applications Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Technology licensing • • • Licenses for research and development • When a prototype is ready and fully characterized Exclusive licenses • Before making the technology openly available • Additional source for funding for the collaboration Production licenses • Commercialization open for the rest of the fields • Establishment of commercial suppliers of the technology Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Technology licensing • Licenses for research and development q Access to Ø Detector assembly Ø pcb board Ø pc interface Ø software q Non-exclusive license q Field of research q Technical assistance q Payment conditions Ø Lump sum q Limitations of use Ø Includes exclusive licenses granted q Duration Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Technology licensing • Exclusive licenses q Commercial license (devices) q Exclusive right to commercialize in a specific field q Commercial milestones q Technical assistance q Payment conditions Ø Lump sum Ø Royalties on revenues from sales q Limitations of use Ø Exclusive licenses already granted q Sales report q Use of logos q Duration Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Technology licensing • Production licenses q Commercial license (chips, assemblies and devices) q Non-exclusive right to commercialize worldwide q Technical assistance q Payment conditions Ø Lump sum Ø Royalties on revenues from sales v. Commercialization to members of the collaboration v. Commercialization to other valid licensees q Limitations of use Ø Exclusive licenses already granted q Sales report q Preferential rates for members of the collaboration q Use of logos q Duration Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Agreements signed • R&D licenses q Australia Ø Biomedical Imaging using synchrotrons and X-Ray sets q New Zealand Ø X-Ray computed tomography for small animal imaging q The Netherlands Ø Human medical spectral X-Ray Imaging q Czech Republic Ø Educational purposes in the field of interaction of radiation with matter and radiation detectors Ø Radiation detecting system for homeland security q Norway Ø Small Animal SPECT Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Agreements signed • Exclusive licenses q 2 in The Netherlands Ø Material analysis applications using X-Ray tube based X-Ray Diffraction, X-Ray Fluorescence, Small/Wide Angle X-Ray Scattering and X-Ray Reflectometry q New Zealand Ø X-Ray computed tomography for small animal imaging and X-Ray computed tomography for human body imaging Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Agreements signed • Production licenses q Spain q 2 in Germany q 2 in The Netherlands q Czech Republic q United Kingdom Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
Questions Knowledge Transfer | Accelerating Innovation HEPTech Workshop on Technology Licensing 05/12/2014
