Q 5. 1&5. 2: f change with T Why does the frequency change when cooling down? Is the size changing? – no, the curve is flat below 50 K. But a varying penetration depth also is an effective change of cavity size. This thickness becomes smaller with decreasing T, the cavity becomes smaller – this consistent with the increase frequency. All 3 groups had that right! Congrats! Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 2

Q 5. 1&5. 2: f change with T Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 3

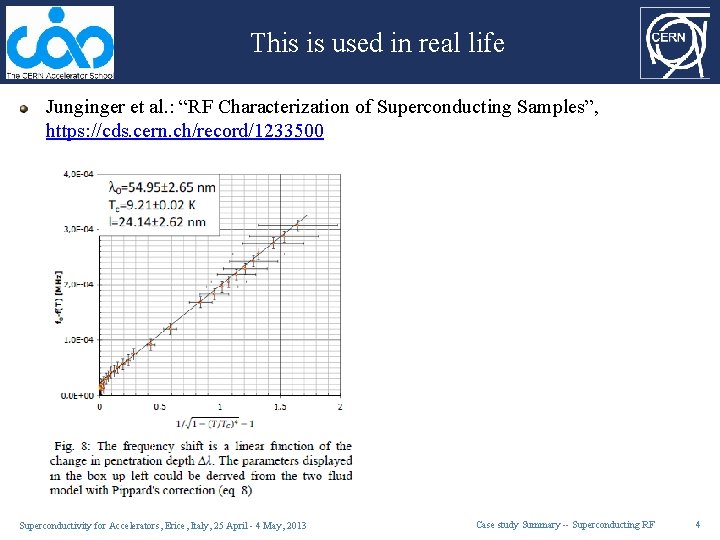

This is used in real life Junginger et al. : “RF Characterization of Superconducting Samples”, https: //cds. cern. ch/record/1233500 Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 4

Q 5. 3, 5. 4&5. 5: Q-switch – hot spot * Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 5

Characterizing cavities • Resonance frequency • Transit time factor field varies while particle is traversing the gap Circuit definition • Linac definition Shunt impedance gap voltage – power relation • Q factor • R/Q independent of losses – only geometry! • loss factor 23 -Sept-2010 CAS Varna/Bulgaria 2010 - RF Cavities 6

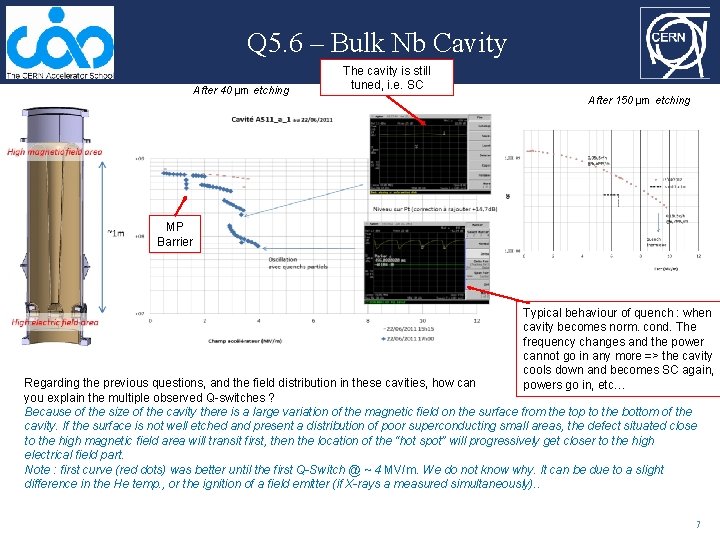

Q 5. 6 – Bulk Nb Cavity After 40 µm etching The cavity is still tuned, i. e. SC After 150 µm etching MP Barrier Typical behaviour of quench : when cavity becomes norm. cond. The frequency changes and the power cannot go in any more => the cavity cools down and becomes SC again, powers go in, etc… Regarding the previous questions, and the field distribution in these cavities, how can you explain the multiple observed Q-switches ? Because of the size of the cavity there is a large variation of the magnetic field on the surface from the top to the bottom of the cavity. If the surface is not well etched and present a distribution of poor superconducting small areas, the defect situated close to the high magnetic field area will transit first, then the location of the “hot spot” will progressively get closer to the high electrical field part. Note : first curve (red dots) was better until the first Q-Switch @ ~ 4 MV/m. We do not know why. It can be due to a slight difference in the He temp. , or the ignition of a field emitter (if X-rays a measured simultaneously). . 7

Q 5. 7 – Modelling grain boundary Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 8

Q 5. 8 – more realistic dimensions, 2 D model Do these calculation change the conclusion from the precedent simplified model? The curvature radius indeed plays a major role. The lateral dimension plays a minor role in the field enhancement factor, but impacts the dissipation. What prediction can be done about thermal breakdown of the cavity? The breakdown is solely due to the dramatic heating of the defect that suddenly exceeds the overall dissipation. Why is this model underestimating the field enhancement factor and overestimating thermal dissipations? Because it is a 2 D model: the defect is treated like if it was an infinite wall. In case of finite dimension the shape factor gets higher, inversely the dissipation would be reduced if coming only from a finite obstacle. Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 9

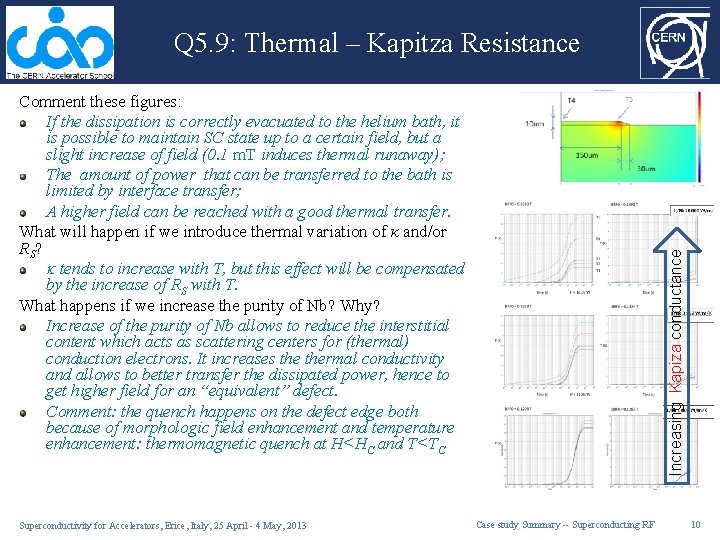

Q 5. 9: Thermal – Kapitza Resistance Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Increasing Kapiza conductance Comment these figures: If the dissipation is correctly evacuated to the helium bath, it is possible to maintain SC state up to a certain field, but a slight increase of field (0. 1 m. T induces thermal runaway); The amount of power that can be transferred to the bath is limited by interface transfer; A higher field can be reached with a good thermal transfer. What will happen if we introduce thermal variation of κ and/or RS? k tends to increase with T, but this effect will be compensated by the increase of RS with T. What happens if we increase the purity of Nb? Why? Increase of the purity of Nb allows to reduce the interstitial content which acts as scattering centers for (thermal) conduction electrons. It increases thermal conductivity and allows to better transfer the dissipated power, hence to get higher field for an “equivalent” defect. Comment: the quench happens on the defect edge both because of morphologic field enhancement and temperature enhancement: thermomagnetic quench at H<HC and T<TC Case study Summary -- Superconducting RF 10

Q 6. 1, Q 6. 2&Q 6. 3 – cavity geometry Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 11

Q 6. 4 – BCS resistance dominating f=704. 4 MHz Tc(Nb)=9. 2 K Rbcs [nΩ] 10000 T [K] RBCS [nΩ] 1000 4. 3 362. 1 100 4 266. 2 3 61. 0 2 3. 2 4. 3 K 10 1 1 2 2 3 Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 3 4 Tc/T [1/K] 4 5 2 K 5 Case study Summary -- Superconducting RF 12

Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 13

Q 6. 6, Q 6. 7 & Q 6. 8 – gradient, wall loss, max. gradient Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 14

Q 6. 6, Q 6. 7 & Q 6. 8 – gradient, wall loss, max. gradient Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 15

Q 6. 9: Input power and external Q, bandwidth Intensity Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Q 0 QL f Case study Summary -- Superconducting RF 16

Cavity equivalent circuit IG IB Vacc P Z Generator C L : coupling factor Cavity R: Shunt impedance Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 R Simplification: single mode Beam L=R/(Qw 0) C=Q/(Rw 0) : R-upon-Q Case study Summary -- Superconducting RF 17

Q 6. 10: Tuners Effects on cavity resonance requiring tuning: § Static detuning (mechanical perturbations) § Quasi-static detuning (He bath pressure / temperature drift) § Dynamic detuning (microphonics, Lorentz force detuning) Tuning Mechanism § Electro-magnetic coupling § Mechanical action on the cavity Types of Tuners § Slow tuner (mechanical, motor driven) § Fast Tuner (mechanical, PTZ or magnetostrictive) Examples § INFN/DESY blade tuner with piezoactuators § CEBAF Renascence tuner § KEK slide jack tuner § KEK coaxial ball screw tuner Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 18

Q 6. 11: NC defects Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 19

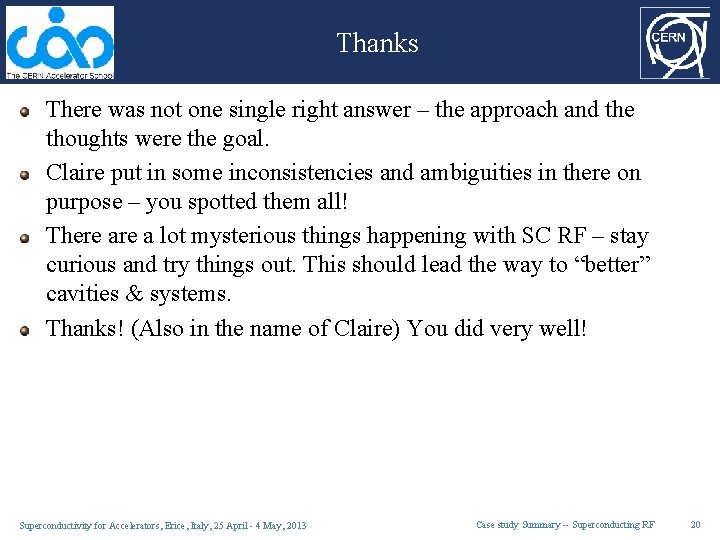

Thanks There was not one single right answer – the approach and the thoughts were the goal. Claire put in some inconsistencies and ambiguities in there on purpose – you spotted them all! There a lot mysterious things happening with SC RF – stay curious and try things out. This should lead the way to “better” cavities & systems. Thanks! (Also in the name of Claire) You did very well! Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 20

Annex – from the case study introduction: Cases 5 and 6 Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 21

CASE STUDY 5 Courtesies: M. Desmon, P. Bosland, J. Plouin, S. Calatroni Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 22

Case study 5 RF cavities: superconductivity and thin films, local defect… Thin Film Niobium: penetration depth Frequency shift during cooldown. Linear representation is given in function of Y, where Y = (1 -(T/TC)4)-1/2 Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 23

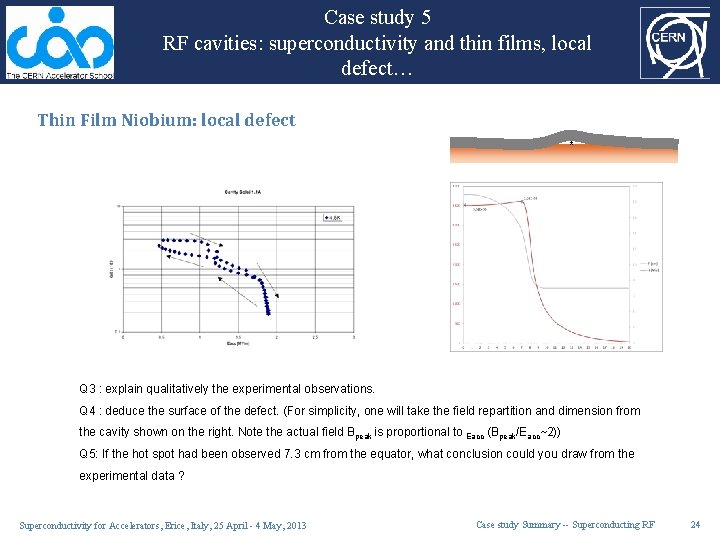

Case study 5 RF cavities: superconductivity and thin films, local defect… Thin Film Niobium: local defect * Q 3 : explain qualitatively the experimental observations. Q 4 : deduce the surface of the defect. (For simplicity, one will take the field repartition and dimension from the cavity shown on the right. Note the actual field Bpeak is proportional to Eacc (Bpeak/Eacc~2)) Q 5: If the hot spot had been observed 7. 3 cm from the equator, what conclusion could you draw from the experimental data ? Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 24

Case study 5 RF cavities: superconductivity and thin films, local defect… Bulk Niobium: local defects After 40 µm etching After 150 µm etching Q 6 : regarding the previous questions, and the field distribution in these cavities, how can you explain the multiple observed Q-switches ? Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 25

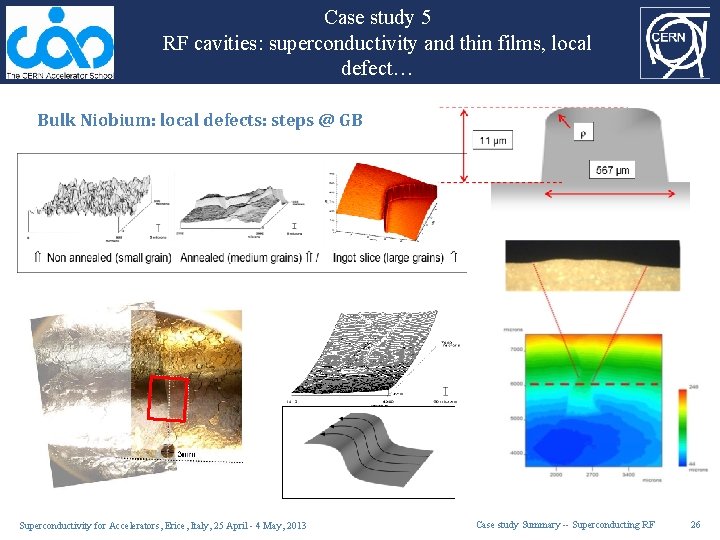

Case study 5 RF cavities: superconductivity and thin films, local defect… Bulk Niobium: local defects: steps @ GB Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 26

Case study 5 RF cavities: superconductivity and thin films, local defect… Bulk Niobium: steps @ GB 2 D RF model Q 7. What conclusion can we draw about: • The influence of the lateral dimensions of the defect? Its height ? • The influence of the curvature radius? • The behavior at high field? • What happens if the defect is a hole instead of bump (F<<L) ? Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 27

Case study 5 RF cavities: superconductivity and thin films, local defect… Steps @ GB w. realistic dimension RF only Q 8. - do these calculation change the conclusion from the precedent simplified model ? - what prediction can be done about thermal breakdown of the cavity? - why is this model underestimating the field enhancement factor and overestimating thermal dissipations? Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 28

Case study 5 RF cavities: superconductivity and thin films, local defect… Steps @ GB w. realistic dimension RF + thermal Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 29

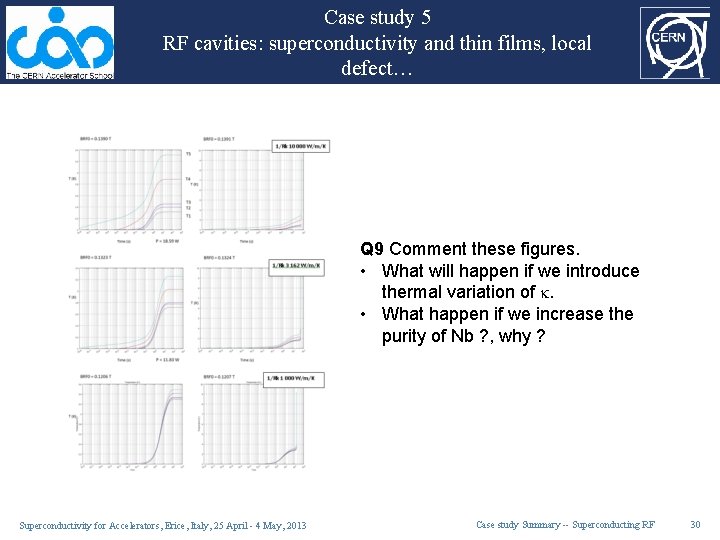

Case study 5 RF cavities: superconductivity and thin films, local defect… Q 9 Comment these figures. • What will happen if we introduce thermal variation of k. • What happen if we increase the purity of Nb ? , why ? Superconductivity for Accelerators, Erice, Italy, 25 April - 4 May, 2013 Case study Summary -- Superconducting RF 30
