Cerebral Venous Anatomy L JS Yang August 14

Cerebral Venous Anatomy L J-S Yang August 14, 2003 Michigan Neurosurgery

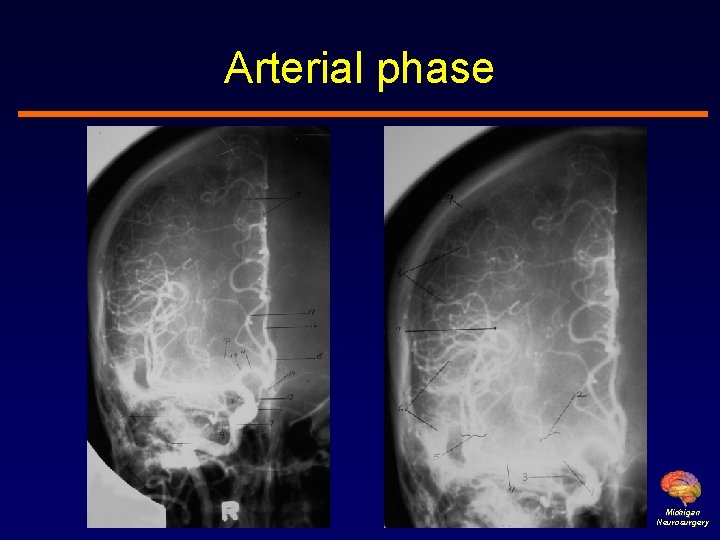

Arterial phase Michigan Neurosurgery

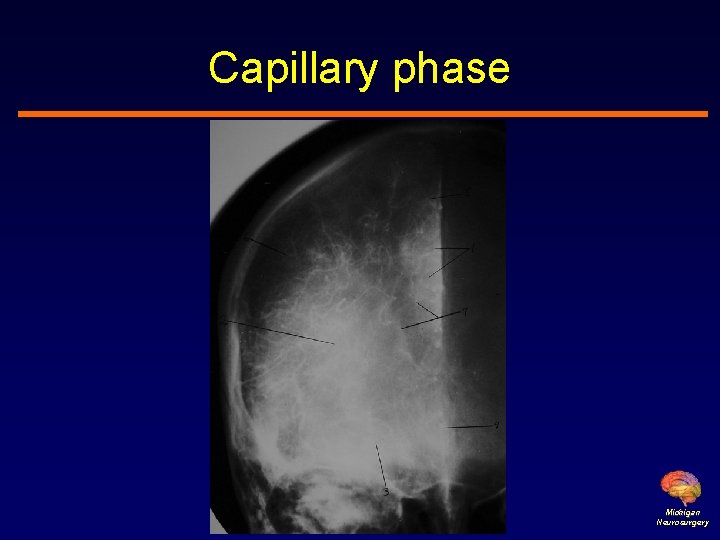

Capillary phase Michigan Neurosurgery

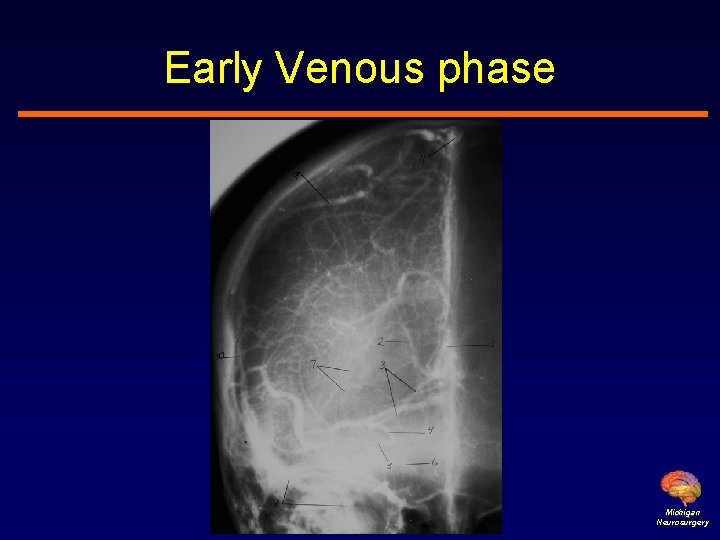

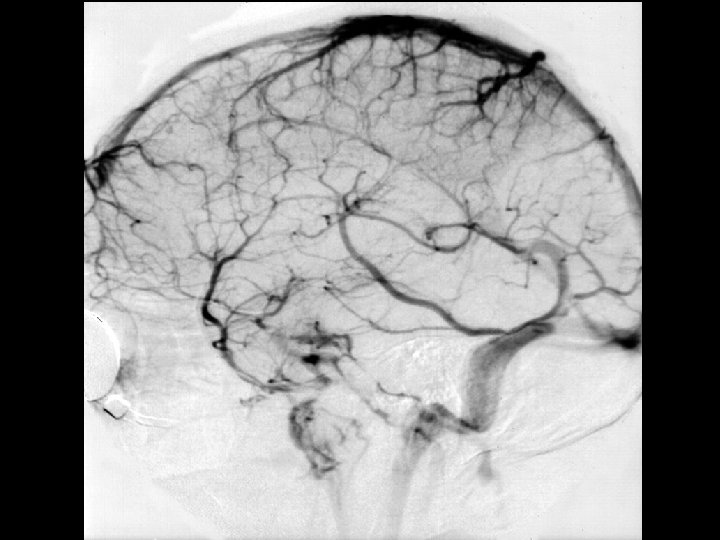

Early Venous phase Michigan Neurosurgery

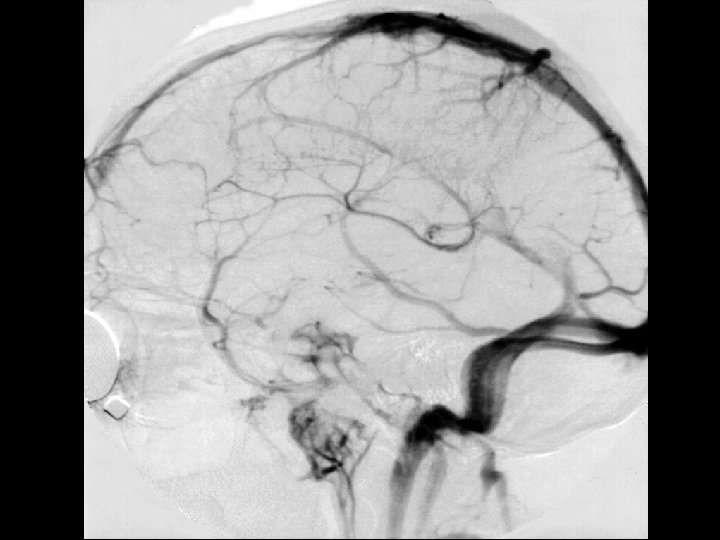

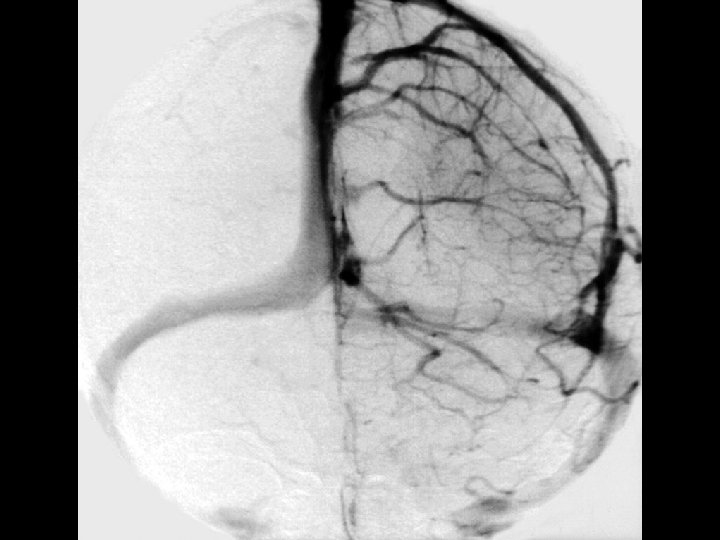

Late Venous phase Michigan Neurosurgery

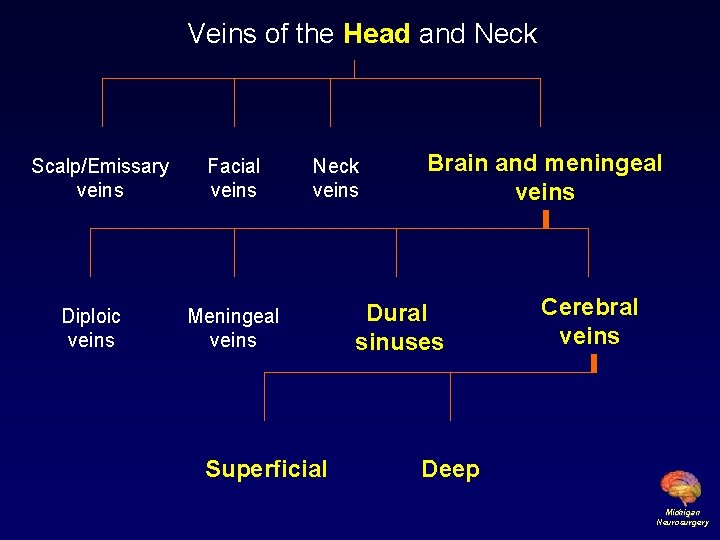

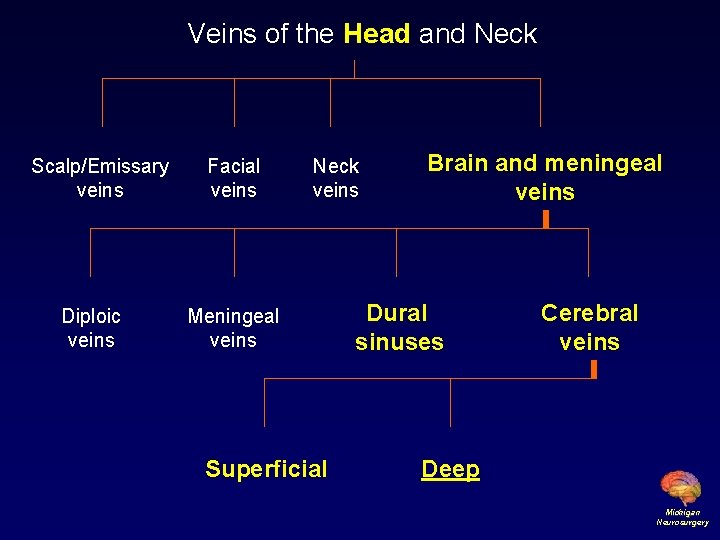

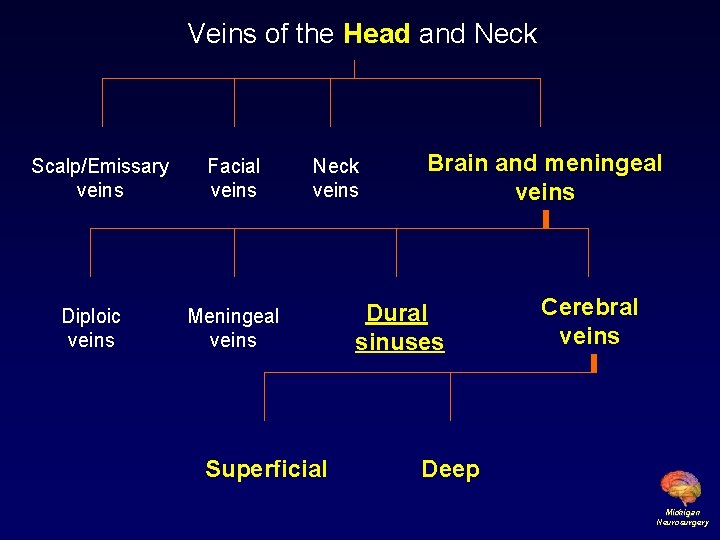

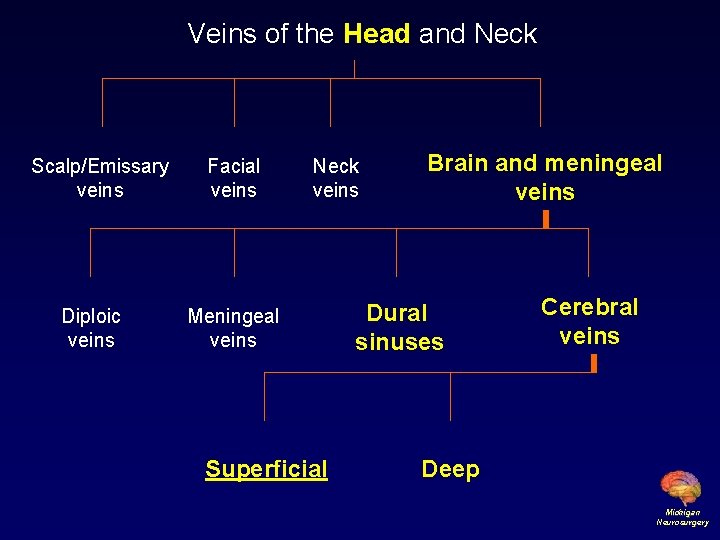

Veins of the Head and Neck Scalp/Emissary veins Diploic veins Facial veins Neck veins Meningeal veins Superficial Brain and meningeal veins Dural sinuses Cerebral veins Deep Michigan Neurosurgery

Cerebral veins • Superficial veins • Deep veins Michigan Neurosurgery

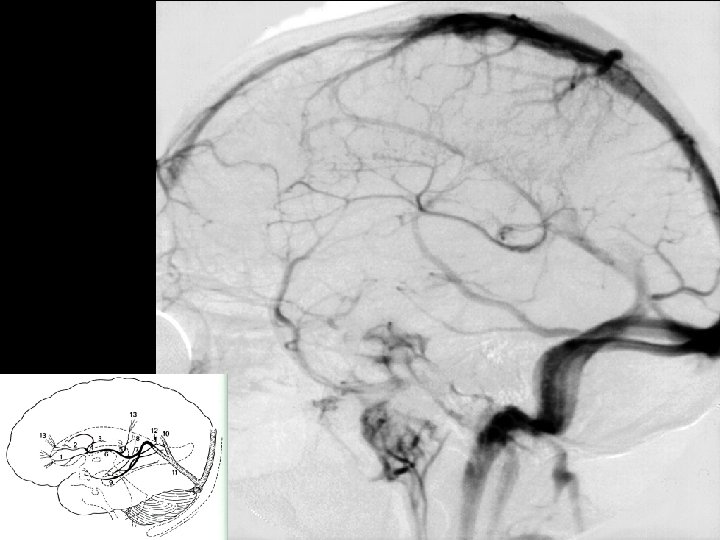

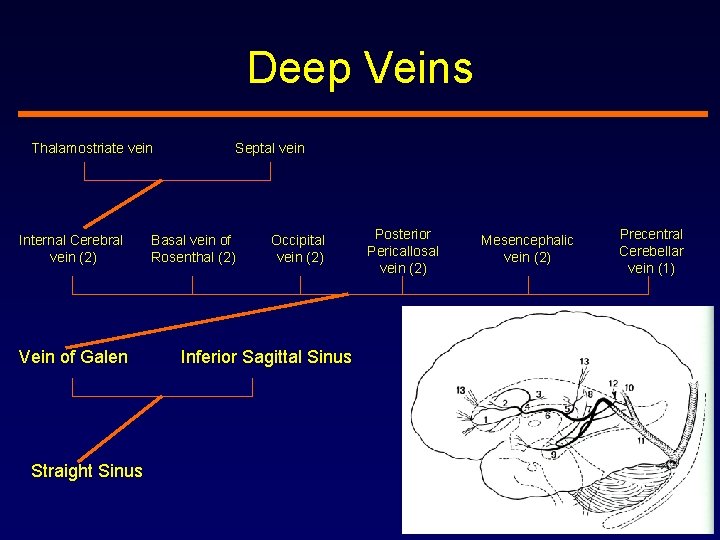

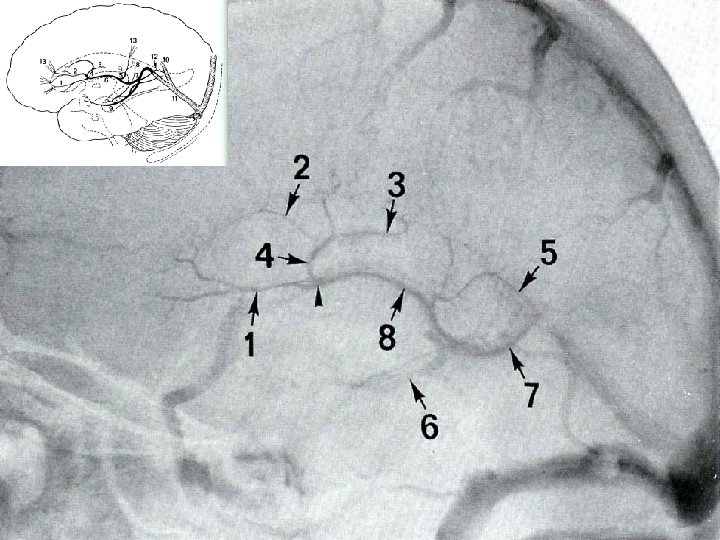

Deep Veins Thalamostriate vein Internal Cerebral vein (2) Vein of Galen Septal vein Basal vein of Rosenthal (2) Occipital vein (2) Posterior Pericallosal vein (2) Mesencephalic vein (2) Precentral Cerebellar vein (1) Inferior Sagittal Sinus Straight Sinus Michigan Neurosurgery

Michigan Neurosurgery

Michigan Neurosurgery

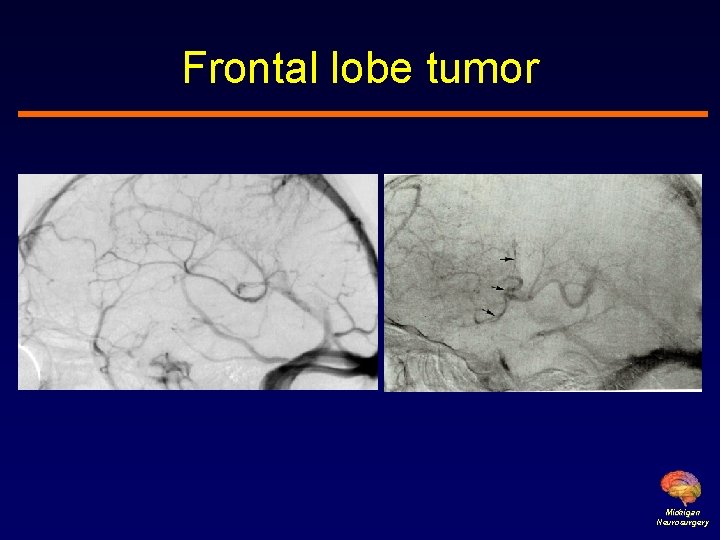

Frontal lobe tumor Michigan Neurosurgery

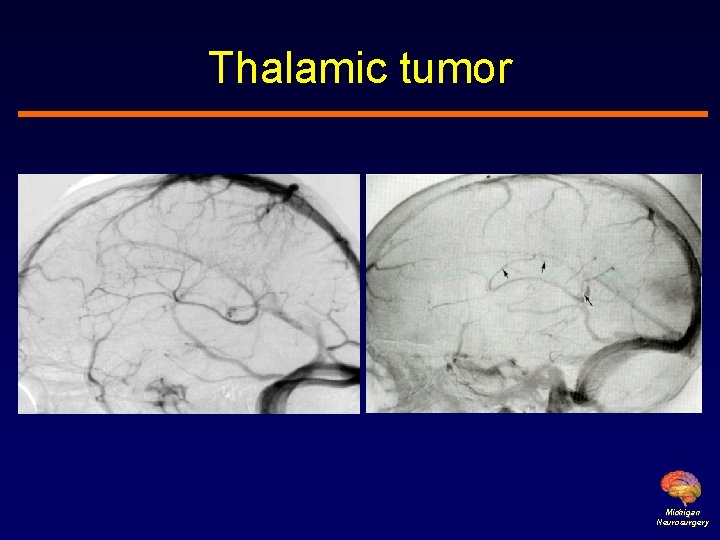

Thalamic tumor Michigan Neurosurgery

Veins of the Head and Neck Scalp/Emissary veins Diploic veins Facial veins Neck veins Meningeal veins Superficial Brain and meningeal veins Dural sinuses Cerebral veins Deep Michigan Neurosurgery

Cerebral veins • Superficial veins • Deep veins Michigan Neurosurgery

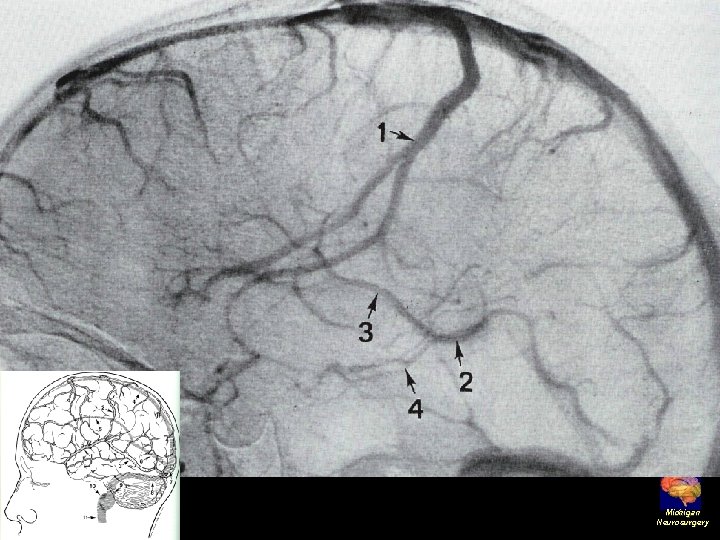

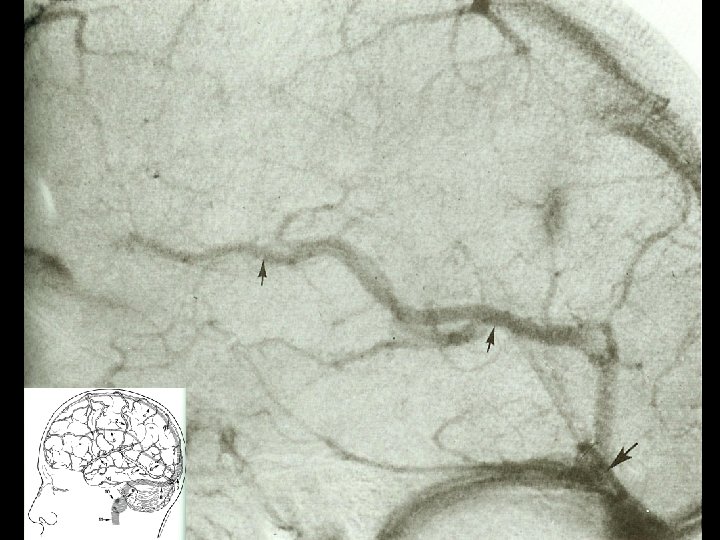

Superficial Veins • Sylvian vein • Vein of Trolard • Vein of Labbe • Cortical veins draining into the dural sinuses Michigan Neurosurgery

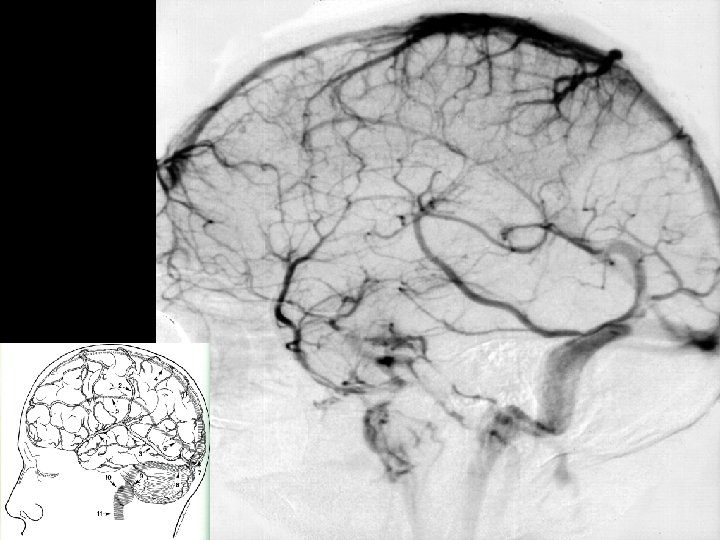

Michigan Neurosurgery

Chronic subdural hematoma Michigan Neurosurgery

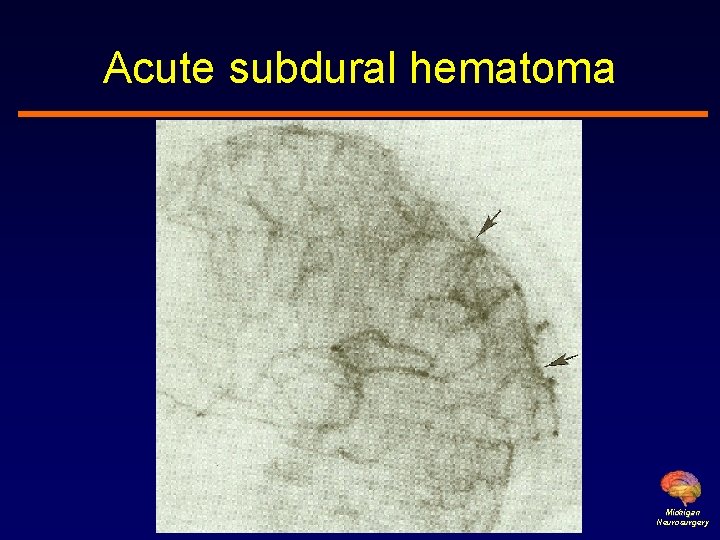

Acute subdural hematoma Michigan Neurosurgery

Veins of the Head and Neck Scalp/Emissary veins Diploic veins Facial veins Neck veins Meningeal veins Superficial Brain and meningeal veins Dural sinuses Cerebral veins Deep Michigan Neurosurgery

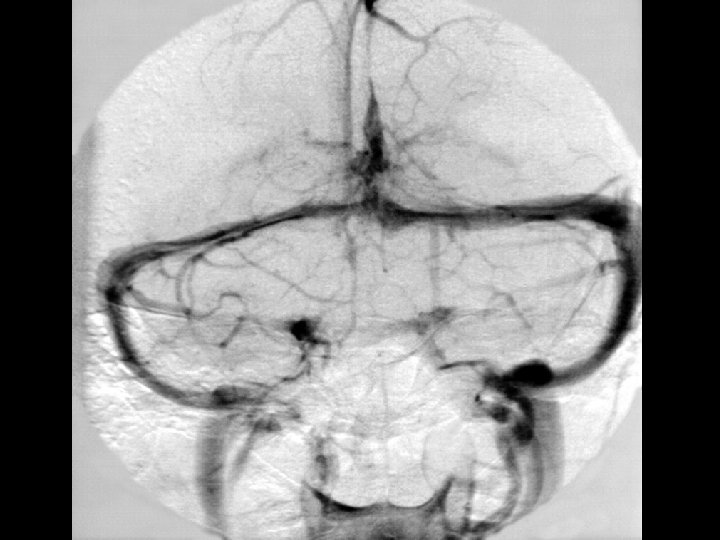

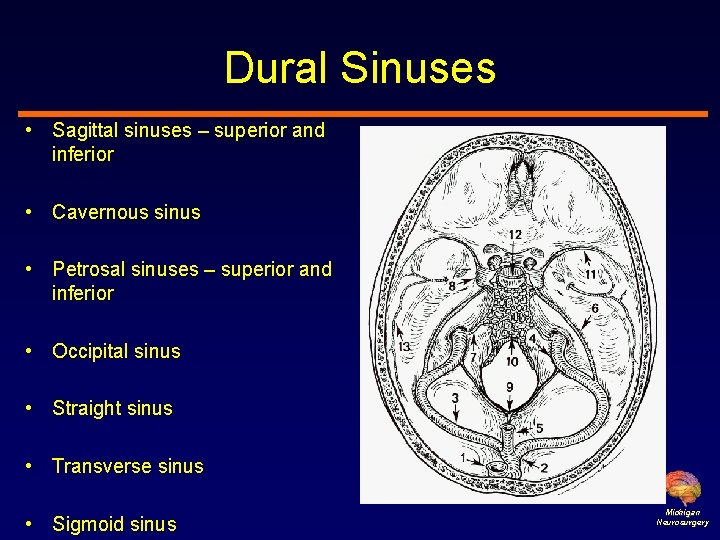

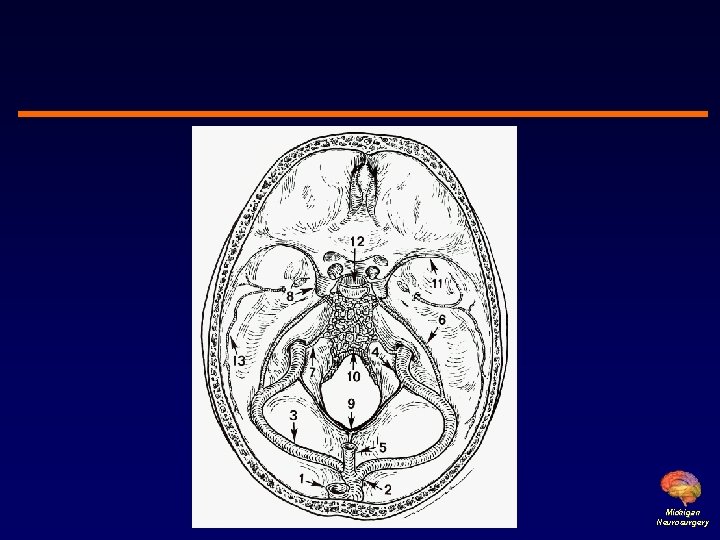

Dural Sinuses • Sagittal sinuses – superior and inferior • Cavernous sinus • Petrosal sinuses – superior and inferior • Occipital sinus • Straight sinus • Transverse sinus • Sigmoid sinus Michigan Neurosurgery

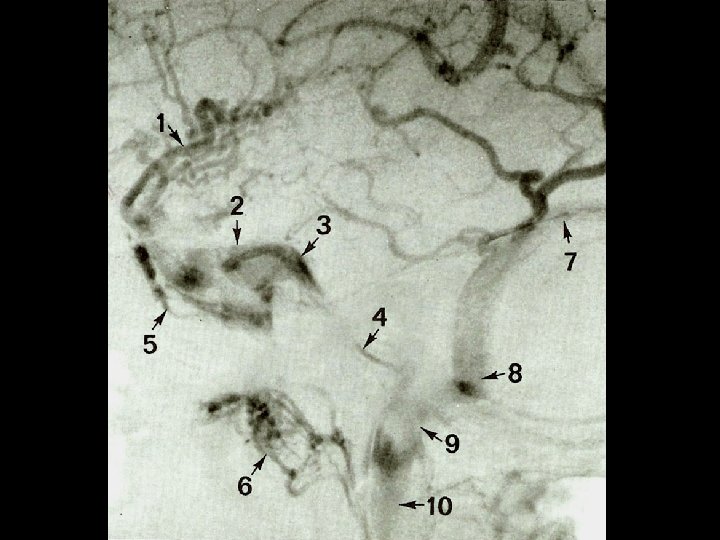

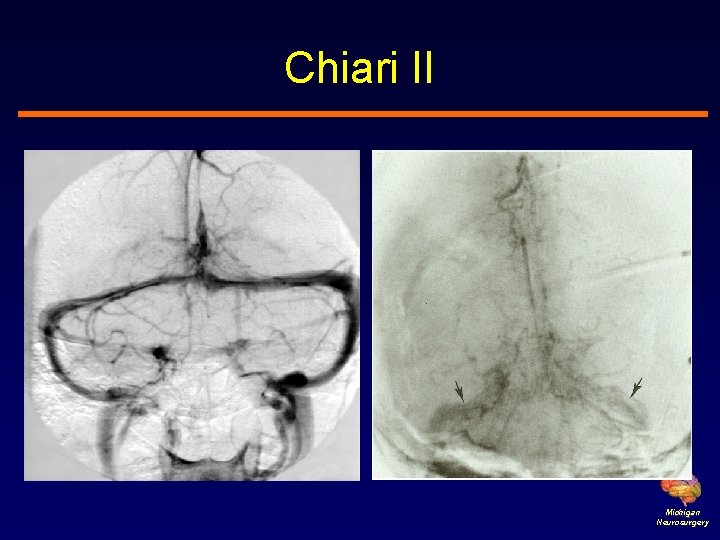

Chiari II Michigan Neurosurgery

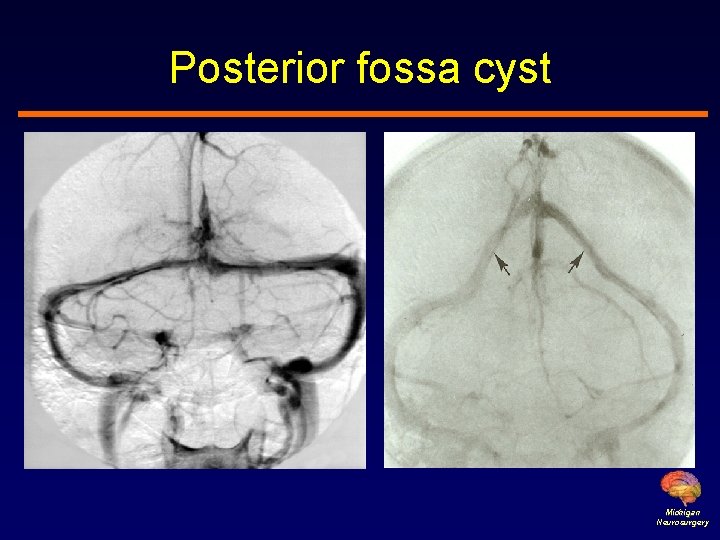

Posterior fossa cyst Michigan Neurosurgery

Veins of the Head and Neck Scalp/Emissary veins Diploic veins Facial veins Neck veins Meningeal veins Superficial Brain and meningeal veins Dural sinuses Cerebral veins Deep Michigan Neurosurgery

Brain and Meningeal Veins • Diploic Veins • Meningeal Veins • Dural Sinuses • Cerebral Veins Michigan Neurosurgery

Veins of the Head and Neck Scalp/Emissary veins Diploic veins Facial veins Neck veins Meningeal veins Superficial Brain and meningeal veins Dural sinuses Cerebral veins Deep Michigan Neurosurgery

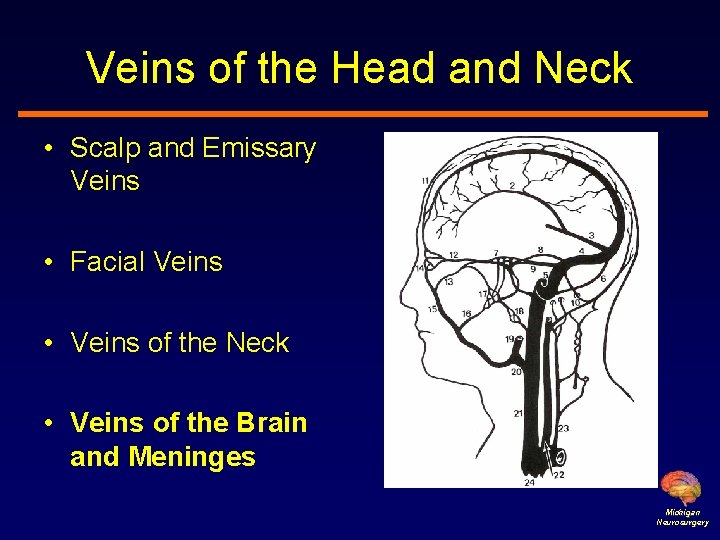

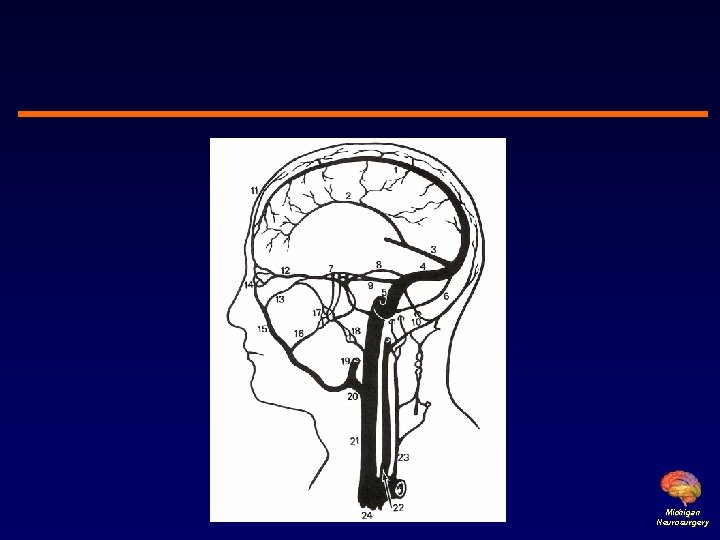

Veins of the Head and Neck • Scalp and Emissary Veins • Facial Veins • Veins of the Neck • Veins of the Brain and Meninges Michigan Neurosurgery

Venous Thrombosis (CT) Michigan Neurosurgery

Venous Thrombosis (MRI-T 2) Michigan Neurosurgery

Venous Thrombosis (MRI-T 1) Michigan Neurosurgery

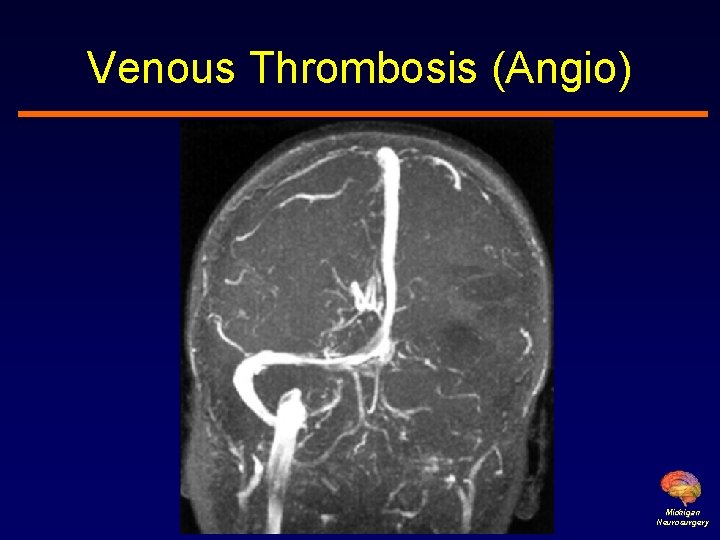

Venous Thrombosis (Angio) Michigan Neurosurgery

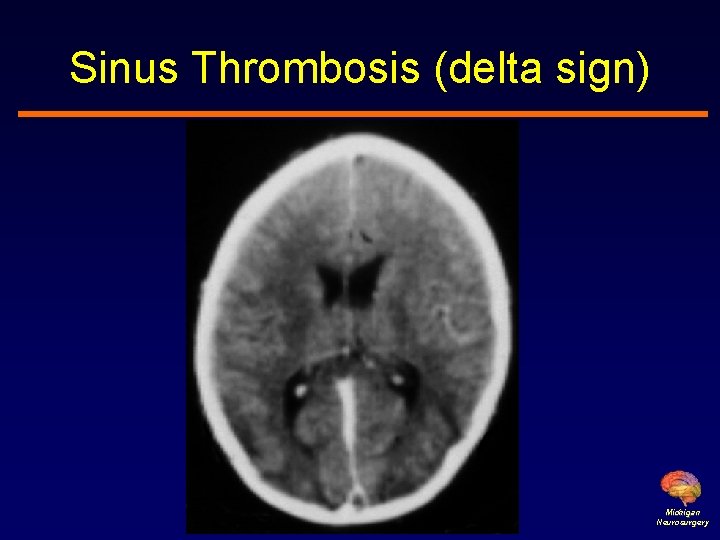

Sinus Thrombosis (delta sign) Michigan Neurosurgery

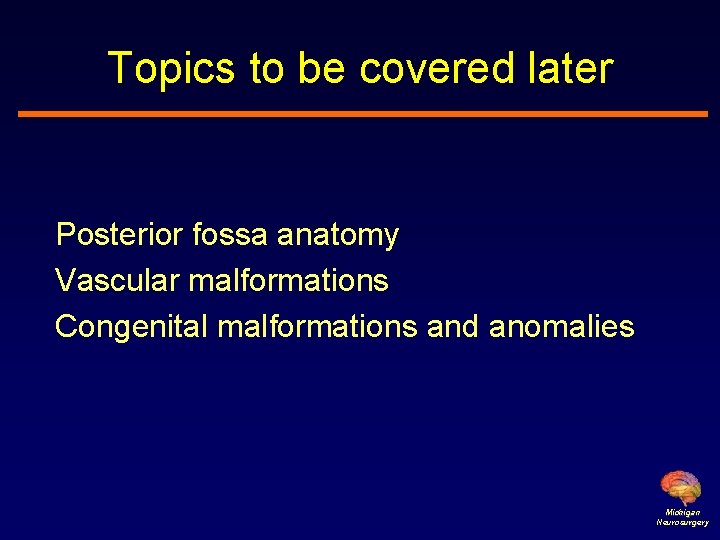

Topics to be covered later Posterior fossa anatomy Vascular malformations Congenital malformations and anomalies Michigan Neurosurgery

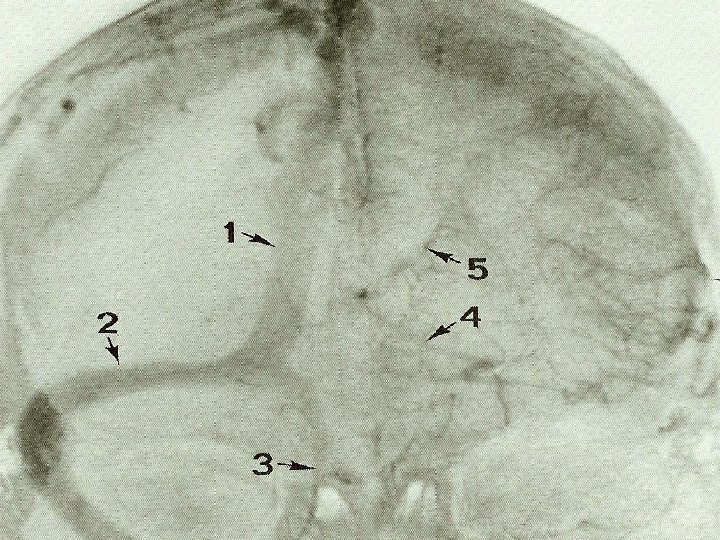

Michigan Neurosurgery

Michigan Neurosurgery

Michigan Neurosurgery

Michigan Neurosurgery

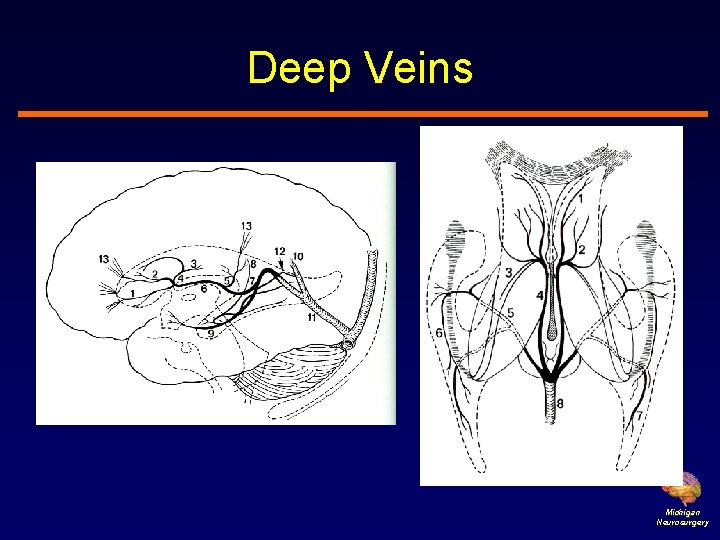

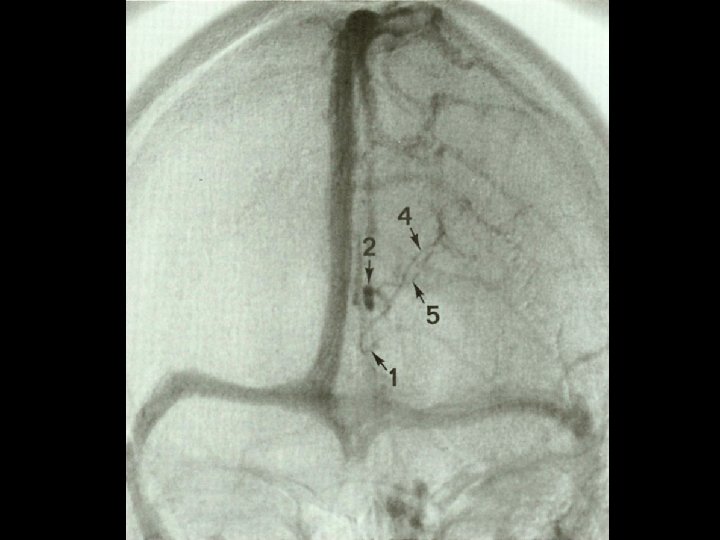

Deep Veins Michigan Neurosurgery

Michigan Neurosurgery

Michigan Neurosurgery

Angiographic digression to aid the understanding of venous angiography Michigan Neurosurgery

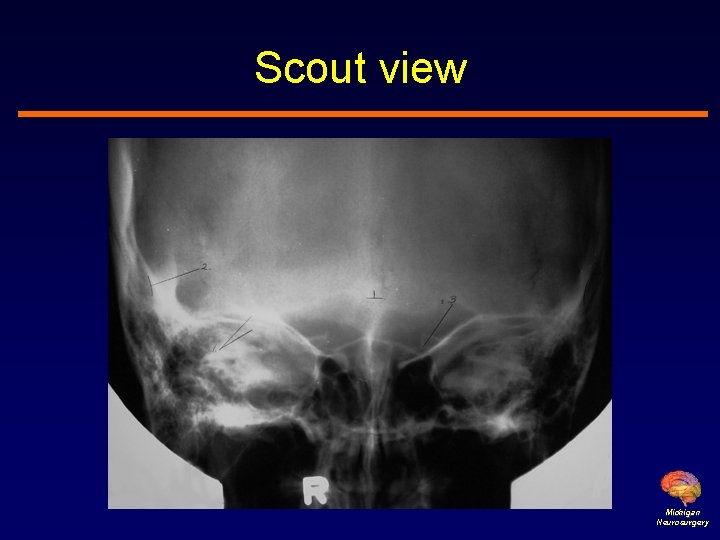

Scout view Michigan Neurosurgery

Michigan Neurosurgery
