CEREBELLUM Functions Maintenance of balance and posture Coordination
CEREBELLUM Functions: Maintenance of balance and posture Coordination of voluntary movements Motor learning Cognitive functions

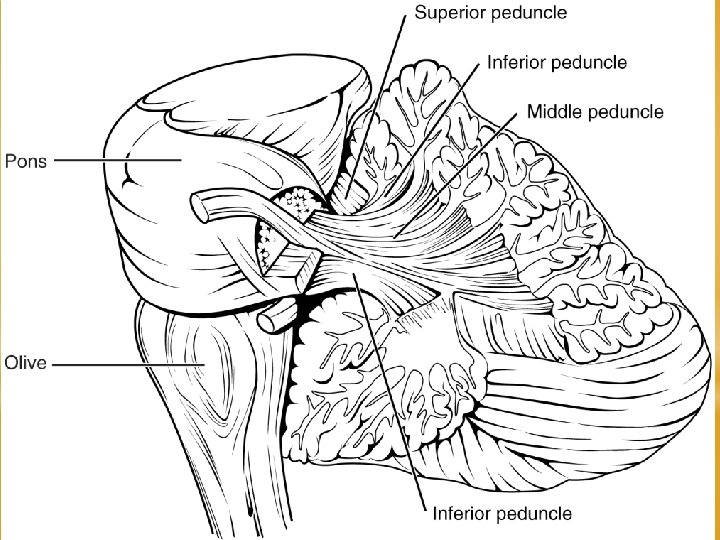

CEREBELLUM Anatomical division
CEREBELLUM Developmental division q archicerebellum § vestibulocerebellum q paleoocerebellum § spinocerebellum q neocerebellum § cerebro- (ponto-) cerebellum

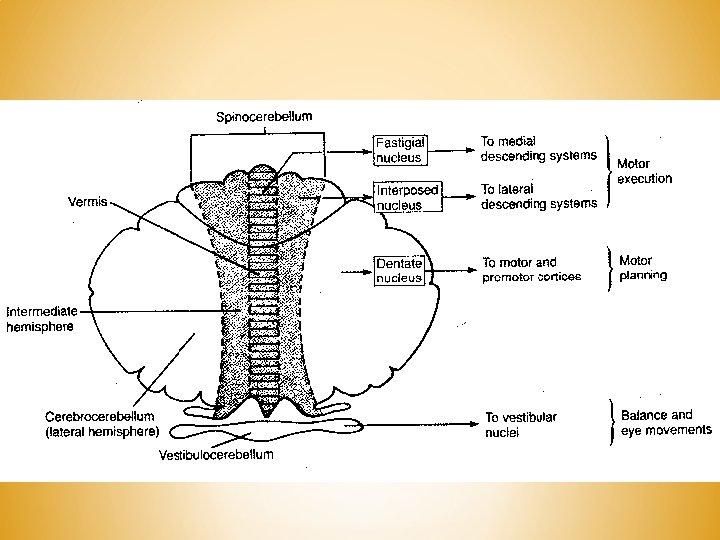

CEREBELLUM Functional division q VC § flocculonodular lobe § vestibular ncll. q SC - median zone § vermis § ncl. fastigii q SC - paramedian zone § intermediate cortex § ncll. emboliformis et globosus q CC - lateral zone § cortex cerebellar hemispheres § ncl. dentatus

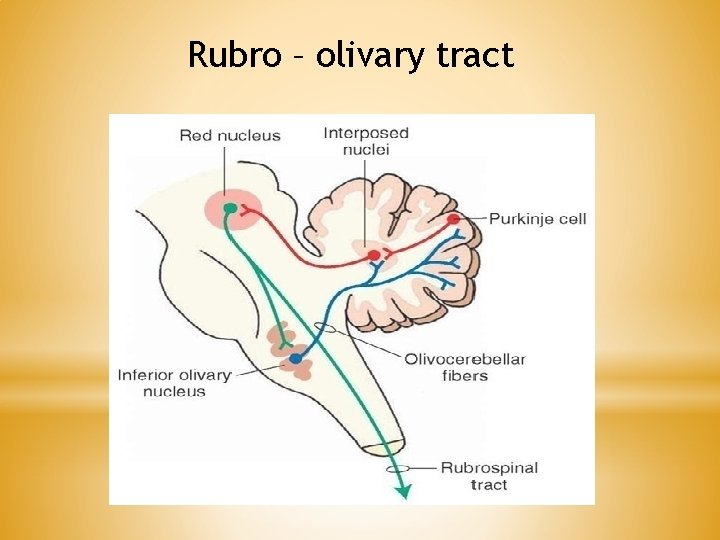

Rubro – olivary tract
CEREBELLAR CORTEX
Connections of the vestibulocerebellum Vestibular ncll. Vestibulospinal tracts Pontine ncll. Vestibulocerebellar tract Flocculonodular lobe (vestibulocerebellum) Spinal motor neurons LGB + Sup. Col. Vestibular apparatus Ø vestibular reflexes Ø postural maintanence

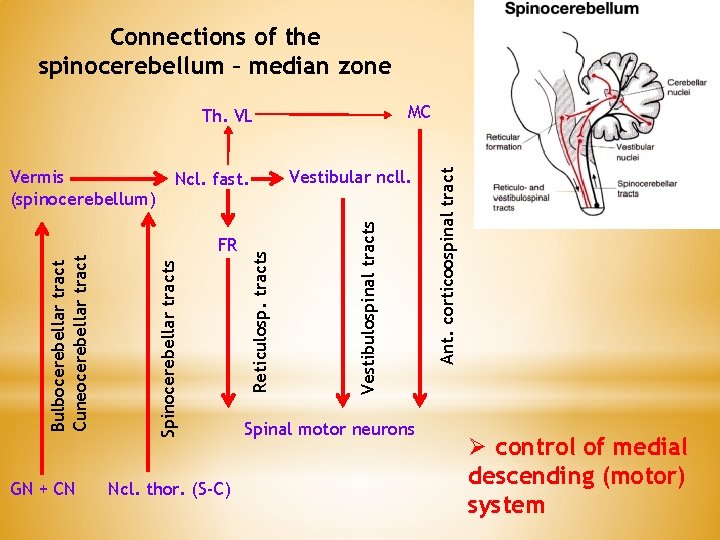

Connections of the spinocerebellum – median zone Ncl. thor. (S-C) Vestibulospinal tracts Spinocerebellar tracts Bulbocerebellar tract Cuneocerebellar tract FR GN + CN Vestibular ncll. Ncl. fast. Reticulosp. tracts Vermis (spinocerebellum) Spinal motor neurons Ant. corticoospinal tract MC Th. VL Ø control of medial descending (motor) system

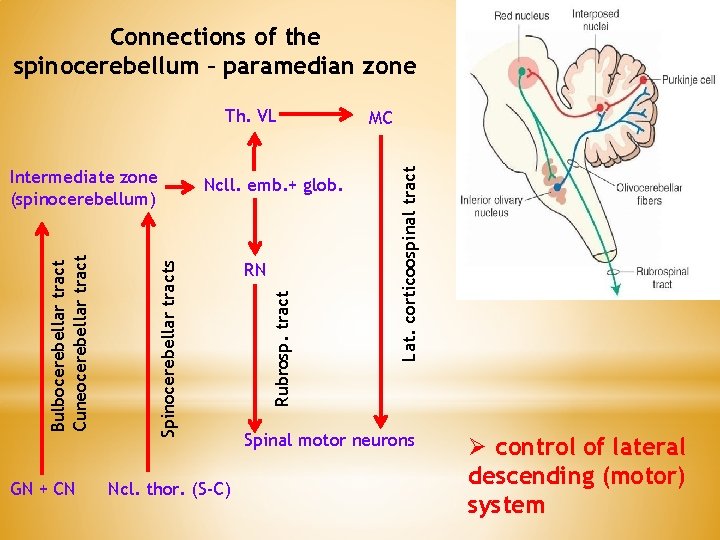

Connections of the spinocerebellum – paramedian zone GN + CN Ncll. emb. + glob. Ncl. thor. (S-C) RN Rubrosp. tract Spinocerebellar tracts Bulbocerebellar tract Cuneocerebellar tract Intermediate zone (spinocerebellum) MC Lat. corticoospinal tract Th. VL Spinal motor neurons Ø control of lateral descending (motor) system

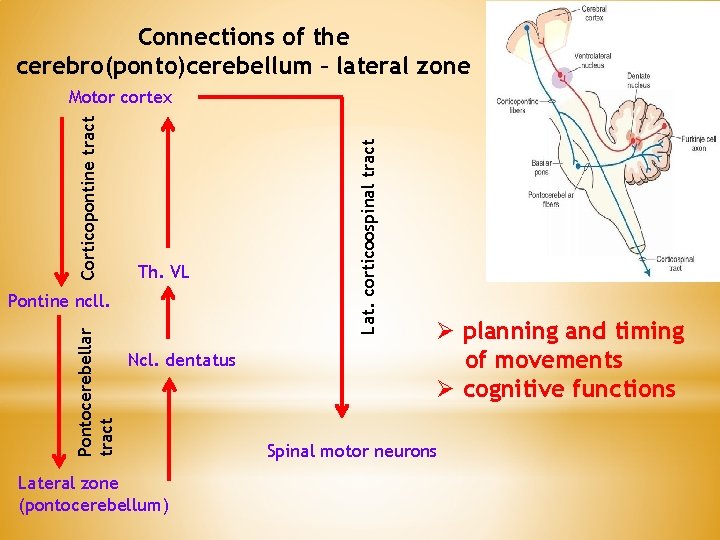

Connections of the cerebro(ponto)cerebellum – lateral zone Th. VL Pontocerebellar tract Pontine ncll. Ncl. dentatus Lateral zone (pontocerebellum) Lat. corticoospinal tract Corticopontine tract Motor cortex Ø planning and timing of movements Ø cognitive functions Spinal motor neurons

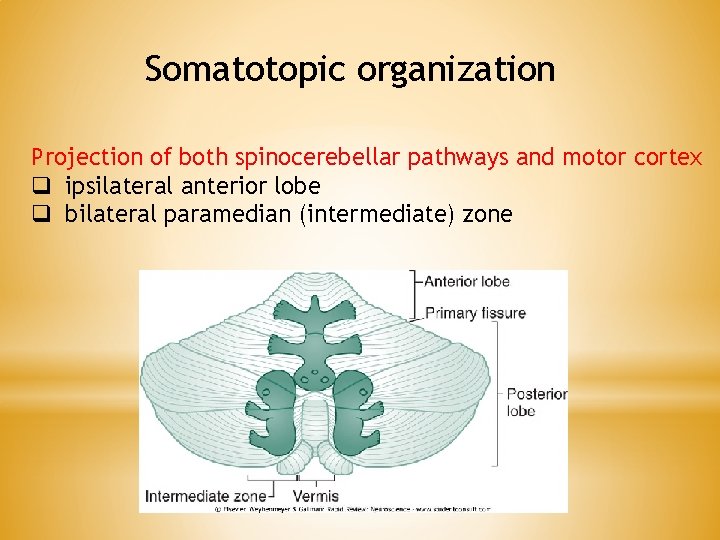

Somatotopic organization Projection of both spinocerebellar pathways and motor cortex q ipsilateral anterior lobe q bilateral paramedian (intermediate) zone
BASAL GANGLIA Striatum (neostriatum) – ncl. caudatus (D) - putamen (D) - ncl. accumbens (V) Pallidum (paleostriatum) – globus pallidus ext. s. Substantia nigra – pars reticularis - pars compacta Ncl. subthalamicus int. s.
Ncl caudatus + putamen = dorsal striatum Globus pallidus C = dorsal pallidum Substantia innominata: Pu GP VP VS VS = ventr. striatum Ncl. accumbens septi VP = ventral pallidum Ncl. basalis Meynerti

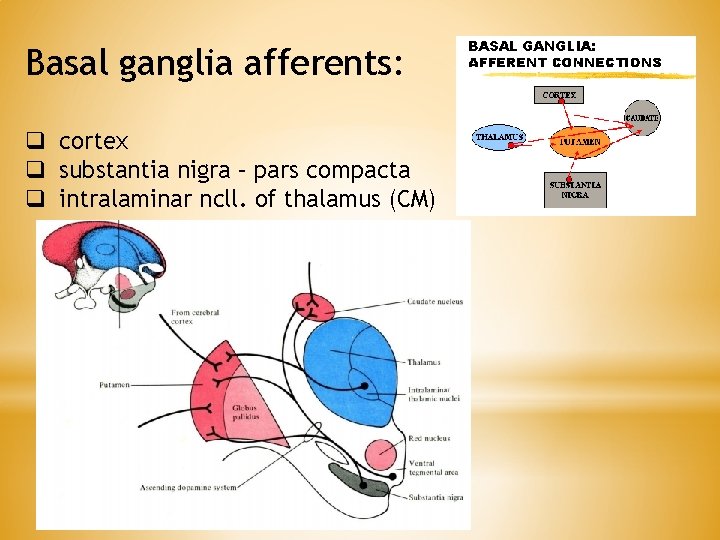

Basal ganglia afferents: q cortex q substantia nigra – pars compacta q intralaminar ncll. of thalamus (CM)
Basal ganglia efferents: q GPi q SN – pars reticularis Ø Th. VA/VL Ø Th. CM (ansa lenticularis + fasciculus lenticularis → fasciculus thalamicus)
Basal ganglia intrinsic connections: q q q Striatopallidal p. Striatonigral p. GPe → STN → GP, SNr. Nigrostriatal p.

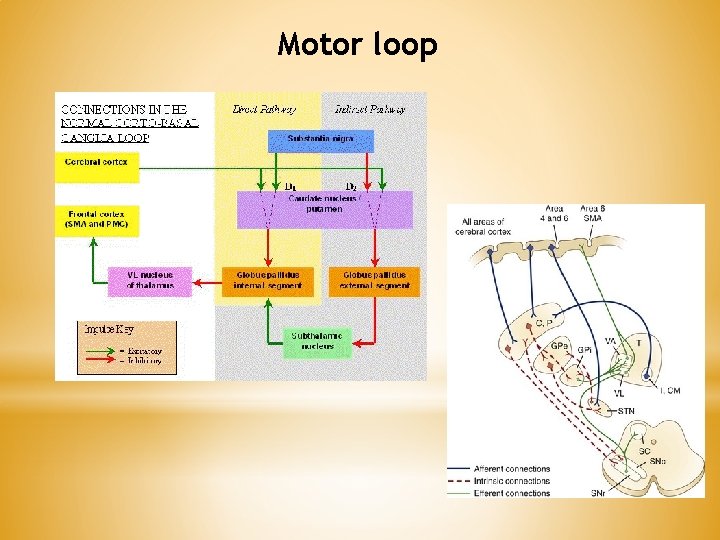

Motor loop
SPINAL REFLEXES q type of afferents § somatic spinal reflexes § visceral spinal reflexes q type of somatosensor § proprioceptive reflexes § exteroceptive reflexes q number of involved spinal segments § monosegmental spinal reflexes § polysegmental spinal reflexes q number of synapses § monosynaptic reflexes § disynaptic reflexes § polysynaptic reflexes
Myotatic reflex Withdrawal reflex

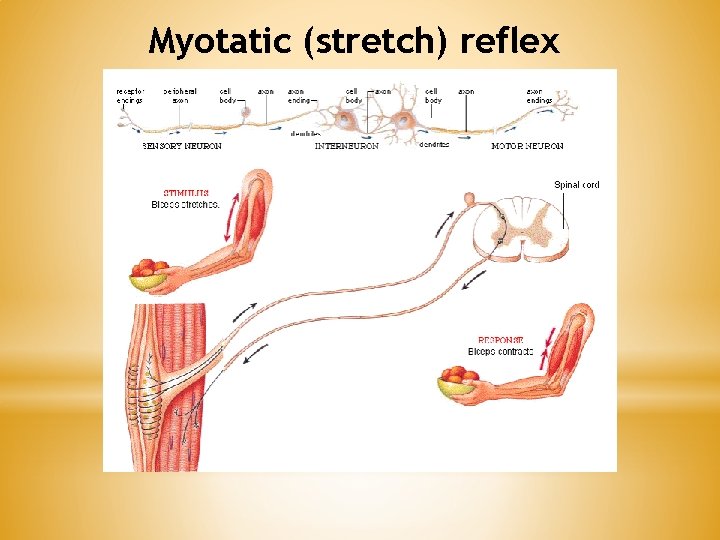

Myotatic (stretch) reflex

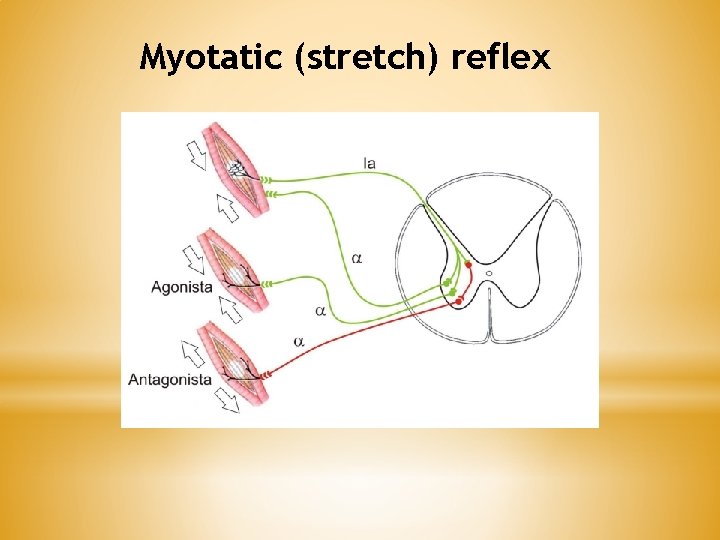

Myotatic (stretch) reflex

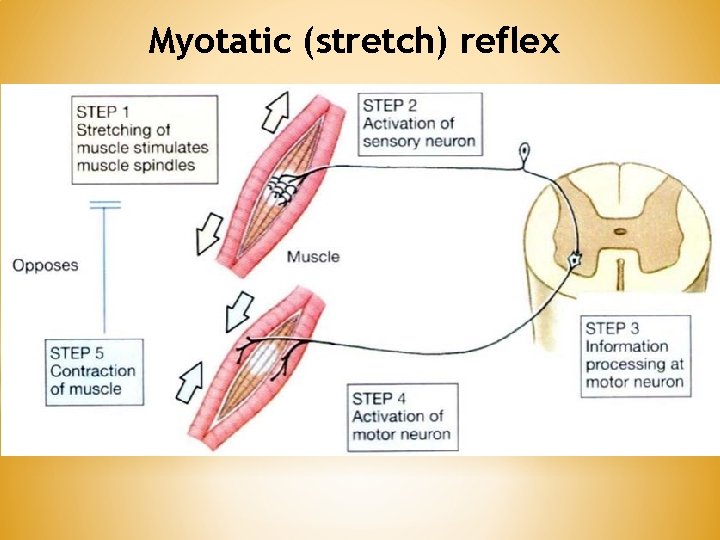

Myotatic (stretch) reflex
Reflex loop of Golgi tendon organ (inverse myotatic reflex) Ib

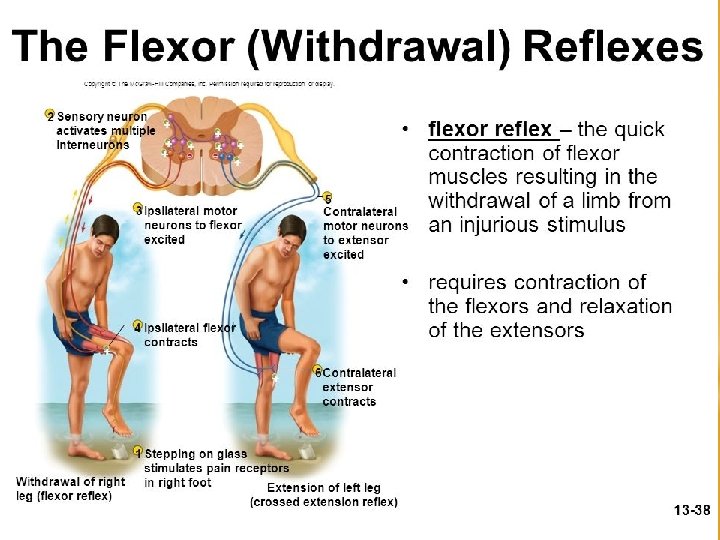

Flexor (withdrawal) reflex
Renshaw cells

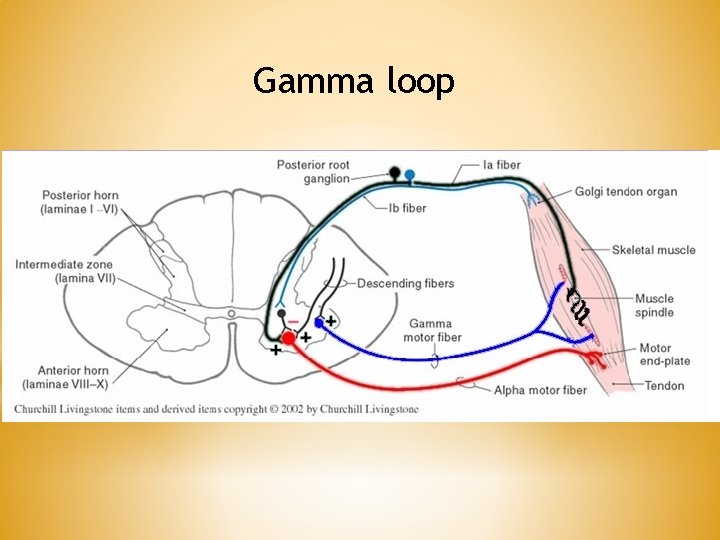

Gamma loop
EYE MOVEMENTS q Fovea centralis – area of most acute vision q Coordination of 12 oculomotor muscles q Eye movements § conjugated – both eyes in same direction § vergent - during motion of object to and from us Ø convergent Ø divergent

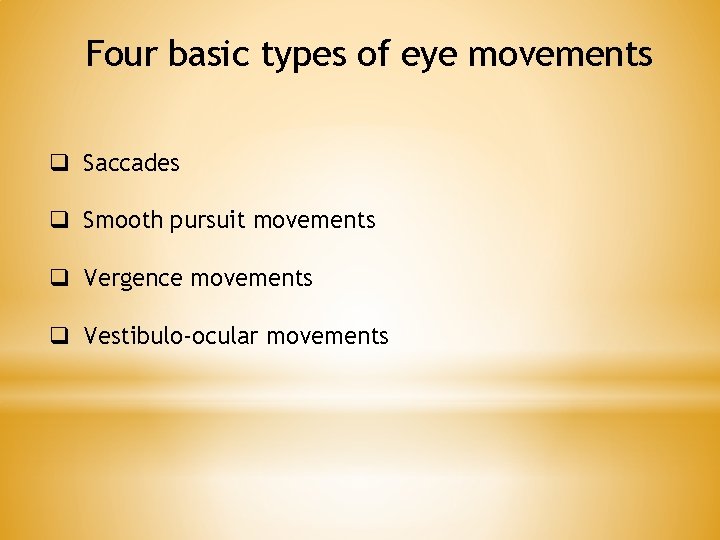

Four basic types of eye movements q Saccades q Smooth pursuit movements q Vergence movements q Vestibulo-ocular movements

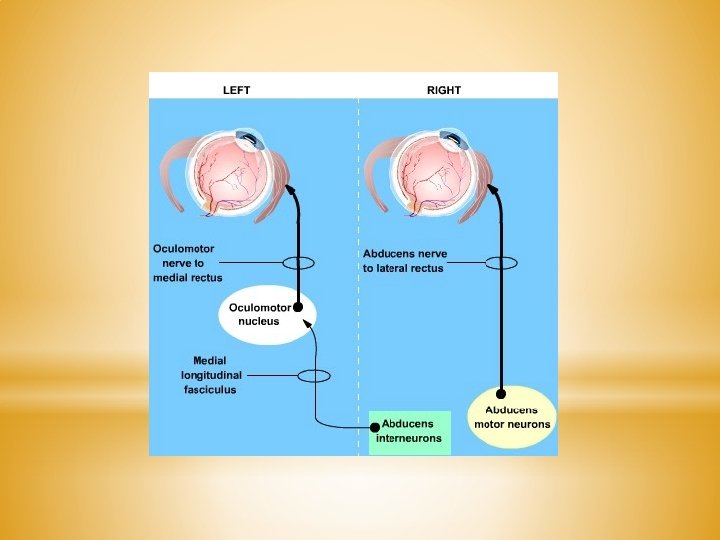

Saccadic eye movements q horizontal gaze center - PPRF q vertical gaze center – RF of the midbrain Ø superior colliculi – information from FEF, retina, auditory, and tactile i.
Smooth pursuit movements q elicited by a moving visual target that the eyes follow voluntarily or under direction q the moving visual target is required to initiate this eye movement
Vestibulo-ocular movements q stabilize the eyes relative to the external world, thus compensating for head movements
Vergence movements
Illustrations were copied from: Neuroscience Online, the Open-Access Neuroscience Electronic Textbook Department of Neurobiology and Anatomy University of Texas Medical School at Houston
