CERBERUS An IPsec Reference Implementation Rob Glenn Rob

CERBERUS An IPsec Reference Implementation Rob Glenn Rob. Glenn@nist. gov

IPsec & IKE • IPsec is defined by the following sets of specifications: – Security Architecture For IP – Authentication Header Protocol (AH) – Encapsulated Security Protocol (ESP) – Internet Key Exchange (IKE) – Algorithms 1/6/2022 NIST/ITL/ANTD 2

Security Architecture For IP • “…to provide interoperable, high quality, cryptographically-based security for IPv 4 and IPv 6”. • Offers access control, connectionless integrity, data origin authentication, protection against replays, confidentiality, and limited traffic flow confidentiality. • Provides host-to-host, router-to-router, and host-to-router security services. • Independent of any particular algorithms. • Secure communications between two systems is defined by Security Associations (SAs). 1/6/2022 NIST/ITL/ANTD 3

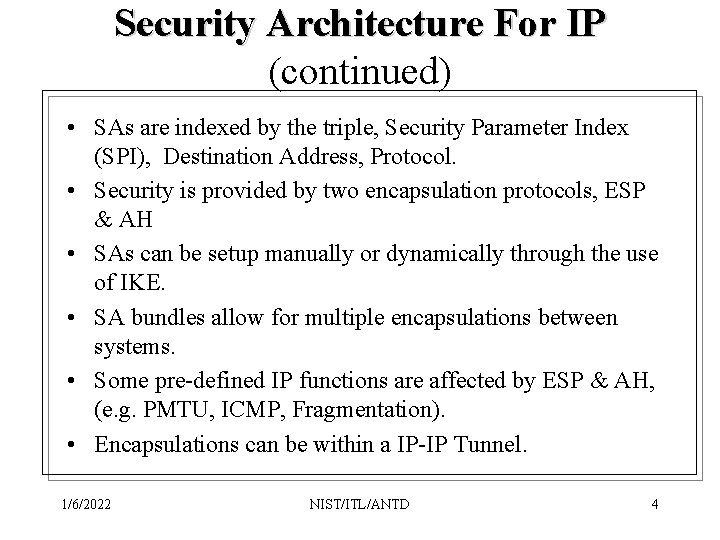

Security Architecture For IP (continued) • SAs are indexed by the triple, Security Parameter Index (SPI), Destination Address, Protocol. • Security is provided by two encapsulation protocols, ESP & AH • SAs can be setup manually or dynamically through the use of IKE. • SA bundles allow for multiple encapsulations between systems. • Some pre-defined IP functions are affected by ESP & AH, (e. g. PMTU, ICMP, Fragmentation). • Encapsulations can be within a IP-IP Tunnel. 1/6/2022 NIST/ITL/ANTD 4

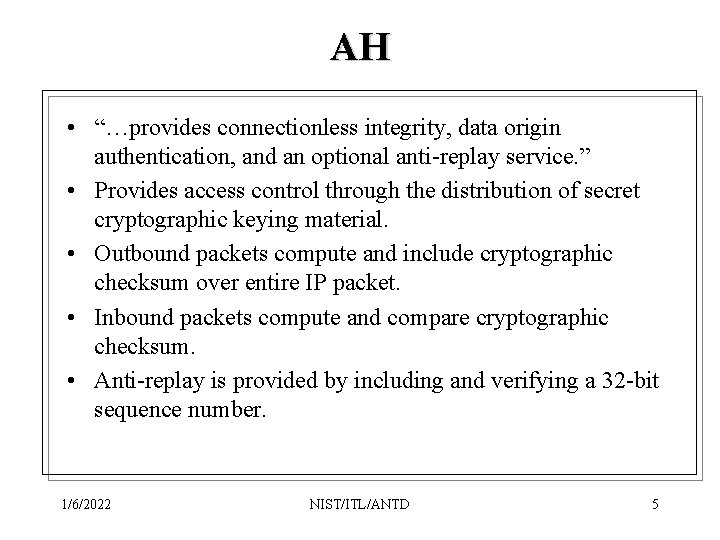

AH • “…provides connectionless integrity, data origin authentication, and an optional anti-replay service. ” • Provides access control through the distribution of secret cryptographic keying material. • Outbound packets compute and include cryptographic checksum over entire IP packet. • Inbound packets compute and compare cryptographic checksum. • Anti-replay is provided by including and verifying a 32 -bit sequence number. 1/6/2022 NIST/ITL/ANTD 5

AH Packet Format IP Header Next Header Payload Len Reserved Security Parameters Index (SPI) Sequence Number Field Authentication Data (variable) Transport Data (TCP, UDP, IP-IP) 1/6/2022 NIST/ITL/ANTD 6

ESP • MAY provide confidentiality, limited traffic flow confidentiality, connectionless integrity, data origin authentication, and an anti-replay service. • “One or more of these services must be applied whenever ESP is invoked. ” • Provides access control through the distribution of secret cryptographic keying material. • Confidentiality is provided by encrypting outbound packets and decrypting inbound packets. 1/6/2022 NIST/ITL/ANTD 7

ESP (continued) • Integrity and authentication is provided in a very similar manner to AH (excludes the IP header when computing the cryptographic checksum). • Traffic flow confidentiality is provided by concealing the IP addresses, and including extra padding to conceal the message length. • Anti-replay is provided by including and verifying a 32 -bit sequence number. 1/6/2022 NIST/ITL/ANTD 8

ESP Packet Format IP Header Security Parameters Index (SPI) Sequence Number Field Payload Data (variable) (Initialization Vector, Transport Data) Padding (0 -255 bytes) Pad Len Auth. Coverage Confid. Coverage Next Header Authentication Data (variable) 1/6/2022 NIST/ITL/ANTD 9

IKE • A scalable, automated, SA management protocol to facilitate the use of the anti-replay features of AH and ESP, and to accommodate the on-demand creation of SAs. • Combines the ISAKMP framework (which is independent of key exchanges) with a particular key exchange algorithm to provide authentication, key exchange, and SA management. • SAs established as part of a 2 Phase exchange of messages – In Phase I the two IKE peers use a Diffie-Helman exchange to establish a secure authenticated channel with which to communicate. 1/6/2022 NIST/ITL/ANTD 10

IKE (continued) – In Phase II the secure channel from Phase I is used to negotiate and exchange SA parameters. • Allows for perfect forward secrecy by performing Phase I with each Phase II. • Uses either digital signatures, public keys, or pre-shared secret keys for authentication. 1/6/2022 NIST/ITL/ANTD 11

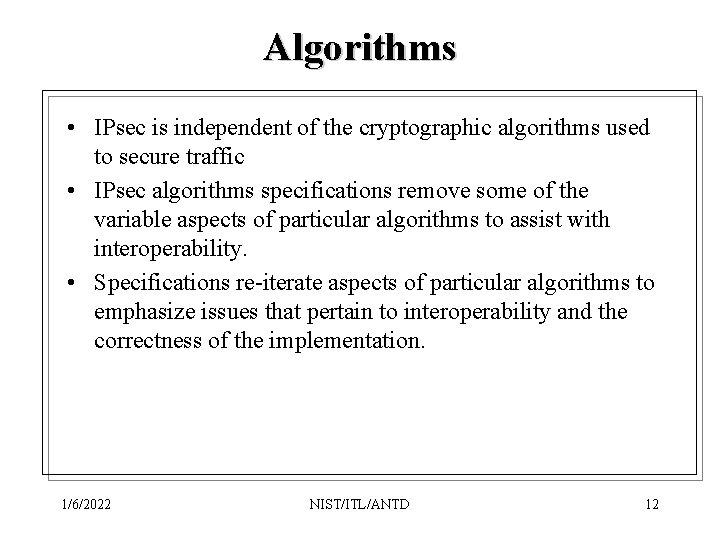

Algorithms • IPsec is independent of the cryptographic algorithms used to secure traffic • IPsec algorithms specifications remove some of the variable aspects of particular algorithms to assist with interoperability. • Specifications re-iterate aspects of particular algorithms to emphasize issues that pertain to interoperability and the correctness of the implementation. 1/6/2022 NIST/ITL/ANTD 12

Cerberus • Cerberus has been developed to assist developers, researchers, and potential users in better understanding this new technology. • Interoperability testing tool. • Connecting home and corporate offices. 1/6/2022 NIST/ITL/ANTD 13

Cerberus Software Architecture Manual SADB Interface IKE Applications Linux Kernel Linux Netlink Sockets MSS/ PMTU SADB Management IPsec Input TCP/IP Data Flow SADB IPsec Output UDP IPsec Calls IPv 4 IPv 6 Transforms and Algorithms 1/6/2022 NIST/ITL/ANTD 14

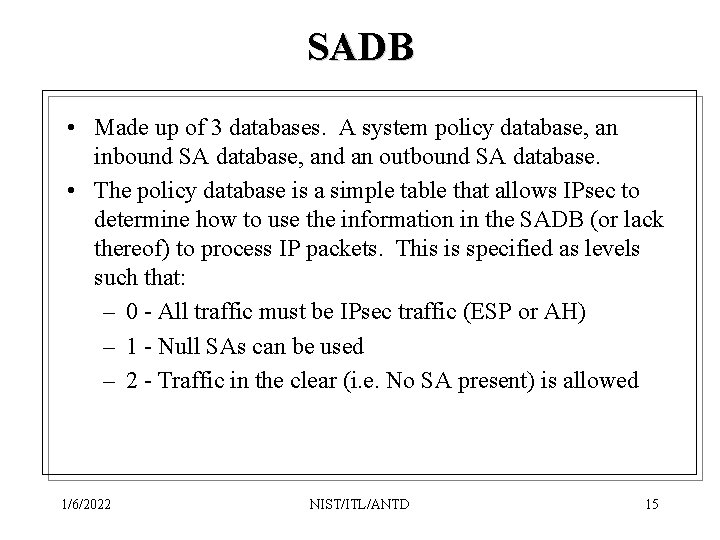

SADB • Made up of 3 databases. A system policy database, an inbound SA database, and an outbound SA database. • The policy database is a simple table that allows IPsec to determine how to use the information in the SADB (or lack thereof) to process IP packets. This is specified as levels such that: – 0 - All traffic must be IPsec traffic (ESP or AH) – 1 - Null SAs can be used – 2 - Traffic in the clear (i. e. No SA present) is allowed 1/6/2022 NIST/ITL/ANTD 15

SADB (continued) • SAs are stored in two sorted chained hash tables as a single piece of data with two sets of pointers. • SADB is organized for both unidirectional SAs and bidirectional SAs • The fields that make up an SA entry are as follows: – Destination Address, Prefix Length, Local SPI, Peer Address, Peer SPI, Linked Protocol, Sequence Number, Replay Window Bitmap, Last Sequence Number Received, Flags: <M, C, T>, Protocol: (ESP, AH, NULL_SA) 1/6/2022 NIST/ITL/ANTD 16

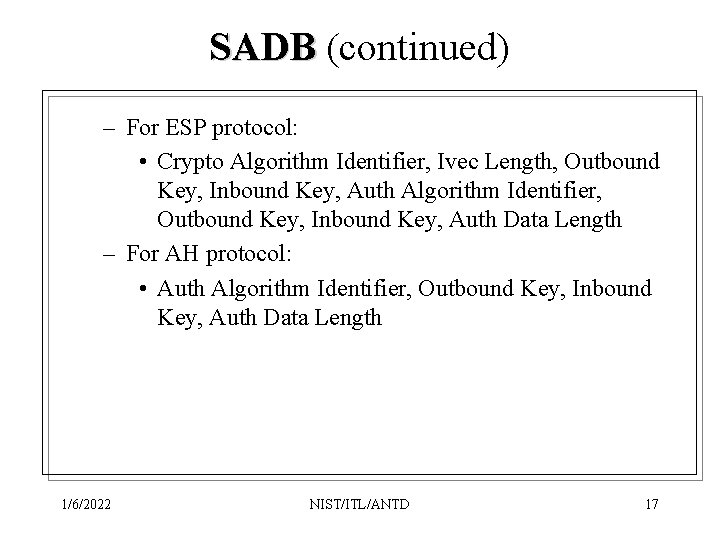

SADB (continued) – For ESP protocol: • Crypto Algorithm Identifier, Ivec Length, Outbound Key, Inbound Key, Auth Algorithm Identifier, Outbound Key, Inbound Key, Auth Data Length – For AH protocol: • Auth Algorithm Identifier, Outbound Key, Inbound Key, Auth Data Length 1/6/2022 NIST/ITL/ANTD 17

SADB Management Routines • SADB management routines receive requests through a Linux Netlink socket in the form of an SADB message: – SADBM_ADD – SADBM_DELETE – SADBM_GET – SADBM_FLUSH 1/6/2022 NIST/ITL/ANTD 18

User Interface • A command line interface (sadb) originally based on the BSD route command. • Allows systems administrators to manually manage SAs. • Reads SA arguments from the command line, performs simple syntax checking, and sends a completed SADBM message via a Netlink socket to the Linux kernel. • For SADBM_GET messages, sadb waits for incoming SADBM messages and processes them until an end-ofmessage is received. 1/6/2022 NIST/ITL/ANTD 19

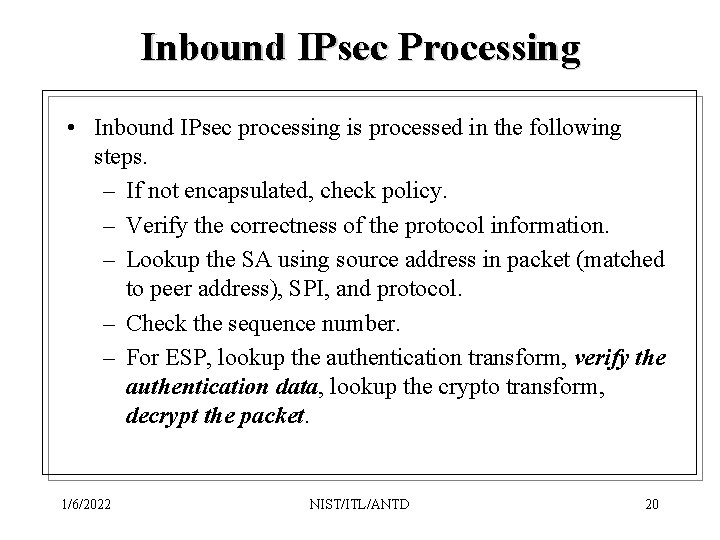

Inbound IPsec Processing • Inbound IPsec processing is processed in the following steps. – If not encapsulated, check policy. – Verify the correctness of the protocol information. – Lookup the SA using source address in packet (matched to peer address), SPI, and protocol. – Check the sequence number. – For ESP, lookup the authentication transform, verify the authentication data, lookup the crypto transform, decrypt the packet. 1/6/2022 NIST/ITL/ANTD 20

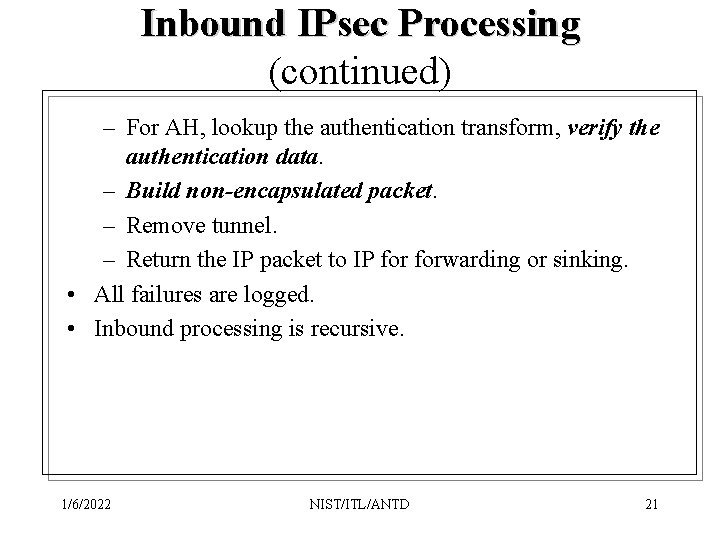

Inbound IPsec Processing (continued) – For AH, lookup the authentication transform, verify the authentication data. – Build non-encapsulated packet. – Remove tunnel. – Return the IP packet to IP forwarding or sinking. • All failures are logged. • Inbound processing is recursive. 1/6/2022 NIST/ITL/ANTD 21

Outbound IPsec Processing • Outbound IPsec processing is processed in the following steps. All IP packets go through IPsec processing. – Lookup SA based on the destination address. – If no SA is found, check policy and either return the packet to IP for further processing or drop the packet and log a failure. – Check the sequence number for wrapping. – Prepare for tunnel if specified in SA. – For ESP, lookup the crypto transform, encrypt the packet, lookup the authentication transform, compute the authentication data. 1/6/2022 NIST/ITL/ANTD 22

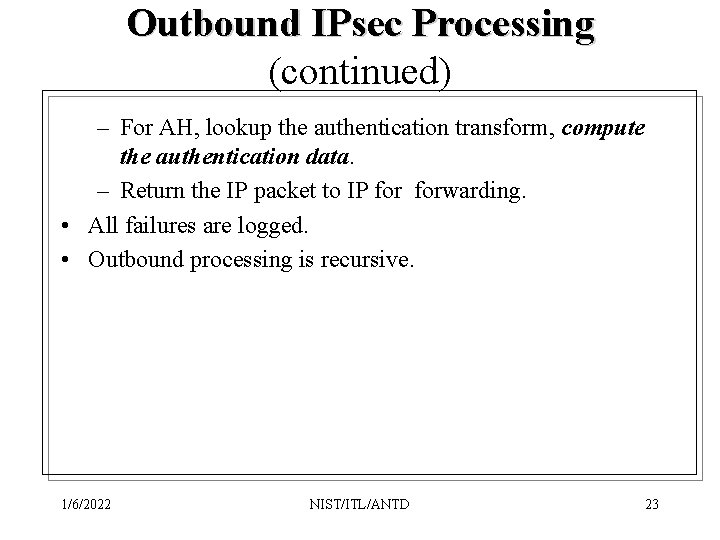

Outbound IPsec Processing (continued) – For AH, lookup the authentication transform, compute the authentication data. – Return the IP packet to IP forwarding. • All failures are logged. • Outbound processing is recursive. 1/6/2022 NIST/ITL/ANTD 23

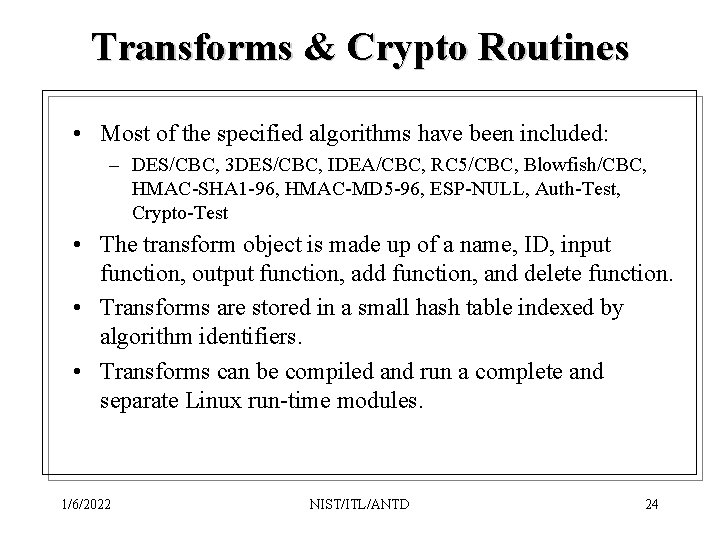

Transforms & Crypto Routines • Most of the specified algorithms have been included: – DES/CBC, 3 DES/CBC, IDEA/CBC, RC 5/CBC, Blowfish/CBC, HMAC-SHA 1 -96, HMAC-MD 5 -96, ESP-NULL, Auth-Test, Crypto-Test • The transform object is made up of a name, ID, input function, output function, add function, and delete function. • Transforms are stored in a small hash table indexed by algorithm identifiers. • Transforms can be compiled and run a complete and separate Linux run-time modules. 1/6/2022 NIST/ITL/ANTD 24

TCP & IP Interface • IP<->IPsec hooks • ip_build_xmit heavily modified. • TCP was modified to allow for the extra bytes added to the IP packet that has to be accounted for in the PMTU and MSS calculations. 1/6/2022 NIST/ITL/ANTD 25

Future Work • • • Better way to handle TCP MSS calculations. Tune performance by tying SAs to routing table. Better way to handle the ip_build_xmit problem. Additional policy support. IKE reference implementation Session/port specific SAs. Compression (IPPCP) Port to IPv 6 PKIX client support for IKE authentication Mobile IPsec 1/6/2022 NIST/ITL/ANTD 26

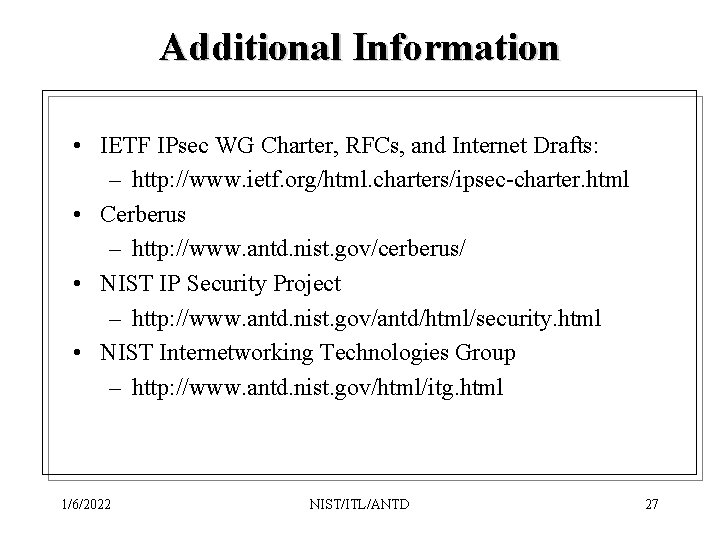

Additional Information • IETF IPsec WG Charter, RFCs, and Internet Drafts: – http: //www. ietf. org/html. charters/ipsec-charter. html • Cerberus – http: //www. antd. nist. gov/cerberus/ • NIST IP Security Project – http: //www. antd. nist. gov/antd/html/security. html • NIST Internetworking Technologies Group – http: //www. antd. nist. gov/html/itg. html 1/6/2022 NIST/ITL/ANTD 27
