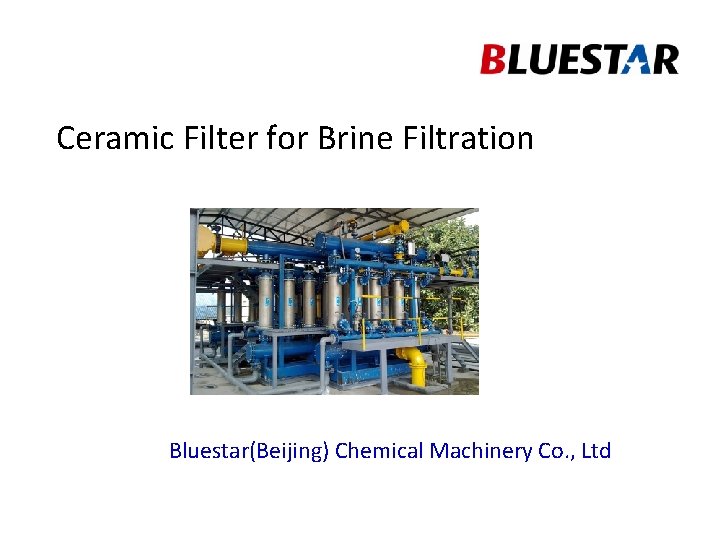

Ceramic Filter for Brine Filtration BluestarBeijing Chemical Machinery

Ceramic Filter for Brine Filtration Bluestar(Beijing) Chemical Machinery Co. , Ltd

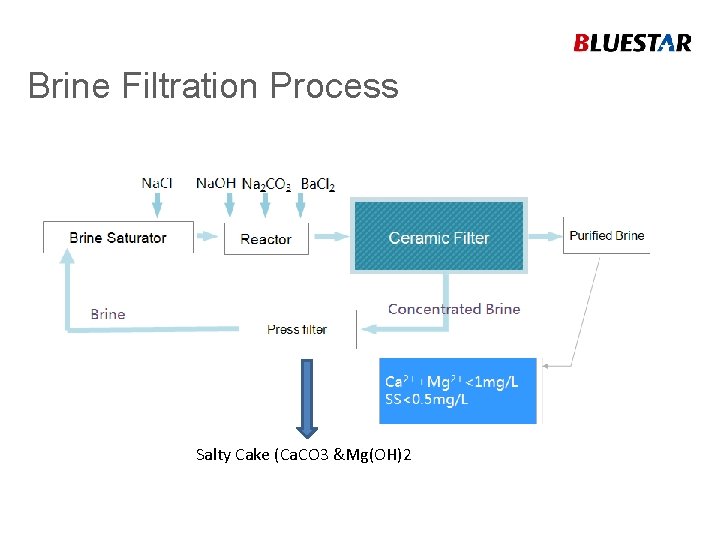

Brine Filtration Process Salty Cake (Ca. CO 3 &Mg(OH)2

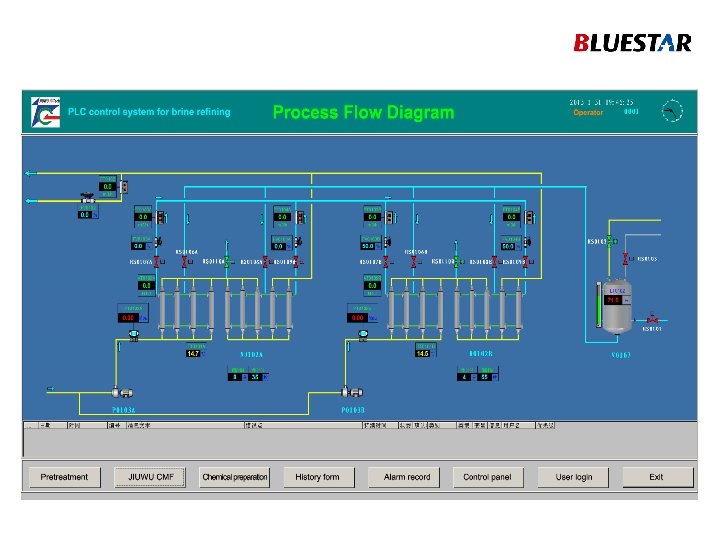

Brine Filtration Process

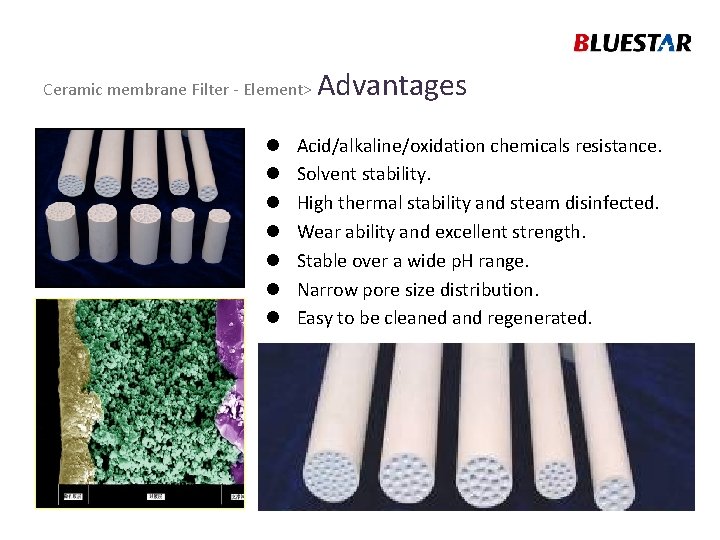

Ceramic membrane Filter - Element> l l l l Advantages Acid/alkaline/oxidation chemicals resistance. Solvent stability. High thermal stability and steam disinfected. Wear ability and excellent strength. Stable over a wide p. H range. Narrow pore size distribution. Easy to be cleaned and regenerated.

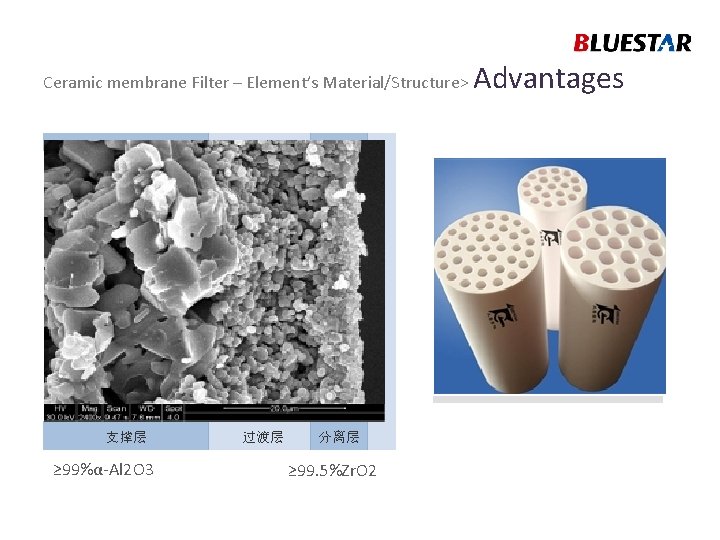

Ceramic membrane Filter – Element’s Material/Structure> 支撑层 ≥ 99%α-Al 2 O 3 过渡层 分离层 ≥ 99. 5%Zr. O 2 Advantages

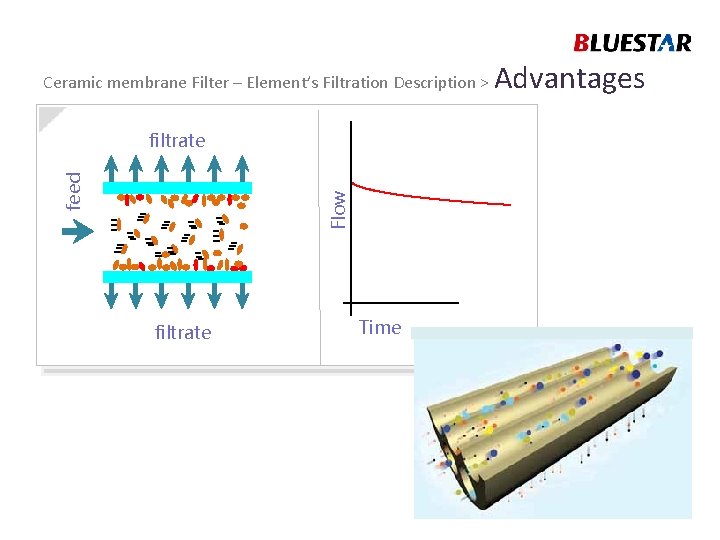

Ceramic membrane Filter – Element’s Filtration Description > Flow feed filtrate Time Advantages

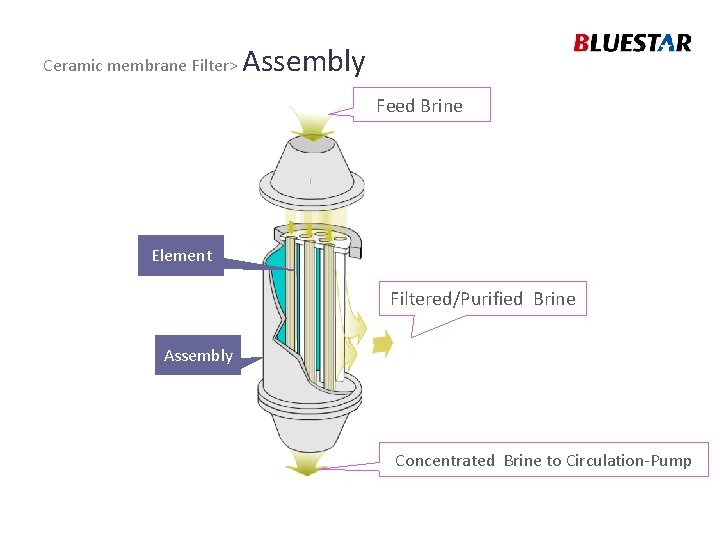

Ceramic membrane Filter> Assembly Feed Brine Element Filtered/Purified Brine Assembly Concentrated Brine to Circulation-Pump

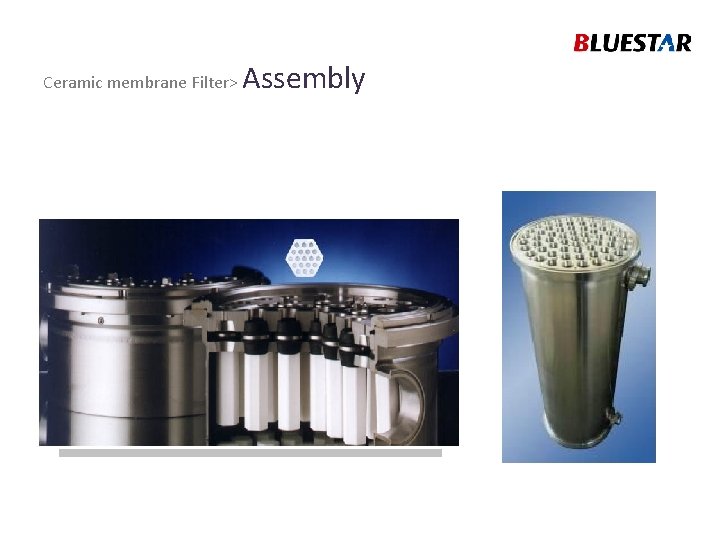

Ceramic membrane Filter> Assembly

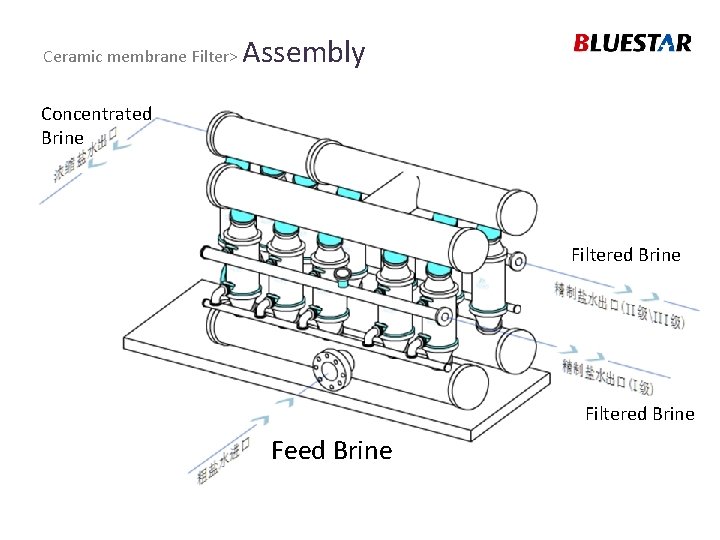

Ceramic membrane Filter> Assembly Concentrated Brine Filtered Brine Feed Brine

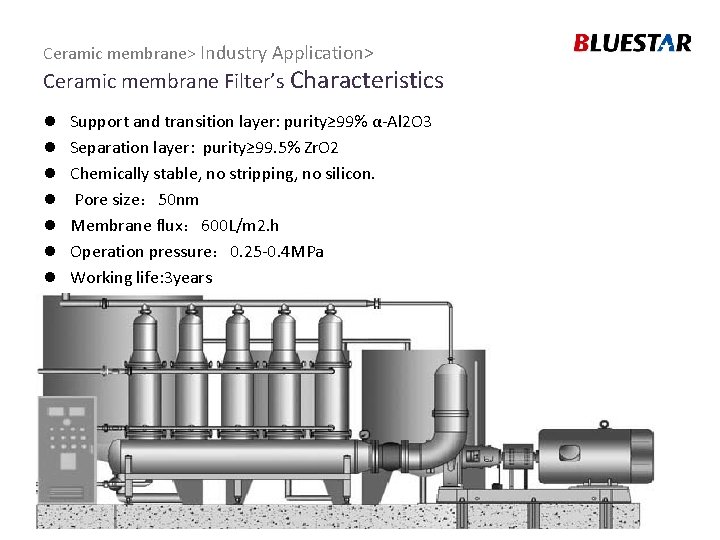

Ceramic membrane> Industry Application> Ceramic membrane Filter’s Characteristics l l l l Support and transition layer: purity≥ 99% α-Al 2 O 3 Separation layer: purity≥ 99. 5% Zr. O 2 Chemically stable, no stripping, no silicon. Pore size： 50 nm Membrane flux： 600 L/m 2. h Operation pressure： 0. 25 -0. 4 MPa Working life: 3 years

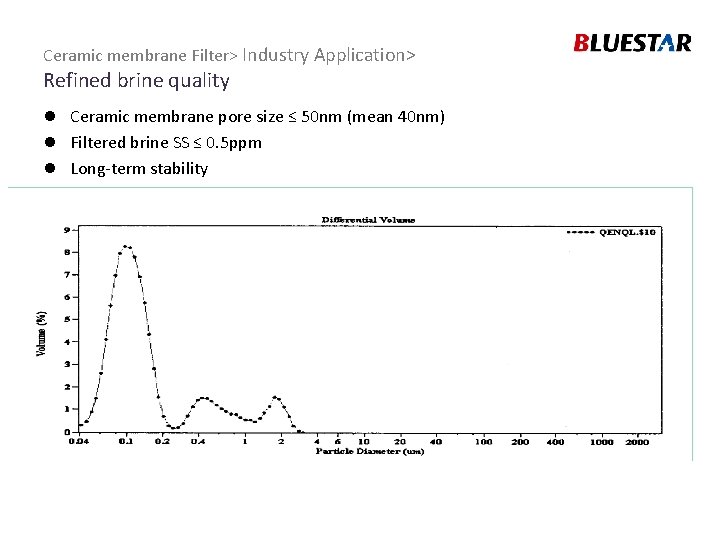

Ceramic membrane Filter> Industry Application> Refined brine quality l l Ceramic membrane pore size ≤ 50 nm (mean 40 nm) Filtered brine SS ≤ 0. 5 ppm Long-term stability Without fluctuation

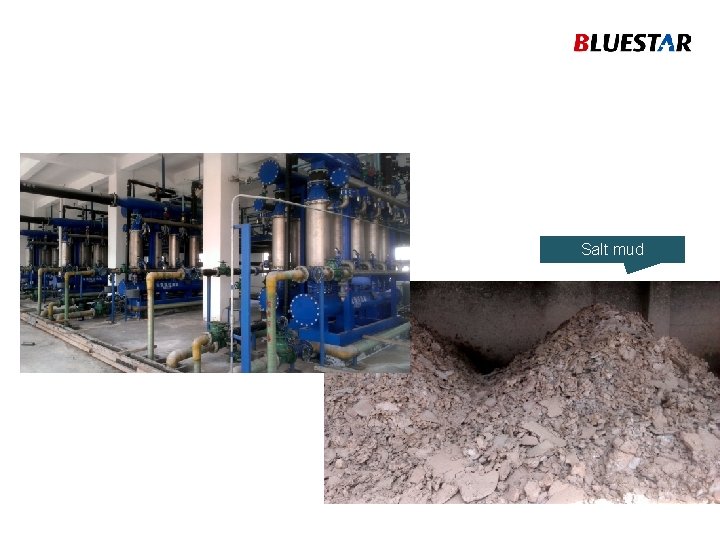

Salt mud

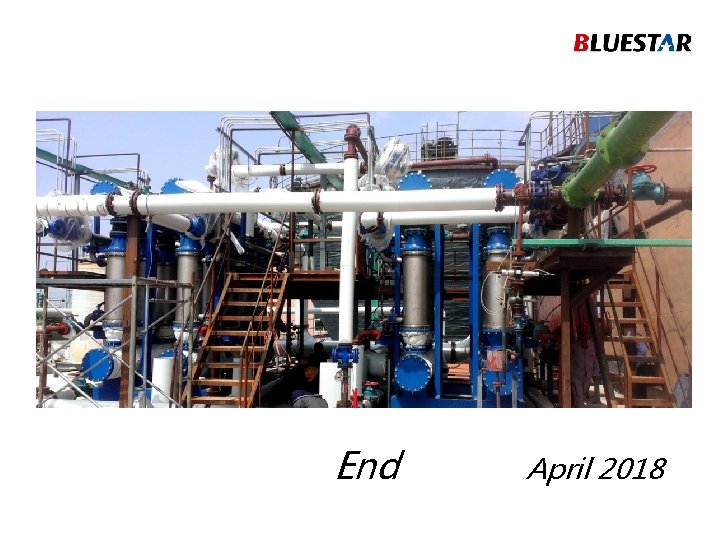

End April 2018
