Centrifugal Separator for Pharmaceutical and Biotechnology Applications Tomoe

Centrifugal Separator for Pharmaceutical and Biotechnology Applications Tomoe Engineering Co. , Ltd.

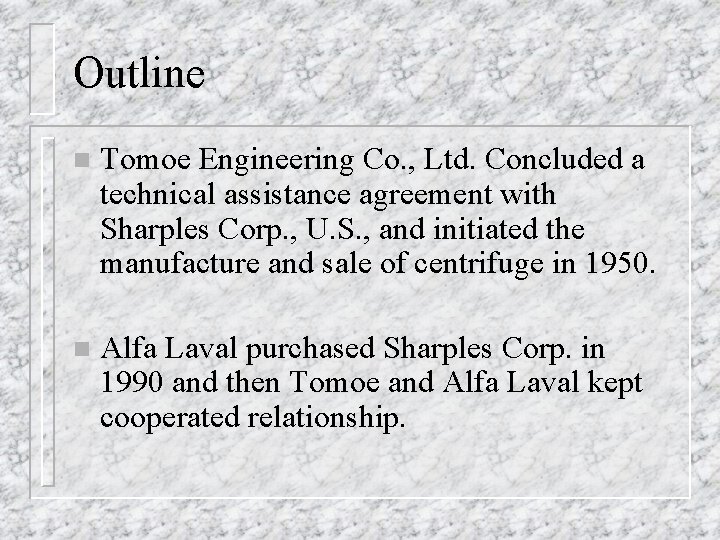

Outline n Tomoe Engineering Co. , Ltd. Concluded a technical assistance agreement with Sharples Corp. , U. S. , and initiated the manufacture and sale of centrifuge in 1950. n Alfa Laval purchased Sharples Corp. in 1990 and then Tomoe and Alfa Laval kept cooperated relationship.

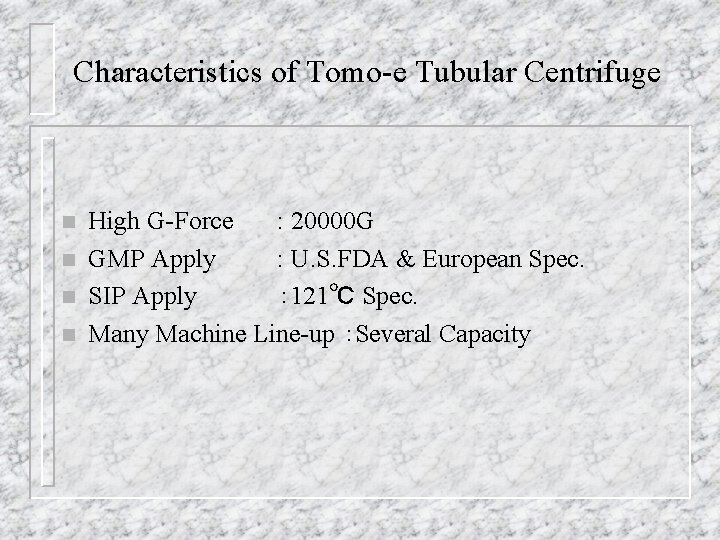

Characteristics of Tomo-e Tubular Centrifuge n n High G-Force : 20000 G GMP Apply : U. S. FDA & European Spec. SIP Apply ： 121℃ Spec. Many Machine Line-up ：Several Capacity

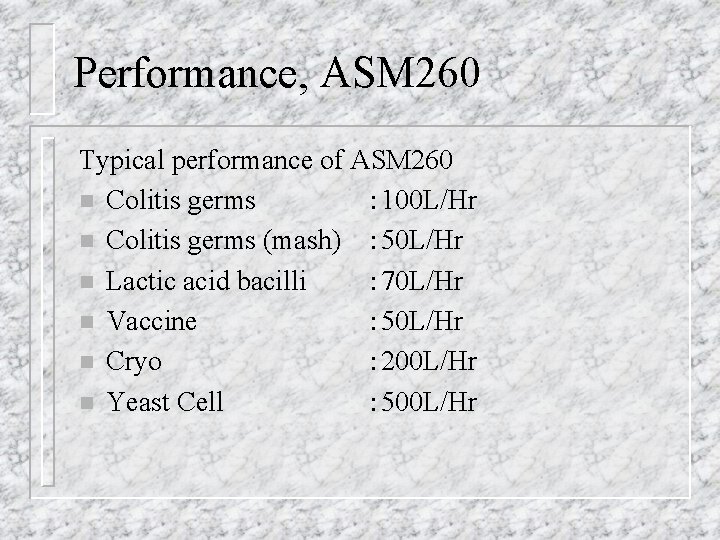

Performance, ASM 260 Typical performance of ASM 260 n Colitis germs ： 100 L/Hr n Colitis germs (mash) ： 50 L/Hr n Lactic acid bacilli ： 70 L/Hr n Vaccine ： 50 L/Hr n Cryo ： 200 L/Hr n Yeast Cell ： 500 L/Hr

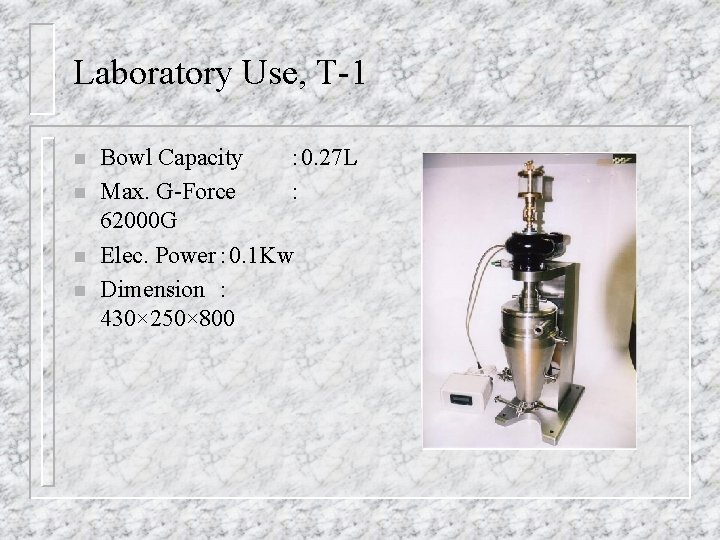

Laboratory Use, T-1 n n Bowl Capacity ： 0. 27 L Max. G-Force ： 62000 G Elec. Power： 0. 1 Kw Dimension ： 430× 250× 800

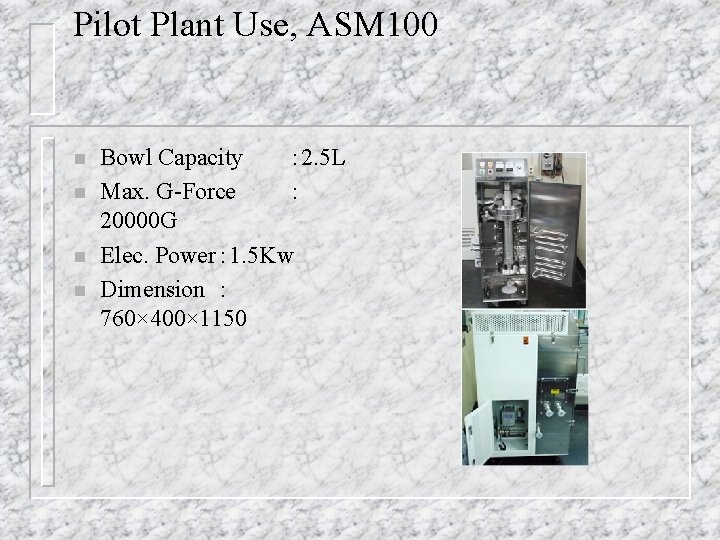

Pilot Plant Use, ASM 100 n n Bowl Capacity ： 2. 5 L Max. G-Force ： 20000 G Elec. Power： 1. 5 Kw Dimension ： 760× 400× 1150

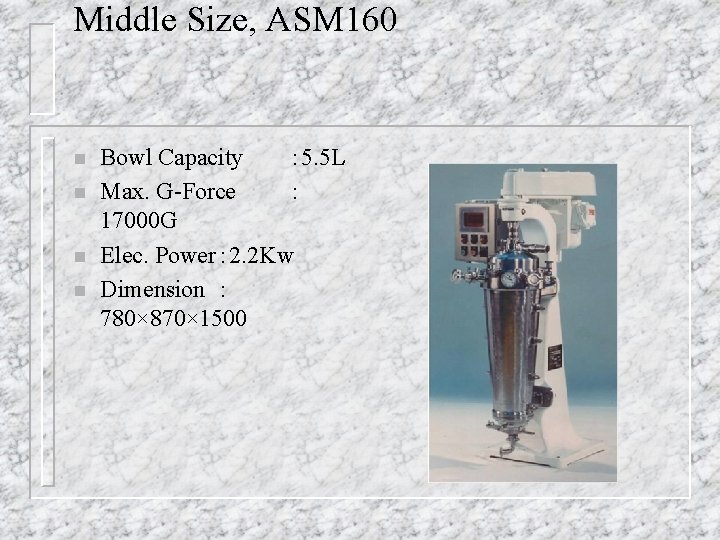

Middle Size, ASM 160 n n Bowl Capacity ： 5. 5 L Max. G-Force ： 17000 G Elec. Power： 2. 2 Kw Dimension ： 780× 870× 1500

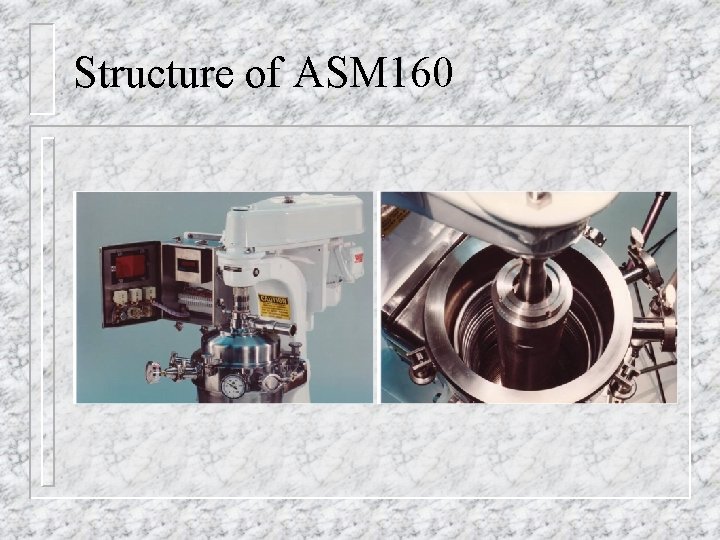

Structure of ASM 160

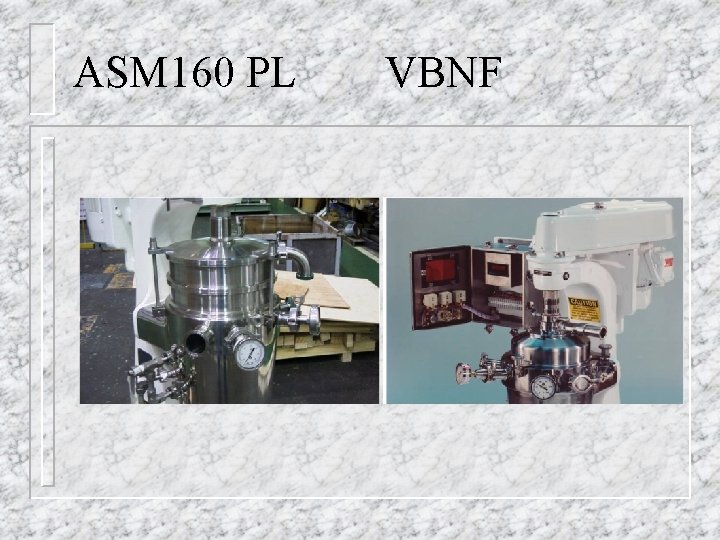

ASM 160 PL VBNF

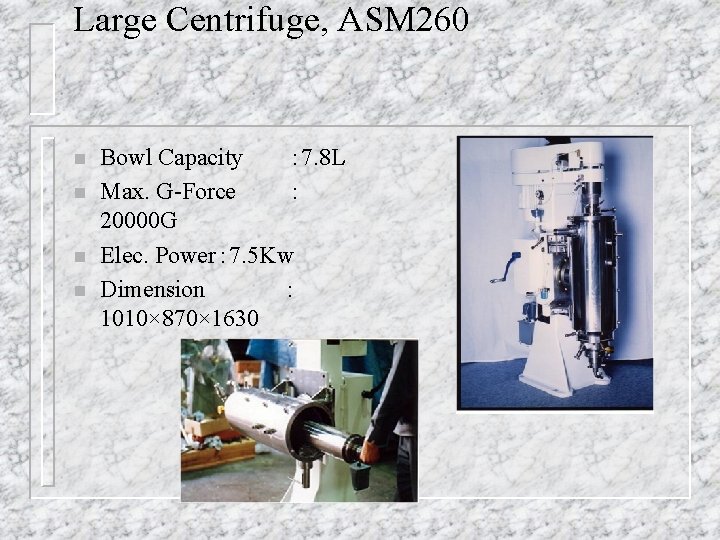

Large Centrifuge, ASM 260 n n Bowl Capacity ： 7. 8 L Max. G-Force ： 20000 G Elec. Power： 7. 5 Kw Dimension ： 1010× 870× 1630

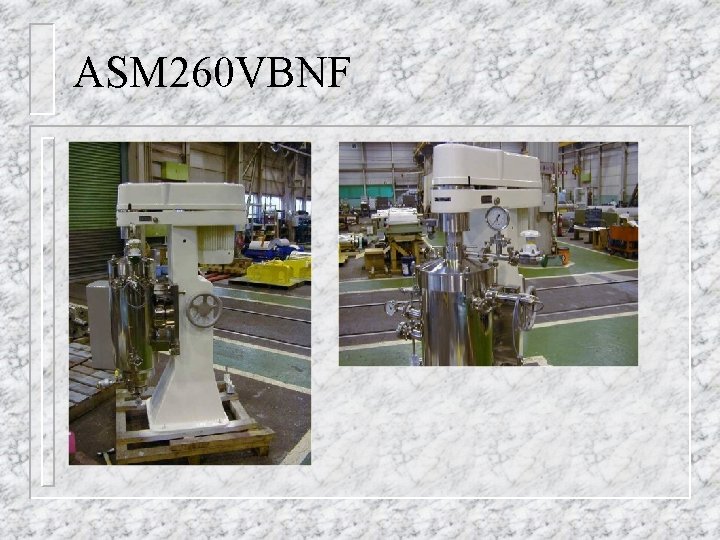

ASM 260 VBNF

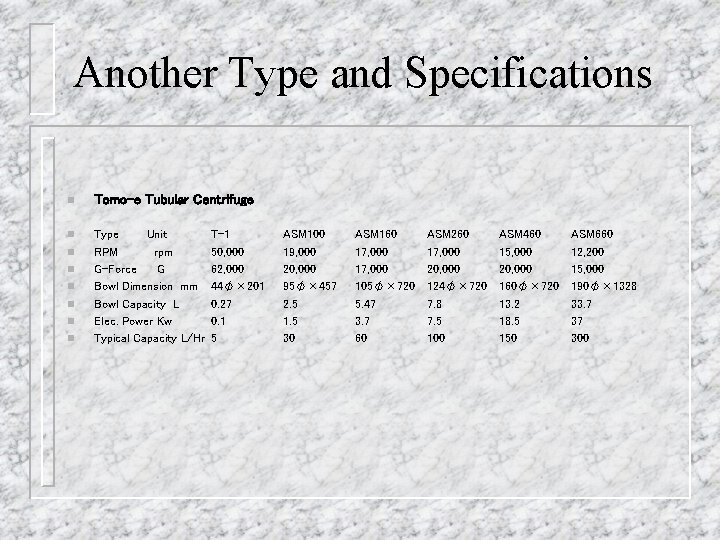

Another Type and Specifications n Tomo-e Tubular Centrifuge n Type Unit RPM rpm G-Force G Bowl Dimension mm Bowl Capacity L Elec. Power Kw Typical Capacity L/Hr n n n T-1 50, 000 62, 000 44φ× 201 0. 27 0. 1 5 ASM 100 19, 000 20, 000 95φ× 457 2. 5 1. 5 30 ASM 160 17, 000 105φ× 720 5. 47 3. 7 60 ASM 260 17, 000 20, 000 124φ× 720 7. 8 7. 5 100 ASM 460 15, 000 20, 000 160φ× 720 13. 2 18. 5 150 ASM 660 12, 200 15, 000 190φ× 1328 33. 7 37 300

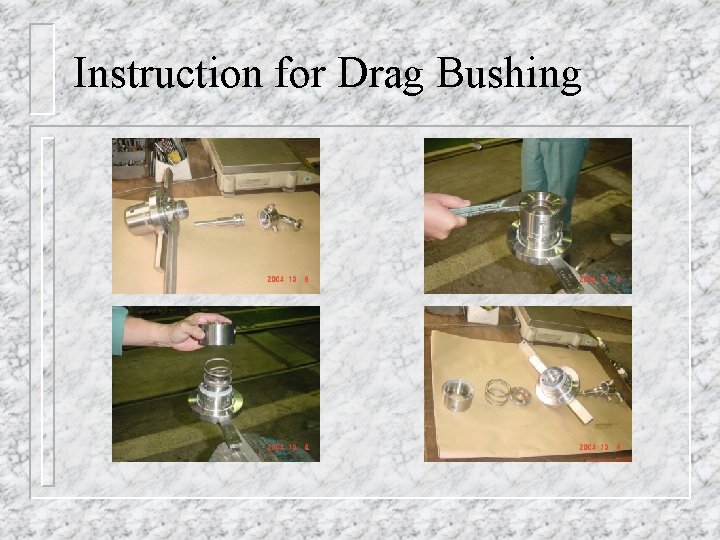

Instruction for Drag Bushing

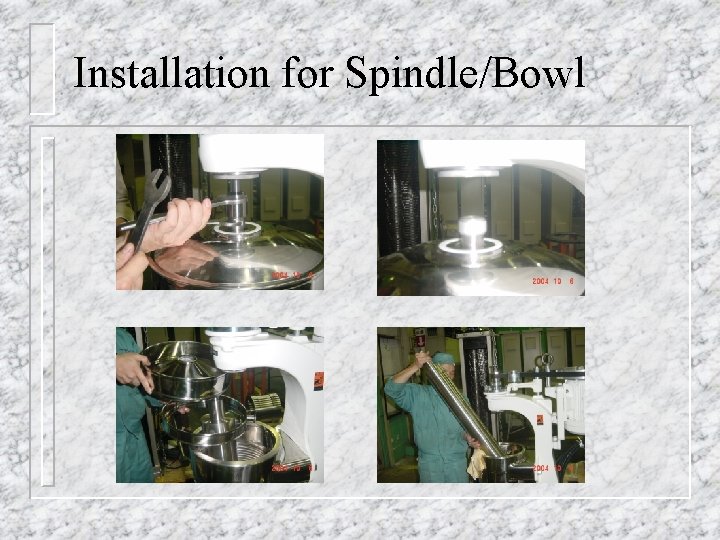

Installation for Spindle/Bowl

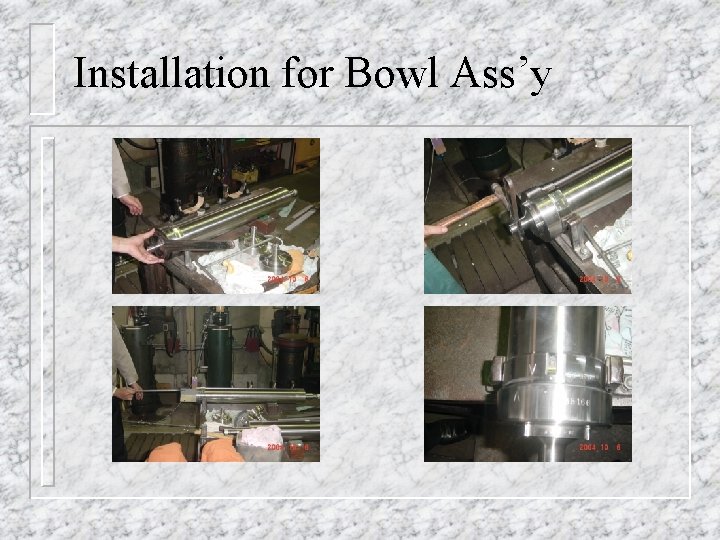

Installation for Bowl Ass’y

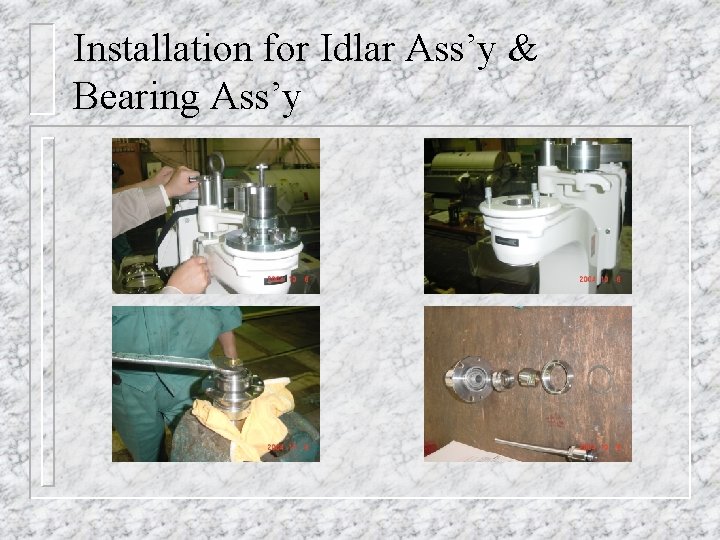

Installation for Idlar Ass’y & Bearing Ass’y

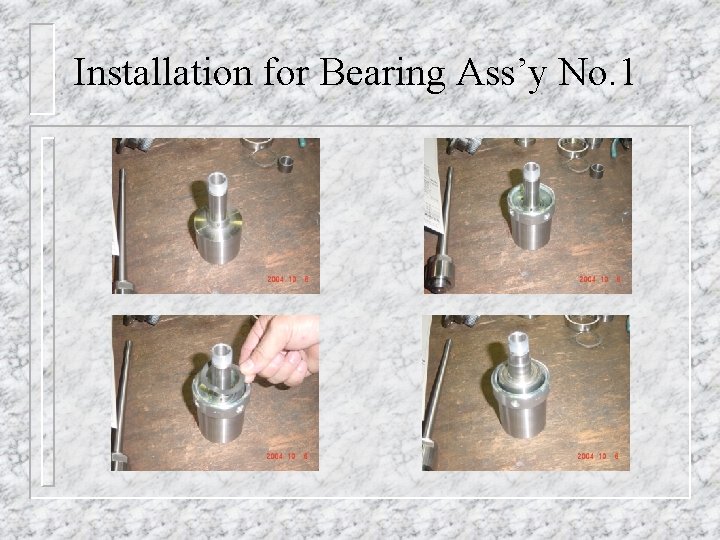

Installation for Bearing Ass’y No. 1

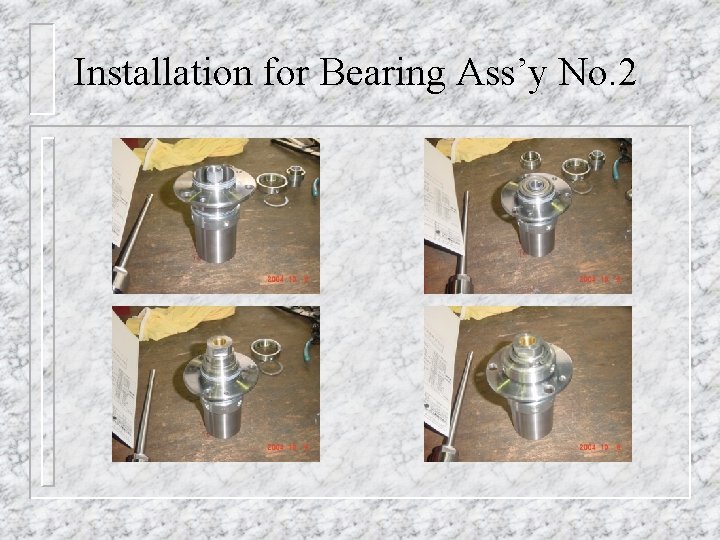

Installation for Bearing Ass’y No. 2
