Centrifugal Pump Vibrations The Causes by Steven J

Centrifugal Pump Vibrations: The Causes by Steven J. Hrivnak, P. E. Associate Mechanical Engineer Tennessee Eastman Chemical Company EASTMAN

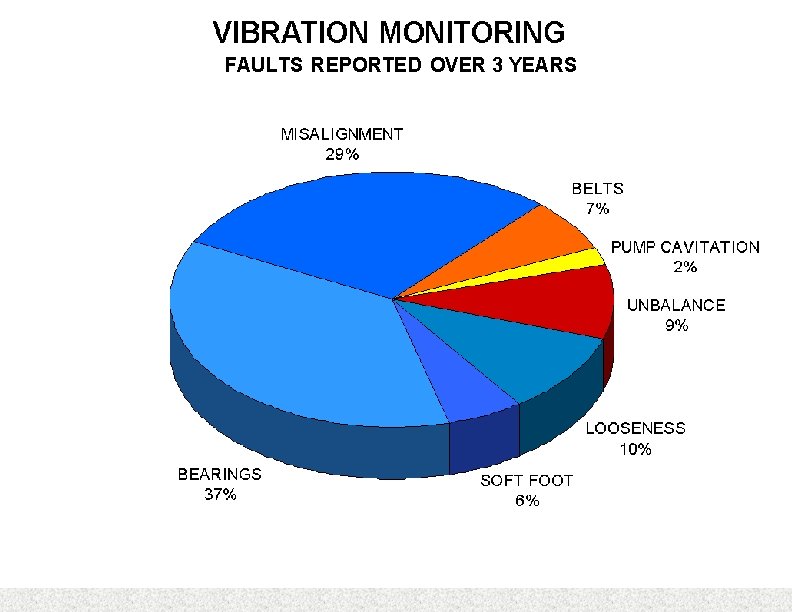

FAULTS REPORTED OVER 3 YEARS

Vibration: a measure of reliability! Poorly installed and operated pumps average. 178 in/sec overall vibration and have 6 months life. Properly installed pumps average. 071 in/sec overall vibration and have 60 months life. EASTMAN

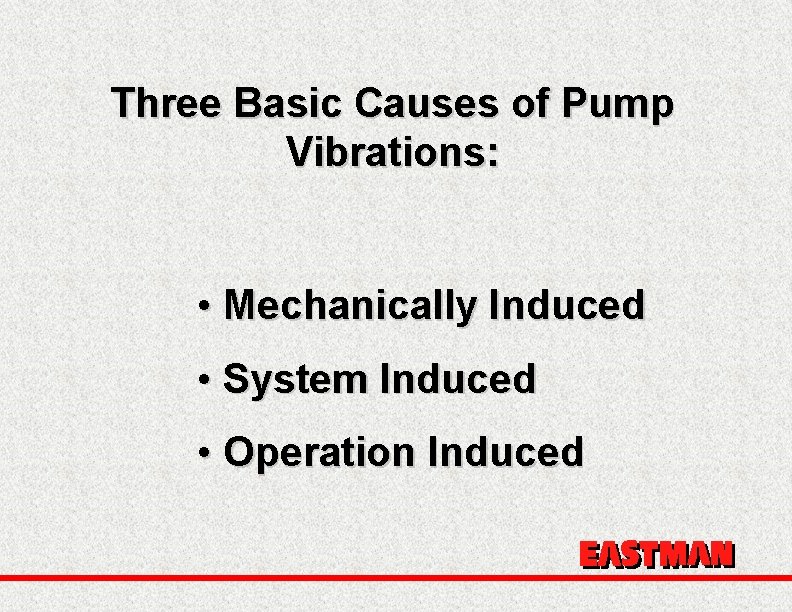

Three Basic Causes of Pump Vibrations: • Mechanically Induced • System Induced • Operation Induced

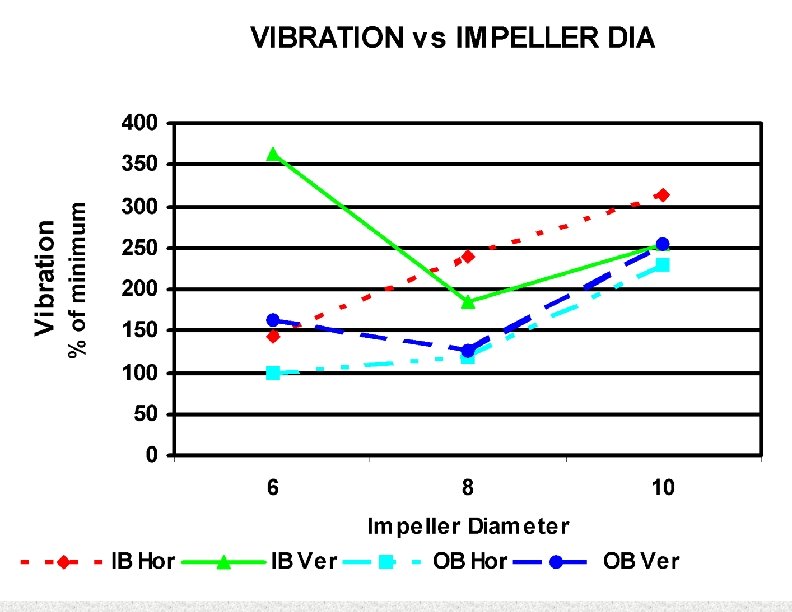

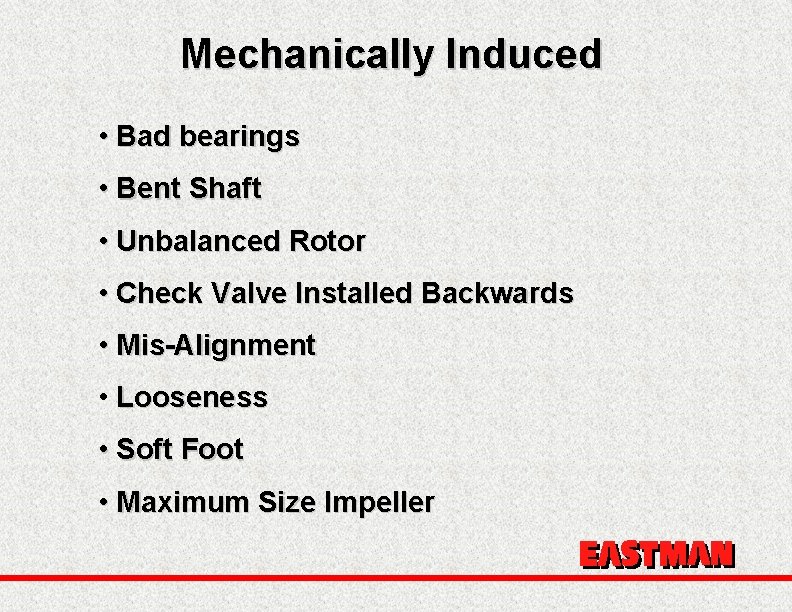

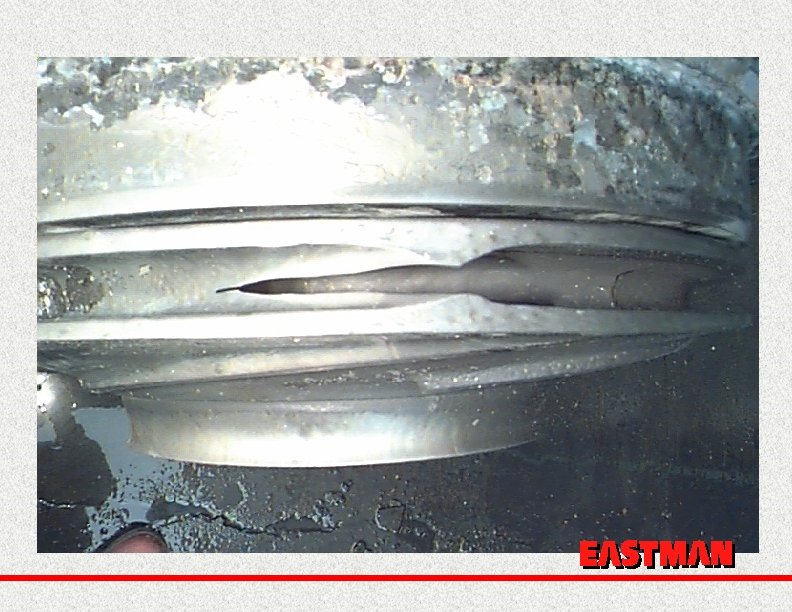

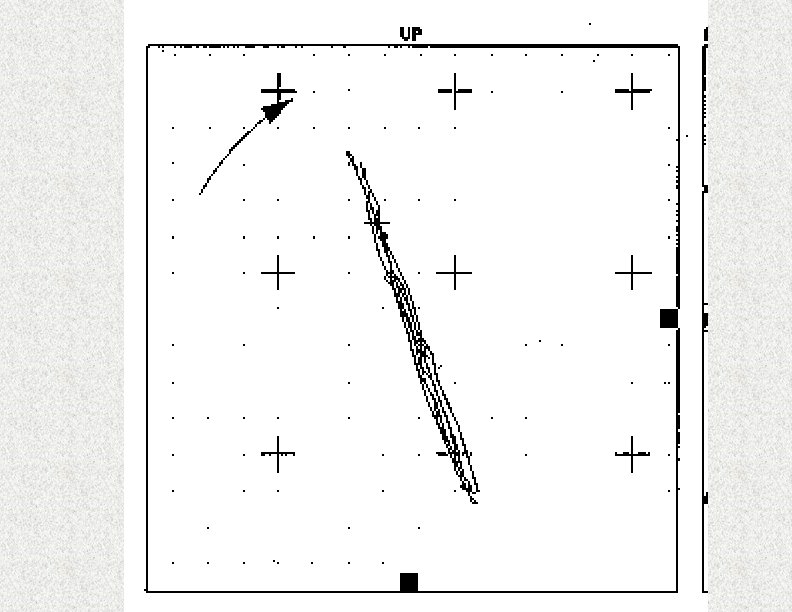

Mechanically Induced • Bad bearings • Bent Shaft • Unbalanced Rotor • Check Valve Installed Backwards • Mis-Alignment • Looseness • Soft Foot • Maximum Size Impeller

System Induced • Partially/Plugged Strainer • Clogged Impeller or Suction Line • Installation

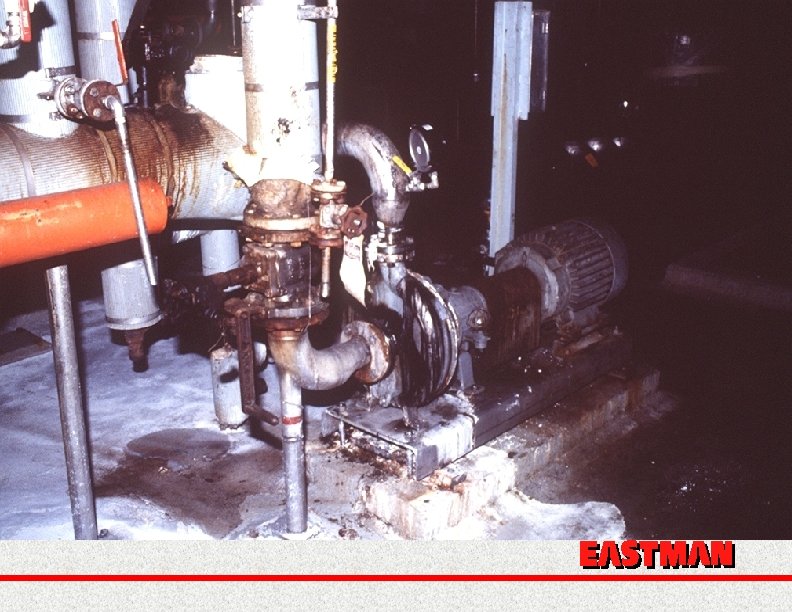

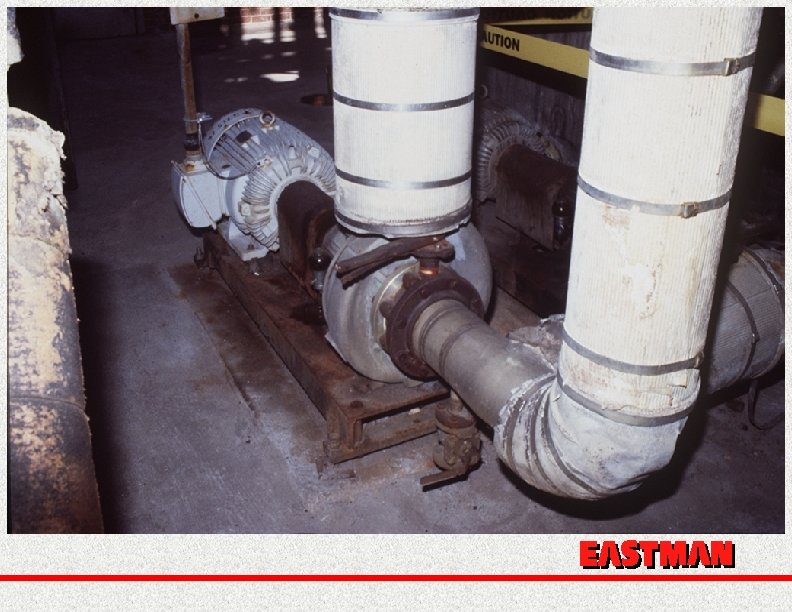

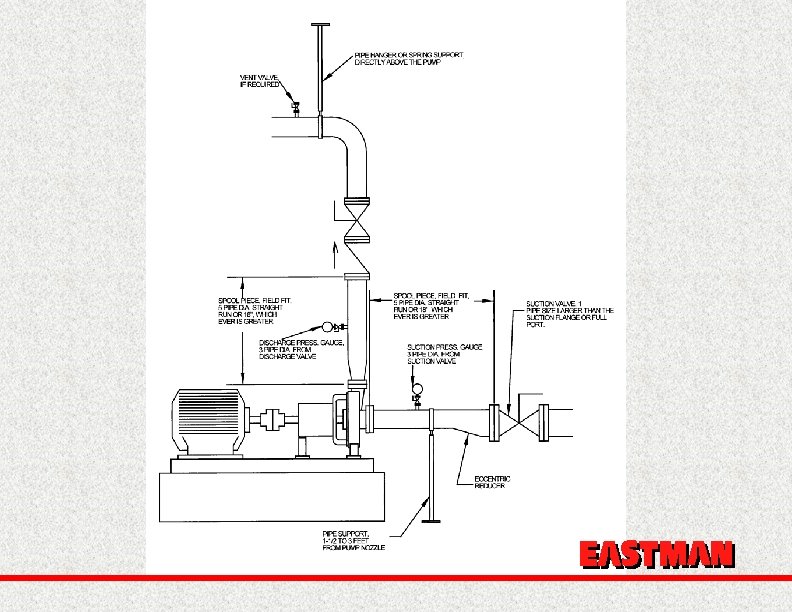

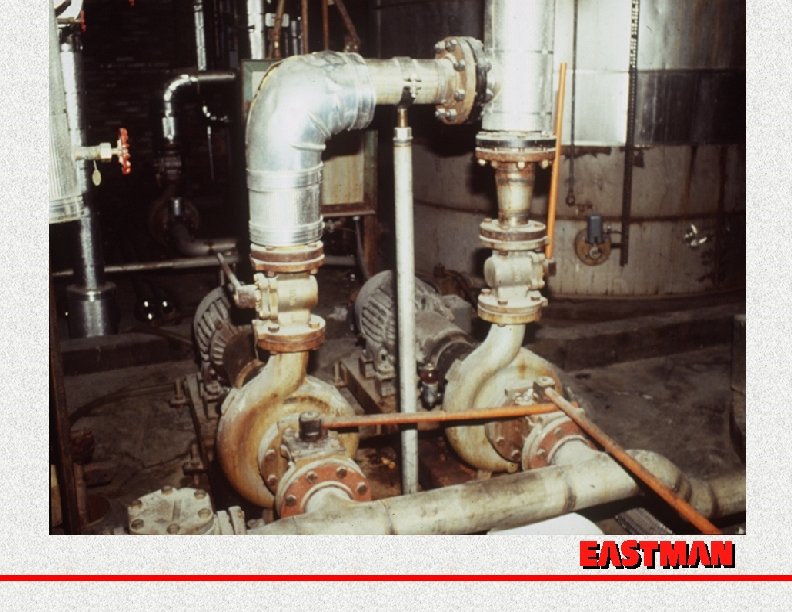

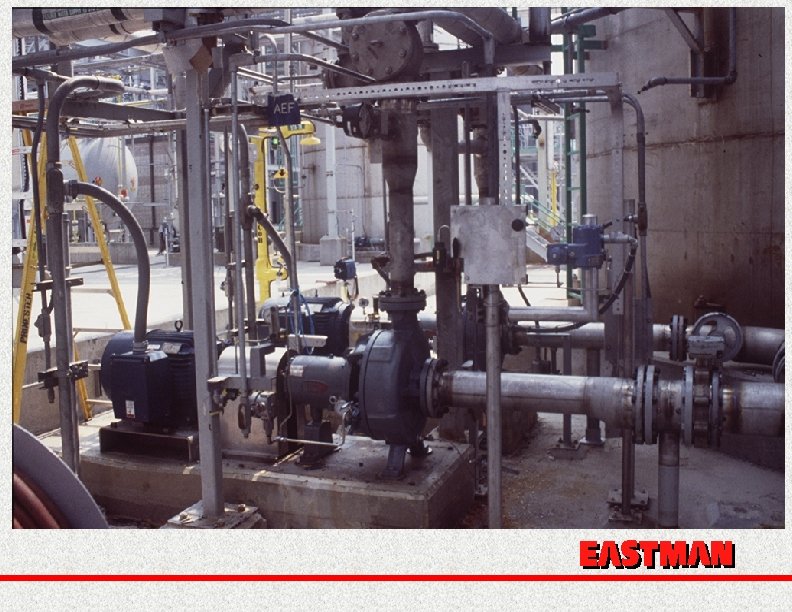

PIPING?

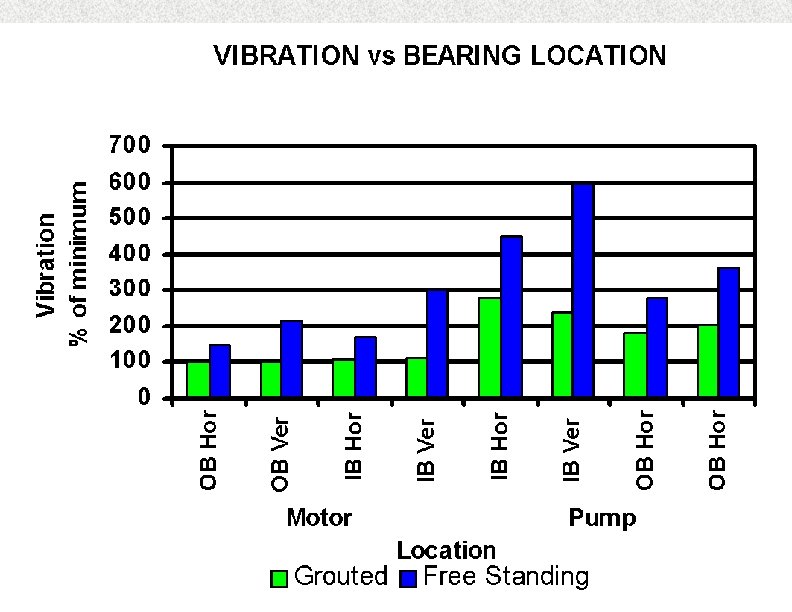

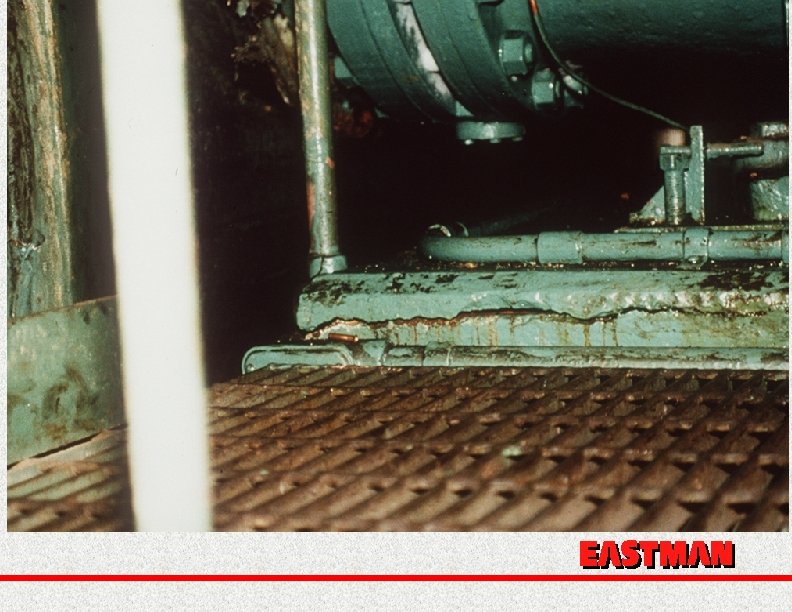

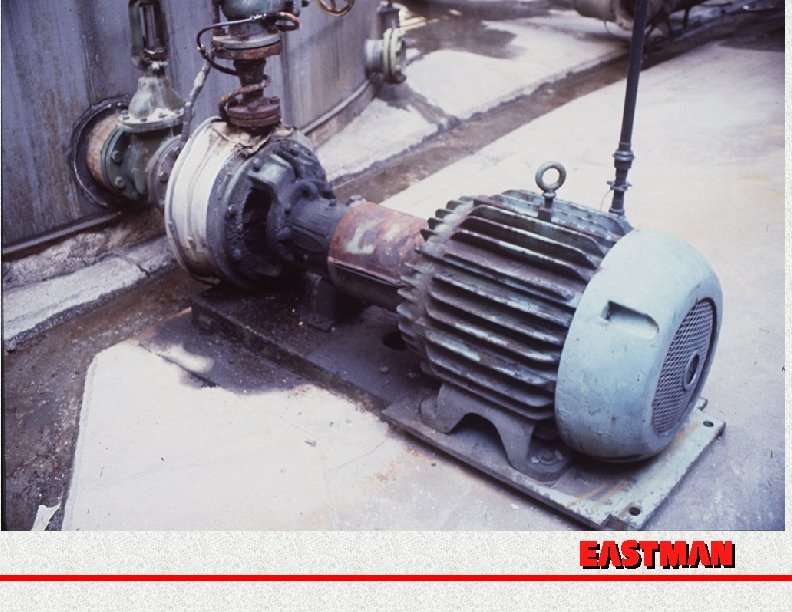

Foundations and Baseplates

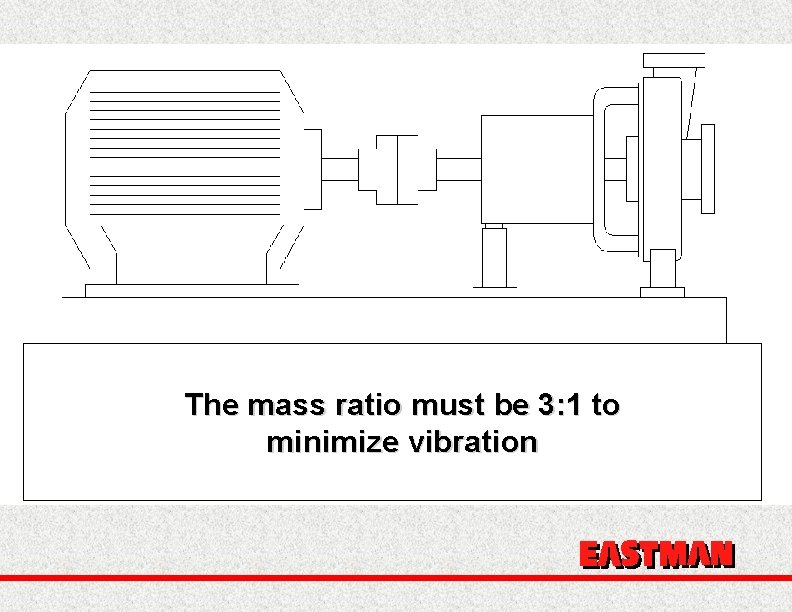

The mass ratio must be 3: 1 to minimize vibration

Operationally Induced • Cavitation • Flow • Speed • Insufficient Immersion of Suction Pipe or Bell

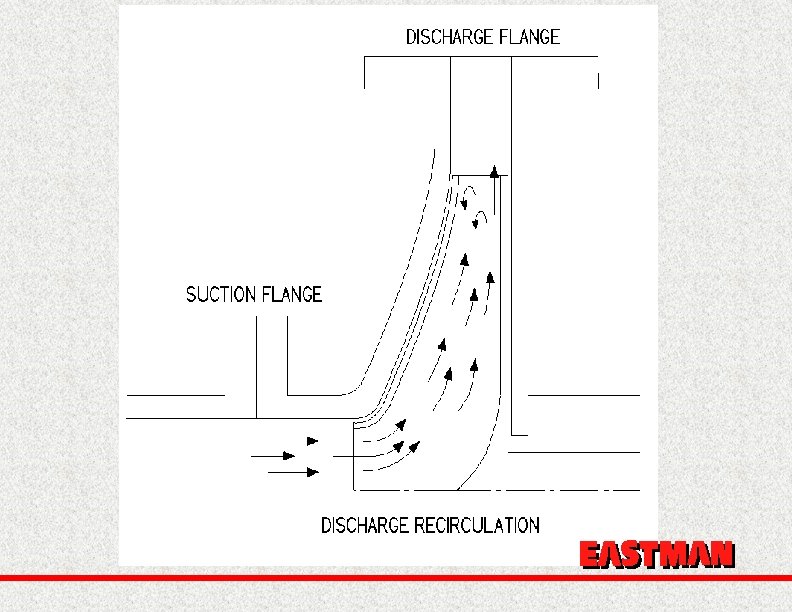

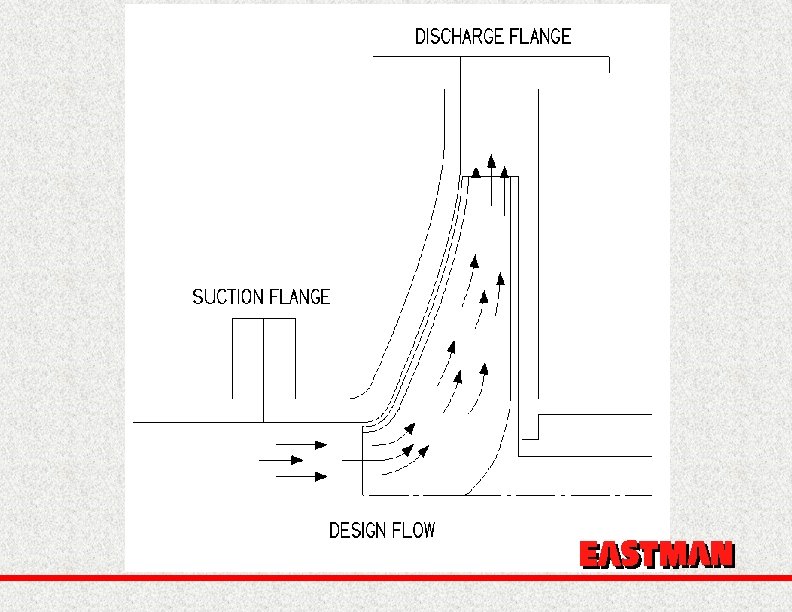

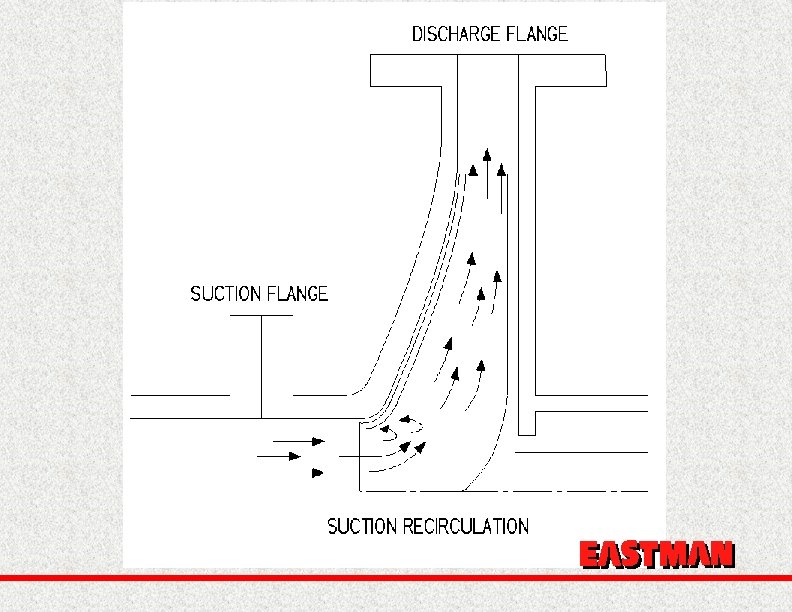

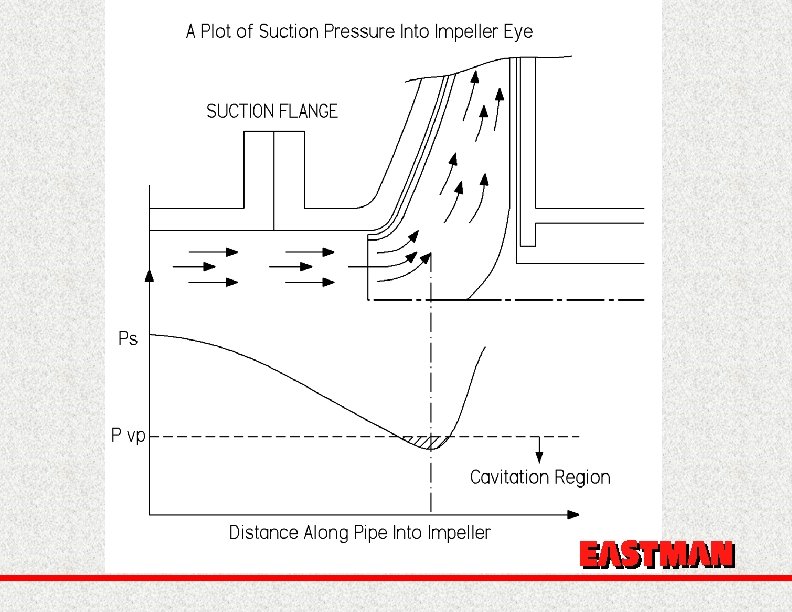

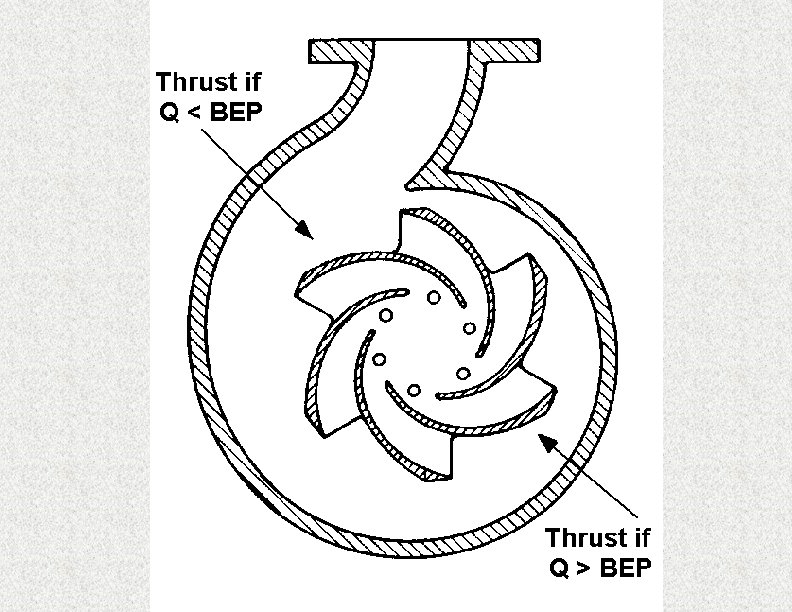

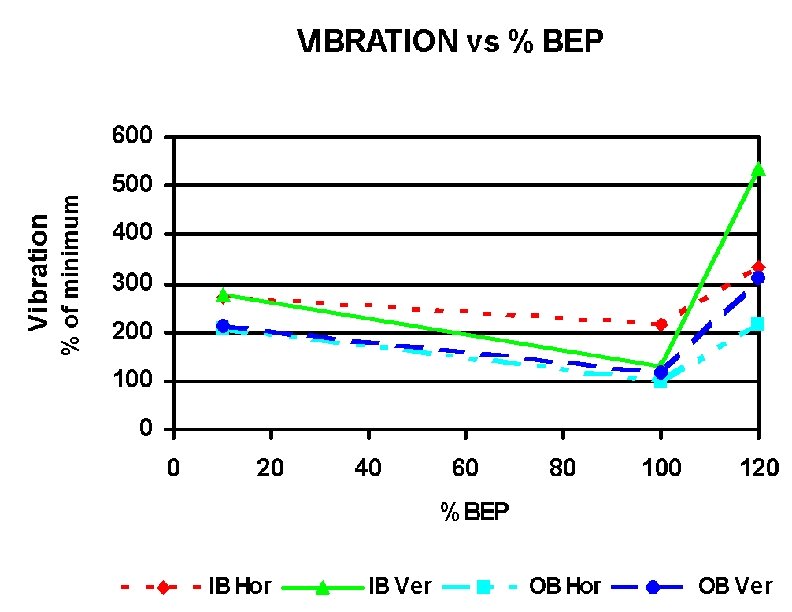

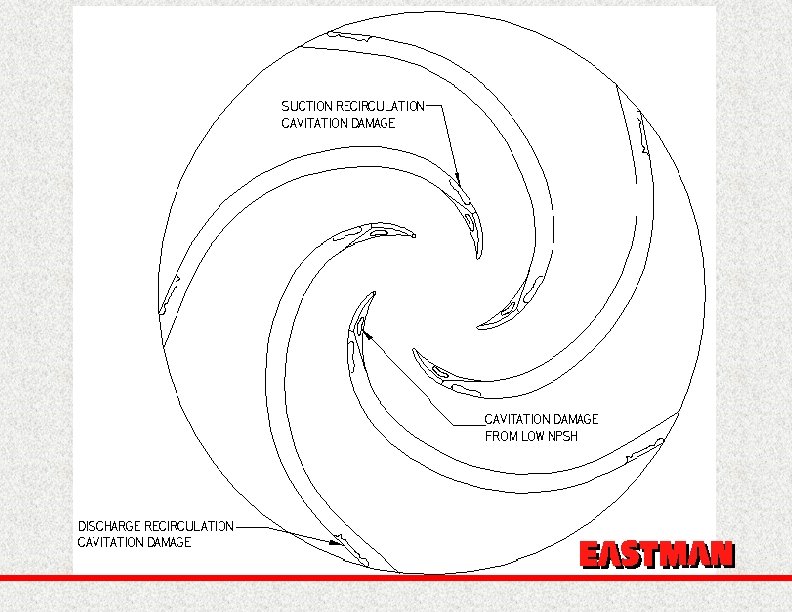

Cavitation and Flow

You can’t run a pump with suction and discharge valves closed!

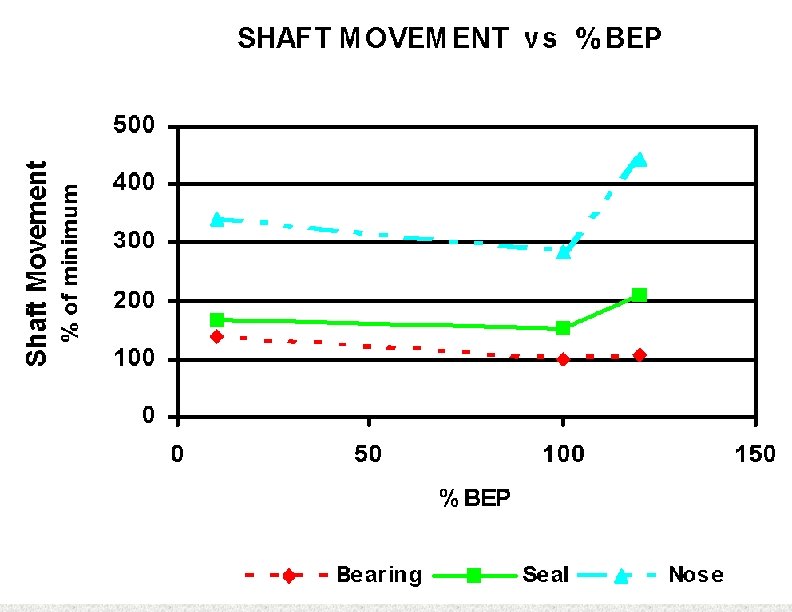

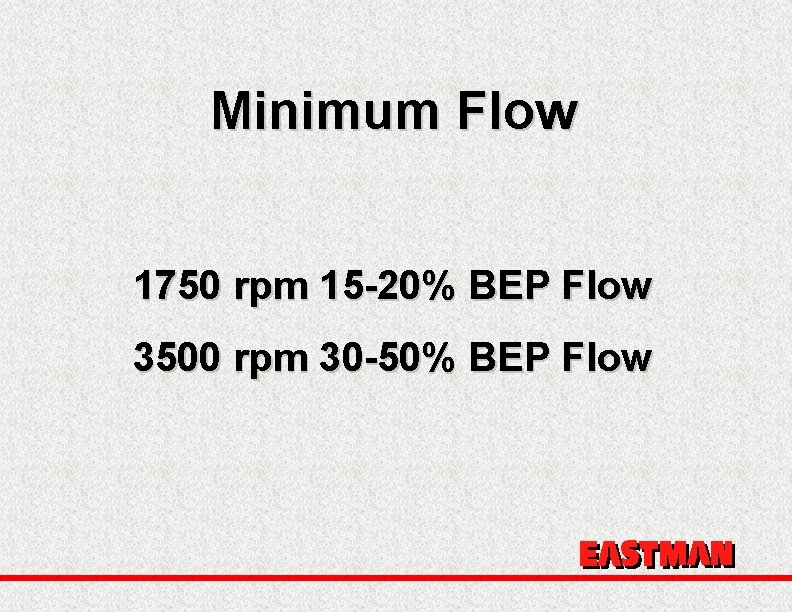

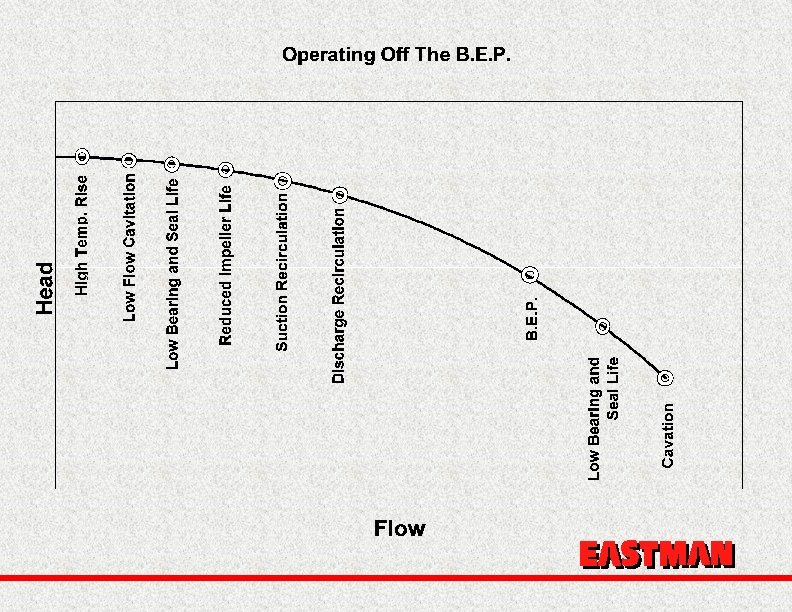

Minimum Flow 1750 rpm 15 -20% BEP Flow 3500 rpm 30 -50% BEP Flow

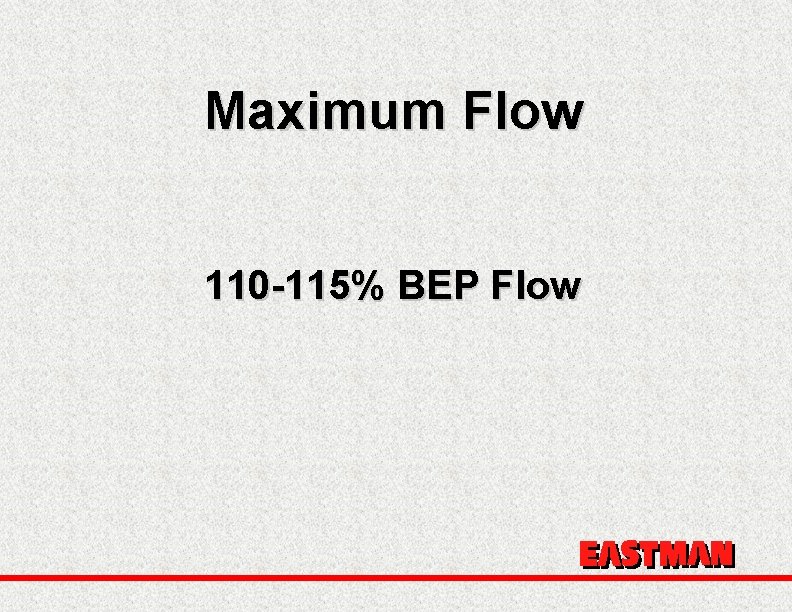

Maximum Flow 110 -115% BEP Flow

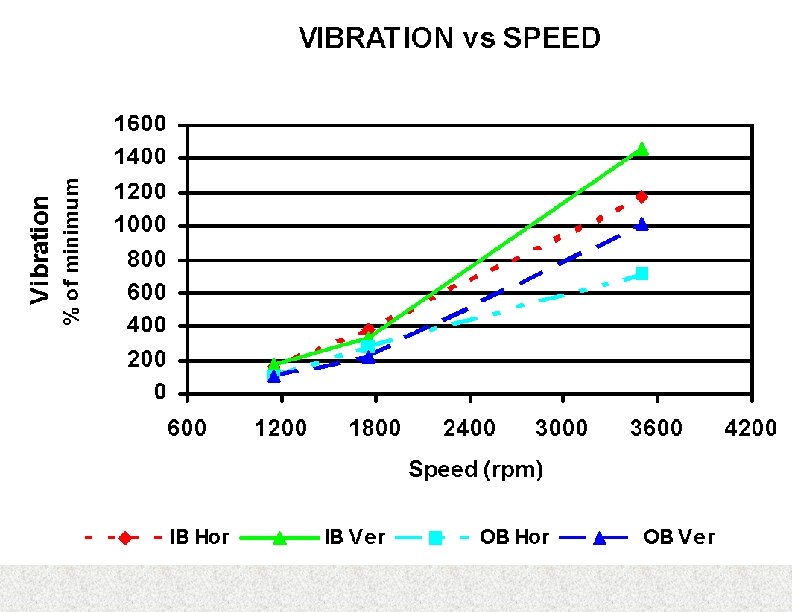

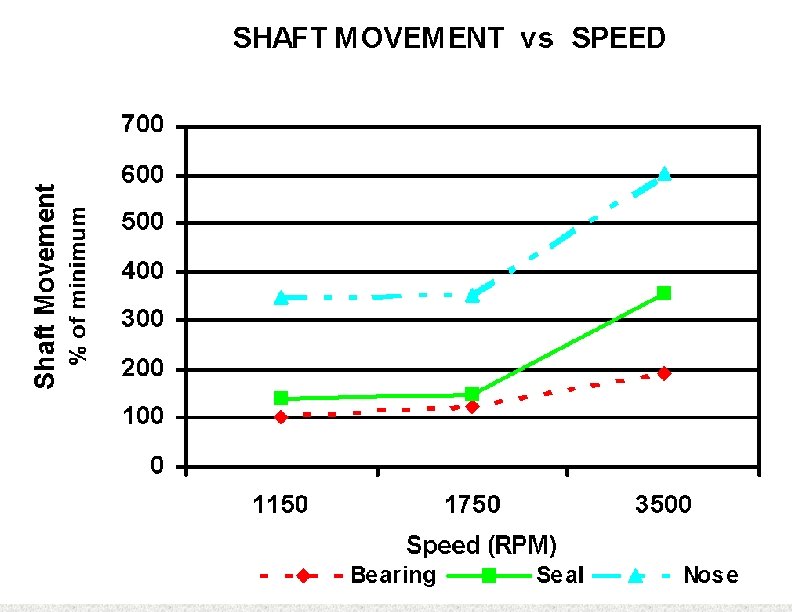

Speed

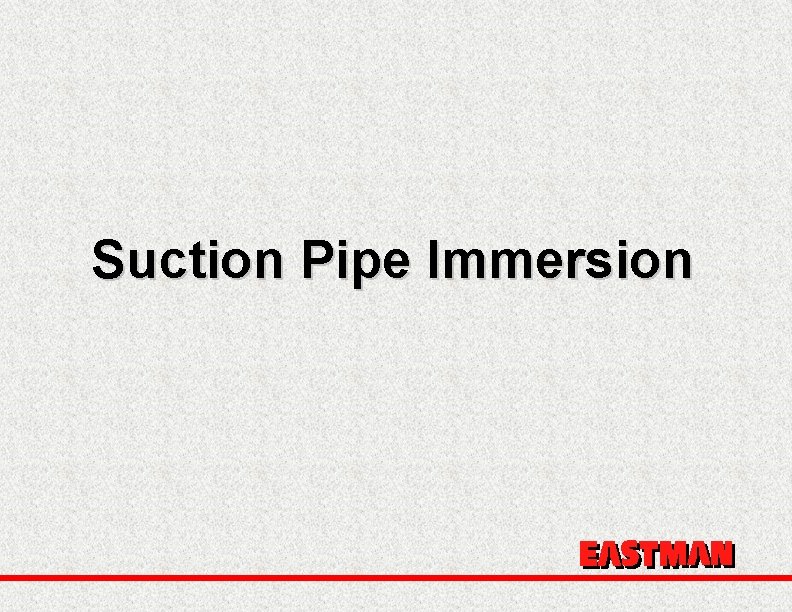

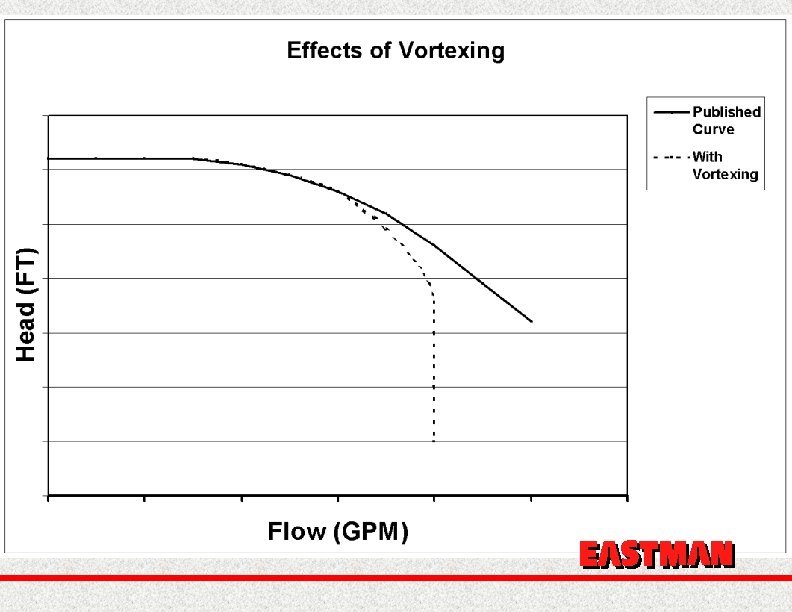

Suction Pipe Immersion

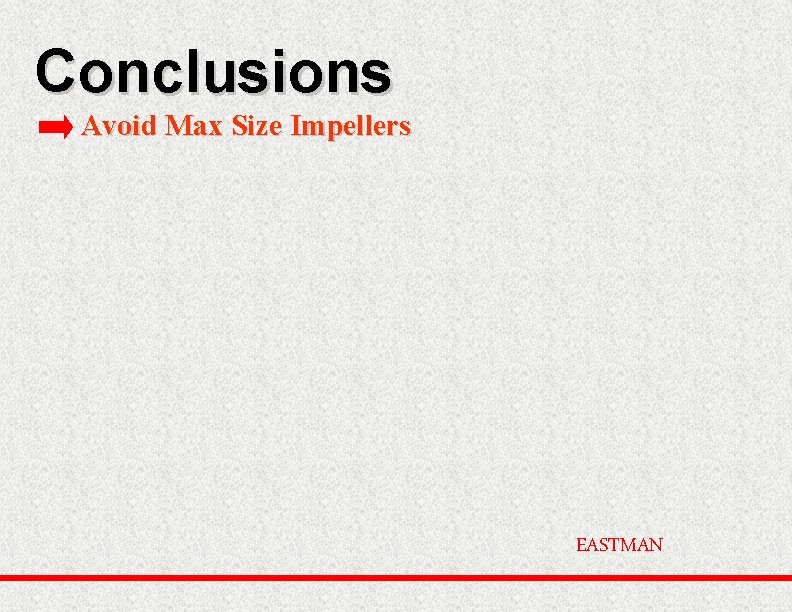

Conclusions Avoid Max Size Impellers EASTMAN

Conclusions Avoid Max Size Impellers Keep speed to 1750 max EASTMAN

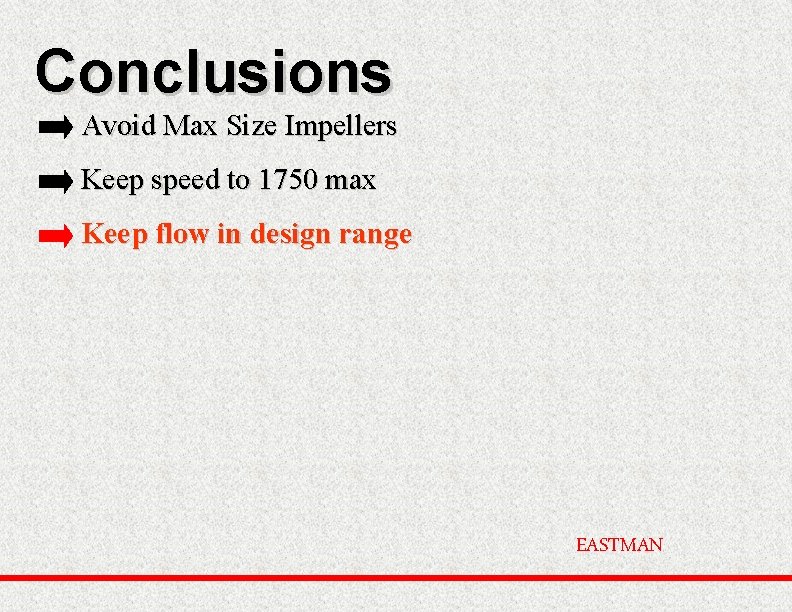

Conclusions Avoid Max Size Impellers Keep speed to 1750 max Keep flow in design range EASTMAN

Conclusions Avoid Max Size Impellers Keep speed to 1750 max Keep flow in design range Grout your baseplates EASTMAN

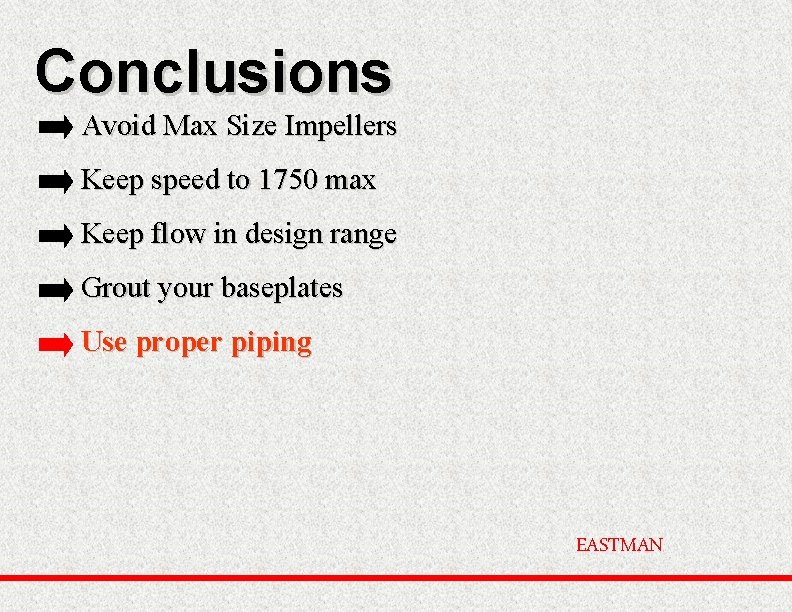

Conclusions Avoid Max Size Impellers Keep speed to 1750 max Keep flow in design range Grout your baseplates Use proper piping EASTMAN

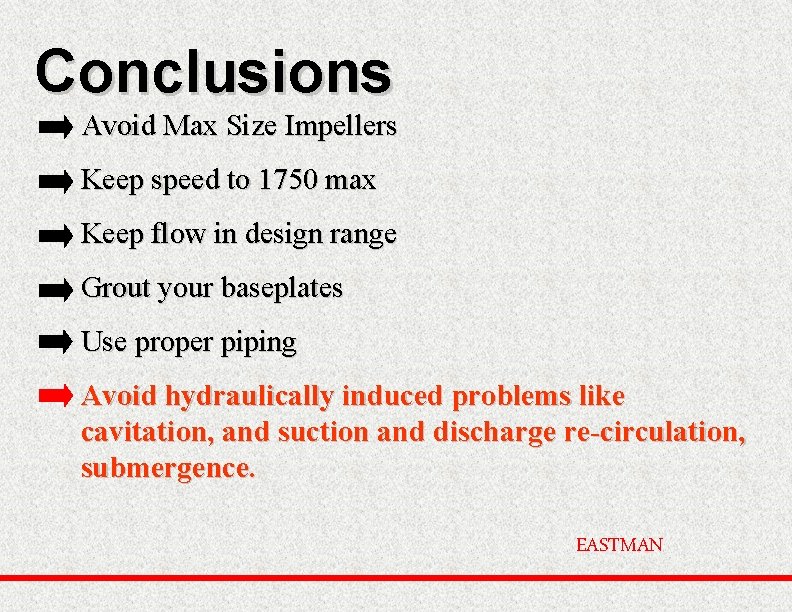

Conclusions Avoid Max Size Impellers Keep speed to 1750 max Keep flow in design range Grout your baseplates Use proper piping Avoid hydraulically induced problems like cavitation, and suction and discharge re-circulation, submergence. EASTMAN

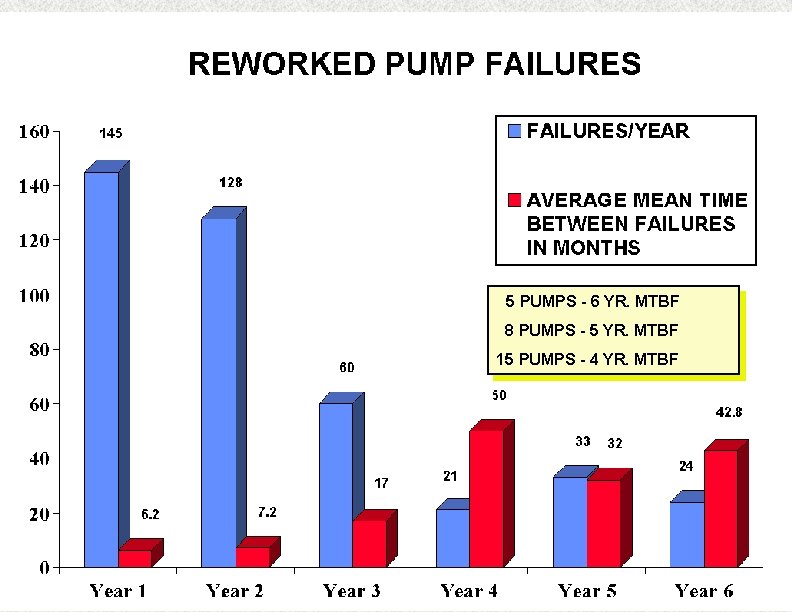

5 PUMPS - 6 YR. MTBF 8 PUMPS - 5 YR. MTBF 15 PUMPS - 4 YR. MTBF
