Central Texas HUB / KISTERS Time. Series HUB WISKI Ki. WIS

Central Texas HUB / KISTERS Time. Series HUB WISKI Ki. WIS

Common data exchange scenario Each arrow means discussion & bi-lateral Global agreement • •

Common data exchange scenario Each arrow means discussion & bi-lateral Global agreement • • Global National How do you call your. National variables National What formats can you deliver data to me Regional system Regional What software do you. Regional use Regional What is the schedule of your data logger What is the quality of your data Local Do we need a contract What do I get when I provide something Local

A KISTERS Time. Series Hub with Ki. WIS. . . … solves those problems

A KISTERS Time. Series Hub with Ki. WIS. . . … solves those problems because • It can be community based • It is highly configurable and can mediate terminology • It can easily generate new information products (e. g. 3 hr moving totals, …) • Has state of the art interfaces (Authoring via Desktop app, Public interface via Browser, API via standard service types) • Is proven COTS software

KISTERS Time. Series Hub CORE ELEMENTS

KISTERS Time. Series Hub CORE ELEMENTS

KISTERS Time. Series Data Management System - WISKI • Scalable system of interpolation type

KISTERS Time. Series Data Management System - WISKI • Scalable system of interpolation type and data type combination to express how the data is treated correctly between the time stamps • Hierarchical quality codes stored with every data point are access criteria for every WISKI calculation. • Free comments, standard remarks and data attributes are added to the data for better interpretation & documentation. • Advanced time series types combine multiple parameters in dedicated columns (discharge/runoff, wind direction/speed, relative/absolute etc). • Editing history keeps track of data changes.

KISTERS Web Interoperability Solution (Ki. WIS) The first commercially available and robust software for

KISTERS Web Interoperability Solution (Ki. WIS) The first commercially available and robust software for consuming and publishing real-time hydrological data to the Internet using open standards! • Utilizes applied open standards for sharing data from KISTERS water data management solutions • Eliminates issues surrounding complex data formats • Single API framework for multiple service types

KISTERS Hub Principles. . . private Public Local Global emergency Local Notification National Local

KISTERS Hub Principles. . . private Public Local Global emergency Local Notification National Local KISTERS HUB Technology Regional business Services OGC, CUAHSI, … OGC, Services CUAHSI, … OGC, CUAHSI, … university Local Professional Local engineering Data providing Data mediation Data consuming Data validation Information products Data & Information dissemination Data & Information consumption

Central Texas Implementation private Public Local Global emergency Notification Local USGS KISTERS HUB Technology

Central Texas Implementation private Public Local Global emergency Notification Local USGS KISTERS HUB Technology Local LCRA Moving totals Rate of Change Percentage Normal business Services OGC, CUAHSI, … OGC, Services CUAHSI, … OGC, CUAHSI, … university Professional Local City of Austin engineering Data providing Data mediation Data consuming Data validation Information products Data & Information dissemination Data & Information consumption

 • Combine data feeds from national, regional and local sources - USGS, Lower

• Combine data feeds from national, regional and local sources - USGS, Lower Colorado River Authority, and City of Austin • Display spatial information from ESRI and Time Series data from KISTERS WISKI • Flash flood situational awareness and drought contingency planning KISTERS Time. Series HUB “in Action”

USGS LCRA COA A behind the scenes look. . . WISKI Develop Derived Data

USGS LCRA COA A behind the scenes look. . . WISKI Develop Derived Data Products Move to ESRI for Mapping Display on Webpage How WISKI turns raw data into actionable information

USGS LCRA COA WISKI Develop Derived Data Products Move to ESRI for Mapping Display

USGS LCRA COA WISKI Develop Derived Data Products Move to ESRI for Mapping Display on Webpage Derived Time Series. . . Using standard functions to create derived time series Raw Data (eg. Long term values)

USGS LCRA COA Derived Time Series. . . WISKI Develop Derived Data Products Move

USGS LCRA COA Derived Time Series. . . WISKI Develop Derived Data Products Move to ESRI for Mapping Display on Webpage Derived time series are now part of every station in the network

USGS LCRA COA Derived Time Series. . . WISKI Cumulative Lake Inflow Develop Derived

USGS LCRA COA Derived Time Series. . . WISKI Cumulative Lake Inflow Develop Derived Data Products Normal Accumulation Move to ESRI for Mapping Display on Webpage 2012

USGS LCRA COA Moving to ESRI for Mapping WISKI Develop Derived Data Products Move

USGS LCRA COA Moving to ESRI for Mapping WISKI Develop Derived Data Products Move to ESRI for Mapping Display on Webpage Moving KISTERS derived time series data to ESRI’s spatial mapping products

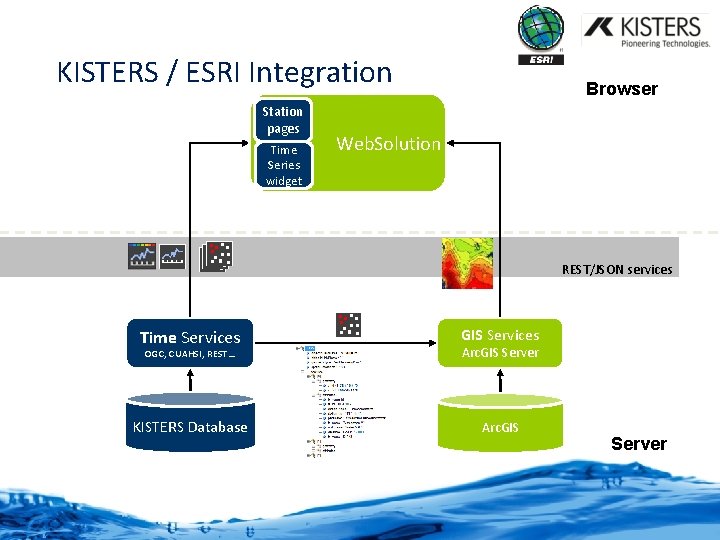

KISTERS / ESRI Integration Station pages Time Series widget Browser Web. Solution REST/JSON services

KISTERS / ESRI Integration Station pages Time Series widget Browser Web. Solution REST/JSON services Time Services GIS Services OGC, CUAHSI, REST… Arc. GIS Server KISTERS Database Arc. GIS Server

www. centraltexashub. org

www. centraltexashub. org

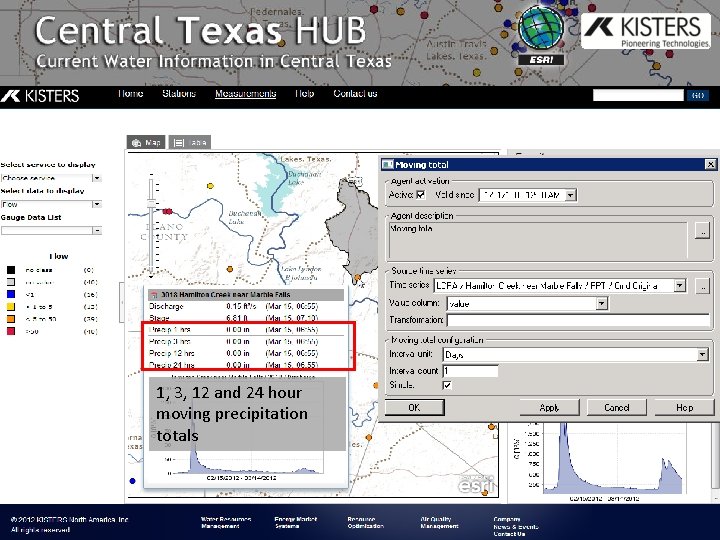

1, 3, 12 and 24 hour moving precipitation totals �KISTERS AG KISTERS Presentation 17

1, 3, 12 and 24 hour moving precipitation totals �KISTERS AG KISTERS Presentation 17 17/06/2021

Reviewing Station details and derived time series in a spatial context �KISTERS AG KISTERS

Reviewing Station details and derived time series in a spatial context �KISTERS AG KISTERS Presentation 18 17/06/2021

Integrate, Standardize and Share Hydrological Data KISTERS Time. Series HUB with Ki. WIS integrates

Integrate, Standardize and Share Hydrological Data KISTERS Time. Series HUB with Ki. WIS integrates all forms of hydrological data from different sources, domains, formats and spatial and temporal resolutions. A robust set of timeseries authoring tools in WISKI enables users to develop a multitude of derived data sets that are then shared through a standardized view using web modules like WISKI Web Pubic/Pro.

Ki. WIS Features & Benefits • Service oriented architecture • KISTERS high speed data

Ki. WIS Features & Benefits • Service oriented architecture • KISTERS high speed data protocol • Supported standards: Water. ML 2. 0, Water. ML 1, SOS, Water. One. Flow • Command return formats: ASCII, HTML, CSV, XLS, JSON, Geo. JSON and PNG/JPG • Service multiple data sources at once • Ki. WIS GUI: configurable, intuitive, easy to use • Integration with KISTERS time series archives

Building the synergy between Time and Space. . .
