Central nervous system Guanghui Yu Radiology college Central

Central nervous system Guanghui Yu Radiology college

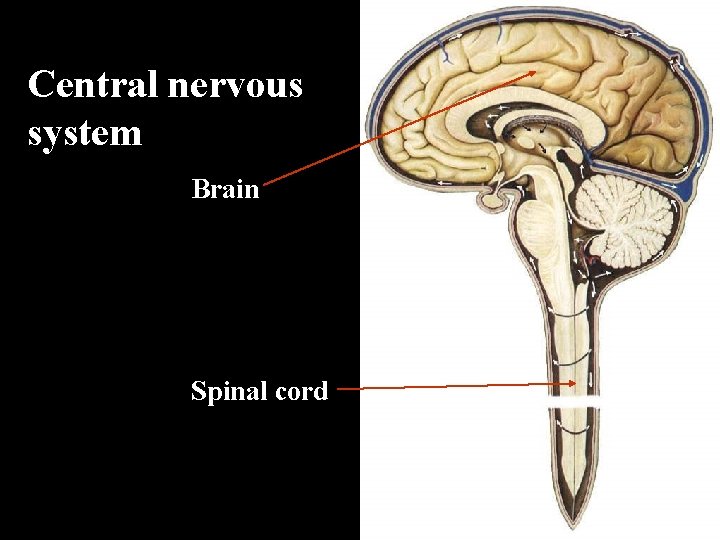

Central nervous system Brain Spinal cord

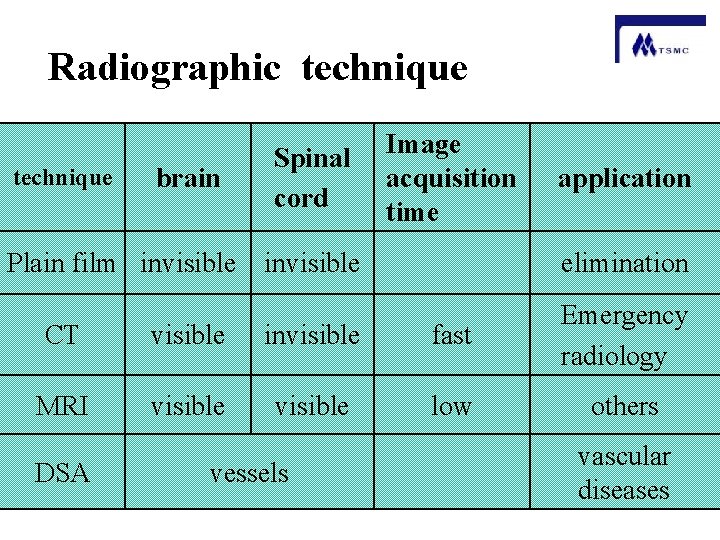

Radiographic technique brain Spinal cord Image acquisition time Plain film invisible application elimination CT visible invisible fast Emergency radiology MRI visible low others DSA vessels vascular diseases

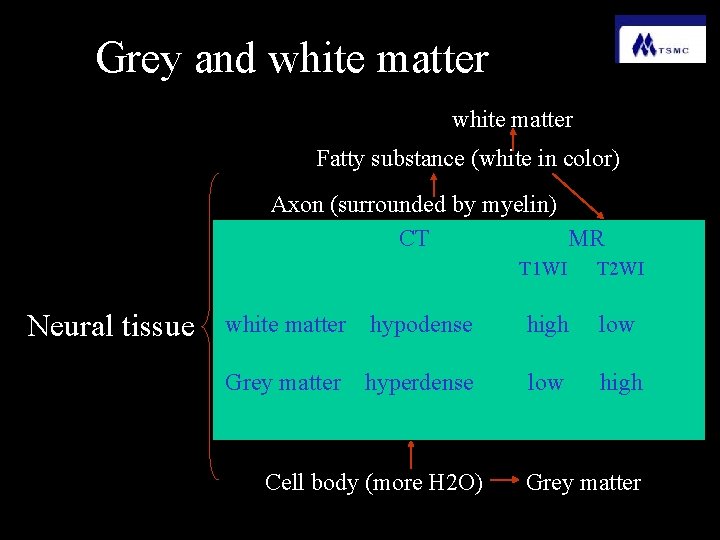

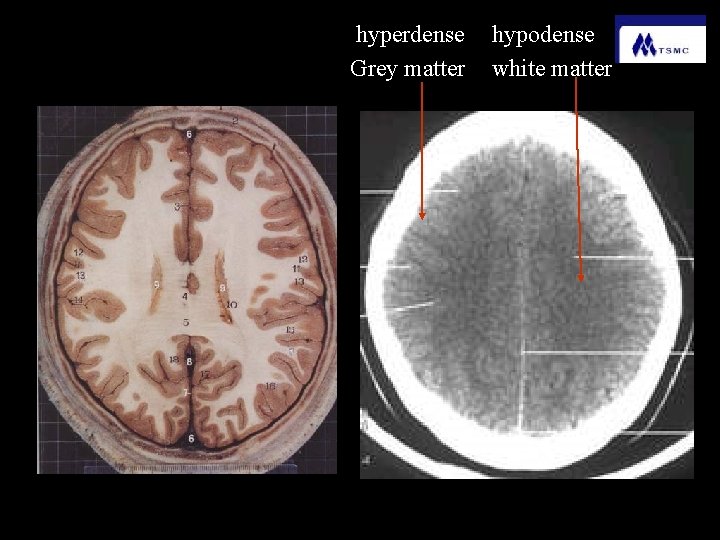

Grey and white matter Fatty substance (white in color) Axon (surrounded by myelin) CT MR Neural tissue T 1 WI T 2 WI white matter hypodense high low Grey matter hyperdense low high Cell body (more H 2 O) Grey matter

hyperdense Grey matter hypodense white matter

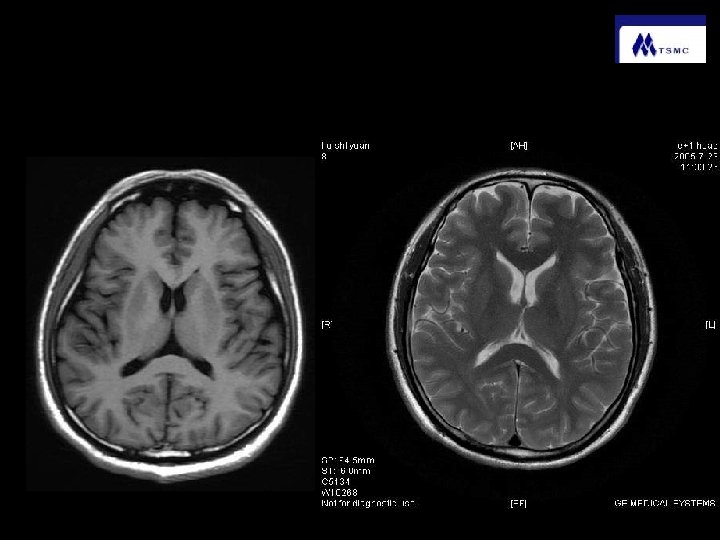

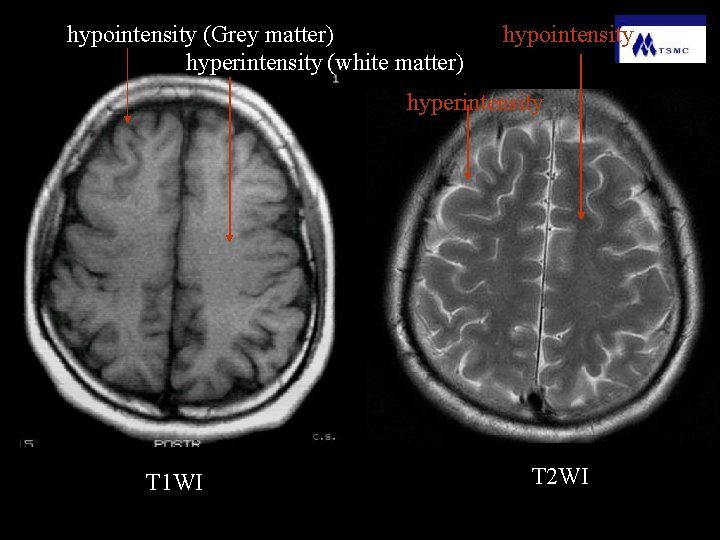

hypointensity (Grey matter) hyperintensity (white matter) hypointensity hyperintensity T 1 WI T 2 WI

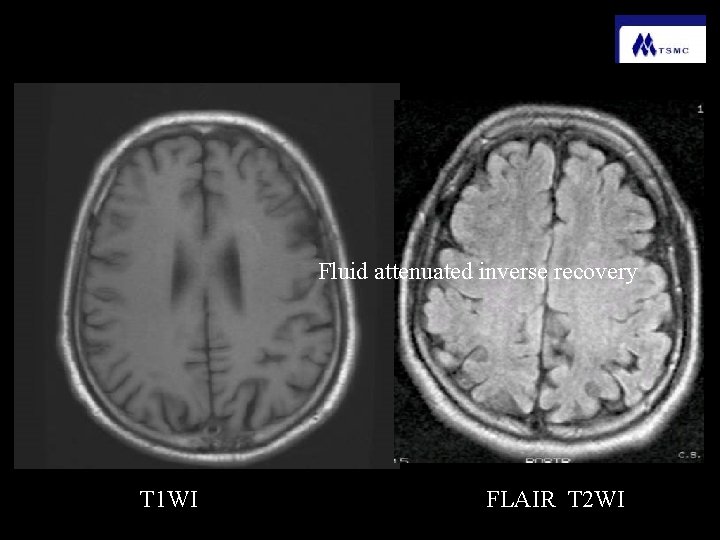

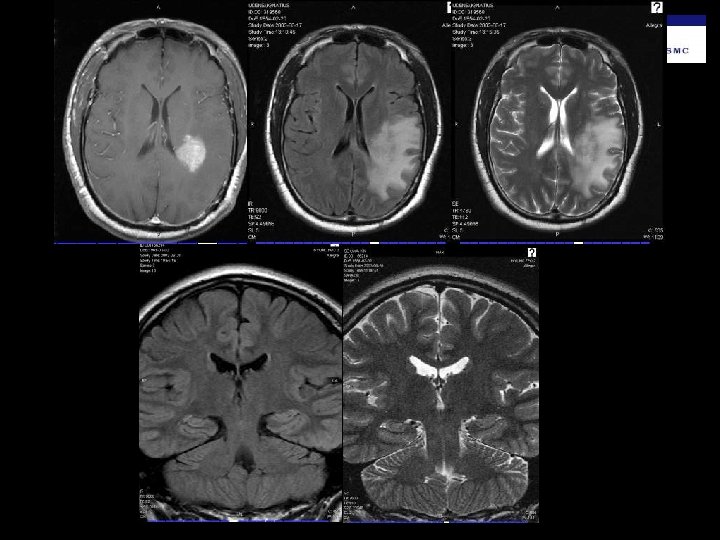

Fluid attenuated inverse recovery T 1 WI FLAIR T 2 WI

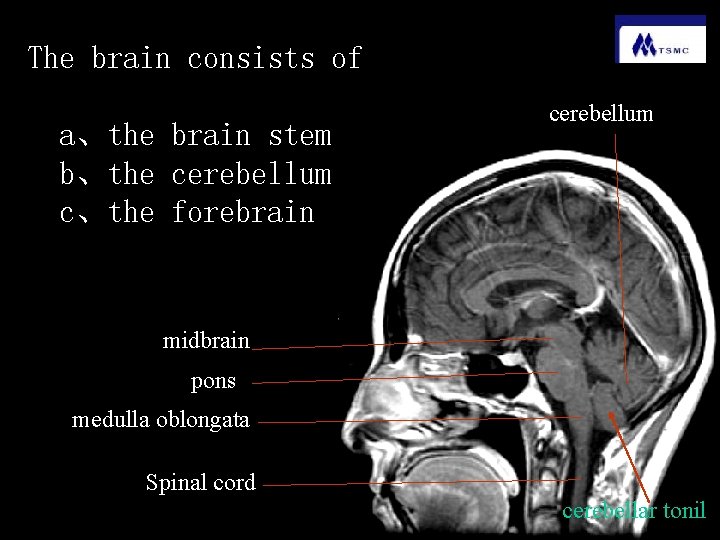

The brain consists of a、the brain stem b、the cerebellum c、the forebrain cerebellum midbrain pons medulla oblongata Spinal cord cerebellar tonil

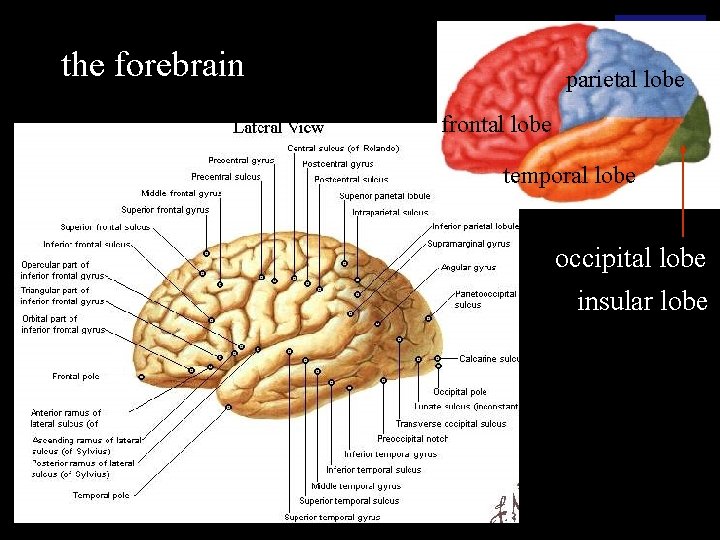

the forebrain parietal lobe frontal lobe temporal lobe occipital lobe insular lobe

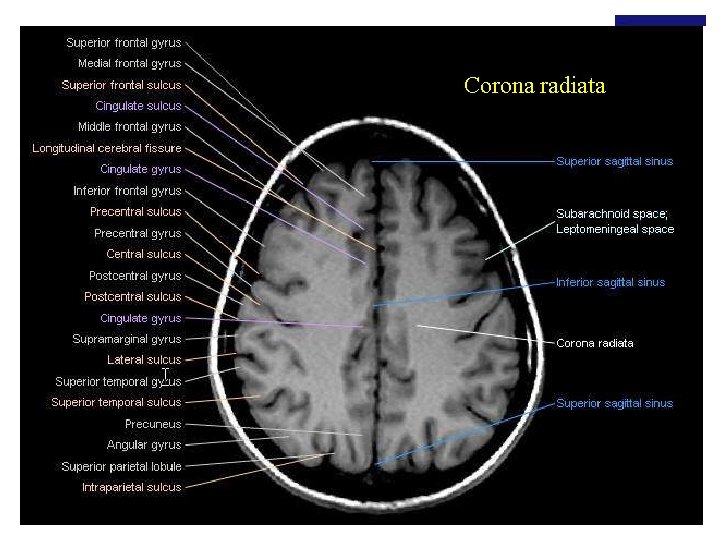

Corona radiata

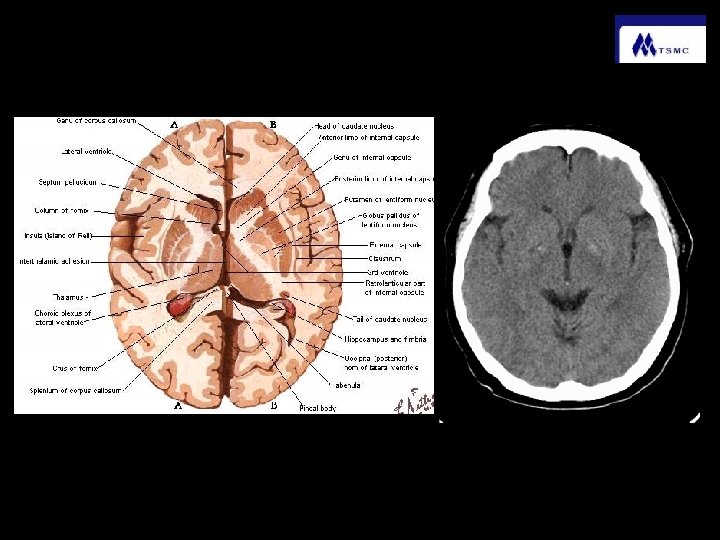

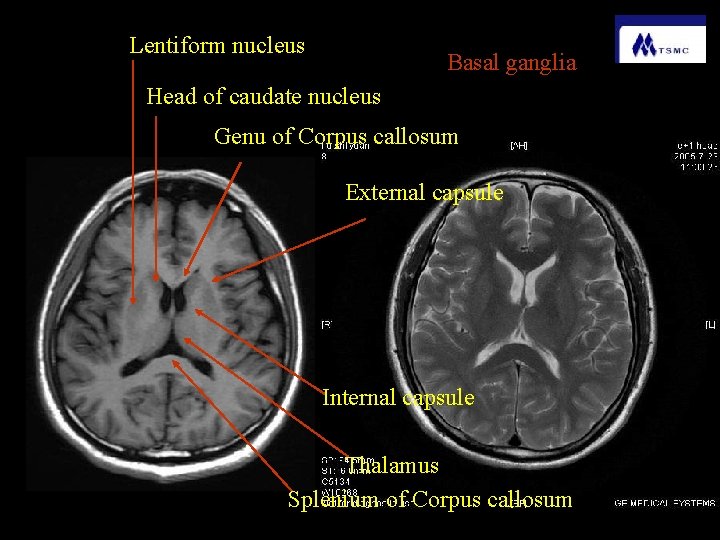

Lentiform nucleus Basal ganglia Head of caudate nucleus Genu of Corpus callosum External capsule Internal capsule Thalamus Splenium of Corpus callosum

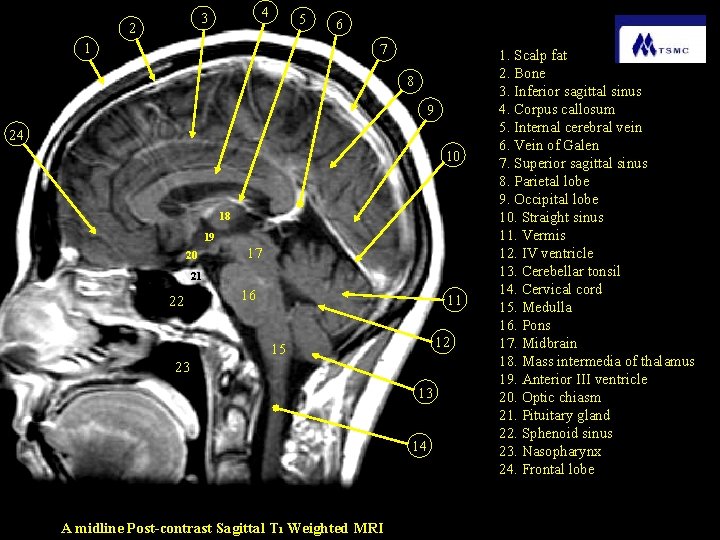

4 3 2 5 1 6 7 8 9 24 10 18 19 20 17 21 22 16 11 12 15 23 13 14 A midline Post-contrast Sagittal T 1 Weighted MRI 1. Scalp fat 2. Bone 3. Inferior sagittal sinus 4. Corpus callosum 5. Internal cerebral vein 6. Vein of Galen 7. Superior sagittal sinus 8. Parietal lobe 9. Occipital lobe 10. Straight sinus 11. Vermis 12. IV ventricle 13. Cerebellar tonsil 14. Cervical cord 15. Medulla 16. Pons 17. Midbrain 18. Mass intermedia of thalamus 19. Anterior III ventricle 20. Optic chiasm 21. Pituitary gland 22. Sphenoid sinus 23. Nasopharynx 24. Frontal lobe

8 7 6 3 5 2 4 1 1. Cerebellar tonsil 2. Cerebellar hemisphere 3. IV ventricle 4. Superior vermis 5. Tentorium 6. Posterior temporal lobe 7. Choroid plexus within lateral ventricle 8. Posterior frontal lobe Coronal Section of the Brain at the level of IV Ventricle Post Contrast Coronal T 1 Weighted MRI

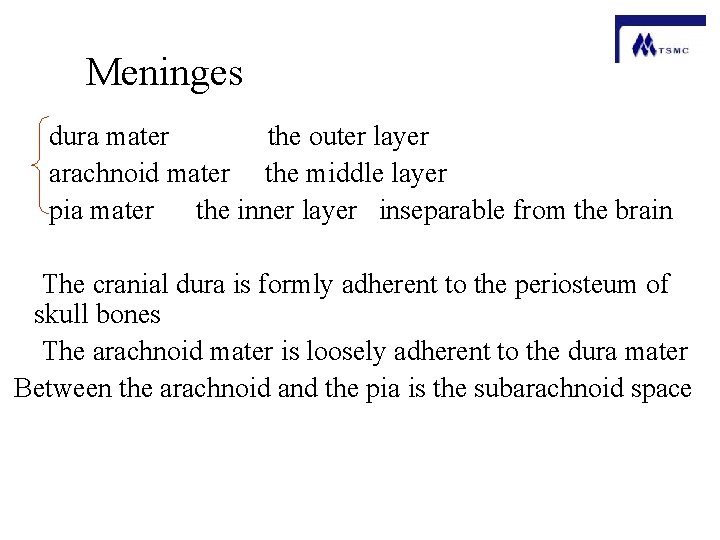

Meninges dura mater the outer layer arachnoid mater the middle layer pia mater the inner layer inseparable from the brain The cranial dura is formly adherent to the periosteum of skull bones The arachnoid mater is loosely adherent to the dura mater Between the arachnoid and the pia is the subarachnoid space

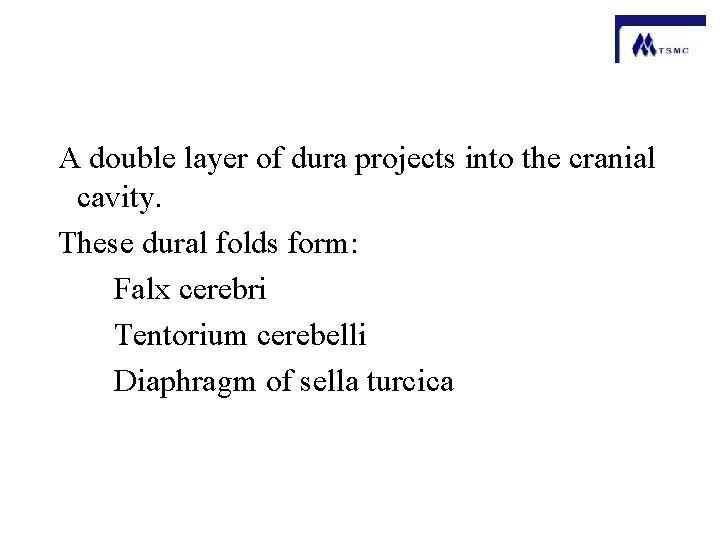

A double layer of dura projects into the cranial cavity. These dural folds form: Falx cerebri Tentorium cerebelli Diaphragm of sella turcica

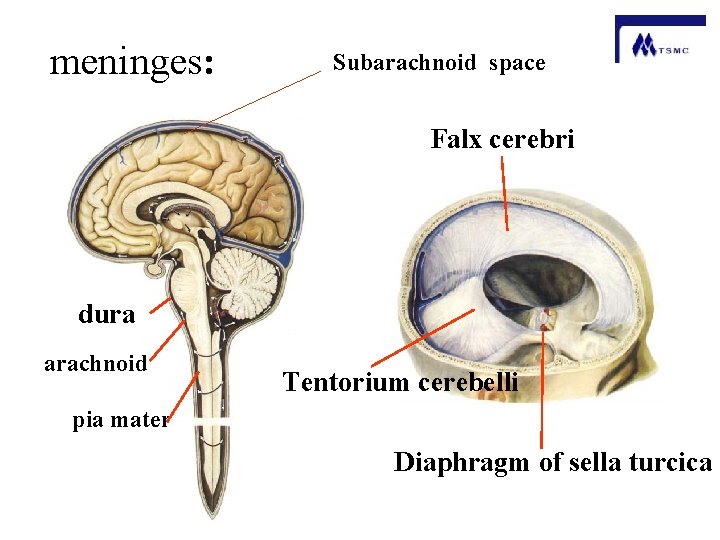

meninges: Subarachnoid space Falx cerebri dura arachnoid Tentorium cerebelli pia mater Diaphragm of sella turcica

cerebral falx

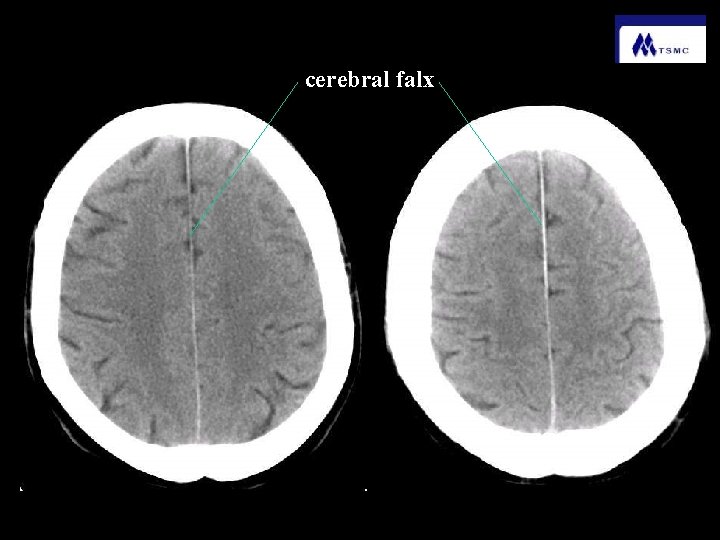

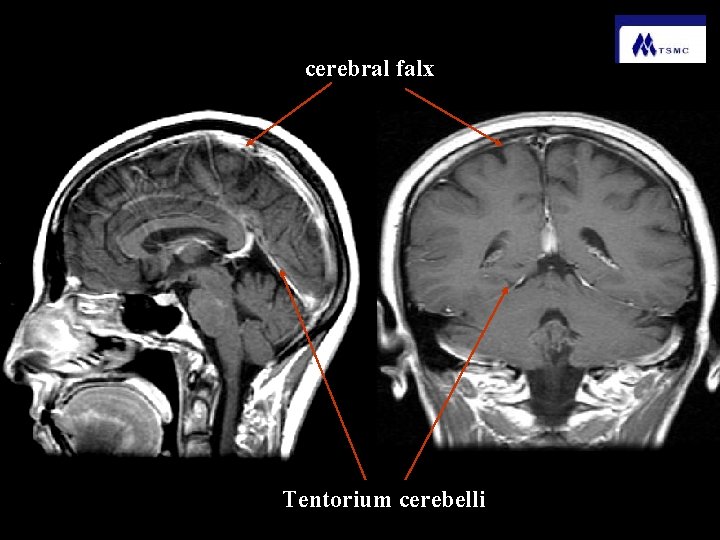

cerebral falx Tentorium cerebelli

ventricular system and cerebrospinal fluid Anterior horn of lateral ventricle third ventricle Lateral ventricle Interventriculer foramen Foramen of Monroe Cerebral aqueduct Fouth ventricle posterior horn of lateral ventricle inferior horn of lateral ventricle posterior horn of lateral ventricle

pineal body

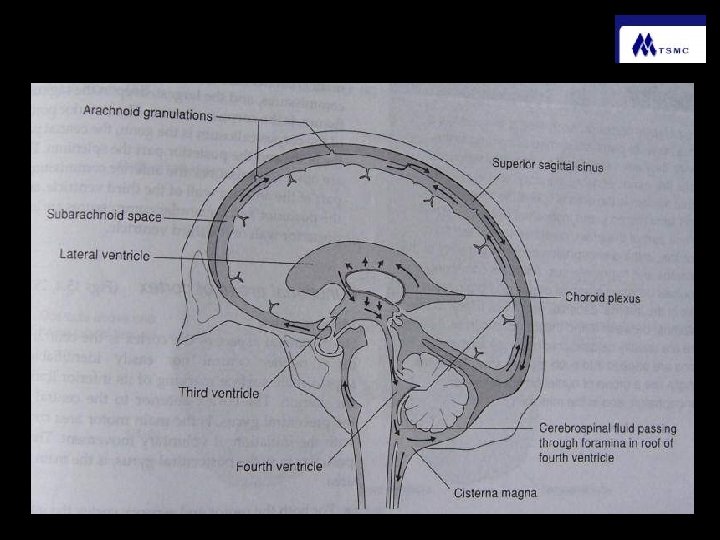

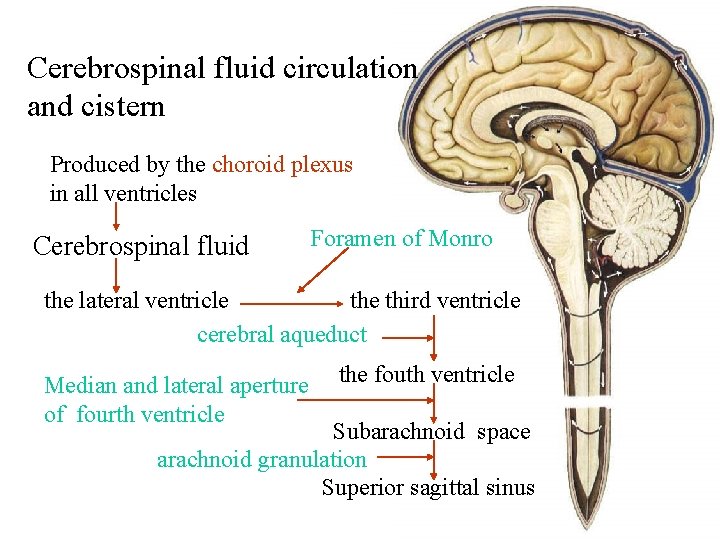

Cerebrospinal fluid circulation and cistern Produced by the choroid plexus in all ventricles Cerebrospinal fluid Foramen of Monro the lateral ventricle third ventricle cerebral aqueduct Median and lateral aperture of fourth ventricle the fouth ventricle Subarachnoid space arachnoid granulation Superior sagittal sinus

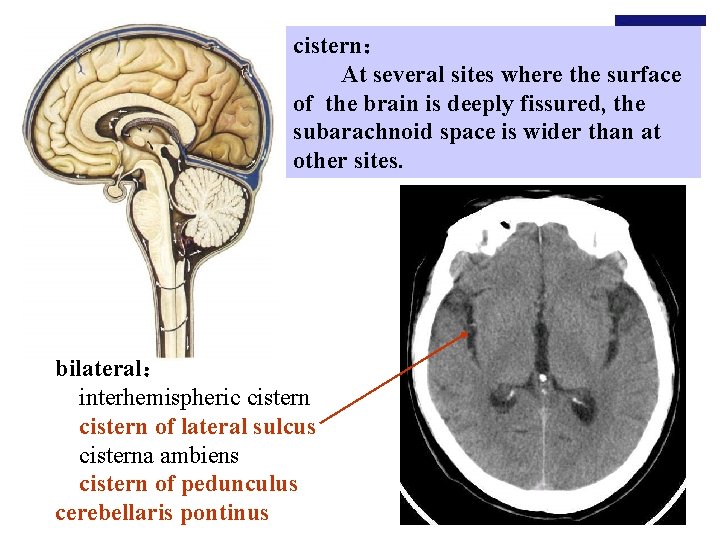

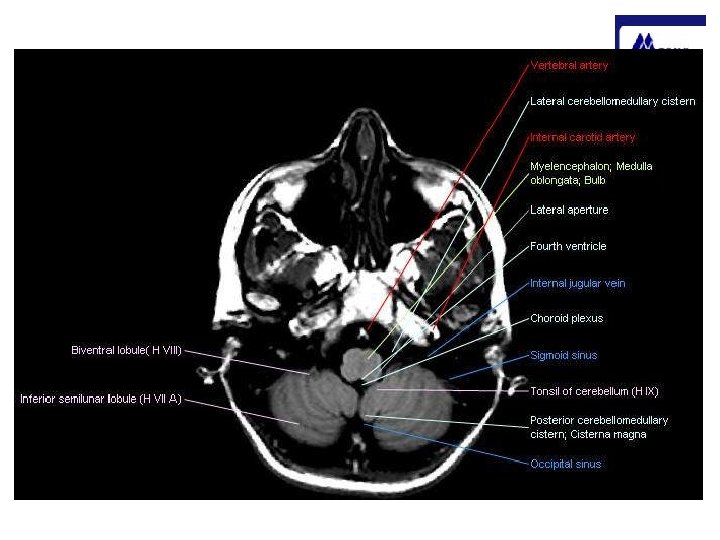

cistern： At several sites where the surface of the brain is deeply fissured, the subarachnoid space is wider than at other sites. bilateral： interhemispheric cistern of lateral sulcus cisterna ambiens cistern of pedunculus cerebellaris pontinus

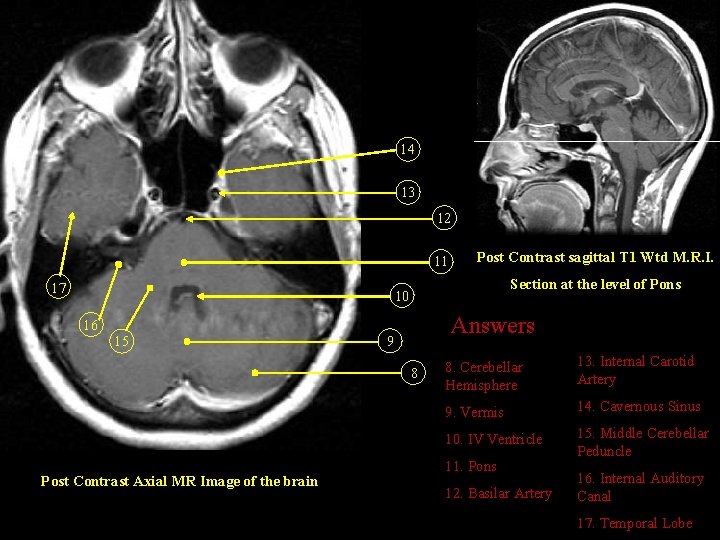

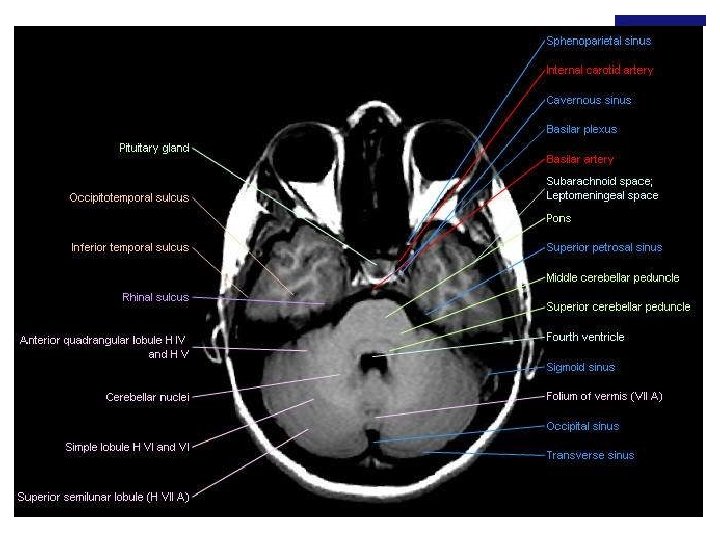

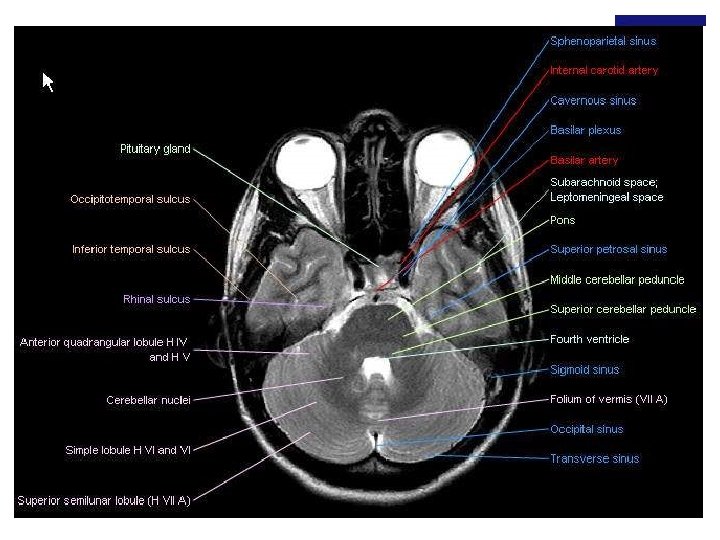

14 13 12 11 17 Post Contrast sagittal T 1 Wtd M. R. I. Section at the level of Pons 10 16 15 Answers 9 8 Post Contrast Axial MR Image of the brain 8. Cerebellar Hemisphere 13. Internal Carotid Artery 9. Vermis 14. Cavernous Sinus 10. IV Ventricle 15. Middle Cerebellar Peduncle 11. Pons 12. Basilar Artery 16. Internal Auditory Canal 17. Temporal Lobe

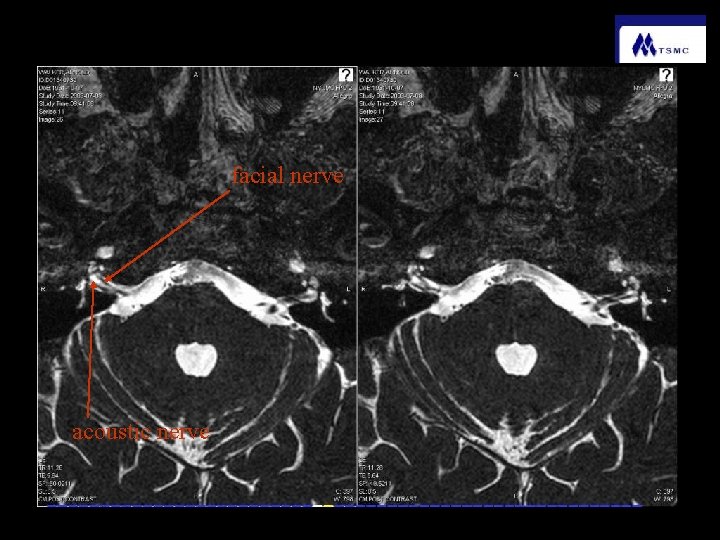

facial nerve acoustic nerve

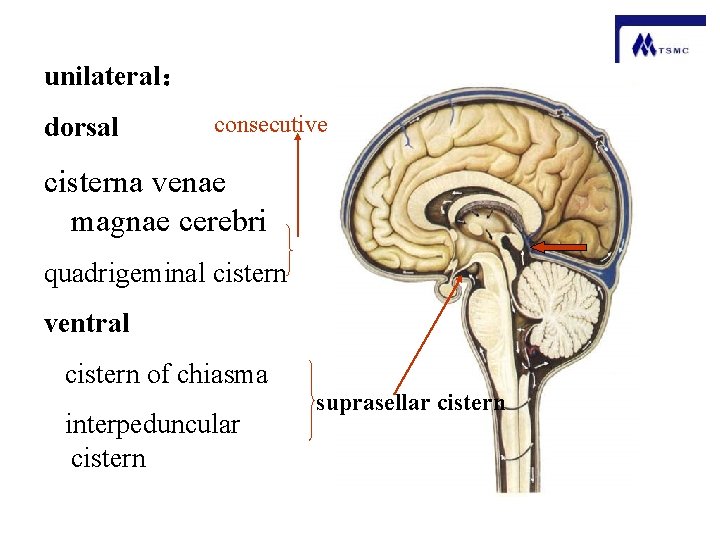

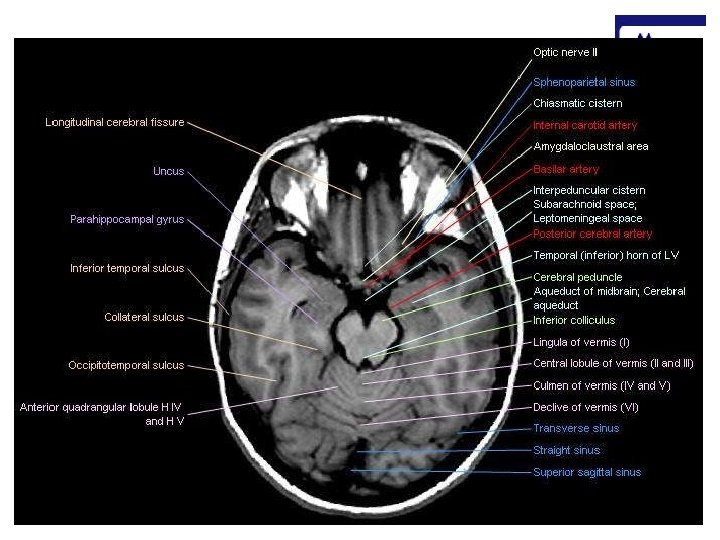

unilateral： dorsal consecutive cisterna venae magnae cerebri quadrigeminal cistern ventral cistern of chiasma interpeduncular cistern suprasellar cistern

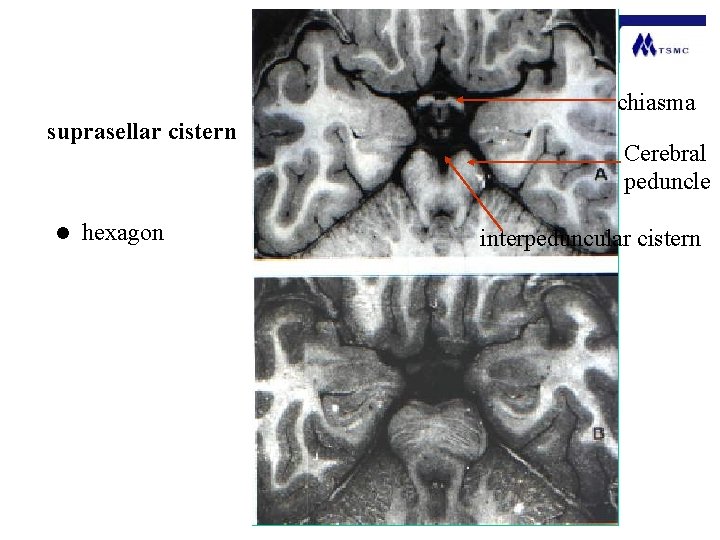

chiasma suprasellar cistern l hexagon Cerebral peduncle interpeduncular cistern

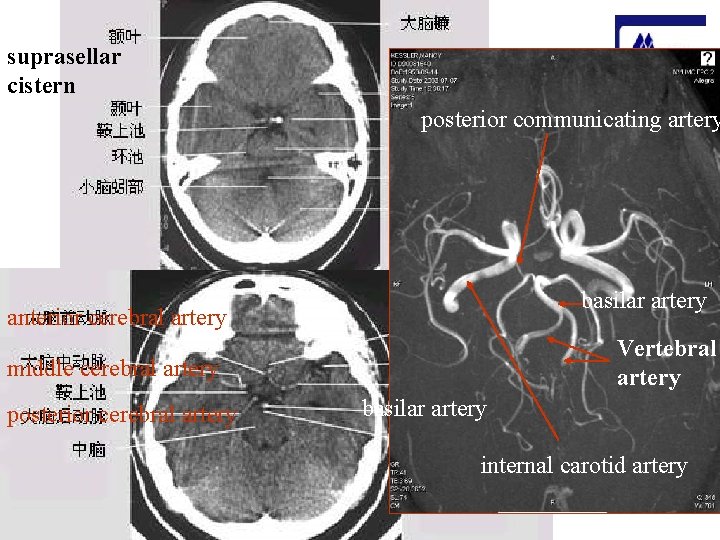

suprasellar cistern posterior communicating artery basilar artery anterior cerebral artery Vertebral artery middle cerebral artery posterior cerebral artery basilar artery internal carotid artery

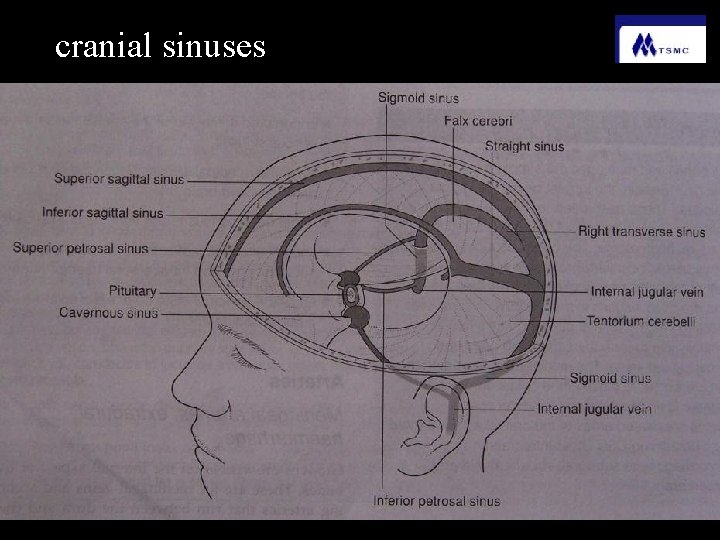

cranial sinuses

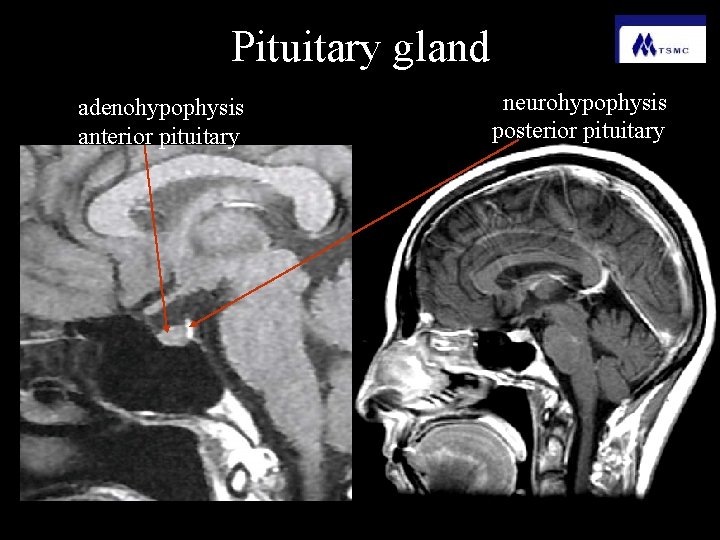

Pituitary gland adenohypophysis anterior pituitary neurohypophysis posterior pituitary

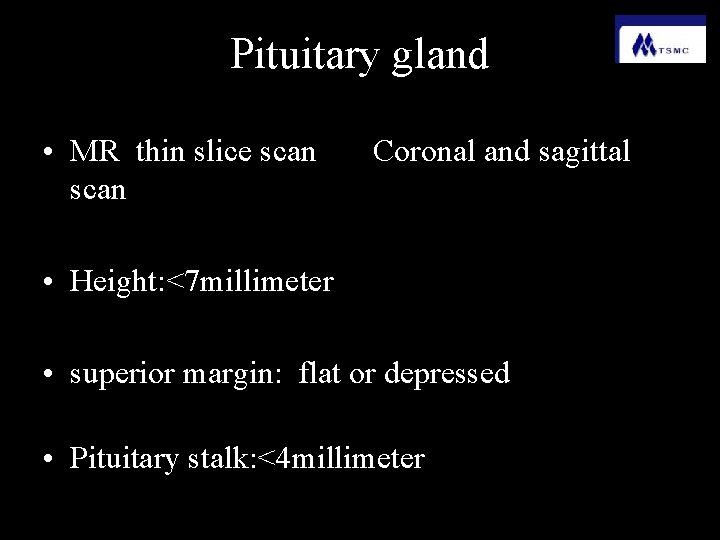

Pituitary gland • MR thin slice scan Coronal and sagittal • Height: <7 millimeter • superior margin: flat or depressed • Pituitary stalk: <4 millimeter

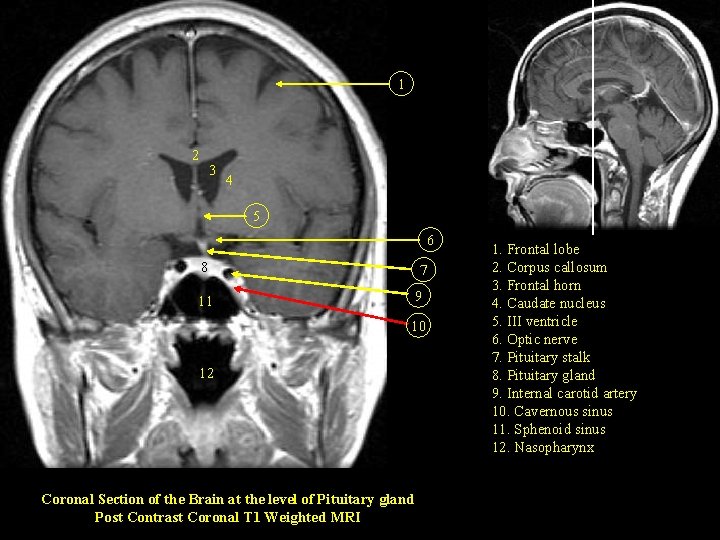

1 2 3 4 5 6 8 7 9 11 10 12 Coronal Section of the Brain at the level of Pituitary gland Post Contrast Coronal T 1 Weighted MRI 1. Frontal lobe 2. Corpus callosum 3. Frontal horn 4. Caudate nucleus 5. III ventricle 6. Optic nerve 7. Pituitary stalk 8. Pituitary gland 9. Internal carotid artery 10. Cavernous sinus 11. Sphenoid sinus 12. Nasopharynx

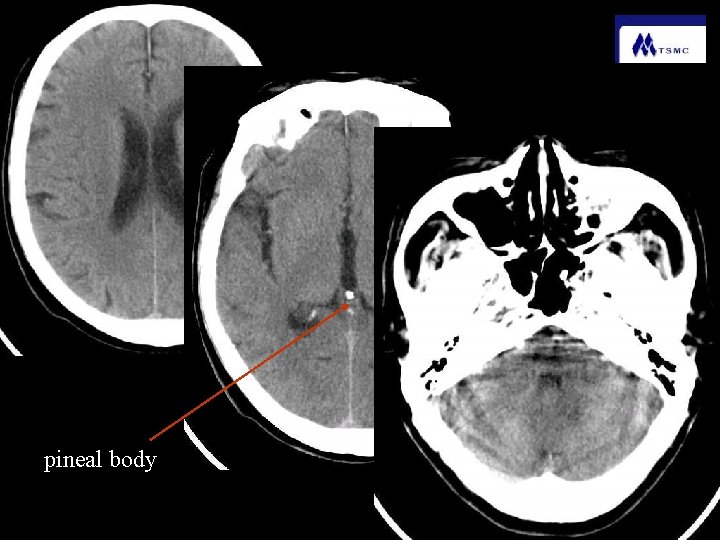

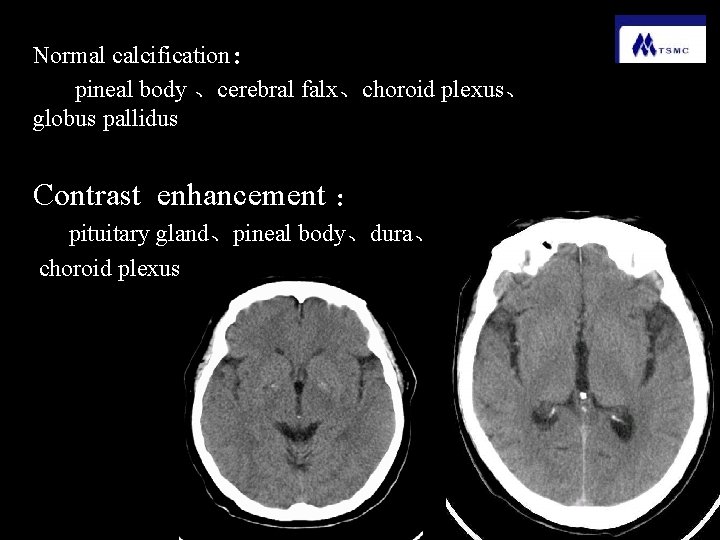

Normal calcification： pineal body 、cerebral falx、choroid plexus、 globus pallidus Contrast enhancement ： pituitary gland、pineal body、dura、 choroid plexus

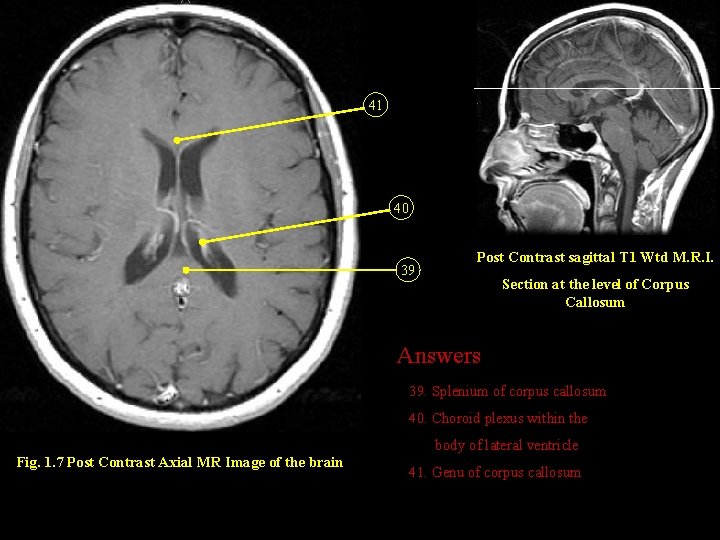

41 40 39 Post Contrast sagittal T 1 Wtd M. R. I. Section at the level of Corpus Callosum Answers 39. Splenium of corpus callosum 40. Choroid plexus within the body of lateral ventricle Fig. 1. 7 Post Contrast Axial MR Image of the brain 41. Genu of corpus callosum

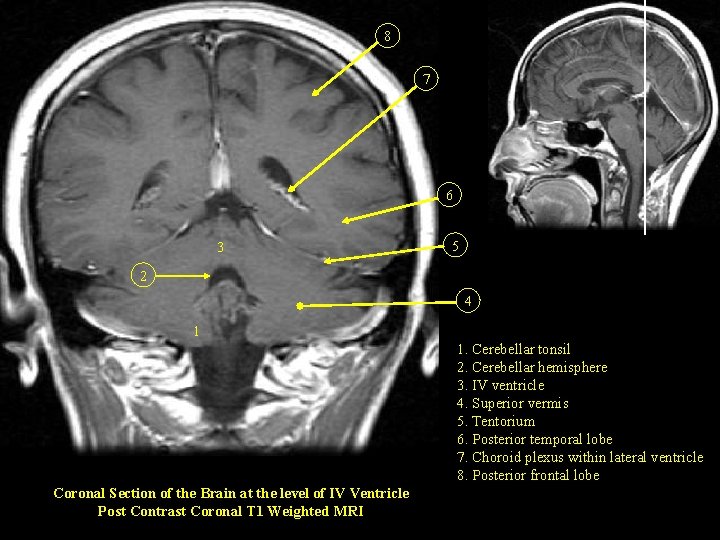

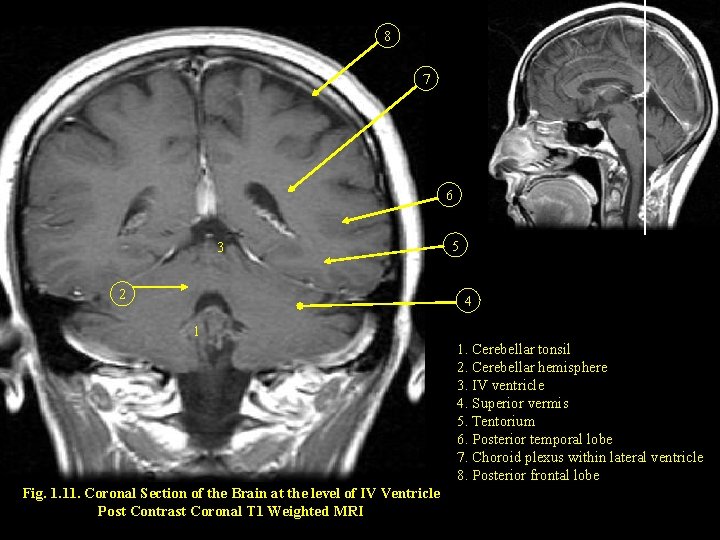

8 7 6 3 2 5 4 1 1. Cerebellar tonsil 2. Cerebellar hemisphere 3. IV ventricle 4. Superior vermis 5. Tentorium 6. Posterior temporal lobe 7. Choroid plexus within lateral ventricle 8. Posterior frontal lobe Fig. 1. 11. Coronal Section of the Brain at the level of IV Ventricle Post Contrast Coronal T 1 Weighted MRI

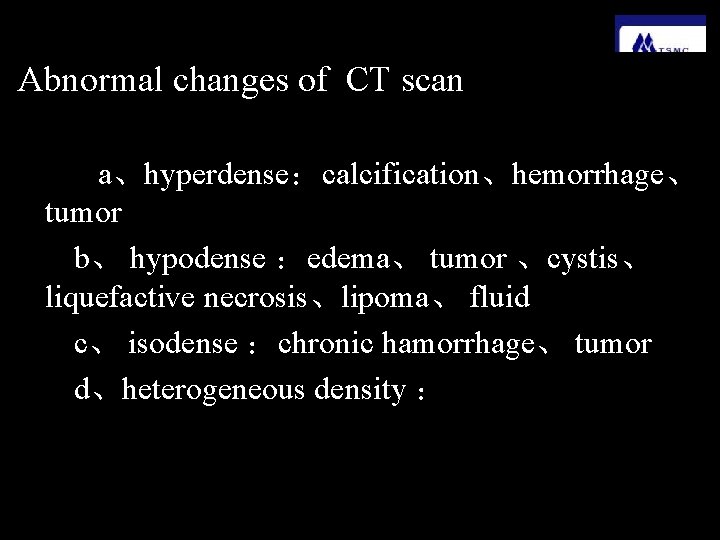

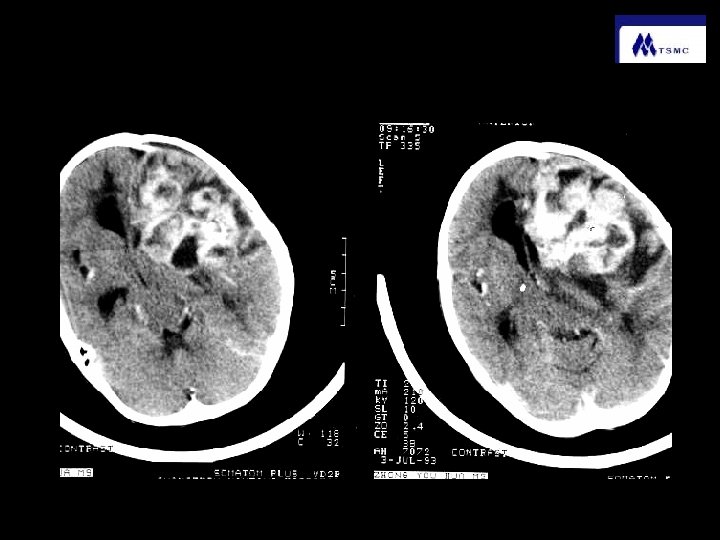

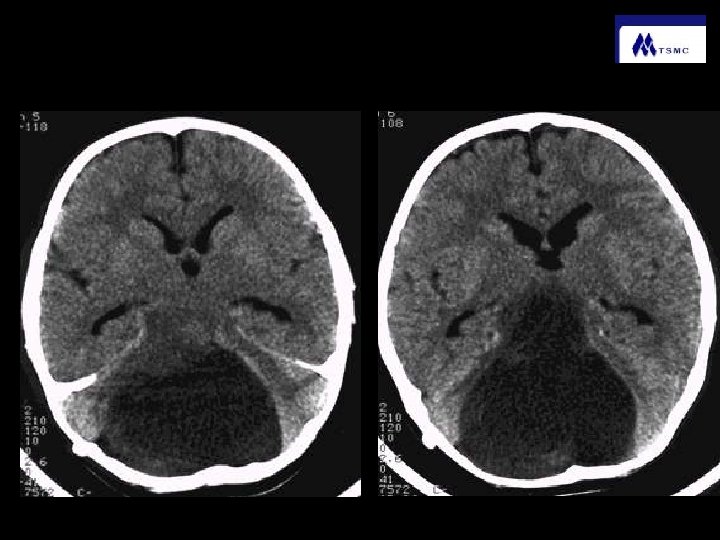

Abnormal changes of CT scan 　a、hyperdense：calcification、hemorrhage、 tumor　 b、 hypodense ：edema、 tumor 、cystis、 liquefactive necrosis、lipoma、 fluid　 c、 isodense ：chronic hamorrhage、 tumor d、heterogeneous density ：

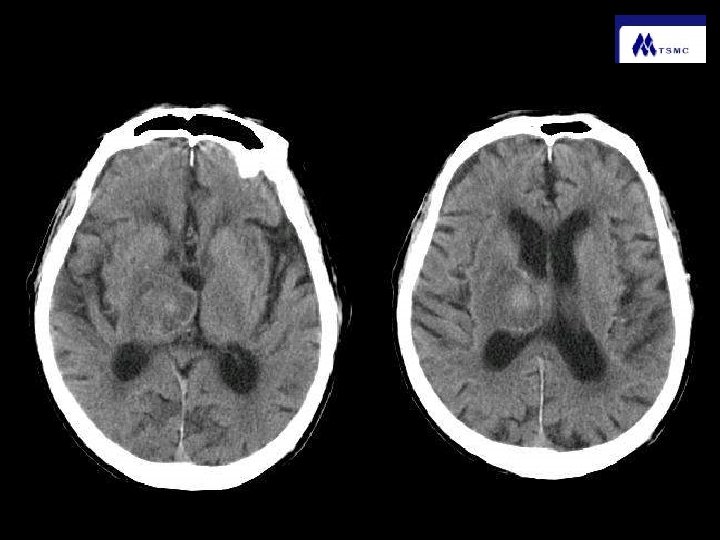

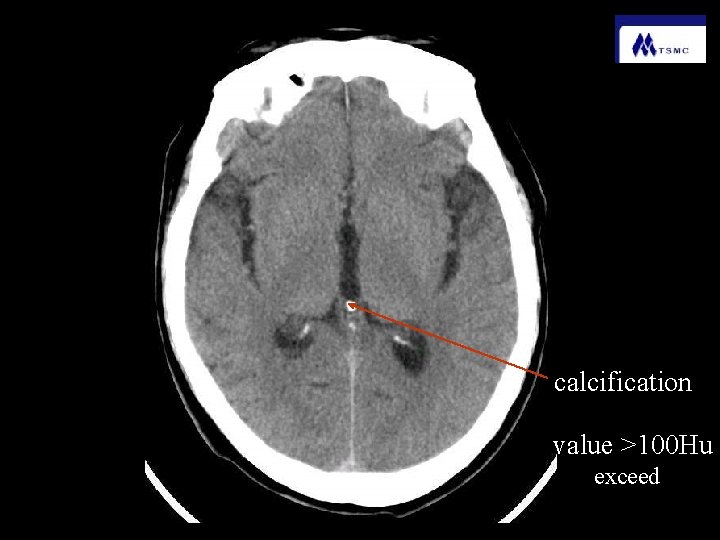

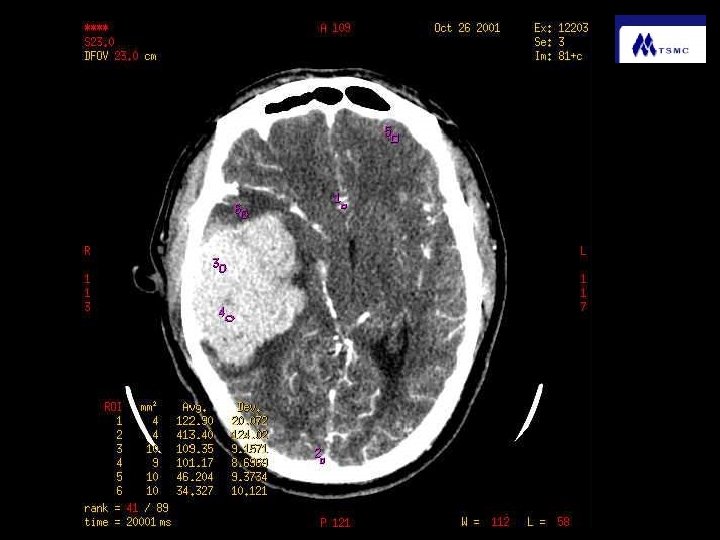

calcification value >100 Hu exceed

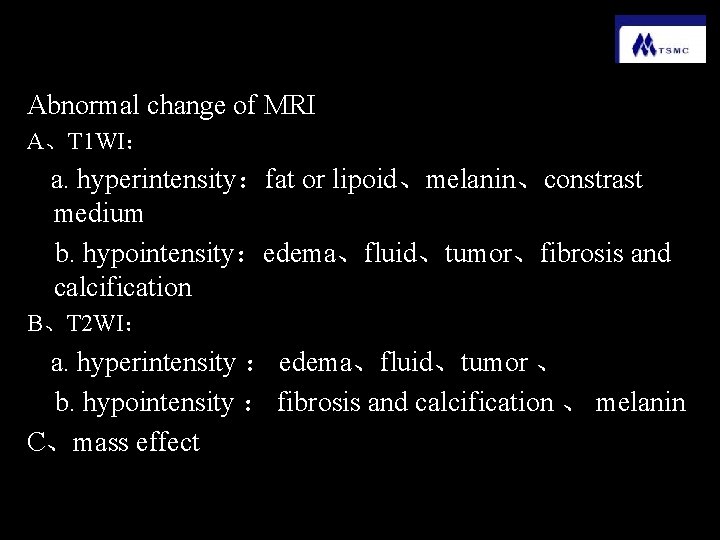

Abnormal change of MRI A、T 1 WI： 　a. hyperintensity：fat or lipoid、melanin、constrast medium 　b. hypointensity：edema、fluid、tumor、fibrosis and calcification B、T 2 WI： 　a. hyperintensity ： edema、fluid、tumor 、 　b. hypointensity ： fibrosis and calcification 、 melanin C、mass effect

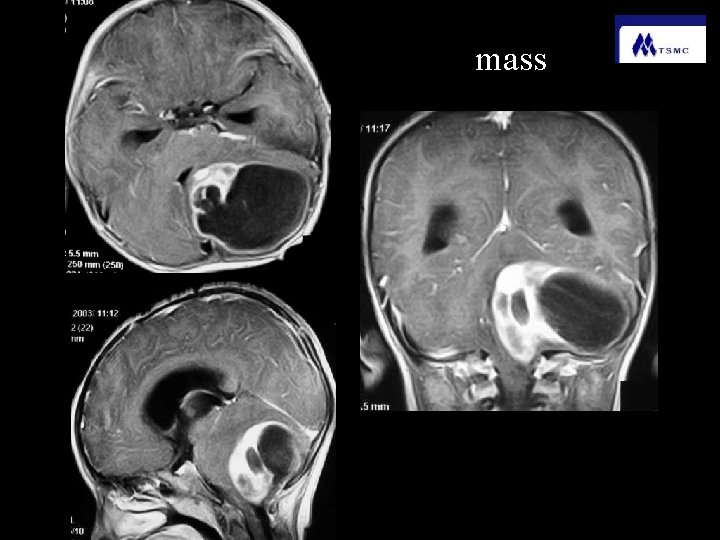

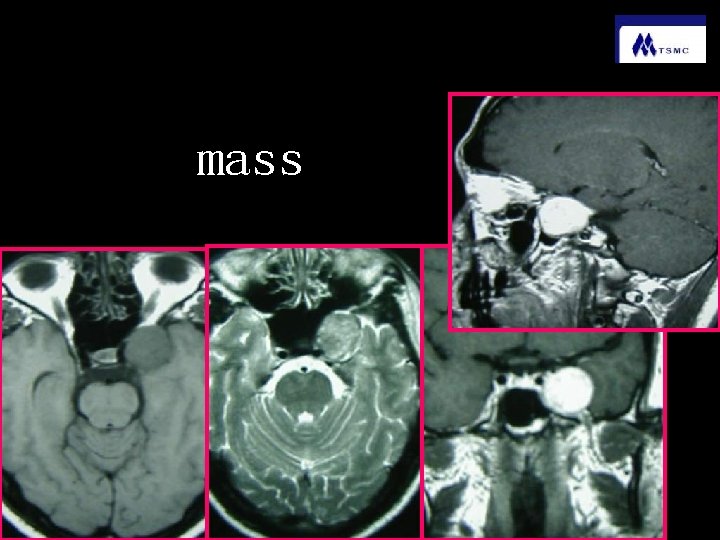

mass

mass

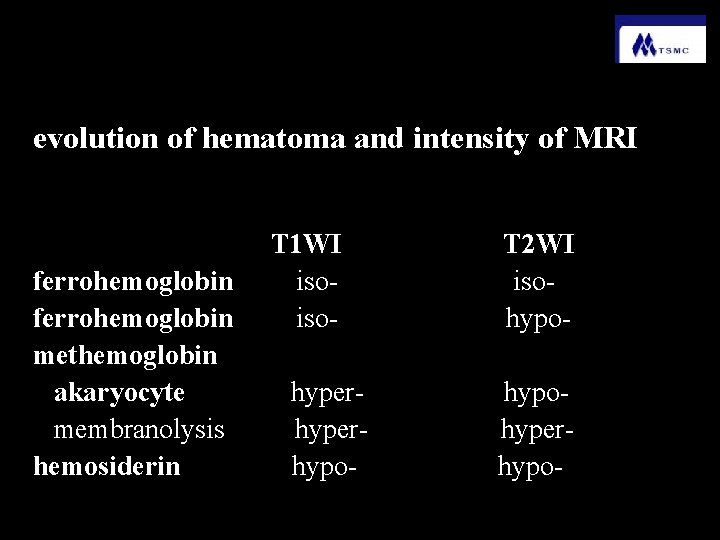

evolution of hematoma and intensity of MRI 　　　　　 T 1 WI　　　　 　T 2 WI ferrohemoglobin 　　iso-　　　　　　 isoferrohemoglobin 　　iso-　　　　　　hypomethemoglobin akaryocyte　　 hyper-　　　　　hypomembranolysis　 hyper- 　　　　 hyperhemosiderin 　　 hypo- 　

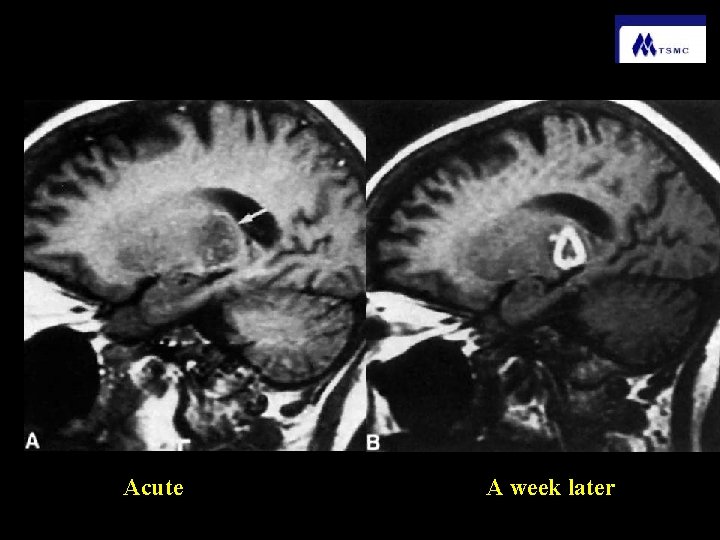

Acute A week later

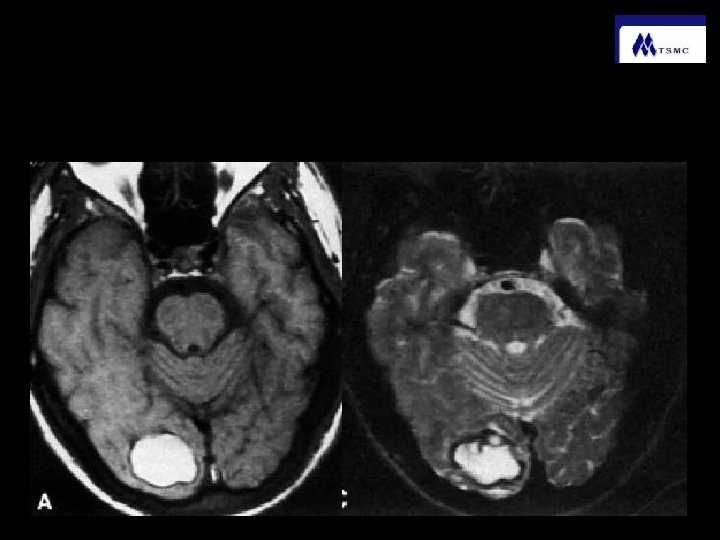

methemoglobin

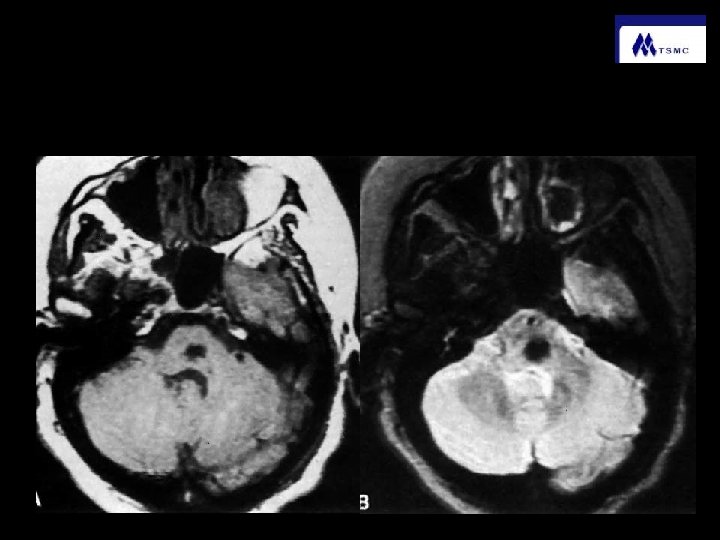

hemosiderin

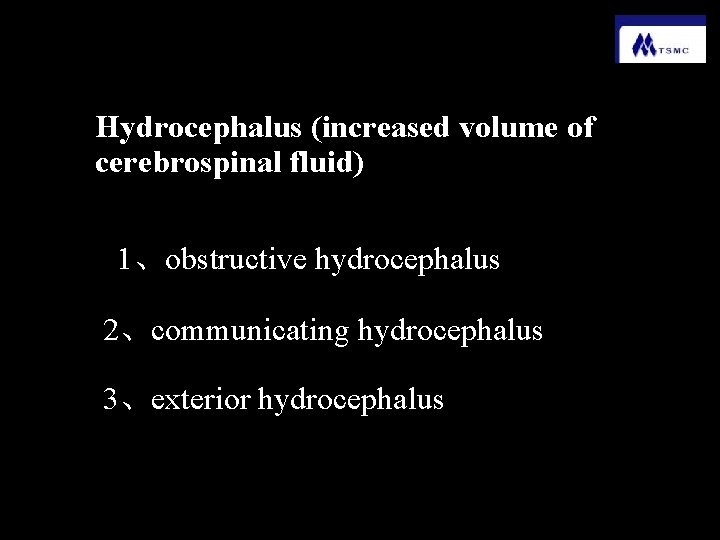

Hydrocephalus (increased volume of cerebrospinal fluid) 1、obstructive hydrocephalus 2、communicating hydrocephalus 3、exterior hydrocephalus

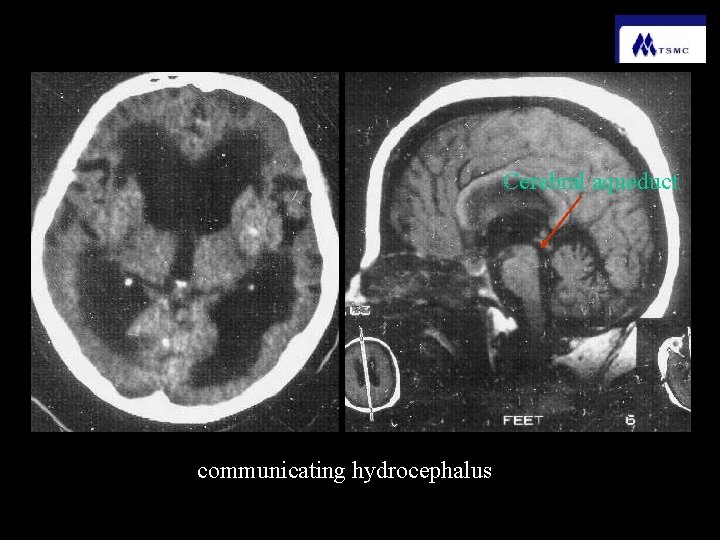

Cerebral aqueduct communicating hydrocephalus

obstructive hydrocephalus

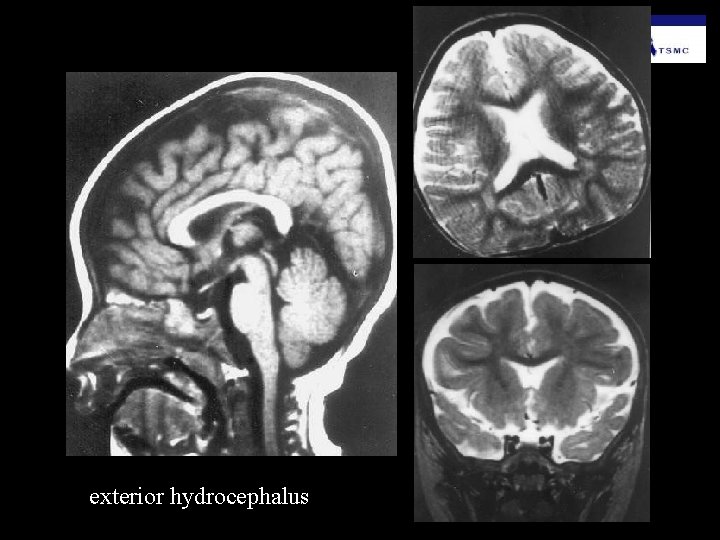

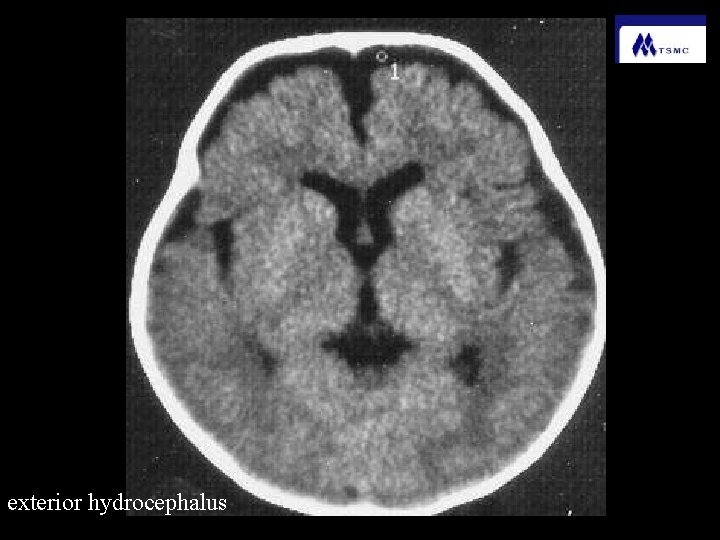

exterior hydrocephalus

exterior hydrocephalus

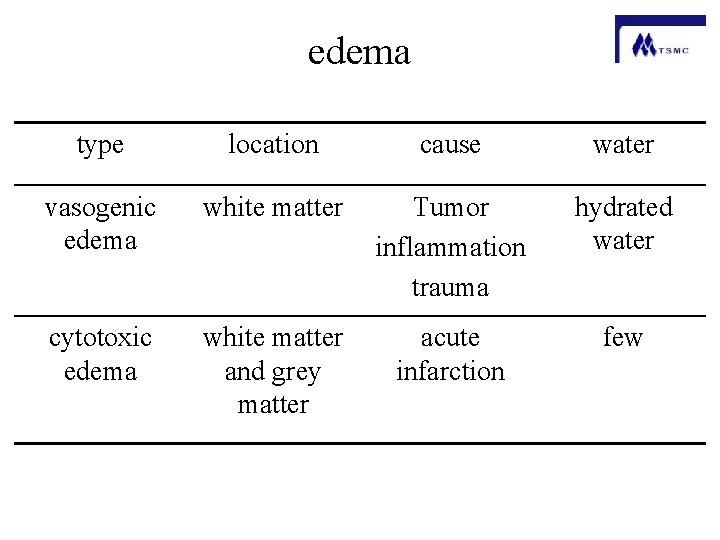

edema type location cause water vasogenic edema white matter Tumor inflammation trauma hydrated water cytotoxic edema white matter and grey matter acute infarction few

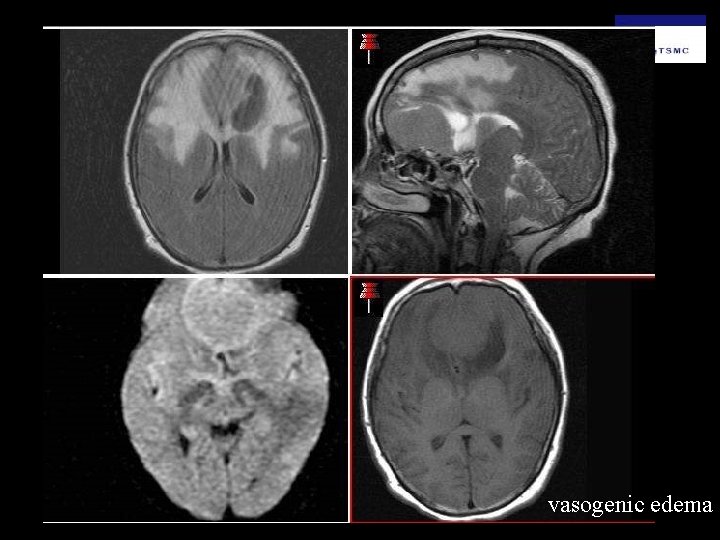

vasogenic edema

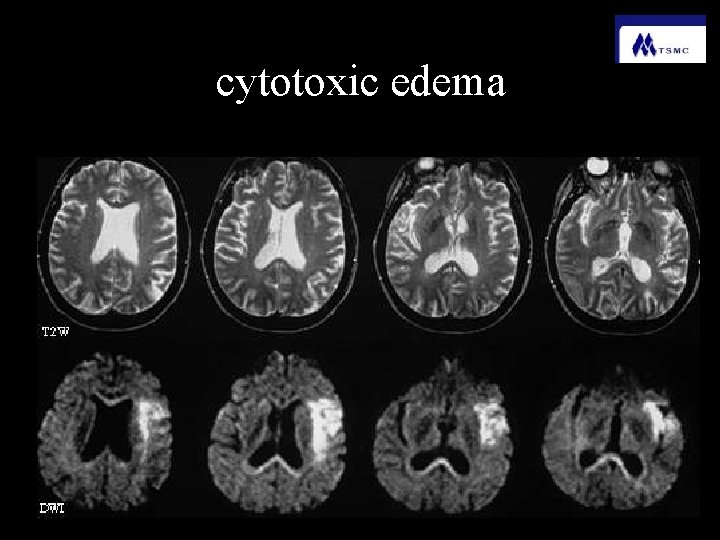

cytotoxic edema
