Why Place a Central Line? • When serial blood values are needed. – Avoids pain, trauma and bruising – Can get blood from a fractious cat without actually touching it – Makes repeated blood draws from difficult animals possible – Maintains integrity of the veins for easy placement of the next IV catheter
Why Place a Central Line? • When do we need serial values? – Diabetic ketoacidosis – Renal failure requiring diuresis – Liver failure – hypoproteinemia – “mean as a snake” diabetics who need a glucose curve – Hemolytic anemia
Why Place a Central Line? • When you need central venous access – Drugs that are caustic • Doxycycline IV • Diazepam CRI fro severe seizures – Total Parenteral Nutrition (TPN) – Partial Parenteral Nutrition (PPN) – Monitoring Central Venous Pressure (CVP) • CVP = pressure in the RA • When giving IV fluids to dogs with right congestive heart failure
Why Place a Central Line? • Central Venous Pressure – Normal • 5 -8 cm H 20 in dogs • 2 -3 cm H 20 in cats – Increased CVP can result in signs of right heart failure • >10 cm in dogs • >8 cm in cats – Trends are probably more important than absolute values – Approximated by caval bounce on AFAST® DH view
Why Place a Central Line? • Central Venous Pressure – Approximated by caval bounce on AFAST® DH view – Normal caval bounce is 50% – Poor filling with less bounce is “flat” – Distension without bounce is “fat”
Why Place a Central Line? • Central Venous Pressure
Videos Medial saphenous in a cat Through the needle catheter w/ clam shell
Stephen Garner Nacogdoches TX
Videos Jugular vein in the dog Seldinger Guidewire Technique
Videos Jugular vein in the dog Seldinger Guidewire Technique • • J 1040 – 20 g x 8 cm J 1040 A – 20 g x 13 cm J 1041 – 18 g x 8 cm J 1041 A – 18 g x 13 cm J 1042 – 16 g x 13 cm J 1042 A – 16 g x 20 cm J 1043, J 1043 A Also Double Lumen and Triple Lumen caths
Videos Jugular vein in the dog Tear Away Introducer Technique
Videos Jugular vein in the dog Tear Away Introducer Technique • • J 1437 – 20 g x 5 inch J 1437 A – 18 g x 6 cm J 1437 B – 18 g x 8 cm J 1437 C – 18 g x 12 cm J 1437 D – 16 g x 8 cm J 1437 E – 16 g x 12 cm Also Double Lumen caths
Around the Needle Catheter • Angio. Cath® style • Standard Teflon large bore IV catheter – 14 -18 gauge x 3 -4 inches – Smaller for kittens, puppies, toy breeds • J 0457 A – Pebax® 14 g x 5. 5 inch • J 0457 B – Pebax® 10 g 5. 5 inch
Around the Needle Catheter • Angio. Cath® style • • • J 0458 A – polyurethane 14 g x 5. 25 inch J 0458 B – polyurethane 16 g x 5. 25 inch J 0458 C – polyurethane 16 g x 3 inch J 0458 D – polyurethane 14 g x 3. 5 inch J 0458 E – polyurethane 12 g x 5. 25 inch J 0458 F – polyurethane 18 g x 2. 5 inch
Around the Needle Catheter • Place the pet in lateral or dorsal recumbency and prep the jugular furrows • If you wish, make a stab incision through skin, just medial or lateral to one of the jugular veins
Around the Needle Catheter – This helps if dehydrated or hypovolemic • Pass the stylet with catheter into the jugular vein – Attach syringe to minimize blood spillage
Around the Needle Catheter • Advance catheter into the jugular vein
Around the Needle Catheter
Around the Needle Catheter • Attach extension set, so you can disconnect without disturbing bandage • I prefer luer lock extension sets J 0467 S, J 0467 Z J 1317 C
Around the Needle Catheter • Tape or suture catheter to the skin • Recover from sedation • Bandage – – Antibiotic dressing Cast padding Roll gauze Vetrap
Shielded Through Needle Cath • Intracath – 16 -22 G • Venocath – 17 G or 19 G
Shielded Through Needle Cath • J 4286340 – 20 g x 32 cm • J 4152557 – 18 g x 45 cm • J 4153359 – 16 g x 32 cm
Shielded Through Needle Cath • Three layers: – Guide wire stylet (inner most) – Polypropylene catheter – Needle stylet (outer most) • Needle Guard – Clamps around the needle like a clamshell, to keep the needle from cutting the catheter in half
Shielded Through Needle Cath • Occlude jugular vein at thoracic inlet • Insert the needle stylet into the vein – With the catheter and bag attached (below) – Or with the catheter and bag detached
Shielded Through Needle Cath • When you are in the vein: – See “flash” up the catheter if it is attached – Blood out the needle stylet if not attached
Shielded Through Needle Cath • Stop occluding the jugular vein – Decreases flow of blood out the hub if bag not attached • Thread the catheter by “milking it” through the sterile bag, or threading it into the open needle hub – Thread in at least 3 -4 inches in a small dog or cat – to the 4 th ICS – All the way in if dog is big enough – To the right atrium, or least well into the thoracic inlet
Shielded Through Needle Cath • Place a 4 x 4 gauze at the venipuncture site an apply gentle pressure • Withdraw the needle, leaving the catheter in place. • Remove the protective bag • Seat the catheter hub firmly into the needle stylet hub – I like to use a drop of tissue glue to secure them together – If there is movement here, the catheter can be sheared off the hub
Shielded Through Needle Cath • Apply the needle guard – Secure closed with white tape • Remove the wire stylet – MAKE SURE the cath & needle hubs are attached (b attached to c) to each other before the stylet (a) is removed – If not, you can remove the catheter (b) with the stylet (a) by mistake
Shielded Through Needle Cath • attach a 10 -12 cc syringe filled with saline or LRS – Flush to make sure the catheter is patent – Aspirate to make sure catheter is patent – flush and aspirate about every minute, to make sure catheter is still patent and not kinked, while wrapping
Securing the Catheter • The external part of the catheter should be placed just behind the ear
Securing the Catheter • Place a white tape butterfly on the needle guard – Secures the needle guard closed – Used to suture the guard to the skin – I don’t use the suture holes in the needle guard – Vetafil 2 -0 or other Nonabsorbable suture
Securing the Catheter
Securing the Catheter • Place a small square of gauze with antibiotic ointment over the venipuncture site – Change this every 2 -3 days
Securing the Catheter • Place ¼-1/2 inch padding between the needle guard and the skin – Cotton, gauze or cast padding - prevents sores – Be careful not to kink the catheter here
Securing the Catheter free flow kink
Securing the Catheter • REMEMBER, you are flushing and aspirating every minute or so as you go, with syringe full of saline attached to the catheter hub • Secure catheter to the neck with full circle white tape – Clip a “bridle path” in the fur if needed
Securing the Catheter • Attach the catheter hub to the outer layer of roll gauze with “split” white tape
Securing the Catheter • Outer layer of Vetrap – Cut hole over catheter – Can completely cover catheter with another loop of Vetrap when not in use.
Securing the Catheter • Attach the catheter hub to the outer layer of Vetrap with “split” white tape
Securing the Catheter • These photos show bandaging while anesthetized. • If sedation is required, I prefer to tape while sedated, then finish the bandage after awake and sitting sternal • This prevents a bandage that is too tight
Kitty and Kanine Kollars – – – – J 1085 X – xsmall – 4 -7 lbs – 4 -7 inch neck J 1085 – petite – 6 -9 lbs – 8 -9 inch neck J 1085 A – small – 10 -15 lbs – 10 -12 inch neck J 1085 B – medium – 16 -50 lbs – 12 -16 inch neck J 1085 C – large – 51 -90 lbs – 17 -19 inch neck J 1085 D – xlarge – 91 -120 lbs – 20 -14 inch neck J 1085 P – 24 protector pads
Susan Johnson Mc. Dade TX
Taking Blood Samples • • Disconnect IV fluid line and cap Flush the catheter with heparinized 3 -5 cc saline Gently withdraw 5 -6 cc of blood (dump syringe) Gently withdraw needed sample – All values except platelets will be accurate • Gently replace 5 -6 cc of blood in “dump syringe” • Flush the catheter with 3 -5 cc saline

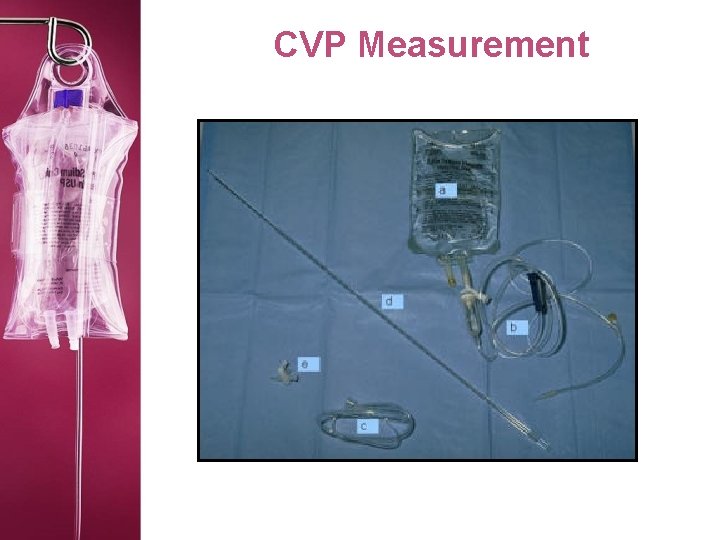

CVP Measurement • Equipment Needed – – – Bag of fluids Fluid administration set IV extension set Three-way stopcock Manometer If you don’t have a manometer, you can tape IV tubing to a ruler with cm marks on it • Flush patient’s IV catheter • Fill the IV extension set with fluid • Connect the IV extension set – To patient jugular catheter at one end – To 3 -way stopcock at the other end (side) – Stopcock off to patient
CVP Measurement
CVP Measurement • Connect manometer to 3 -way stop-cock (top) – This connection is the weakest point – Support the manometer when turning the stopcock • Connect the IV set and fill the line with fluids – One end to the fluid bag (one side) – The other end to the stopcock (other side)
CVP Measurement • Turn the stopcock off to manometer, and make sure fluid flows freely into the patient • Turn stopcock off to patient, and fill manometer with fluid – to at least 15 -20 cm – Make sure no air bubbles, which could cause vapor lock
CVP Measurement • Patient should be in sternal or lateral recumbency • Place the -0 - on the manometer at the level of the right atrium – Midway between dorsal and ventral If in lateral recumbency
CVP Measurement • Turn stopcock off to fluids, and allow fluid to fall until it rests at the patient’s CVP – The meniscus will oscillate up and down as the heart beats and the patient breathes
