CENG 334 Introduction to Operating Systems Filesystems and

CENG 334 Introduction to Operating Systems Filesystems and their interface Topics: Erol Sahin Dept of Computer Eng. Middle East Technical University Ankara, TURKEY Acknowledgements: The following are adapted from slides that were originally prepared by Matt Welsh, Andrew Tanenbaum (MOS 3 e) and others that I may have lost track of. I search the web for the best content out there and try to improve the slides both in form and content as much as possible as well as to complement them with my own. If your slides are among them, and not acknowledged, feel free to drop me an email. If you object to their use as such, let me know and I’ll exclude them. . 1

Filesystems A filesystem provides a high-level application access to disk As well as CD, DVD, tape, floppy, etc. . . Masks the details of low-level sector-based I/O operations Provides structured access to data (files and directories) Caches recently-accessed data in memory Adapted from Matt Welsh’s (Harvard University) slides. 2

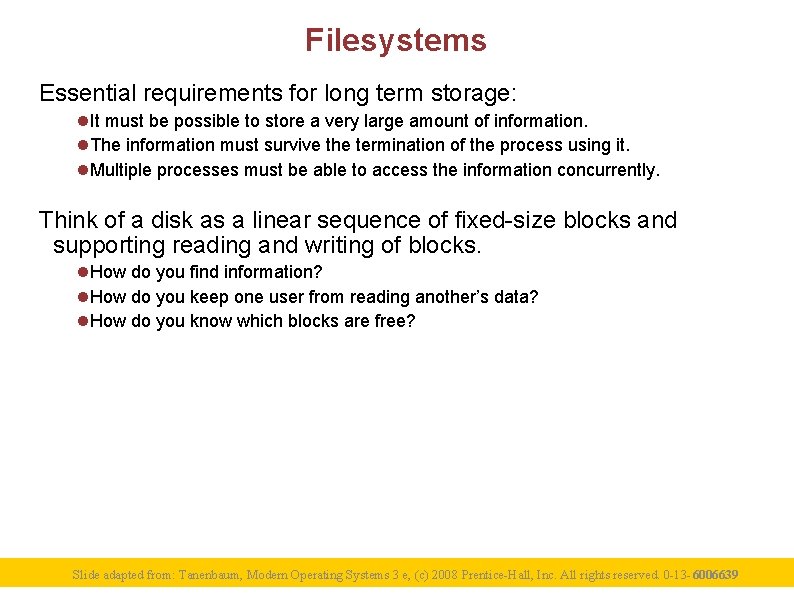

Filesystems Essential requirements for long term storage: It must be possible to store a very large amount of information. The information must survive the termination of the process using it. Multiple processes must be able to access the information concurrently. Think of a disk as a linear sequence of fixed-size blocks and supporting reading and writing of blocks. How do you find information? How do you keep one user from reading another’s data? How do you know which blocks are free? Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 3

Filesystem Operations Filesystems provide a standard interface to files and directories: Create a file or directory Delete a file or directory Open a file or directory – allows subsequent access Read, write, append to file contents Add or remove directory entries Close a file or directory – terminates access What other features do filesystems provide? Accounting and quotas – prevent your classmates from hogging the disks Backup – some filesystems have a “$HOME/. backup” containing automatic snapshots Indexing and search capabilities File versioning Encryption Automatic compression of infrequently-used files Adapted from Matt Welsh’s (Harvard University) slides. 4

File Concept File is a logical storage unit abstraction provided by the operating system. Files are mapped by the operating system onto physical devices (disks, tapes, CDs, etc. . ) From the user point of view, file is the only unit through which data can be written onto storage devices. The information in a file as well as the attributes of the file is determined by its creator. Data Numeric/character/binary Program When a file is created, it becomes independent of the process, the user and even the system that created it. 5

File Operations OS provides a number of minimal operations on a file. Create Allocate space and then make an entry in the directory Write Requires name of the file, and the information to be written Search the directory to find file’s location. Keep a write-pointer to the location in the file Update the pointer after each write Read Requires name of the file, and the information to be read Search the directory to find file’s location. Keep a read-pointer to the location in the file Update the pointer after each read Reposition within file Change the value of the file-position pointer Delete Deallocate the space and remove the entry Truncate Change the allocated space to zero, and deallocate its space 6

File Attributes Name – only information kept in human-readable form Identifier – unique tag (number) identifies file within file system Type – needed for systems that support different types Location – pointer to file location on device Size – current file size Protection – controls who can do reading, writing, executing Time, date, and user identification – data for protection, security, and usage monitoring Information about files are kept in the directory structure, which is maintained on the disk 7

File Types – Name, Extension The file type provides information on what can be done with that file to the OS. Typically implemented as the extension of the filename. In UNIX systems, a crude “magic number” is stored at the beginning of some files to indicate the type of the file (executable/shell script. . ) In Mac OS X, each file has a type TEXT/APPL. Each file also has a creator attribute that is set to the program that created it. 8

File Structure None - sequence of words, bytes This is the structure supported by UNIX systems Simple record structure Lines Fixed length Variable length Complex Structures Formatted document Relocatable load file Can simulate last two with first method by inserting appropriate control characters Who decides: Operating system Program 9

Access Methods Sequential Access read next write next reset no read after last write (rewrite) Direct Access (available when the file is made up of fixed-length logical records, useful in databases) read n write n position to n read next write next rewrite n n = relative block number 10

Open Files Most file operations require searching the directory for the entry associated with the file. To avoid this constant search, most systems require that file be “open”ed, before its use. open(Fi) – search the directory structure on disk for entry Fi, and move the content of entry to memory close (Fi) – move the content of entry Fi in memory to directory structure on disk Several pieces of data are needed to manage open files: File pointer: pointer to last read/write location, per process that has the file open File-open count: counter of number of times a file is open – to allow removal of data from open-file table when last processes closes it Disk location of the file: cache of data access information Access rights: per-process access mode information 11

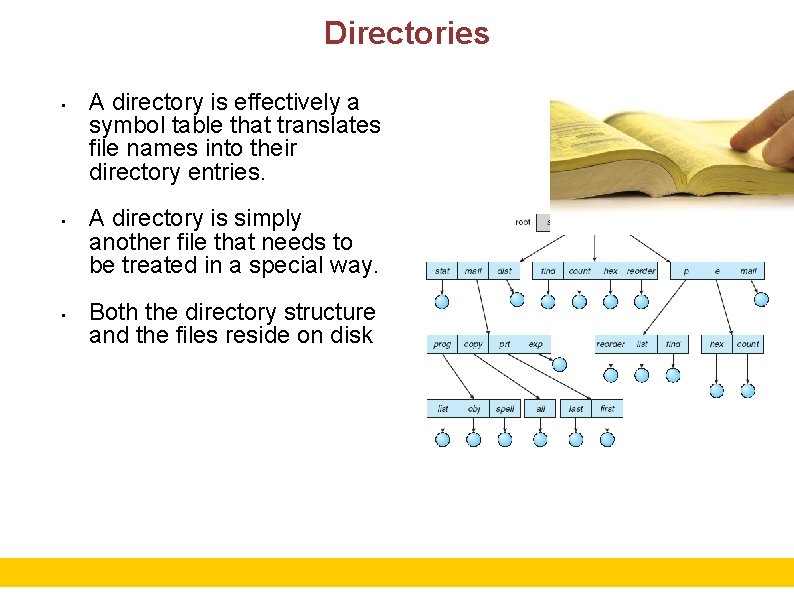

Directories • • • A directory is effectively a symbol table that translates file names into their directory entries. A directory is simply another file that needs to be treated in a special way. Both the directory structure and the files reside on disk 12

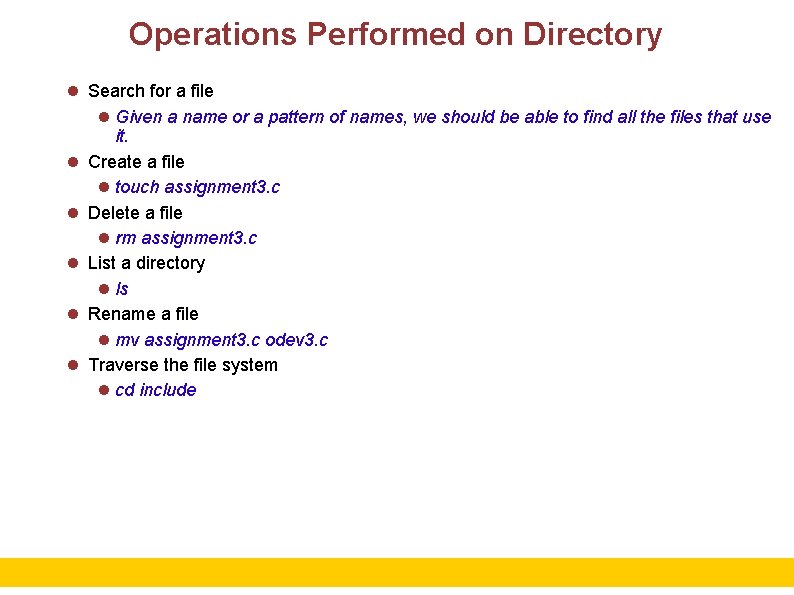

Operations Performed on Directory Search for a file Given a name or a pattern of names, we should be able to find all the files that use it. Create a file touch assignment 3. c Delete a file rm assignment 3. c List a directory ls Rename a file mv assignment 3. c odev 3. c Traverse the file system cd include 13

Organize the Directory (Logically) to Obtain Efficiency – locating a file quickly Naming – convenient to users Two users can have same name for different files The same file can have several different names Grouping – logical grouping of files by properties, (e. g. , all Java programs, all games, …) 14

Tree-Structured Directories A directory is simply another file that needs to be treated in a special way. 15

Acyclic-Graph Directories Have shared subdirectories and files What would happen if we rm /dict/count? 16

Access Lists and Groups Mode of access: read, write, execute Three classes of users RWX a) owner access 7 RWX b) group access 6 RWX c) public access 1 => 1 1 0 => 0 0 1 Ask manager to create a group (unique name), say G, and add some users to the group. For a particular file (say game) or subdirectory, define an appropriate access. owner chmod group 761 public game Attach a group to a file chgrp G game 17

CENG 334 Introduction to Operating Systems Filesystem implementation Topics: • File implementation • Directory implementation Erol Sahin Dept of Computer Eng. Middle East Technical University Ankara, TURKEY URL: http: //kovan. ceng. metu. edu. tr/~erol/Courses/CENG 334 18

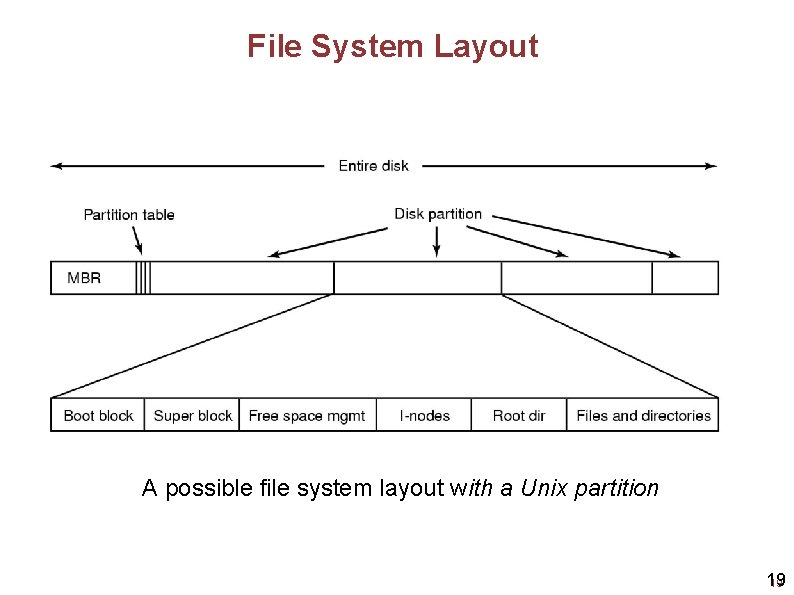

File System Layout A possible file system layout with a Unix partition 19 19

Disk Space Organization Disk can be partitioned Each partition can have a different OS and/or different file system One partition can be swap space for main memory First block of disk has master boot record specifying primary partition Each partition has Boot block (loads OS in kernel space) Superblock (contains key info about file system which is read into memory at boot time) Free space management List of I-nodes (or other data structure) giving info about all files Directories and Files 20 20

Implementing Files 21

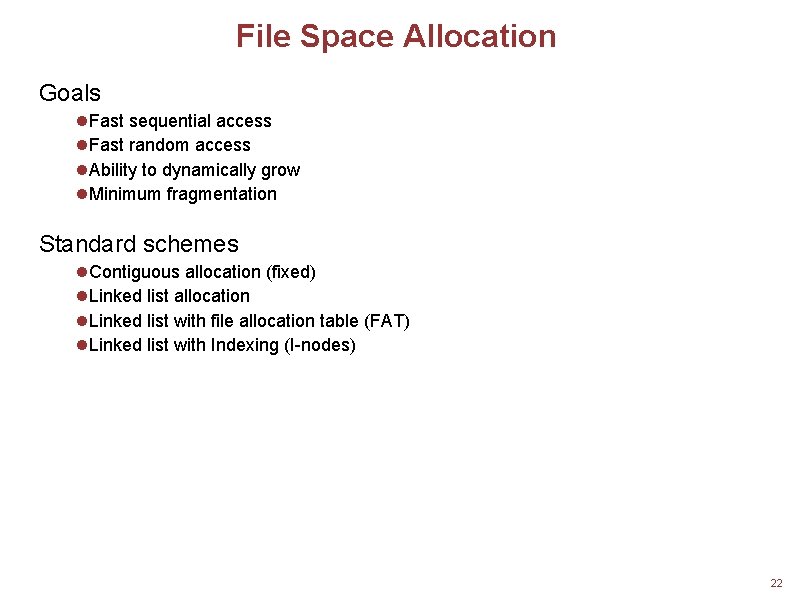

File Space Allocation Goals Fast sequential access Fast random access Ability to dynamically grow Minimum fragmentation Standard schemes Contiguous allocation (fixed) Linked list allocation Linked list with file allocation table (FAT) Linked list with Indexing (I-nodes) 22

Contiguous Allocation (a) Contiguous allocation of disk space for 7 files. (b) The state of the disk after files D and F have been removed. Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 23

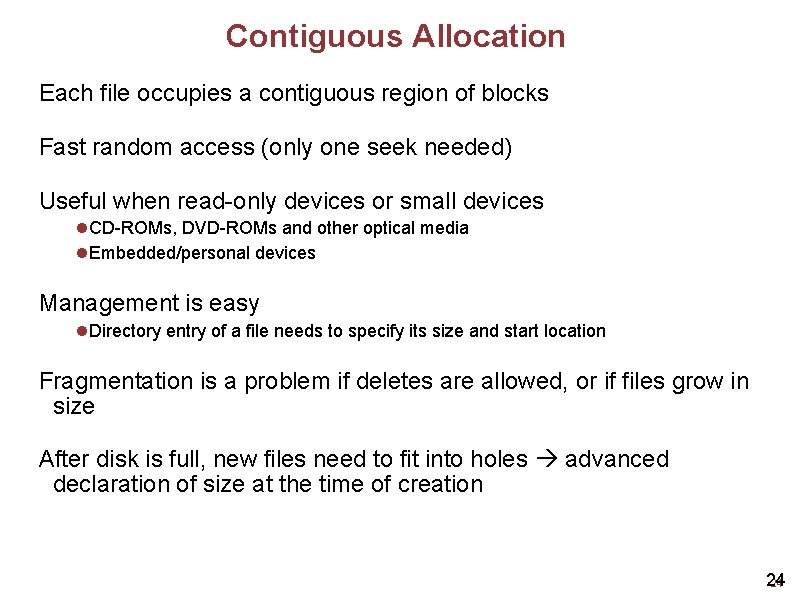

Contiguous Allocation Each file occupies a contiguous region of blocks Fast random access (only one seek needed) Useful when read-only devices or small devices CD-ROMs, DVD-ROMs and other optical media Embedded/personal devices Management is easy Directory entry of a file needs to specify its size and start location Fragmentation is a problem if deletes are allowed, or if files grow in size After disk is full, new files need to fit into holes advanced declaration of size at the time of creation 24 24

Linked List Allocation Storing a file as a linked list of disk blocks. Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 25

Linked List Allocation Natural choice: maintain a linked list of blocks that contain each file Directory entry of a file points to first block, and each block begins with a pointer to next block No external fragmentation Speed of random access is slow Accessing nth block requires n disk accesses, i. e. n-1 accesses for pointers Data size in a block is no longer power of 2 because of pointer storage 26 26

Linked List Allocation with FAT Linked list allocation using a file allocation table in main memory. Will be discussed more in detail in FAT. Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 27

Linked List with FAT So pointers are trouble, don’t store them in blocks! Solution: Maintain a File Allocation Table in main memory FAT is an array indexed by blocks Each array entry is a pointer to next block Accessing nth block would still require traversing the chain of pointers, however, they are in main memory and no disk I/O is needed Problem: the entire FAT must be in memory, and as disk size increases, so does FAT 20 GB disk with 1 k block size needs 20 million entries, which requires entry sizes of minimum 3 bytes, which is results a FAT of 60 MB 28 28

I-nodes (Unix*) for File Indexing Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 29

Indexing with i-nodes Each file has an associated fixed length record called an i-node maintains all attributes of the file i-node also keeps addresses of fixed number of blocks Additional levels of indexing possible to accommodate larger files last address reserved for pointer to another block of addresses Space required is much less than FAT only i-nodes of open files need to be in memory an array of i-node numbers, whose size is proportional to the max # of open files allowed by the system, not disk size Time required to access specific block can vary 30 30

Implementing Directories 31

Directories A directory entry provides the info needed to find the disk data blocks of a file disk address of first block and size address of first block number of associated i-node File attributes can be stored in the directory entry (Windows) or in its i -node (Unix) File name and support of variable length and long file names (255 chars) 32 32

Implementing Directories (1) (a) (b) A simple directory containing fixed-size entries with the disk addresses and attributes in the directory entry. A directory in which each entry just refers to an i-node. Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 33

Sharing Files File system containing a shared file. Slide adapted from: Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 35

Sharing Files with Links Convenient solution to file sharing Hard link pointer to i-node added to the directory entries link counter in the i-node linked to incremented i-node can only be deleted (data addresses cleared) if counter goes down to 0, why? original owner can not free disk quota unless all hard links are deleted Soft link (symbolic) new special file created of type LINK, which contains just the path name new file also has its own i-node created How about the shortcuts in Windows? 36 36

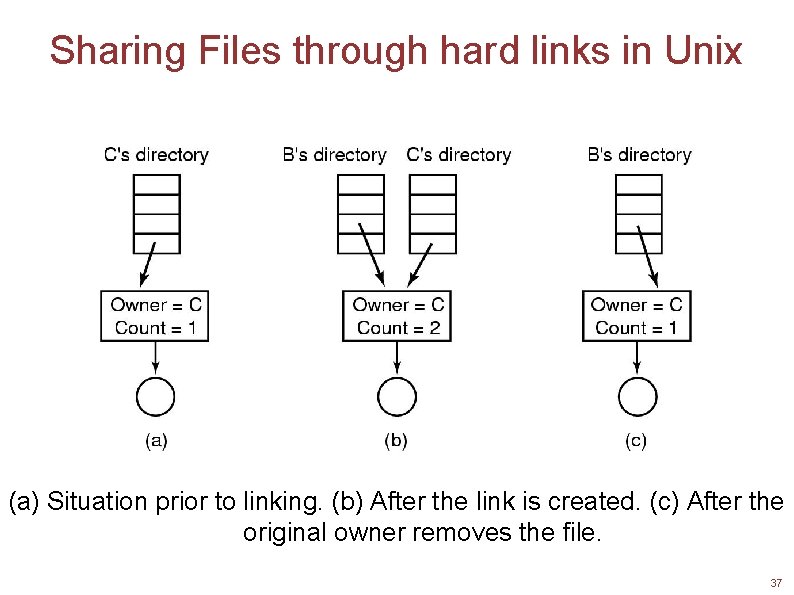

Sharing Files through hard links in Unix (a) Situation prior to linking. (b) After the link is created. (c) After the original owner removes the file. 37

Keeping track of Free Space 38

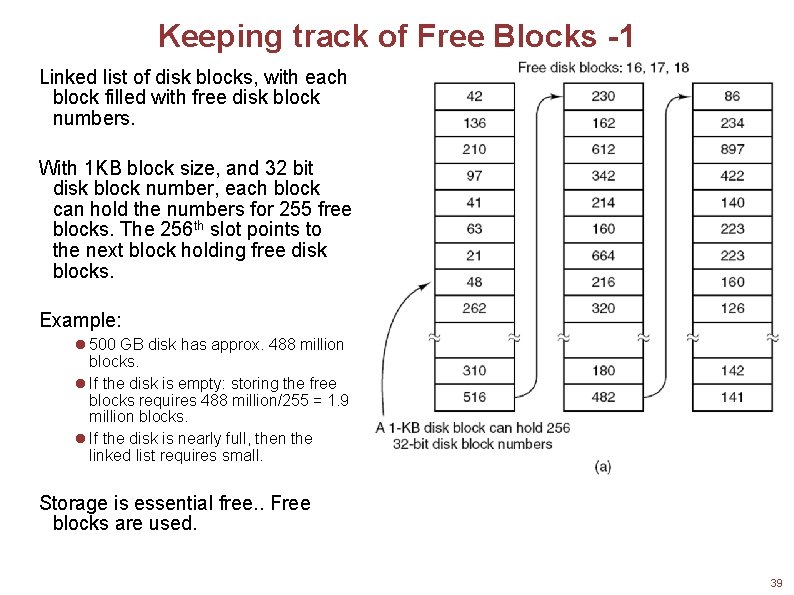

Keeping track of Free Blocks -1 Linked list of disk blocks, with each block filled with free disk block numbers. With 1 KB block size, and 32 bit disk block number, each block can hold the numbers for 255 free blocks. The 256 th slot points to the next block holding free disk blocks. Example: 500 GB disk has approx. 488 million blocks. If the disk is empty: storing the free blocks requires 488 million/255 = 1. 9 million blocks. If the disk is nearly full, then the linked list requires small. Storage is essential free. . Free blocks are used. 39

Cont’d The free list method can be enhanced. . Instead of keeping track of each free block, we can keep track of consecutive free blocks represented by: The address of the first free block The count of free blocks In the free list method, only one block of pointers need to be stored in the memory. When it runs out, another one can be brought into the memory. 40

Keeping track of Free Blocks -2 One bit for keeping the state of each block. 1 : free blocks 0 : allocated blocks 500 GB disk, 1 KB blocks 488 million bits = 60000 1 KB blocks For an empty disk: Less space than linked list method, since we use 1 -bit instead of 32 -bits for each free block 43

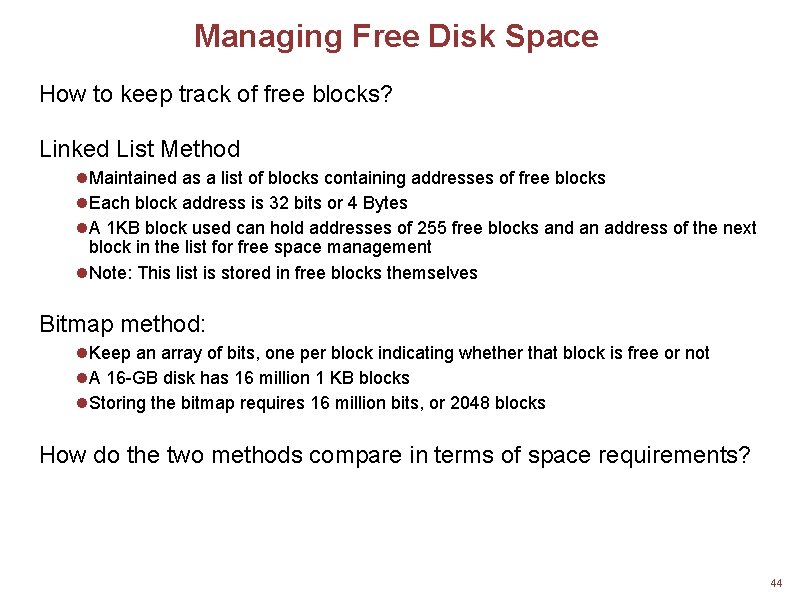

Managing Free Disk Space How to keep track of free blocks? Linked List Method Maintained as a list of blocks containing addresses of free blocks Each block address is 32 bits or 4 Bytes A 1 KB block used can hold addresses of 255 free blocks and an address of the next block in the list for free space management Note: This list is stored in free blocks themselves Bitmap method: Keep an array of bits, one per block indicating whether that block is free or not A 16 -GB disk has 16 million 1 KB blocks Storing the bitmap requires 16 million bits, or 2048 blocks How do the two methods compare in terms of space requirements? 44

CENG 334 Introduction to Operating Systems Filesystems – Case studies Topics: FAT UNIX V 7 Erol Sahin Dept of Computer Eng. Middle East Technical University Ankara, TURKEY 45

FAT (MS-DOS) Filesystems Originally invented as a method for storing data on floppy disks, first version has single directory Later used by MS-DOS with supports for a hierarchical directory structure, and fixed disks as well as floppy disks Still supported in Windows NT, XP, Vista Its use has been shifted towards embedded devices such as Digital cameras MP 3 playes i. Pod (the default filesystem) Smartphones (not the main one but usually used for firmware and sdcard filesystems) 46

FAT Directories 32 -byte directory entries. Filenames are limited to 8+3 characters. . Smaller ones are left justified and padded with space. Attributes: read-only, archive, hidden, system Time represented with 2 bytes: correct upto +-2 second Date: Counts in three fields: day (5 bit), month (4 bits), year (7 bits). year-since-1980 hence Contains: Y 2108 problem! File size: 2 bytes. Theoretically 4 GB limit, but the limit is 2 GB due to other reasons. 10 bytes reserved for future use. 47

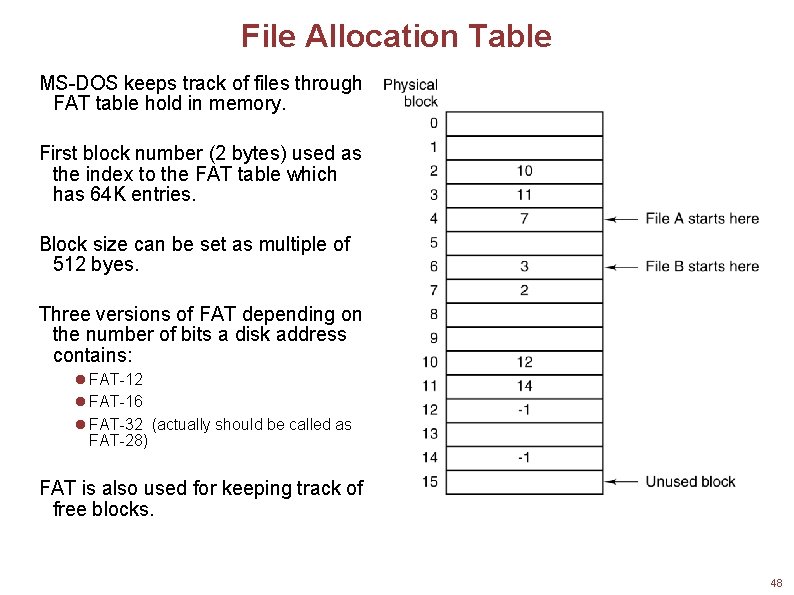

File Allocation Table MS-DOS keeps track of files through FAT table hold in memory. First block number (2 bytes) used as the index to the FAT table which has 64 K entries. Block size can be set as multiple of 512 byes. Three versions of FAT depending on the number of bits a disk address contains: FAT-12 FAT-16 FAT-32 (actually should be called as FAT-28) FAT is also used for keeping track of free blocks. 48

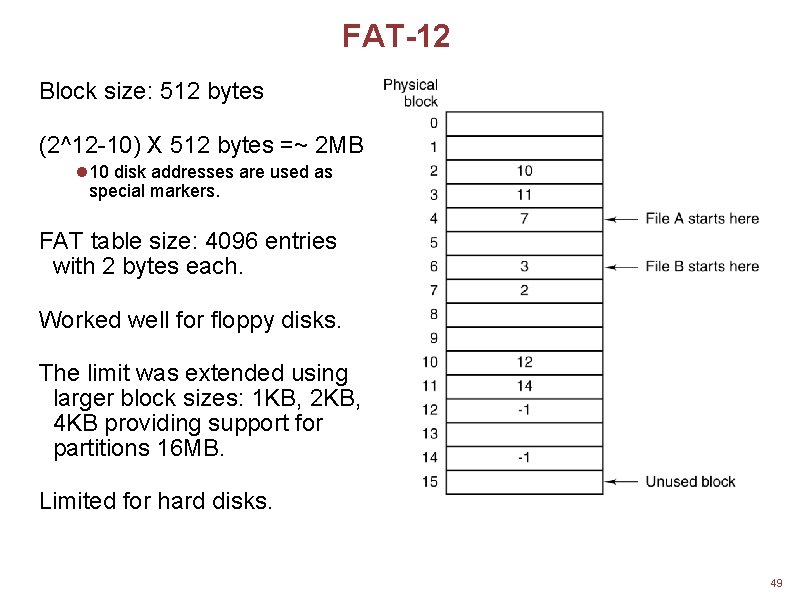

FAT-12 Block size: 512 bytes (2^12 -10) X 512 bytes =~ 2 MB 10 disk addresses are used as special markers. FAT table size: 4096 entries with 2 bytes each. Worked well for floppy disks. The limit was extended using larger block sizes: 1 KB, 2 KB, 4 KB providing support for partitions 16 MB. Limited for hard disks. 49

Block Sizes and FAT Sizes Disk Size FAT-12 FAT-16 FAT-32 FAT entry 12 bits 16 bits 28 bits 4086 65526 268435456 ~212 ~216 ~228 Block size 0. 5 KB to 4 KB 2 KB to 32 KB 4 KB to 32 KB FAT size 8 KB 128 KB 1 GB Max # of blocks 50

The MS-DOS File System Maximum partition size for different block sizes. The empty boxes represent forbidden combinations. Tanenbaum, Modern Operating Systems 3 e, (c) 2008 Prentice-Hall, Inc. All rights reserved. 0 -13 -6006639 51

More info about FAT https: //en. wikipedia. org/wiki/File_Allocation_Table https: //www. win. tue. nl/~aeb/linux/fs/fat-1. html 52

The Classic Unix File System Each disk partition has 4 Regions block 0: boot block 1: super block. Contains the size of the disk and the boundaries of the other regions i-nodes: list of i-nodes, each is a 64 -byte structure free storage blocks for the contents of files. The EXT 2 file system divides the logical partition that it occupies into Block Groups. Each group duplicates information critical to the integrity of the file system as well as holding real files and directories as blocks of information and data. This duplication is necessary should a disaster occur and the file system need recovering. 53

The Classic Unix File System There are four types of “files” in Unix File System Super block. Contains the size of the disk and the boundaries of the other regions Dentry: Directory entries i-nodes: list of i-nodes, each is a 64 -byte structure Files: 54

Super block for Ext 2 The Superblock contains a description of the basic size and shape of this file system. • • • Usually only the Superblock in Block Group 0 is read when the file system is mounted but each Block Group contains a duplicate copy in case of file system corruption. Magic Number Revision Level Mount Count and Maximum Mount Count Block Group Number Block Size Blocks per Group Number of Free Blocks Number of Free i-nodes First i-node 55

Directory Entry in Unix A directory is accessed exactly as an ordinary file. • It contains 16 byte entries consisting of a 14 -byte name and an i-number (index or ID of an i-node). The root of the file system hierarchy is at a known i-number. Each directory entry has file name and an i-node number i-node has all the attributes Restriction: File name size is bounded (14 chars) 56

Unix i-node - attributes Each i-node contains owner, protection bits, size, directory/file and 13 disk addresses. 57

i-node Each i-node contains owner, protection bits, size, directory/file and 13 disk addresses. The first 10 of these addresses point directly at the first 10 blocks of a file. If a file is larger than 10 blocks (5, 120 bytes), the 11 th points at a block for secondary indexing – single indirect block Second-level index block contains the addresses of the next 128 blocks of the file (70, 656 bytes) Two levels of indirection: 12 th entry (double indirect block) points at up to 128 blocks, each pointing to 128 blocks of the file (8, 459, 264 bytes) Three levels of indirection: 13 th address (triple indirect block) is for a three layered indexing of 1, 082, 201, 087 bytes. 58

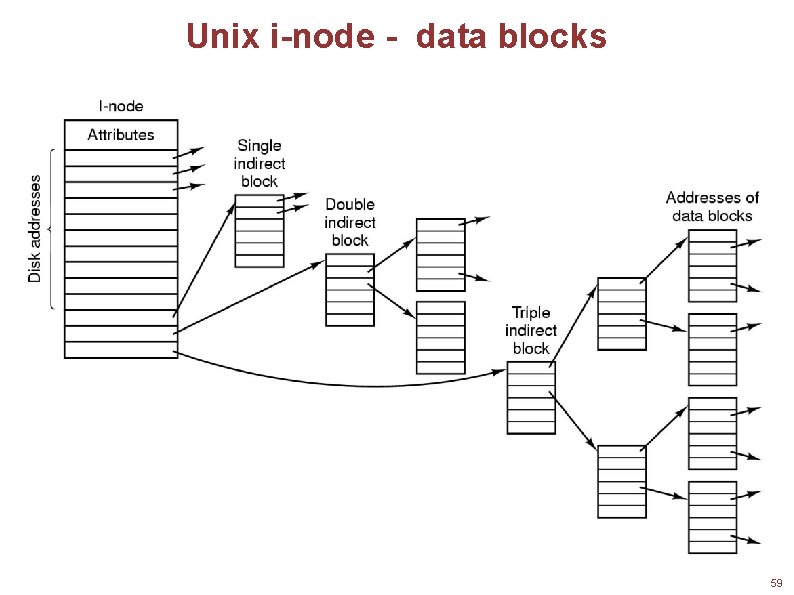

Unix i-node - data blocks 59

Traversing Unix Directory Structure Suppose we want to read the file /usr/ast/mbox Location of a i-node, given i-number, can be computed i-number of the root directory known, say, 2 Read in the i-node 2 from the disk into memory Find out the location of the root directory file on disk, and read the directory block in memory If directory spans multiple blocks, then read blocks until usr found Find out the i-number of directory usr, which is 6 Read in the i-node 6 from disk Find out the location of the directory file usr on disk, and read in the block containing this directory Find out the i-number of directory ast (26), and repeat 60

Traversing Unix Directory Structure The steps in looking up /usr/ast/mbox 61

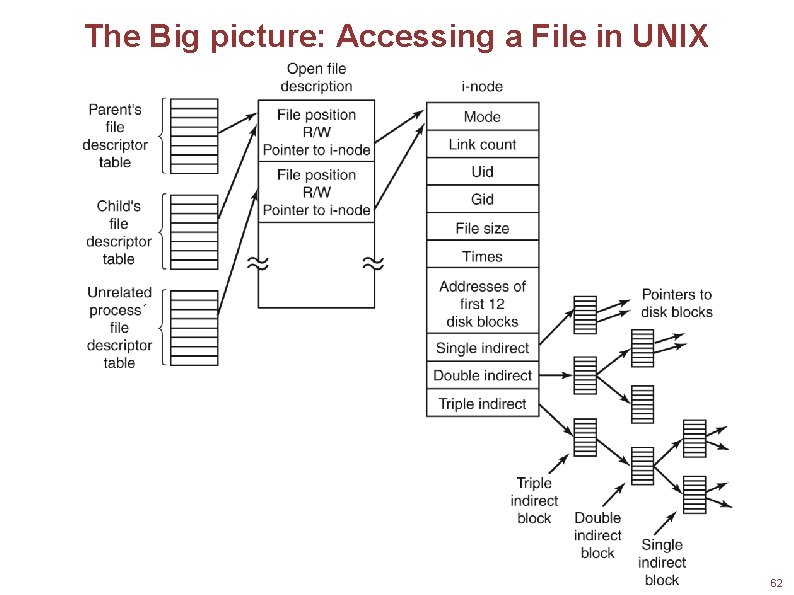

The Big picture: Accessing a File in UNIX 62

CD-ROM In 1985 a standard for the storage of computer data by Sony and Philips, CD-ROM (Compact Disc Read Only Memory) 63

CD-ROM and the ISO 9660 filesystem The CD has one single track, starts at the center of the disk and spirals out to the circumference of the disk This track is divided into sectors of equal size The base standard defines three levels of compliance • Level 1 limits file names to 8+3 format. Many special characters (space, hyphen, equals, and plus) are forbidden • Level 2 and 3 allow longer filenames (up to 31) and deeper directory structures (32 levels instead of 8) • Level 2 and 3 are not usable on some systems, like MS -DOS 64

ISO 9660 Extensions Rock Ridge Extensions to ISO-9660 file system Favored in the Unix world Lifts file name restrictions, but also allows Unix-style permissions and special files to be stored on the CD Machines that don't support Rock Ridge can still read the files because it's still an ISO -9660 file system (they won't see the long forms of the names) UNIX systems and the Mac support Rock Ridge DOS and Windows currently don't support it Joliet Favored in the MS Windows world Allows Unicode characters to be used for all text fields (including file names and the volume name) Disk is readable as ISO-9660, but shows the long filenames under MS Windows HFS (Hierarchical File System) Used by the Macintosh in place of the ISO-9660, making the disk unusable on systems that don't support HFS 65

Virtual File System Manages kernel level file abstractions in one format for all file systems. Receives system call requests from user level (e. g. write, open, stat, link) Interacts with a specific file system based on mount point traversal Receives request from other parts of the kernel, mostly from memory management. 66

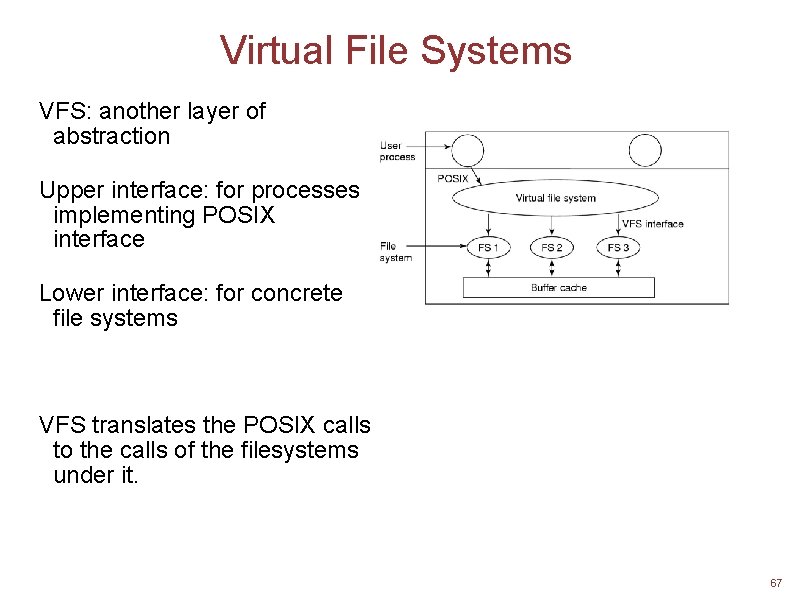

Virtual File Systems VFS: another layer of abstraction Upper interface: for processes implementing POSIX interface Lower interface: for concrete file systems VFS translates the POSIX calls to the calls of the filesystems under it. 67

File System Mounting A file system must be mounted before it can be accessed A unmounted file system is mounted at a mount point 68

VFS- 2 At boot time, the root filesystem is registered with VFS. When other filesystems are mounted, they must also register with VFS. When a filesystem registers, it provides the list of addresses of the functions that the VFS demands, such as reading a block. After registration, when one opens a file: open(“/usr/include/unistd. h”, O_RDONLY) VFS creates a v-node and makes a call to the concrete filesystem to return all the information needed. The created v-node also contains pointers to the table of functions for the concrete filesystem that the file resides. 69

Virtual File Systems (2) A simplified view of the data structures and code used by the VFS and concrete file system to do a read. 70
