Cellular Toxicity of Nanoparticles By Amber Cardell Nanoparticles

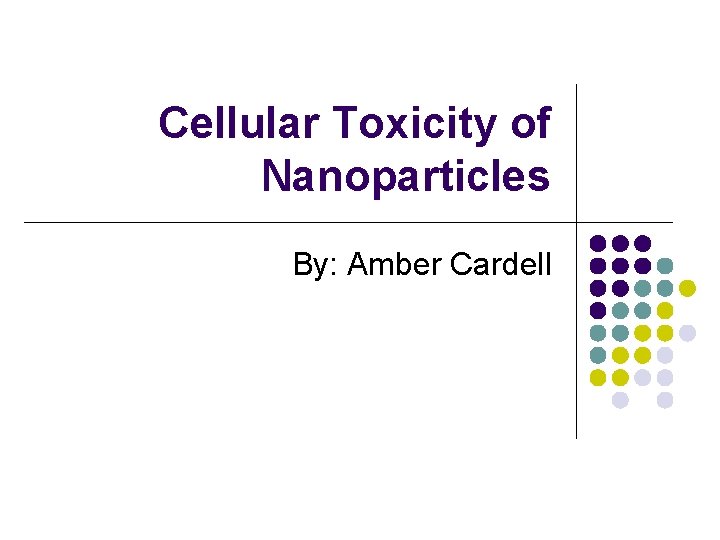

Cellular Toxicity of Nanoparticles By: Amber Cardell

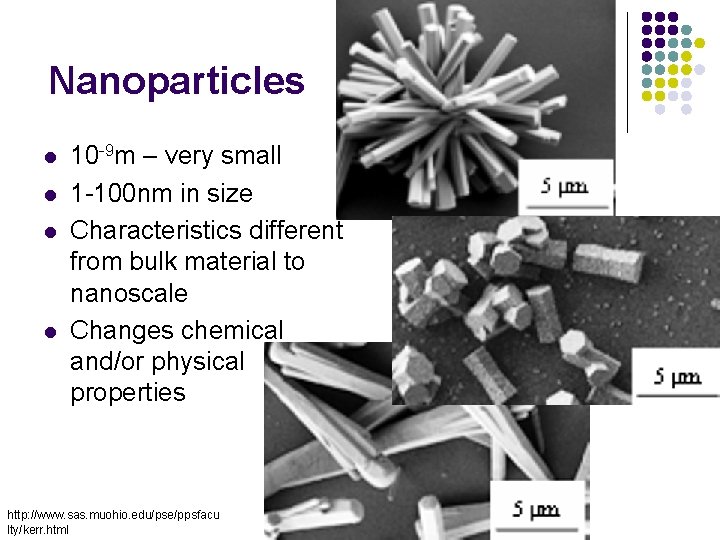

Nanoparticles l l 10 -9 m – very small 1 -100 nm in size Characteristics different from bulk material to nanoscale Changes chemical and/or physical properties http: //www. sas. muohio. edu/pse/ppsfacu lty/kerr. html

Nanoparticles- High Surface Area to Volume Ratio l l l High surface tension Tendency to adhere and clump Increases solubility Drives diffusion Reduces melting temp Increases catalytic activity

Problems with Nanoparticles l l l l Readily pass through cell membranes Can penetrate RBCs Can penetrate nuclei Can pass the blood-brain barrier Increased mobility and reactivity Can overload phagocytes Can adhere to macromolecules, altering biochemical pathways

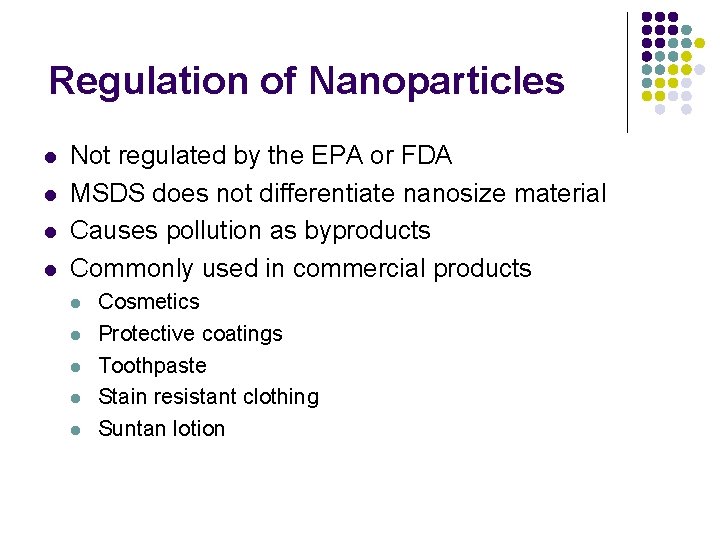

Regulation of Nanoparticles l l Not regulated by the EPA or FDA MSDS does not differentiate nanosize material Causes pollution as byproducts Commonly used in commercial products l l l Cosmetics Protective coatings Toothpaste Stain resistant clothing Suntan lotion

Materials and Methods l Cell culture l Chinese Hamster Ovary Cells (CHO-K 1) l l Transformed immortal cell line Sensitive to toxic agents Centrifuge cells Aseptic technique l l 70% ethanol- to sanitize all supplies UV light under hood to eliminate microbial contaminants in the work area

Materials and Methods l Controlled environment l l Culture plates and flasks 5% CO 2, 95% air 37°C Liquid Media l 90% Kaighn’s Modification § l l Essential nutrients for CHO cells 10% fetal bovine serum Penicillin-Streptomycin solution

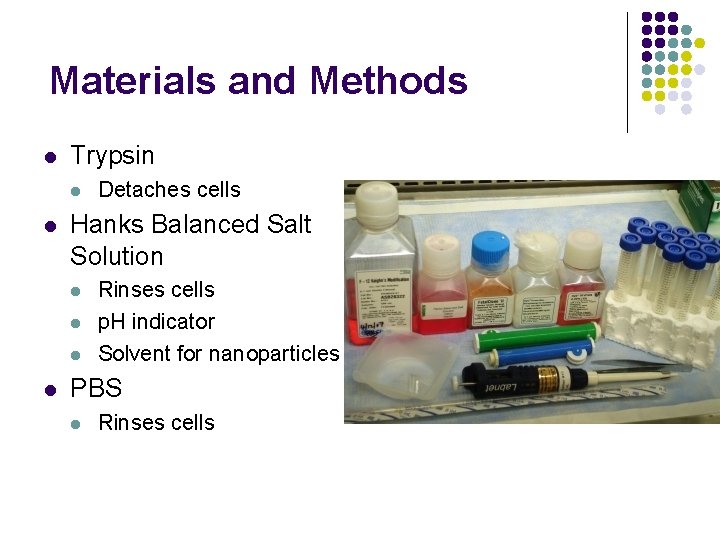

Materials and Methods l Trypsin l l Hanks Balanced Salt Solution l l Detaches cells Rinses cells p. H indicator Solvent for nanoparticles PBS l Rinses cells

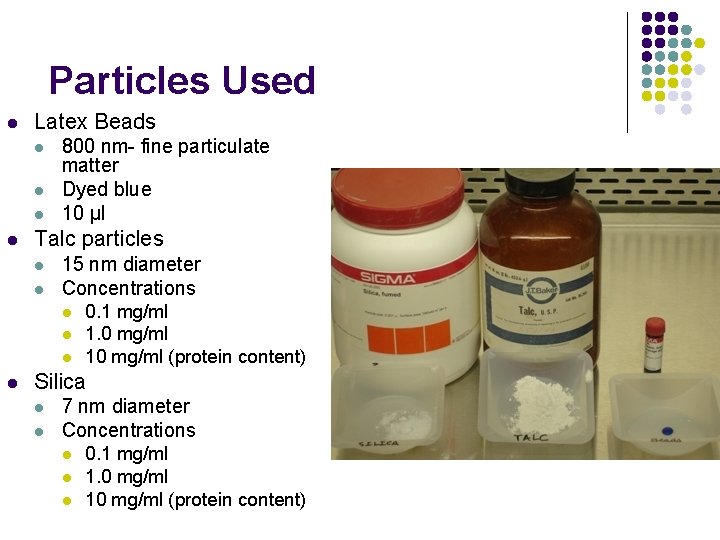

Particles Used l Latex Beads l l 800 nm- fine particulate matter Dyed blue 10 μl Talc particles l l 15 nm diameter Concentrations l l 0. 1 mg/ml 1. 0 mg/ml 10 mg/ml (protein content) Silica l l 7 nm diameter Concentrations l l l 0. 1 mg/ml 1. 0 mg/ml 10 mg/ml (protein content)

Toxicity Assays l l Phase Contrast Microscope Trypan Blue l l l Dead cells uptake dye Stored in nucleus Total Protein Content l l l Bradford assay Spectrophotometer l Standard curve Lower shows toxicity

CHO Cells- Control Cells treated with Media 24 hr exposure 100 x Normal Healthy Cell 400 x 1, 000 x

Experimental Results Cells treated with Latex Beads 10μl 24 hr exposure 100 x Beads inside cell 400 x 1, 000 x Beads outside cell

Experimental Results Cells treated with 1. 0 mg/ml talc 24 hr exposure 100 x 400 x 1, 000 x Dead cell

Experimental Results Cells treated with 1. 0 mg/ml Silica 24 hr exposure 100 x 400 x Dead Cell 1, 000 x

Cellular Toxicity

Total Cell Protein Content

Total Protein Content

Conclusions l l Nanoparticles were uptaken by the cells Cell mortality increased with exposure to nanoparticles Silica seemed to be the most toxic agent Further toxicity research is needed before continuing the use of nanoparticles in commercial products

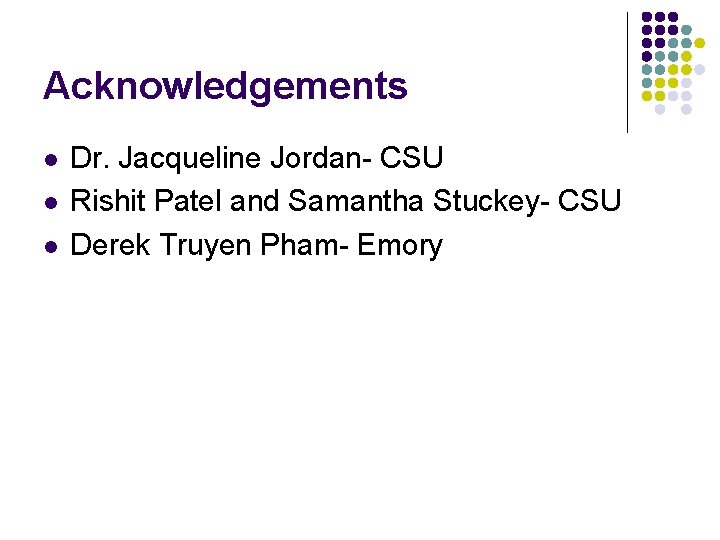

Acknowledgements l l l Dr. Jacqueline Jordan- CSU Rishit Patel and Samantha Stuckey- CSU Derek Truyen Pham- Emory
