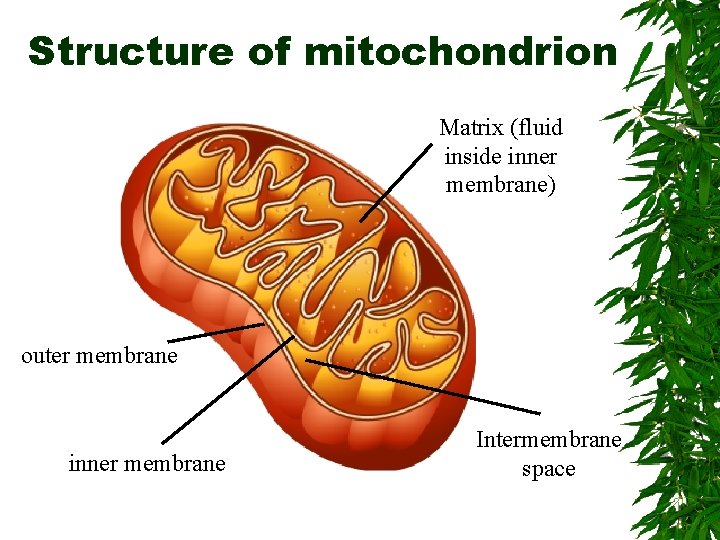

Structure of mitochondrion Matrix (fluid inside inner membrane) outer membrane inner membrane Intermembrane space

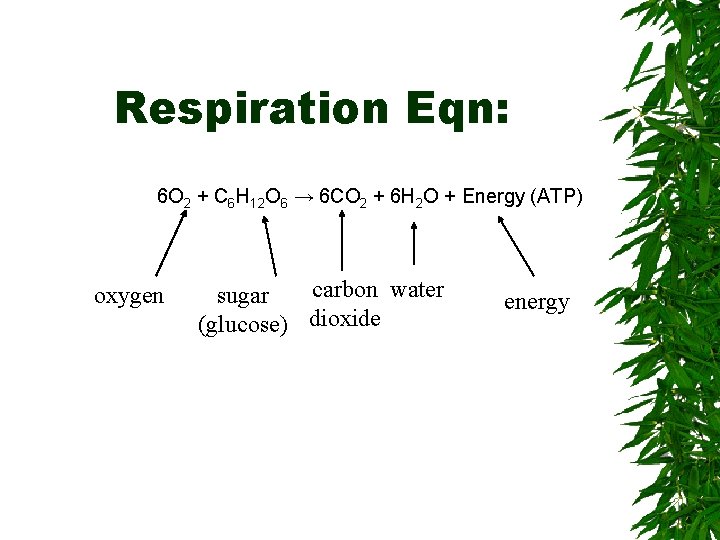

Respiration Eqn: 6 O 2 + C 6 H 12 O 6 → 6 CO 2 + 6 H 2 O + Energy (ATP) oxygen carbon water sugar (glucose) dioxide energy

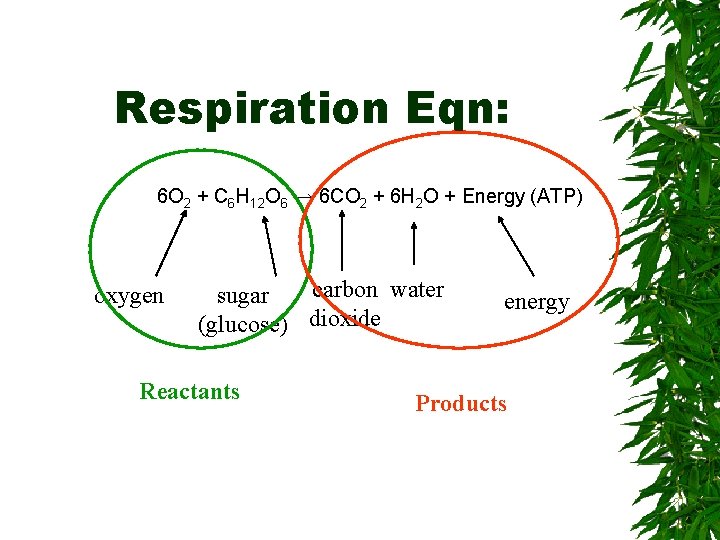

Respiration Eqn: 6 O 2 + C 6 H 12 O 6 → 6 CO 2 + 6 H 2 O + Energy (ATP) oxygen carbon water sugar (glucose) dioxide Reactants energy Products
Respiration Cellular respiration is the process that converts oxygen and sugar (glucose) into water, carbon dioxide, and energy (ATP).
What organisms go through respiration? All eukaryotes (animals, plants, fungi, and protista)
Steps of Cellular Respiration 1. Glycolysis 2. Kreb’s Cycle (Citric Acid Cycle) 3. Electron Transport Chain
Electrons carried in NADH Pyruvic acid Electrons carried in NADH and FADH 2 Glycolysis Cytoplasm Mitochondrion
Step 1: Glycolysis Glyco = glucose (sugar) Lysis = split or break up Occurs in cytoplasm of a eukaryotic cell

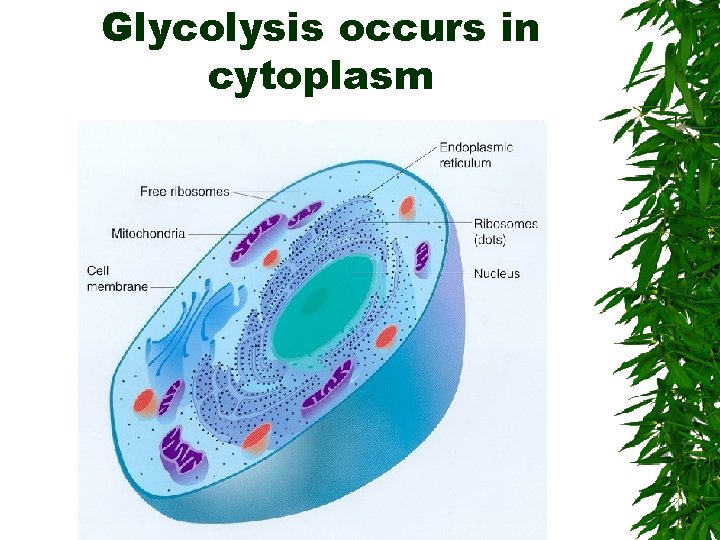

Glycolysis occurs in cytoplasm
Step 2: Kreb’s Cycle 1 . Glucose gets broken down even more to form carbon dioxide 2. Breaking down glucose further releases energy 3. The Krebs Cycle produces _2 ATP Occurs in matrix
Step 3: Electron Transport Chain 1. Uses energy from Krebs Cycle to change ADP into ATP 2. The ETC uses 2 ATP and produces 32 ATP Total ATP made during cellular respiration 36 produced – 2 used = 34 ATP
