Cellular IP Proxy Service Reference Incorporating proxy services

Cellular IP: Proxy Service Reference: “Incorporating proxy services into wide area cellular IP networks”; Zhimei Jiang; Li Fung Chang; Kim, B. J. J. ; Leung, K. K. ; Proc. IEEE Wireless Communications and Networking Conference (WCNC), 2000. pp. 246 – 252 (Cellular. IPImprv-1. pdf)

Introduction • Why Performance enhancing proxies? – Most of existing protocols and AP. are designed for wired networks – Many of them do not work properly or efficiently on wireless networks • How does a proxy work? – Mobile users communicate with the proxies which in turn exchange information with the destination servers on behalf of the mobile users – At the proxy, information from the original server is converted to make it suitable for the wireless environment 2

CIP Network with Proxies 3

Proxies outside CIP Networks • The performance is often compromised by the long latency between mobile users, proxy server, and original data server • Proxies have only limited access to information about the networks and the users due to security concern and nonexistence of convenient interfaces to wireless networks 4

Proxy Functions 5

Proxy Functions (cont) • Application proxy – Caching, prefetching Ø Two basic mechanisms for reducing access delay – Content transformation Ø Convert data to a format that is more suitable to the mobile user, based on information such as device characteristics, link conditions, and Qo. S requirements – Application protocol translation Ø Allows devices and servers that do not support a common protocol to exchange information through a proxy server 6

Existing Proxy Services 7

Design Considerations for Placing Proxies into CIP Networks • Two different aspects – Physical location in terms of the distance from the proxy to other key components of the net. Ø 1. Close to a gateway router: high concentration of traffic Ø 2. Close to an access router: aggregated traffic from a number of base stations Ø 3. Close to a base station: handle traffic for a single cell – Location of the proxy on the routing path between a base station and a gateway router 8

Proxies on the Routing Path 9

Design Consideration (cont) • Information required to support proxy functions – What commitments that the mobile network has made in terms of service quality Ø E. g. user’s Qo. S profile – What network performance can currently be supported by the network Ø E. g. current channel conditions – What users actually need for their current AP Ø E. g. AP requirements and user preference – What environment they are in Ø E. g. location information – What functions the devices can support? Ø E. g. device capabilities – Other information: billing method 10

Design Consideration (cont) • Network and server requirements – Network capacity Ø As far as channel information is concerned, the base station is the best location to obtain such information, while placing proxies close to gateway routers introduces the largest amount of traffic across the network – Proxy server capacity and scalability 11

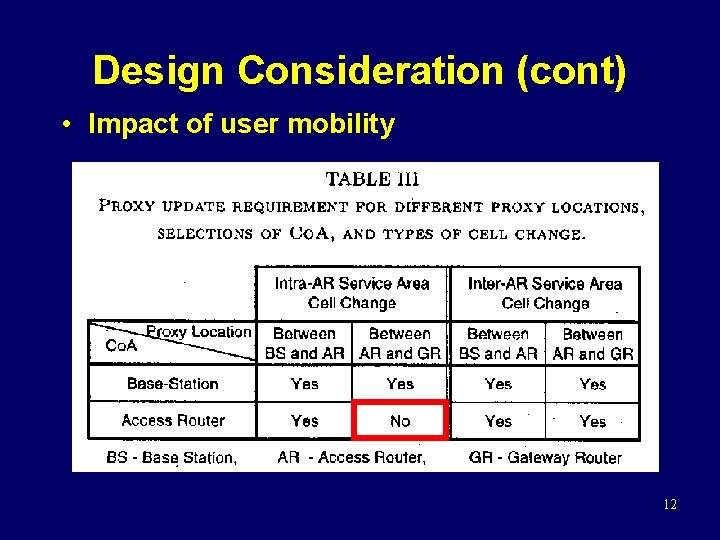

Design Consideration (cont) • Impact of user mobility 12

Design Consideration (cont) • A proxy may not need to be informed of the cell change only if all of the following 3 conditions hold: – 1. The care-of-address of the mobile station is the access router – 2. The proxy is accessed between the access router and the gateway router – 3. The cell change is within the coverage area of the same access router 13

Design Consideration (cont) • Location of the proxy functions – If a proxy is placed close to the gateway router Ø It has to be powerful enough to handle the high concentration of traffic – If a proxy is placed close the access router Ø It has relatively easier access to the device and channel information – Proxies close to base stations Ø Enjoy most convenient access to the channel information – Other issues Ø Service discovery, security, reliability, cost, etc. 14

Incorporating Proxies into GPRS 15

GPRS Overview • General Packet Radio Service • Introduced in the GSM phase 2 standard • Two important network entities – Serving GPRS Support Node (SGSN) Ø Corresponds to the Access Router in CIP networks – Gateway GPRS Support Node (GGSN) Ø Corresponds to Gateway Router in CIP networks Ø Is connected with SGSNs via an IP-based GPRS backbone network Ø Contains the routing information to SGSN for the current GPRS users, which means in mobility management, the Co. A of an MS is the address of its SGSN 16

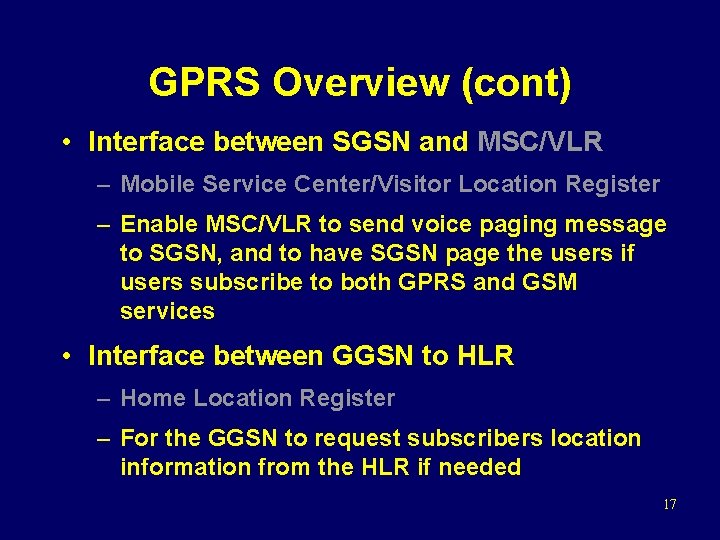

GPRS Overview (cont) • Interface between SGSN and MSC/VLR – Mobile Service Center/Visitor Location Register – Enable MSC/VLR to send voice paging message to SGSN, and to have SGSN page the users if users subscribe to both GPRS and GSM services • Interface between GGSN to HLR – Home Location Register – For the GGSN to request subscribers location information from the HLR if needed 17

GPRS Overview (cont) • PDP context – Packet Data Protocol – Contain routing information forwarding packets between GGSN and MS, and between SGSN and public data network respectively – PDP context activation can be initiated by MS or by the network – When an MS wants to activate access to the public data network, it needs to inform the network to activate a PDP context 18

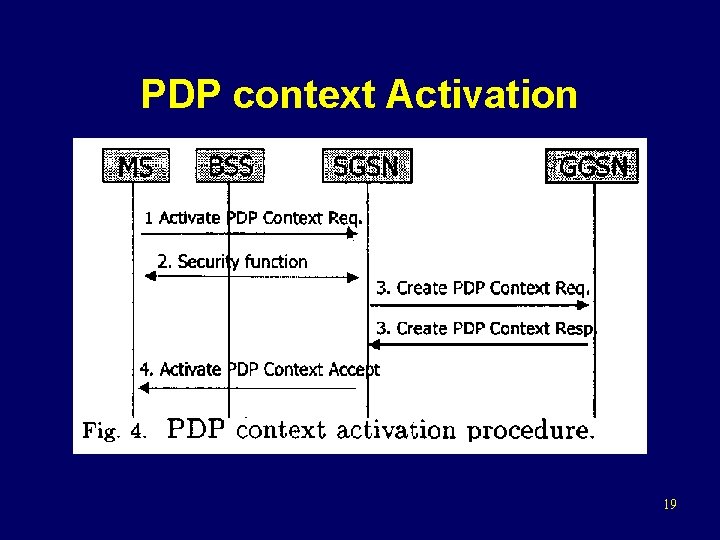

PDP context Activation 19

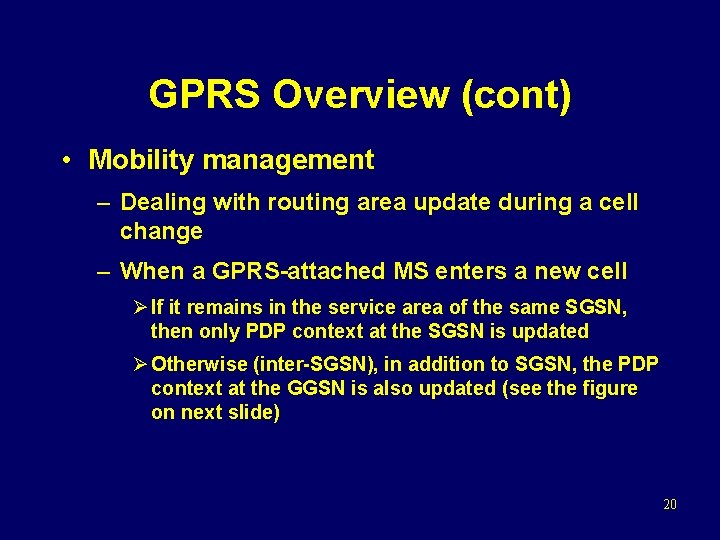

GPRS Overview (cont) • Mobility management – Dealing with routing area update during a cell change – When a GPRS-attached MS enters a new cell Ø If it remains in the service area of the same SGSN, then only PDP context at the SGSN is updated Ø Otherwise (inter-SGSN), in addition to SGSN, the PDP context at the GGSN is also updated (see the figure on next slide) 20

Inter-SGSN Routing Area Update 21

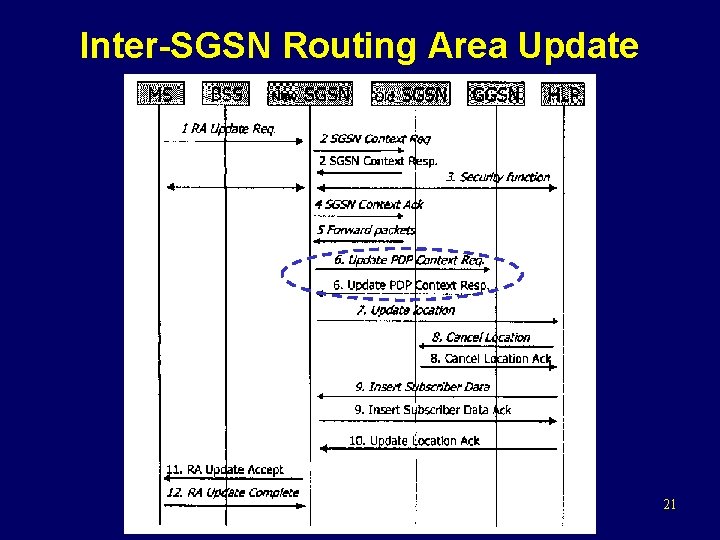

Inter-SGSN Routing Area Update (cont) • 1. When an MS detects a new routing area – Sends a Route Area Update Request to the new SGSN (step 1) • 2. The new SGSN – Requests for the MS state information and data packets from the old SGSN (step 2 -5), so that it may continue forwarding packets to the MS • 3. In addition, location information is updated (step 6 -10) 22

Adding Proxies to GPRS • Very difficult to place proxy functions at base stations or between base station and SGSN without any major modifications to the GPRS architecture • Thus, focus on how to support proxy functions between SGSN and GGSN with minor modifications to the GPRS architecture – Routing controlled by PDP context – Mobility management 23

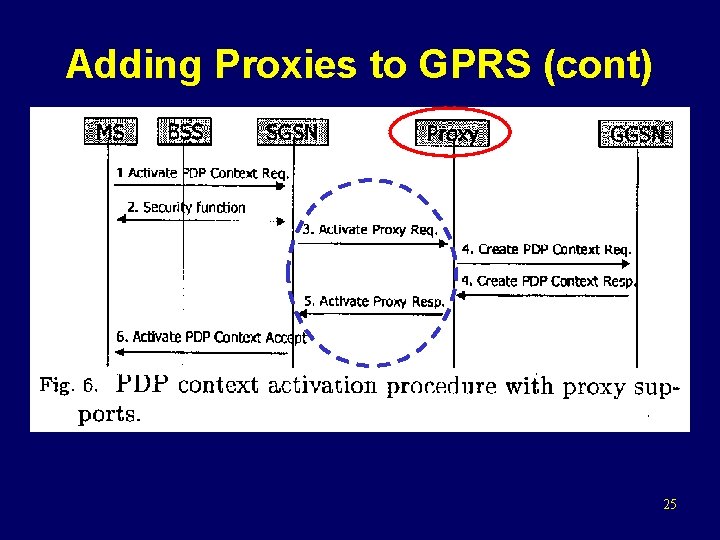

Adding Proxies to GPRS (cont) • PDP context and routing – A PDP context is created so that the corresponding SGSN and GGSN will send packets to the proxy server instead of to each other directly – The proxy server also creates a copy of the PDP context during the PDP context activation procedure, which contains the addresses of the SGSN and GGSN that are serving the mobile station 24

Adding Proxies to GPRS (cont) 25

Adding Proxies to GPRS (cont) • Mobility update – 1. Intra-SGSN, hence intra-proxy Ø MS stays within the service area of an SGSN after a cell change. The proxy does not need to be informed unless the proxy function requires information that is specific to the base station – 2. Inter-SGSN, but intra-proxy Ø MS has just moved into the service area of another SGSN but is still covered by the same proxy server Ø The proxy server should be informed about the change Ø The mobility update procedure is very similar to that shown in Figure 5 (slide 21) except for step 6 Ø Step 6 should update the proxy context at the proxy server – 3. Inter-SGSN and inter-proxy (next slide) 26

Adding Proxies to GPRS (cont) 27

Summary • Incorporates proxies into cellular networks – Balancing trade-offs between: Ø What information the proxy requires Ø The latency requirement for obtaining required information Ø The amount of extra traffic it generates Ø Mobility management – E. g. adding proxy support to GPRS 28
