CELLMEDIATED IMMUNITY Antigen presentation Formation of viral proteins

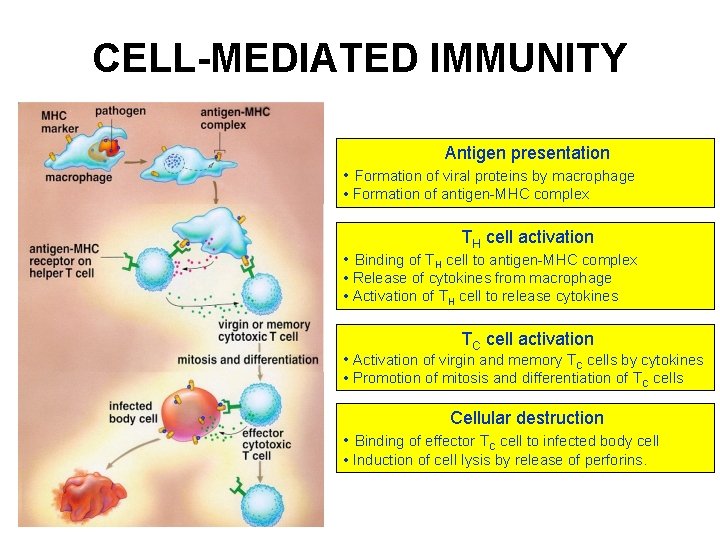

CELL-MEDIATED IMMUNITY Antigen presentation • Formation of viral proteins by macrophage • Formation of antigen-MHC complex TH cell activation • Binding of TH cell to antigen-MHC complex • Release of cytokines from macrophage • Activation of TH cell to release cytokines TC cell activation • Activation of virgin and memory TC cells by cytokines • Promotion of mitosis and differentiation of TC cells Cellular destruction • Binding of effector TC cell to infected body cell • Induction of cell lysis by release of perforins.

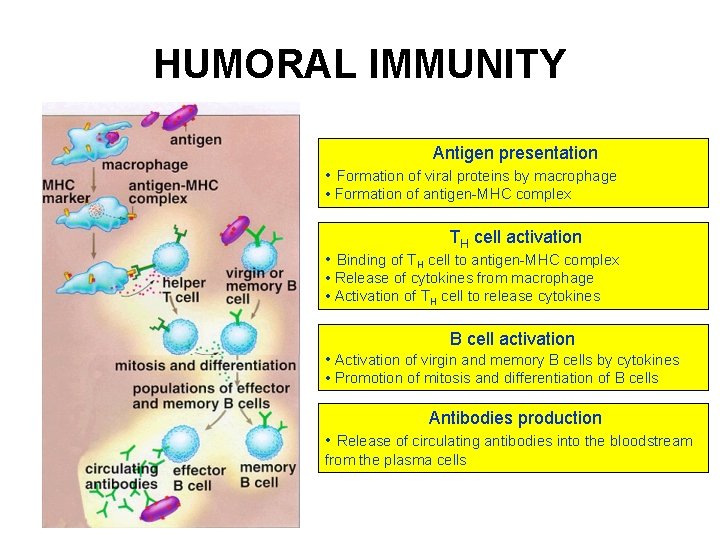

HUMORAL IMMUNITY Antigen presentation • Formation of viral proteins by macrophage • Formation of antigen-MHC complex TH cell activation • Binding of TH cell to antigen-MHC complex • Release of cytokines from macrophage • Activation of TH cell to release cytokines B cell activation • Activation of virgin and memory B cells by cytokines • Promotion of mitosis and differentiation of B cells Antibodies production • Release of circulating antibodies into the bloodstream from the plasma cells

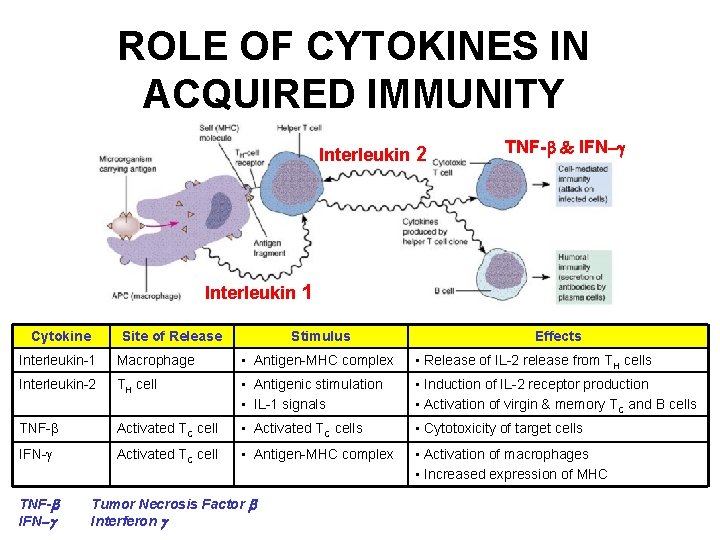

ROLE OF CYTOKINES IN ACQUIRED IMMUNITY Interleukin 2 TNF-b & IFN-g Interleukin 1 Cytokine Site of Release Stimulus Effects Interleukin-1 Macrophage • Antigen-MHC complex • Release of IL-2 release from TH cells Interleukin-2 TH cell • Antigenic stimulation • IL-1 signals • Induction of IL-2 receptor production • Activation of virgin & memory TC and B cells TNF-b Activated TC cell • Activated TC cells • Cytotoxicity of target cells IFN-g Activated TC cell • Antigen-MHC complex • Activation of macrophages • Increased expression of MHC TNF-b IFN-g Tumor Necrosis Factor b Interferon g

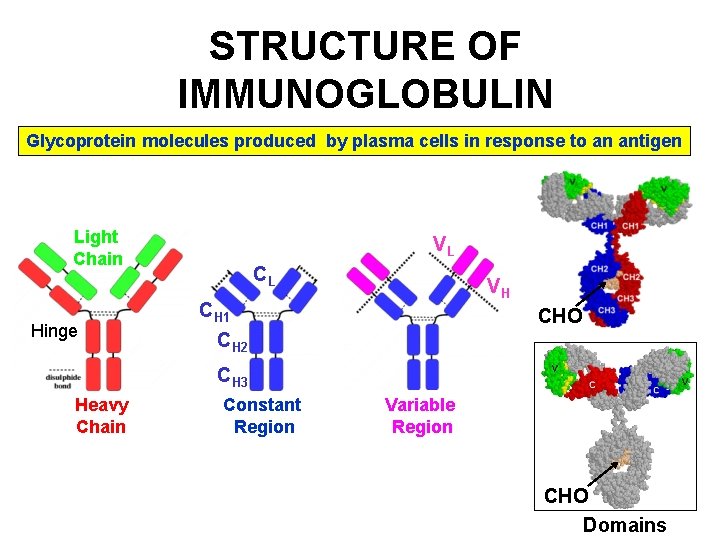

STRUCTURE OF IMMUNOGLOBULIN Glycoprotein molecules produced by plasma cells in response to an antigen Light Chain Hinge VL CL VH CH 1 CH 2 CHO CH 3 Heavy Chain Constant Region Variable Region CHO Domains

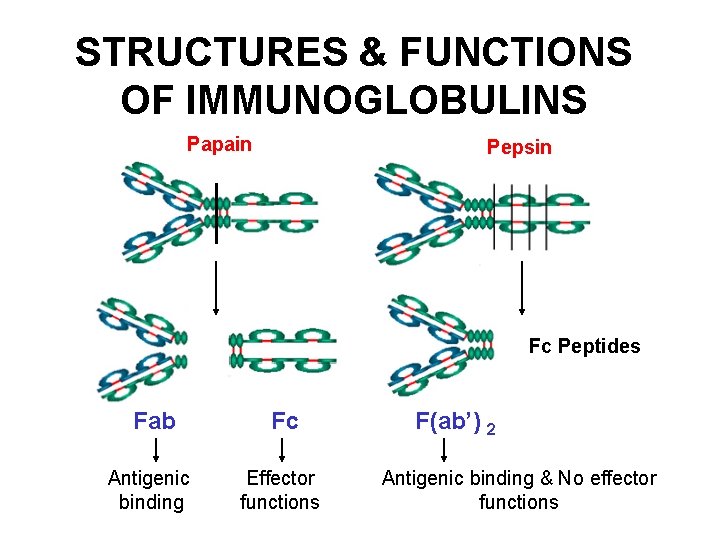

STRUCTURES & FUNCTIONS OF IMMUNOGLOBULINS Papain Pepsin Fc Peptides Fab Fc Antigenic binding Effector functions F(ab’) 2 Antigenic binding & No effector functions

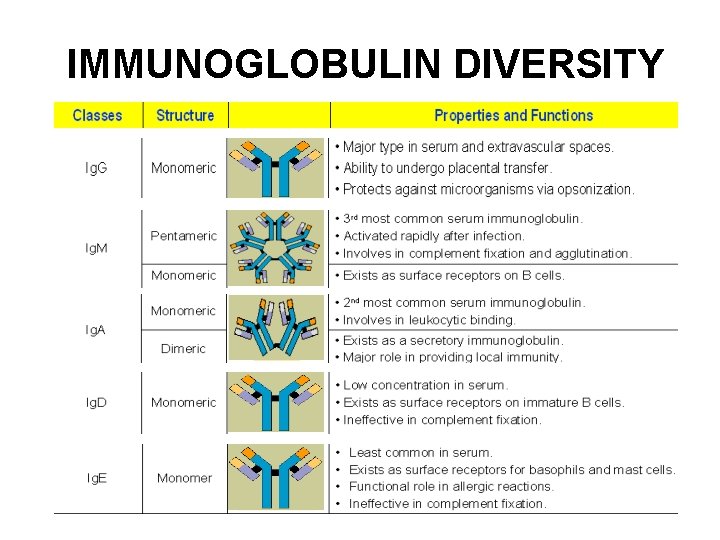

IMMUNOGLOBULIN DIVERSITY

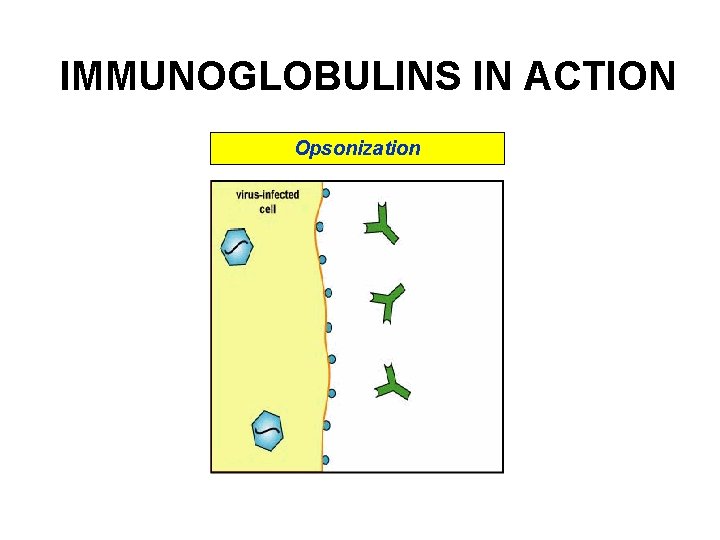

IMMUNOGLOBULINS IN ACTION Opsonization

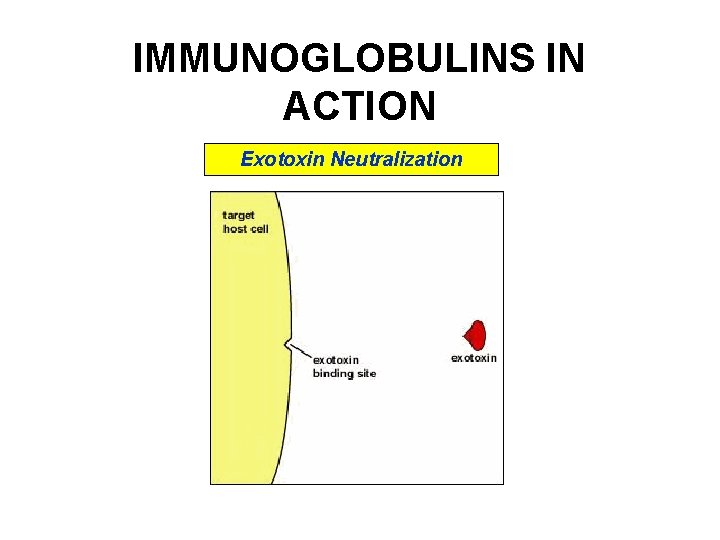

IMMUNOGLOBULINS IN ACTION Exotoxin Neutralization

IMMUNOGLOBULINS IN ACTION Viral Neutralization

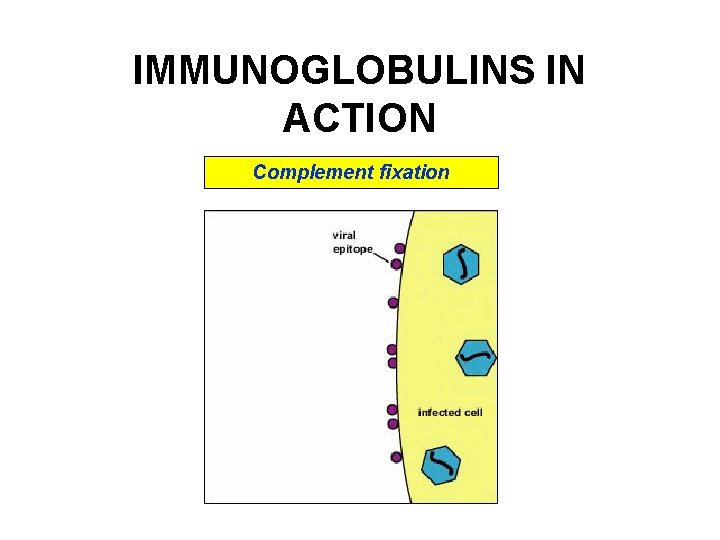

IMMUNOGLOBULINS IN ACTION Complement fixation

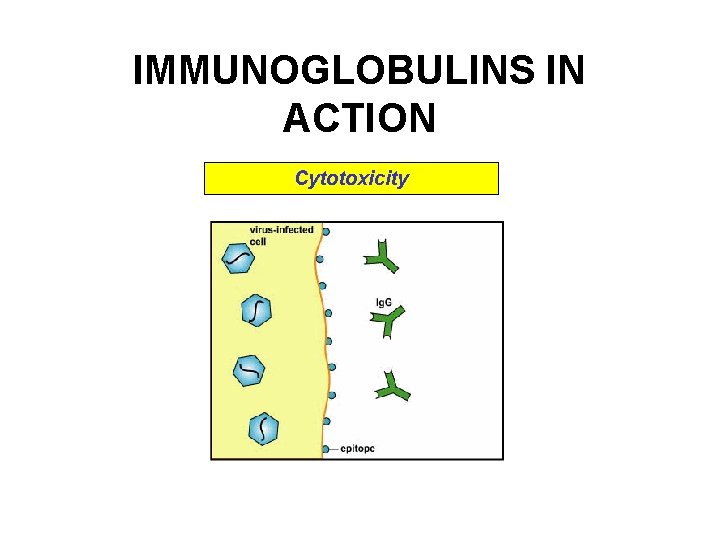

IMMUNOGLOBULINS IN ACTION Cytotoxicity

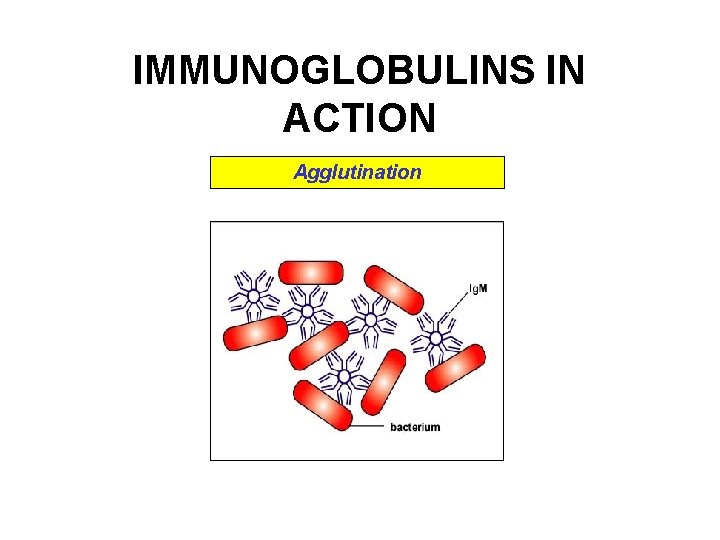

IMMUNOGLOBULINS IN ACTION Agglutination

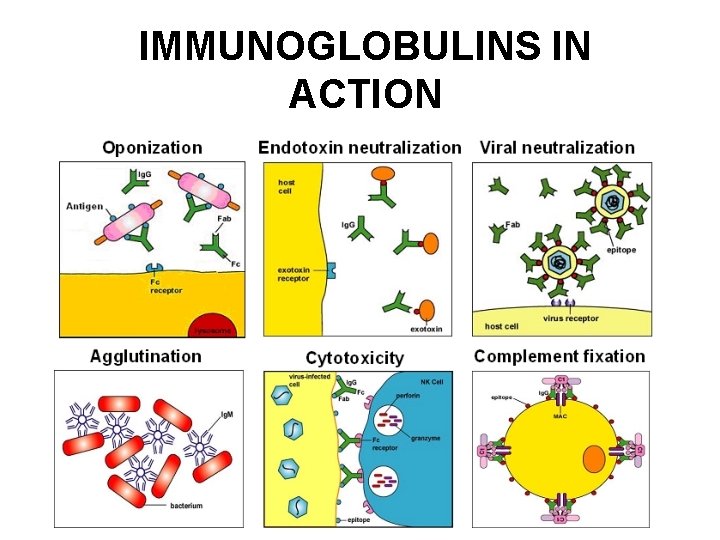

IMMUNOGLOBULINS IN ACTION

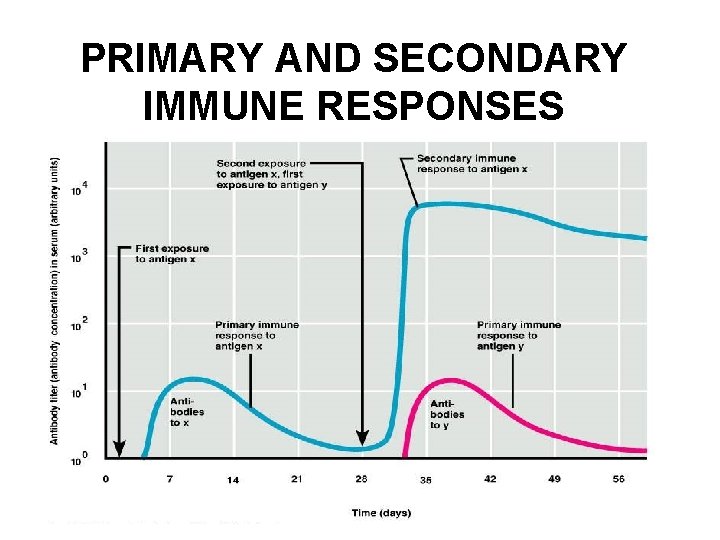

PRIMARY AND SECONDARY IMMUNE RESPONSES

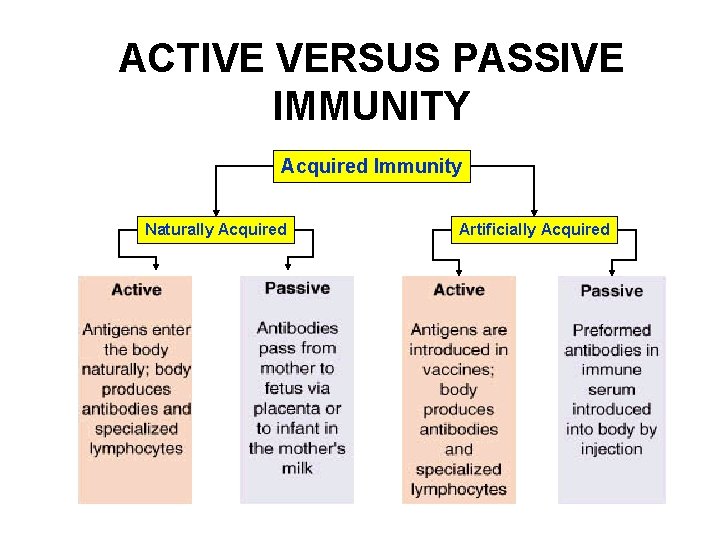

ACTIVE VERSUS PASSIVE IMMUNITY Acquired Immunity Naturally Acquired Artificially Acquired
